ELP 1080P IR Infrared Day Night Vision USB Camera 3.6mm Lens VGA@100fps Security Camera 2MP UVC for 3D Printers/Pet Monitoring
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.Shenzhen Ltd.
Share on (1601350652885):
Product Overview
Description
ELP 2MP Night Vision IR LED M12 3.6mm Lens IR-Cut USB Camera High Frame Rate 640x480@100fps Surveillance Webcam For Car/Bus/Home Surveillance System & Darkness Environment
2MP IR LED Infrared USB Camera with VGA@100fps
* High frame rate: deliver 100fps@640*480, 60fp@1280X720, 30fps in 1920X1080 resolution.
* CMOS 1/2.7inch OV2710 sensor for high quality image and low power consumption.
* Equipped with M12 3.6mm lens, HFOV 90 degree
* IR LEDs and IR-CUT for night vision
* High speed USB 2.0 interface for high resolution PC camera interface.
* Support OTG, can connect to your mobilephone, Tablet, mini PC via OTG Cable
* Mini Metal Box Housing, 42*42mm Size
* Free Driver: UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
* High frame rate: deliver 100fps@640*480, 60fp@1280X720, 30fps in 1920X1080 resolution.
* CMOS 1/2.7inch OV2710 sensor for high quality image and low power consumption.
* Equipped with M12 3.6mm lens, HFOV 90 degree
* IR LEDs and IR-CUT for night vision
* High speed USB 2.0 interface for high resolution PC camera interface.
* Support OTG, can connect to your mobilephone, Tablet, mini PC via OTG Cable
* Mini Metal Box Housing, 42*42mm Size
* Free Driver: UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
Model | ELP-USBFHD05MT-KL36IR(3.6mm lens, HFOV 90 degree) option for: ELP-USBFHD05MT-KL21IR(2.1mm lens, HFOV 115 degree) ELP-USBFHD05MT-KL28IR(2.8mm lens, HFOV 113 degree) ELP-USBFHD05MT-KL60IR (6mm lens, HFOV 53 degree) ELP-USBFHD05MT-KL80IR (8mm lens, HFOV 42 degree) ELP-USBFHD05MT-KL12IR (12mm lens, HFOV 25 degree) |
Sensor | 1/2.7" CMOS OV2710 |
Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
Max. Resolution | 1920X1080 |
Picture format | MJPEG/ YUY2 |
USB Protocal | USB2.0 HS/FS, USB1.1 FS |
Support free driver | USB Video Class(UVC)1.1 |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 6fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 20fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 100fps YUY2 30fps |
Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision | With 10pcs IR LED, with night vision |
Lens | M12 mount 3.6mm lens, HFOV about 90 degre (2.1/2.8/6/8/12mm... optional) |
Voltage | DC 5V |
Current | 130-180mA |
Work temperature | DEGREES(-10~70) |
Storage temperature | -20~85 degree |
Case Size | 42x42mm/ about 220g |
Support OS | WinXP/Vista/WIN7/WIN8/WIN9/WIN10/WIN11 etc Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |

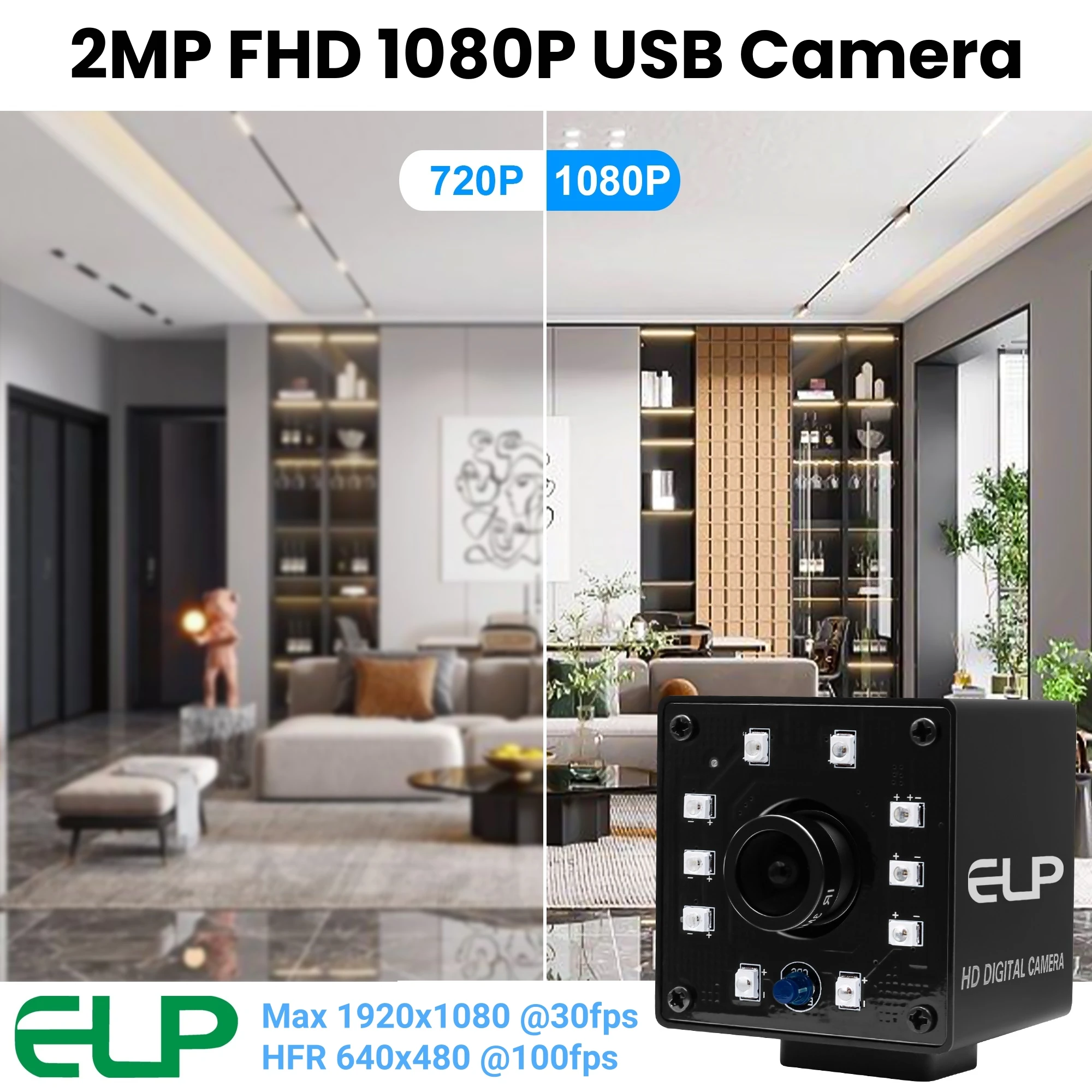

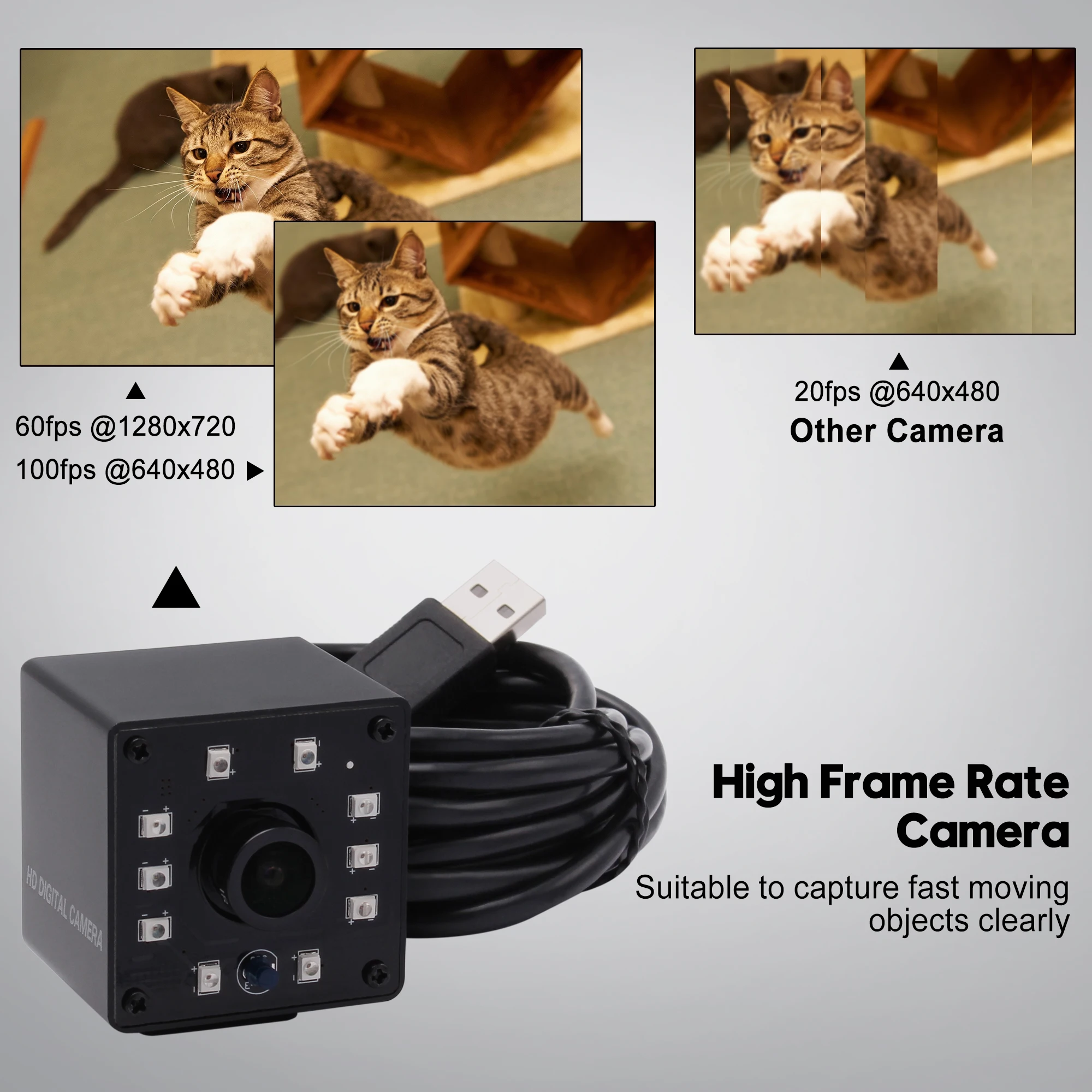

2MP Max resolution 1920×1080 for great picture performance. The picture quality is very crisp, with good contrast, and great performance in the dark, it does produce 1920x1080 at 30fps, 1280x720 at 60fps and 640x480 at 100fps.

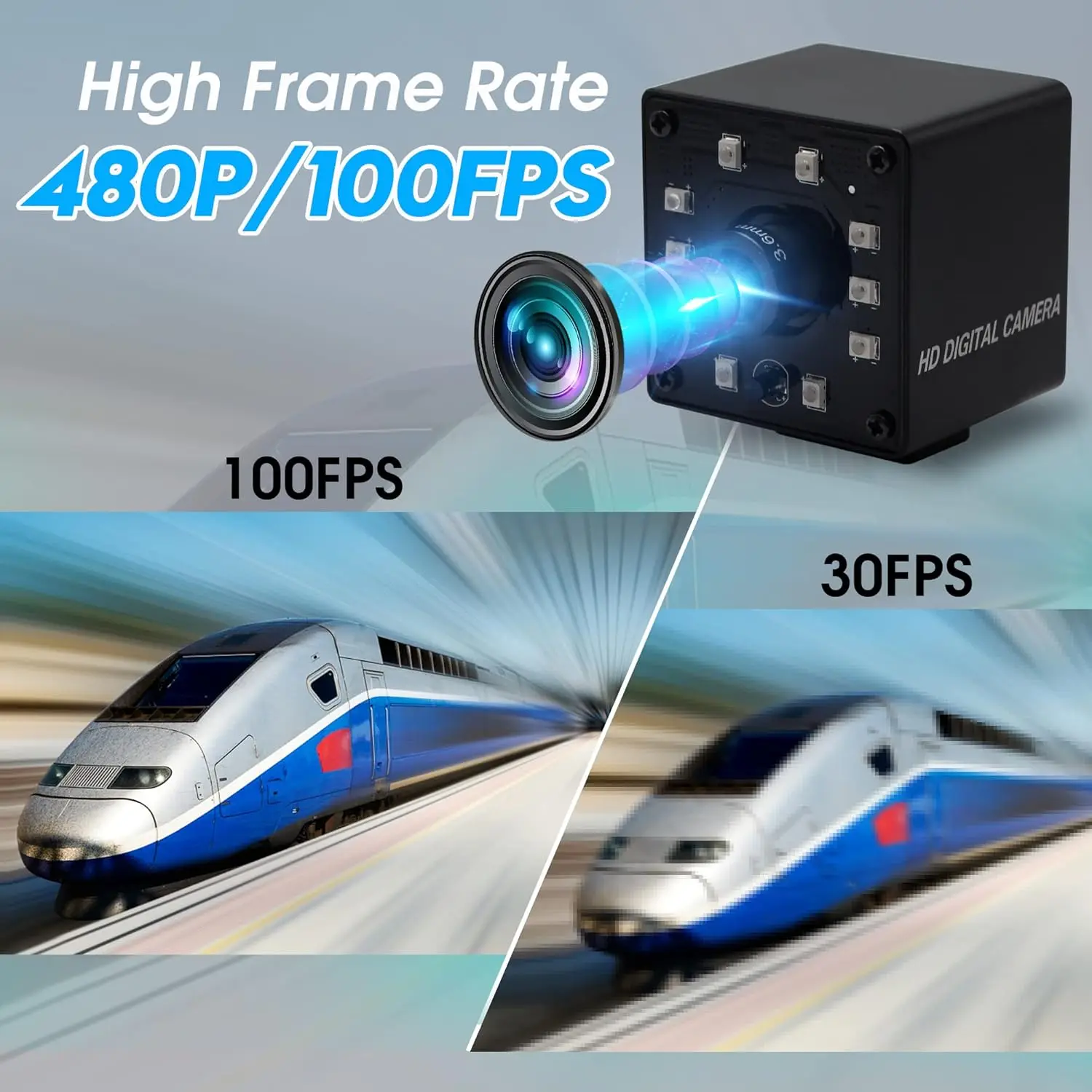

The sensor resolution at 30 FPS is great, you have a very high level of control over all the camera settings and there is even a high speed (100 FPS) mode at 480P if your trying to do some "slow-mo" photography.

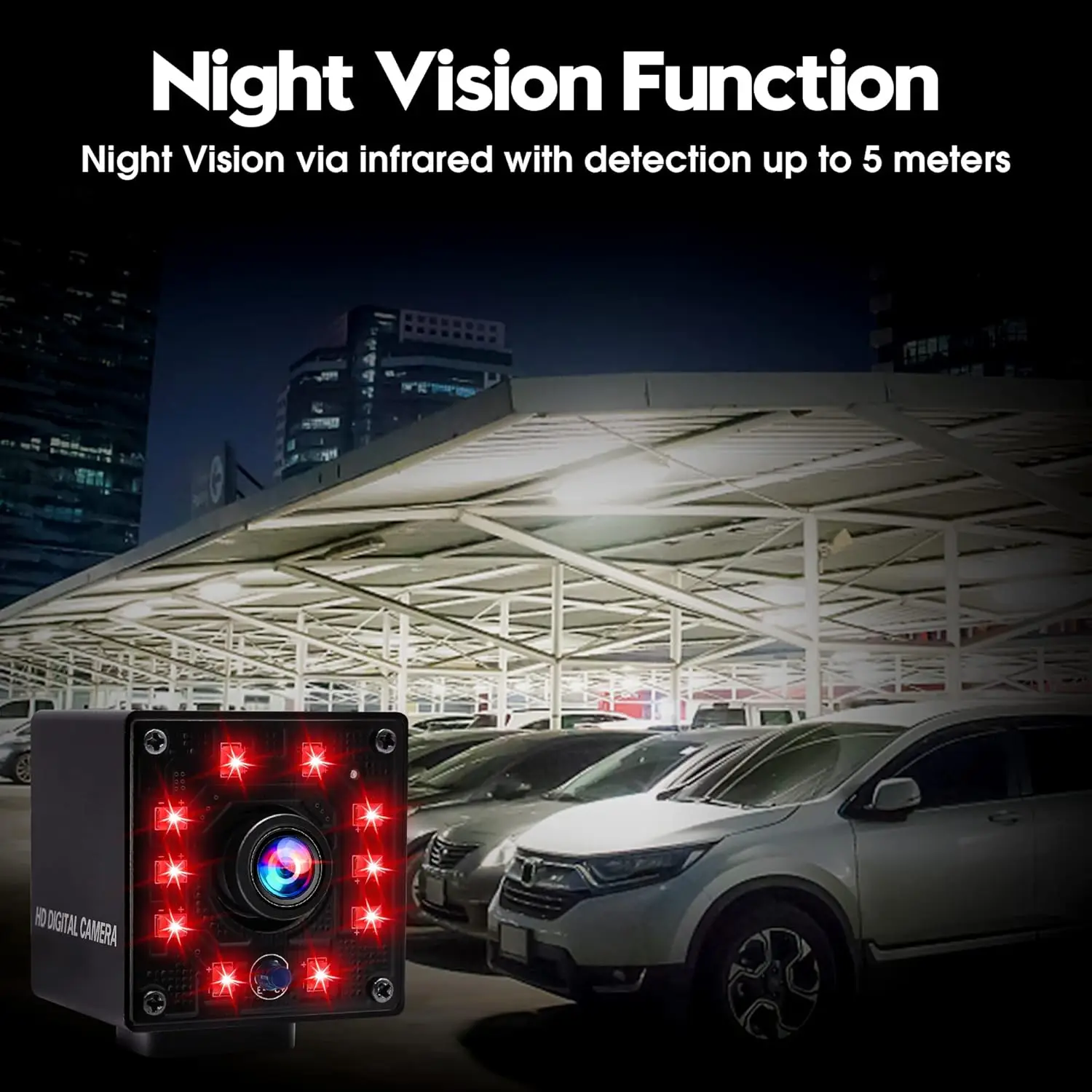

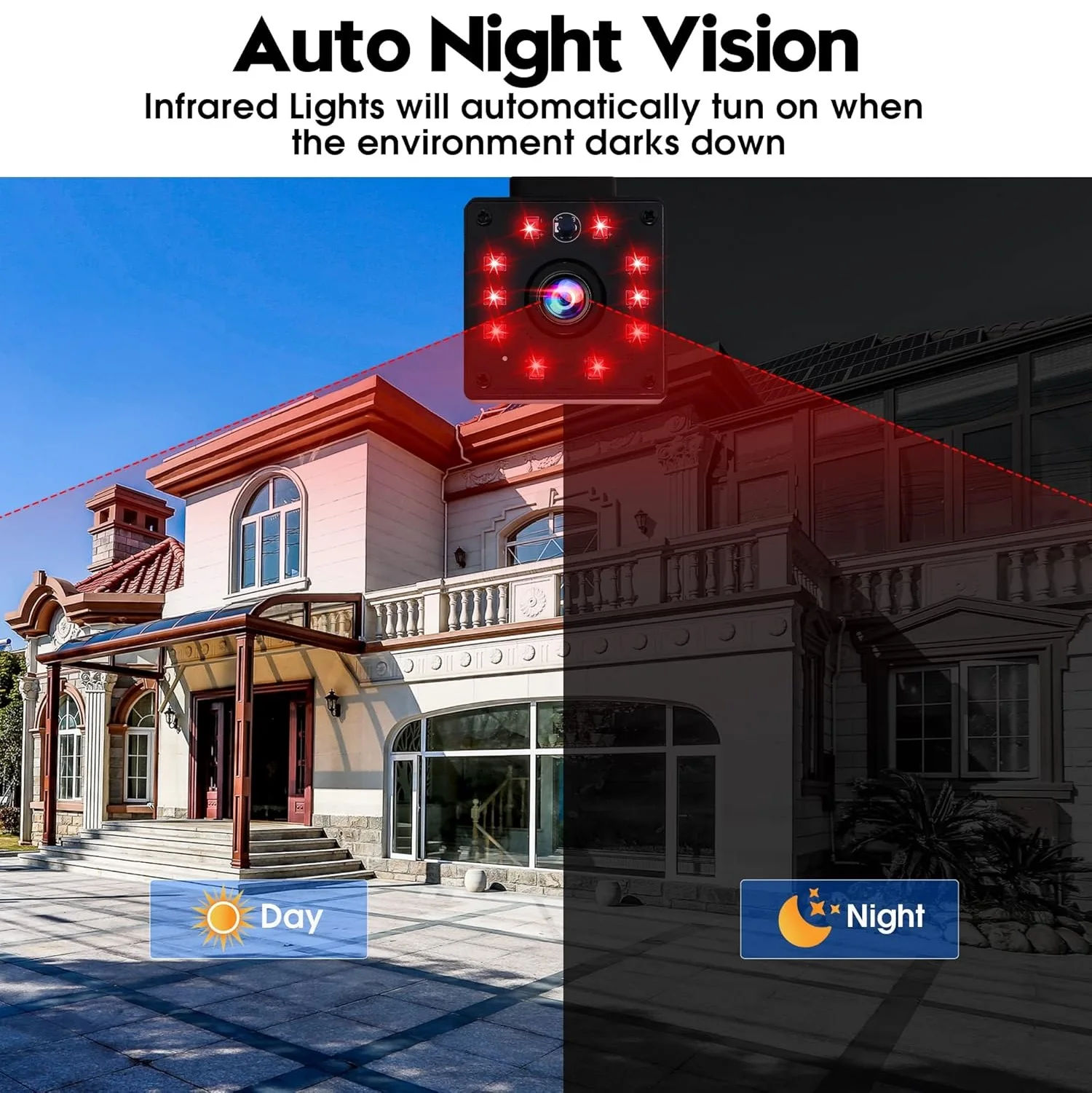

IR-CUT/ IR LED in Day & Night vision: This camera has infrared lighting that will automatically turn on (and switch the camera to b/w) if the light isn't bright enough. The motorized (switchable) IR-CUT filter and infrared LEDs can be triggered by the photoresistor according to the light environment to be ON/OFF to block or pass the infrared light.

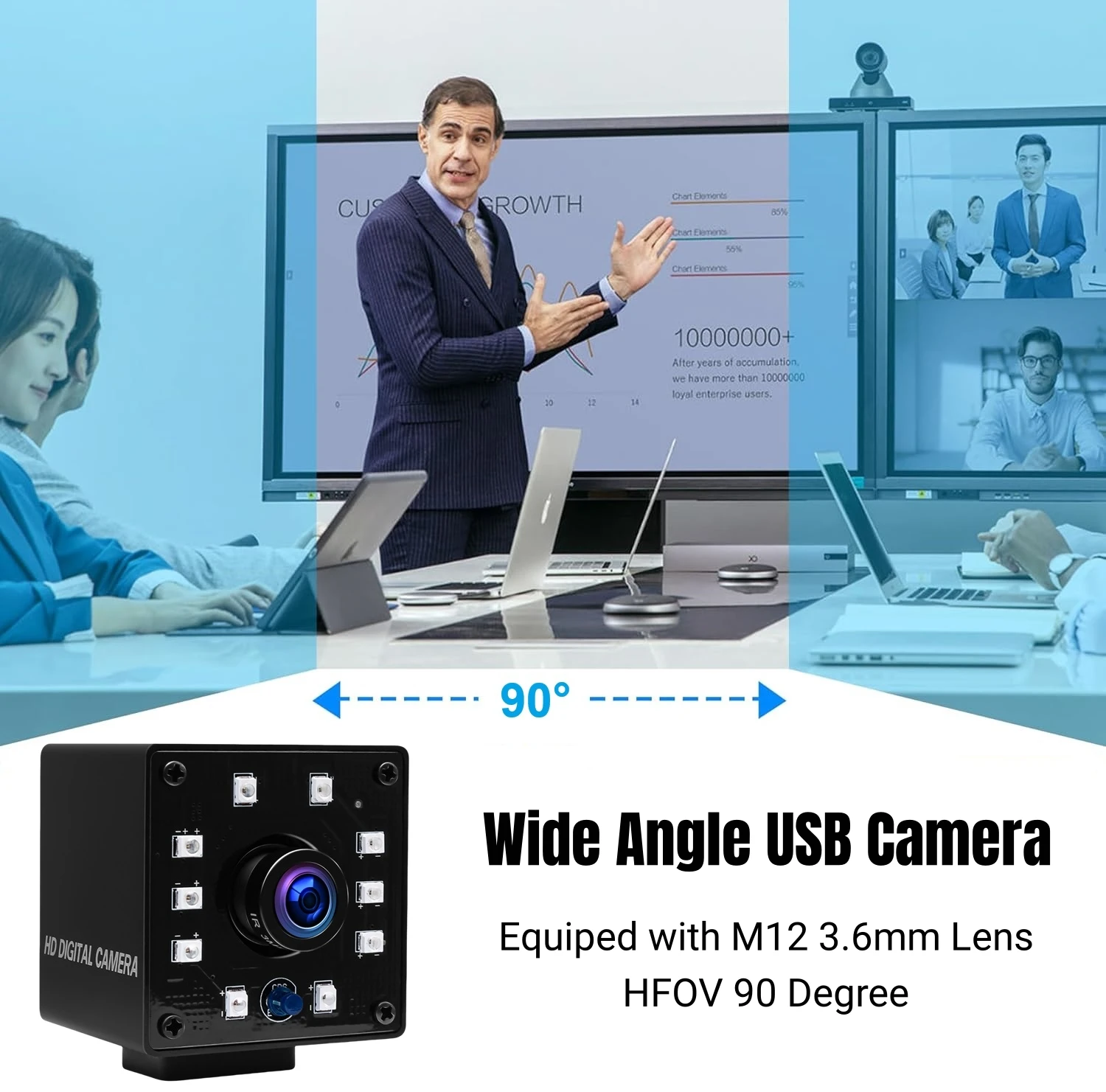

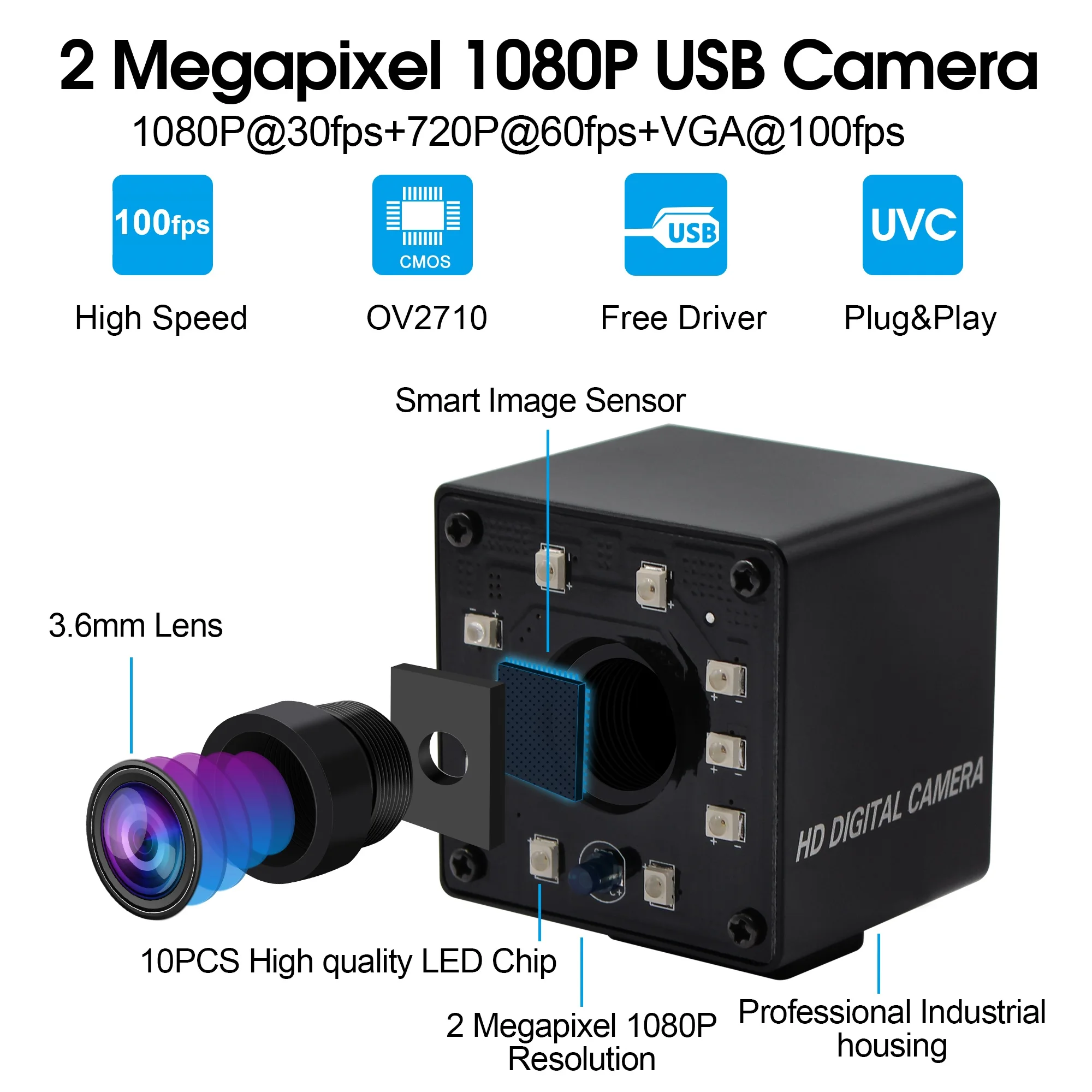

Equipped with M12 Mount 3.6mm lens, provides wide angle view 90 degree to be as a surveillance cameras for many applications.

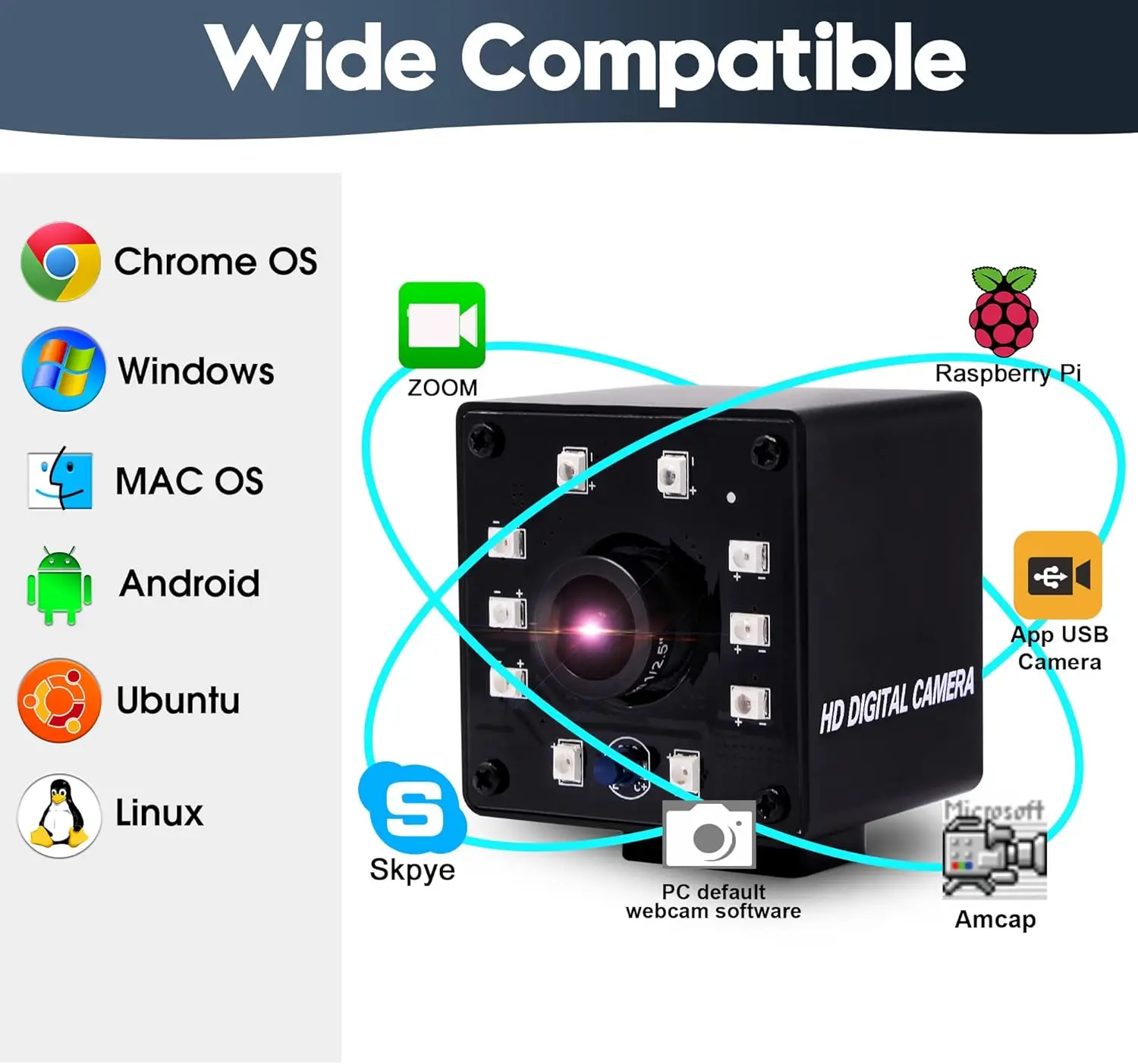

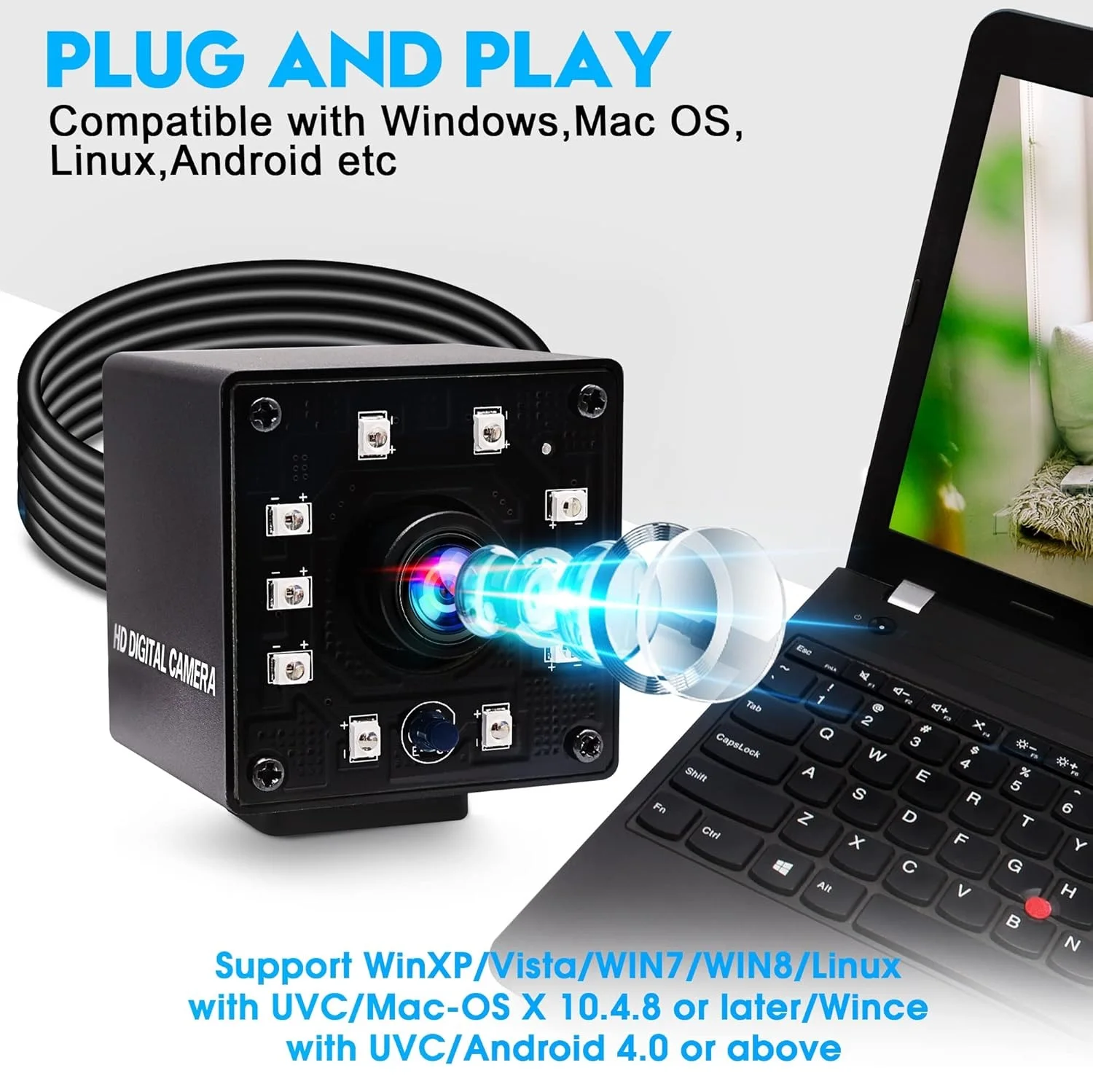

Plug&Play: no driver required. This camera works great running into a USB2 port, compatible with the various platforms such as Linux, Windows, Andriod, and Mac OS; it also supports the use of Zoom/Skype/Facetime and other video streaming APP.
The OV2710-Webam is a true full HD (1080p) CMOS image, a specialized camera with a very high quality image sensor, heavy duty case and IR emitters.
This is very solidly built, having a thick aluminum shell with built-in a standard 1/4" mount tripod socket. Measuring just 42x42x36mm and lightweight. This makes it easy to install in a variety of locations and minimizes the impact on the overall weight of the system. Package includes 1pcs 2MP USB camera and 1pcs 3m USB cable.
It's a reliable and high-quality camera that is well-suited for applications that require the ability to capture images in complete darkness. Its compact size, wide viewing angle, and automatic day/night mode switching make it a great choice for a wide range of projects.

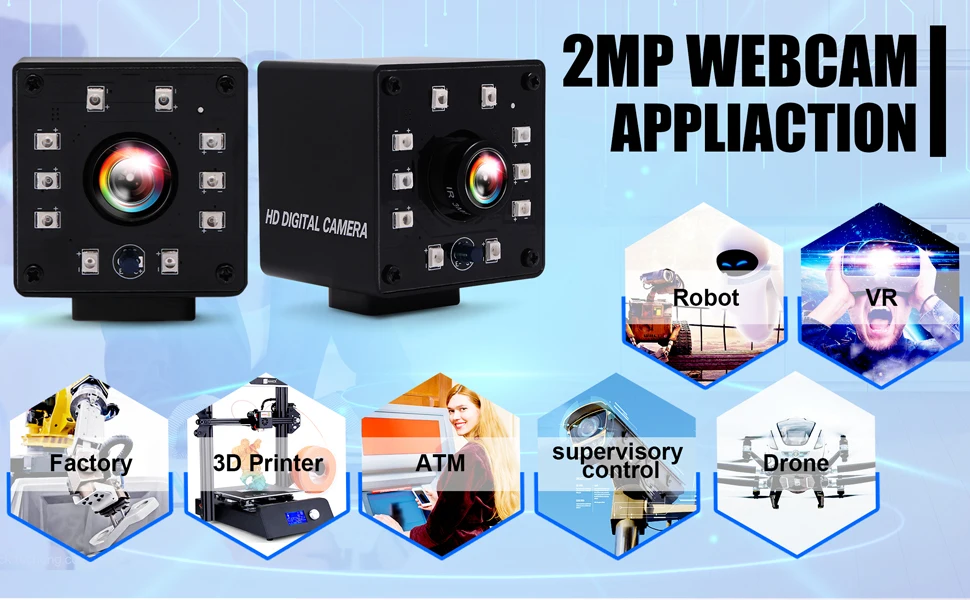

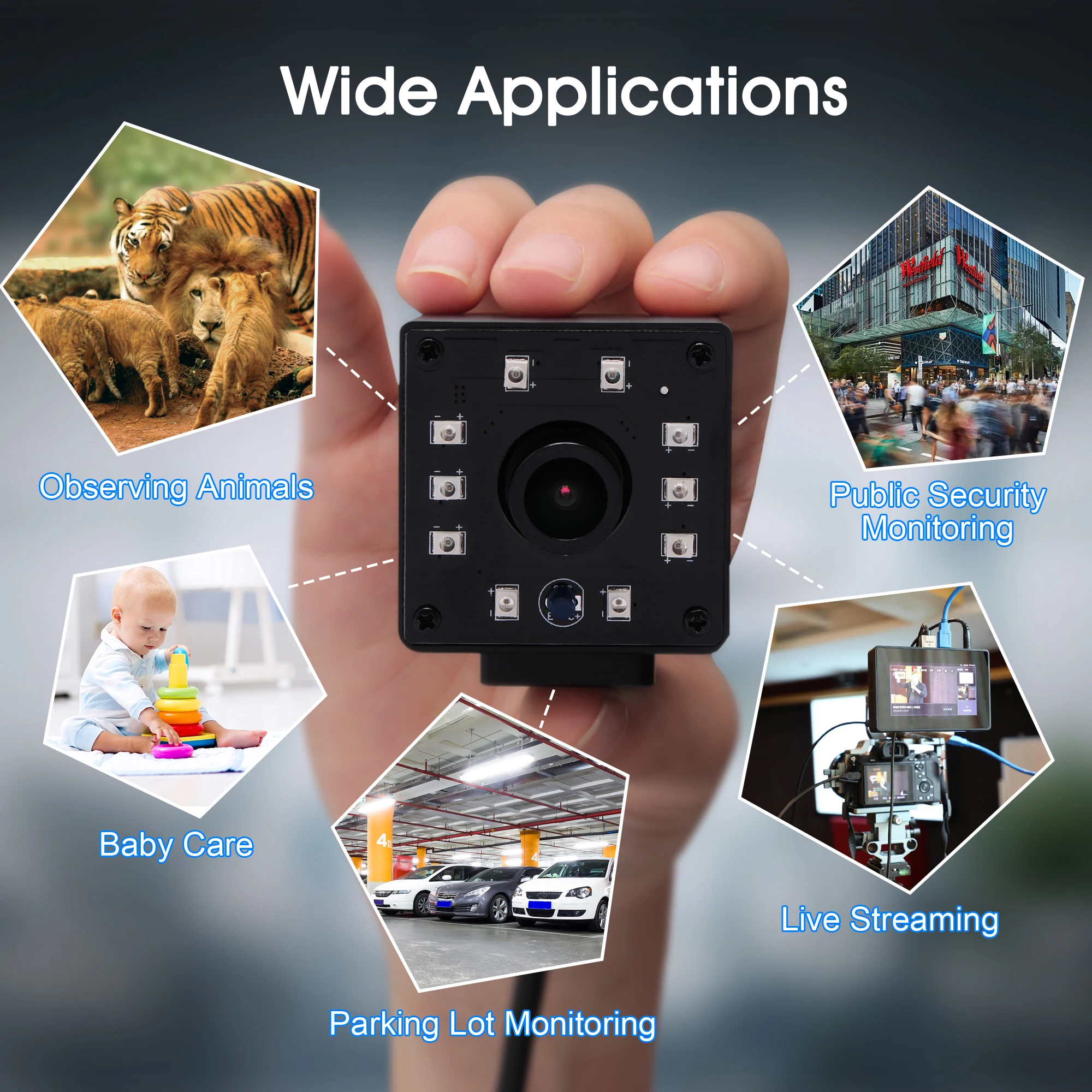

This camera would work great to monitor 3D printers, mobility scooter, bird cage and catch pet at night. Also good for video conferencing and video calls, video blogging and other online or recorded video applications. At 100 fps the quality is sharp. This is a nice little internet or computer cam.
This camera would work great to monitor 3D printers, mobility scooter, bird cage and catch pet at night. Also good for video conferencing and video calls, video blogging and other online or recorded video applications. At 100 fps the quality is sharp. This is a nice little internet or computer cam.
FQA
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens.
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac.
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL.
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player.
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens.
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac.
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL.
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player.
