Price:$21,000.00

Quantity:


Product Overview

Description







Product Advantage.........................

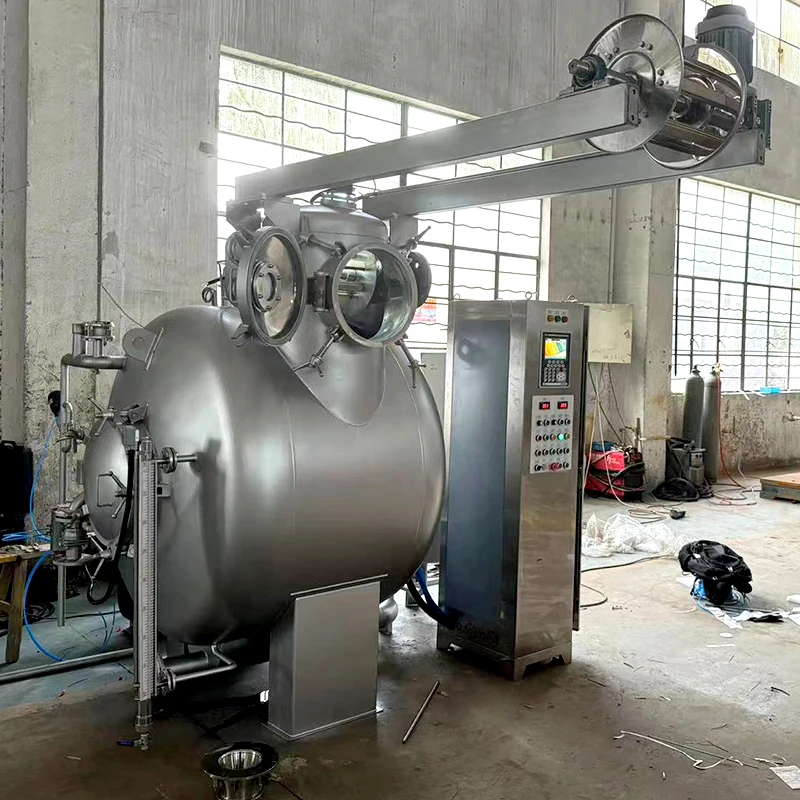

This machine is designed for small and medium-sized batches of fabrics and is suitable for pre -processing and after-processing of woven and knitted fabrics made of cotton, chemical fiber, blended and other materials. Low bath ratio, low consumption, fast fabric running speed and short cycle time can prepare for large batch dyeing. The bath ratio is similar to that of large-capacity dyeing machines, and the dyeing formula can be used directly without adjustment. It is the first choice equipment for dyeing processes.


Bath Ratio:
1:4-5
Speed of heating up:
25-100℃ average 5℃ /minute,
100-135℃ average 2.5℃ /minute
Design Capacity:
10\\30\\50KG
Speed of cooling down :
100-85℃ average 3℃ /minute;
135-100℃ average 2℃ /minute
Max. working temperature(℃ ):
140
Main cylinder diameter(mm):
Φ1600
Max. working pressure(MPa):
0.4
Main cylinder material:
S316-03
Main cylinder thickness(mm):
4
Flange material:
S304-08
Fabric moving tube material:
S316-03
Water tube material:
S316-03

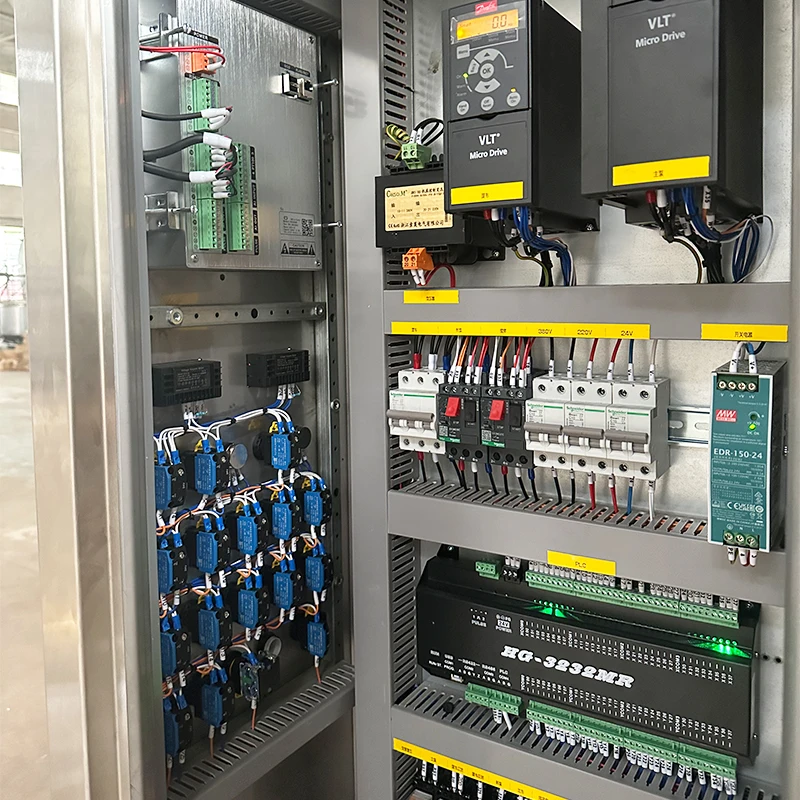

Inverter:
Danfos
Exchange material:
S316-03

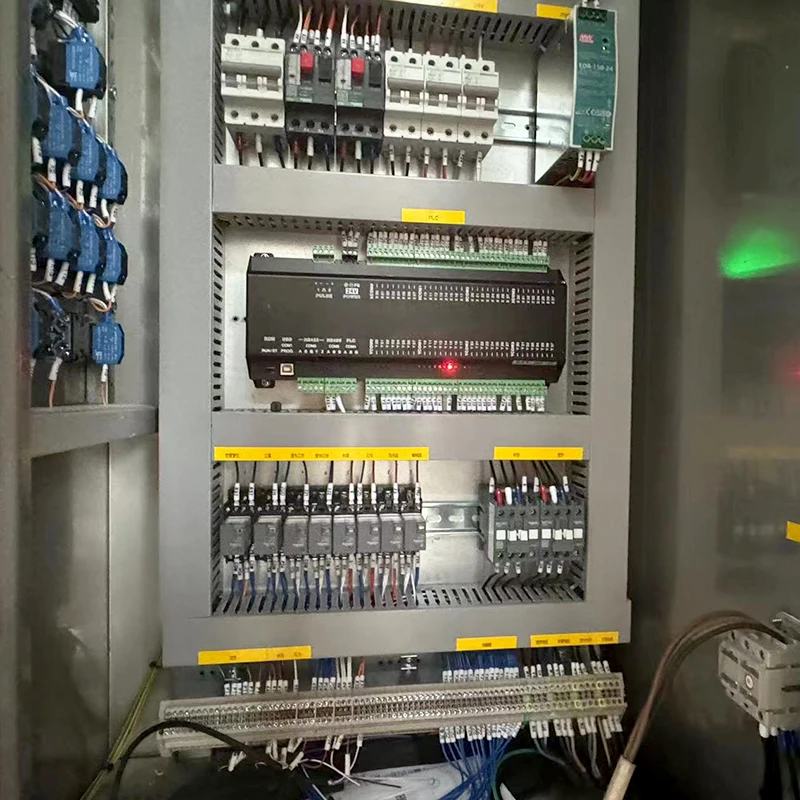

Other elec part:
Schneider

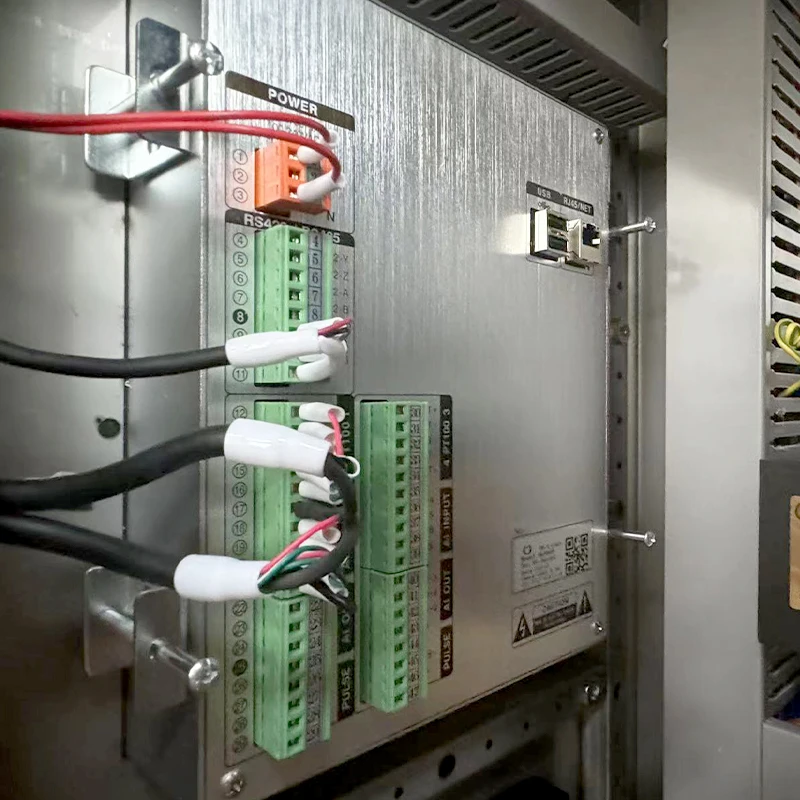

Compute:
Dongheng ( Automatic water supply and drainage, temperature control and dosing )
PLC:
Mitsubishi
Adjustable nozzle :
90mm dia nozzle for below 400gsm
120mm dia nozzle for below 400- 1000kgs, fabric width 1.5-1.8m
130mm dia nozzle for 1200-1300gsm, fabric width 1800-2200mm
300mm dia for 2500gsm-3000gsm, fabric width 2200mm maximum
























FAQ:
Q Products price and discount：
A Wesupport customization.Pls feel free to tell us machiner details you wanted. You will get our reply in 24 hours
Q Delivery time
A Normally 30 days after deposit.lf the machine you need is in stock,we can ship it shortly.
Q Machine warranty
A One year.For any spare part,the customer can purchase from us for life.
Q Logistics cost
AThe freight depends on weight,packing size,and your country or region,etc
Q After sales service
A Online service and we offer factory trained servicemen for machine start upoperator/maintenance training and repair service.
Q Choose mechanical equipment
A Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification
Q More question
A Please feel free to contact
