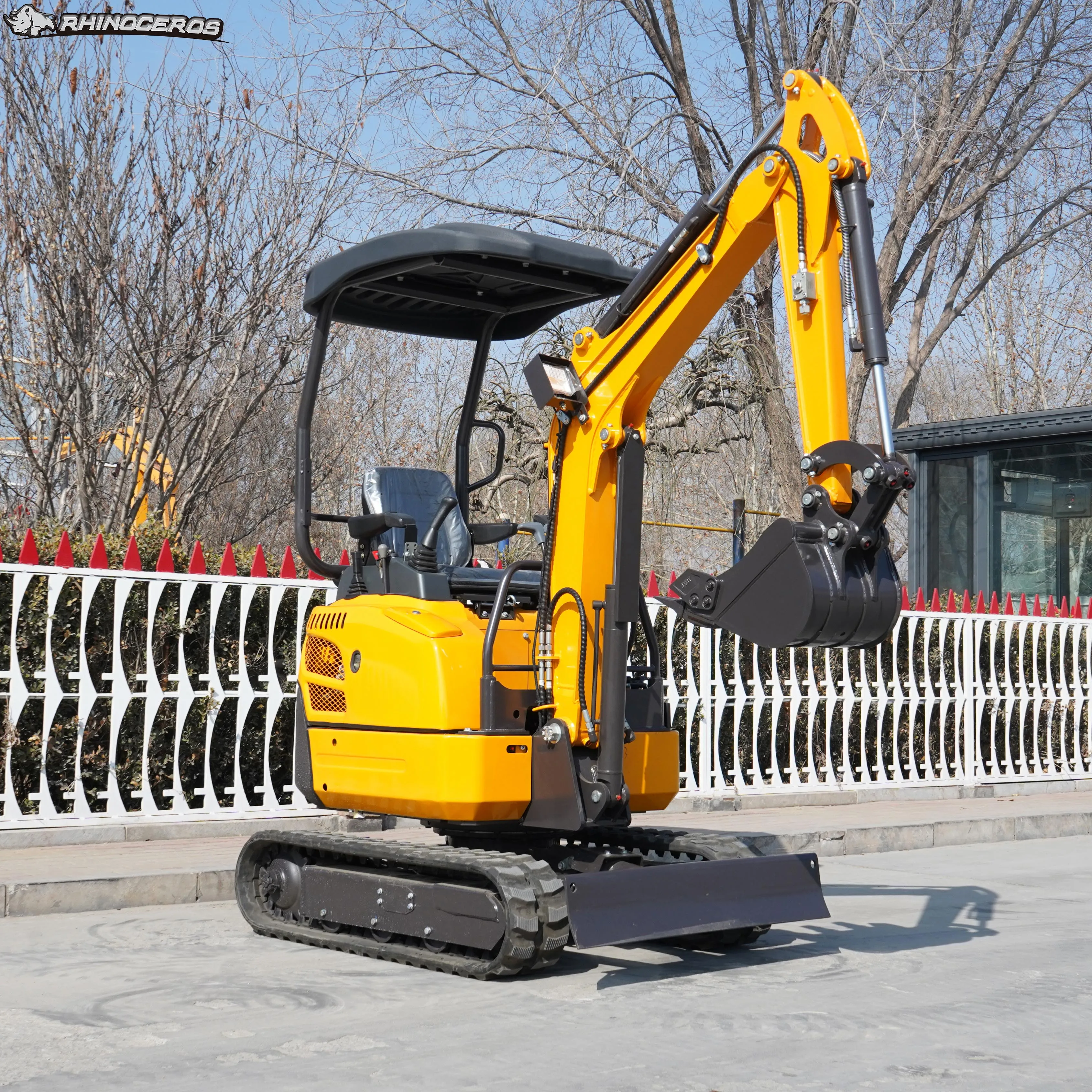

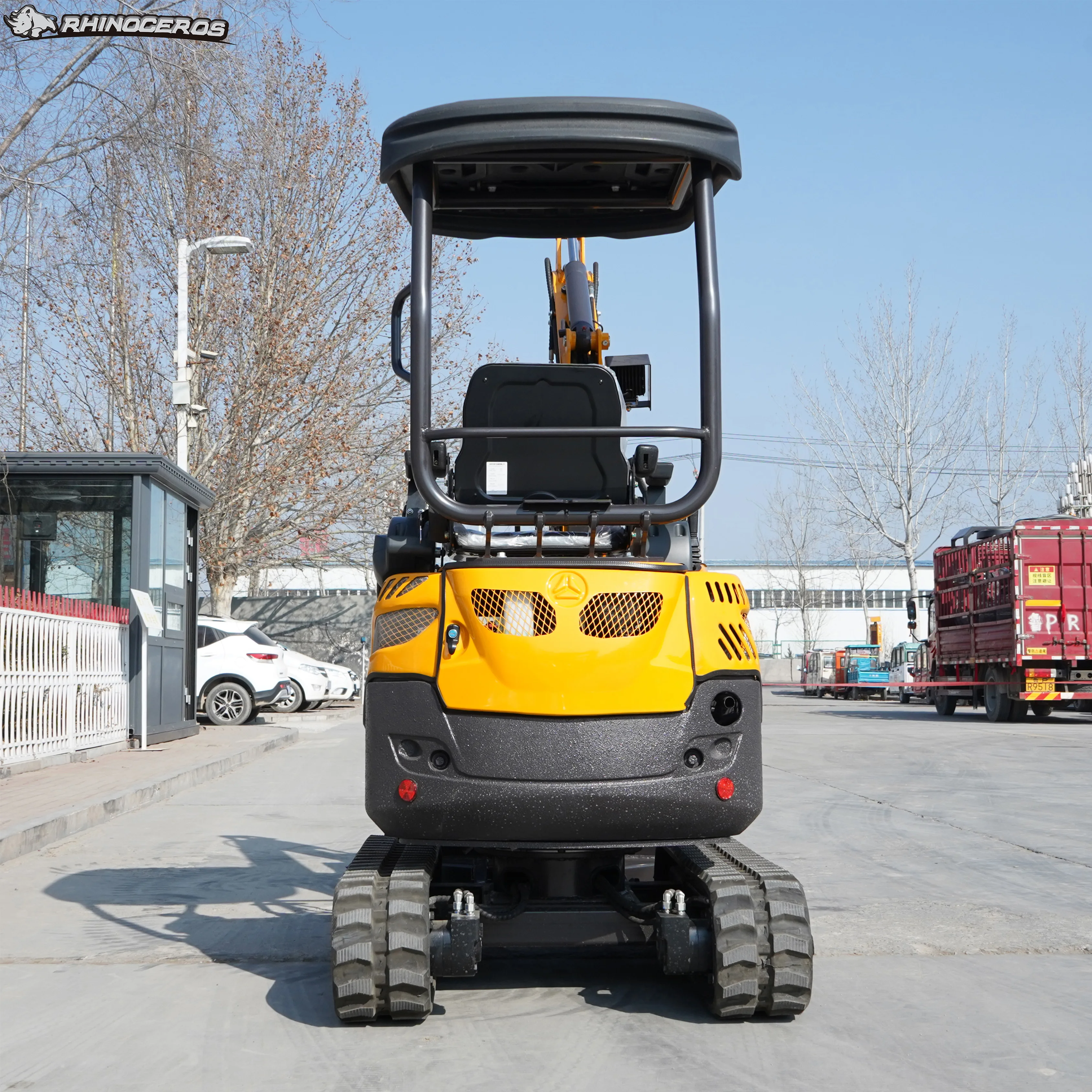

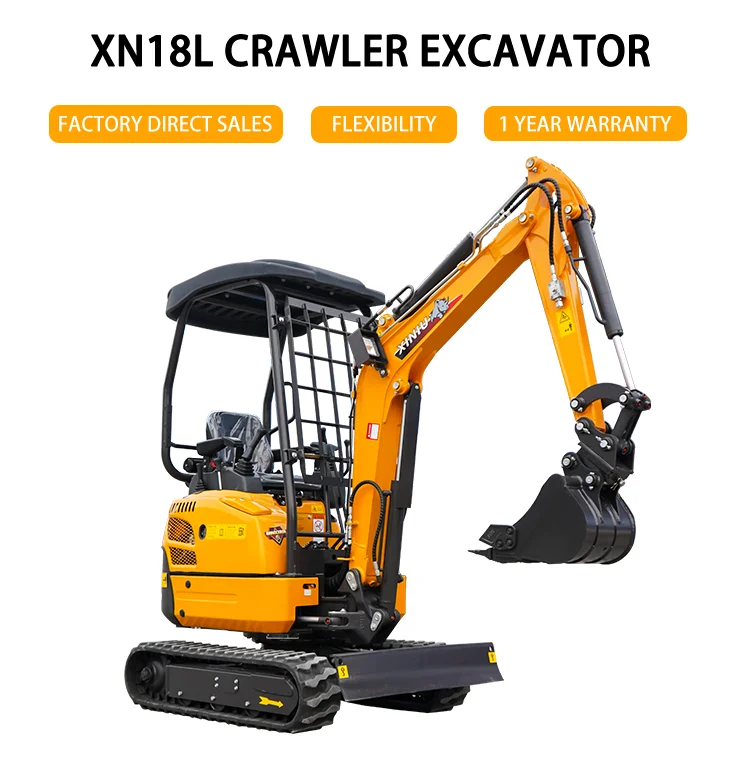

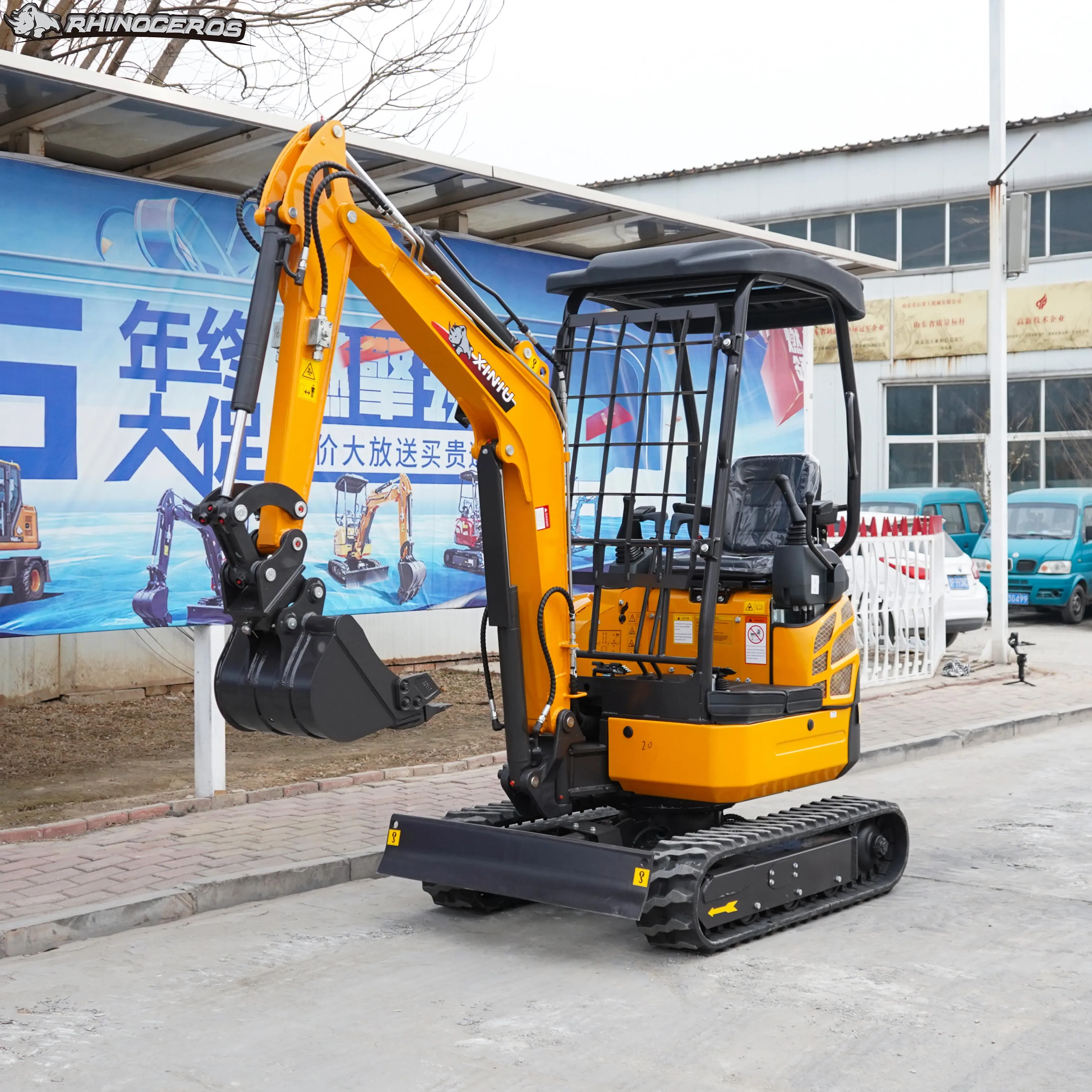

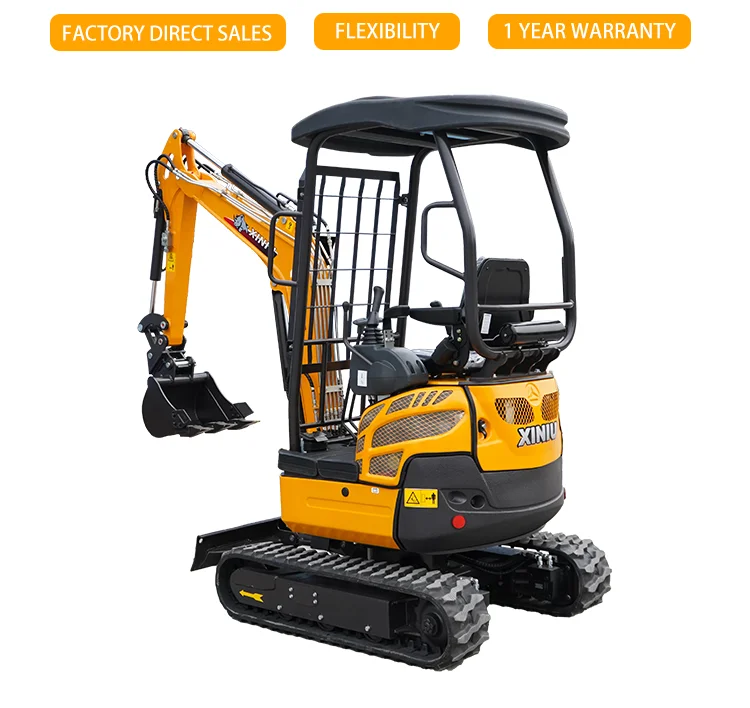

Rhinoceros XN18L mini excavator china mini digger cheap mini excavator
- Category: >>>
- Supplier: Shandong Kenstone Heavy Machinery Co. Ltd.
Share on (1601201946301):
Product Overview
Description
Online Customization

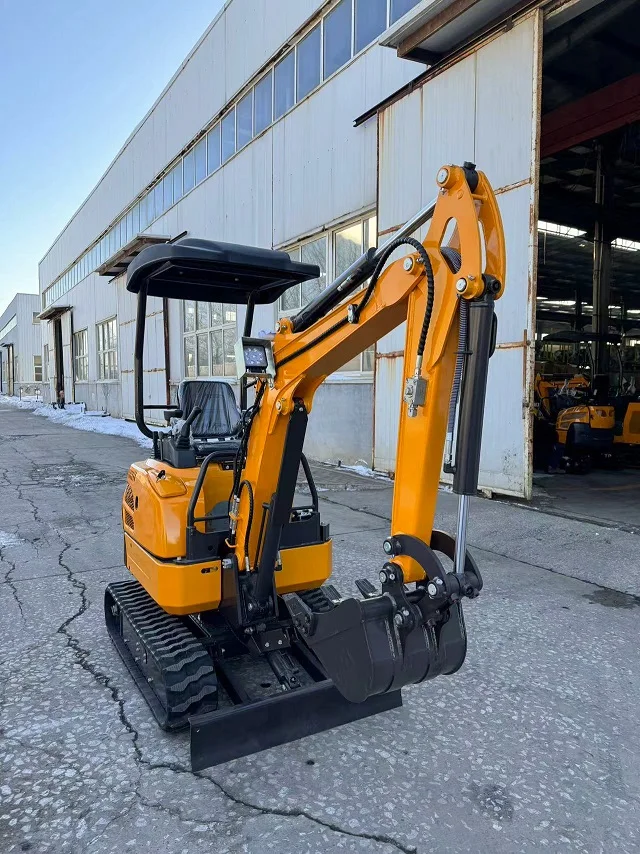

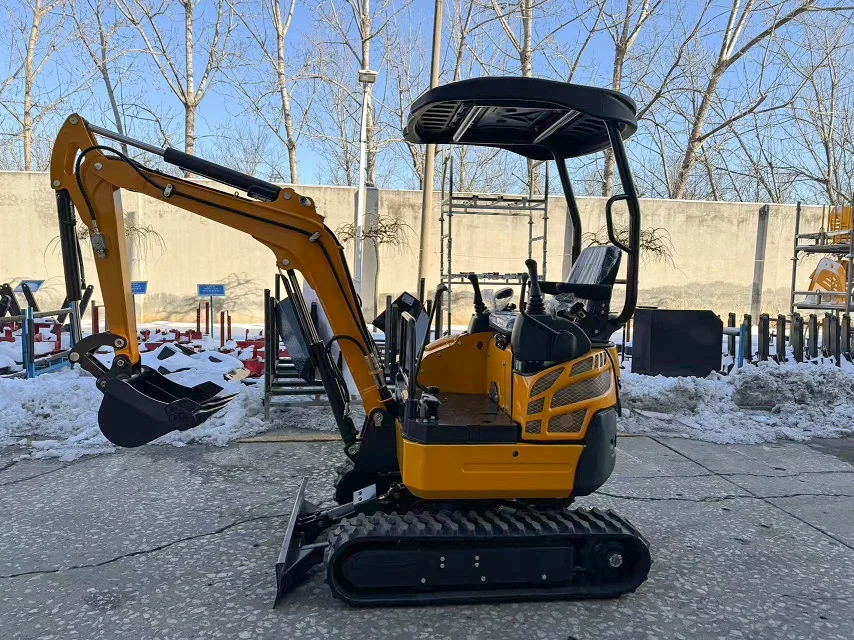

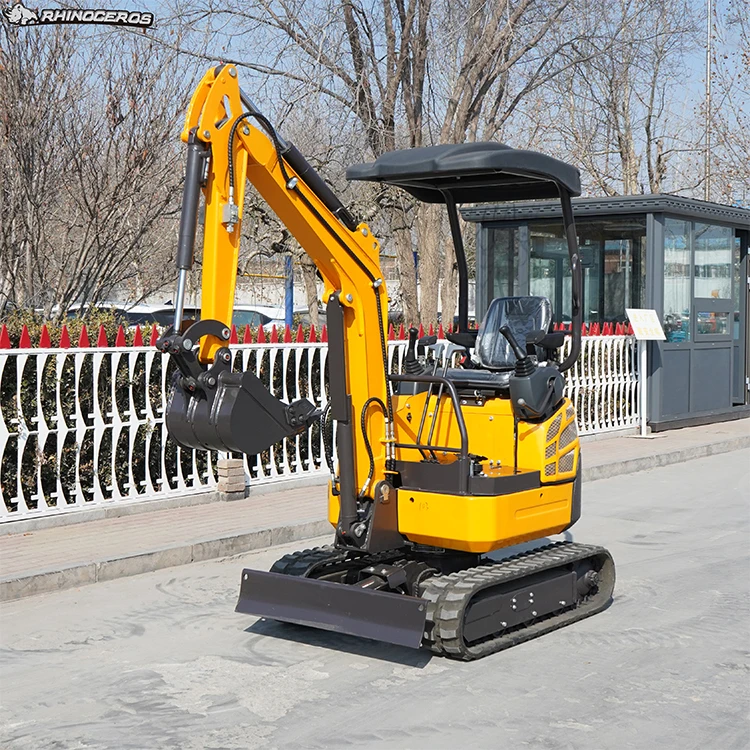

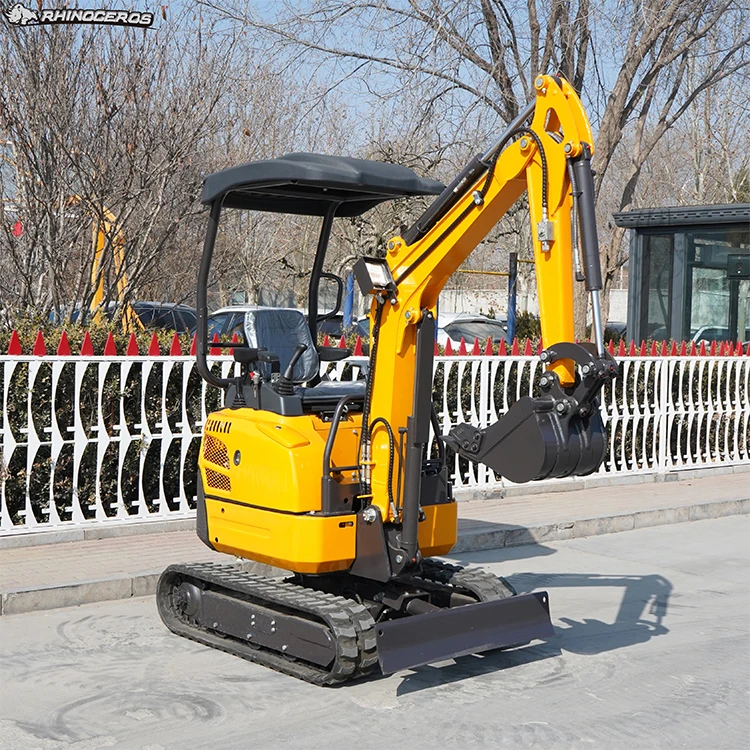

XN18L mini excavator use Japanese original Yanmar engine, the swing motor and hydraulic pump all use Japanese made Nachi brand. And the valve also use Japan made KYB brand. The hydraulic pump is piston pump, perfect match for valve output.
XN18L is joystick operate, swing boom and extendable tracks are available.It can be add much accessoies like Auger, Wood Grab, Rake, Ripper etc.. And we have exported a lot of countries like Australia,France, Italy, Turkey, Germany, Holland, US, Canada etc. Good quality with best factory price!
Advantage Points:
1, Use Kubota engine, imported from Japan, more power, low fuel consumption;
2, Fully imported hydraulic system,
3, Swing boom, can be used in narrow area and working along the wall.
4, Variable dozer
XN18L mini excavator use Japanese original Yanmar engine, the swing motor and hydraulic pump all use Japanese made Nachi brand. And the valve also use Japan made KYB brand. The hydraulic pump is piston pump, perfect match for valve output.
XN18L is joystick operate, swing boom and extendable tracks are available.It can be add much accessoies like Auger, Wood Grab, Rake, Ripper etc.. And we have exported a lot of countries like Australia,France, Italy, Turkey, Germany, Holland, US, Canada etc. Good quality with best factory price!
Advantage Points:
1, Use Kubota engine, imported from Japan, more power, low fuel consumption;
2, Fully imported hydraulic system,
3, Swing boom, can be used in narrow area and working along the wall.
4, Variable dozer
Products Description
Overall dimension ( LxWxH) | |
Wheelbase | 1135mm |
Total length of track | 1447mm |
Platform ground clearance | 406mm |
Counterweight turning radius | 799mm |
Chassis width | 1120mm |
Track width | 230mm |
Max. Digging depth | 2160 mm |
Max. Digging height | 3230mm |
Machine Weight | 1525 kg |
Bucket capacity | 0.045m3 |
Engine Model | Kubota |
Engine Displacement | 0.719L |
Rated power | 10.2kw /11.8Kw |
Maximum torque | 43.5N.m/1600 r/min |
Pump type | Plunger pump |
Working pressure | 20Mpa |
Flow rate | 39.6 L/min |
Hydraulic oil tank capacity | 15.3L |
Fuel tank capacity | 18L |

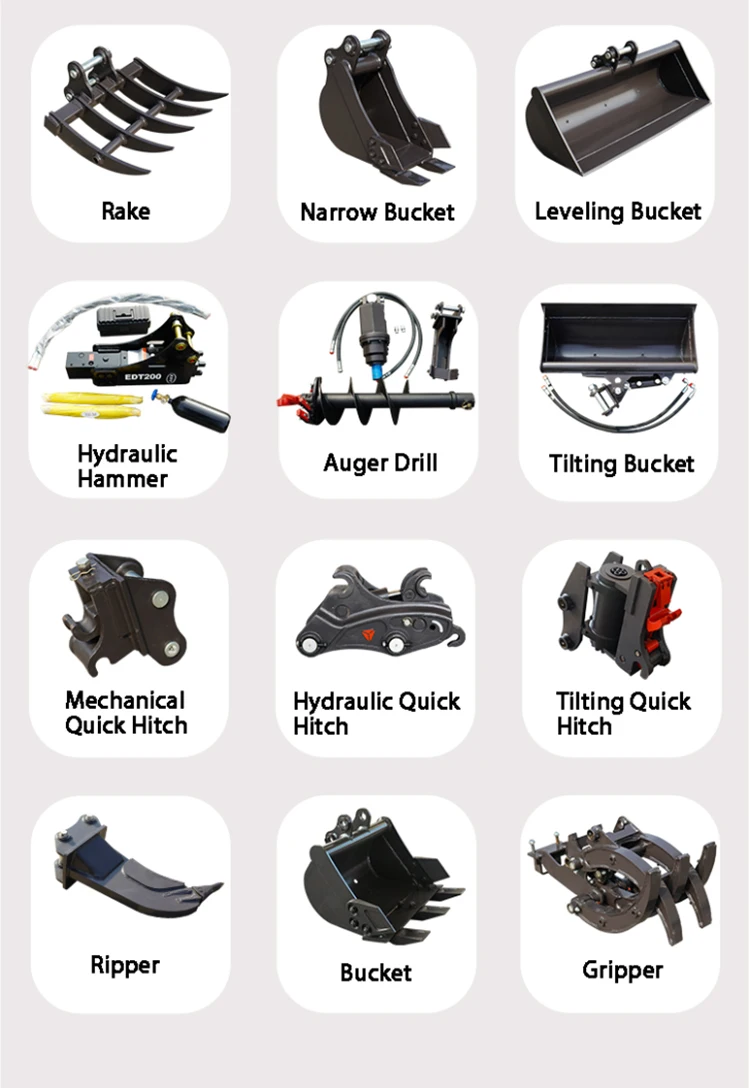

Accessories

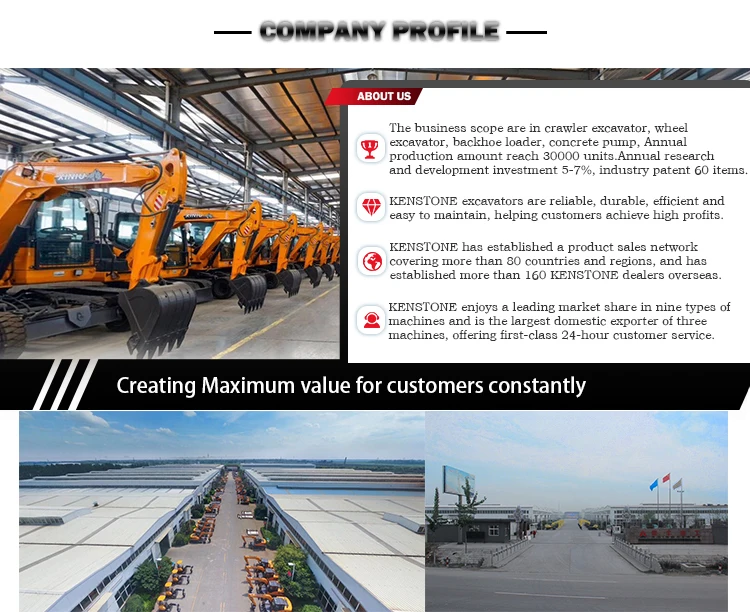

Our company

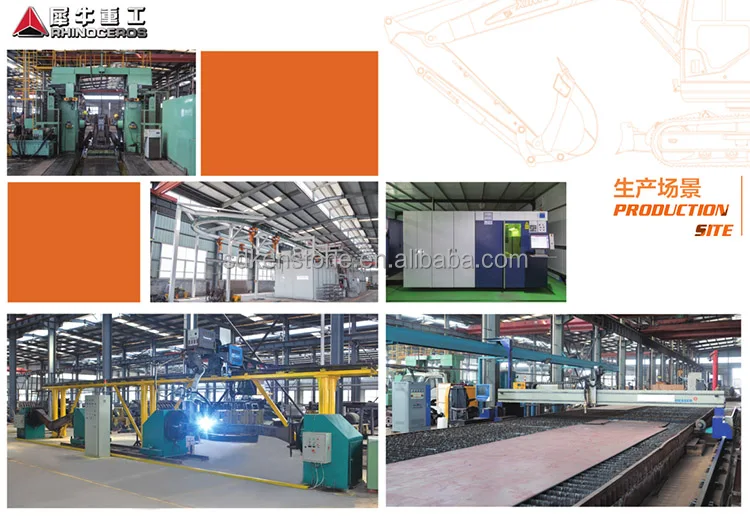

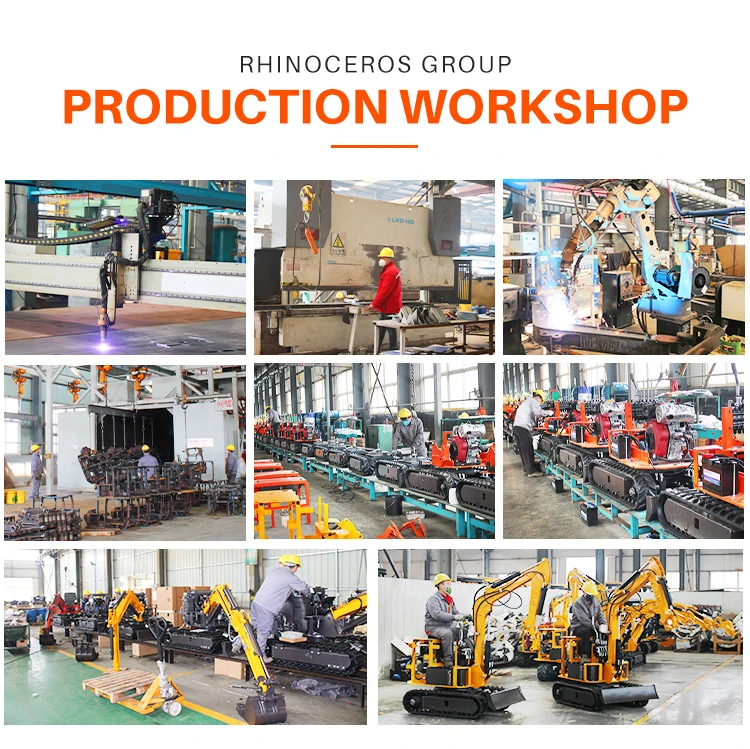

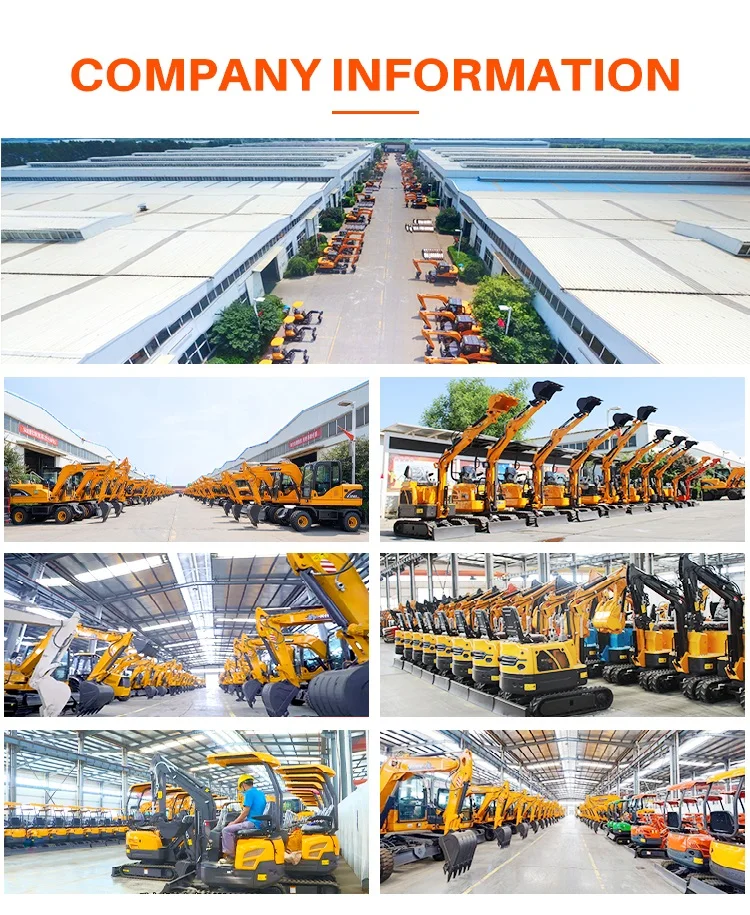

Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE,ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our Rhinoceros patents design.
All of our products have CE/ ISO Certificate
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our Rhinoceros patents design.
All of our products have CE/ ISO Certificate
Specification
Exhibition
FAQ
What is the machIne advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

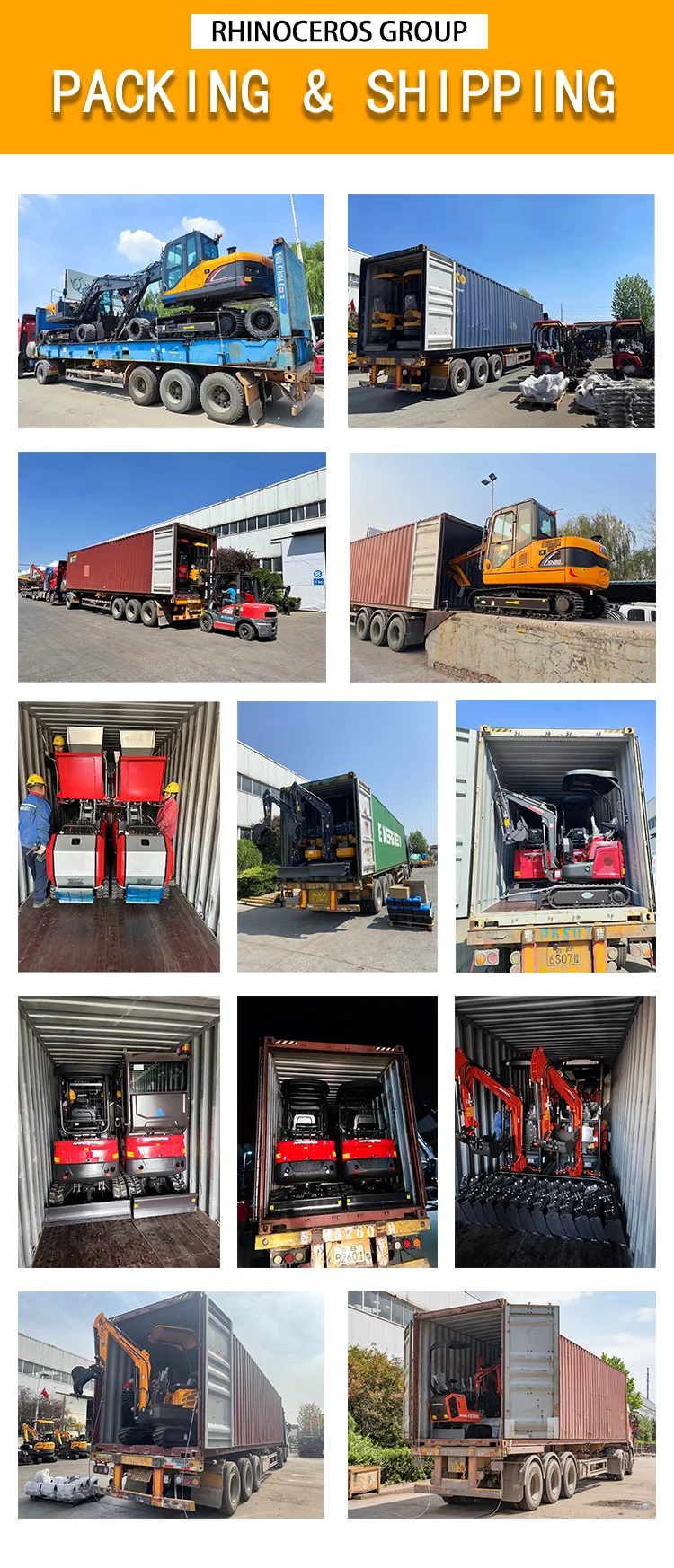

How many units can be put in container?
A: 4 units can be in a 20ft container, 10 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 4 units can be in a 20ft container, 10 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
