Zunsia Customizable Intel 11th Dual LAN Mini PC Board Celeron i3 i5 i7 Fanless Industrial Embedded Motherboard 1*DDR4 6Com 1*CAN
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601202029934):
Product Overview
Description
Products Description
Main Features:
◆ Intel 11 th Tiger lake-U SOC embedded ◆ memory onboard;1* DDR4 SO-DIMM,MAX 48GB
◆ TPM2.0 option；CAN；6* COM
◆ 24bit LVDS/HDMI/MiniDP/EDP
◆ 1* 2.5GLAN，1* GigaLAN，AMT
◆ DC9-36V
◆ Dimension:155x117x23mm
CPU | Intel 11th Tiger lake-U series SOC embedded |
EFI BIOS | |
Memory | Onboard 4GB/8GB/16GB DDR4，MAX 16GB |
1* DDR4 SO-DIMM，MAX 32GB | |
Display | 1* HDMI2.0；1* LVDS（EDP option）；1* MiniDP（DP++） |
Storage | 1* M.2 KEY-M 2242（PCIE_X2 NVME，SATA3.0 option） |
1* 7Pin SATA3.0，SATA PWRW 5V 2Pin | |

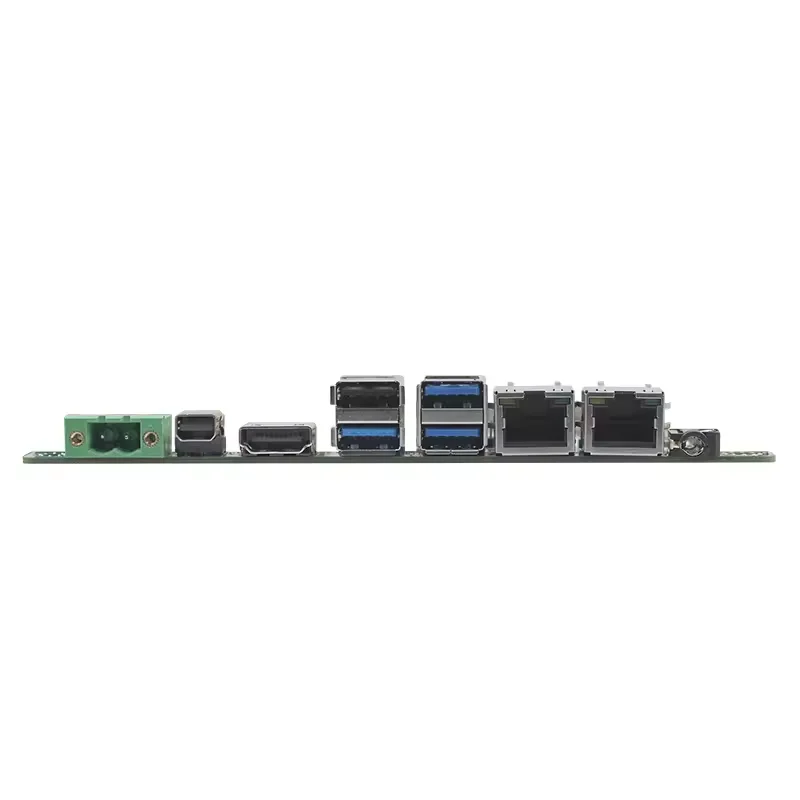

I/O ports | Back:1* DC JACK（5.08 Phoenix terminal option），1* MiniDP（DP++），1* HDMI2.0，4* USB3.0，2* RJ45（1* I225V-B3；1* I219，AMT），1*Audio |
Front:PWRBTN，RST，POWER LED，HDD LED | |
Expansion | 1* TPM2.0（option） |
1* CAN，2x4Pin，PH=2.0 | |
1* M.2 KEY-B（PCIE+USB3.0，3G/4G/5G module），1* SIM slot | |
1* M.2 KEY-E（PCIE_X1，WIFI module） | |
6* COM（2x5Pin，PH=2.0，1* RS422/RS485/RS232，3* RS485/RS232，2* RS232） | |
1* AUDIO，2x5Pin，PH=2.0 | |
4* USB2.0，2x5Pin，PH=2.0 | |
1* CPU Smart FAN，3Pin，PH=2.0 | |
1* LPT，2x13Pin，PH=2.0 | |
1* 8bit GPIO，2x5Pin，PH=2.0;Watchdog | |
1* PS/2，2x4Pin，PH=2.0；1* SPDIF，3Pin，PH=2.54 | |
Power supply | DC9-36V,copper fan |
Environment | work temperature: -20℃ ~ +60℃;work humidity: 5% ~ 90% |
storage temperature: -40℃ ~ +85℃;storage humidity: 5% ~ 90% | |
OS | Windows10,windows11,Linux |
Dimension | 155x117x23mm |
Weight | 150g(Heat sink not included) |
Details Images
Our Services
1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
Company Profile
Package&Delivery
Exhibition
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
