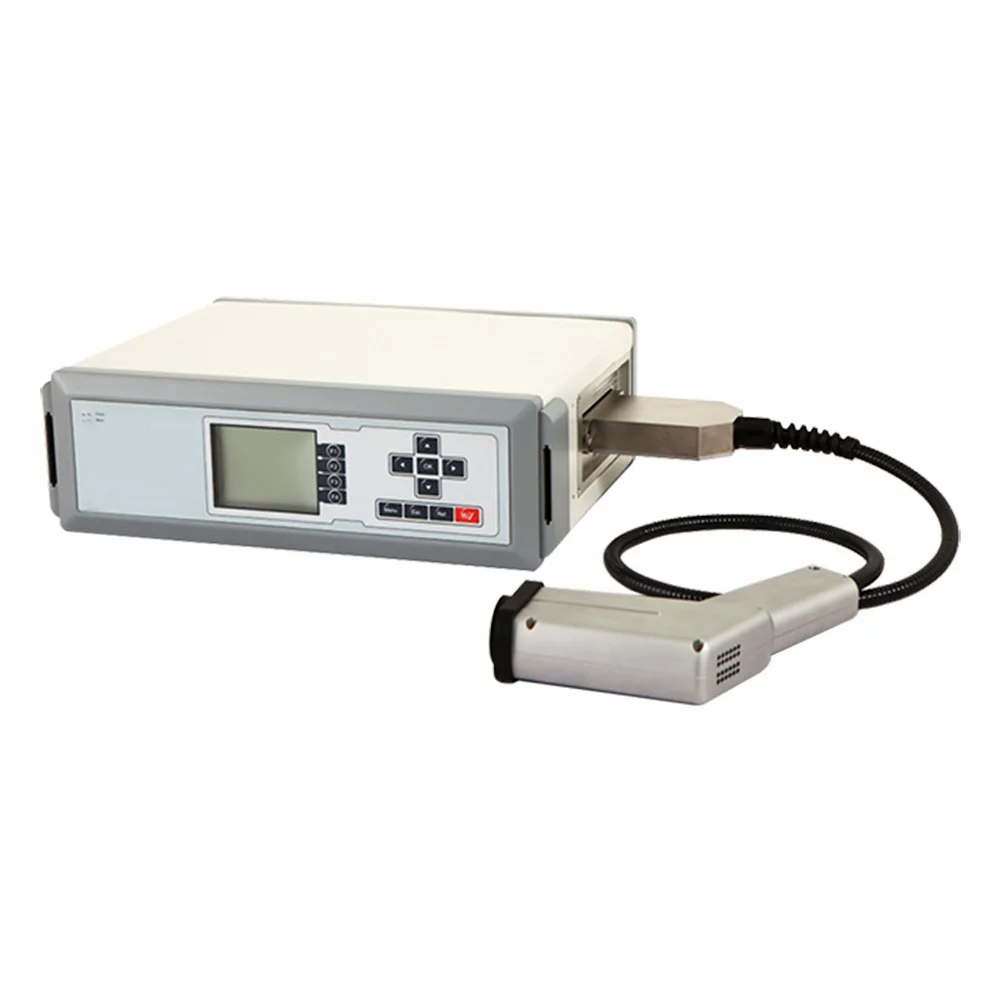

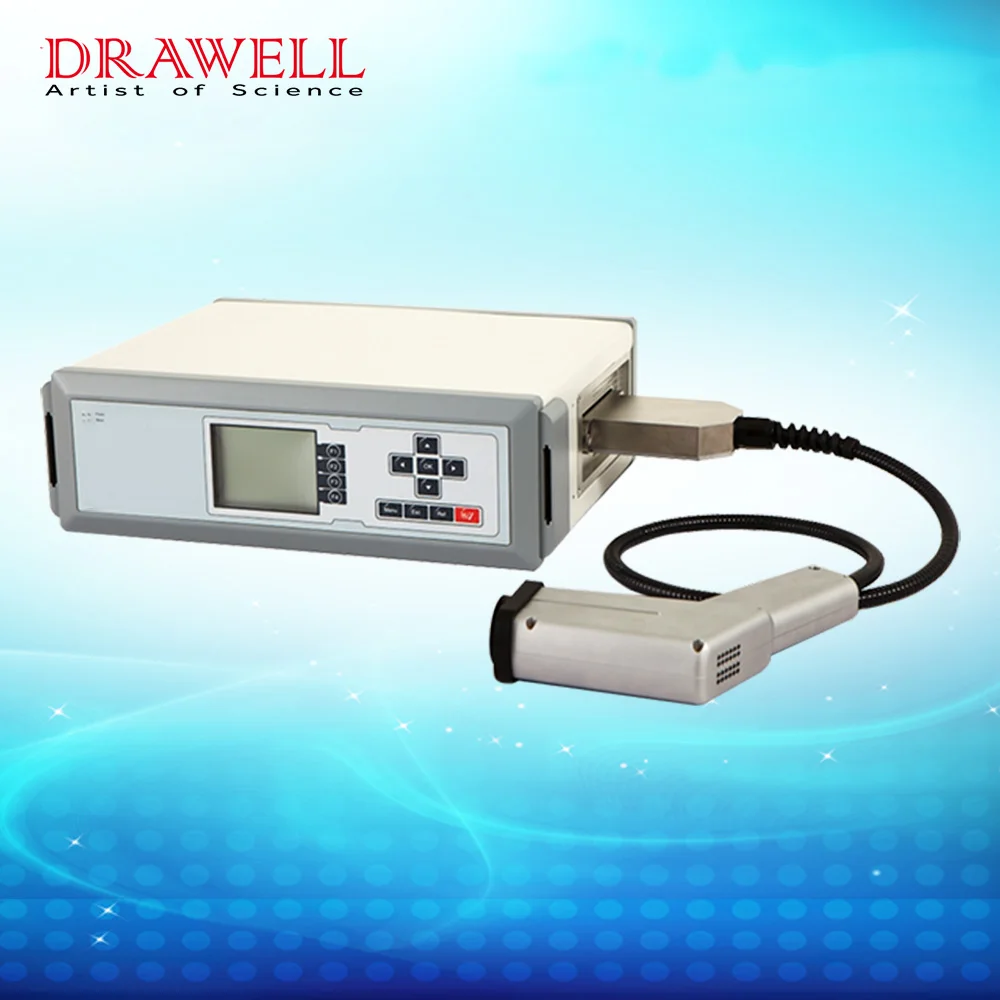

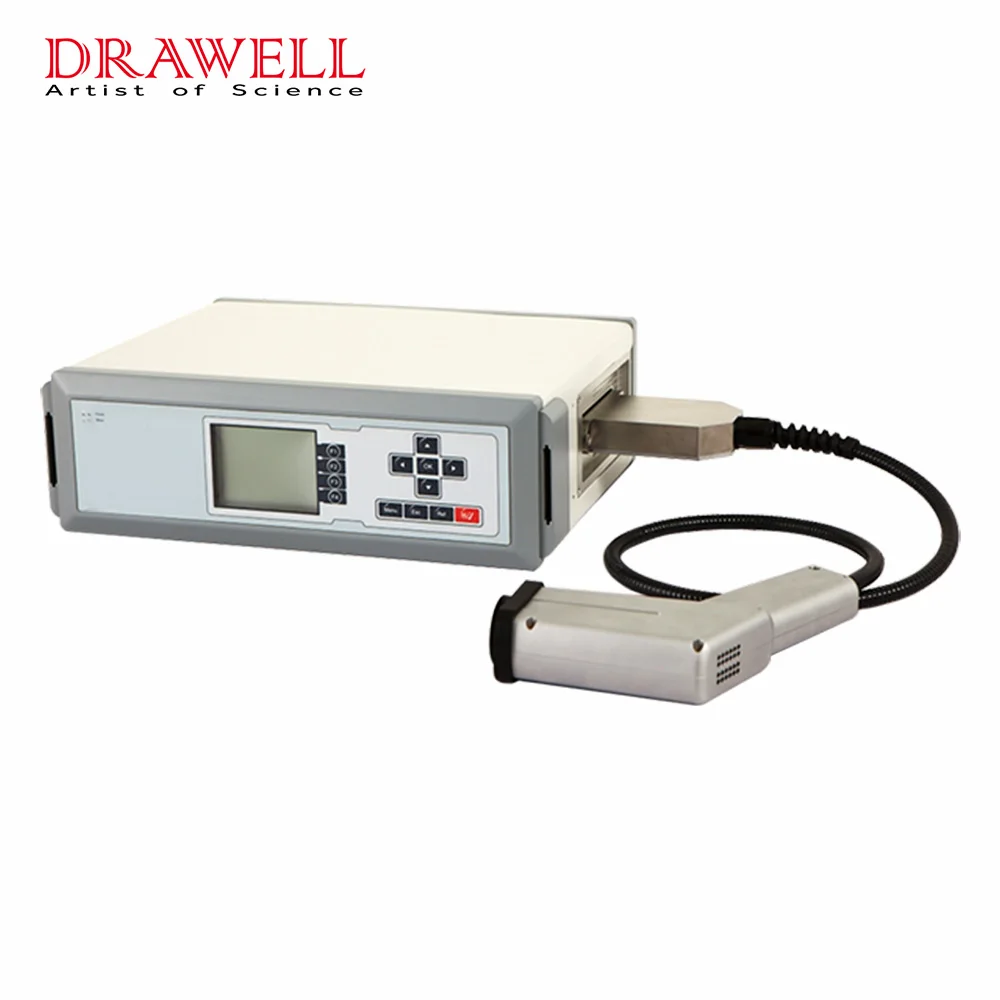

Drawell DW EXPEC1360 Near Infrared Spectrometer NIR Spectrometer NIR Analyzer For Grain
- Category: >>>
- Supplier: Shanghai Drawell Scientific Instrument Co. Ltd.
Share on (1601202048655):
Product Overview
Description
Products Description
NIR DW-EXPEC1360A Quick Fuel Analyzer
Introduction
DW-EXPEC1360A is a liquid automatic sampling analyzer with high accuracy. It is suitable for the rapid detection of physical and chemical composition of gasoline, diesel, jet fuel, vehicle uretin, etc. The whole system is simple to operate, just need to put the liquid inlet tube in the sample, click the measurement, the instrument will automatically complete the measurement analysis. It has a wide range of applications in petrochemical industry, quality control system and scientific research.
Features
1.High accuracy, gasoline RON analysis error is less than 0.3.
2.Optional U-tube shock densitometer, density detection accuracy can reach 0.0005 g/cm3.
3.Good repeatability, gasoline RON analysis repeatability is less than 0.1.
4.The instrument is reliable, trouble-free operation time can reach more than 3 years.
5.The degree of localization of the instrument reaches more than 95%.
6.Can be used in the laboratory, can also be connected to the external battery for vehicle use.
7.Liquid automatic sampling analysis, can continuously monitor the material online.
8.Instrument built-in standard material, instrument can be automatic correction, automatic sampling, automatic cleaning.
9.Short analysis time, can complete a sample monitoring in 2 minutes.
10.Less sample consumption, only 30ml sample is consumed in one analysis under automatic mode; In manual mode, only 0.5ml sample is consumed in one analysis.
11.Easy operation: no special training, no sample pretreatment, no sample destruction.
12.The instrument built-in sample constant temperature control system, to ensure that the instrument is suitable for different ambient temperature, improve the accuracy of measurement results.
Specifications
Variety | Detection Index |
Gasoline for vehicles | RON, MON, antiknock index, benzene content (volume fraction)/%, aromatics content (volume fraction)/%, olefin Content (volume fraction)/%, saturated hydrocarbon content (volume fraction)/%, distillation range, °C (10% evaporation temperature, 50% Evaporation temperature, 90% evaporation temperature, final boiling point), vapor pressure (kPa), oxygen content, % (mass fraction number) |
Diesel fuel for vehicles | Cetane number, distillation range (°C), 50% recovery temperature (°C), 90% recovery temperature (°C), flash point (°C), kinematic viscosity (mm2/s), density (g/cm3), freezing point (°C) |
Jet fuel | Freezing point (°C), distillation range (°C), initial boiling point (°C), 10% recovery temperature (°C), 20% recovery temperature (°C), 50% recovery temperature (°C), 90% recovery temperature (°C), final distillation point (°C), flash point (℃), kinematic viscosity (mm2/s), density (g/cm3) |
Nitrogen oxide Reducing agent - Urea aqueous solution | Urea content (mass fraction)/%, density (Kg/cm3), refractive index, alkalinity (in NH) (mass fraction number)/%, biuret (mass fraction)/%, aldehydes (calculated as HCHO)/(mg/kg), etc. |
Specifications:
Product Model No | DW-EXPEC1360A |
Wavelength range | 1000-1800nm |
Wavelength repeatability | <0.05 nm |
Wavelength accuracy | ±0.2 nm |
Analysis time | <2 min |
Injection method | Automatic injection driven by peristaltic pump |
Power supply | 24V DC adapter for power supply |
Analytical sample capacity | Combine peristaltic pump 30ml, manual mode 0.5ml |
Light source life time | > 10,000 hours |
Circulation pool temperature control | Adjustable from 20 to 60℃, accuracy is less than 0.2℃ |
Data interface | LAN interface 1pc |
Cartable | Yes |
Working environment temperature | 5~45℃ |
Volume | 600×260×140mm |
Weight | <20kg (without batteries) |
