Multi blade granite marble block bridge cutting machine stone machinery for stone production line
- Category: >>>
- Supplier: Laizhou Oriental Machinery Co. Ltd.
Share on (1601202083125):
Product Overview
Description
Product Description

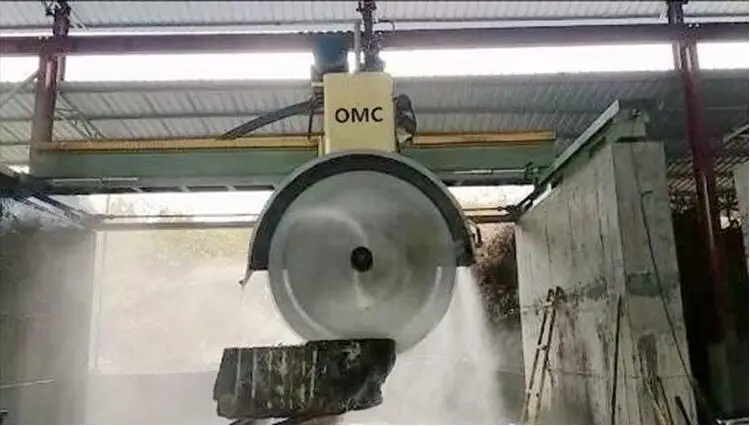

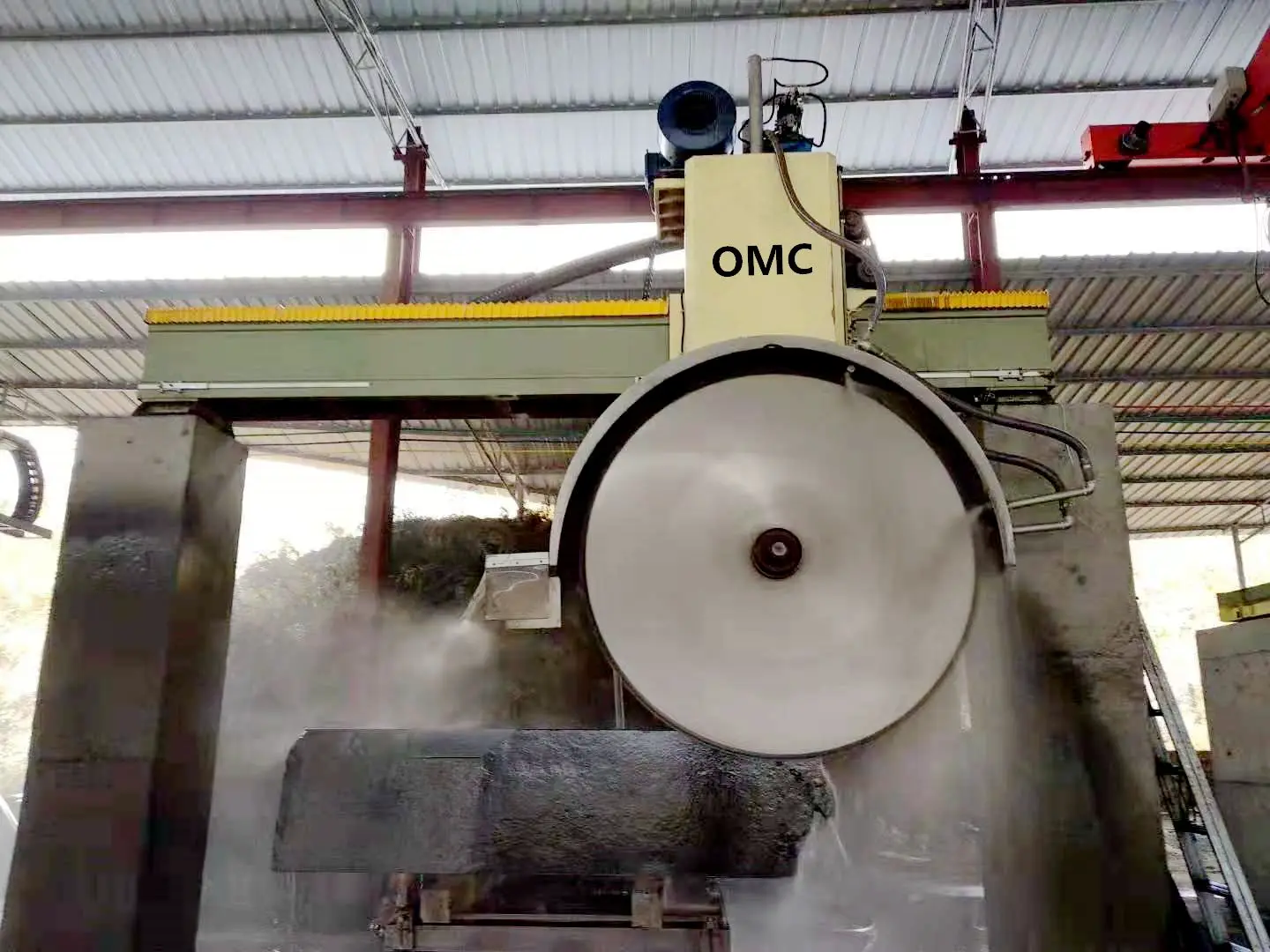

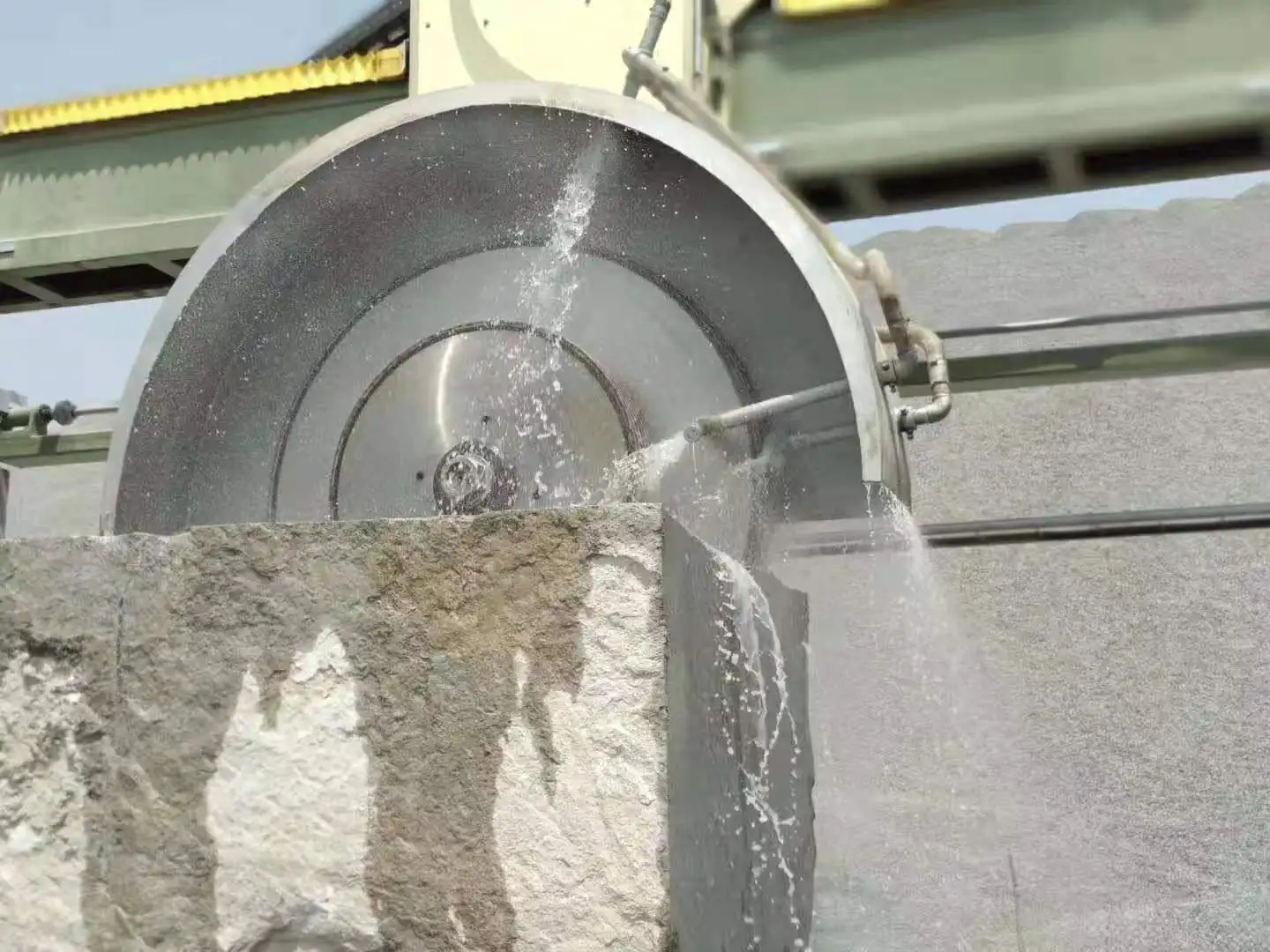

Multi blades stone block bridge cutting machine
Model DPS series bridge disc saw, fitted with diamond cutters and high-speed grinding technology, is suitable for cutting marble. It is also suitable for cutting tomb stone; road stone; stone slab and so on.
It has the following features:
1. Reasonable structure, low manufacture cost, stable working, high cut-off efficiency, flat and bright cut surface, high rate of finished products, no mechanical fragment, no rust pollution.
2. Wide application rage: It is suitable for cutting marble slabs over 10mm in thickness.
3. Easy-to-operate and safe operation: Except block conveying truck, all the over parts are manual or automatic (according to customer decide). Feeding speed can be regulated according to different hardness of slabs to be processed, which not only guarantee safe operation, but also improve cut-off efficiency. With interlocking mechanism, the electrical system is safe and reliable. With diamond cutting technology, it also features low grinding resistance;high cut-off efficiency, long life of cutters and better cut surface finish.
It has the following features:
1. Reasonable structure, low manufacture cost, stable working, high cut-off efficiency, flat and bright cut surface, high rate of finished products, no mechanical fragment, no rust pollution.
2. Wide application rage: It is suitable for cutting marble slabs over 10mm in thickness.
3. Easy-to-operate and safe operation: Except block conveying truck, all the over parts are manual or automatic (according to customer decide). Feeding speed can be regulated according to different hardness of slabs to be processed, which not only guarantee safe operation, but also improve cut-off efficiency. With interlocking mechanism, the electrical system is safe and reliable. With diamond cutting technology, it also features low grinding resistance;high cut-off efficiency, long life of cutters and better cut surface finish.
Specification
Model | OMC-DPS | OMC-DPS |
Max.diameter of blade | 2200mm | 2800mm |
Transvers stroke for blade | 3500mm | 3500mm |
Elevation stroke for blade | 1300mm | 1600mm |
Effect cutting depth for blade | 950mm | 1250mm |
Feeding speed for blade | 0-8300mm | 0-8300mm |
Total power | 65.7kw | 65.7kw |
Main motor power | 55kw | 55kw |
Elevation motor power | 4kw | 4kw |
Feeding motor power | 3kw | 3kw |
Block trolley truck power | 2.2kw | 2.2kw |
Installation size | 7700*5230*6030mm | 7700*5230*6330mm |
Block size | 3200*2000*2000mm | 3200*2000*2000mm |
Weight | 12000kg | 13000kg |

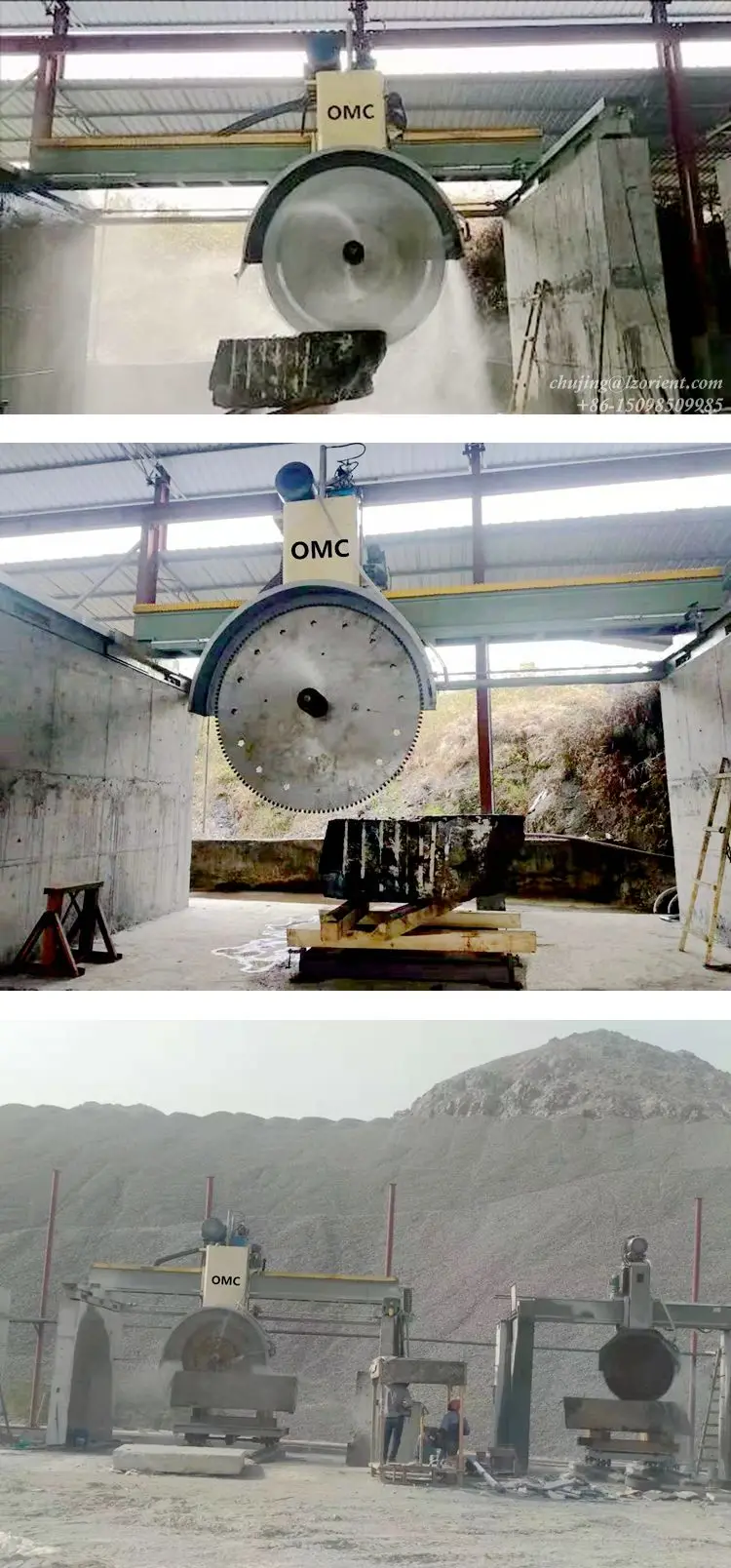

Product Details

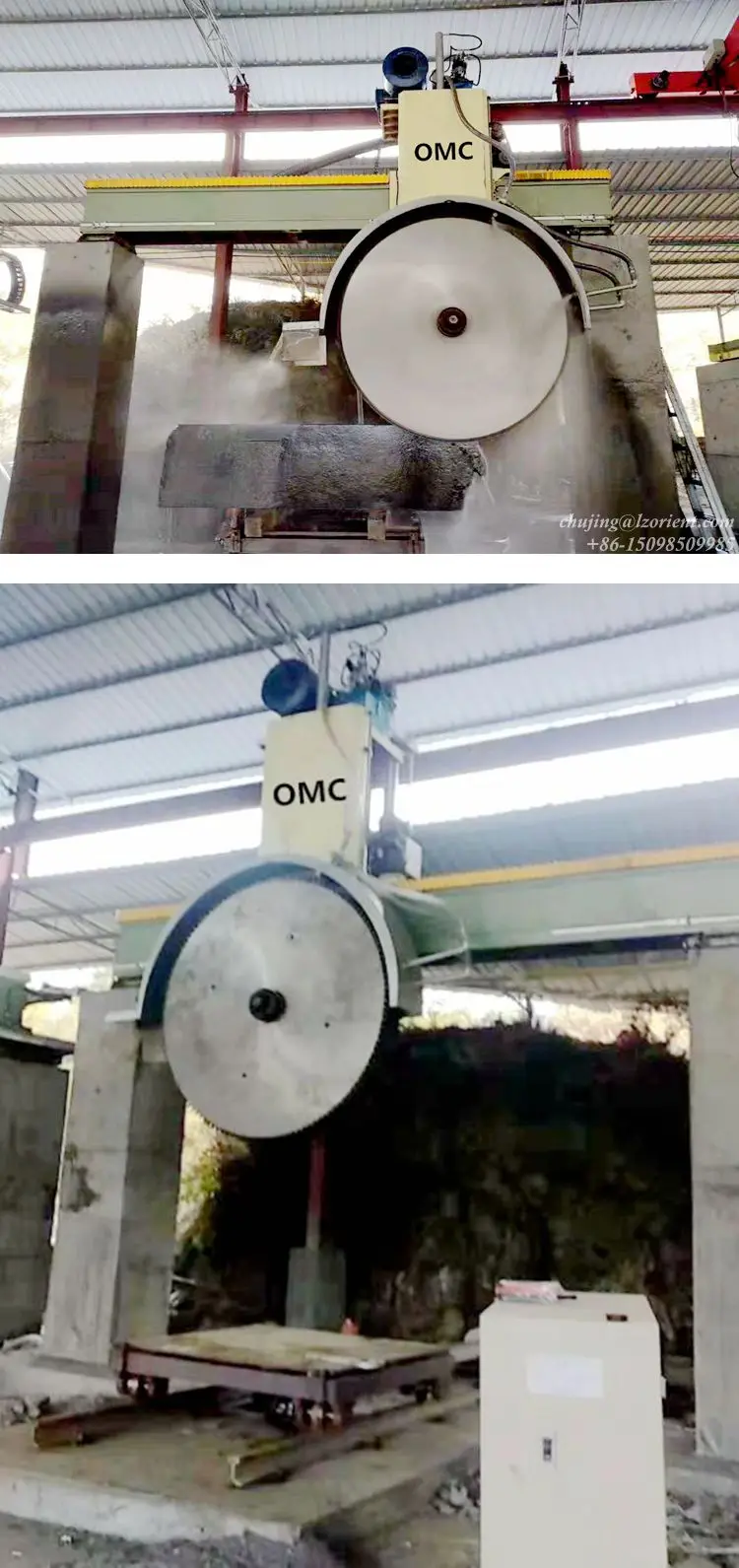

Guide rail on both sides ⇒ Move back and front

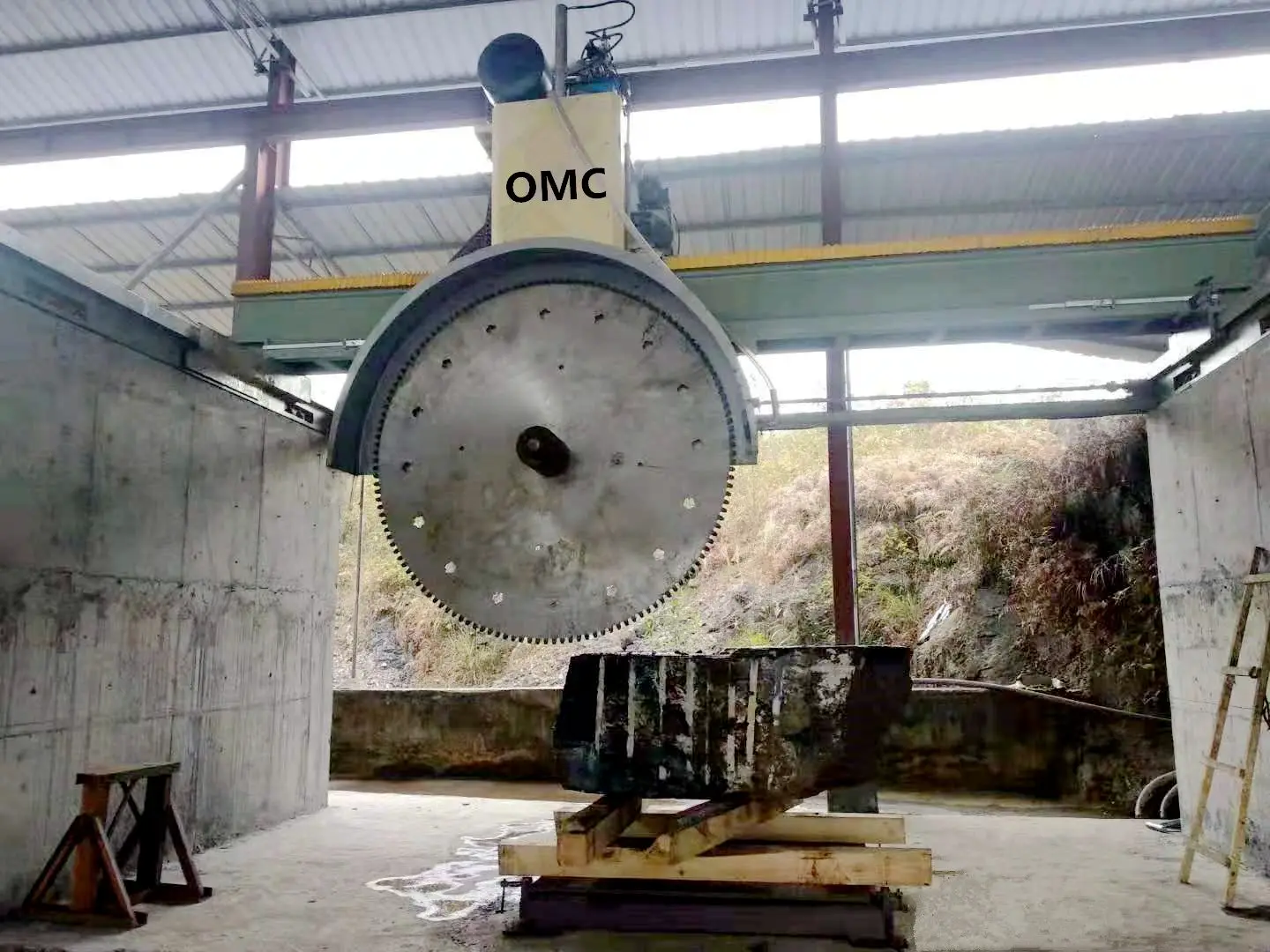

No guide rails on both sides

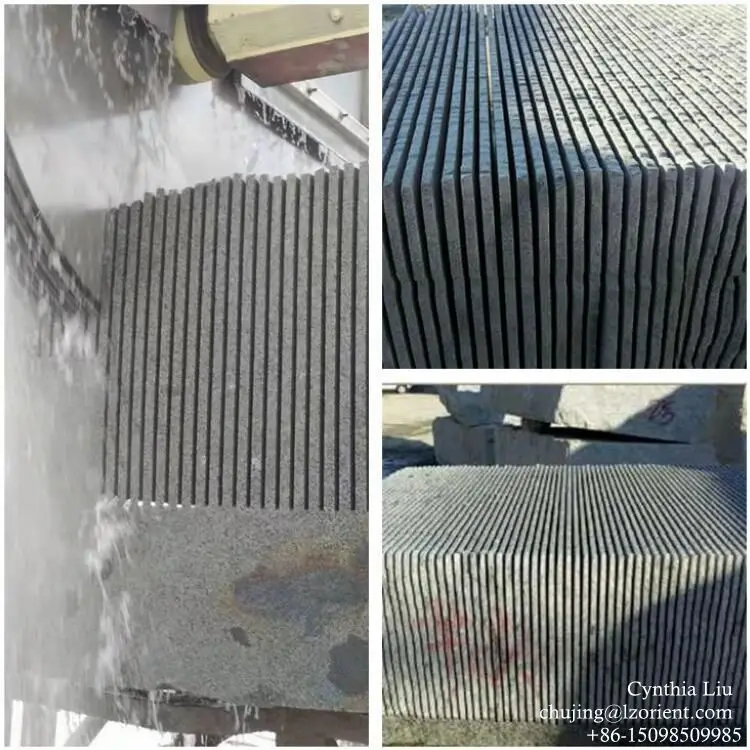

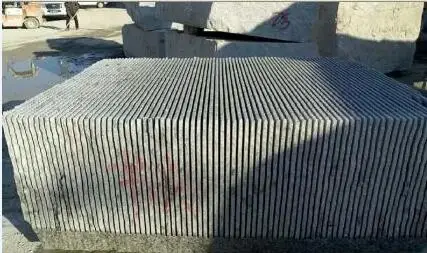

Processing effect
Packing & Delivery
Outer Packing: Nude
Container: 2 set/20'GP
Container: 2 set/20'GP
Company Profile
Established in 1996,Laizhou Oriental Machinery Co.,Ltd. had engaged in the stone processing equipment industry for 17 years. We have the first-class designable talents and experienced technicians and are always specialized in developing and manufacturing the latest and most efficient stone processing machines. We are now engaged in manufacturing and exporting granite and marble polishing abrasive head,granite gangsaw,hydraulic tensioner,PEMO type slurry pump,bridge saw,different kinds of stone,tile and brick saw,road cutter,plate vibratory machine and etc. We are the pioneer in China who produce the granite polishing head. Now we are the biggest supplier of this product in China. Every year,we will supply for customers from different countries thousands of different kinds of polishing/abrasive head. The latest designed OPH6-C and OPH6-D were highly praised by the customers for it's superior quality, long service life and low maintenance cost. Boasting a team with strong sourcing and product development advantages, we offer customized services for clients in addition to rapid response times to market demands. We recognize the service we provide is special and is what helps differentiate Orient from all others. We strive to provide our customers the best product at the most competitive prices for years. The success of us relies on this
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(30.00%),Oceania(25.00%),North America(20.00%),South
Asia(10.00%),Africa(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stone Machinery
4. why should you buy from us not from other suppliers?
skillfull manufacture proferssional design wide range quality assured.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CAD,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
We are based in Shandong, China, start from 2009,sell to Domestic Market(30.00%),Oceania(25.00%),North America(20.00%),South
Asia(10.00%),Africa(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stone Machinery
4. why should you buy from us not from other suppliers?
skillfull manufacture proferssional design wide range quality assured.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CAD,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
