Single Test Space 100 Ton Electro hydraulic Servo Hydraulic Universal Testing Equipment For Elongation Tensile Test
- Category: >>>
- Supplier: Jinan Est Test Instrument Co. Ltd.
Share on (1601202120171):
Product Overview
Description
Product Description
1.Function:

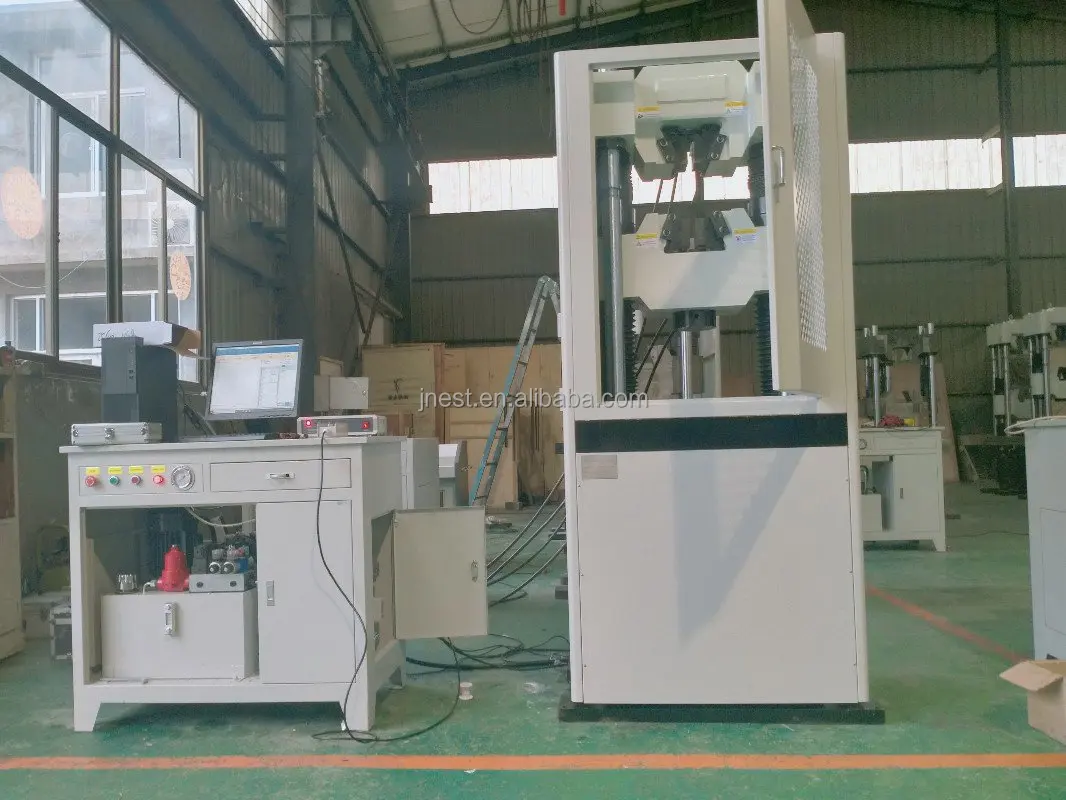

This 1000KN computer control hydraulic universal testing machine is suitable for metal and non-metal materials, like rebar, metal wire, cable, steel rope, steel strand, steel plate, high strength bolt etc.

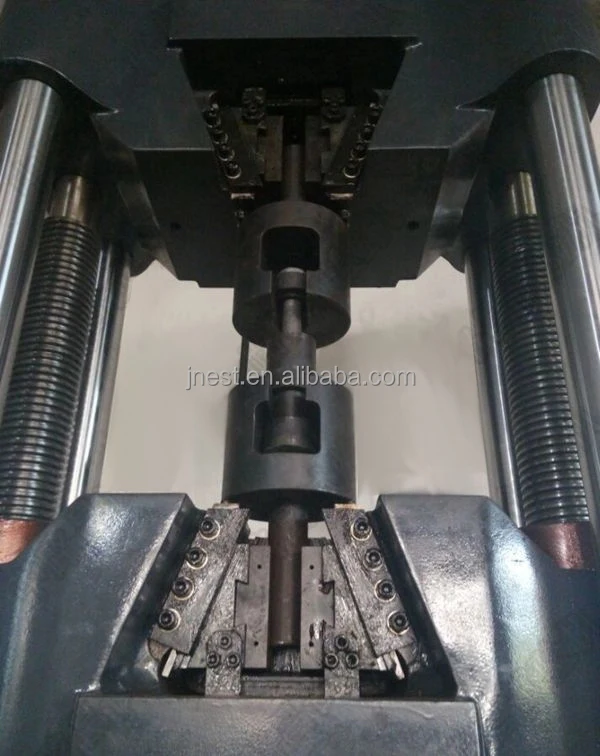

When it’s installed with matched test clamp, it can test tensile strength, compression strength, three point bending strength etc.
2.Technical parameters
Model | EWAW-1000B |
Max. test force | 1000KN |
Force effective measuring range | 2%-100%FS |
Accuracy | ±1% |
Test force resolution | 0.01KN |
Displacement resolution | 0.01mm |
Accuracy | Grade 1 |
Piston stroke | 250mm |
Test speed | 0.2-100mm/min |

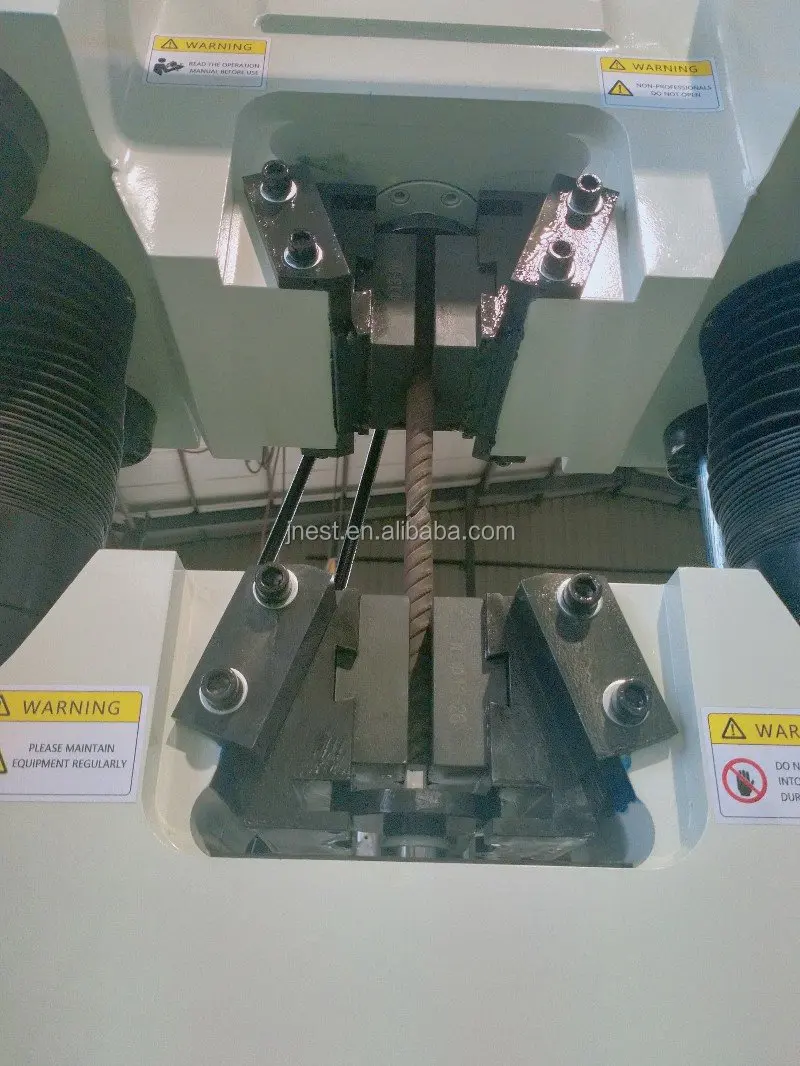

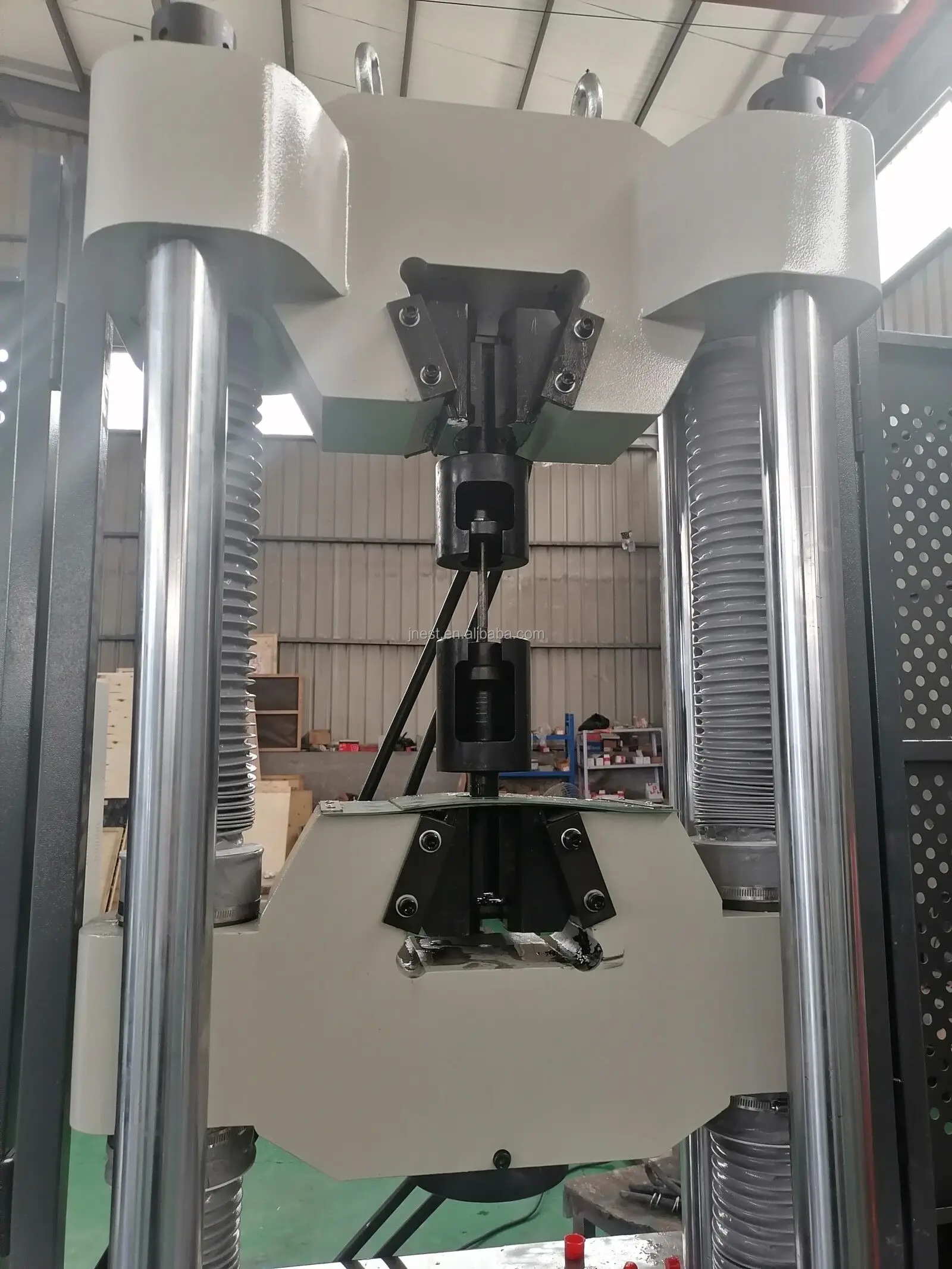

Clamping method | Hydraulic automatic clamping |
Round shape sample allowable diameter | 13-26 & 26-40 & 40-60mm |
Flat shape sample allowable size | Thickness: 0-30mm, width: 110mm |

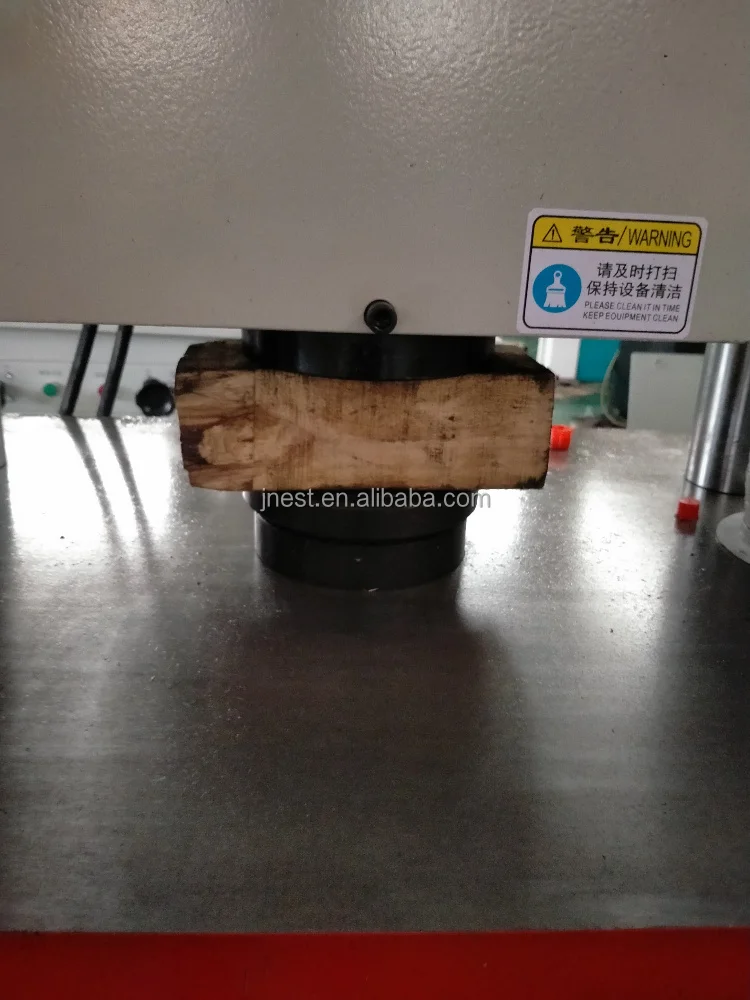

Compression platen size | 160mm |
Distance between upper and lower beam | 700mm |
Distance from left to right column | 530mm |
Machine host size | About 1030×850×2350mm |
Net weight | About 3200kg |
Oil source control cabinet size | About 1100*600*980mm, 200kg |
Machine host and oil source control cabinet power | 3-phase, AC380V, 50HZ |
Computer and printer power | Single phase, AC220V, 50HZ |
