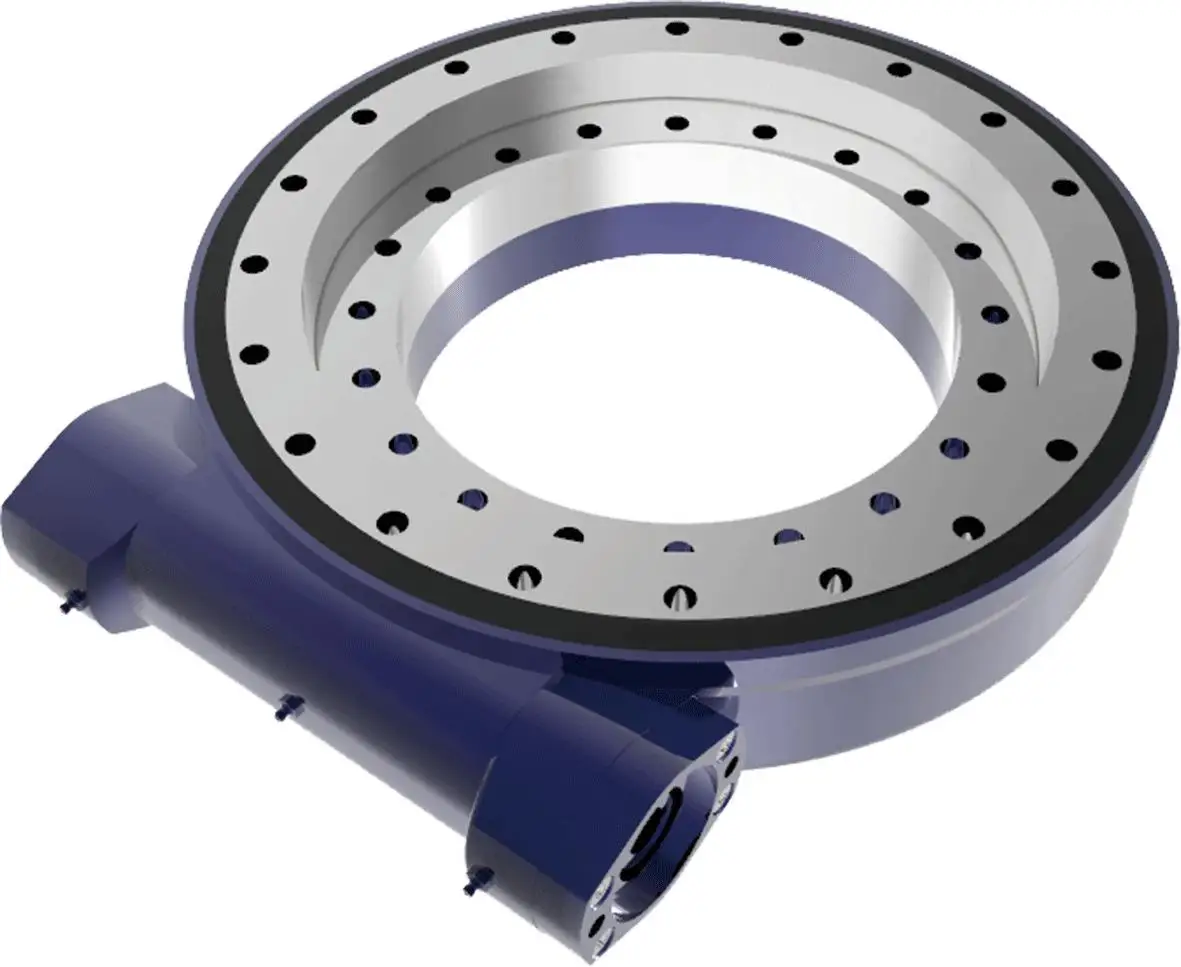

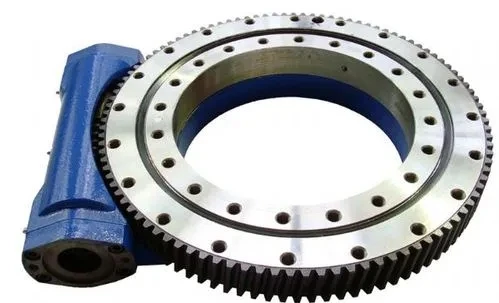

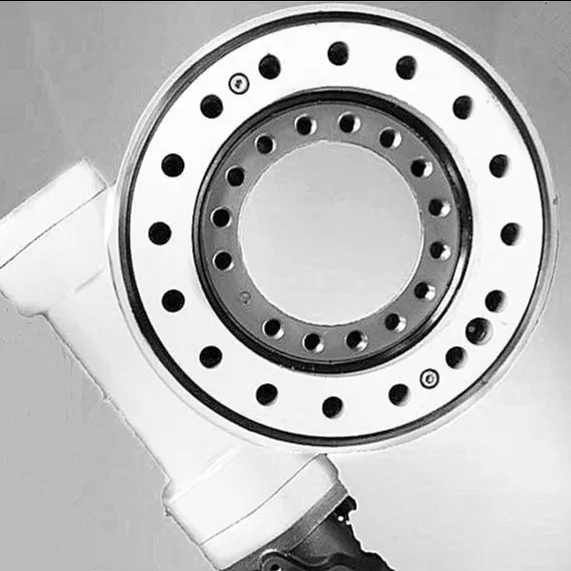

Heavy duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing For Solar Tracking System Industry
Heavy-duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing For Solar Tracking System Industry
Heavy-duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing For Solar Tracking System Industry
Heavy-duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing For Solar Tracking System Industry
Heavy-duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing For Solar Tracking System Industry
Heavy-duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing For Solar Tracking System Industry

Heavy duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing For Solar Tracking System Industry

Share on (1601202197346):


Price:$289.00 - $459.00

Quantity:


Product Overview

Description



Product Description




Xuzhou XMK Slewing Bearing CO.,LTD
is a professional manufacturer of slewing bearings,Slewing Drive,Gear,Gear Shaft.The
productions are widely applied on construction machinery,port facilities,mining,wind energy and other fileds.
There are kinds of models of production from 3'' to 25'',the slewing drive can be customized to meet the special requirement for
new energy and engineering machinery application.


Specification






Warranty
12 months
Place of Orgin
Jiangsu . China
Brand Name
Xuzhou XMK
Model Number
Slewing Drive WEA 17
Brand
XZXMK
Type
Single worm and enclosed housing
Size
3"   to  25" and customized
Mortor Mounting
electric and hydrulic
Type of tooth
Helical tooth
Inspect Report
Provided
Other
ODM OEM


Forging
Forging material: 50Mn, 42CrMo, etc.
Rough Turning
Processing rang: 100-5000mm
Processing precision: Grade IT 10
Raceway Rough Turning
Processing range: 100-4500mm
Processing precisiong: Grade IT 8


Raceway Heat Treatment
Hardness range: 55-62HRC
Quenching depth: 2-8mm
Automatic tracking
Real-time monitoring
Gear Making
Processing range:100-3500mm
Processing precisiong: Grade 8-10
Gear Heat Treatment
Hardness range: 50-60HRC
Quenching depth: 0.6-4mm
Automatic tracking
Real-time monitoring


Surface Finish Turning
Processing range: 100-4500mm
Processing precision: Grade IT 7-IT 10
Surface roughness:3.2, 6.3
Hole Drilling
Processing range:100-4500mm
Position precision: 0.5mm
Raceway Finish Turning
Processing range:100-4500mm
Processing precision: Grade 7-8
Surface roughness: 0.8-1.6


Deburring and Cleaning
Deburring items: plug, soft zone, tooth chamfer, descaling, cleaning, etc.
Assembling
Assembling range:100-4500mm
inspection
Full size inspection: dimensional accuracy, raceway hardness, axial clearance, radial clearance, axial runout, gear radial runout,
gear accuracy, tooth surface hardness, rotational flexibility, appearance, documentation, etc.

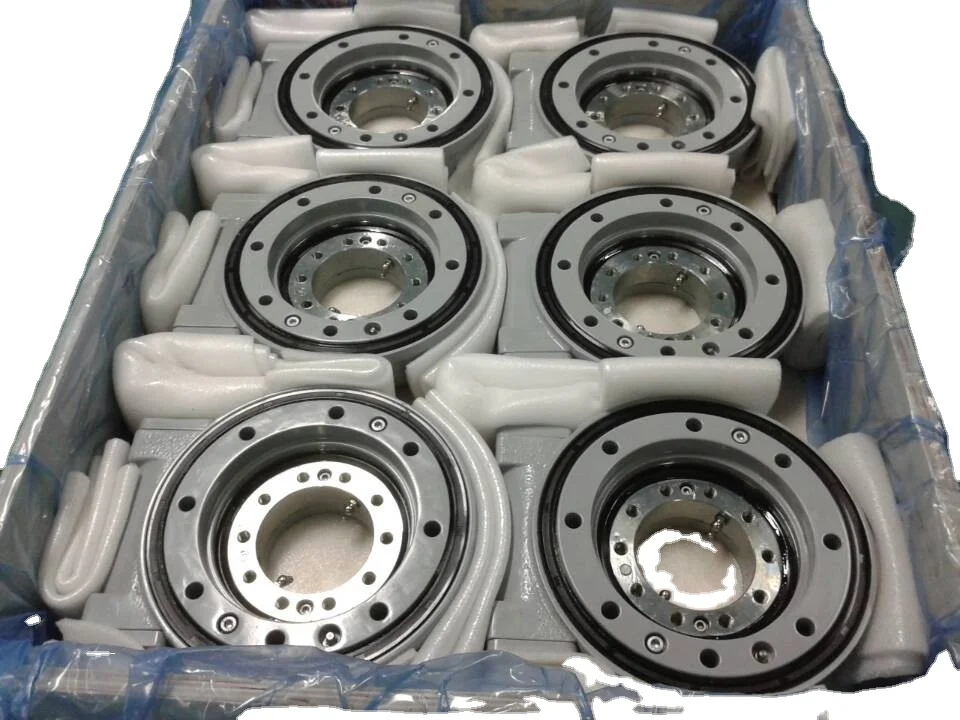

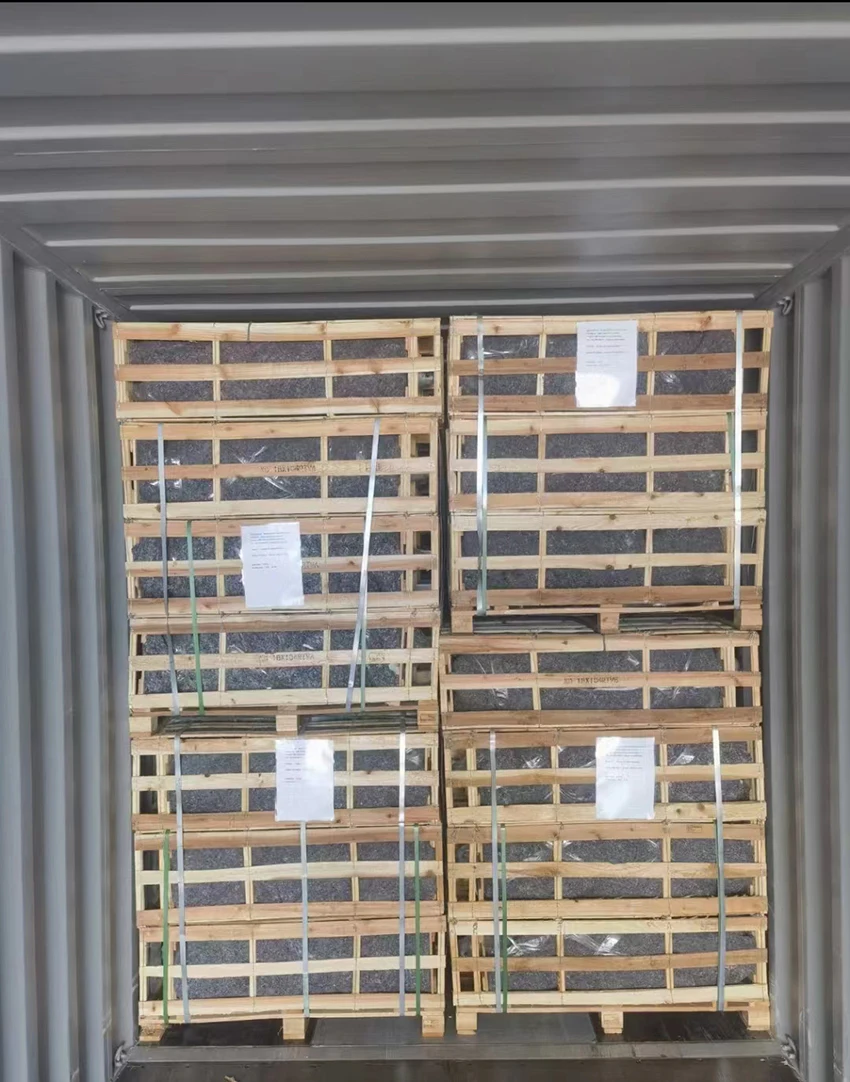

Packing & Delivery








Packing Details : Standard export packing and wood pallet packing
Inner Packing ： PP bag with carton ; Outer Packing
Outer Packing : Carton boxes and wooden cases
Leadtime : 20-30 days upon order confirm


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

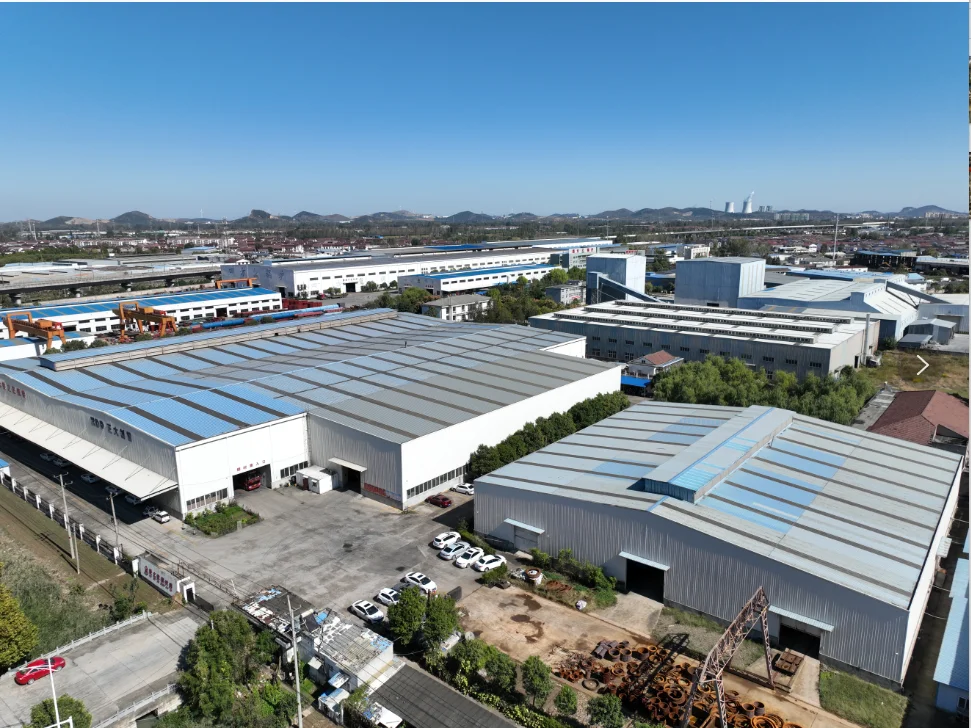

Company Profile




Xuzhou XMK Slewing Bearing Co.,Ltd.
Xuzhou XMK Slewing Bearing Co.,Ltd.is a professional manufacturer and exporter of slewing bearing, slewing drives, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems etc. Slewing bearing/drives can bear axial force, radial force and tilting moment.The diameter range of slewng bearing can be from 200 mm to 5000 mm For slewing drive, there are nine (9) different sizes available from 3" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.For detailed information please download our catalogue.




Title goes here.
Xuzhou XMK Slewing Bearing delivers custom-engineered solutions to customers in 34 countries. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2008 and GB/T19001-2008. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.Xuzhou XMK Slewing Bearing team is committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers' growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.




The company has complete research and development, verification and inspection equipment, and currently there are more than 20 kinds of equipments in the factory, including automatic turret microhardness tester, microcomputer-controlled universal testing machine, metallographic microscope, magnetic particle flaw detector, digital ultrasonic flaw detector, bearing measuring instrument, Leeb hardness tester, ultrasonic surface quenching layer thickness gauge, three coordinates, etc. A variety of testing and control methods are used to escort the manufacture of high-quality products.


Why Choose Us




Special heat treatment design is carried out according to the different needs of specific industries for gears, mainly including induction single-tooth quenching and induction-type integral tooth quenching. Single tooth quenching is divided into tooth surface quenching and tooth surface and root quenching. After quenching, tempering treatment is carried out to make the surface hardness and the depth of the hardened layer meet the design standards. The most advantageous process is the special process of integral tooth quenching, which can improve the transmission efficiency and increase the wear resistance and impact resistance of the tooth surface, so as to meet the needs of customers.
The raceway heat treatment of the slewing bearing is realized by induction heat treatment technology. Xuzhou XMK Slewing Bearing has advanced heat treatment equipment (processing equipment and testing equipment) and scientific processing technology, so that the depth and hardness of the hardened layer conform to JB /T2300-2018 slewing bearing standard.


Xuzhou XMK Slewing Bearing CO.,Ltd
The company has passed ISO9001 Quality Management System, ISO14001 Environmental Management System certification and China Classification Society (CCS) supplier certification.


FAQ


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Title goes here.
1. You are a Trader or Manufacturer?
We are a professional manufacturer of Slewing bearing and Slewing drive, and we have 3 plant to make it, the Monthly production is 5000pcs

2. What is your delivery time?
For Slewing drive we have stock for all models, and for Slewing Bearing around 15-40days.

3. What is your Payment Term?
Generally, we need 30% T/T in advance, balance before shipment.
We accept the Assurance order from Alibaba and L/C at sight.
