Latest Intel 12th Gen Alder Lake Q670 H610 Mini Itx Motherboard 2*HD MI/2*DP/eDP/LVDS 2*DDR5 64GB LGA1700 Motherboard
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601202239655):
Product Overview
Description
Zunsia Customized 12th Intel Alder Lake-S LGA1700 H610 TDP 65W Desktop Mini PC Mother board DDR5 64GB LVDS Mini ITX Motherboard
* Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-s series, LGA1700, TDP 65W; H610/Q670
* 2*DDR5 SO-DIMM，MAX 64GB
* 2*Intelnetwork i219-LM + i226-V，2*HDMI，2*DP，eDP/LVDS
* M-Key 2280，E-Key，PCIe_X16
* Piwer：DC 12-24V
* Size :170x170 mm
* 2*DDR5 SO-DIMM，MAX 64GB
* 2*Intelnetwork i219-LM + i226-V，2*HDMI，2*DP，eDP/LVDS
* M-Key 2280，E-Key，PCIe_X16
* Piwer：DC 12-24V
* Size :170x170 mm
Products Description
CPU | * Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-s series, LGA1700, TDP 65W; H610/Q670 |
Ram | 2*DDR5 SO-DIMM 4800MHz，max 64GB |
Storage | 1*M.2 M-Key 2280(NVMe PCIe4.0_x4 default/optional SATA3.0 protocol) storage interface |
TOP300C-I7 | 2*SATA3.0 |
Display | 2*HDMI2.1, suopport 4096x2160@60Hz |
2*DP1.4，suopport 7680x4320@60Hz | |
eDP/LVDS | |

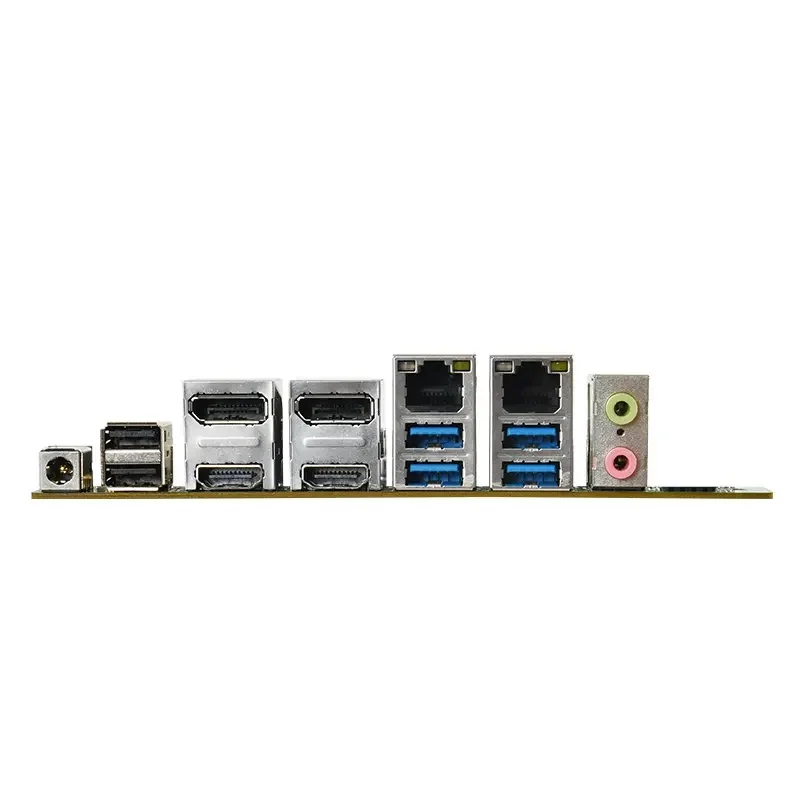

I/O interface | DC JACK，2*USB2.0 |
2*HDMI/DP | |
2*(LAN + 2*USB3.2)，2-hole audio input and output | |
Extended Interface/Function | TPM2.0 is optional, default no |
1*PCIe_X16 (PCIe4.0_16x protocol) | |
1*M.2 E-Key (PCIe3.0/USB2.0 protocol, support WIFI/BT module) | |
4*COM pin header, 2x5Pin, pitch 2.54m; COM1/2 can choose RS232/485, COM3/4 can be RS232 | |
2 groups of 4 USB2.0 pin headers, with a pitch of 2.54mm (one USB2.0 and BT share LAY) | |
8*GPIO header, 2x5Pin, pitch 2.54mm | |
1*4Pin PWM CPU fan, 1*4Pin system fan |

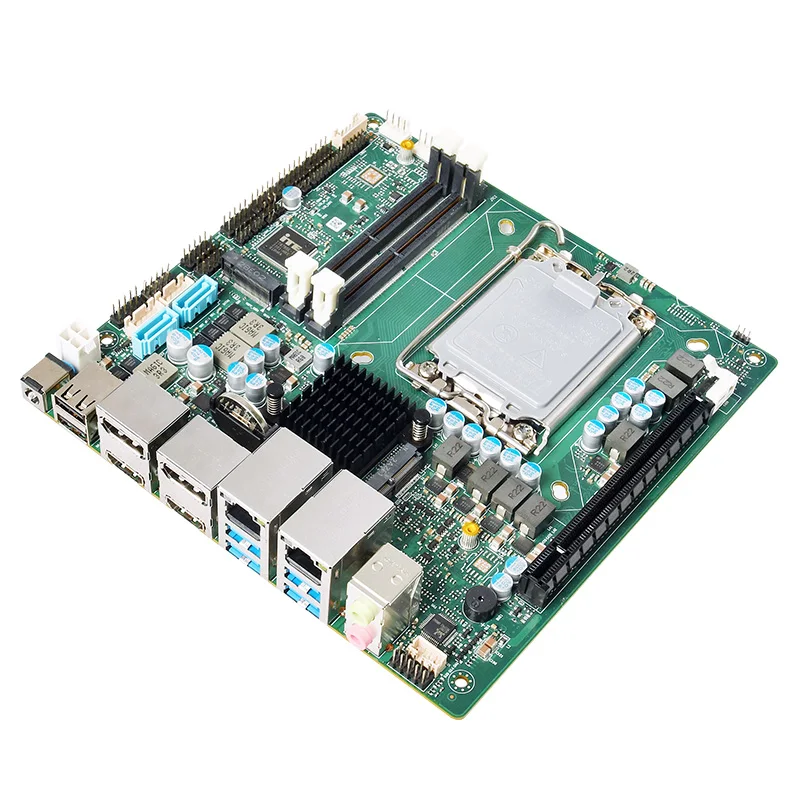

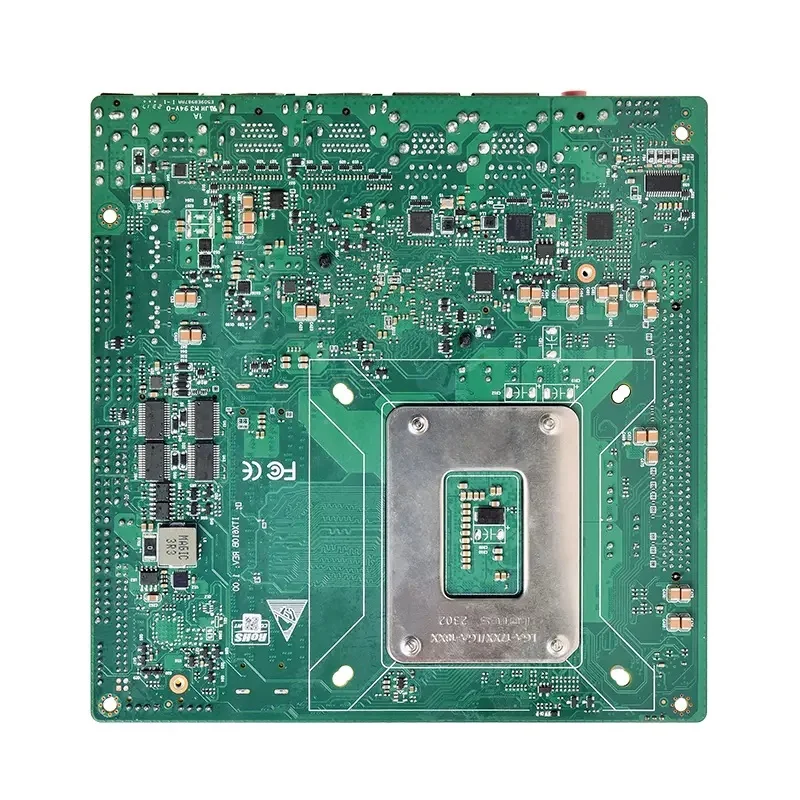

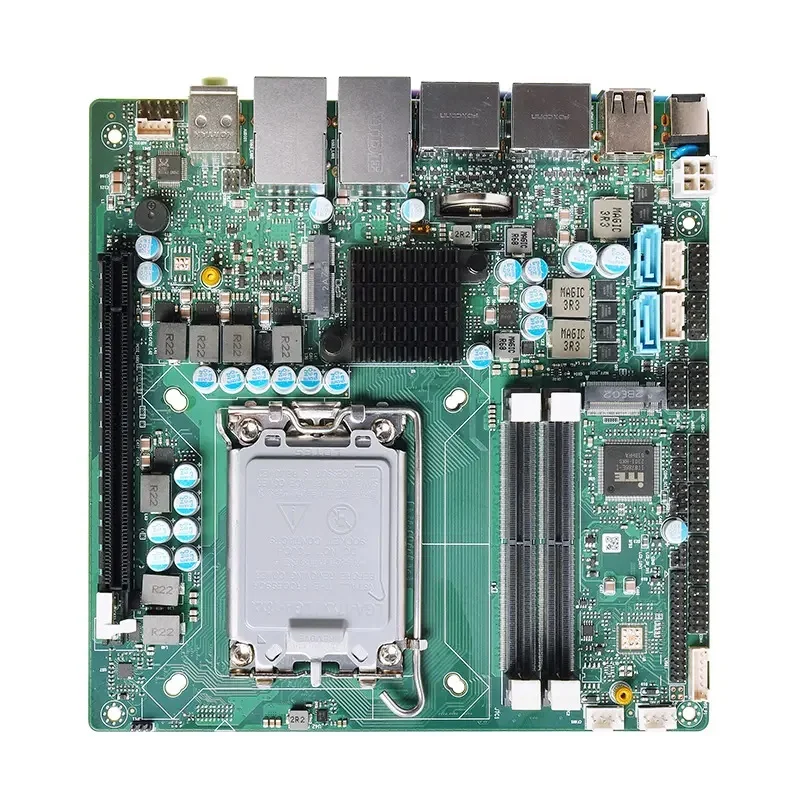

Details Images
Our Services
1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
Company Profile
Package&Delivery
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
