GLTV7S Stainless steel probe capacitive fuel level sensor
US $112.00-$361.00

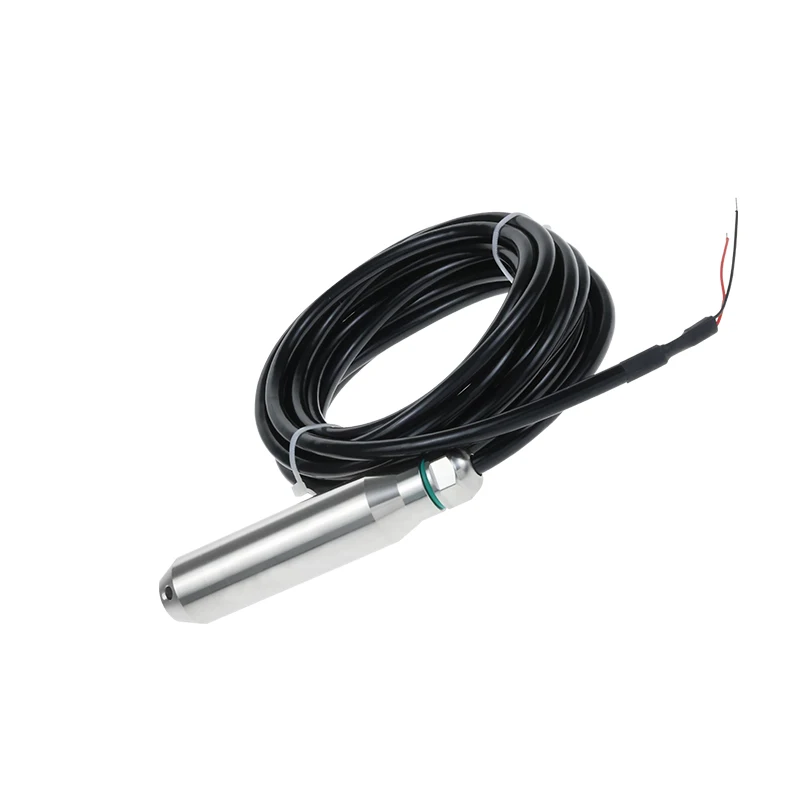

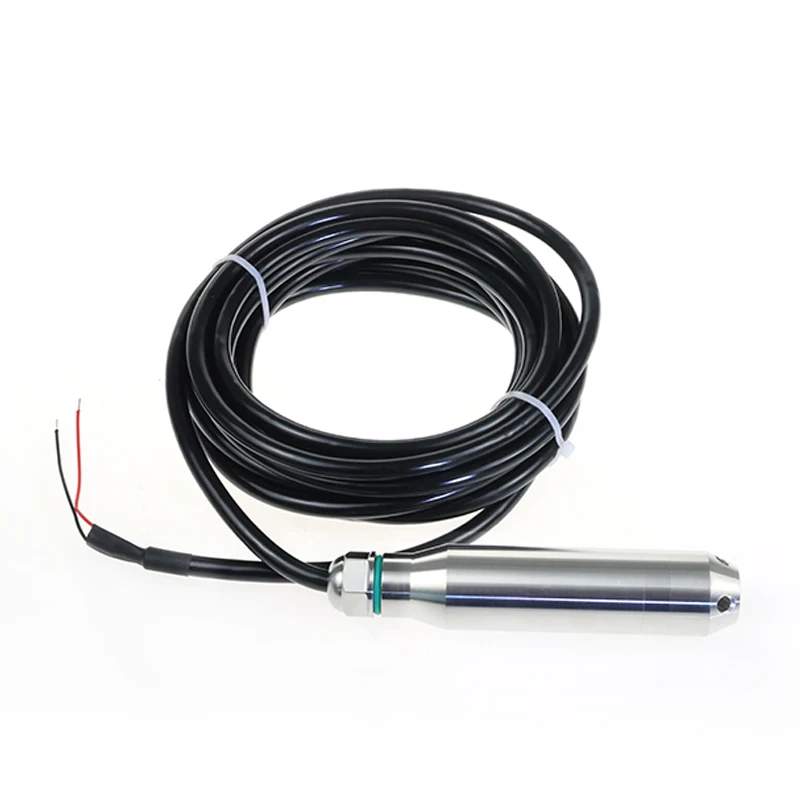

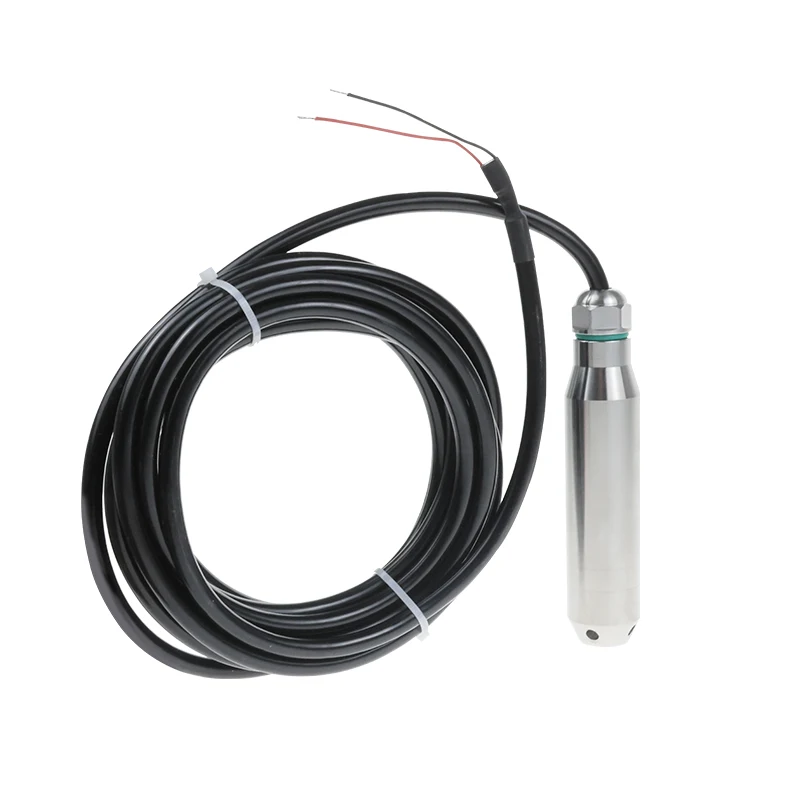

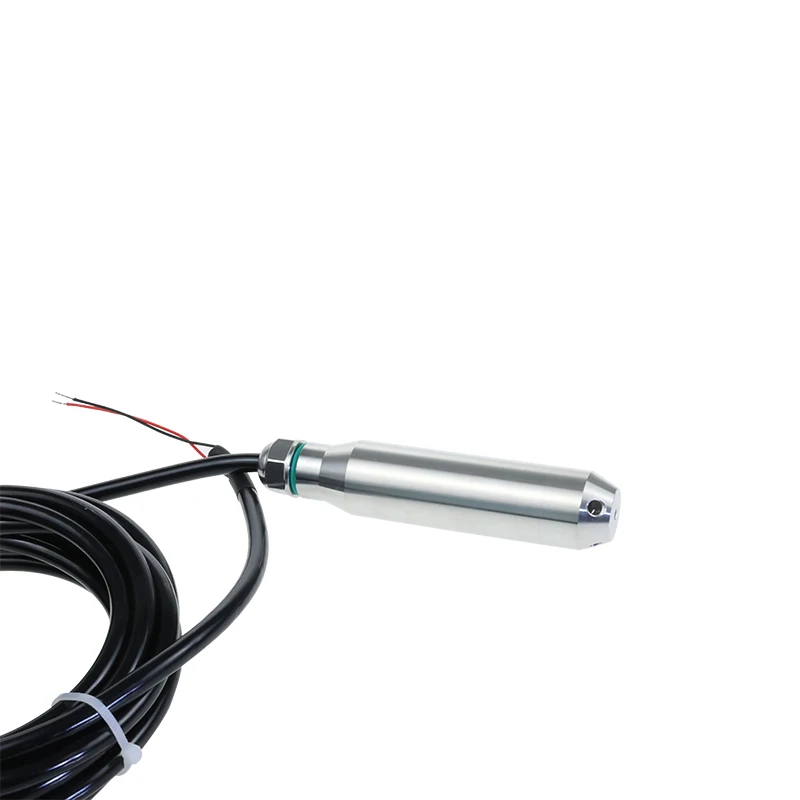

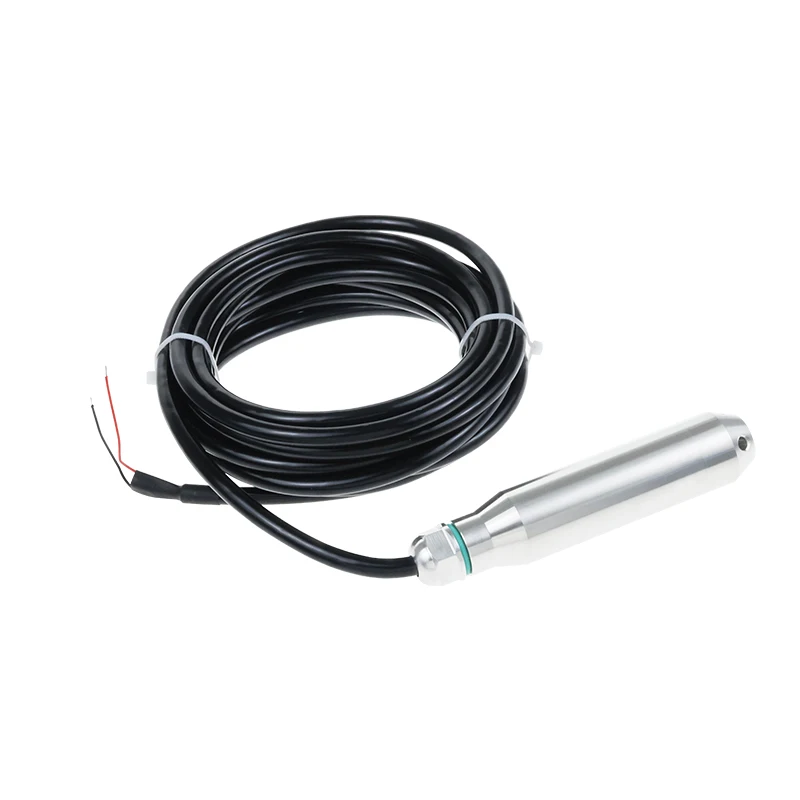

IP68 Submersible Water Tank Level Sensor water pressure level sensor stainless steel liquid level sensor
- Category: >>>
- Supplier: Hefei Yukong Automation Technology Co. Ltd.
Share on (1601202606273):
Product Overview
Description
Product Description
RS485 Stainless Steel Hydraulic Water Level Sensor Hot Water Level Sensor Gasoline Station Fuel Tank Level Sensor
✔ Welded housings are tested internally with a helium leak tester to ensure proper protection. Vent pipes in the cable
automatically compensate for changes in atmospheric pressure above the tank.
✔ The conductors of the cable are also isolated from the external environment to maintain the level sensor for long term use. Each submersible pressure transducer has a removable nose cone at the sensor that protects the diaphragm from damage.
✔ Measuring range from 0-500m can be customized, output 4-20mA, 0-10V, RS485 can be customied.
NOTE: If you need other parameters customization, please feel free contact us
Parameters
Model NO.: | YK-YW26A |
Name: | liquid level transmitter |
Measuring range: | 0~500m customize |
Output signal: | RS485, 4-20mA, 0-20mA, 0-5V, 0-10V, parameters can be customized |
Power supply | DC24V |
Working temperature: | -20℃~+85℃ |
Accuracy: | 0.2%； 0.5% |
Reponse time: | ≤ 50ms |
Load capacity | ≤ 500Ω |
Linearity | 0.02% |
Measuring medium: | non-corrosive liquids |
Overload pressure: | 300% F.S |
Shell protection: | IP68 |
FAQ
Q1: Can the parameters customized according to our demand?
Q5: What's the delivery time?
A: Yes, we customize the paraments based on your need, such as measuring range, power supply, output signal, etc., and also supply brand customization, customize your company's name and logo on the products.
Q2: What's your minimum order quantity ? Could I get one sample to test first?
A: We offer the lowest MOQ, and also offer sample for you to test.
A: We offer the lowest MOQ, and also offer sample for you to test.
Q3:When will the shipment be made after placing the order?
A: For sample order, usually will ship out in 2 days, and for bulk order with parameters customize, usually will be ship out in a week.
Q4: If I meet some problems during using your products, how could I solve it?
A; If you meet any problem during using the prodcuts, please contact us in a timely manner. We have professional engineers who will help you solve the problem.
A; If you meet any problem during using the prodcuts, please contact us in a timely manner. We have professional engineers who will help you solve the problem.
Q5: What's the delivery time?
A: We have UPS, DHL, Fedex, sea freight, plane etc. shipping methods to choose, which can fulfill your demand about in-time delivery demand.
