Product Overview
Description
Product Description

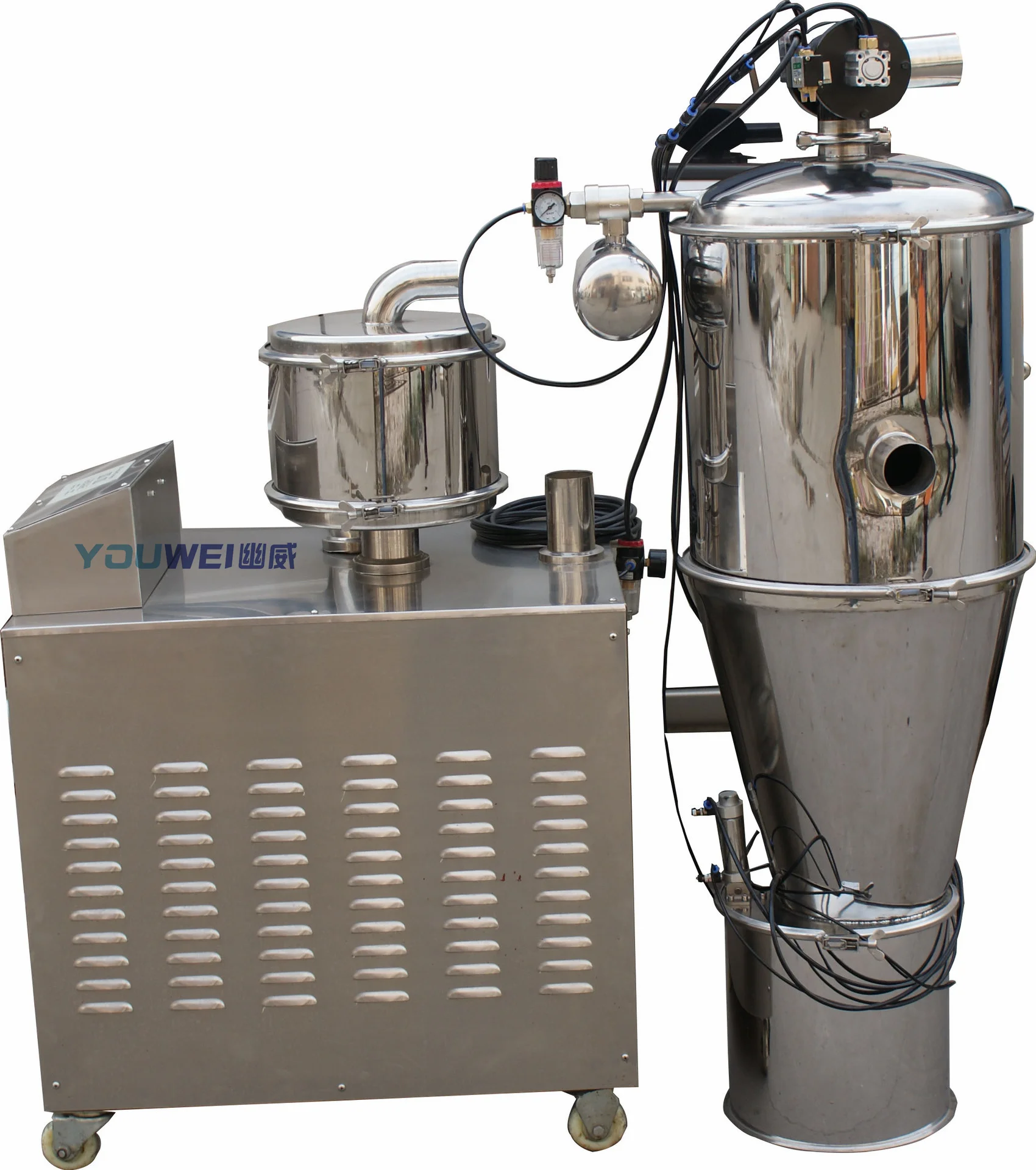

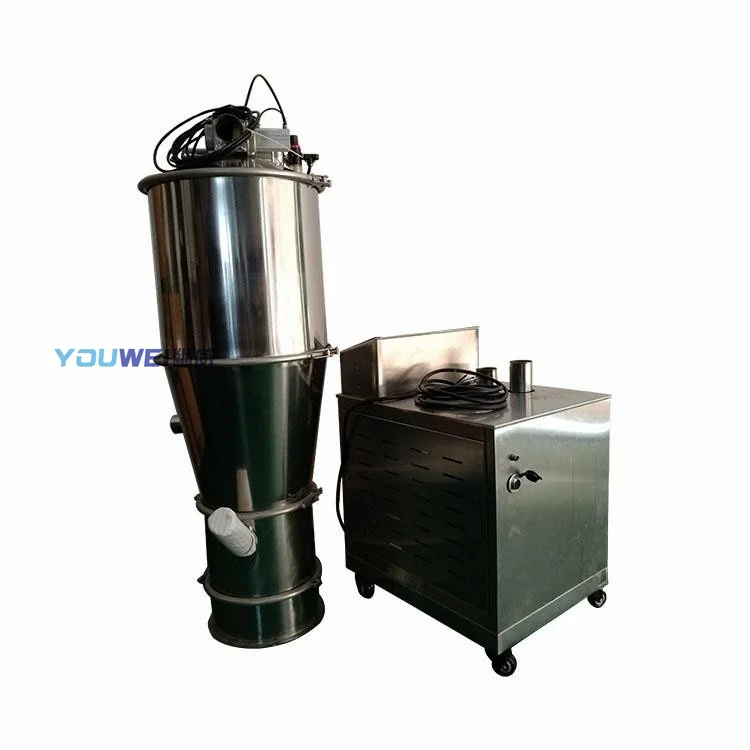

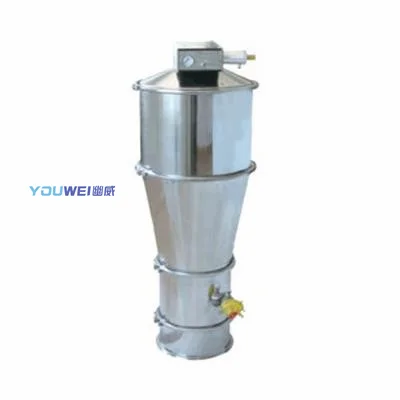

Vacuum Conveyor without Buffer Hopper
1. Vacuum Conveyor is interactive, enclosed transfer system;
2. To introduce small quantity of Powder/ Granules into production line system;
3. Material: Stainless Steel 304 as standard, option for SS 316, PTFE/Ceramic coating
4. Air Filter with Back flush air bag;
5. Technology: Inner surface mirror polished, outside surface brushed.as standard.

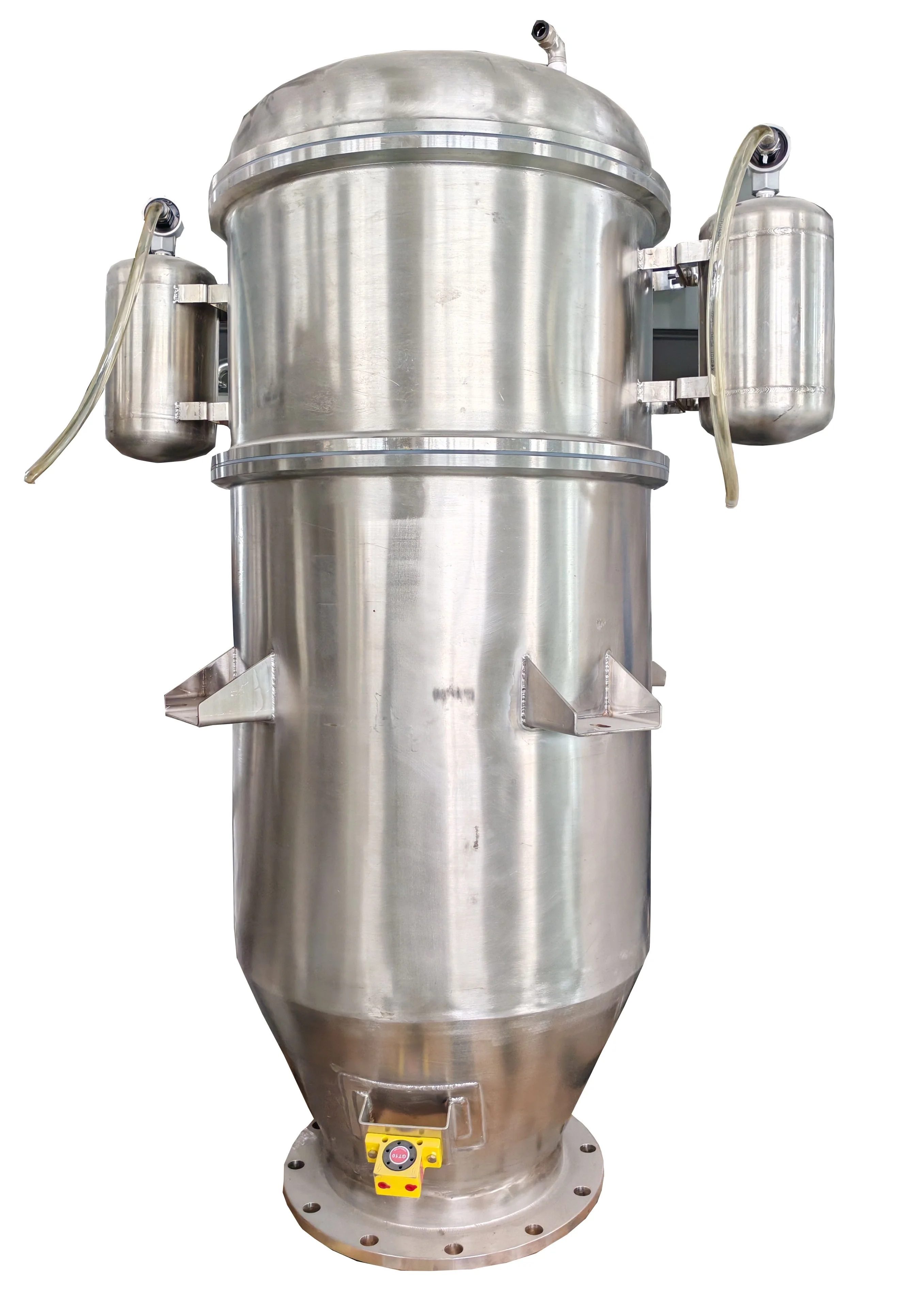

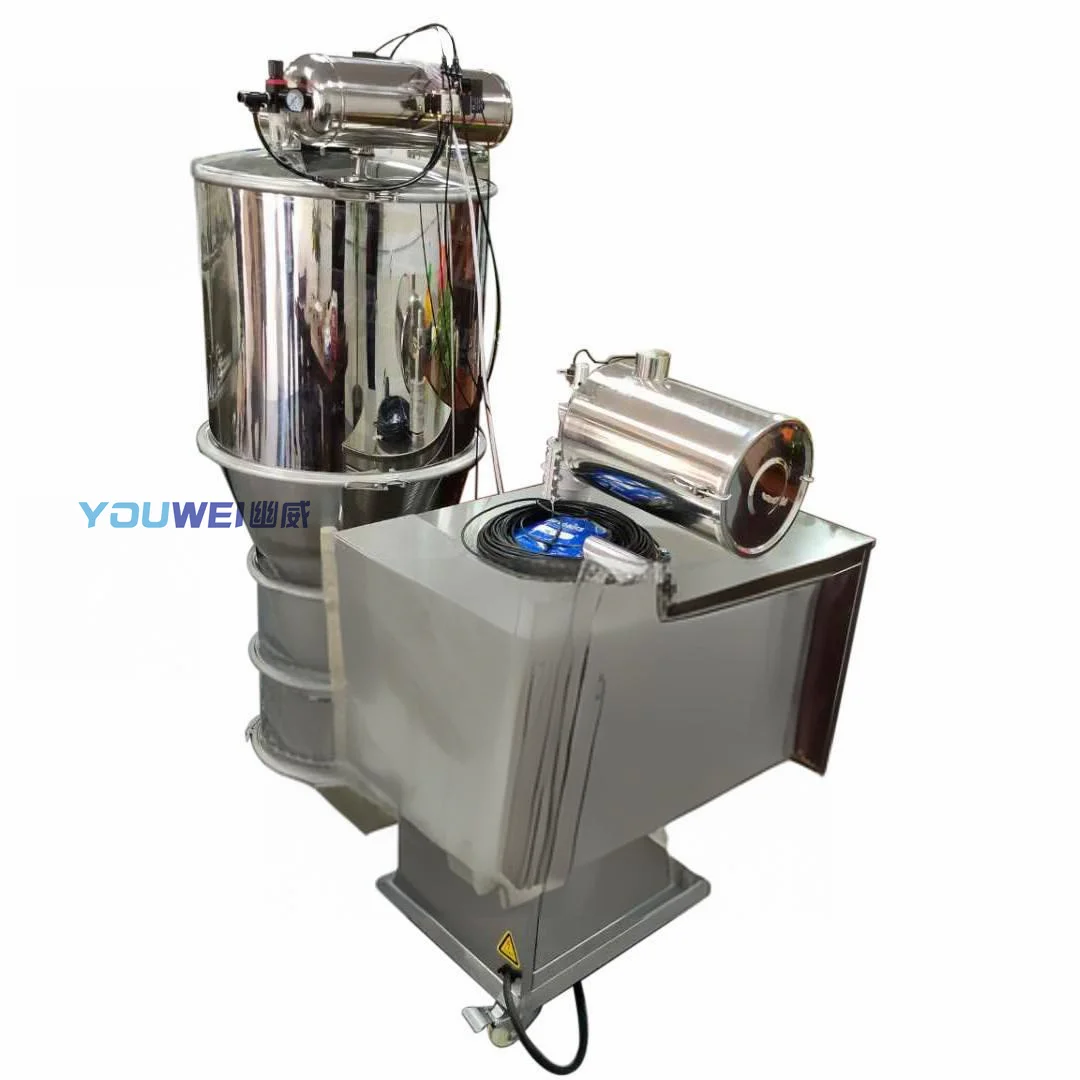

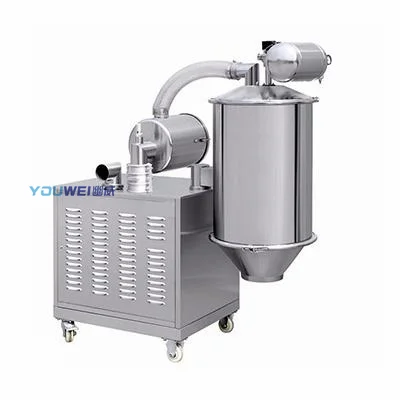

Vacuum Conveyor with Buffer Hopper
1. Vacuum Conveyor work seamlessly in a multitude of product transfer situations;
2. Buffer hopper increases conveying capacity. Actual capacity can be calculated by Youwei's Engineer with your transferring data;
3. Material: Stainless Steel 304 as standard, option for SS 316, PTFE/Ceramic coating;
4. Option for Vibrator for viscosity material;
5. Can be continuous feeding after configuring rotary valve.
Technical Parameter
Type | Specification (MM) | Capacity （KGS/H） | Power （KW） | Filter Area （m²） | Material |
UV-180 | Φ250*600 | ≤250 | 2.2 KW | 0.35 | 304/316L |
UV-250 | Φ300*1200 | ≤500 | 4 KW | 0.55 | 304/316L |
UV-320 | Φ430*1500 | ≤1000 | 5.5 KW | 1.5 | 304/316L |
UV-430 | Φ560*1800 | ≤2000 | 7.5 KW | 2.5 | 304/316L |
UV-560 | Φ800*2000 | ≤3000 | 11 KW | 4.6 | 304/316L |
UV-250S-300L | Φ800*1600 | ≤1200 | 5.5 KW | 0.9 | 304/316L |
UV-320S-500L | Φ900 * 2150 | ≤2500 | 7.5 KW | 1.8 | 304/316L |
UV-430S-1000L | Φ1100*2600 | ≤4500 | 11 KW | 2.7 | 304/316L |
UV-560S-1500L | Φ1400*3250 | ≤6000 | 15 KW | 5.4 | 304/316L |

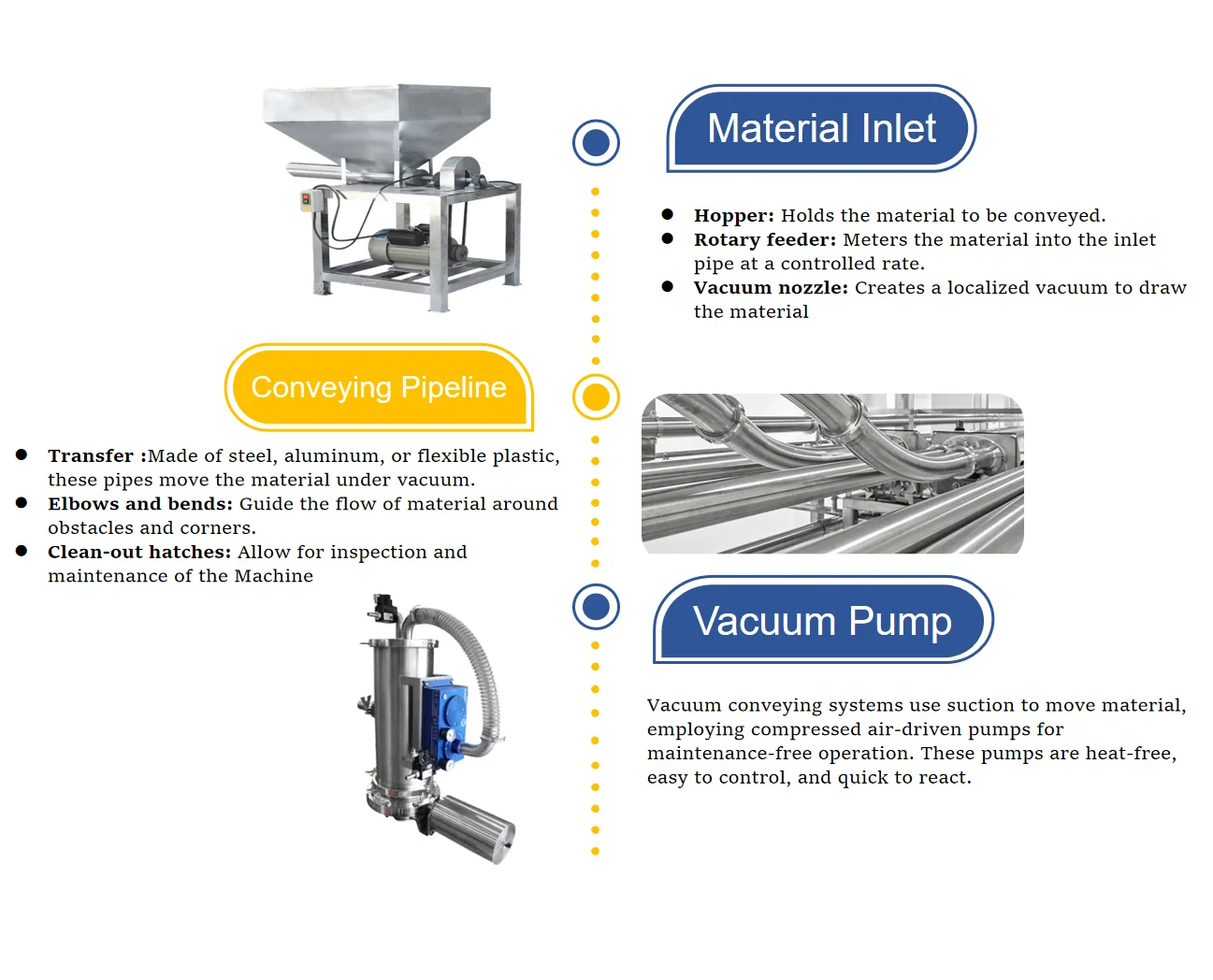

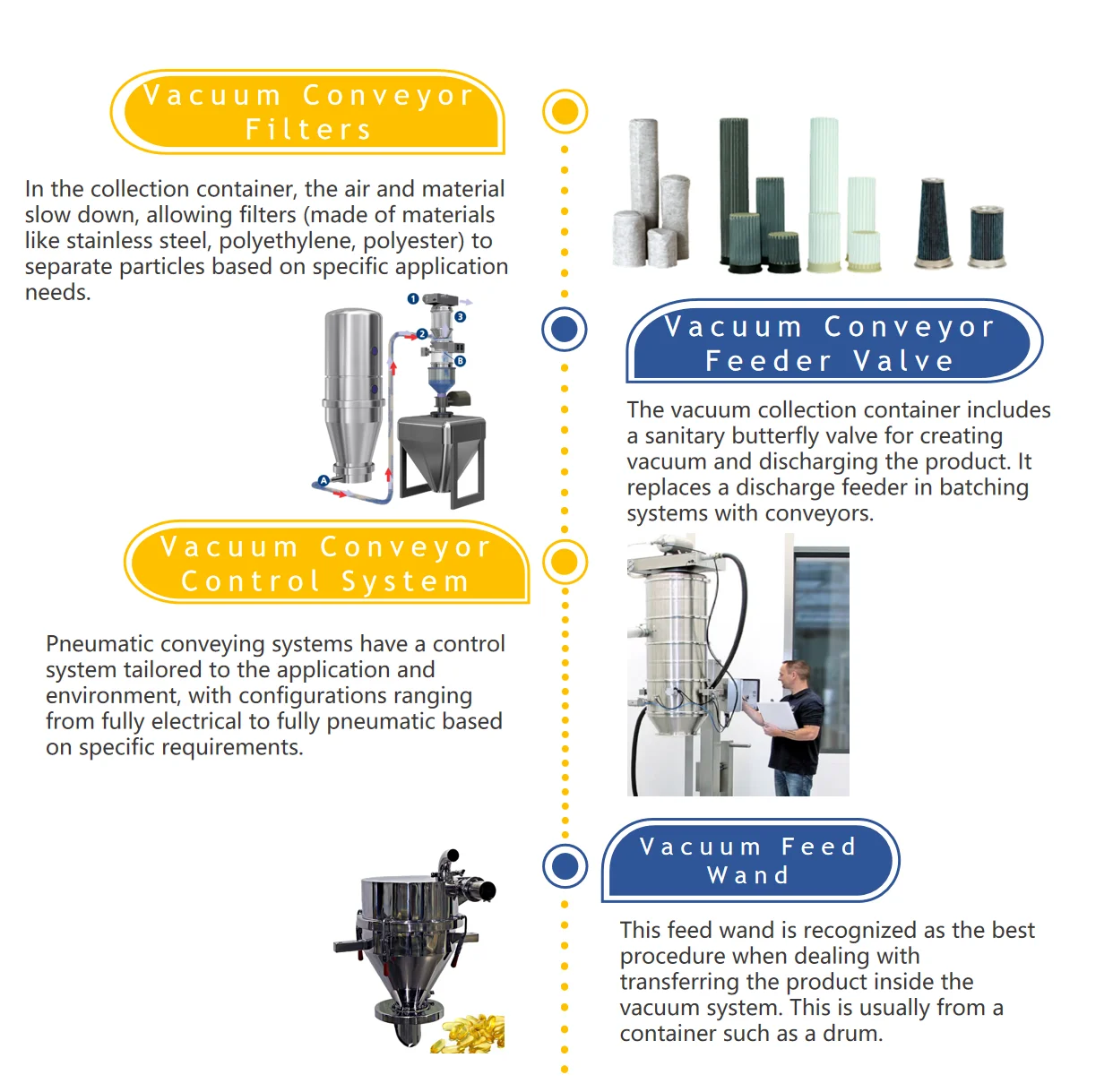

Composition accessories
* Gentle handling: Ideal for fragile materials like food, powders, and chemicals.
* Enclosed transport: Minimizes dust and spills, improving safety and cleanliness.
* Flexible routing: Pipes can navigate complex layouts and reach to Receiving bin.
* Wide range of materials: Handles bulk solids, liquids, and slurries.
* Enclosed transport: Minimizes dust and spills, improving safety and cleanliness.
* Flexible routing: Pipes can navigate complex layouts and reach to Receiving bin.
* Wide range of materials: Handles bulk solids, liquids, and slurries.
About Us
Why Choose Us
FAQ
1. Q: How long is the warranty period?
A: Usually 1 year
2. Q: What is the delivery time?
A: Generally, it takes 10-25 days from the receipt of the deposit, and large-scale equipment will be
3. Q: What are the installation methods?
A: 1) Remote guidance
2) Arrange engineers to be designated on site
3) Provide installation manual
4. Q: Where is the production base?
A: Factory1: No. 22 Jiangong Avenue, Nanfeng Town, Suzhou City, Jiangsu Province
Factory2: No. 11 Nanxiang Road, Nantong City, Jiangsu Province
5. Q: What are the payment methods?
A：L/C&T/T
A: Usually 1 year
2. Q: What is the delivery time?
A: Generally, it takes 10-25 days from the receipt of the deposit, and large-scale equipment will be
discussed separately
3. Q: What are the installation methods?
A: 1) Remote guidance
2) Arrange engineers to be designated on site
3) Provide installation manual
4. Q: Where is the production base?
A: Factory1: No. 22 Jiangong Avenue, Nanfeng Town, Suzhou City, Jiangsu Province
Factory2: No. 11 Nanxiang Road, Nantong City, Jiangsu Province
5. Q: What are the payment methods?
A：L/C&T/T
