Machine Description

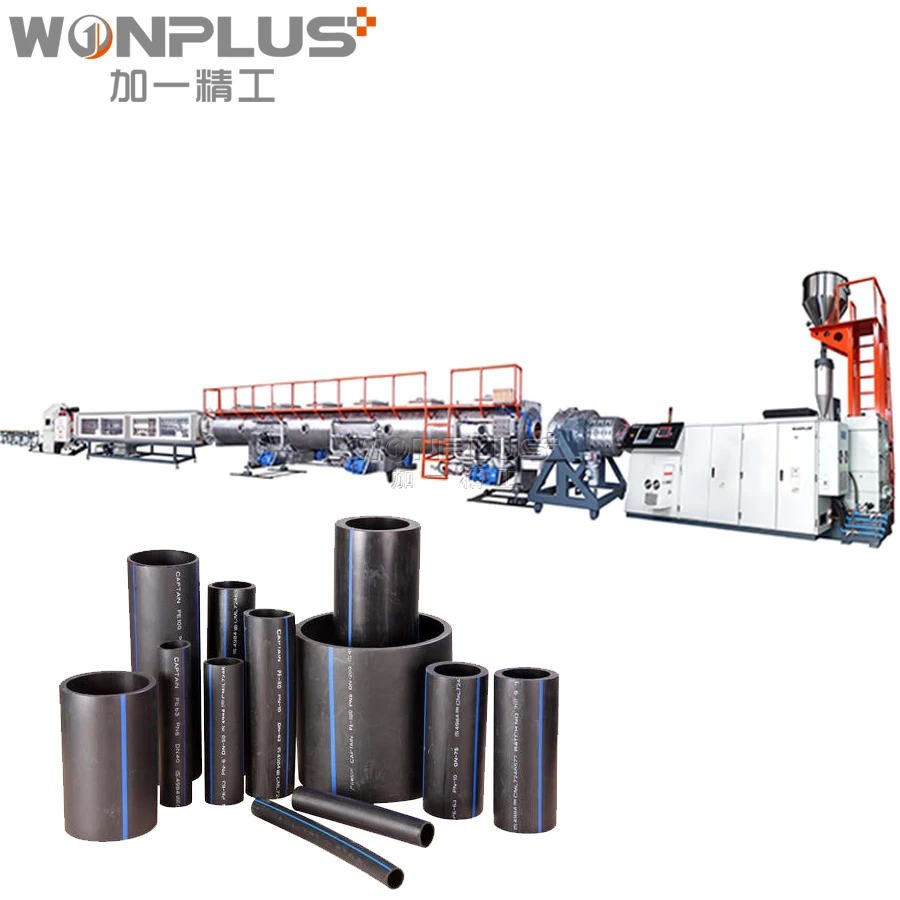

PE/PPR pipe extrusion line includes 16-63mm, 20-110mm and 50-160mm PE/PPR pipe extrusion line, which is characterized by high productivity, high efficiency and high automation. This line can handle all kinds of raw materials, including PE, PPR, HDPE, LDPE, PP, PPR and so on.

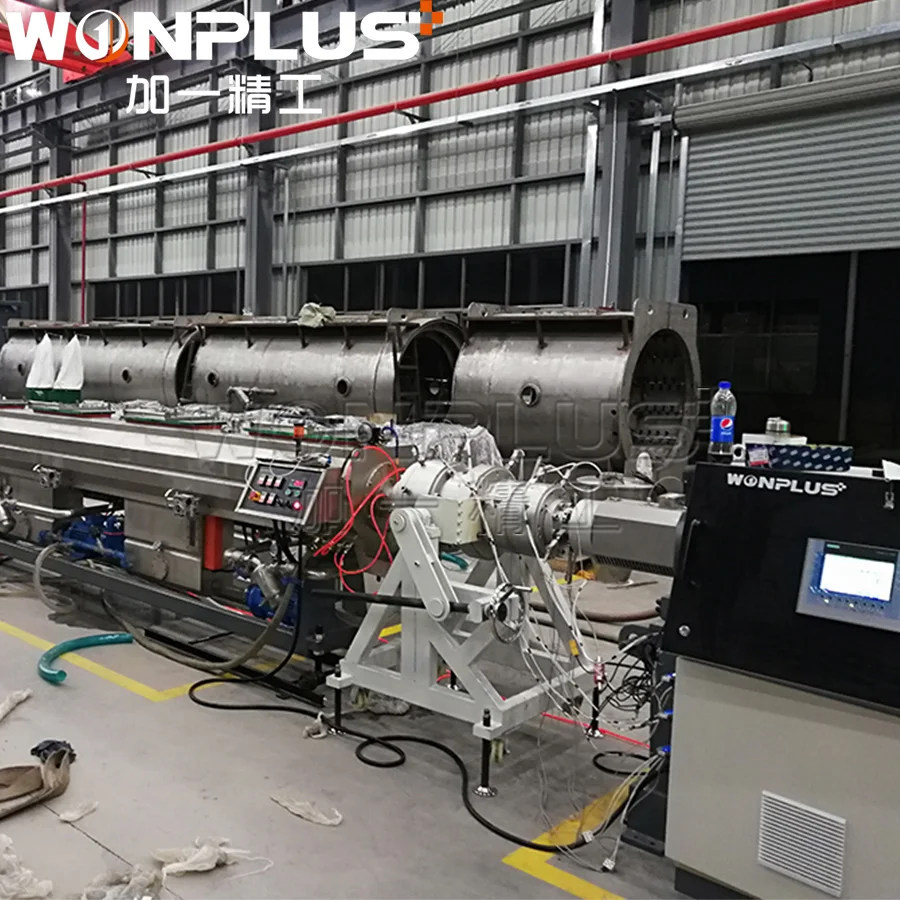

Equipment Composition: Single Screw Extruder + Co-extruder + Pipe Mould + Vacuum calibration tank + Water spraying cooling tank + Two pedrail Hauler + Dust-free Cutter + winder or stacker.







Machine Parameters

















































SPECIFICATIONS FOR PE PIPE EXTRUSION LINE



Extruder model



Driven motor power



Extrusion capacity



Pipe size (O/D)



 SJ-60/38



90KW



350kg/hour



Φ16-63mm



90KW



400kg/hour



Φ20-110mm


Φ50-160mm



110KW



500kg/hour



Φ75-250mm


Φ75-315mm



SJ-75/38






160KW






600kg/hour



Φ110-400mm


Φ125-450mm


Φ160-500mm



SJ-90/38



280KW



900kg/hour



Φ315-630mm



 SJ-120/38






355KW






1200-1400kg/hour



Φ355-800mm


Φ630-1200mm


Φ710-1600mm






Machinery Main Parts

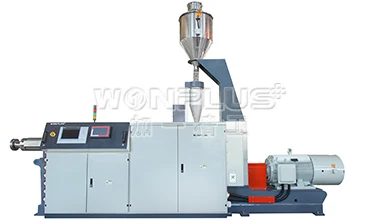

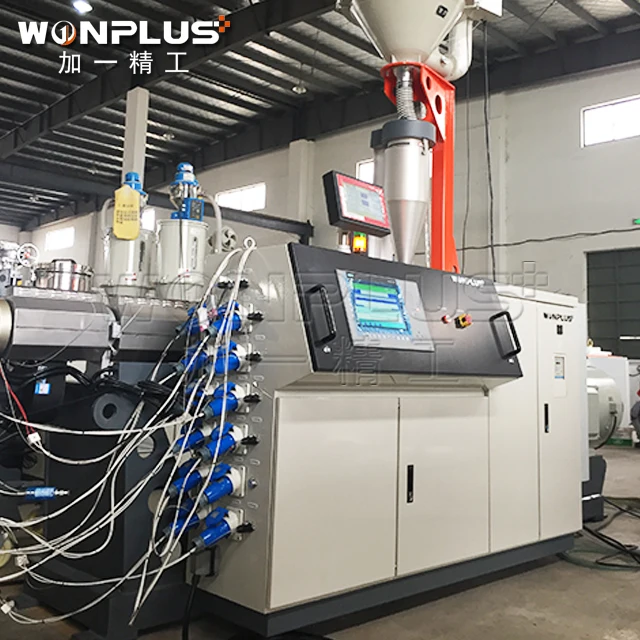

Single Screw Extruder







Driven motor: Siemens brand


Temperature control:  Siemens computer


Inverter: ABB brand


Cotactor & Relay: Schneider brand


Circuit breaker: DELIXI

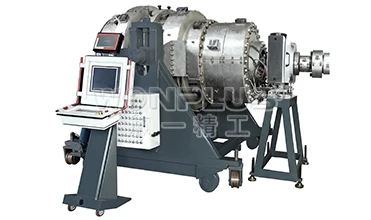

Extrusion Mould





Material: 40Cr
Calibrator: Stainless steel
The inner flow channel is plated with hard chrome, the outer surface is treated with high temperature paint, the corrosion resistance is strong.



-

Calibration Tank





Material:  Stainless steel
Tank Movement :  Forth and back by motor driven , Up and down by food screw adjust



-

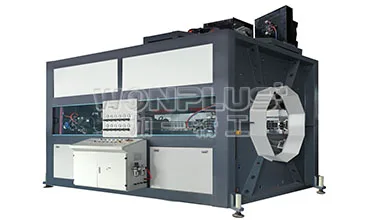

Spraying tank








Material: Stainless steel
Length: 6m or customized







Hauler







Traction motor reducer: Servo motor,  INNOVANCE brand


Electricity components: Schneider brand

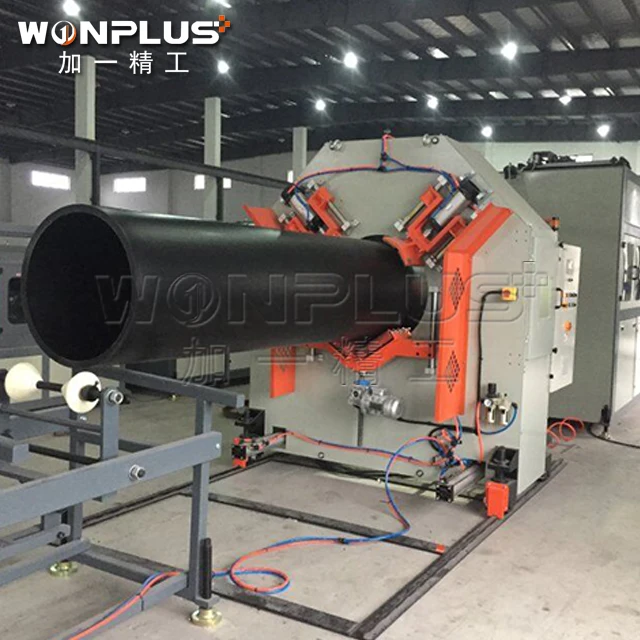

Non-dust Cutter





Cutting control: SIEMENS PLC computer


Cutting type: Non-dust cutter

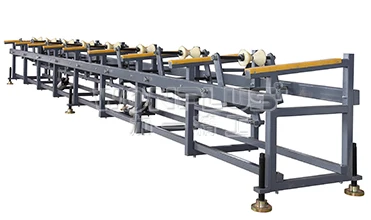

Stacker





Humanized design, labour-saving






Turnkey Project


.jpg





Company Information



.jpg


.jpg





---Specialized In Plastic Extrusion Machinery---




Kunshan Oneplus Machinery Co.,Ltd. is specialized in twin and single screw extrusion line for pipes, profile,sheet and board, plastic recycling granulator. We manufacture both conical and parallel types of extrusion lines depending on the applications. The product has been exported to South East Asia, the Middle East, Africa,Europe and other regions.
