copper clad laminate fr4 sheets for pcb board
- Category: >>>
- Supplier: Wuxi Chifeng Metal Products Co. Ltd.
Share on (1601203248355):
Product Overview
Description
Product description
XPC Copper clad laminated sheet/CCL consist of bleached wood pulp paper, impregnated with modified phenolic resin and clad with electrolytic copper foil.It has high dimension stability, good punching behavior at low temperature, high thermal resistance and are widely used for computers, telephones, Hi-Fi acoustic devices, electronic toys and etc.
Note:Different thickness copper foil in one side or double sides can be supplied. 18um,25um,35um,70um
Item Name | XPC Copper clad laminate | Material | paper based |
Size | 41*49inch | Rated voltage | 33KV |
Thickness | 0.8mm,1mm,1.2mm, 1.5mm,1.6mm | Tensile Strength | |
Copper Thickness | 18um,25um,35um,70um | Color | brown |
Relevant product parameters
Test Item | Test Condition | Unit | Value | Typical Value | |
Copper foil peel strength | 125℃ | N/mm | ≥0.7 | 1.5 | |
Peel strength(1OZ) | Float288℃/10sec | N/mm | ≥1.05 | 1.65 | |
Thermal Stress (float288℃/unetched) | 288°C,10S/solder dip | sec | ≥10 | 120 | |
Warpage (without treatment) | % | ≤1.0 | 0.2 | ||
Flammability ( UL94) | / | V-0 | V-0 | ||
Vitrification transition temperature | E24/125 | ℃ | ≥130 | 138 | |
Dielectric constant(1MHz) | After moisture | / | ≤5.5 | 5 | |
Dielectric loss factor (1MHz) | After moisture | / | ≤0.035 | 0.024 | |
Arc resistance | 1MHz C-24/23/50 | sec | ≥60 | 120 | |
Moisture absorption | 1MHz C-24/23/50 | % | ≤0.8 | 0.3 | |
Comparative tracking index | 1MHz C-24/23/50 | V | ≥150 | 170 | |
Warp | -200 | ||||
Fill | -180 | ||||
Cooper clad laminate | ||||||||||
AL CCL | FR-4 | FR-1 | CEM-1 | XPC | ||||||
Base material | aluminum | fiberglass | fiberglass | paper+fiber glass | paper | |||||
Color | blue film green film | light green，yellow | brown | yellow+white | brown | |||||
Copper foil | single or double side：18,25,35,70 micron | single side:18,25,35,70 micron | ||||||||
Sheet thickness | 0.4-2mm | |||||||||
Size | 1000*1200mm 500*600mm 1000*600mm 500*1200mm | 40''*48'' , 41''*49'' , 43''*49'' | 41''*49'' | |||||||

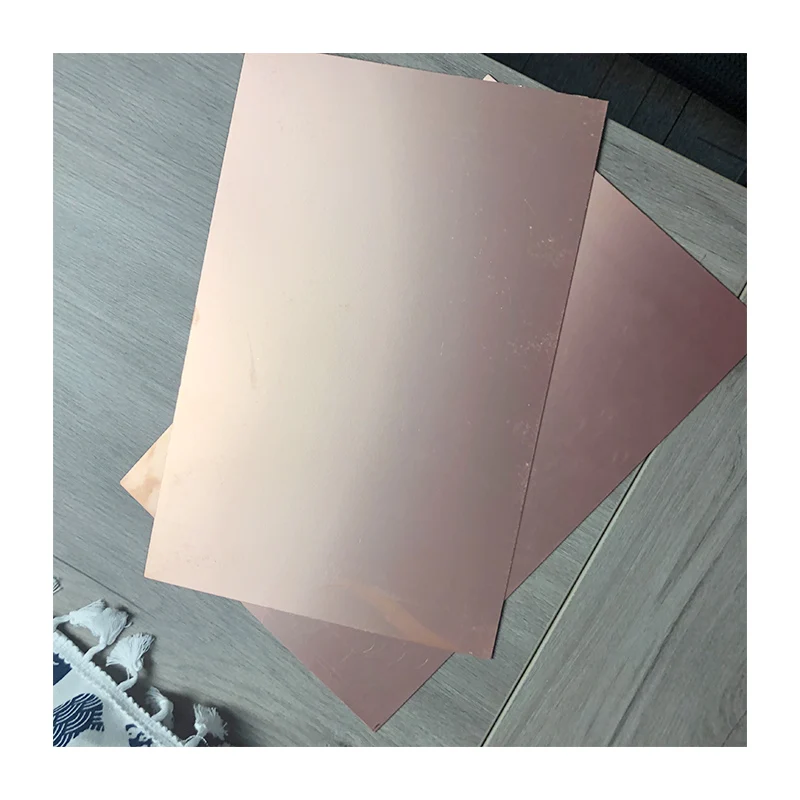

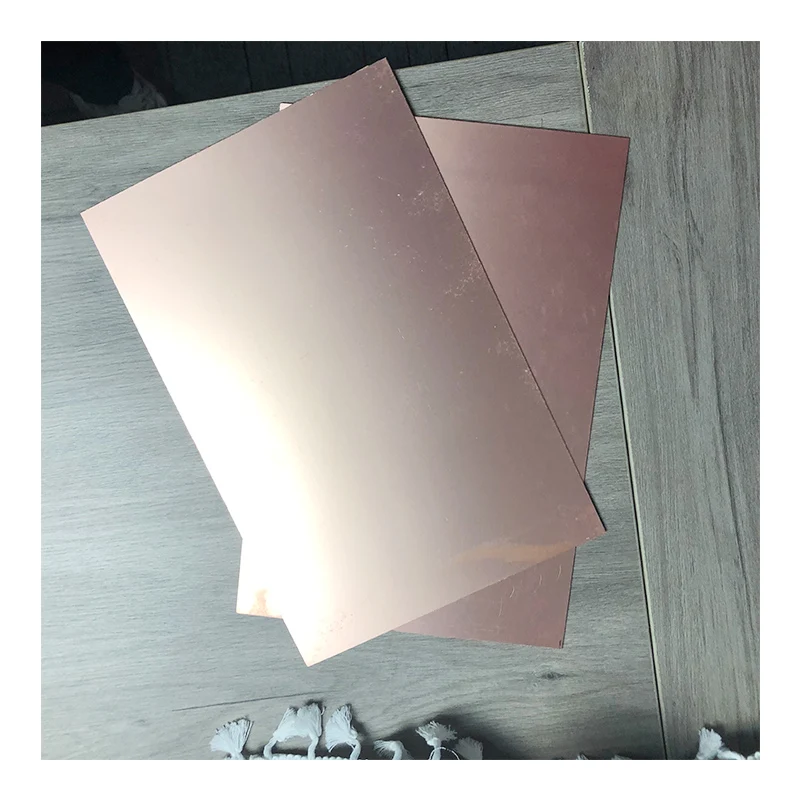

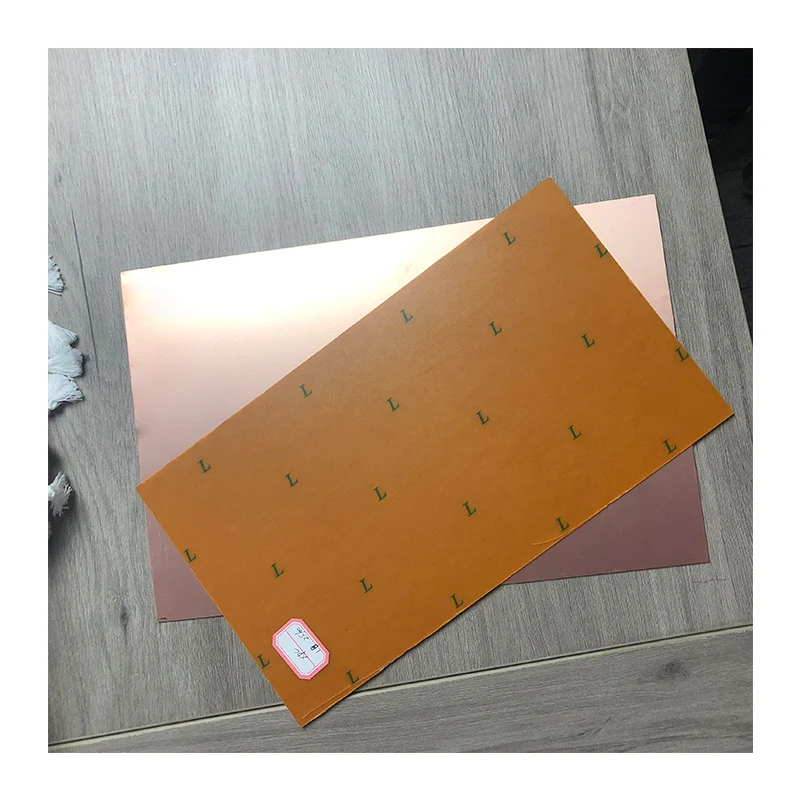

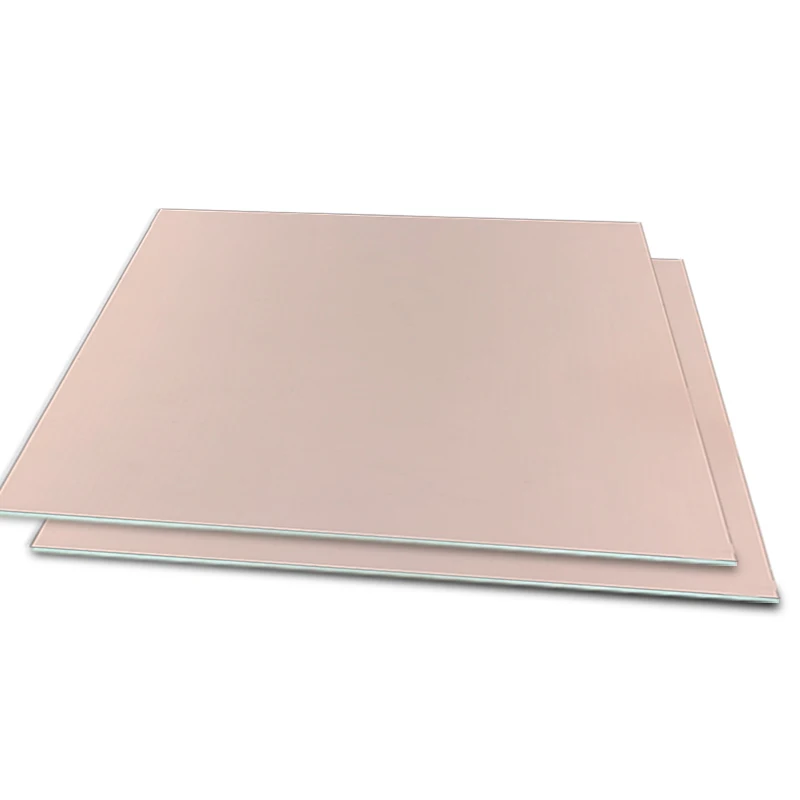

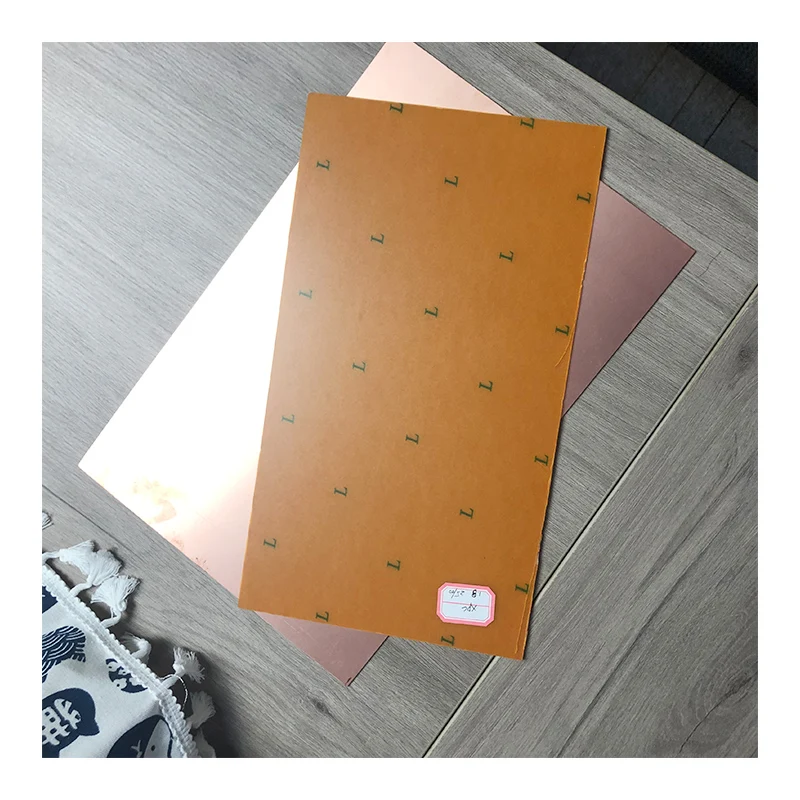

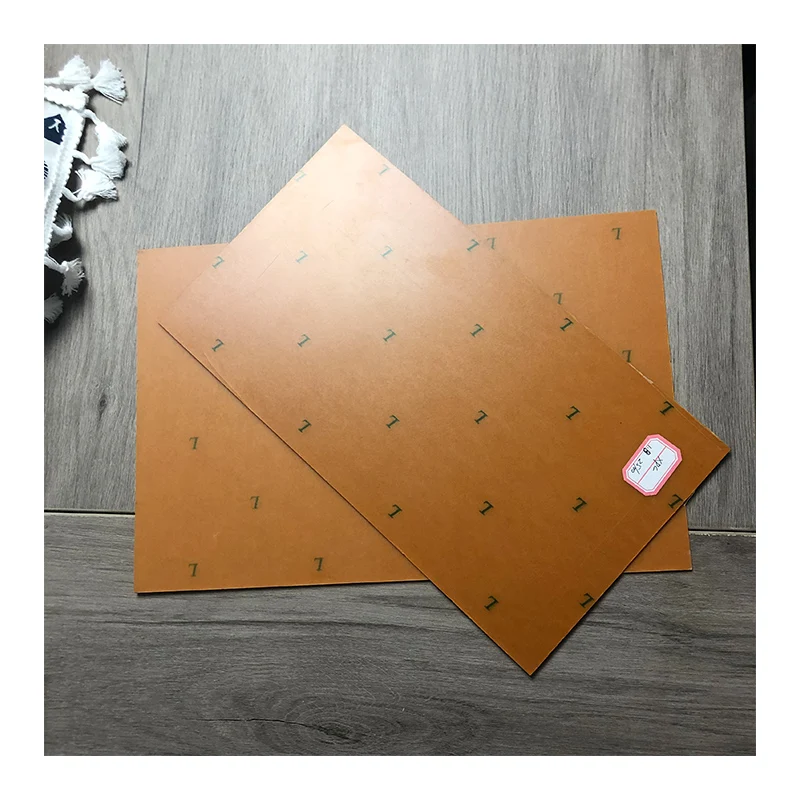

Product Photograph
Company advantage
Product advantage
Product display
Company Profile
Our services
FAQ
Q:What about the package of product?
A:1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden wooden pallet with wooden case. 4. According to . . customer requirements.
Q:What's the payment?
A:30%TT advance , 70% after send the copy of the BL.We accept T/T,L/C, Western Union ,USD.
Q:If I need sample,what should I do?
A:It's our pleasure to send sample for you.You can send me your delivery address by email or message.We will send you . . . free sample at first time.
Q:Can you give me a discount price?
A:It is depending on the volume. The larger the volume is, the more discount you can enjoy.
Q:Why is your price a bit higher than other Chinese suppliers?
A:To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each . . . item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.
Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A:Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q:How can you deal with quality issues that customer feedback after receiving the goods?
A:1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to . verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.
A:1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden wooden pallet with wooden case. 4. According to . . customer requirements.
Q:What's the payment?
A:30%TT advance , 70% after send the copy of the BL.We accept T/T,L/C, Western Union ,USD.
Q:If I need sample,what should I do?
A:It's our pleasure to send sample for you.You can send me your delivery address by email or message.We will send you . . . free sample at first time.
Q:Can you give me a discount price?
A:It is depending on the volume. The larger the volume is, the more discount you can enjoy.
Q:Why is your price a bit higher than other Chinese suppliers?
A:To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each . . . item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.
Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A:Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q:How can you deal with quality issues that customer feedback after receiving the goods?
A:1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to . verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.
