Zunsia ITX 12th Gen Intel Alder Lake N Industrial Motherboard 4K HDMI2.0 Display LVDS/eDP N100 N200 N300 N305 12th Motherboard
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (1601203290283):
Product Overview
Description
Products Description
◆ Onboard Intel Alder Lake-N series processor
◆ 1*DDR5 SO-DIMM, up to 16GB
◆ RTL8111H network, single and double network optional
◆ TPM2.0,M.2 2280 SSD,M.2 . HDMI2.0,DP/VGA,LVDS/eDP
◆ size: 170x170 mm
◆ DC 12V, 60W
◆ 1*DDR5 SO-DIMM, up to 16GB
◆ RTL8111H network, single and double network optional
◆ TPM2.0,M.2 2280 SSD,M.2 . HDMI2.0,DP/VGA,LVDS/eDP
◆ size: 170x170 mm
◆ DC 12V, 60W
CPU | Onboard Intel Alder Lake-N series processor, N100, TDP 15W, optional with and without fan |
Memory | 1*DDR5 SO-DIMM，UP TO 16GB |
display | 1*HDMI2.0 interface, support 4K |
1*DP/VGA interface | |
1*LVDS/eDP interface | |
storage | 1*M.2 M-Key 2280(NVMe PCIe3.0 x2) |
1*SATA3.0 interface, small 4Pin power supply | |

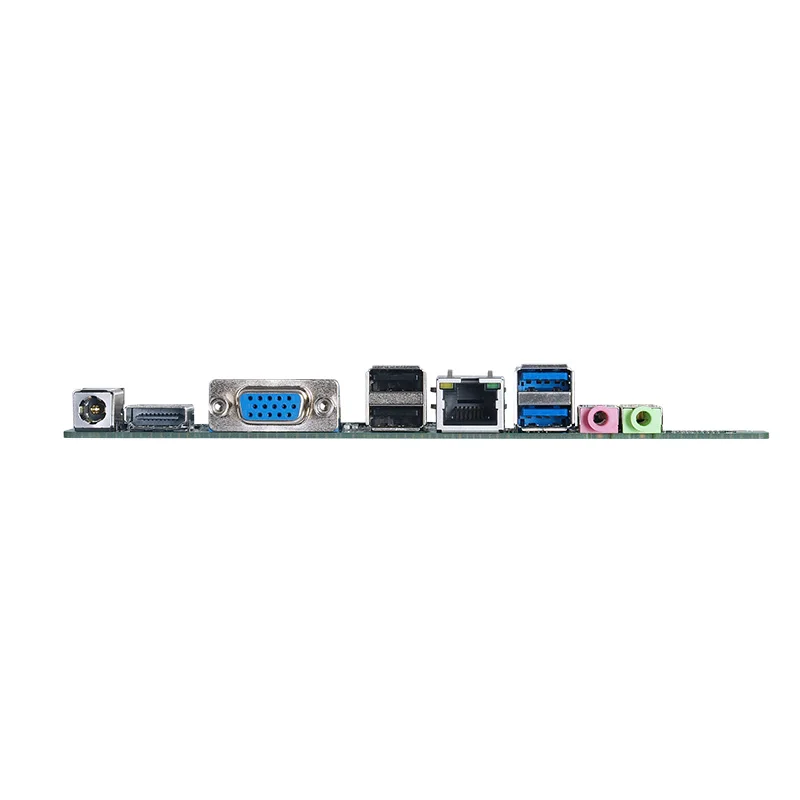

Board-side I/O interface | DC JACK HDMI. Choose one from DP/VGA, Choose one from LAN/USB2.0 |
LAN、2*USB3.0、Min in、Line out | |
Extension interfaces/functions | External TPM2.0 is optional, not by default. The default is CPU built-in TPM2.0 |
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module) | |
COM1/2 is RS232/485 (jumping switching), COM3/4 is RS232/485 (hardware switching), and COM5/6 is RS232 | |
2 x USB 2.0 pin headers with 2.54mm pitch and 1 x USB 3.0 pin header with 2.0mm pitch | |
1*SPEAK,1*F_Audio;AT/ATX | |
1*4Pin PWM CPU FAN,1*3Pin SYS FAN | |
Power supply | DC 12V,60W |
work environment | Working temperature: -20 ℃~+60 ℃; Working humidity: 0%~90% relative humidity, no condensation |
Storage temperature: -40 ℃~+85 ℃; Storage humidity: 0%~90% relative humidity, no condensation | |
Operating system support | Windows10，Windows11，Linux |
size | 170x170 mm |
weight | Approx. 140g without radiator and 200g with radiator |

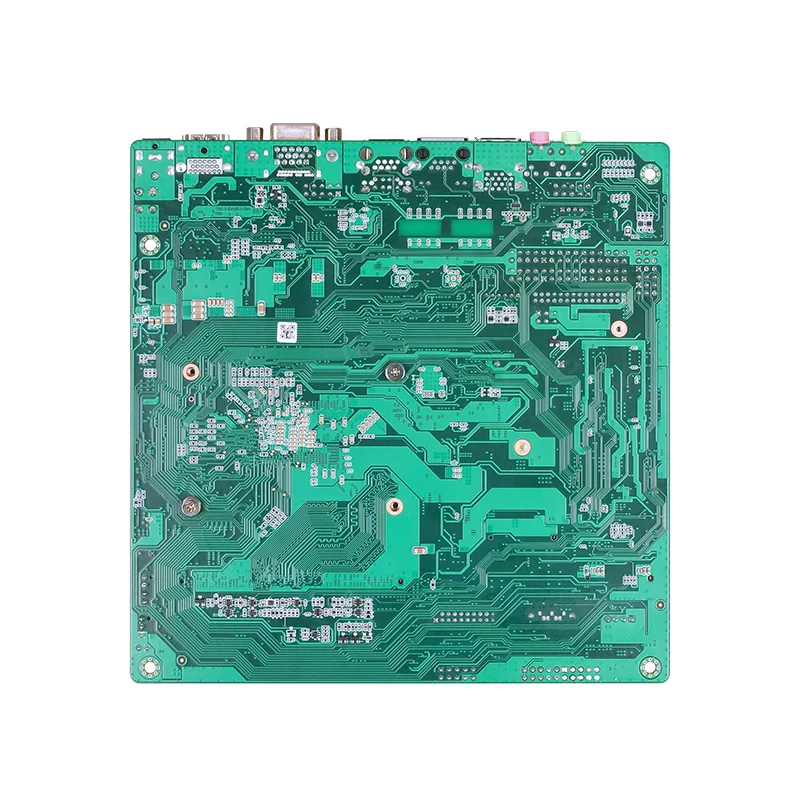

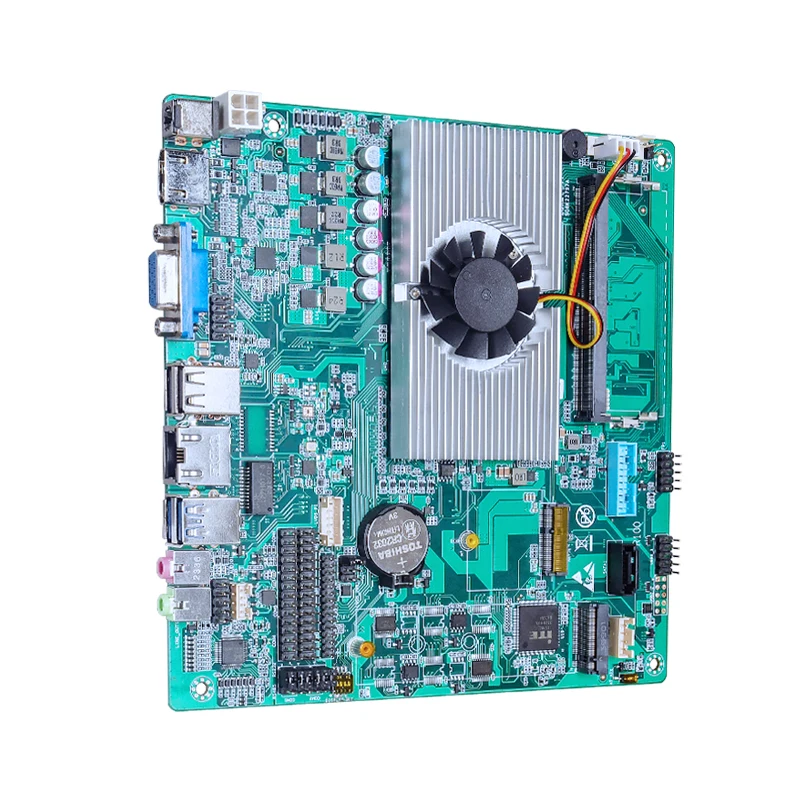

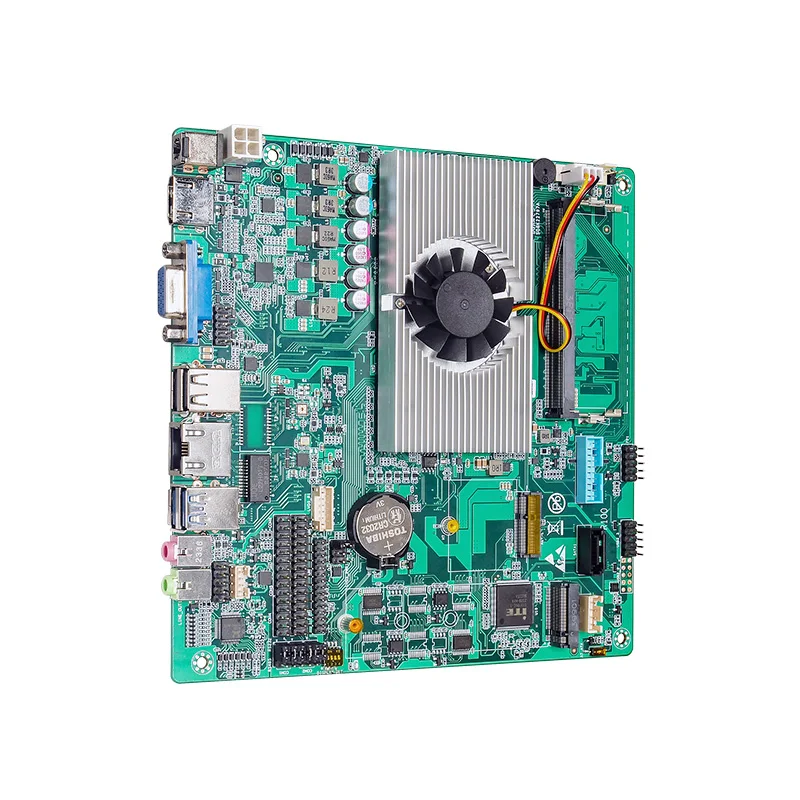

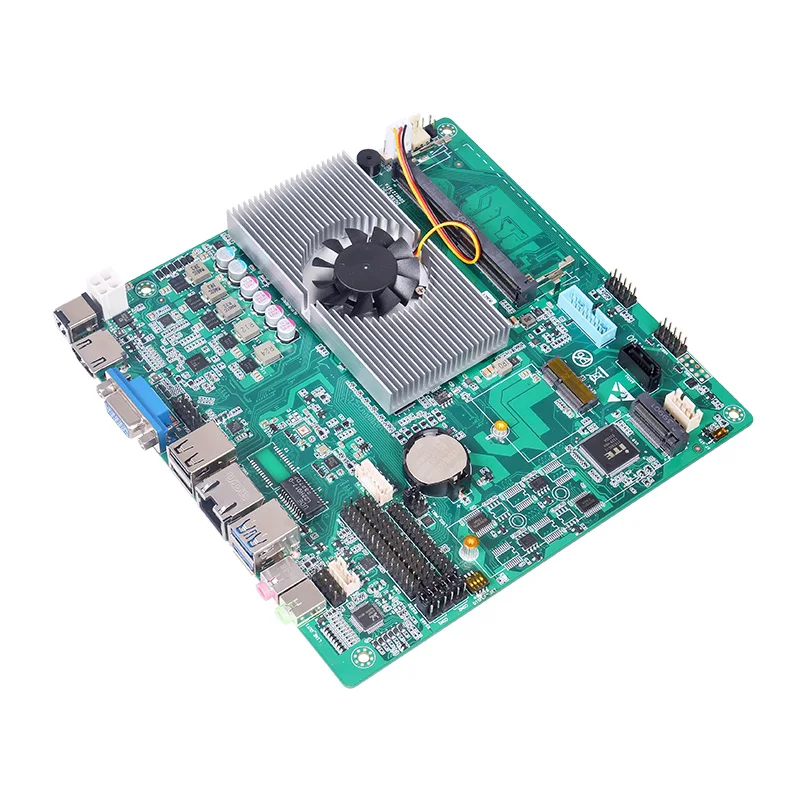

Details Images
