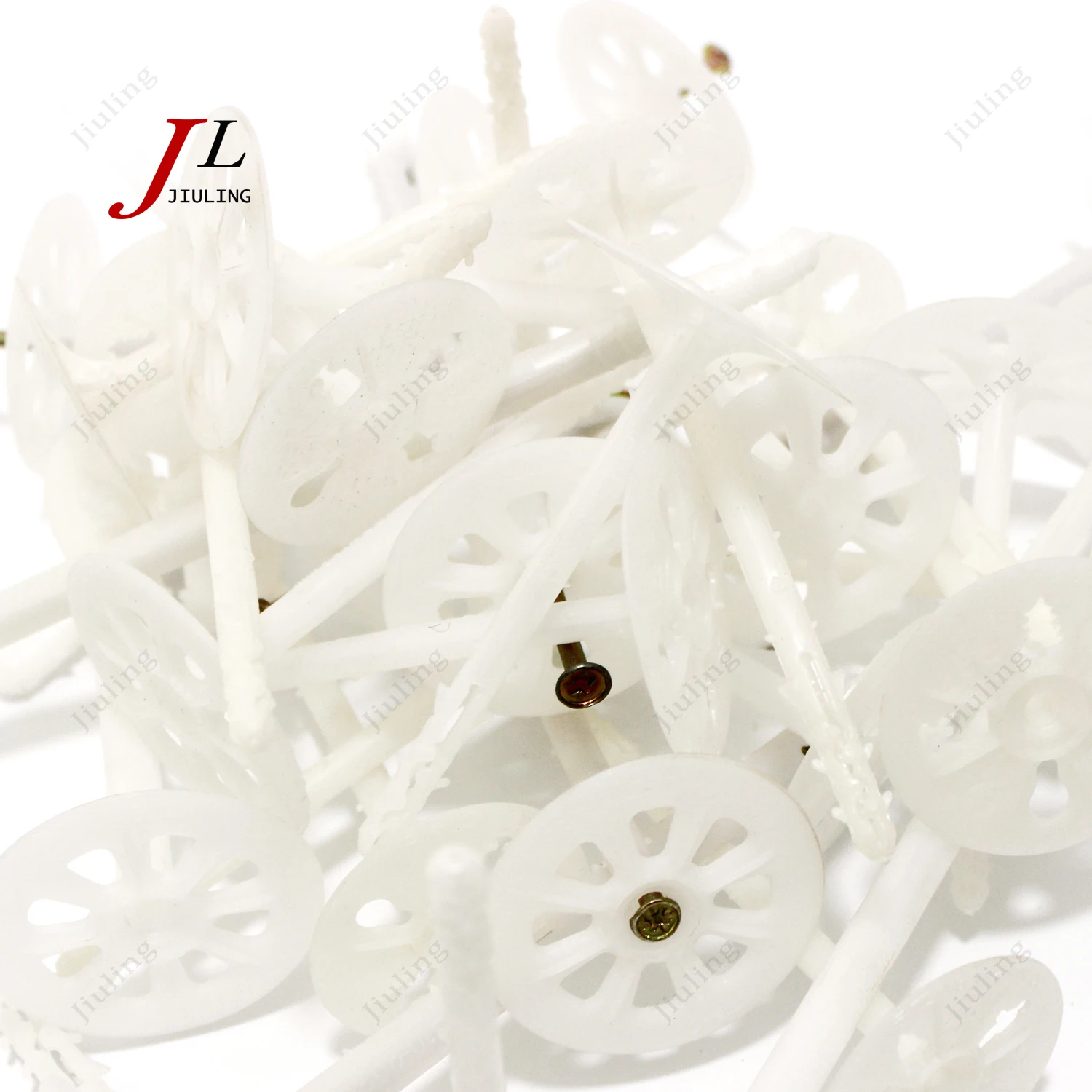

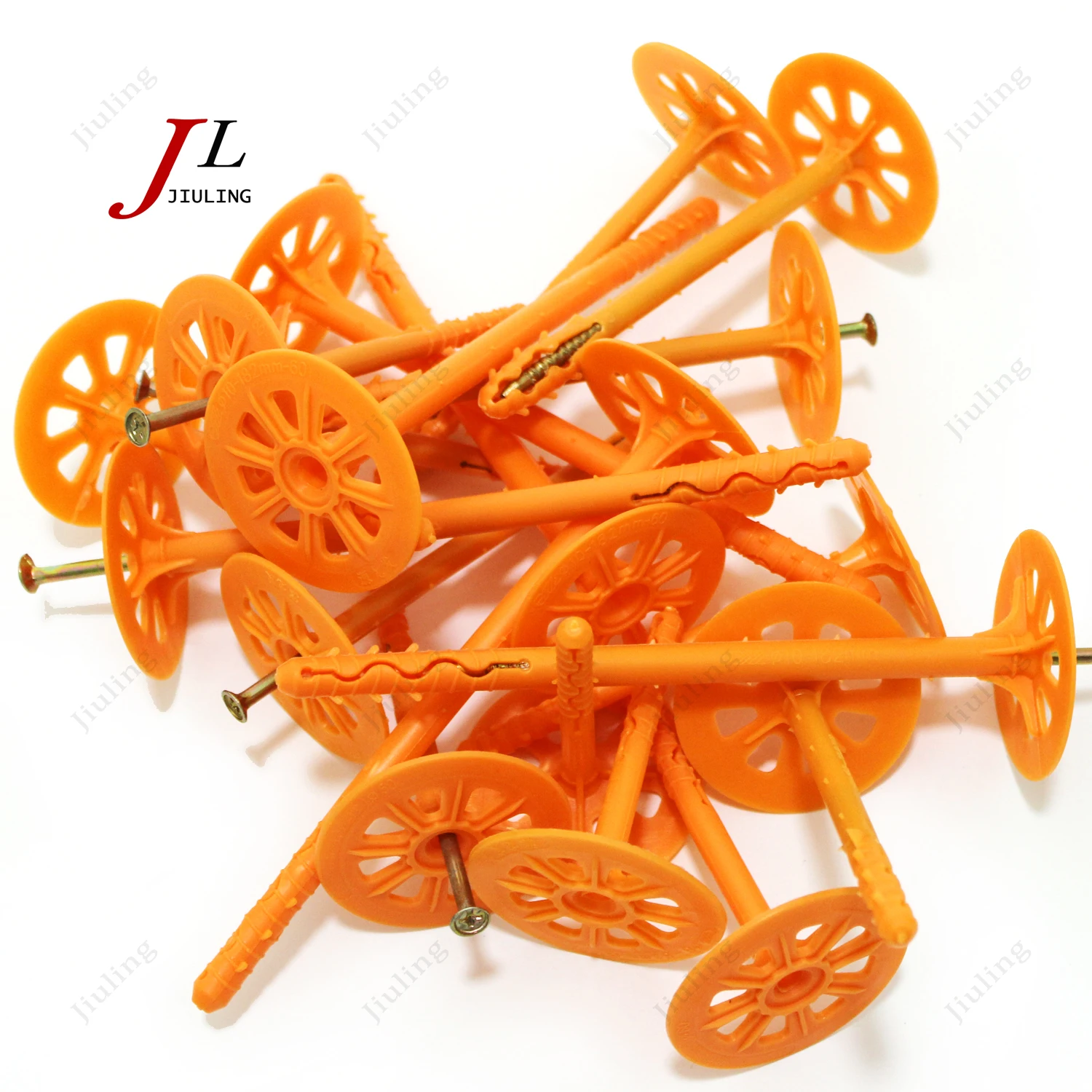

Customized insulation fixing pins and washer/ plastic screw anchor heat insulation anchor
- Category: >>>
- Supplier: Hejian Jiuling Trading Co. Ltd.Hejian Ltd.
Share on (1601203722384):
Product Overview
Description
Product name | Insulation nail |
Size | Full Size |
Material | Galvanized, nylon |
Quality | 100%tested |
Packing | Carton |
Service | OEM ODM Customised |
OEM | OEM Custom Service |
Advantage | Popular Seal Structures |
MOQ | 500 pcs |
APPLICATION
Widely used in building decoration, wall insulation room anchoring. It has anti-aging, anti-temperature sudden change, anti-corrosion, cold and heat resistance; High bearing capacity, high pressure, good tensile performance; After loading, it is not easy to deform, moisture-proof, slow vibration, and good thermal insulation. Easy to install, no special installation tools are required. Galvanized screw is a good solution to the corrosion problem, good durability, and nylon material heat transfer performance is low, no cold bridge in winter, high efficiency and energy saving. According to the different wall materials and anchored external wall materials, it is roughly divided into solid wall insulation nails, hollow brick insulation nails, steel wire mesh special insulation nails and large mold built-in.
MAIN SPECIFICAATION
Conjoined :8× 62,8 ×82, 8×102, 8× 122,8 × 142,10 ×162.
Split :10× 162,10 ×182, 10× 202,10 × 252,10 × 302,10 × 322, 10×402, 10×452,, 10× 502,10 ×552, 10×602
Split :10× 162,10 ×182, 10× 202,10 × 252,10 × 302,10 × 322, 10×402, 10×452,, 10× 502,10 ×552, 10×602
PERFORMANCE PARAMETER
According to JG/T366-2012 standard;
Percussive anchor bolt: An anchor bolt that compresses the wall of the borehole by striking the expansion joint or expansion casing.
Requirements:
1. The nominal diameter of the disc anchor bolt should not be less than 60mm, with a tolerance of 1.0mm. The nominal diameter of the expansion casing should not be less than 8mm, with a tolerance of ±0.5mm.
2. Standard value of tensile strength of anchor bolt: standard value of tensile strength of anchor bolt Fk≥0.60
3. Anchor bolt disc tensile force standard value: disc pulling force standard value Frk≥0.50
Percussive anchor bolt: An anchor bolt that compresses the wall of the borehole by striking the expansion joint or expansion casing.
Requirements:
1. The nominal diameter of the disc anchor bolt should not be less than 60mm, with a tolerance of 1.0mm. The nominal diameter of the expansion casing should not be less than 8mm, with a tolerance of ±0.5mm.
2. Standard value of tensile strength of anchor bolt: standard value of tensile strength of anchor bolt Fk≥0.60
3. Anchor bolt disc tensile force standard value: disc pulling force standard value Frk≥0.50
TYPE OF PRODUCTION

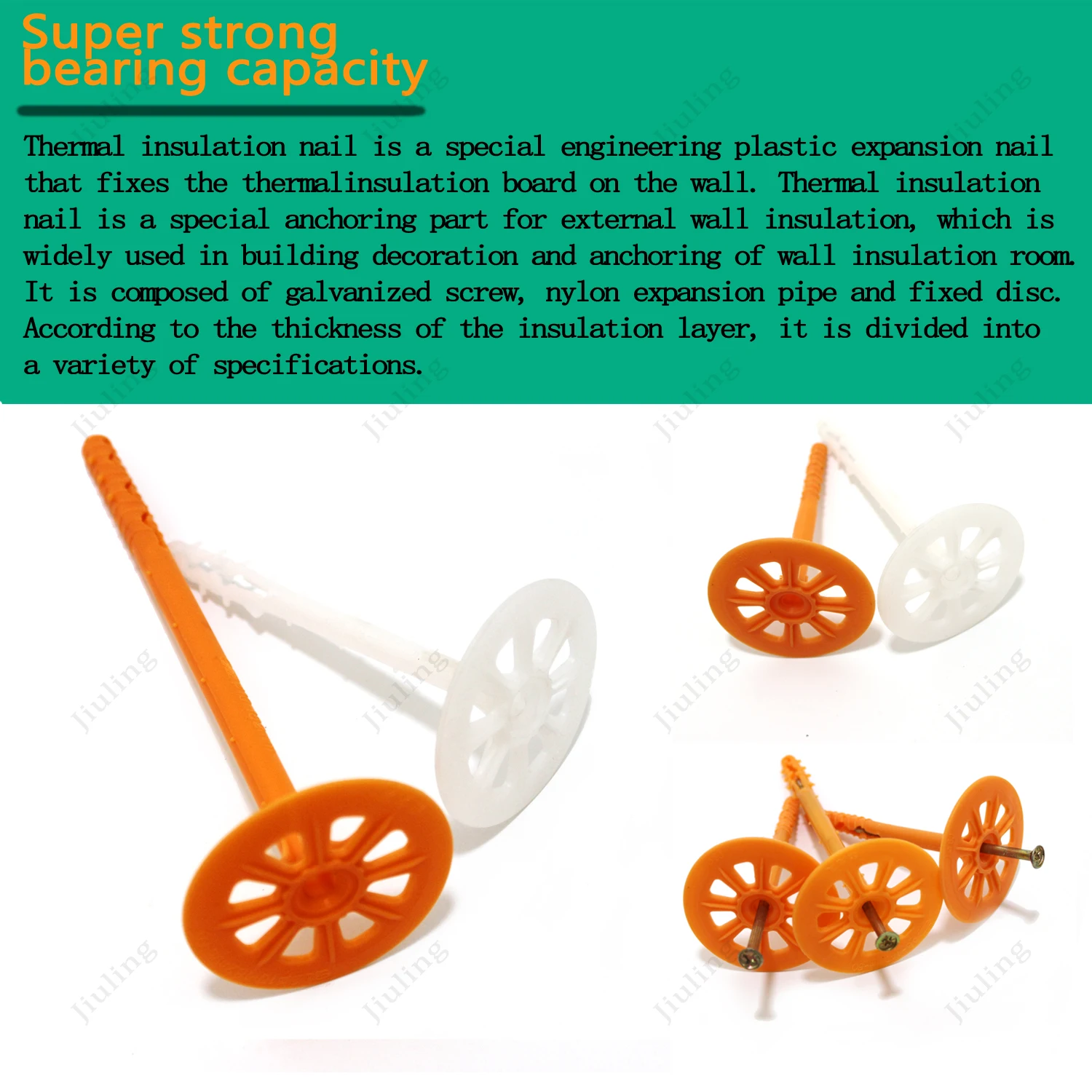

Separate insulation nails and jointed insulation nails
Heat insulation nails on the market are basically one, easy to use.
There are many, well-known ones (north of the Yangtze River) that can reach this standard; Germany Hui fish, Forster, Tianjin Owens, Meijianli, Shi Nike, Beijing Brit, Ward Rekon, Shijiazhuang Sanqi Seiko and so on.
External wall insulation nail layout. The number of anchorage parts installed for external insulation system of extruded panel exterior wall; 1-10 floors average 6 /㎡, 11-20 floors average 7 /㎡, 21-26 floors 9 /㎡. Any area greater than 0.1㎡ single block must be added anchoring parts, the number depends on the shape and site conditions; In the Yang Angle, under the cornice, around the edge of the hole, the density of the anchor should be increased, the distance is not more than 300㎜, and the distance from the base edge is not less than 60mm
Heat insulation nails on the market are basically one, easy to use.
There are many, well-known ones (north of the Yangtze River) that can reach this standard; Germany Hui fish, Forster, Tianjin Owens, Meijianli, Shi Nike, Beijing Brit, Ward Rekon, Shijiazhuang Sanqi Seiko and so on.
External wall insulation nail layout. The number of anchorage parts installed for external insulation system of extruded panel exterior wall; 1-10 floors average 6 /㎡, 11-20 floors average 7 /㎡, 21-26 floors 9 /㎡. Any area greater than 0.1㎡ single block must be added anchoring parts, the number depends on the shape and site conditions; In the Yang Angle, under the cornice, around the edge of the hole, the density of the anchor should be increased, the distance is not more than 300㎜, and the distance from the base edge is not less than 60mm
1. who are we?
We are based in Hebei, China, start from 2020.Supported by several factories。
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Spiral Wound Gaskets,Ring Joint Gasket,Lens Gasket,Kammprofile Gasket,Graphite Gasketasbestos sheet, graphite sheet ,ptfe sheet
etc.
4.what is the moq?
50 pieces
5.Do you supply customization?
Yes, we offer customization as per your requirment.
6.Do you have a discount ?
Depend on amount
7. how soon you will deliver goods?
generally it is 3-7 days but depend on quantities.
8.Do you support packaging customization?
if you order large amount,we would like to offer.
We are based in Hebei, China, start from 2020.Supported by several factories。
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Spiral Wound Gaskets,Ring Joint Gasket,Lens Gasket,Kammprofile Gasket,Graphite Gasketasbestos sheet, graphite sheet ,ptfe sheet
etc.
4.what is the moq?
50 pieces
5.Do you supply customization?
Yes, we offer customization as per your requirment.
6.Do you have a discount ?
Depend on amount
7. how soon you will deliver goods?
generally it is 3-7 days but depend on quantities.
8.Do you support packaging customization?
if you order large amount,we would like to offer.
