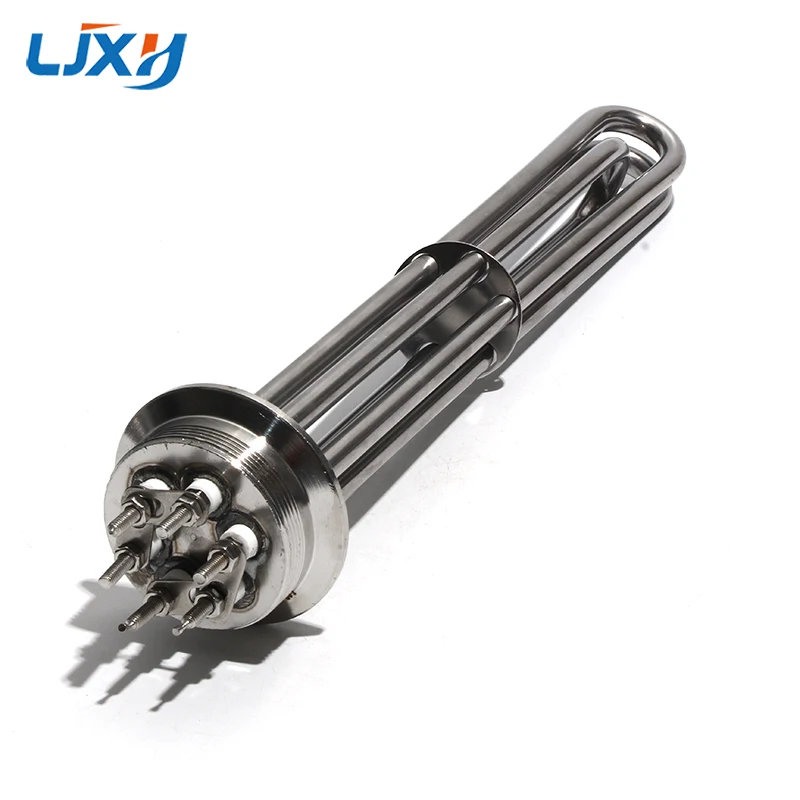

Ljxh Hot Sell 2' 63mm Industrial Hot Water Resistance Heating Element 750W Flange Immersion Available
- Category: >>>
- Supplier: Dongguan Lujinxun Electric Heating Appliance Co. Ltd.
Share on (1601203934530):
Product Overview
Description
Product Description
Specifications:
Product Name | Customized Heating Element |
Material | Stainless Steel 301/304/316 |
Voltage | 110V/220V/380V |

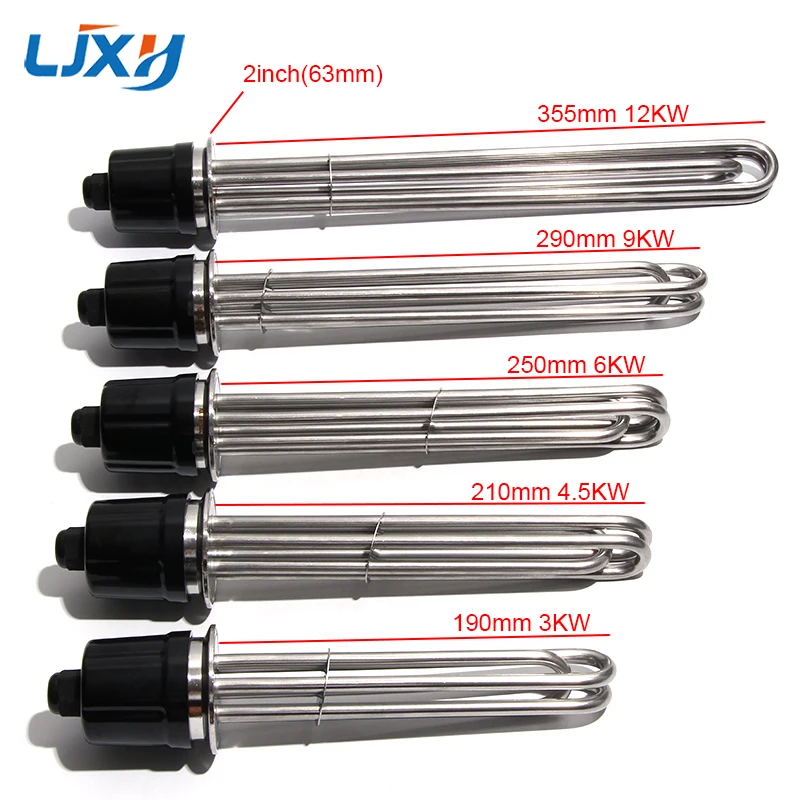

Power | 3KW/4.5KW/6KW/9KW/12KW and customization |
Tube Length | 190mm/210mm/250mm/290mm/355mm and customization |
Tube Diameter | 8mm |
Gurantee | 6 months |
Package | bubble pack+carton pack |
Delivery | Fedex, DHL, UPS or according to customer requirement |
Related products:
Features & Notices:
1. Customazation Supported, such as: length, power
2. The heating area must be fully immersed in the liquid

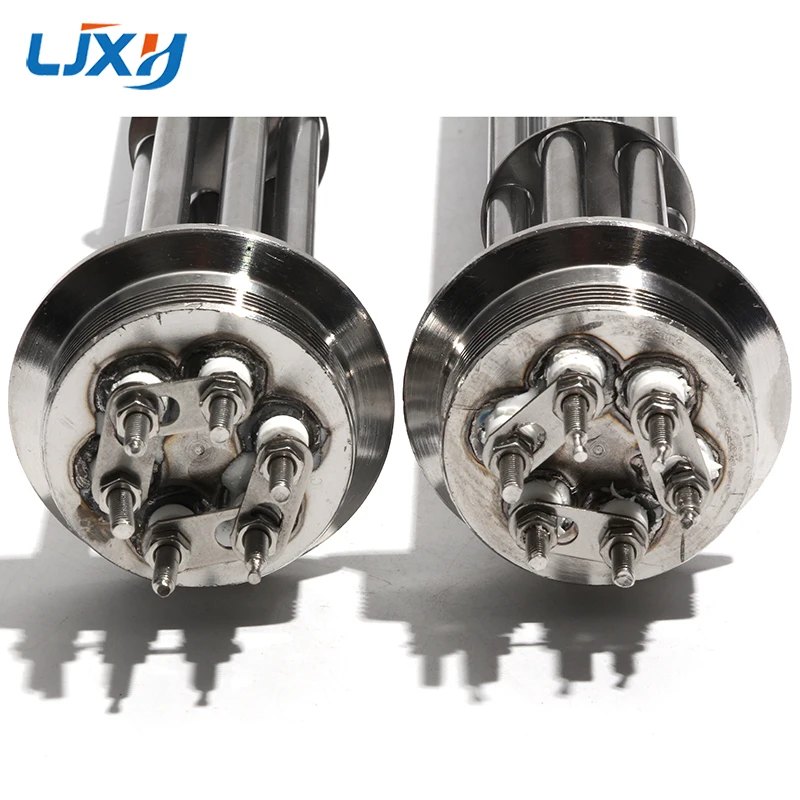

3.The terminal is effectively waterproof to avoid leakage
4. Do not install the electric heating pipe at the air supply outlet with high humidity, which is easy to make the electric heating pipe damp and the insulation decreases, which may cause leakage, electric shock and other dangers
Main Technical Parameters:
1. Pipe Material: Stainless Steel 201/304/316

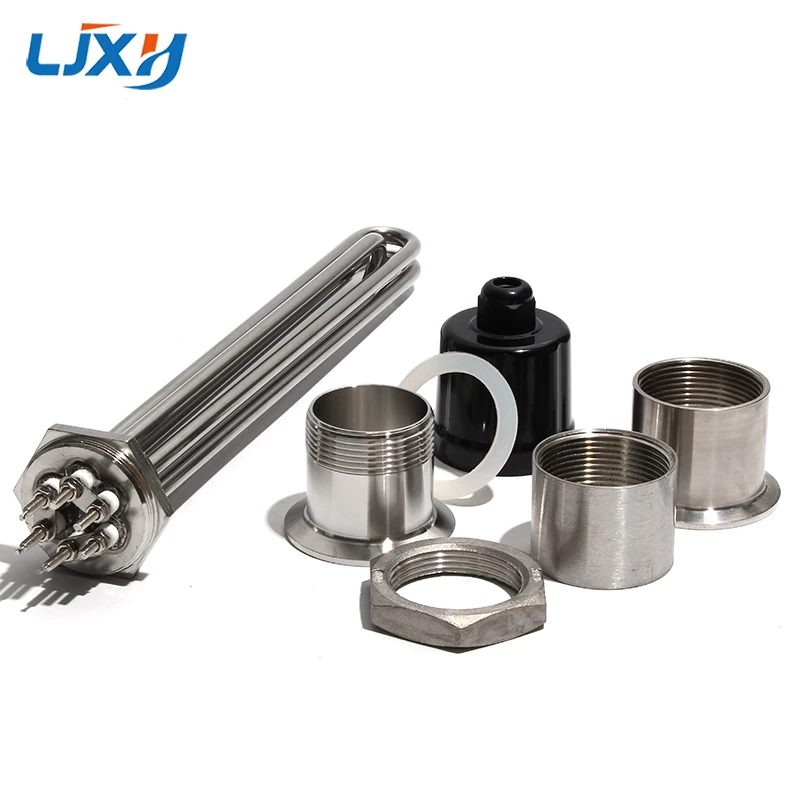

2. Screw or flange material: stainless steel 201, stainless steel 304
3. Rated voltage:110V, 220V, 380V, etc
4. Power: The total length of the heating zone of the electric heating tube is determined, and the power per
meter is 1-2KW, not more than 2KW.
5. Pipe diameter: 8mm
6. Number of U-shaped pipes: 3U
7. Unilateral length: according tocustomer's requirements
8. Tri-clamp: 2.0 inch
9. Cold insulation resistance: the cold insulation resistance should not be less than 50MΩ during the factory inspection, and the insulation resistance after long-term storage or use should not be less than 1MΩ after sealing test
10. Cold leakage current: ≤ 0.5 mA 13. Cold insulation: 1600V. 1/seg
3. Rated voltage:110V, 220V, 380V, etc
4. Power: The total length of the heating zone of the electric heating tube is determined, and the power per
meter is 1-2KW, not more than 2KW.
5. Pipe diameter: 8mm
6. Number of U-shaped pipes: 3U
7. Unilateral length: according tocustomer's requirements
8. Tri-clamp: 2.0 inch
9. Cold insulation resistance: the cold insulation resistance should not be less than 50MΩ during the factory inspection, and the insulation resistance after long-term storage or use should not be less than 1MΩ after sealing test
10. Cold leakage current: ≤ 0.5 mA 13. Cold insulation: 1600V. 1/seg

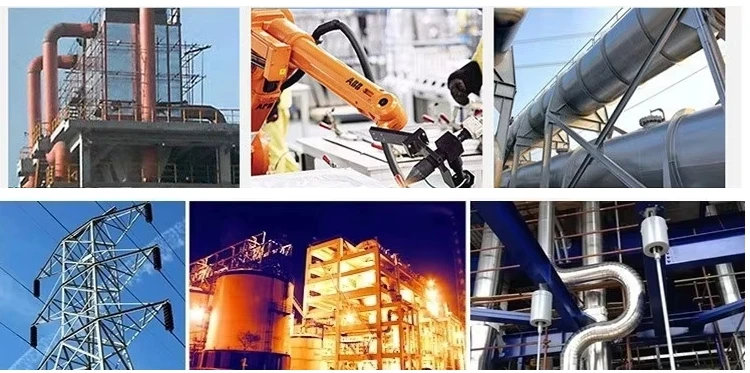

Application & Delivery:

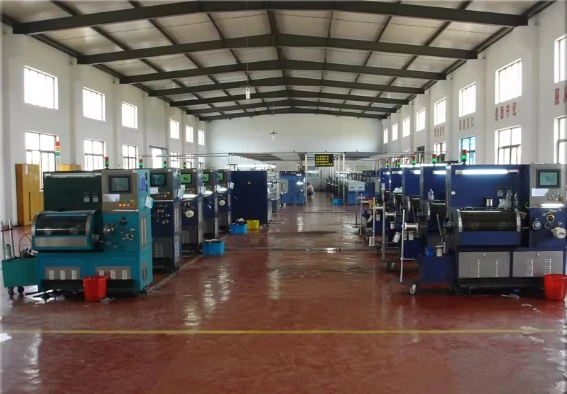

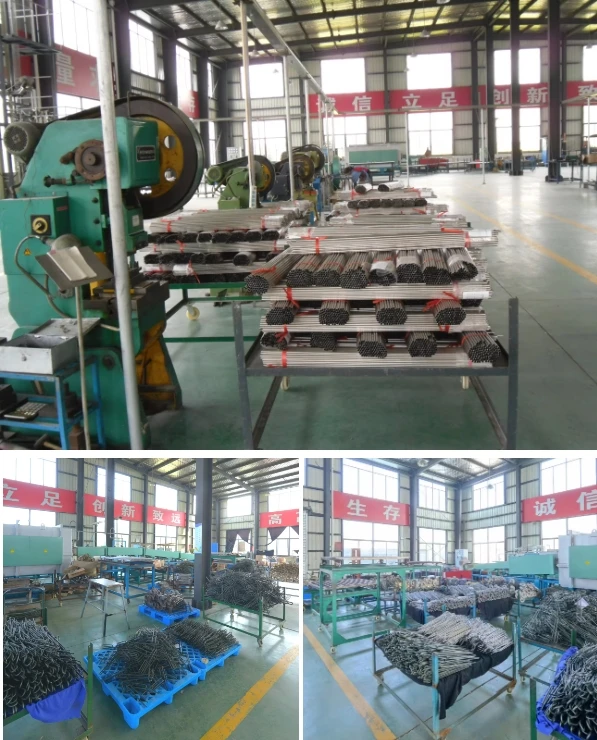

Factory Show:
FAQ
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Northern Europe(60.00%),Western Europe(12.00%),Southern Europe(8.00%),Eastern Europe(5.00%),South America(3.00%),Southeast Asia(2.00%),North America(2.00%),Mid East(1.00%),Africa(1.00%),Oceania(1.00%),South Asia(1.00%),Central America(1.00%),Eastern Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Heating Element,Band heaters,cartridge heaters,PTC heating element,Thermocouple and controllers
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2019,sell to Northern Europe(60.00%),Western Europe(12.00%),Southern Europe(8.00%),Eastern Europe(5.00%),South America(3.00%),Southeast Asia(2.00%),North America(2.00%),Mid East(1.00%),Africa(1.00%),Oceania(1.00%),South Asia(1.00%),Central America(1.00%),Eastern Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Heating Element,Band heaters,cartridge heaters,PTC heating element,Thermocouple and controllers
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
