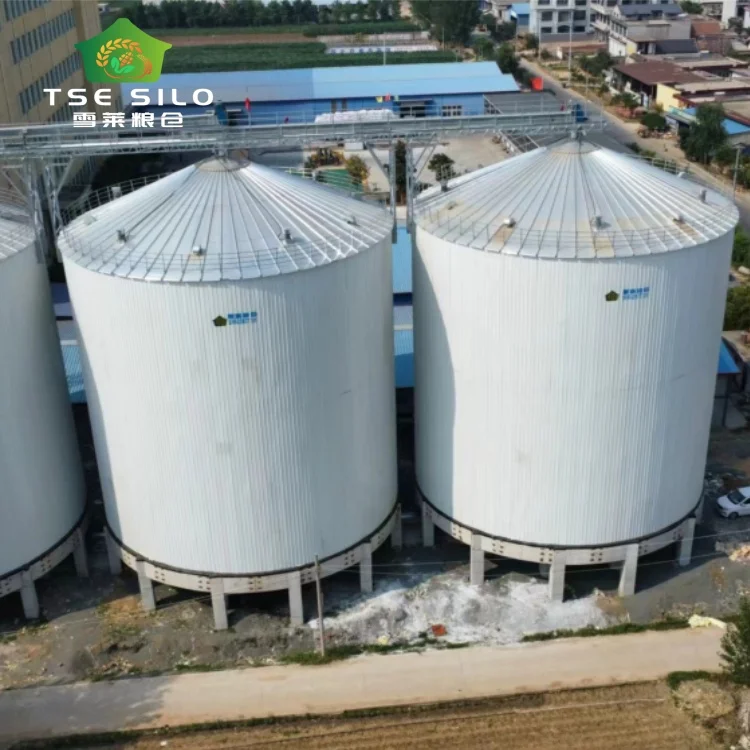

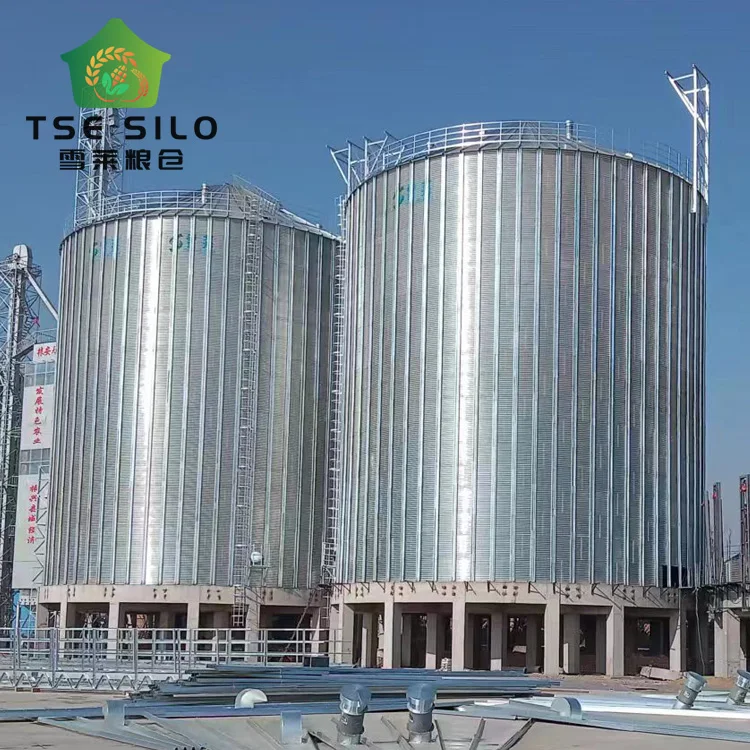

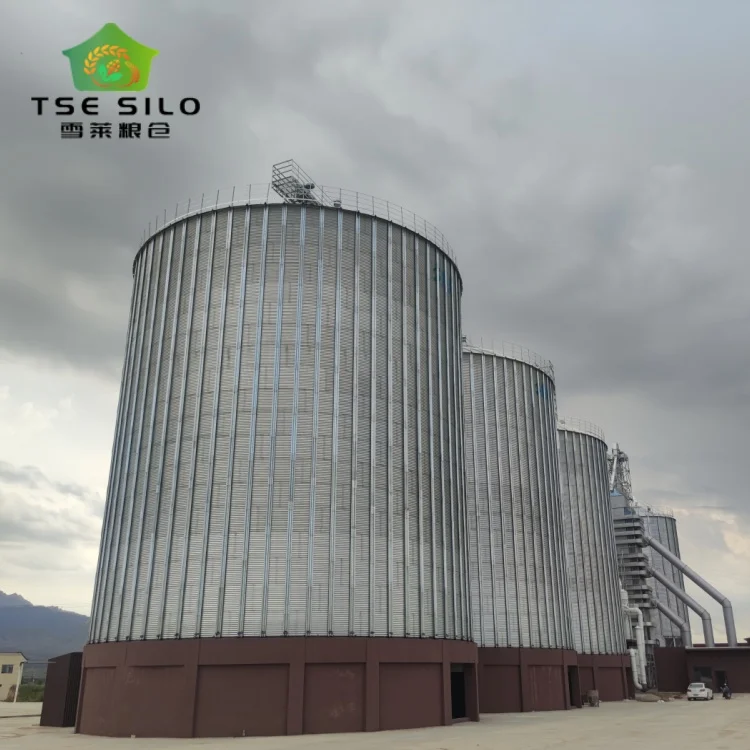

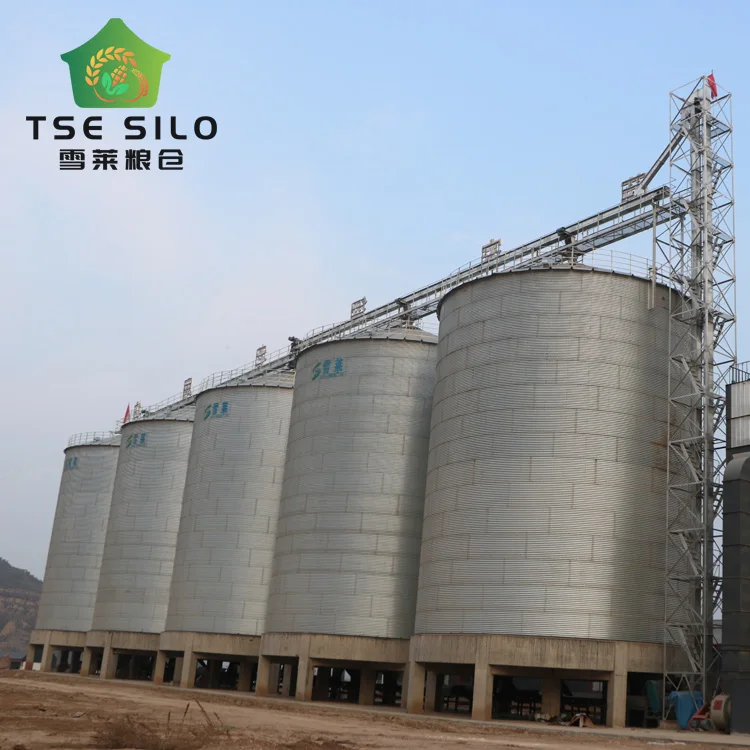

Soybean wheat paddy flat bottom grain silo for farms
High Standard Large Scale Flat Bottom Grain Silos for Cereal (also called wheat flat bottom bins, flat bins) are commonly selected steel silos or steel bins to storage bulk grains and other materials. Large volume storage is its typical feature, the storage volume of this type grain storage silo ranges from 39 m³ to 29726 m³. These grain bins are erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc. All our flat silos or flat bins are designed, manufactured and installed in accordance with D-4097 or ASTM D-3299 standards.
The grain flat bottom bins are made of high quality 275g/m2, 400g/m2, 350g/m2, 600g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The flat bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings.
The grain flat bottom bins are made of high quality 275g/m2, 400g/m2, 350g/m2, 600g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The flat bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings.
Main Components of Silos

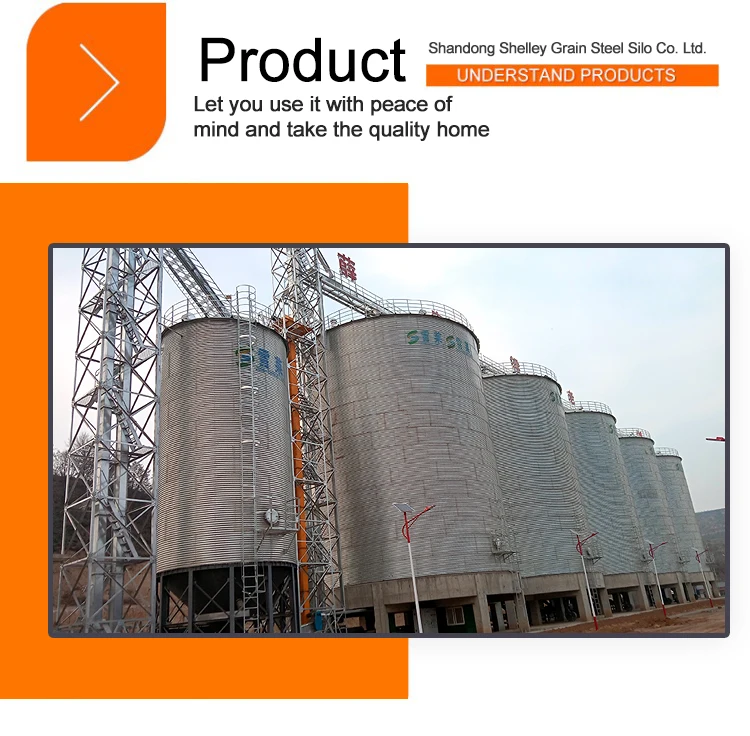

Product -- Let you use it with peace of mind and take the quality home
Sweeper at the bottom of silo
Sweeper (also called clear dragon) is designed and installed to pick up the remains of stored products and provide good flow through gravity (like wheat, maize, barley, grains and granules, etc.) in the bottom of the flat silos.
It automatically starts up once the gravity flow has completely finished. It will clean up the remained material at a rotation of 360º inside the storage silo.
Specification
Model | Capacity(T/CBM) | Eave Height(M) | Total Height(M) |
TCK10014 | 1318 | 15.735 | 18.07 |
TCK11012 | 1362 | 13.5 | 16.04 |
TCK13715 | 2661 | 16.86 | 20.06 |
TCK15516 | 3660 | 17.975 | 21.59 |
TCK19219 | 6647 | 21.335 | 25.81 |
TCK25621 | 12782 | 23.575 | 30.96 |
TCK27520 | 15009 | 22.455 | 30.36 |
Applications and Advantage for Grain silos
25º Sealed Roof for grain storage silo
The special trapezoidal geometry of roof gives high strength and stiffness. The professional sealed technology enables tight connection of roof with the sidewall and keeps stored products from moisture.

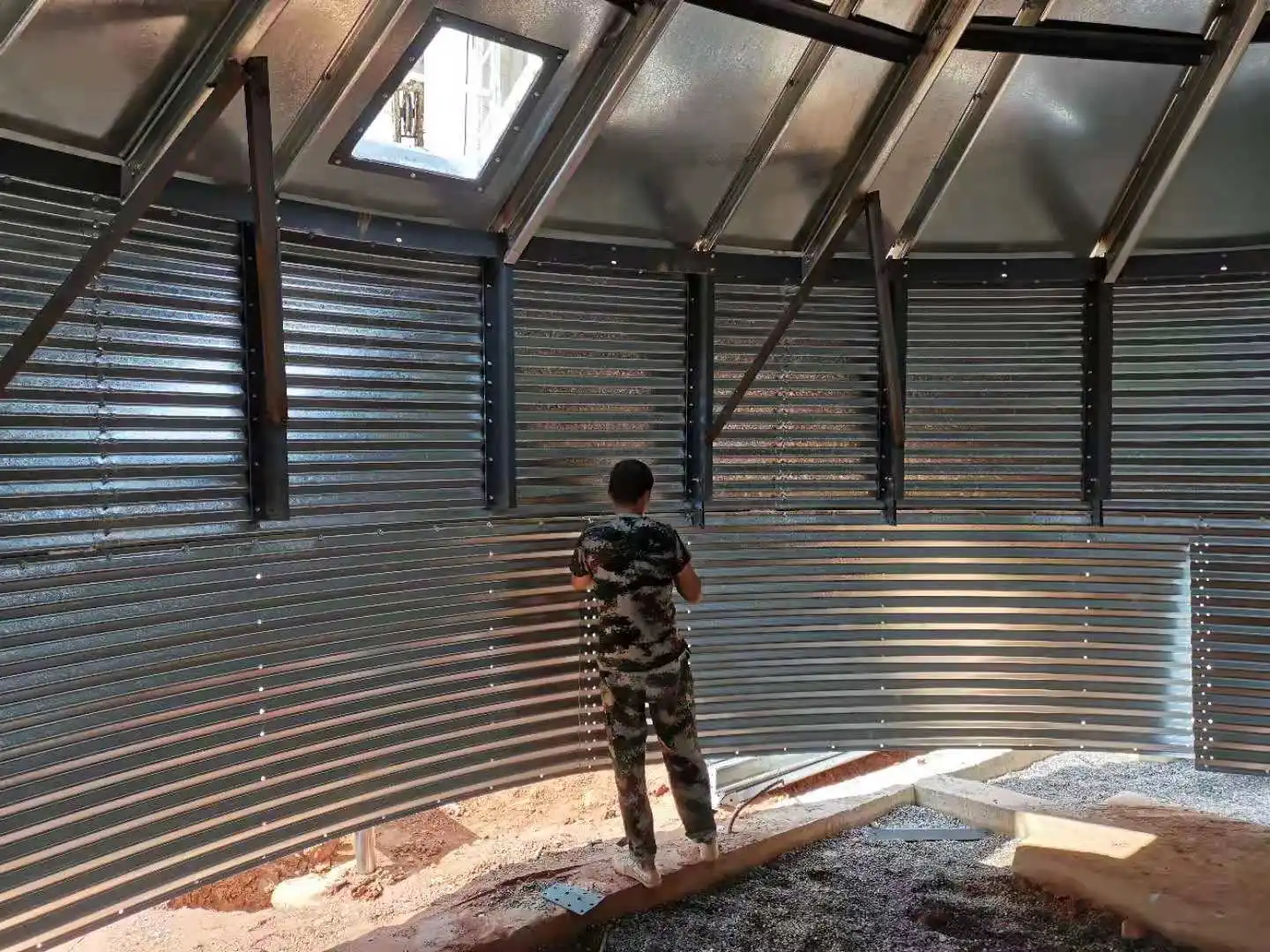

Grain storage silo Cylindrical Body
Shelley Brand hopper bottom silos are made with body sheets and stiffeners, manufactured with structural galvanized steel S350GD of high elastic tolerance and the coating equivalent to 600 g/m2 of zinc.
Concrete Silo Base
The half-cone base or flat base will be constructed when the silo diameter is more than 12m. Half-cone base can’t
completely unload the stuff, it needs to unload stuff with a spiral sweeper. Cement base has a mediate price and a long
construction period.
completely unload the stuff, it needs to unload stuff with a spiral sweeper. Cement base has a mediate price and a long
construction period.

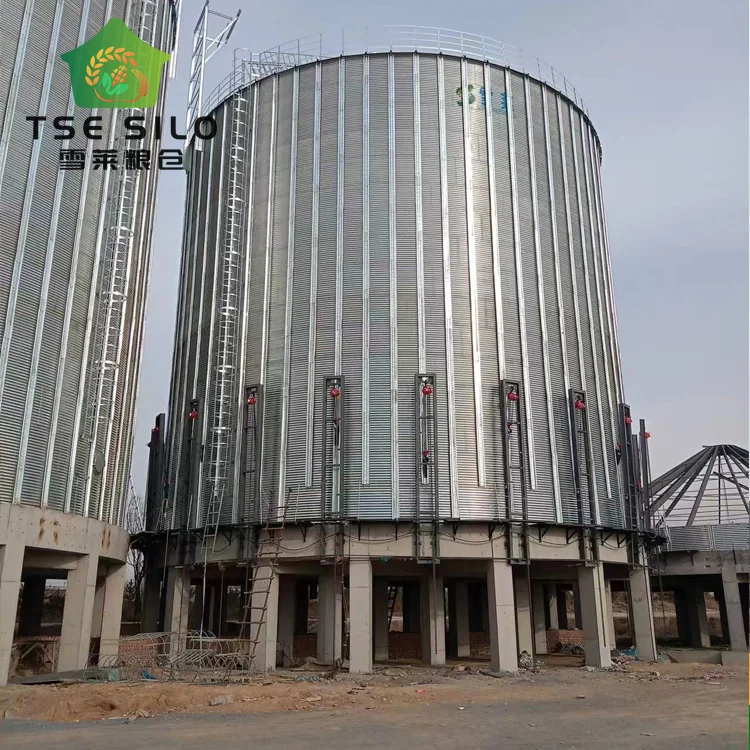

Flat bottom silo
A flat bottom silo includes the silo roof, manhole, roof guardrail, ventilation window, ladder, silo body, column, and door. It will provide you with a safer, more stable, and more practical experience during use.
1. Convenient assembly, easy transportation, and cost saving. And it is easy to install by the client themselves.
2. Hot dip galvanized sheet (275g/m2 to 600g/m2), very waterproof and rust resistant.
3. The flat bottom has a large capacity of 1500T-20000T.
4. Silos can safely store grain, saving labor costs and space.

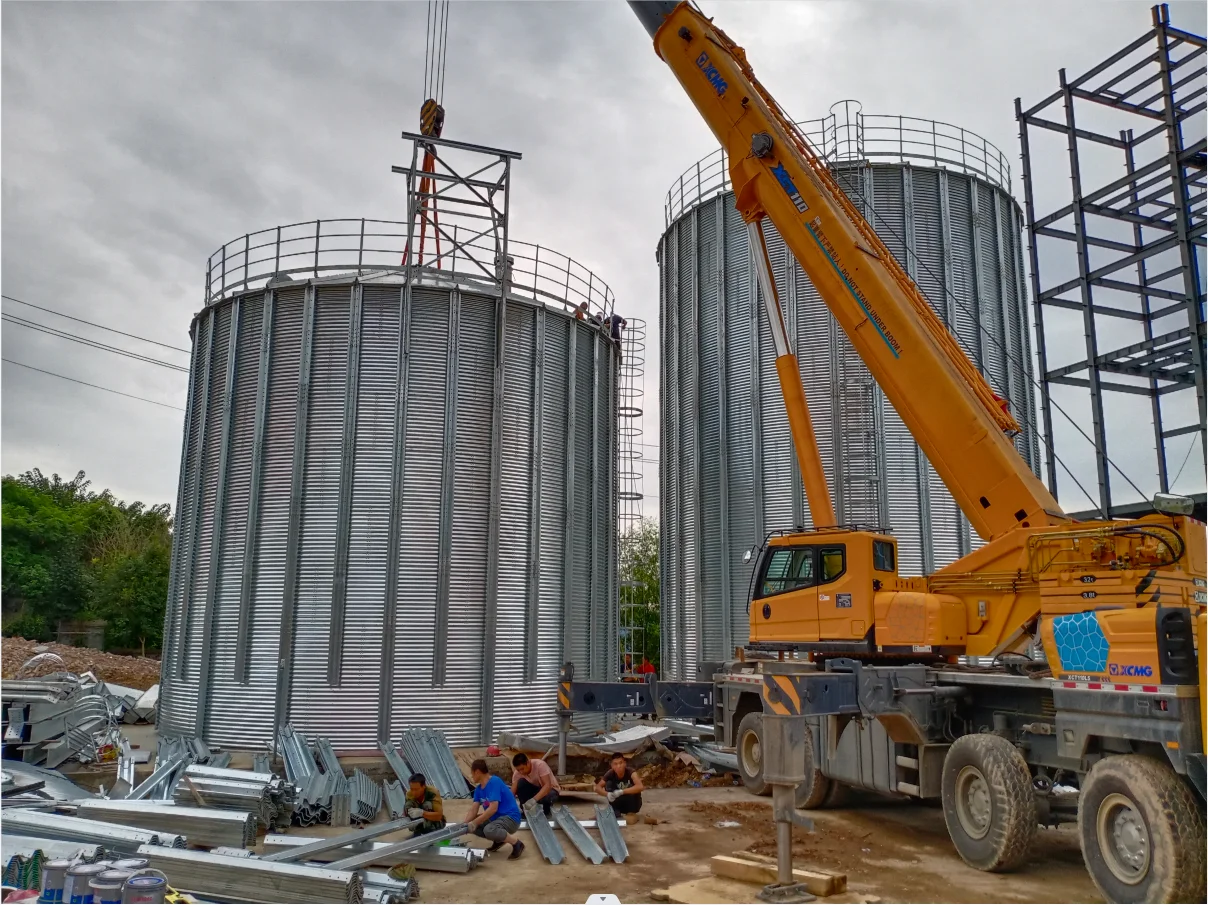

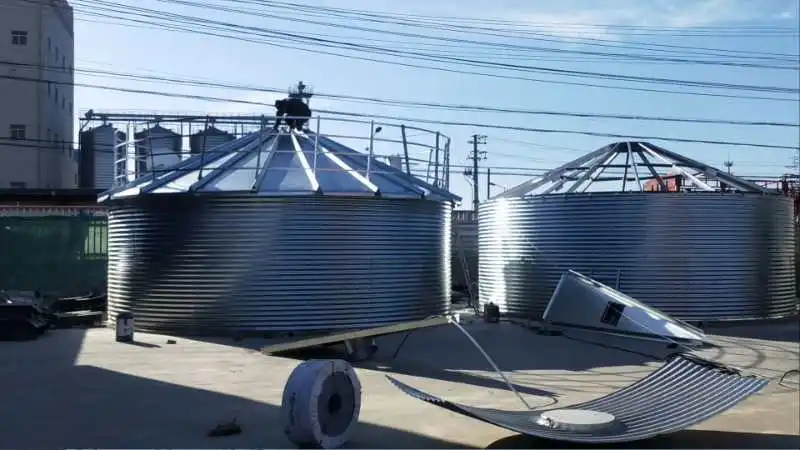

Installation Instructions

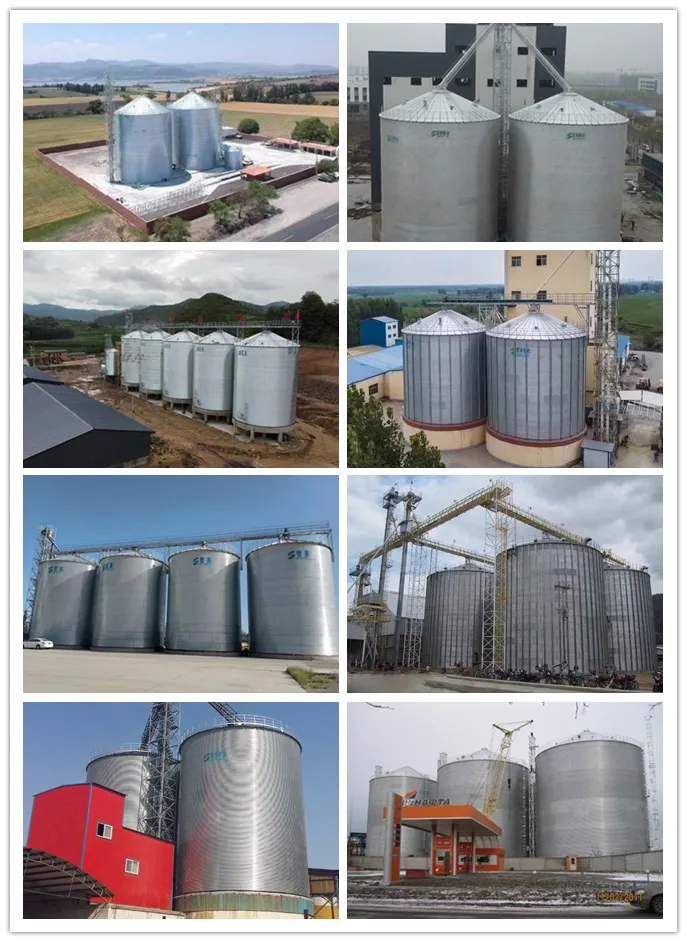

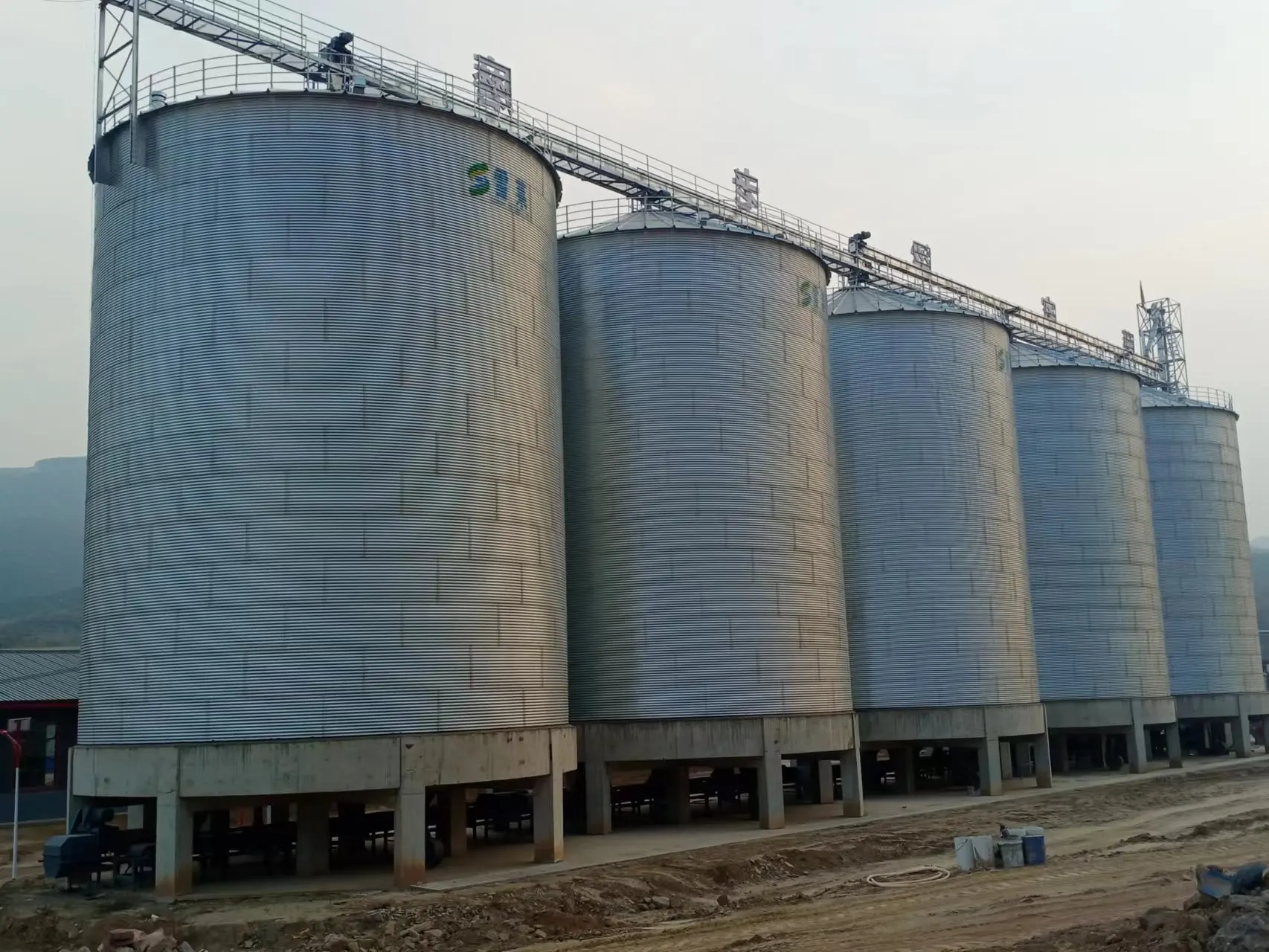

TSE successful cases of flat bottom silos for your reference
Company Profile
TSE--Taian Shelley Engineering Co., Ltd
Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory. Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos,bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.
All of our steel silos can be designed and installed with heat retaining layer to meet your special insulated grain storage demands. Product innovation, quality assurance and customer satisfaction are our long term commitment to worldwide customers. We had been provided grain storage silos, solutions and services for over 50 countries since our foundation by Shelley Jin in 2007.
Hope to become your partners.
All of our steel silos can be designed and installed with heat retaining layer to meet your special insulated grain storage demands. Product innovation, quality assurance and customer satisfaction are our long term commitment to worldwide customers. We had been provided grain storage silos, solutions and services for over 50 countries since our foundation by Shelley Jin in 2007.
Hope to become your partners.

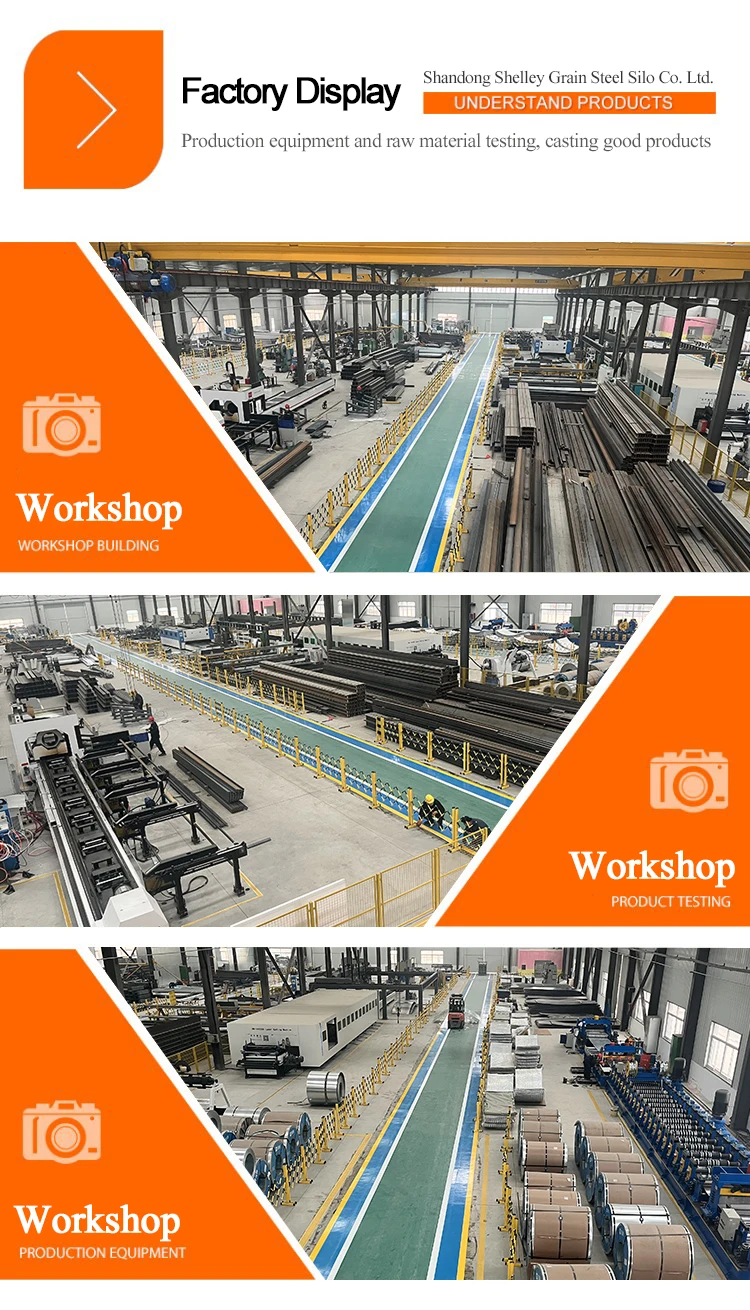

TSE Workshop
TSE has own real factory,and trained workers, so we can guarantee quality and lead time for our customers.Welcome to your visiting.

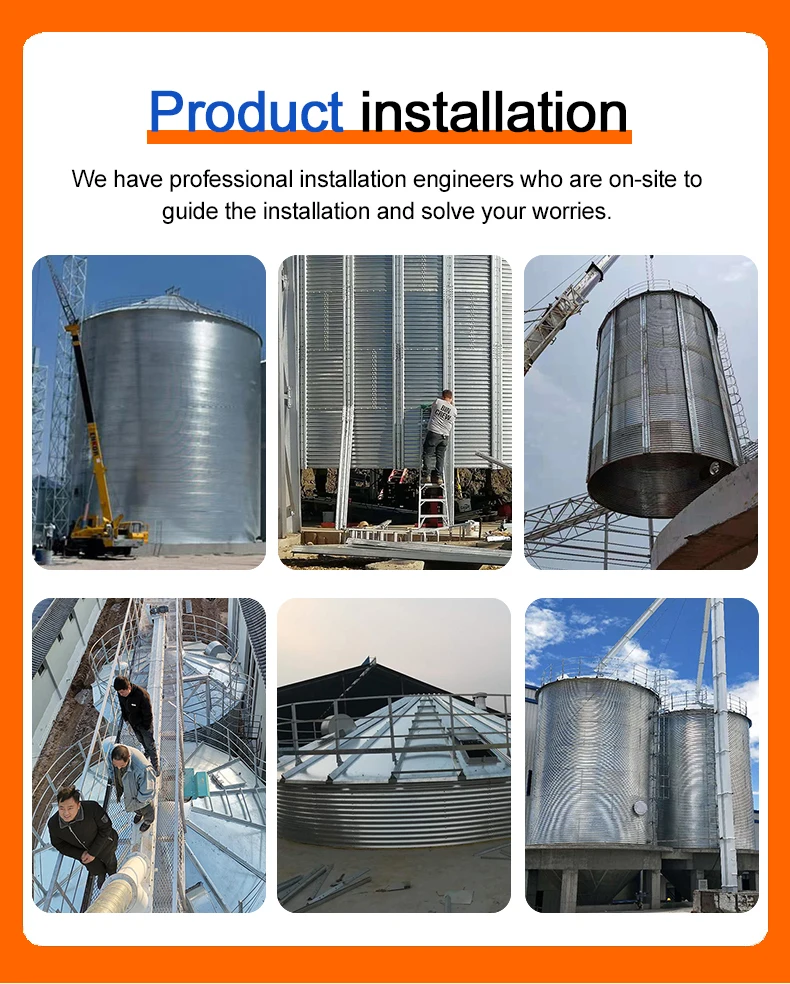

Product Installation
We have professional installation engineers who are on-site to guide the installation and solve your worries.

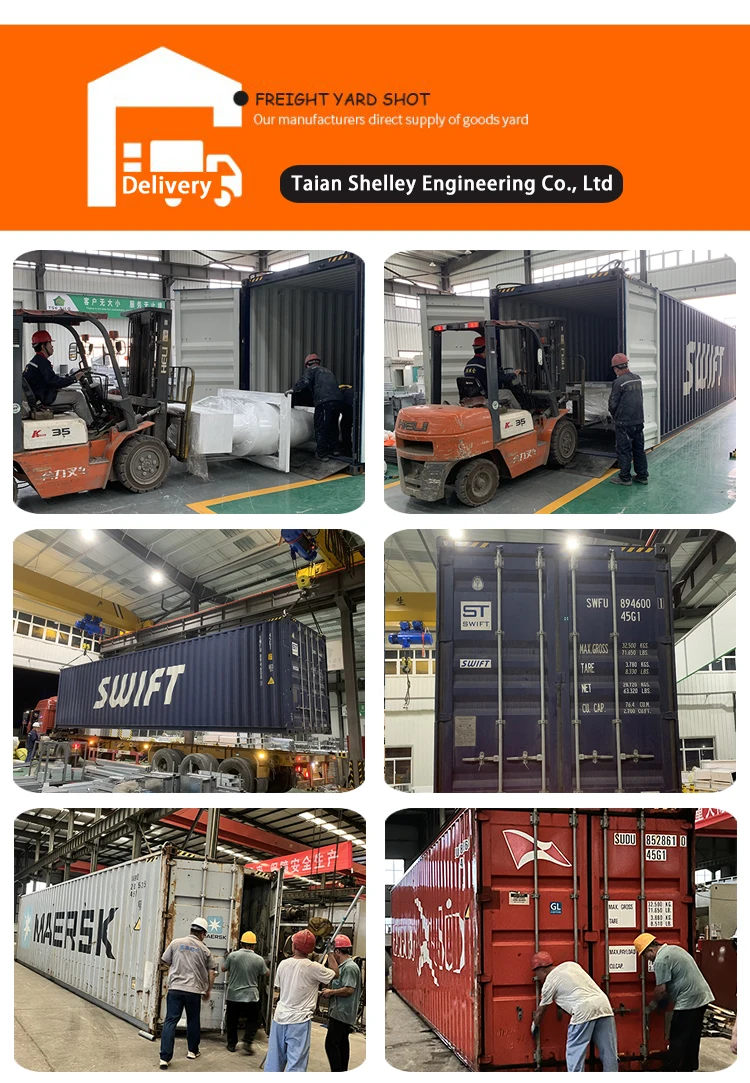

TSE Package Area
PE film will be widely used, and some accessories will be packaged in cardboard or wooden boxes according to product or customer requirements. Trucks, containers, or railways are available for you to choose from!

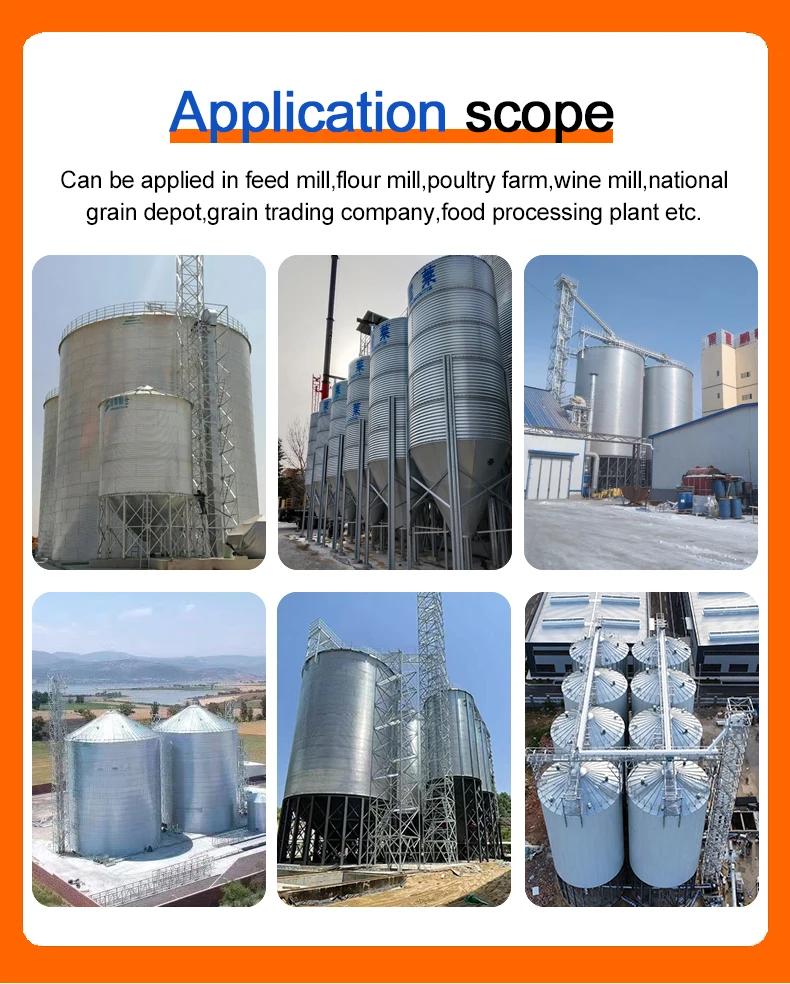

Application Scope
Can be applied in feed mill,flour mill,poultry farm,wine mill,national grain depot,grain trading company,food processing plant etc.
