Quality Wholesale HP350C 380 780 Portable Spectrum Analyzer Color Temperature Meter Digital Luxmeter
- Category: >>>
- Supplier: Dongguan NAPUI Electronic Technology Co. Ltd.
Share on (1601204666803):
Product Overview
Description
Product Description
HP350C spectrum power meter is handheld light source light color test instrument, using advanced micro spectrometer, embedded operating system and microcomputer technology integration, 5-inch IPS touch screen makes field test application more convenient and simple, can also be connected to PC software test in the laboratory and can be efficiently analyzed and processed on the test data saved by field test.
Application standards: GB 40070-2021, JJG_245-2018, GB55016-2021, GB/T 5702-2019, GB/T 5702-2019, GB/T 5699-2017, GBT 5700-2008, GBT 24824-2009, GB30734-2014, GBT 9473-2017 and other lighting fixture standards.
Application standards: GB 40070-2021, JJG_245-2018, GB55016-2021, GB/T 5702-2019, GB/T 5702-2019, GB/T 5699-2017, GBT 5700-2008, GBT 24824-2009, GB30734-2014, GBT 9473-2017 and other lighting fixture standards.
Characteristic:
1. Using advanced micro-spectrometer technology, the test accuracy is higher than that of traditional probes;
2. Equipped with computer software, which can be connected to the computer to print the test report;
3. Computer connection: USB

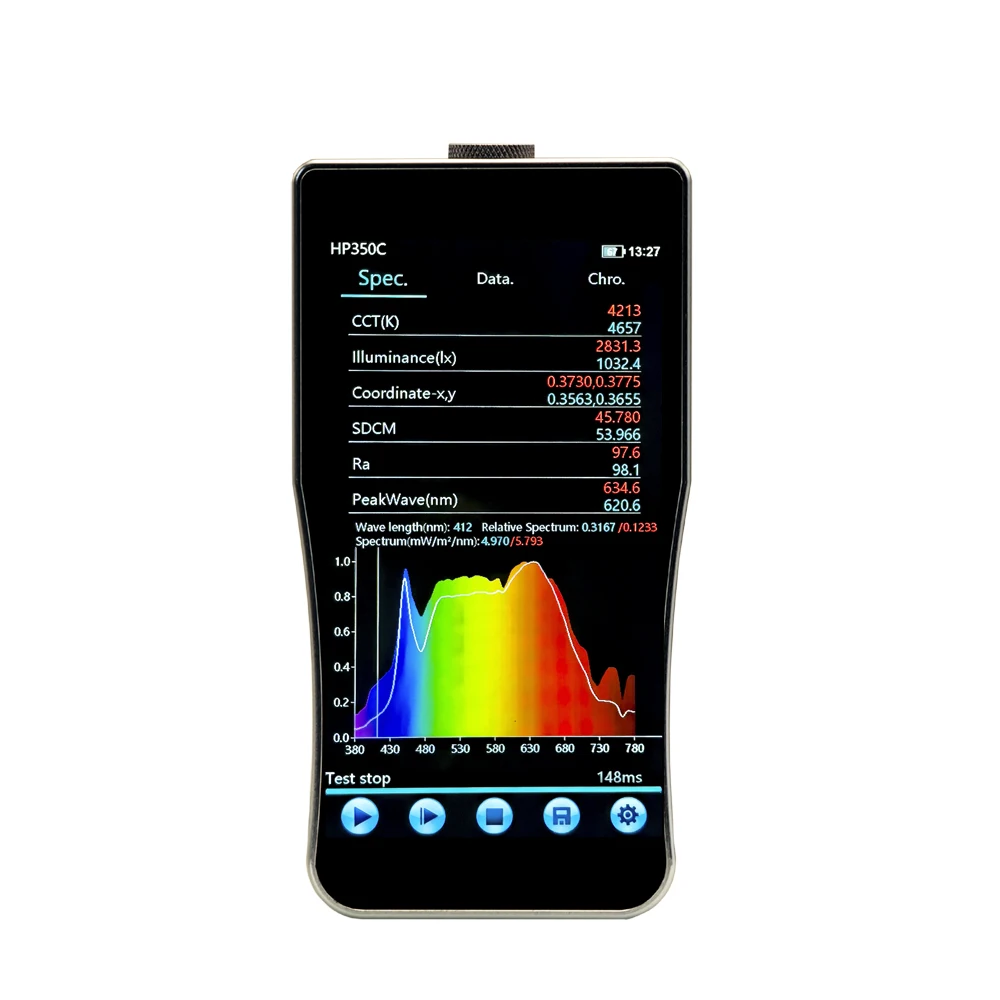

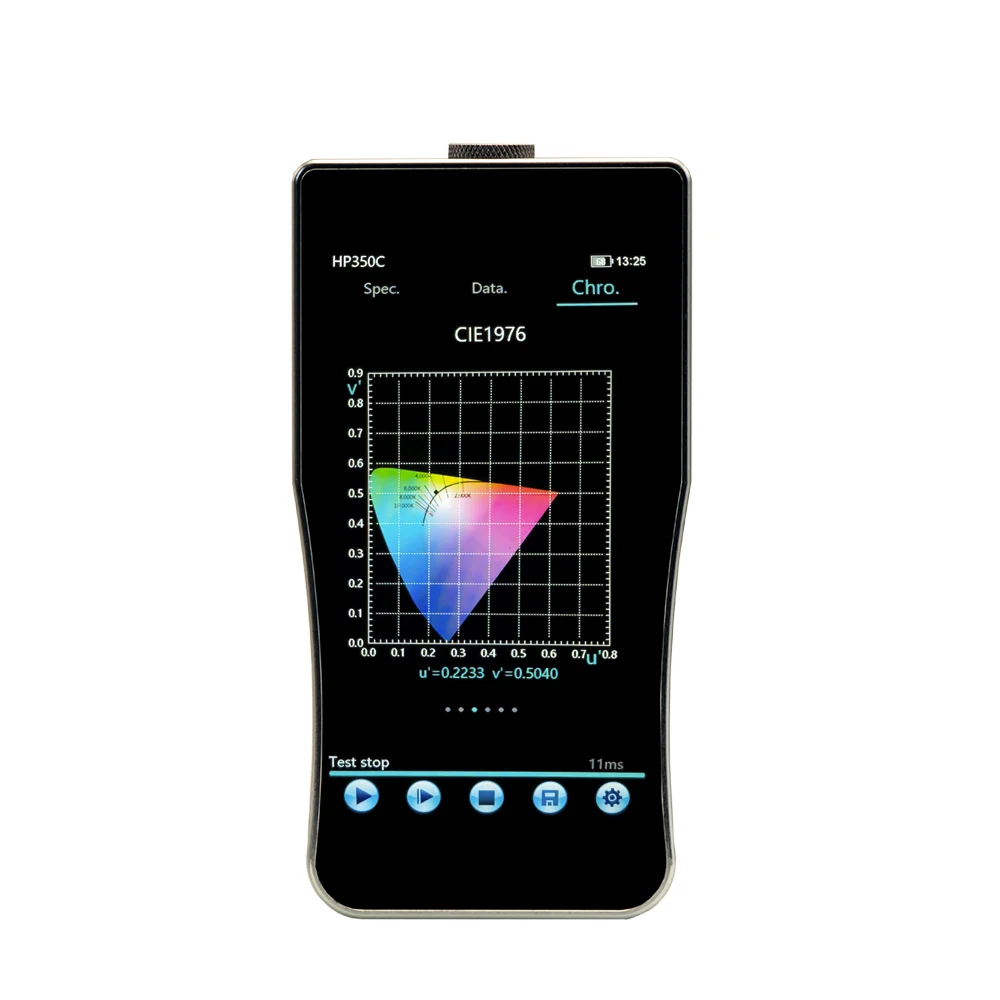

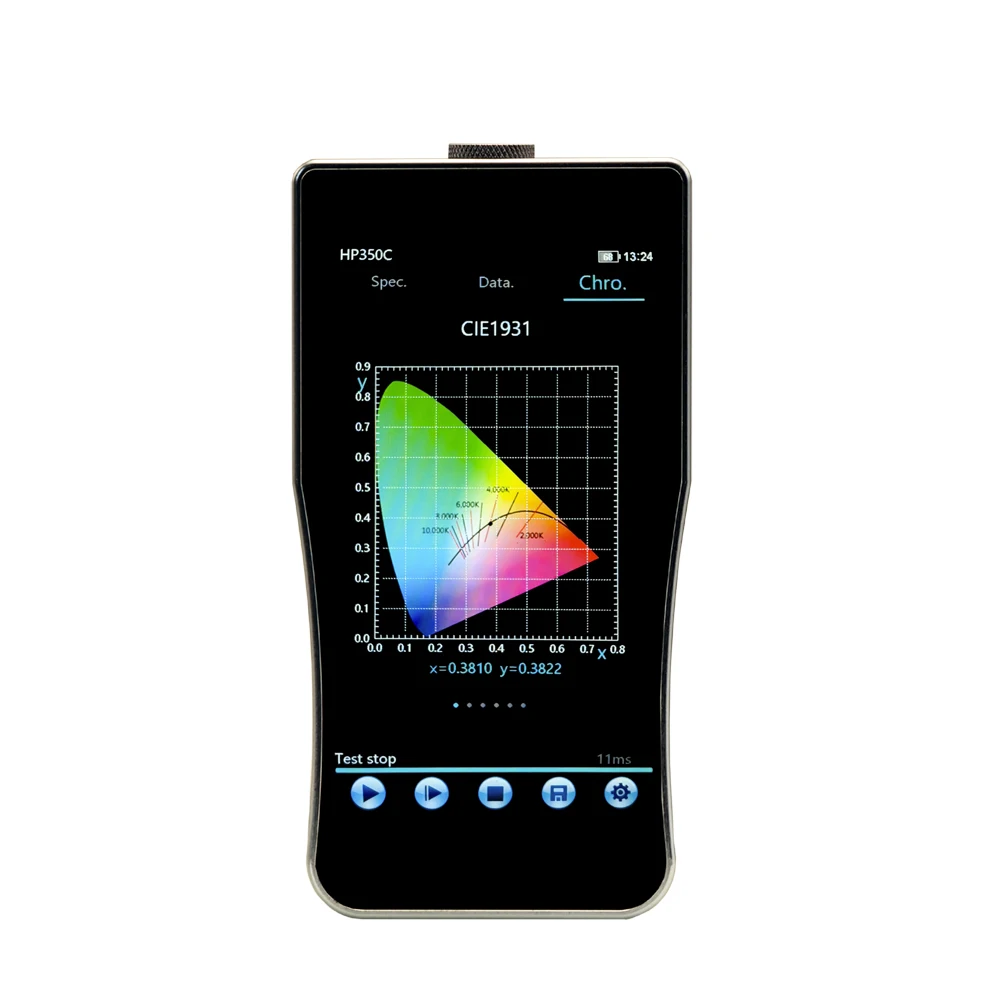

4. Color liquid crystal display, good graphic and text interface, can display spectral waveform and color tolerance ellipse;
5. Spectroscopic mode: telephoto bifurcation asymmetric CT spectroscopic system;
6. The sensor adopts high-precision CCD;
7. Spectral bandwidth (FWHM) 2nm;
8. Screen size: 5.0 IPS high-definition color LCD touch screen;
9. Illumination test range 1-2000000Lux resolution 1Lux;
10. Wavelength measurement range: 380nm-780nm;
11. Wavelength accuracy: ±0.5nm
12. Chromaticity coordinate accuracy: ±0.0025, resolution: 0.0001;;
13. Correlated color temperature measurement range: 1000-100000K:
14. Resolution: 1K;
15. Color rendering index measuring range: R1~R15
16. Total color difference accuracy: within ±0.2 (measurement conditions: under standard A light source);
17. Continuous working time: Equipped with 4000mA high-capacity lithium battery, which can be used continuously for more than 20
hours with one charge;
18. Storage capacity: Standard 8G large-capacity data memory card, with a data storage capacity of more than 30,000 pieces;
19. Collection of spectrum, illumination, chromaticity, etc. Measurement function in one;
2. Equipped with computer software, which can be connected to the computer to print the test report;
3. Computer connection: USB
4. Color liquid crystal display, good graphic and text interface, can display spectral waveform and color tolerance ellipse;
5. Spectroscopic mode: telephoto bifurcation asymmetric CT spectroscopic system;
6. The sensor adopts high-precision CCD;
7. Spectral bandwidth (FWHM) 2nm;
8. Screen size: 5.0 IPS high-definition color LCD touch screen;
9. Illumination test range 1-2000000Lux resolution 1Lux;
10. Wavelength measurement range: 380nm-780nm;
11. Wavelength accuracy: ±0.5nm
12. Chromaticity coordinate accuracy: ±0.0025, resolution: 0.0001;;
13. Correlated color temperature measurement range: 1000-100000K:
14. Resolution: 1K;
15. Color rendering index measuring range: R1~R15
16. Total color difference accuracy: within ±0.2 (measurement conditions: under standard A light source);
17. Continuous working time: Equipped with 4000mA high-capacity lithium battery, which can be used continuously for more than 20
hours with one charge;
18. Storage capacity: Standard 8G large-capacity data memory card, with a data storage capacity of more than 30,000 pieces;
19. Collection of spectrum, illumination, chromaticity, etc. Measurement function in one;
