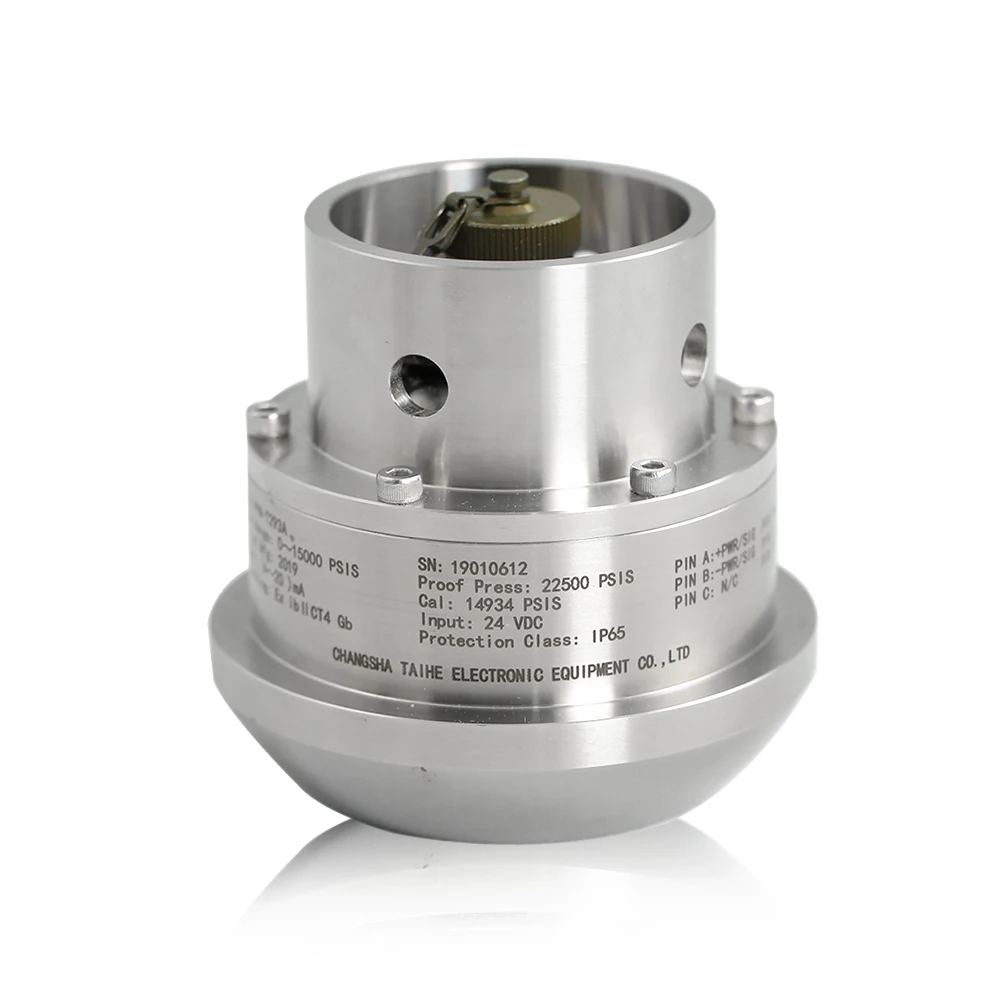

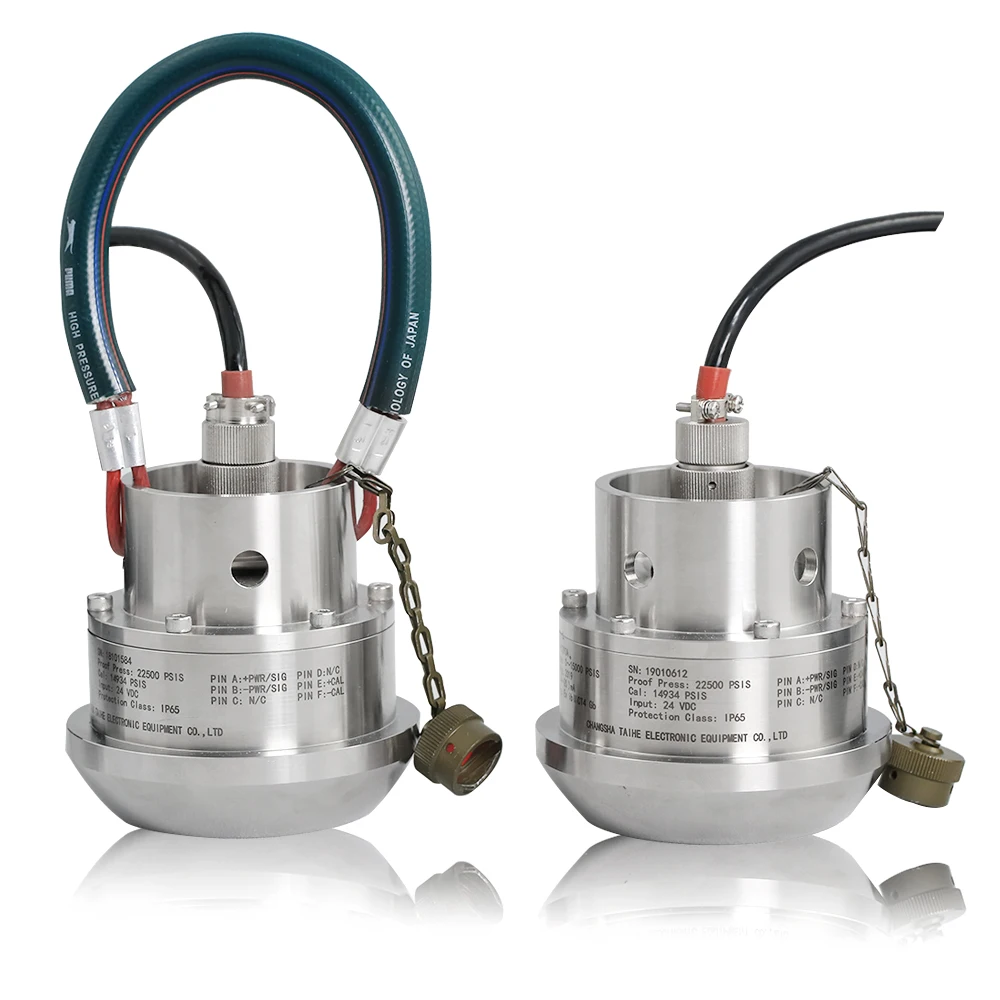

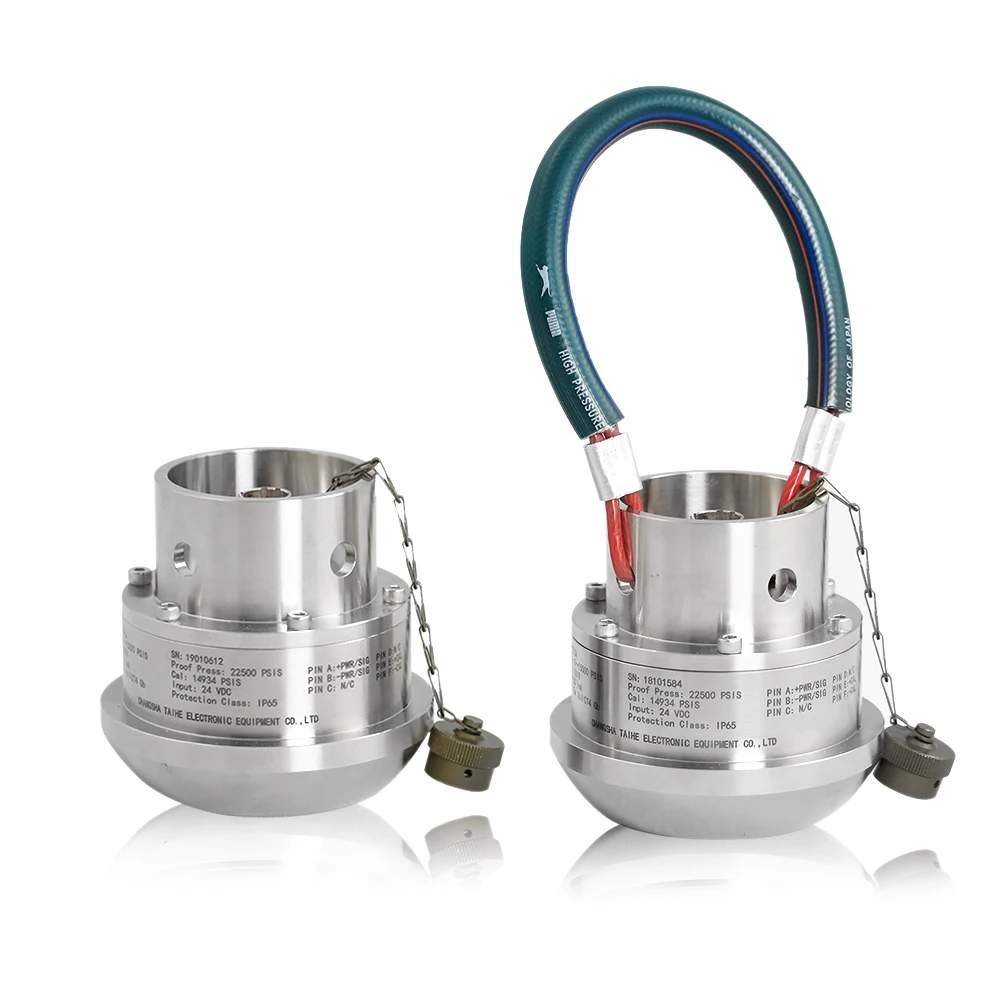

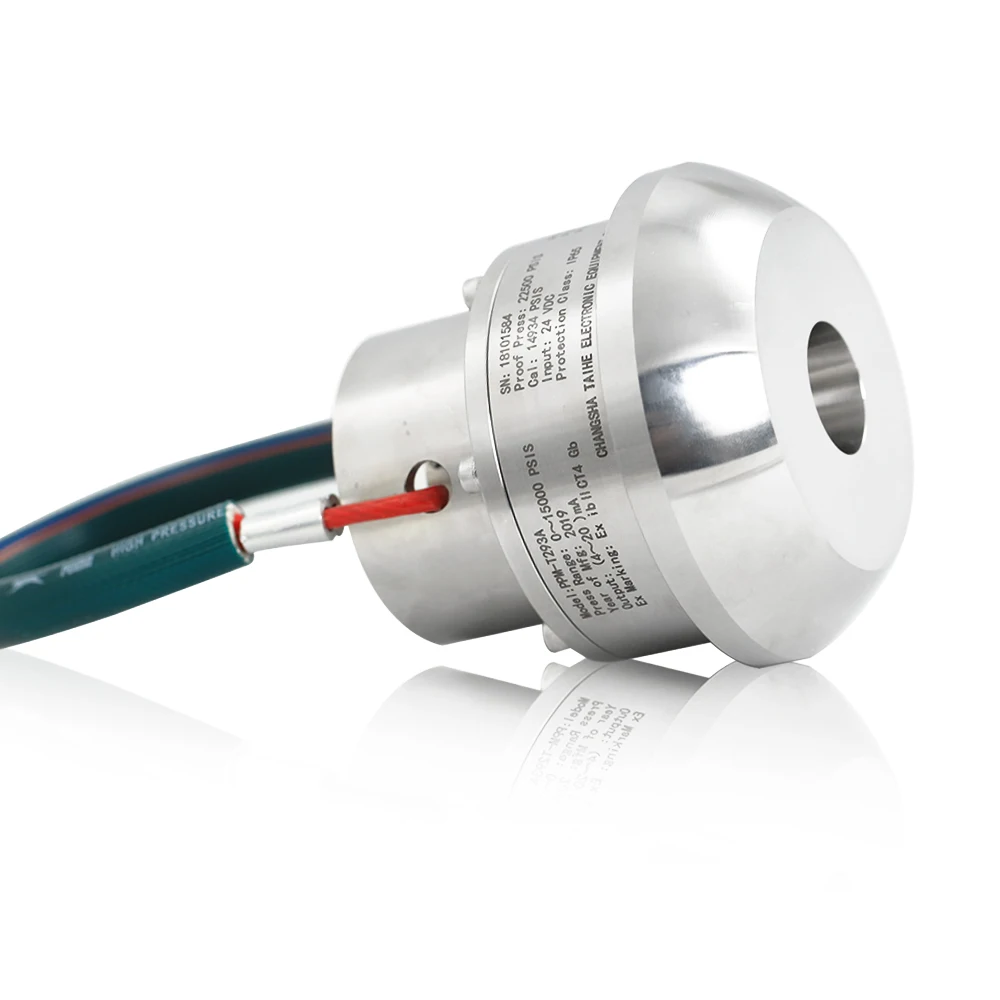

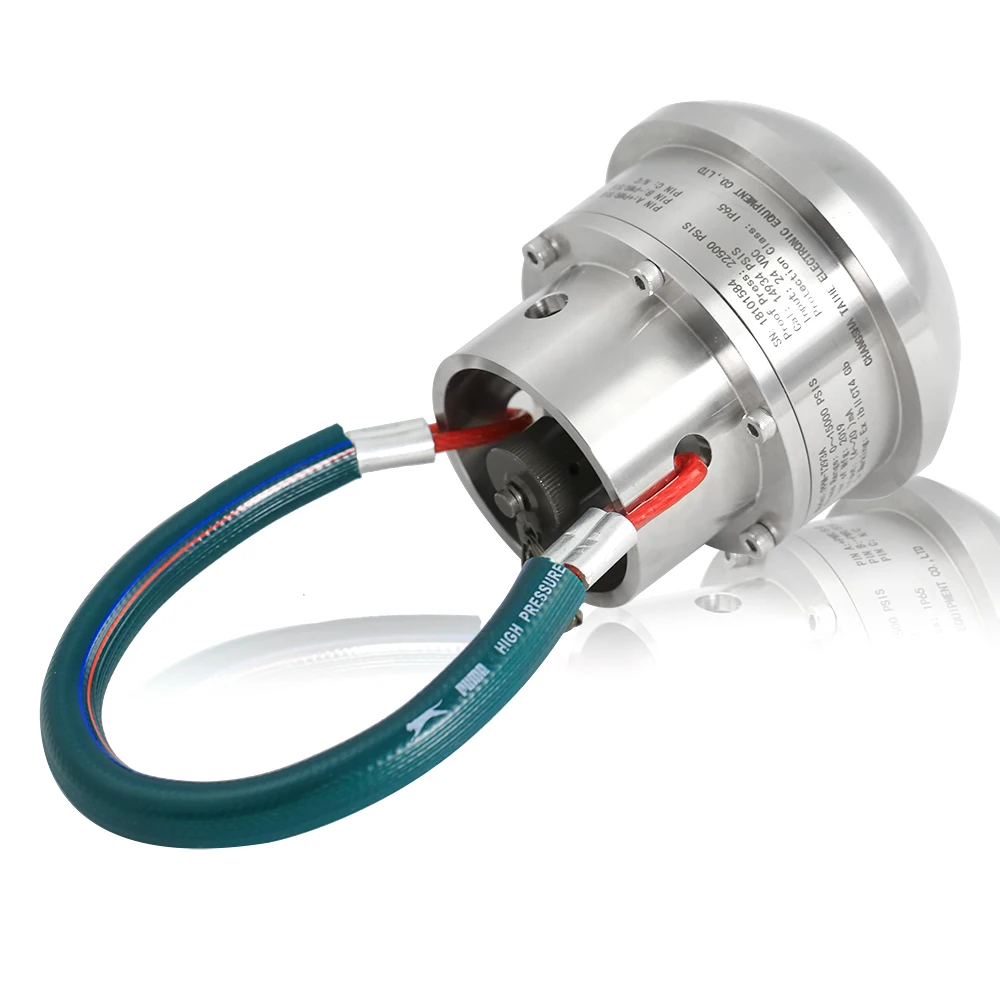

4 20mA Outlet Sealed Pressure PPM T293A Hammer Union Industrial Oil Pressure Sensor
- Category: >>>
- Supplier: Hunan Tecnk Electronic Co. Ltd.
Share on (1601205136165):
Product Overview
Description
Products Description
The model PPM-T293A pressure transmitters have been designed
specifically for oil field application.
These pressure transmitters provide different kinds of signal output,
including 4 20mA, 1-5VDC, 0-10VDC etc.
The model PPM-T293 has wide measuring ranges

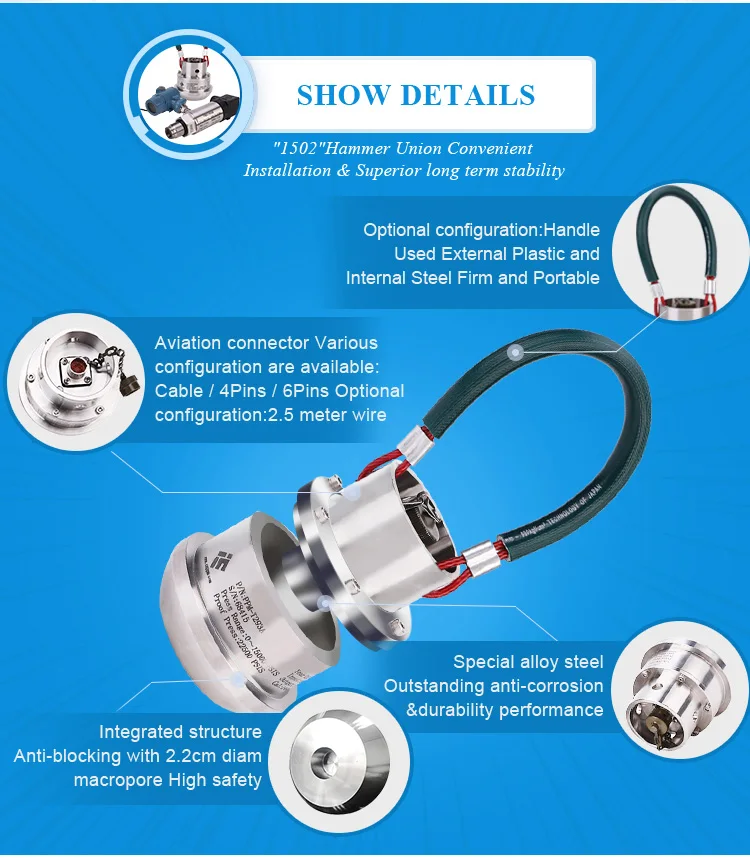

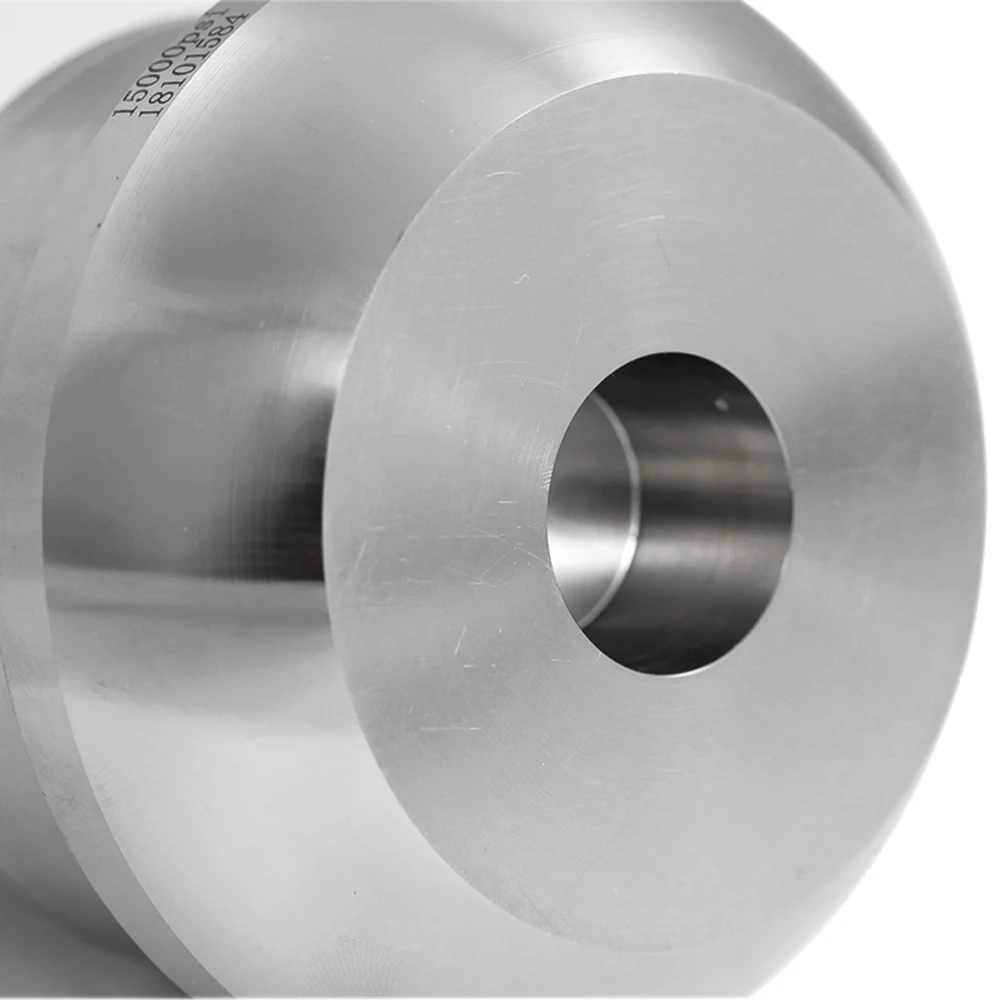

The hammer union pressure fitting makes it easy to install and con-
venience to use at oil well drilling and servicing.
specifically for oil field application.
These pressure transmitters provide different kinds of signal output,
including 4 20mA, 1-5VDC, 0-10VDC etc.
The model PPM-T293 has wide measuring ranges
from 0...5000PSI to 0...45000 PSI, and it features fast dynamic
response speed, high accuracy, strong anti-fatigue.
response speed, high accuracy, strong anti-fatigue.
The hammer union pressure fitting makes it easy to install and con-
venience to use at oil well drilling and servicing.
Product Paramenters
Tested Media | Wet Soil、Oil、Corrosive liquid and gas |
Pressure type | Gauge pressure(G), Sealed pressure(S), |
Full Scale Pressure Range | 0-1500、3000、5000、6000、7000、10000、15000、20000psi |
Supply Voltage | 10-32VDC |

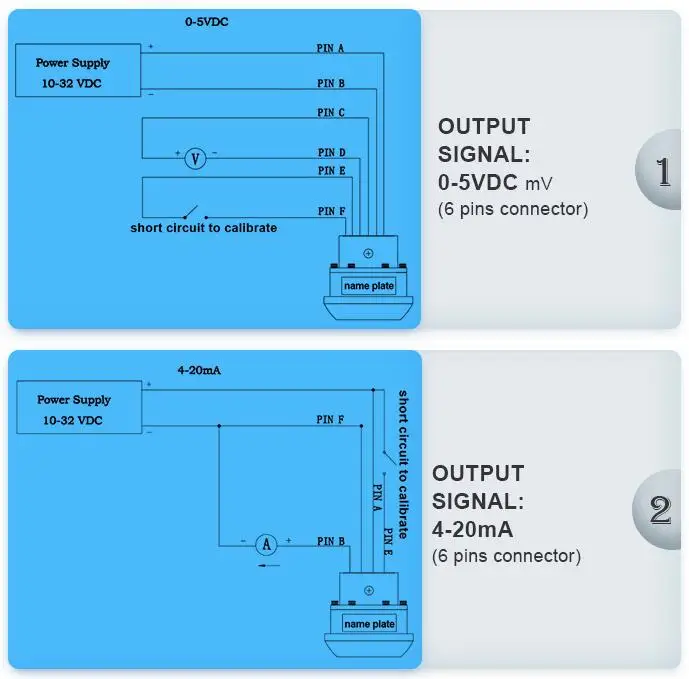

Output Signal | 4-20mA、0-5VDC、1-5VDC、0-10VDC、3mV/V |
Non-Linearity | 0.05%FS |
Repeatability | 0.05%FS |
Combined Accuracy | 0.1%FS、0.2%FS、0.5%FS Alternative |
Long-Term Stability | 0.2%FS/Year （representative value） |
Operating Temperature | -43～85℃/125℃ |
Compensated Temperature | -25～70℃/100℃ |
Response Time | ≤1mSec（representative value） |
Insulation Resistance | ≥500 MΩ/100V |
Safety overload pressure | 200%FS(2 Times Full Range, special: 5 Times Full Range) |
Rupture pressure | 500%FS(5 Times Full Range, special: 10 Times Full Range) |
Shock Limitation | About 10g/0～2000HZ |
Impact Resistance | About 50g/1ms |
Connection | Chuck type seal or specified |
Wetted Materials | 17-4PH stainless steel |
Relative Humidity | 0～100% RH |
Degree of Protection | IP67 |

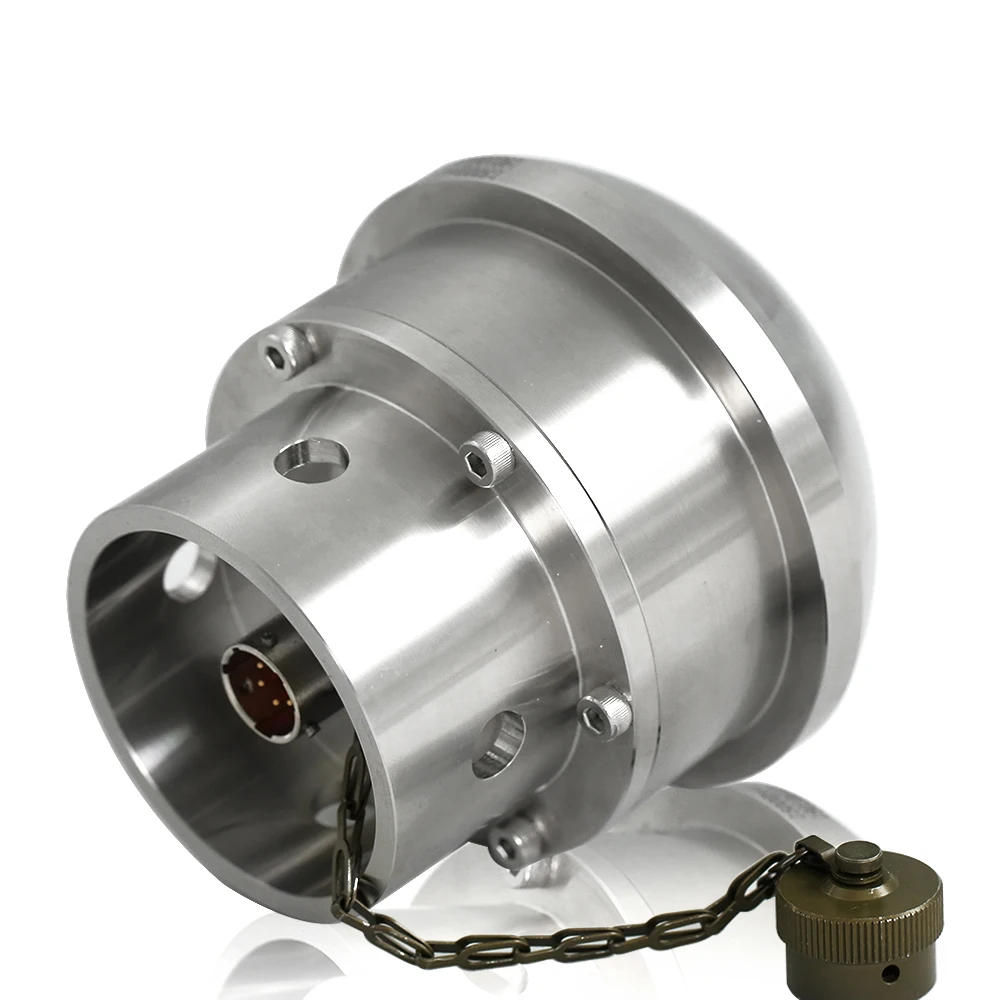

Electrical Connection | Aviation connector( Six - core connector, four - core connector, direct outgoing ) |

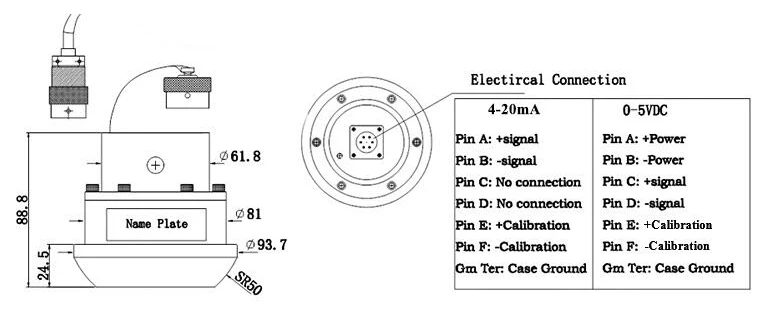

Dimensions(unit:mm)

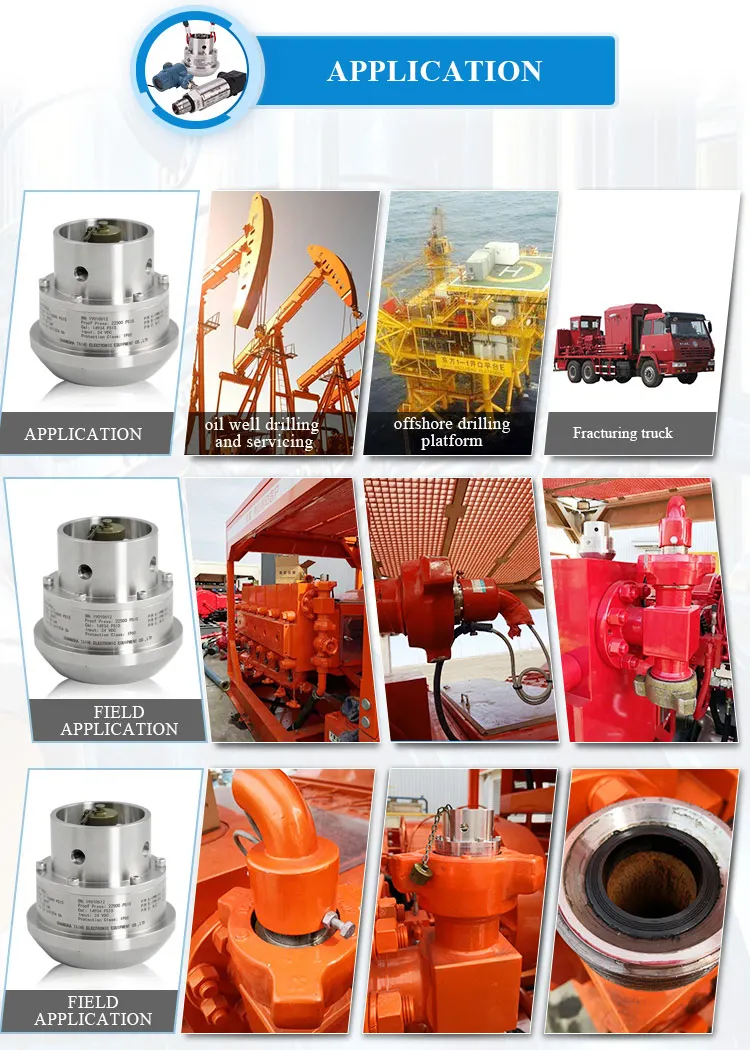

Application
Certifications
Exhibition
FAQ
Q: How long will you give me the reply?
A: we will contact you as soon as we can.
Q:Could I visit your factory?
A: Sincerely welcome you to visit our factory.
Q: Do you provide samples ?
A: Yes, we have materials in stock to help you to get the samples asap.
Q: How about the quality of the managements ?
A: We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you .
Q: What is the warranty for your product ?
A: Warranty: 1 years, and lifetime maintenance online after-service.
A: we will contact you as soon as we can.
Q:Could I visit your factory?
A: Sincerely welcome you to visit our factory.
Q: Do you provide samples ?
A: Yes, we have materials in stock to help you to get the samples asap.
Q: How about the quality of the managements ?
A: We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you .
Q: What is the warranty for your product ?
A: Warranty: 1 years, and lifetime maintenance online after-service.
