gypsum board machine/gypsum board making machines
US $7500-$12000

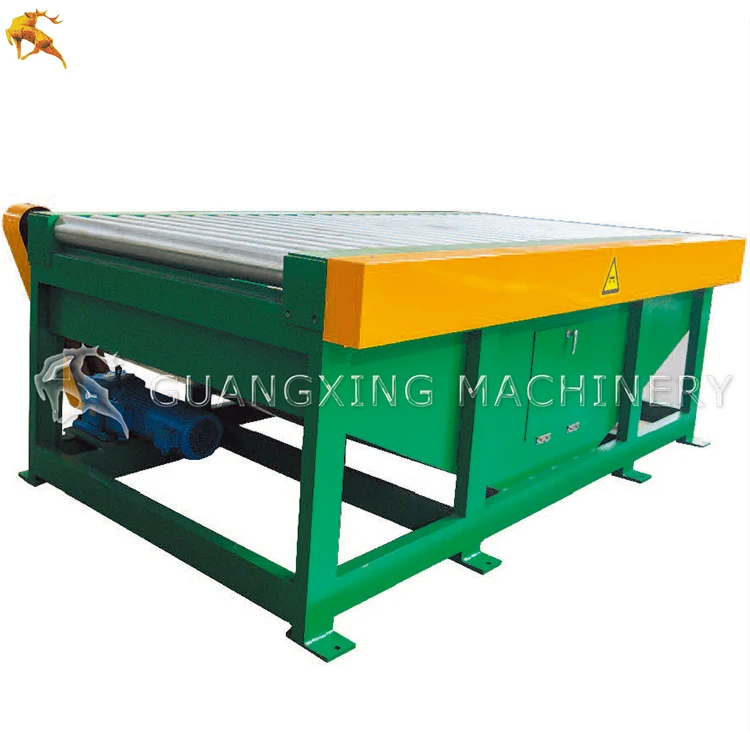

Direct rock wool machinery production line to produce machinery production tools
- Category: >>>
- Supplier: Hebei Guangxing Machinery Technology Co. Ltd.
Share on (1601205183963):
Product Overview
Description
Rock wool products are mainly made of high-quality basalt, dolomite, and other raw materials. After high-temperature melting, they
are centrifuged into fibers using a four axis centrifuge at high speed. At the same time, a certain amount of binder, dustproof
oil, and water repellent are sprayed into them. After being collected by a fiber collector, they are cured and cut using a
pendulum method and three-dimensional fiber laying method, forming rock wool products of different specifications and purposes.Due
to the fact that rock wool products are artificial inorganic fibers processed through high-temperature melting, they have the
characteristics of light weight, low thermal conductivity, heat insulation, and flame retardancy, and are widely used in various
industries.
are centrifuged into fibers using a four axis centrifuge at high speed. At the same time, a certain amount of binder, dustproof
oil, and water repellent are sprayed into them. After being collected by a fiber collector, they are cured and cut using a
pendulum method and three-dimensional fiber laying method, forming rock wool products of different specifications and purposes.Due
to the fact that rock wool products are artificial inorganic fibers processed through high-temperature melting, they have the
characteristics of light weight, low thermal conductivity, heat insulation, and flame retardancy, and are widely used in various
industries.
Product name | Rock Wool Production Line |
Automatic Grade | Automatic |
Voltage | 380V |
Features | Automatic |
Panel Thickness | 30-150mm |
Felt Size | 1000mm (adjustable) |
Panel Density | 40-200 Kg/m3 |
Applicable Industries | Manufacturing Plant, Retail, Construction works |
Finished products | rock wool mattress and board |
Usage | Building Material Production |
RAW MATERAIL FEEDING SYSTEM
Raw materials(stones) will be transported to the site by truck, stored under a roof, and conveyed indoors via enclosed conveyors
to silos.The materials are individually weighed and mixed before entering the furnace.
to silos.The materials are individually weighed and mixed before entering the furnace.

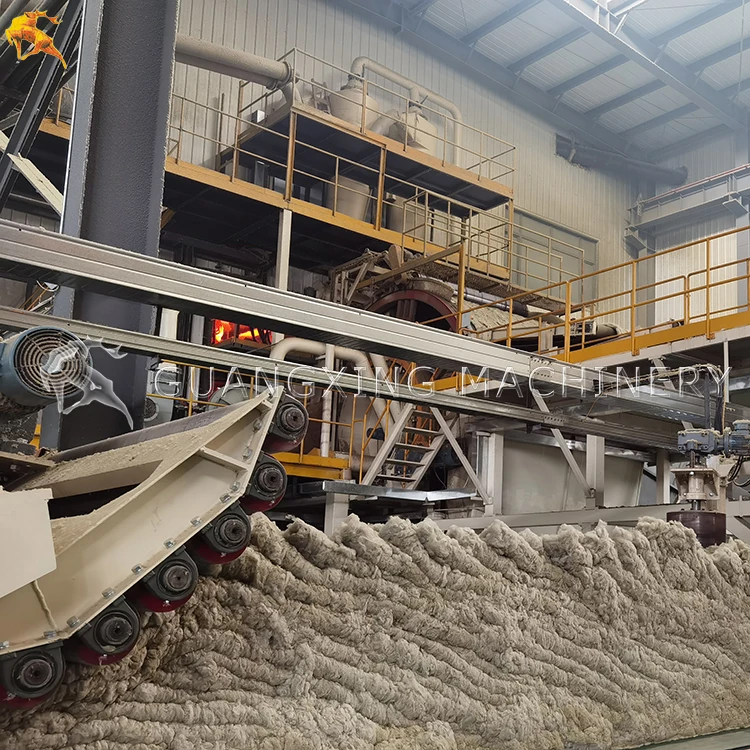

CENTRIFUGE MACHINE
The melt flows from the furnace and is applied to the spinning wheels. Fibers are drawn from the spinning wheels with a powerful
airflow and injected into the spinning chamber.
airflow and injected into the spinning chamber.

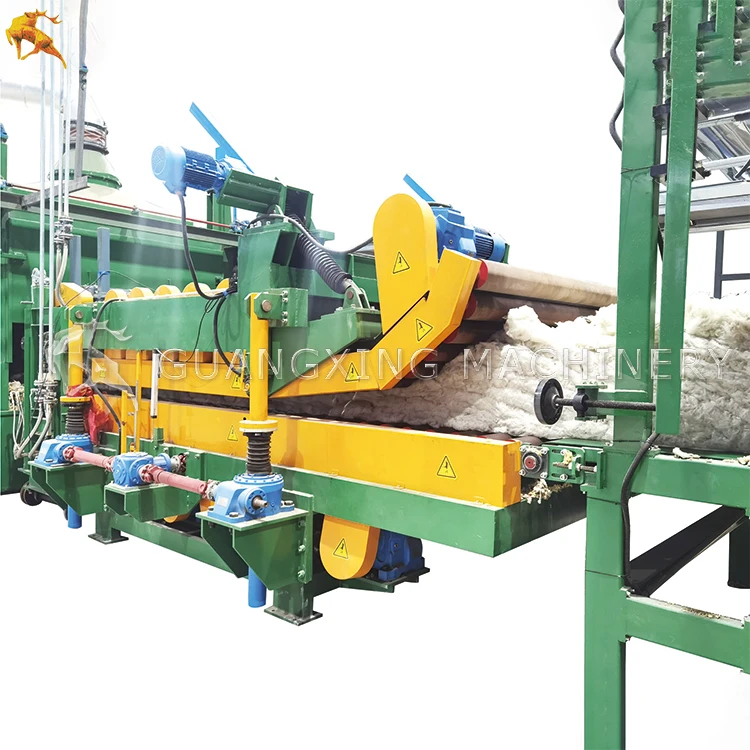

CRIMPING MACHINE&PRESSING MACHINE
The mineral wool is uniformly layered into the desired thickness. Then, depending on the product (batts or boards), the mineral
wool fibers are set up as either single or dual density.
wool fibers are set up as either single or dual density.

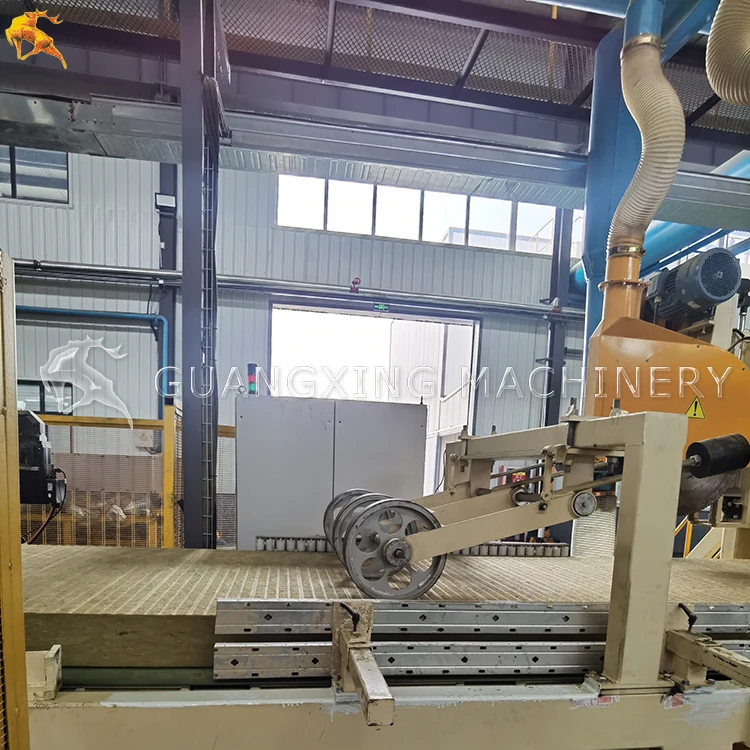

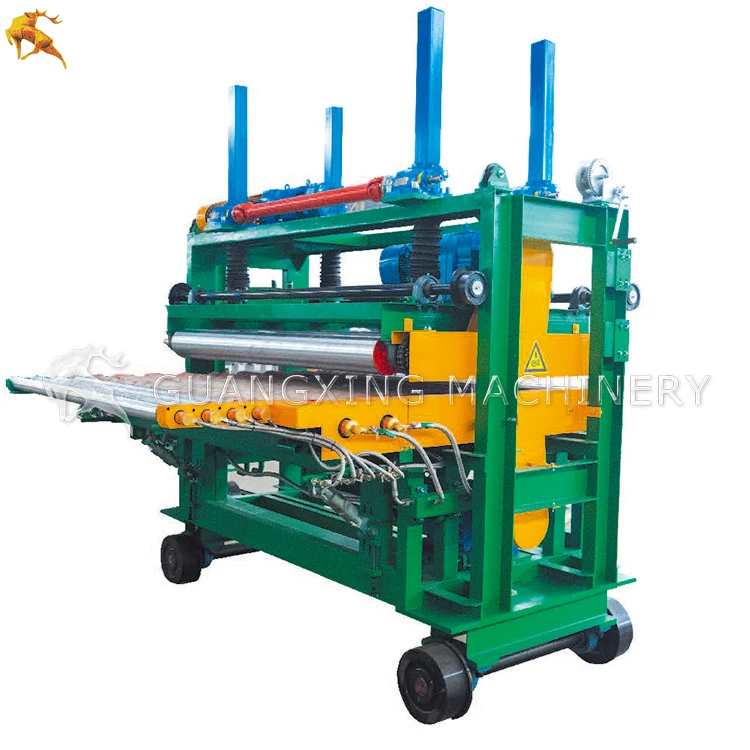

LONGITUDINALCUTTING MACHINE
In the cutting area, vertical cuts can be made into standard dimensions of 60cm.We have two machine specifications available,
which are 1.2m and 2.4mrespectively.
which are 1.2m and 2.4mrespectively.

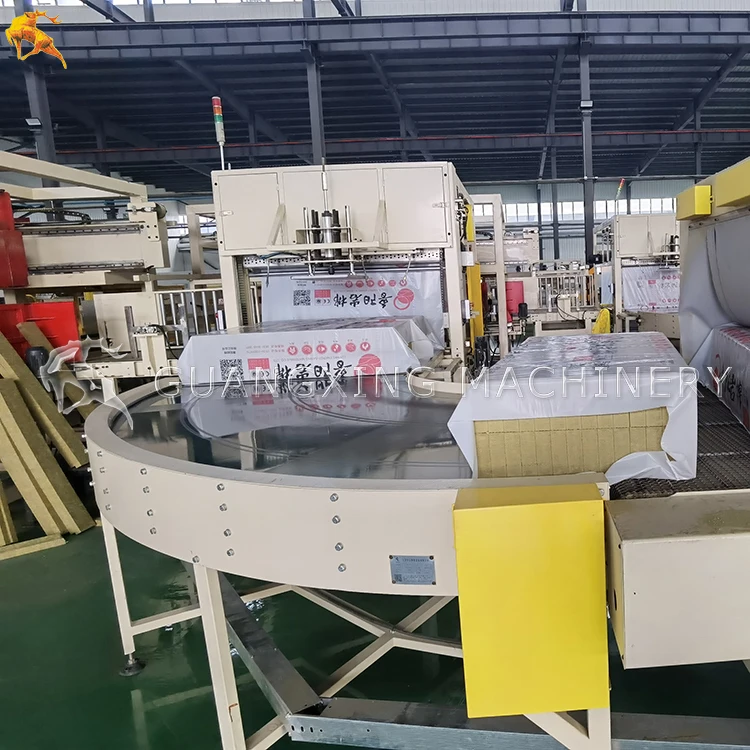

FILM SHRINKAGE TYPE PACKING MACHINE
The products are stacked, wrapped in polyethylene film, and palletized before being transported to the finished goods storage
area.
area.
