Piesia Mini Nuc Motherboard 11th I5 1135G7/I7 1165GG7 2*DDR4 64GB HDMI2.0 4K 2*LAN Industrial Motherboard for Robot Control
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1601205348440):
Product Overview
Description
Products Description
Main Feature
◆ Adopt Intel 11th Tiger Lake Celeron,Core i3/i5/i7 processor；
◆ 2 *DDR4 SODIMM 260 Socket；
◆ 1*HDMI2.0,1*MINIDP 1.4（Support DP++）；
◆ 2*USB3.1 GEN2,1*TYPE-C(USB3.1 GEN2) ；
◆ 2*INTEL I211/I210 lan port；
◆ Support PCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of two)；
◆ Support DC 12-19V power supply (a power supply with rated power above 80W is required)；
◆ 2 *DDR4 SODIMM 260 Socket；
◆ 1*HDMI2.0,1*MINIDP 1.4（Support DP++）；
◆ 2*USB3.1 GEN2,1*TYPE-C(USB3.1 GEN2) ；
◆ 2*INTEL I211/I210 lan port；
◆ Support PCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of two)；
◆ Support DC 12-19V power supply (a power supply with rated power above 80W is required)；
CPU | Onboard Intel 11th Tiger Lake-U series processor,Celeron,Core i3/i5/i7 |
Ram | 2* DDR4 3200MHz SO-DIMM，Max support 64GB |
Display | HDMI2.0，4096x2160@60Hz，Support 4K display |
Mini DP，Maximum resolution supported 4096x2304 60HZ(This interface supports DP++) | |
Mini DP + HDMI2.0synchronous or asynchronous display | |
Storage | 1* SATA3，2PIN Power Supply 5V |
1* M.2 Key-M 2242，NVMe(PCIe_2X)/SATA option | |

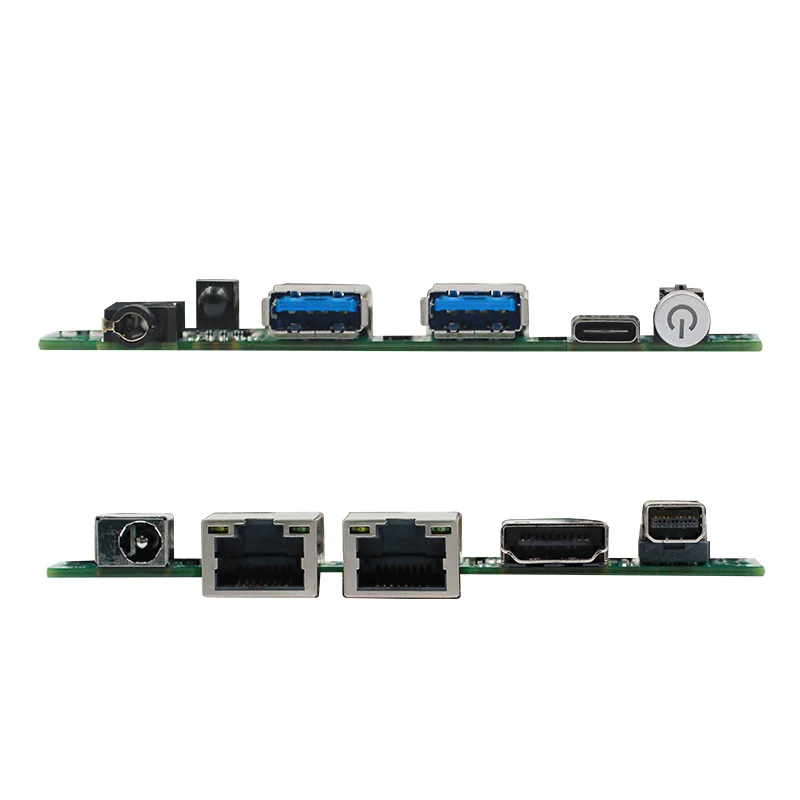

Board side I/O interface | 1* HDMI，1* MiniDP |
2* RJ45，Intel 2.5G Lan | |
2* USB3.1 | |
1*2 in 1 Audio Hole | |
1*Power on button with indicator | |
1* DC JACK | |
In board expansion Interface / Function | 1*Mini PCIE slot，Support PCIE and USB2.0 protocols, WIFI/3G/4G devices |
TPM2.0 can Optional | |
1*SATA3.0，2Pin 5V Power Supply | |
1 Group of 2 USB2.0, 2x5pin, Spacing 2.0mm | |
1*3Pin CPU FAN | |
1* RS232 COM | |
F_Panel，2x5Pin，Spcaing2.0mm | |
Power Supply | DC12-19V，90W |
Working Environment | Working temperature：-20℃ ~ +60℃；Working humidity:0% ~ 90% relative humidity, non-condensing |
Storage temperature：-40℃ ~ +85℃；Storage humidity:0% ~ 90% relative humidity, non-condensing | |
System support | Windows10，Windows11，Linux |
Size | 100x100mm |
