RTS LS155 Liquid Turbidity Colorimeter Transparent Pt Co Scale Haze Colorimeter for Liquids Color Measurement
- Category: >>>
- Supplier: Shenzhen Linshang Technology Co. Ltd.
Share on (1601205397281):
Product Overview
Description
Related Products
Model | LS170 | LS172 | LS175 | LS171 | LS173 | LS176 | LS 177 | LS155 | |||||
Illumination geometry | 45/0 (45° annular illumination, 0° viewing angle) | D/8, specular component include (SCI) | D/0 | ||||||||||
Application | Printing, packaging materials, etc. | Textured or rough surface materials | General colorimeter for plastic, paint, metal, ceramic, etc. | Granules or masterbatch | Liquid, transparent and translucent materials | ||||||||
Measuring aperture | 8mm | 20mm | 8mm | 50mm | 5mm/14mm | ||||||||
Product Description

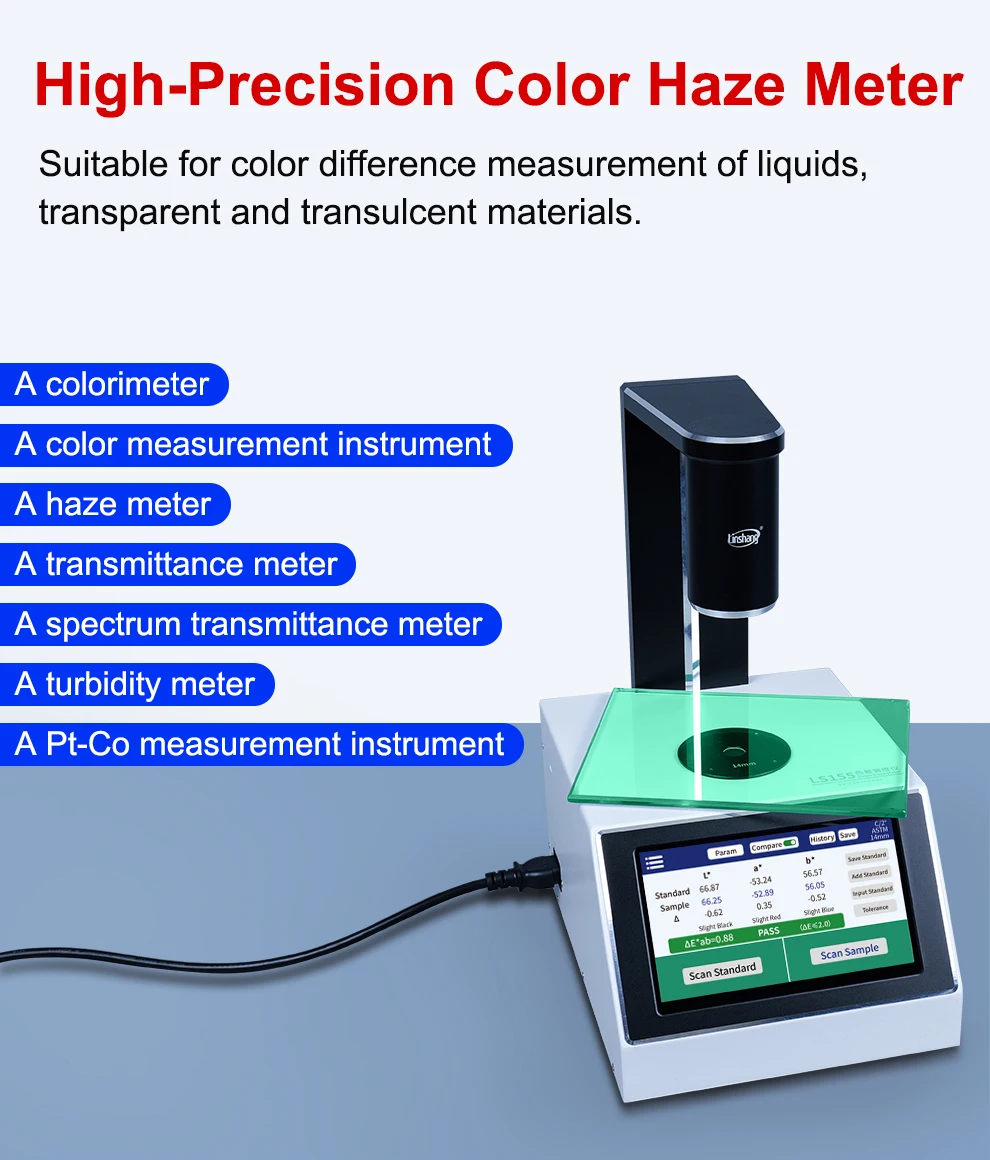

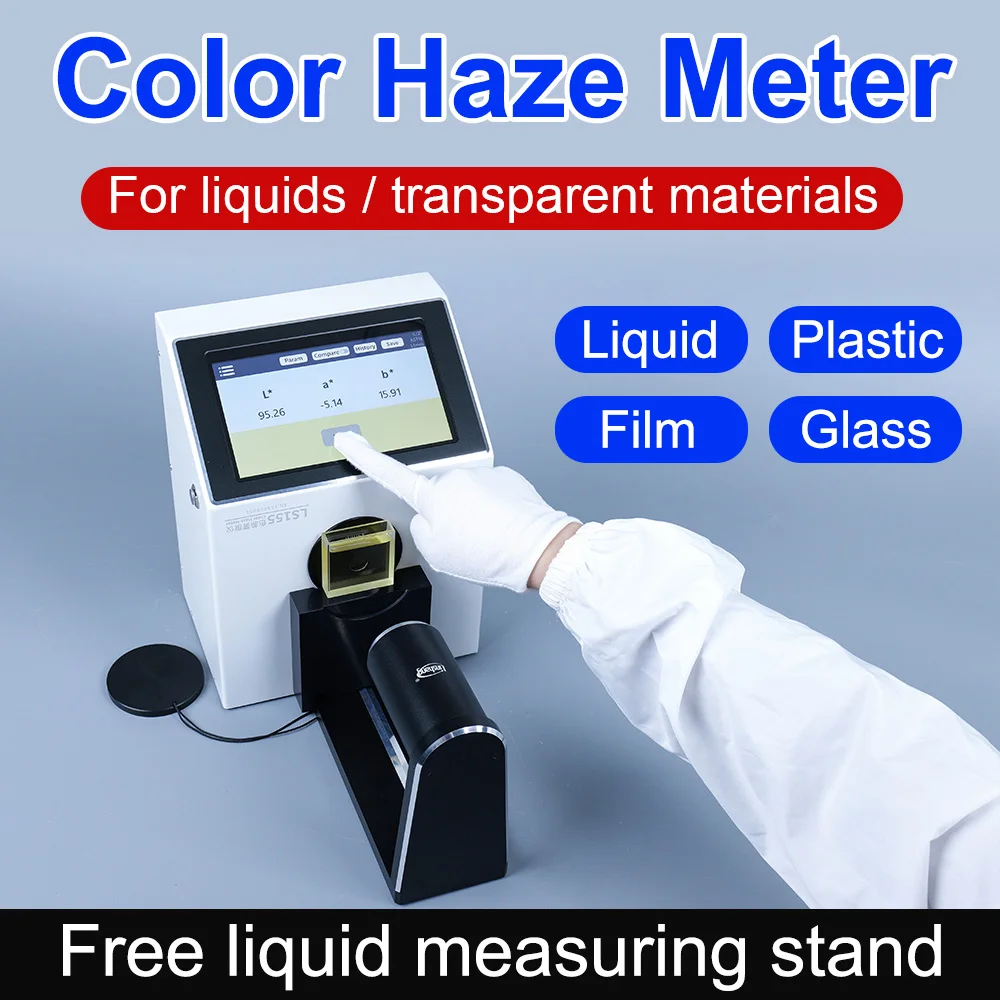

RTS LS155 Liquid Turbidity Colorimeter Transparent Pt-Co Scale Haze Colorimeter for Liquids Color Measurement
LS155 colorimeter for liquids color measurement is a multifunctional color haze meter. The liquid colorimeter adopts full spectrum LED light source and spectral sensor design, which is used for the measurement of haze, transmittance and color of various diffuse transmittance materials such as milky white, matte, frosted surface and various transparent and semi-transparent regular transmittance materials, and it can also display the spectral transmittance curve. The colorimeter for liquid is equipped with 7-inch color screen and capacitive touch screen, which provides excellent operation experience.
Features：
1. Compliant with both ASTM and ISO standards, accommodating diverse testing requirements.

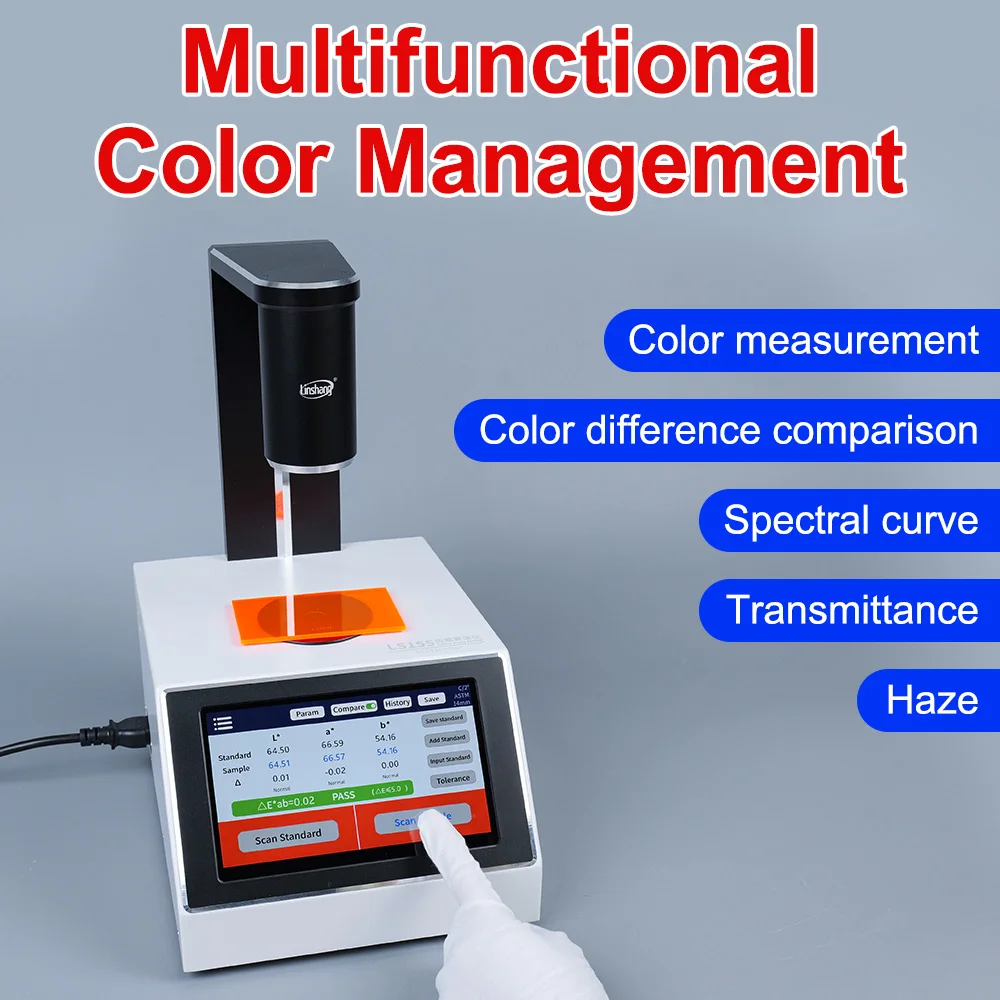

2. The colorimeter for liquids color measurement can measure color difference, haze, and transmittance, displaying the transmittance spectral curve.
3. Easily switch between simple and comparative measurement for straightforward operation.
4. Equipped with a 7-inch touchscreen, offering excellent human-machine interaction for convenient operation.
5. The liquid colorimeter has excellent repeatability, with haze and color difference repeatability ≤ 0.03, and transmittance repeatability ≤ 0.05.
6. High accuracy ensures the ability to pass testing at authoritative metrology institutes.
7. Offers both vertical and horizontal measurement modes, and is also capable of measuring liquids.
8. Utilize a dual-aperture design with 14mm and 5mm options.
9. Equipped with A, C, and D65 standard illuminants.
10. Equipped with PC software for online measurements, supporting data export and printing.
2. The colorimeter for liquids color measurement can measure color difference, haze, and transmittance, displaying the transmittance spectral curve.
3. Easily switch between simple and comparative measurement for straightforward operation.
4. Equipped with a 7-inch touchscreen, offering excellent human-machine interaction for convenient operation.
5. The liquid colorimeter has excellent repeatability, with haze and color difference repeatability ≤ 0.03, and transmittance repeatability ≤ 0.05.
6. High accuracy ensures the ability to pass testing at authoritative metrology institutes.
7. Offers both vertical and horizontal measurement modes, and is also capable of measuring liquids.
8. Utilize a dual-aperture design with 14mm and 5mm options.
9. Equipped with A, C, and D65 standard illuminants.
10. Equipped with PC software for online measurements, supporting data export and printing.
Specifications
Parameter | Value |
Illumination geometry | D/0° |
Illumination light source | Full spectrum LED light source |
Spectral Range | 400-700nm |
Spectral Interval | 10nm |
Measuring aperture | 5mm/14mm |
Measurement conditions | Light source D65, field of view 10°; Light source A, field of view 2°; Light source C, field of view 2° |
Measuring time | About 3s |
Measuring parameter | Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance |
Transmittance resolution | 0.01% |
Transmittance accuracy | Better than ±1% |
Transmittance repeatability | ≤0.03 |
Haze resolution | 0.01% |
Haze accuracy | Better than ±2% |
Haze repeatability | ≤0.03 |
Color repeatability | Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration) |
Power supply | 100~277V 0.4A 50/60HZ |
Display | 7-inch 1024*600 dot matrix IPS color screen |
Language | Simplified Chinese, English |
Data transmission | USB (Type-C) |
Operating temperature range | 0-45℃，0-85%RH (no condensation) |
Storage temperature range | 25-55℃，0-85%RH (no condensation) |
Dimension | 211mm×264mm×360mm(LWH) |
Weight | 5300g |
Structure & Packing
No. | Description | Quantity | Unit |
1 | Color Haze Meter | 1 | Set |
2 | USB cable | 1 | pcs |
3 | Power cable | 1 | pcs |
4 | 5mm aperture cover | 1 | pcs |
5 | Screwdrivers | 1 | pcs |
6 | User manual | 1 | pcs |
7 | Certificate / Warranty card | 1 | pcs |

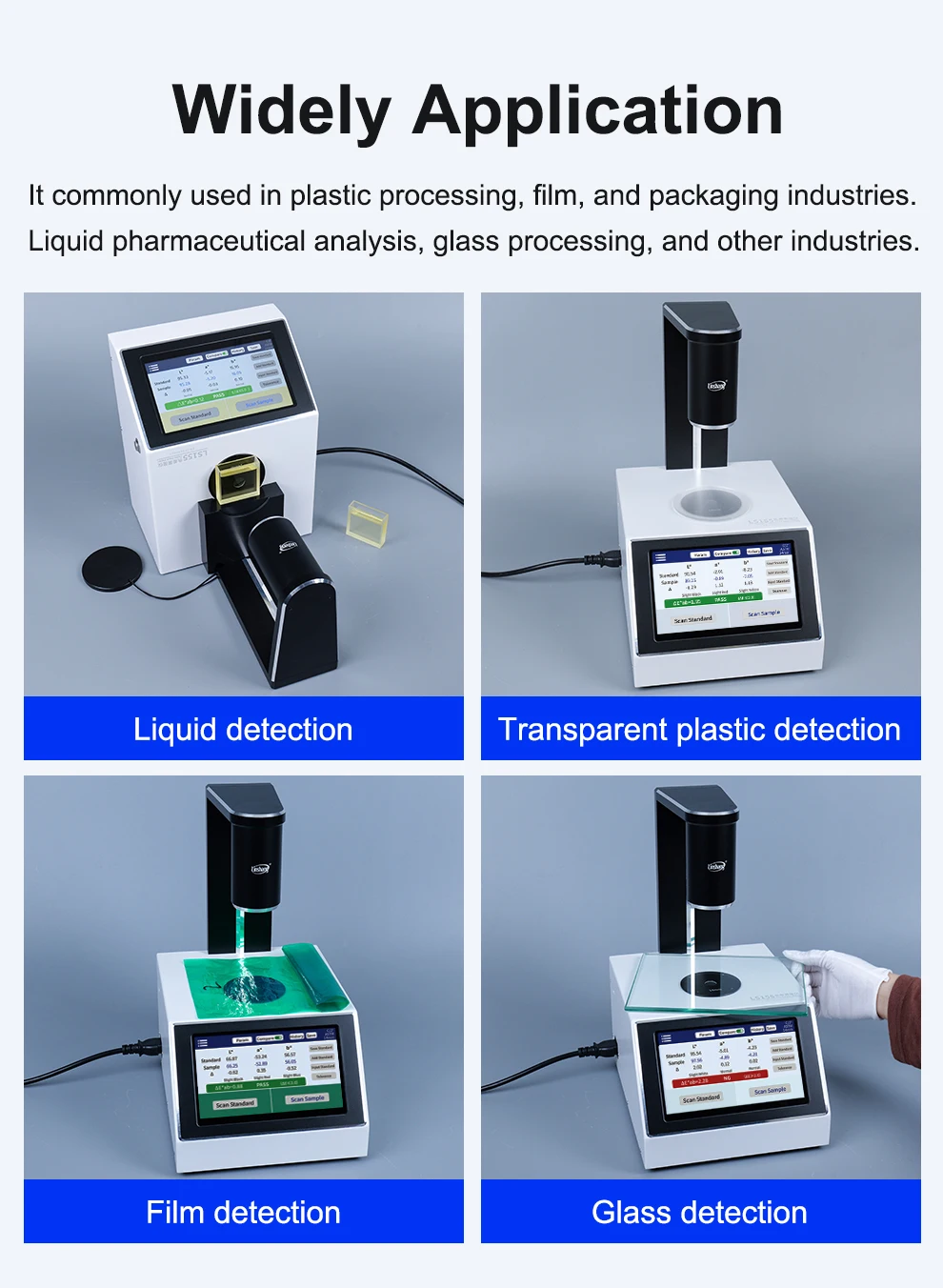

Widely Application
The colorimeter for liquid commonly used in plastic processing, film, packaging, liquid pharmaceutical analysis, glass processing and other industries.
High Precision, Good Stability
Repeatability △E*ab ≤ 0.03. The colorimeter for liquids color measurement can pass authoritative metrology institute testing.

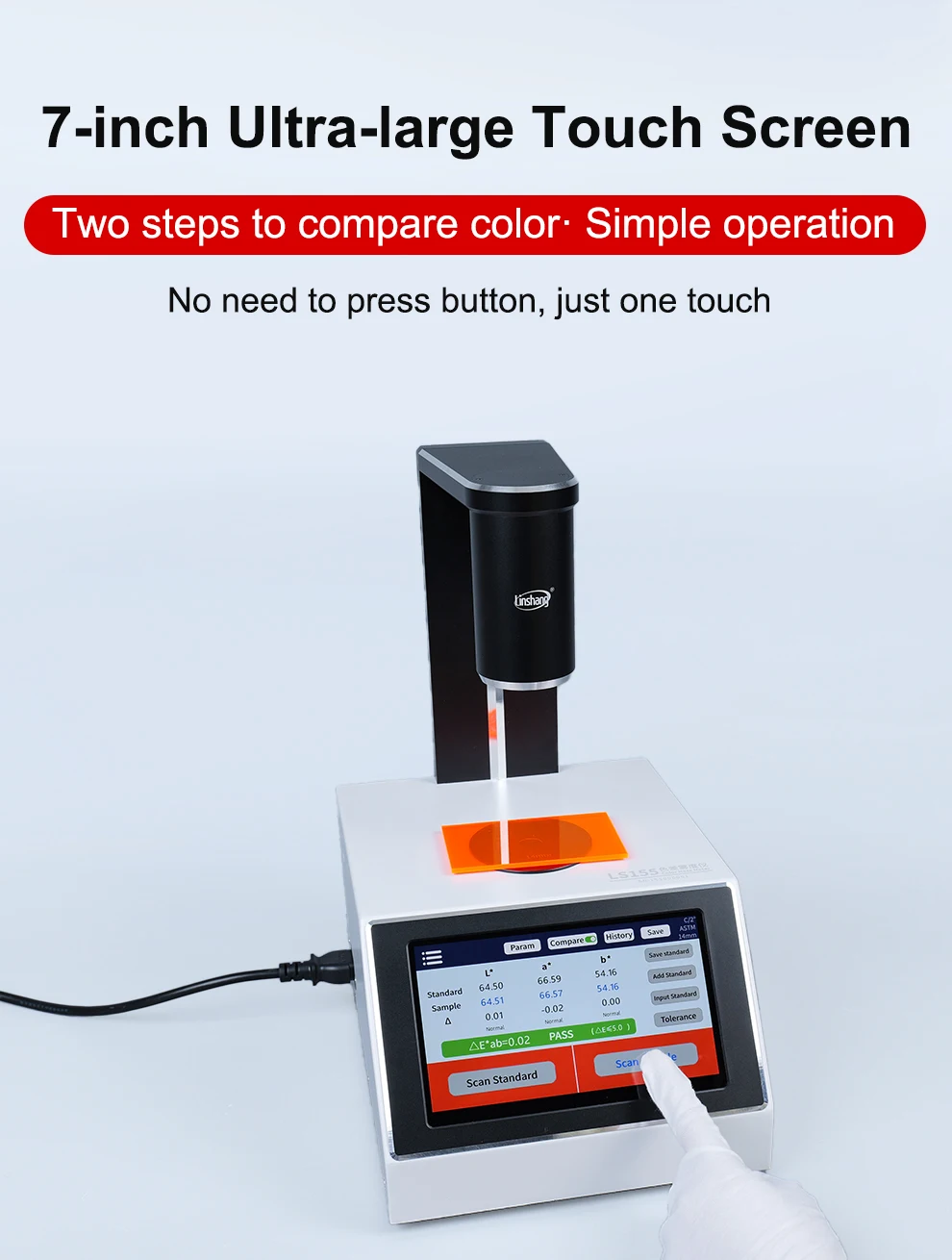

7-inch Ultra-large Touch Screen
No need to press button, just one touch

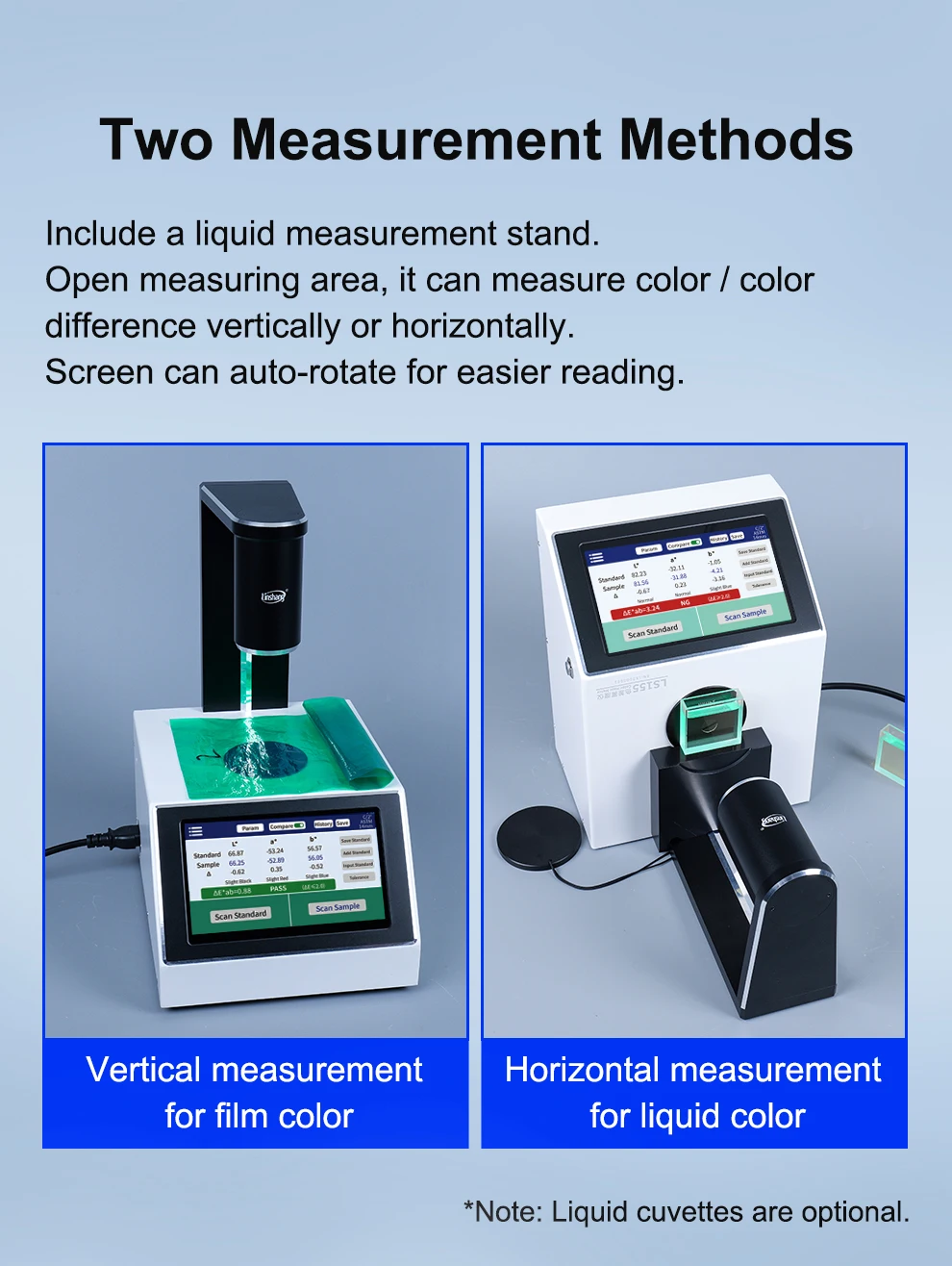

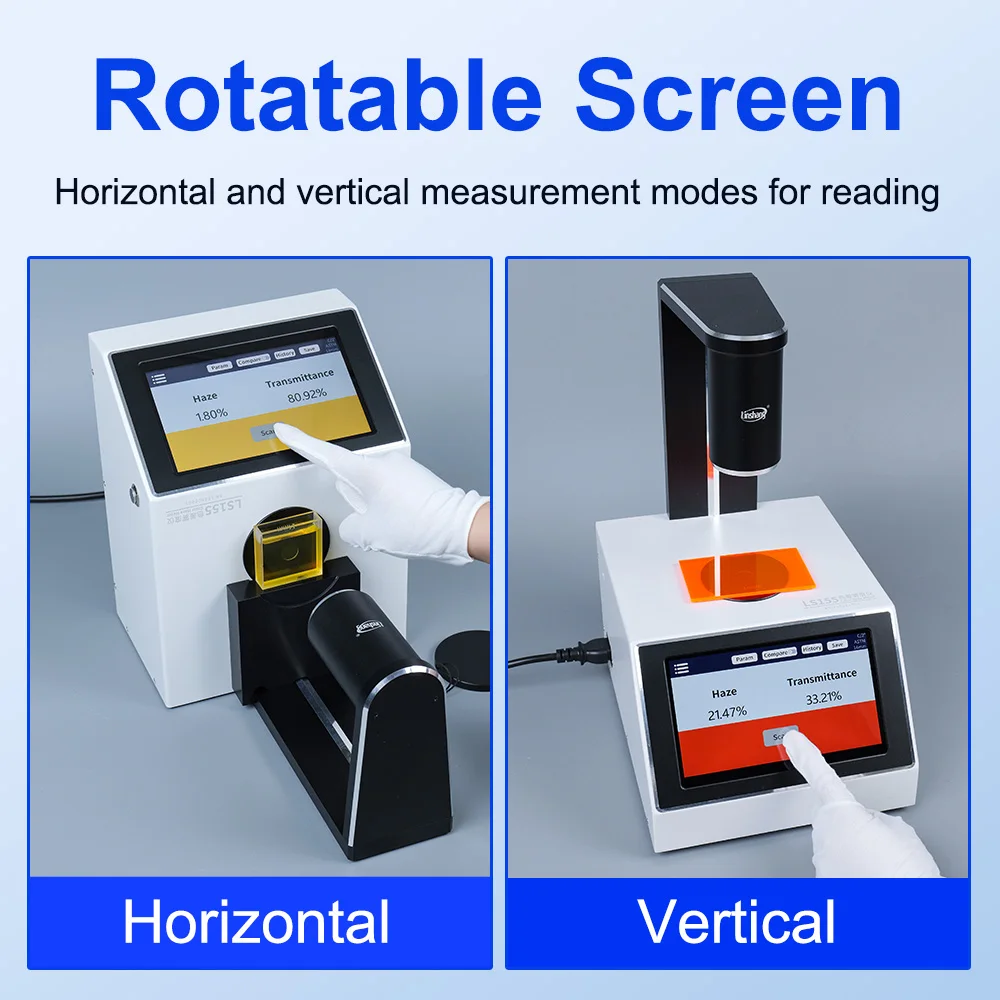

Two Measurement Methods
Open measuring area, the liquid colorimeter can measure color/color difference vertically or horizontally.

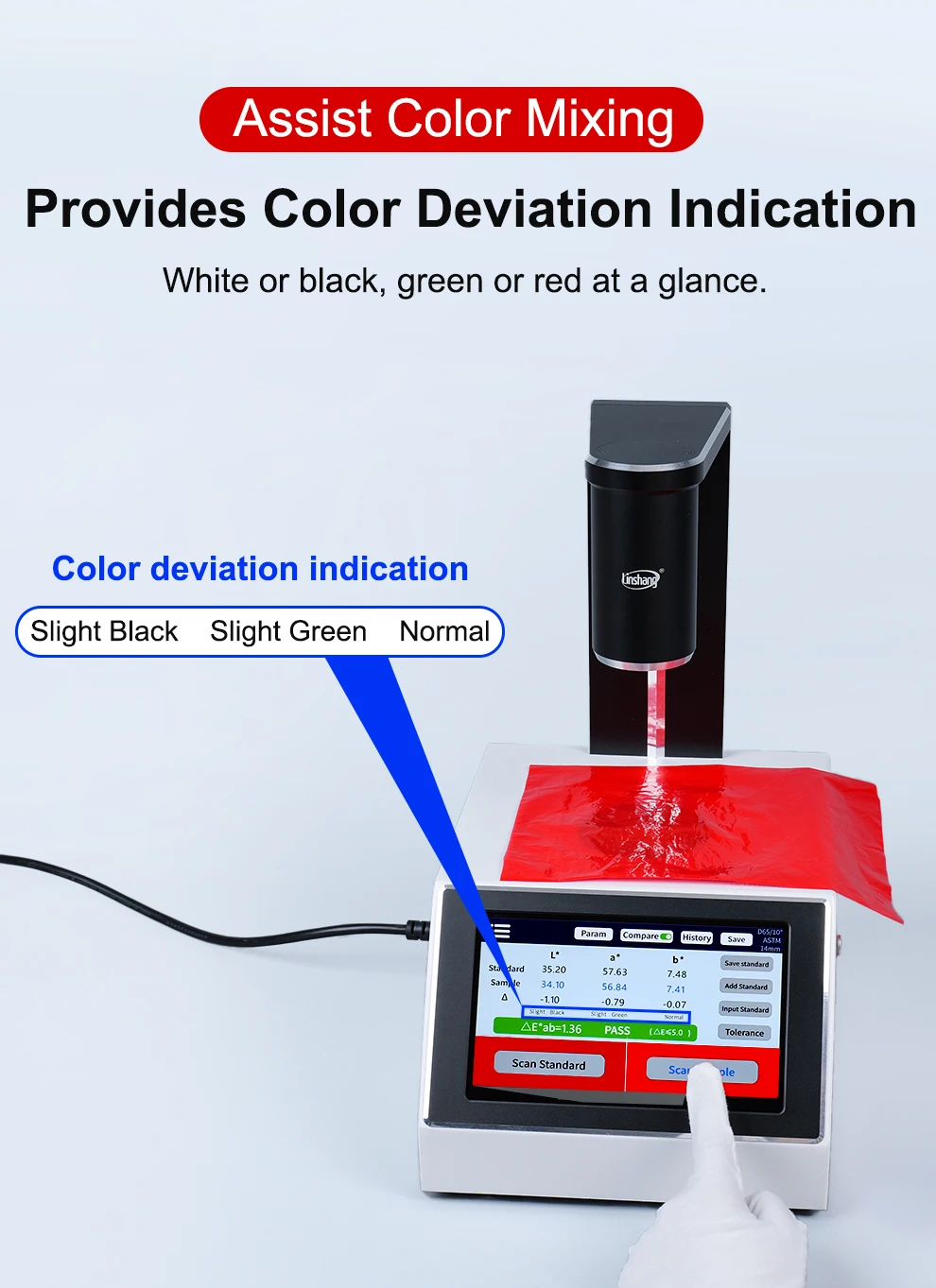

Assist Color Mixing
The colorimeter for liquid provides color deviation indication

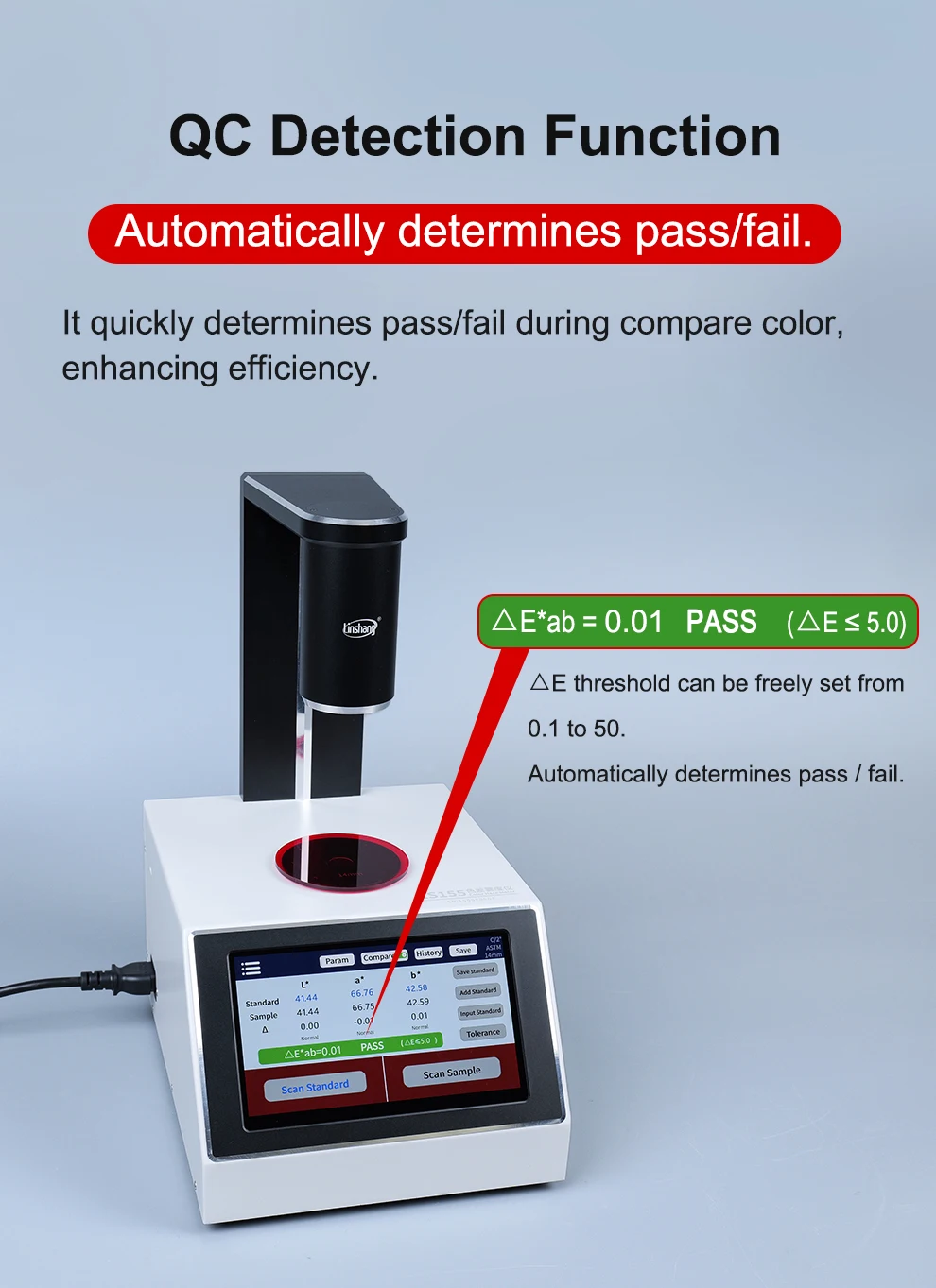

QC Detection Function
The colorimeter for liquid quickly determines pass/fail during compare color, enhancing efficiency.

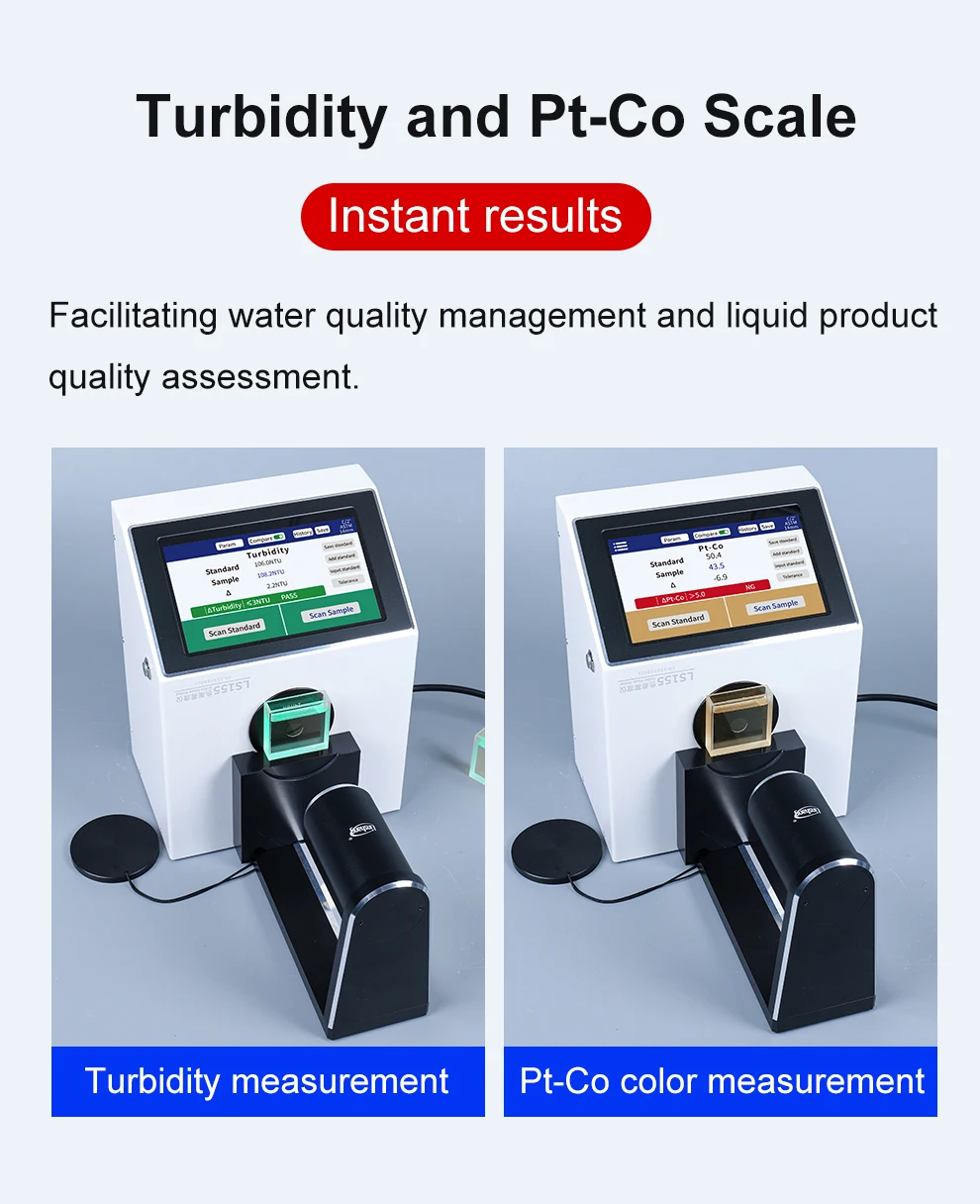

Turbidity and Pt-Co Scale
Facilitating water quality management and liquid product quality assessment.

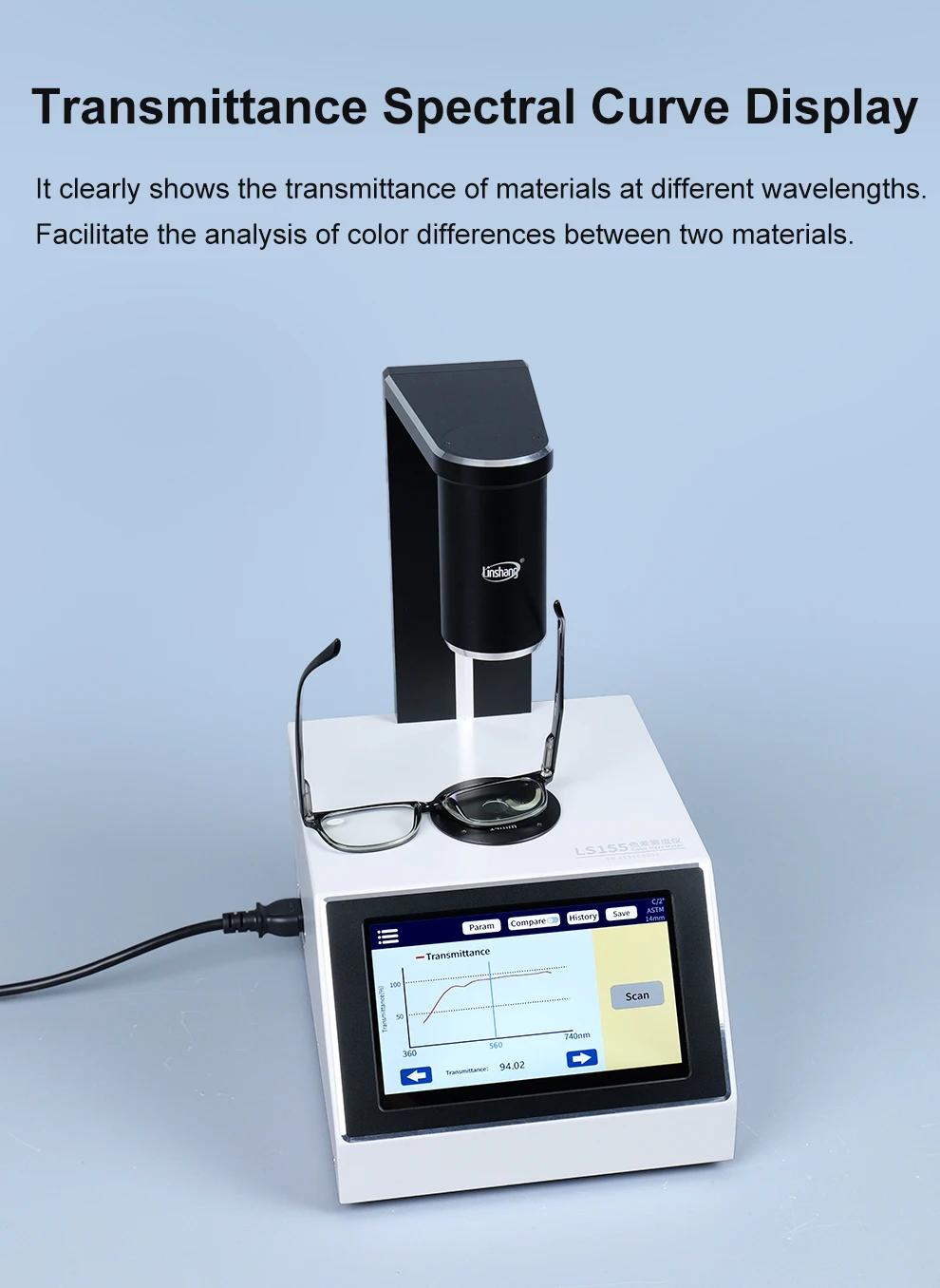

Transmittance Spectral Curve Display
The colorimeter for liquids color measurement clearly shows the transmittance of materials at different wavelengths.

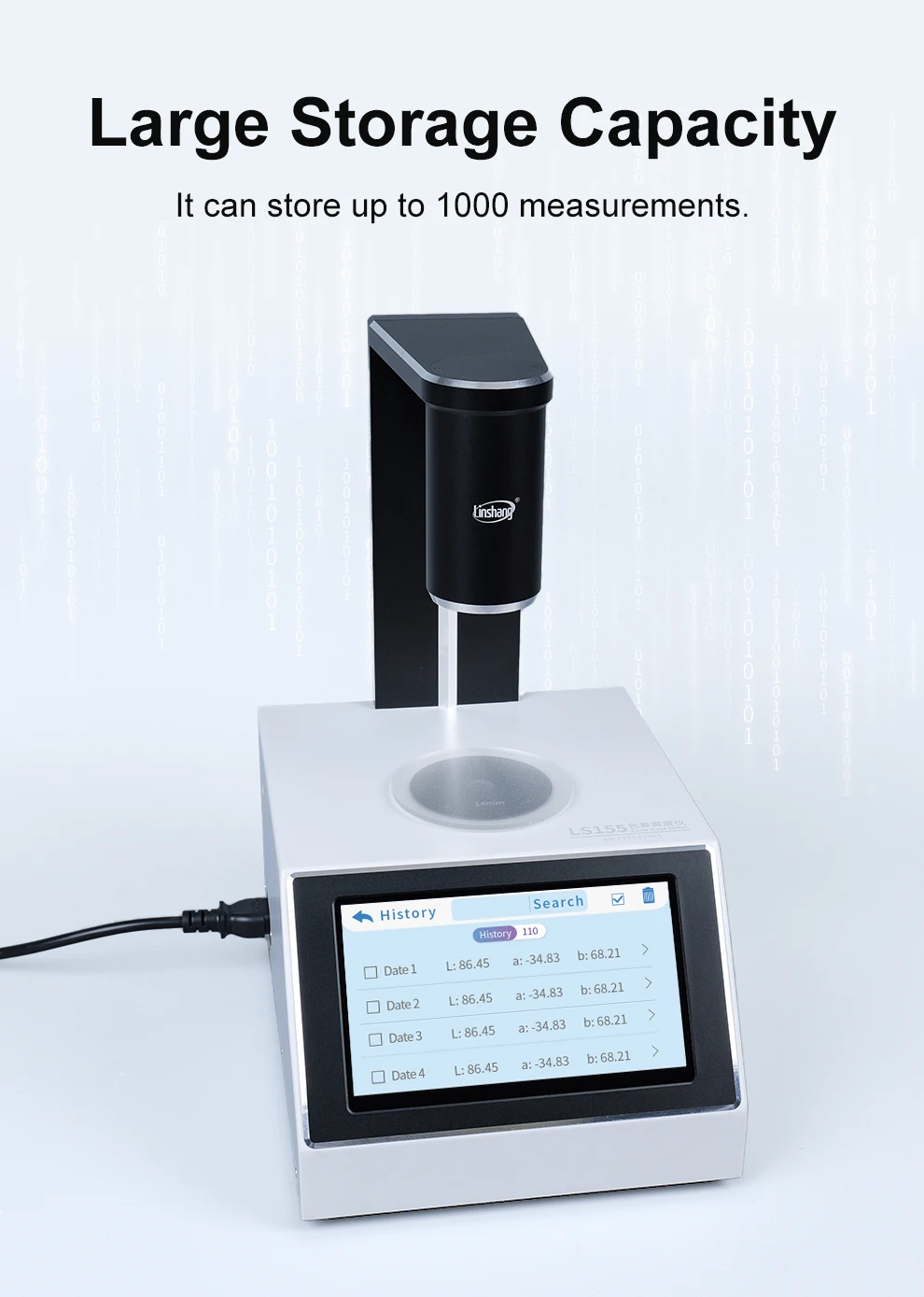

Large Storage Capacity
LS155 colorimeter for liquids color measurement can store up to 1000 measurements.

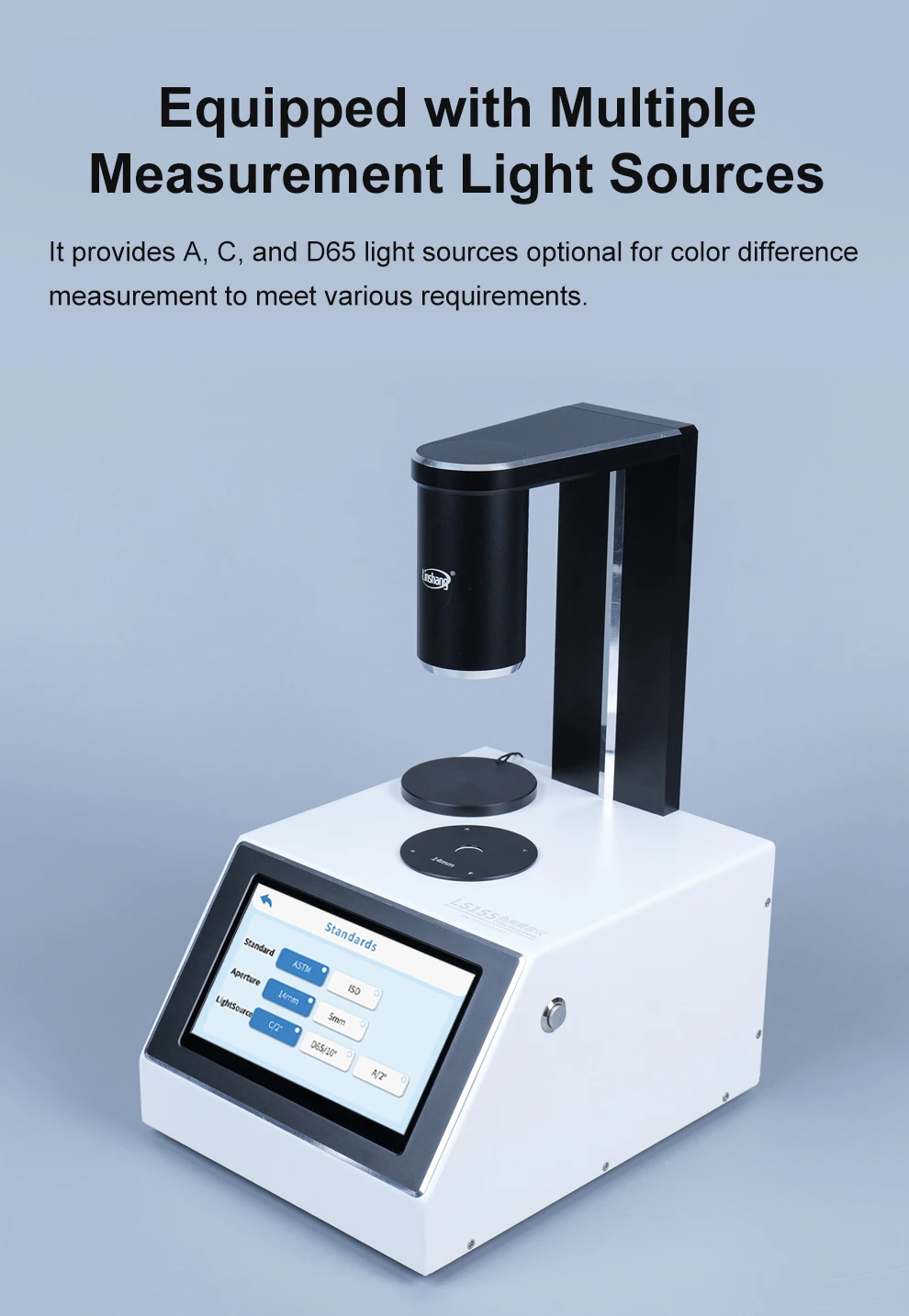

Equipped with Multiple Measurement Light Sources
The colorimeter for liquid provides A, C, and D65 light sources optional for color difference measurement to meet various requirements.

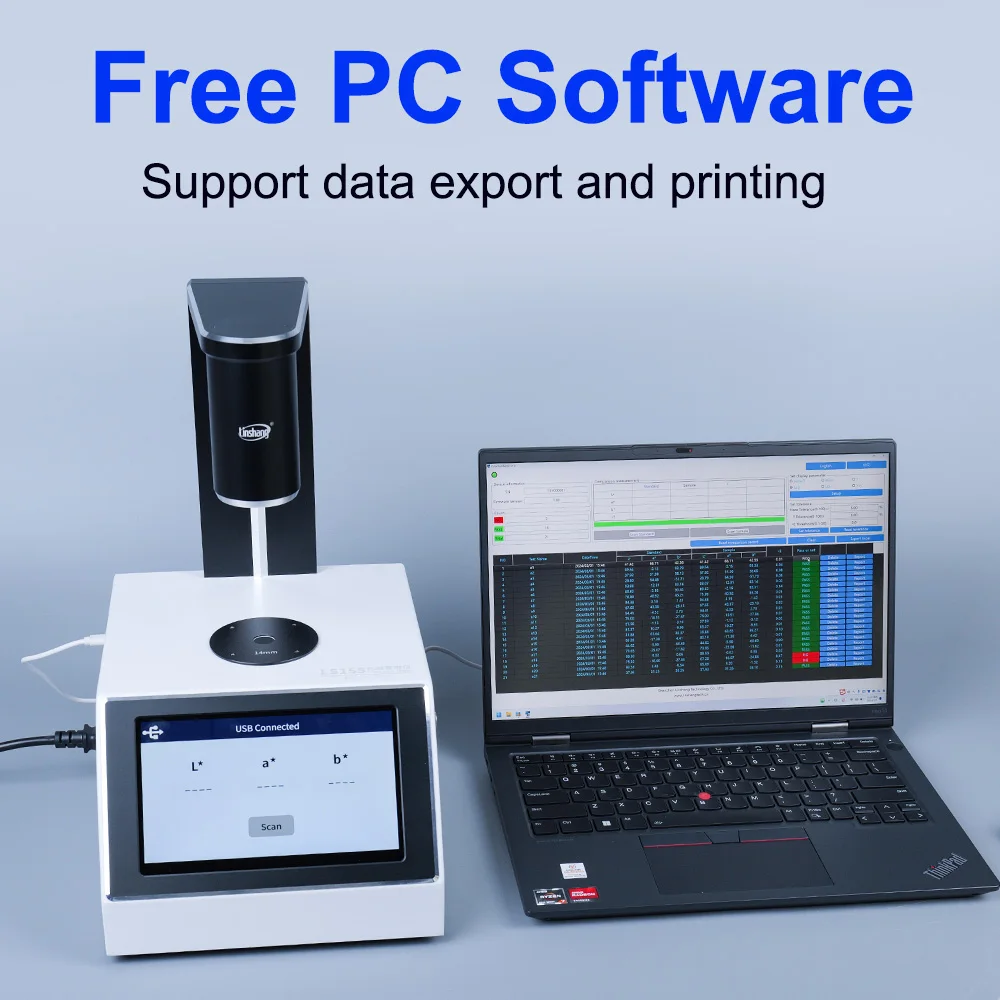

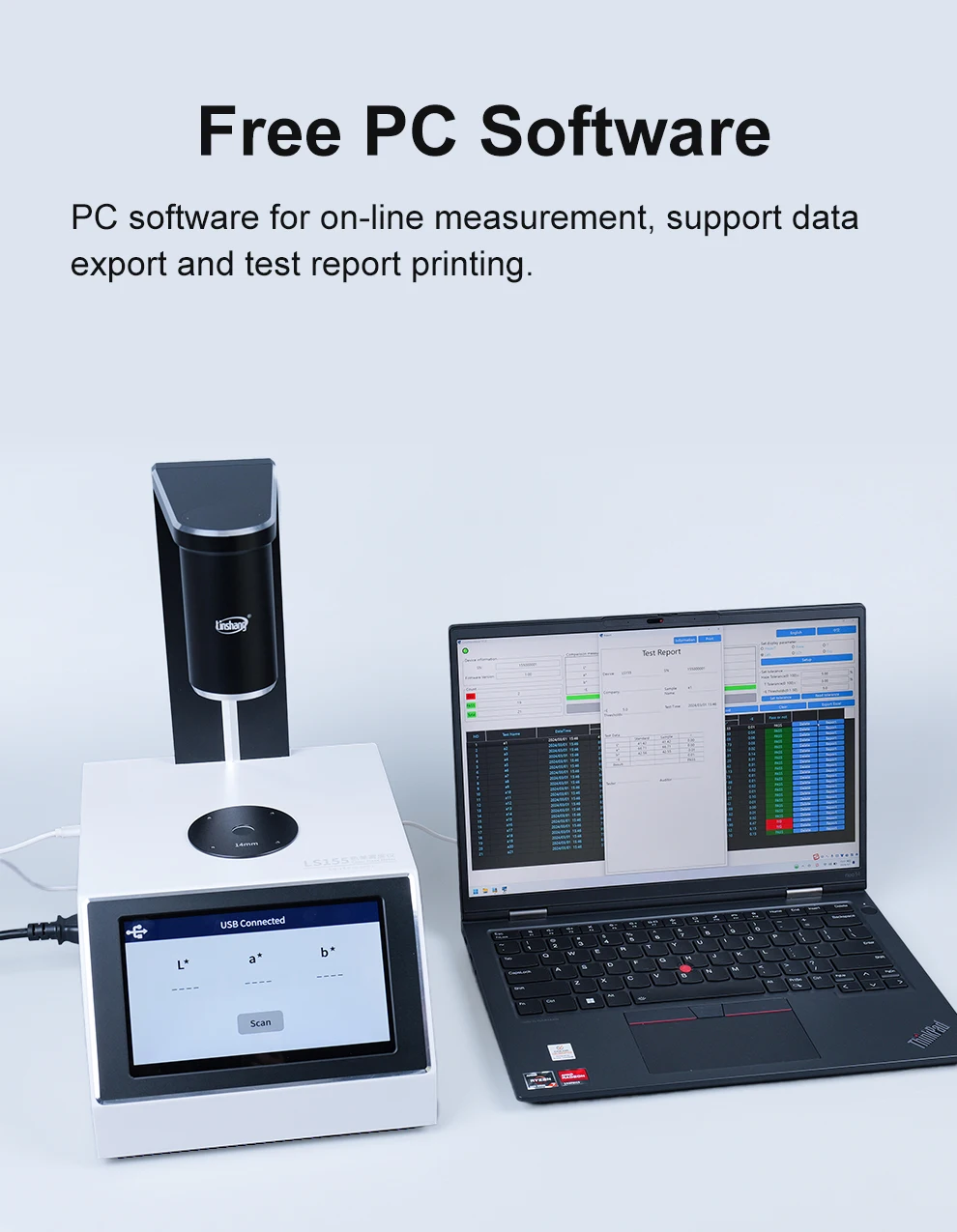

PC software
Equipped with PC software for online measurements via USB connection, supporting data export and printing.

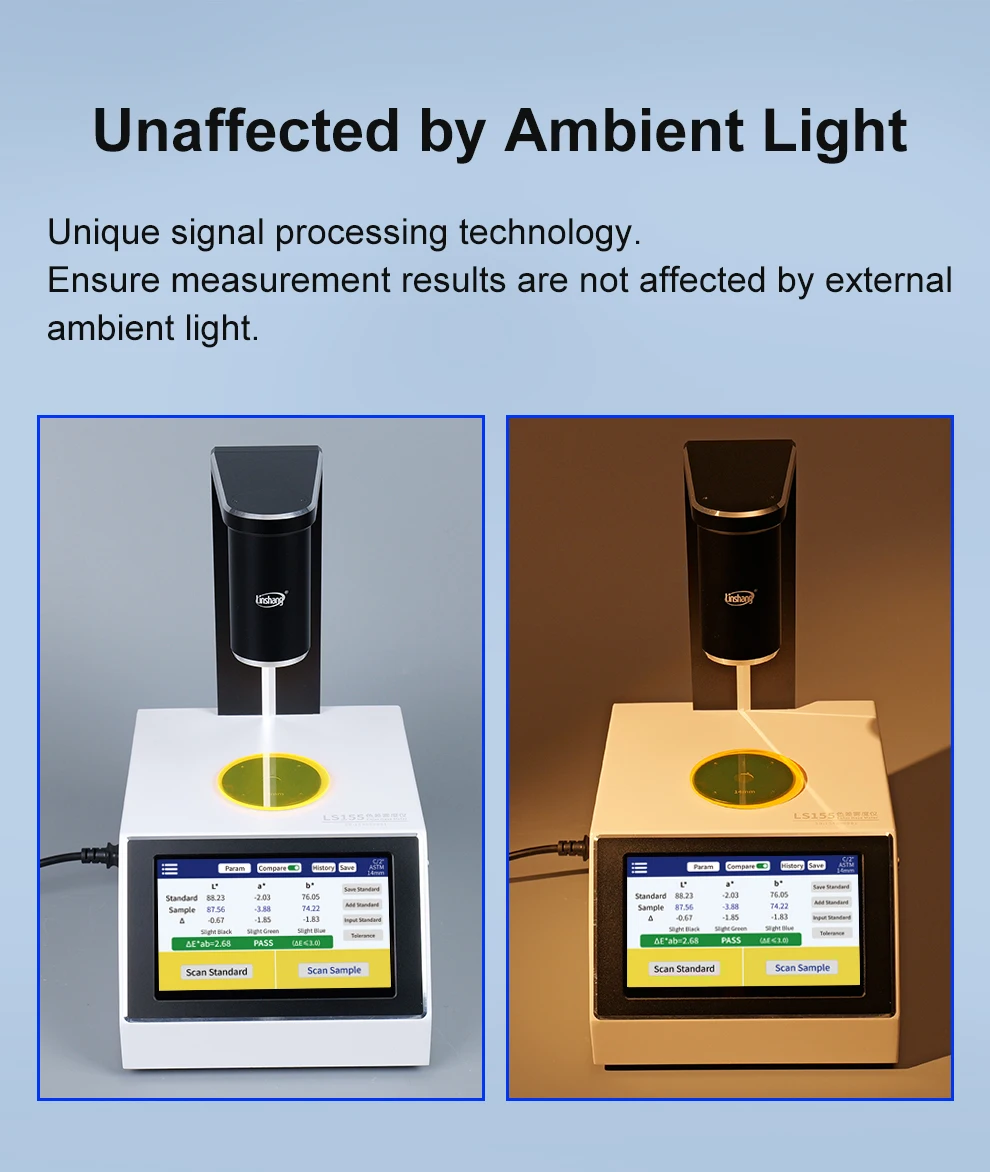

Unaffected by Ambient Light
Ensure measurement results are not affected by external ambient light.

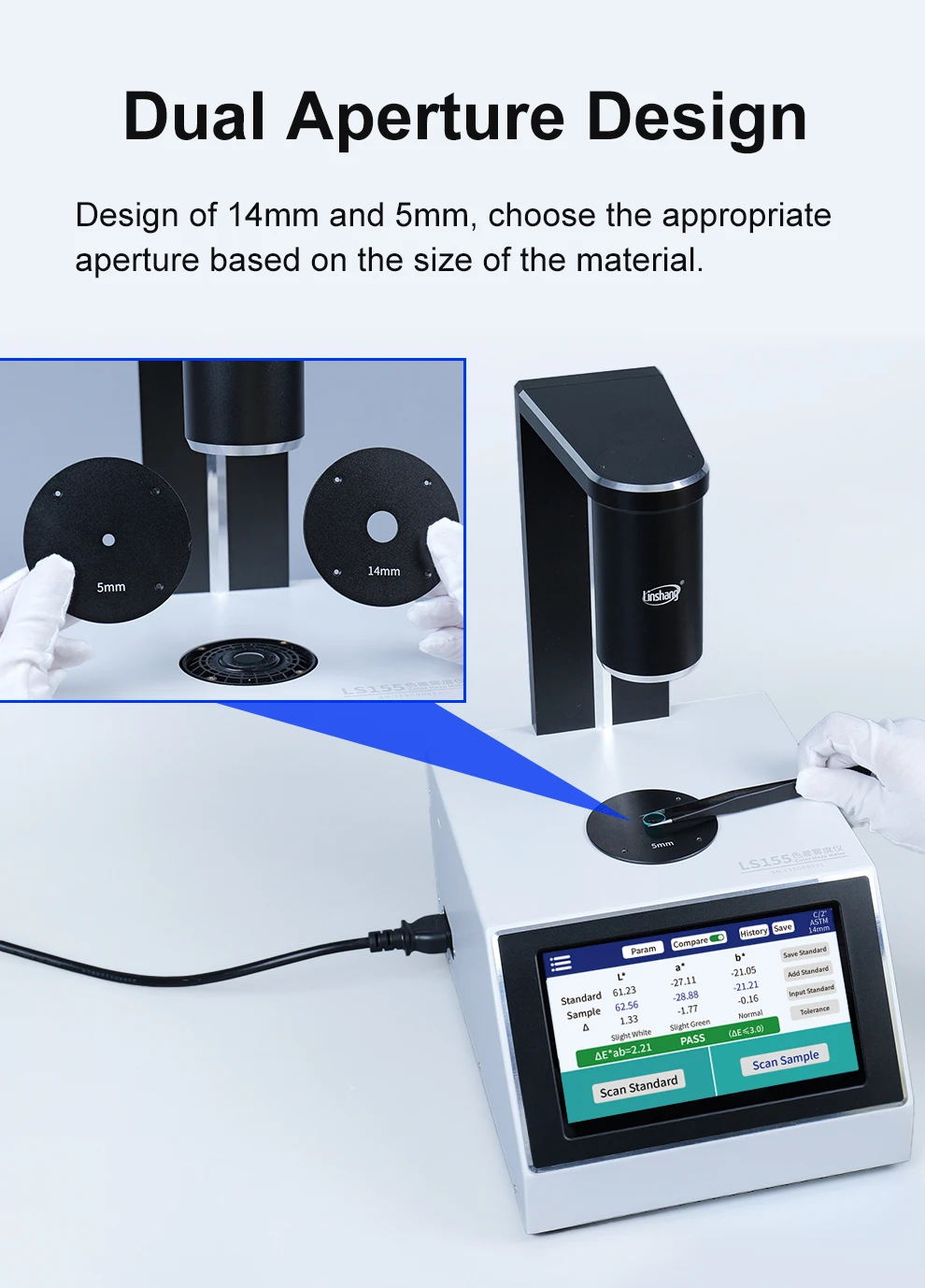

Dual Aperture Design
Design of 14mm and 5mm, choose the appropriate aperture based on the size of the material.
