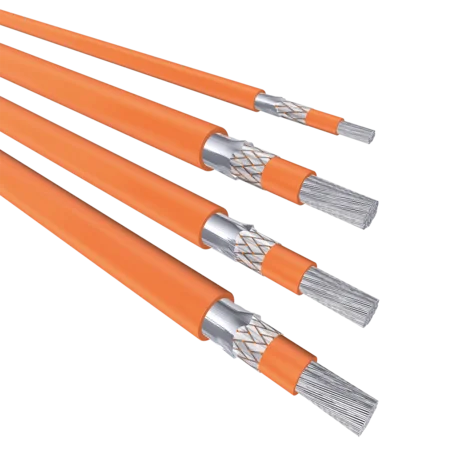

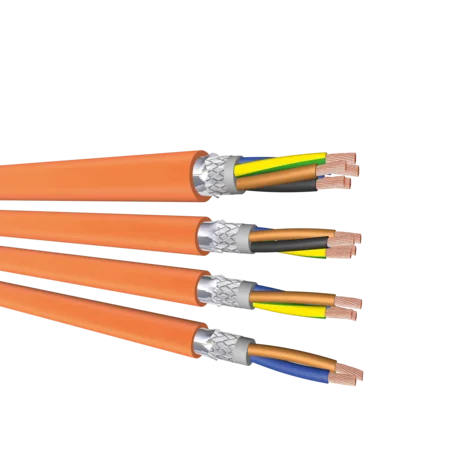

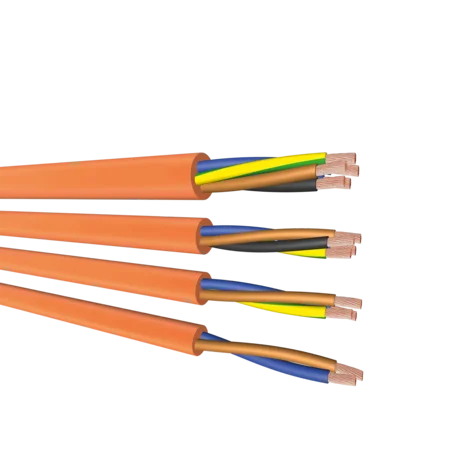

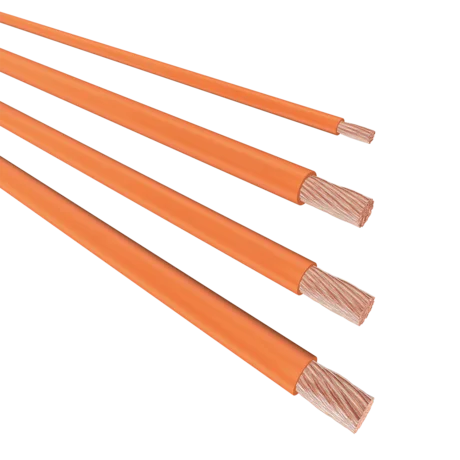

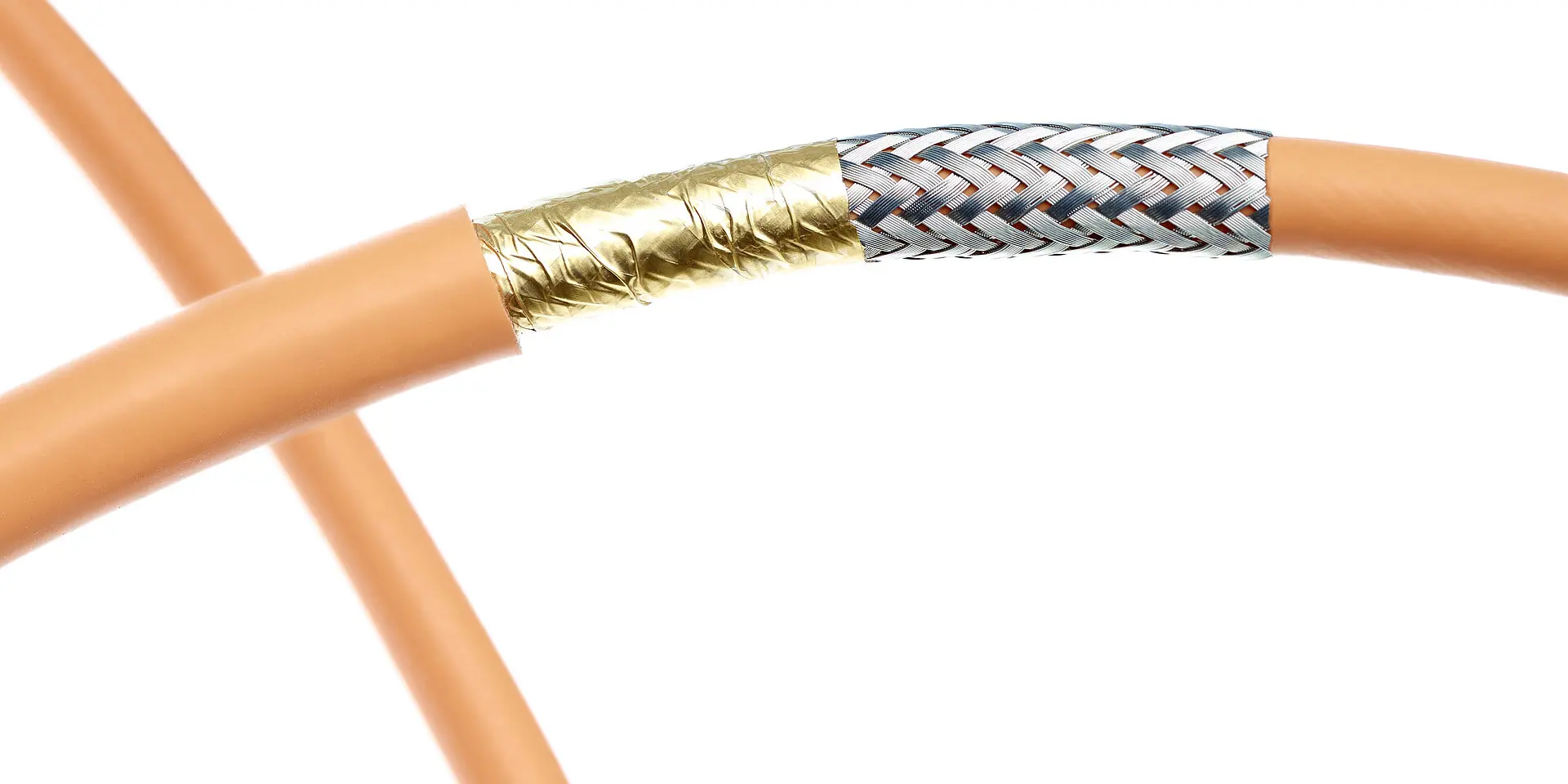

FHLAL2GCB2G FHLAL2GCB2G Shielded Aluminum Hybrid and Battery Vehicles Automotive Powertrain Units high temperature wire Cable
- Category: >>>
- Supplier: Henan Huadong Cable Co. Ltd.
Share on (1601205400535):
Product Overview
Description
Product Description
Application
Conductor cross-sections can be optimized thanks to our Coroflex high-voltage cables - because they are suitable for rated voltages of up to 600 volts a.c. / 1,000 volts d.c. and withstand temperatures of up to 180 °C. With our simulation capabilities.
we are able to calculate conductor heating as a function of current loads and operating ambient temperatures. Our derating simulations enable you to define your optimum conductor cross-sections - and thus reduce weight, packaging space and costs.
Characteristics
* Low Bending Radii
* Reliable Insulation Resistance
* Excellent Sealing Properties
* Talc-free Surfaces
* High Performance Silicone
* Weight Saving Potentials
Conductor cross-sections can be optimized thanks to our Coroflex high-voltage cables - because they are suitable for rated voltages of up to 600 volts a.c. / 1,000 volts d.c. and withstand temperatures of up to 180 °C. With our simulation capabilities.
we are able to calculate conductor heating as a function of current loads and operating ambient temperatures. Our derating simulations enable you to define your optimum conductor cross-sections - and thus reduce weight, packaging space and costs.
Characteristics
* Low Bending Radii
* Reliable Insulation Resistance
* Excellent Sealing Properties
* Talc-free Surfaces
* High Performance Silicone
* Weight Saving Potentials
Product Parameter
CORES | CORE | OUTER SHEATH | RESISTANCE (d.c. 20 °C) (max.) | CABLE WEIGHT | ||||
NO. | SIZE | DIAMETER [mm] | DIAMETER [mm] | CONDUCTOR [mΩ/m] | SCREEN [mΩ/m] | approx. [g/m] | ||
1 x | 10 mm² | 6 | 8.8 | 3.03 | 9.1 | 103 | ||
1 x | 12 mm² | 6.5 | 9.5 | 2.53 | 7.7 | 118 | ||
1 x | 16 mm² | 7.2 | 10.2 | 1.93 | 6.4 | 138 | ||
1 x | 20 mm² | 7.8 | 11 | 1.59 | 6.6 | 160 | ||
1 x | 25 mm² | 8.8 | 12.2 | 1.24 | 6.6 | 205 | ||
1 x | 30 mm² | 9.6 | 13.4 | 1.08 | 4 | 250 | ||
1 x | 35 mm² | 10.5 | 14.4 | 0.878 | 3 | 285 | ||
1 x | 40 mm² | 11.1 | 15 | 0.788 | 3 | 300 | ||
1 x | 50 mm² | 12.2 | 15.8 | 0.613 | 3 | 345 | ||
1 x | 60 mm² | 13.3 | 16.9 | 0.525 | 3 | 385 | ||
1 x | 70 mm² | 14.4 | 18.2 | 0.432 | 2.7 | 435 | ||
1 x | 85 mm² | 15.8 | 19.8 | 0.365 | 2.1 | 515 | ||
1 x | 95 mm² | 17.2 | 20.9 | 0.327 | 1.9 | 560 | ||
1 x | 120 mm² | 19 | 23.0 | 0.255 | 1.7 | 696 | ||

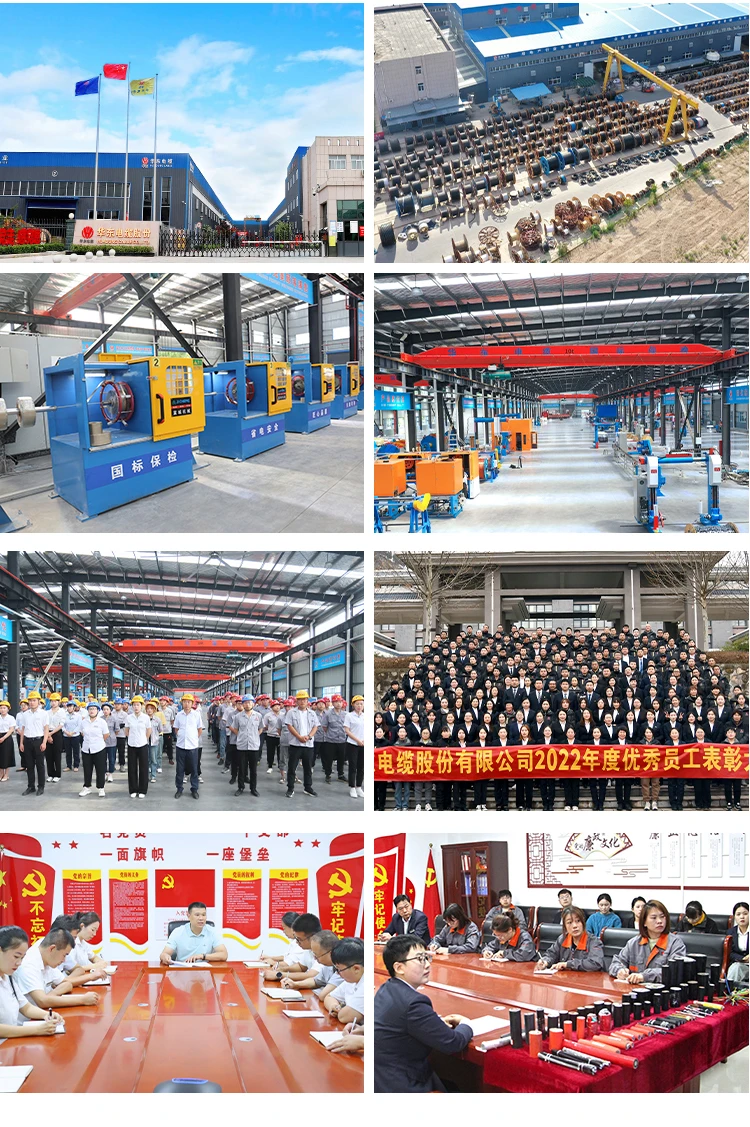

Company Profile
FAQ
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
