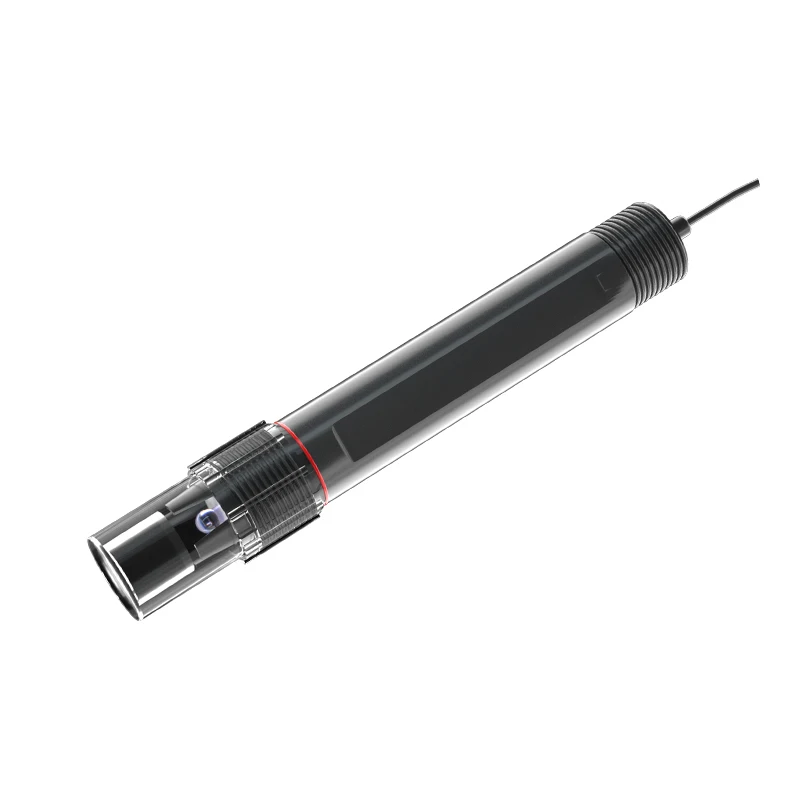

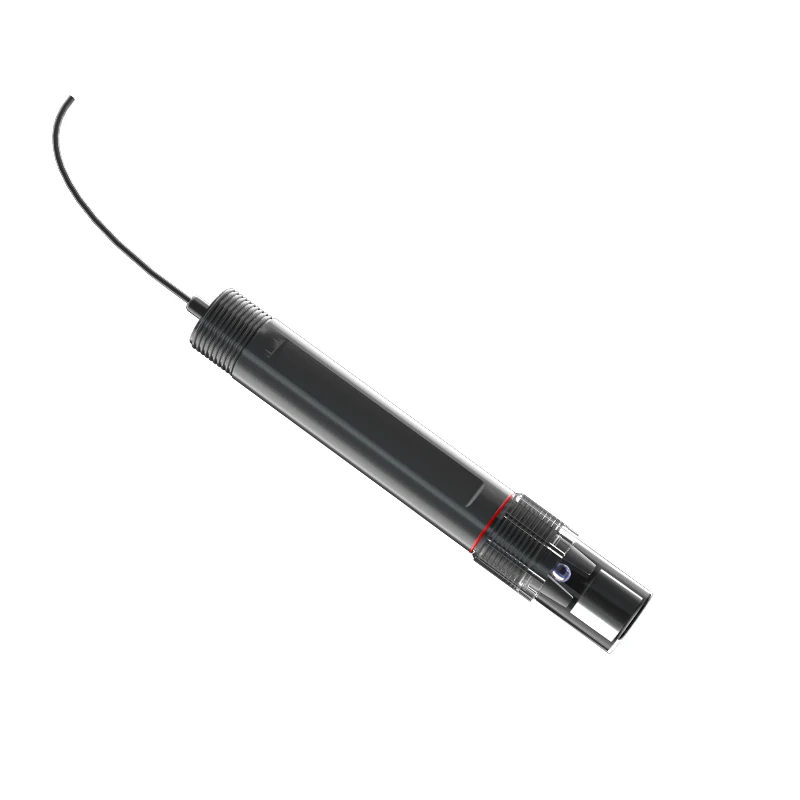

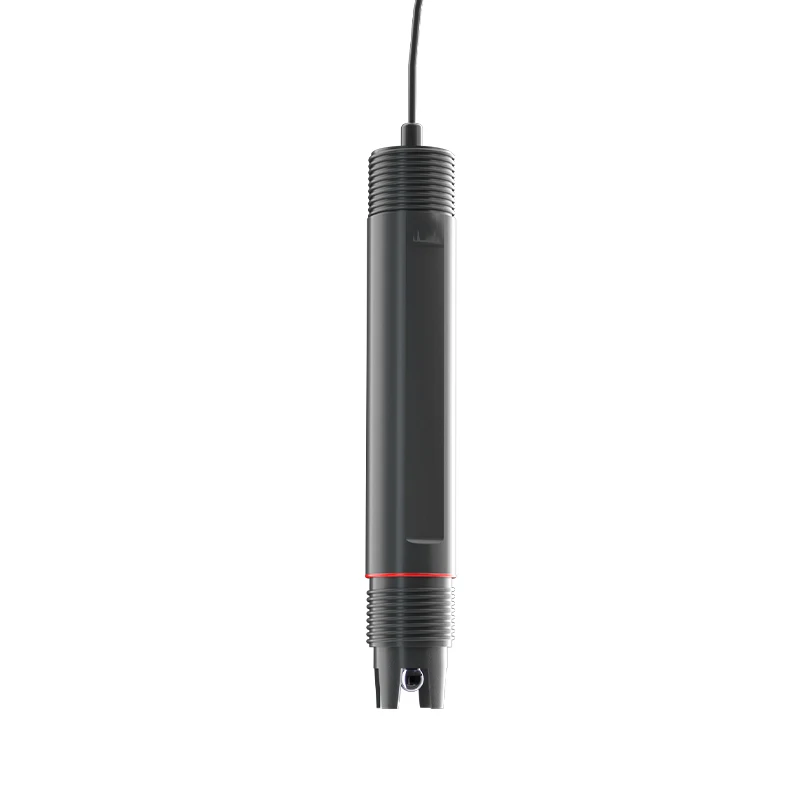

Factory Home Sewage Tester Pool Aquaculture Turbidity Analyzer High Quality Water ORP Sensor
- Category: >>>
- Supplier: Weihai Gemho Digital Mine Technology Co. Ltd.
Share on (1601205924924):
Product Overview
Description
Product Description
We have six types of water PH electrodes with different measuring range for you to choose:
1. E100 electrode: mesuring range 4-10ph, common type, 3/4 thread, cable length 5M, suitable for testing PH of common sewage and general industrial process.
2. E100P electrode: mesuring range 4-10ph, flat type, 3/4 thread, cable length 5M, suitable for testing PH of common sewage and general industrial process.
3. E200 electrode: pure water type, 3/4 thread, cable length 5M, suitable for testing PH value of pure water.
4. E400 electrode: measuring range 0-10ph, strong acid type, 3/4 thread, cable length 5 meters, suitabole for testing strong acide solution.
5. E500 electrode: measuring range 4-14ph, strong base type, 3/4 thread, cable length 5M, suitable for testing strong base solution.
1. E100 electrode: mesuring range 4-10ph, common type, 3/4 thread, cable length 5M, suitable for testing PH of common sewage and general industrial process.
2. E100P electrode: mesuring range 4-10ph, flat type, 3/4 thread, cable length 5M, suitable for testing PH of common sewage and general industrial process.
3. E200 electrode: pure water type, 3/4 thread, cable length 5M, suitable for testing PH value of pure water.
4. E400 electrode: measuring range 0-10ph, strong acid type, 3/4 thread, cable length 5 meters, suitabole for testing strong acide solution.
5. E500 electrode: measuring range 4-14ph, strong base type, 3/4 thread, cable length 5M, suitable for testing strong base solution.
6. E600 electrode: measuring range 2-12ph, high temperature type, 3/4 thread, cable length 5M, suitable for testing high temperature solution.

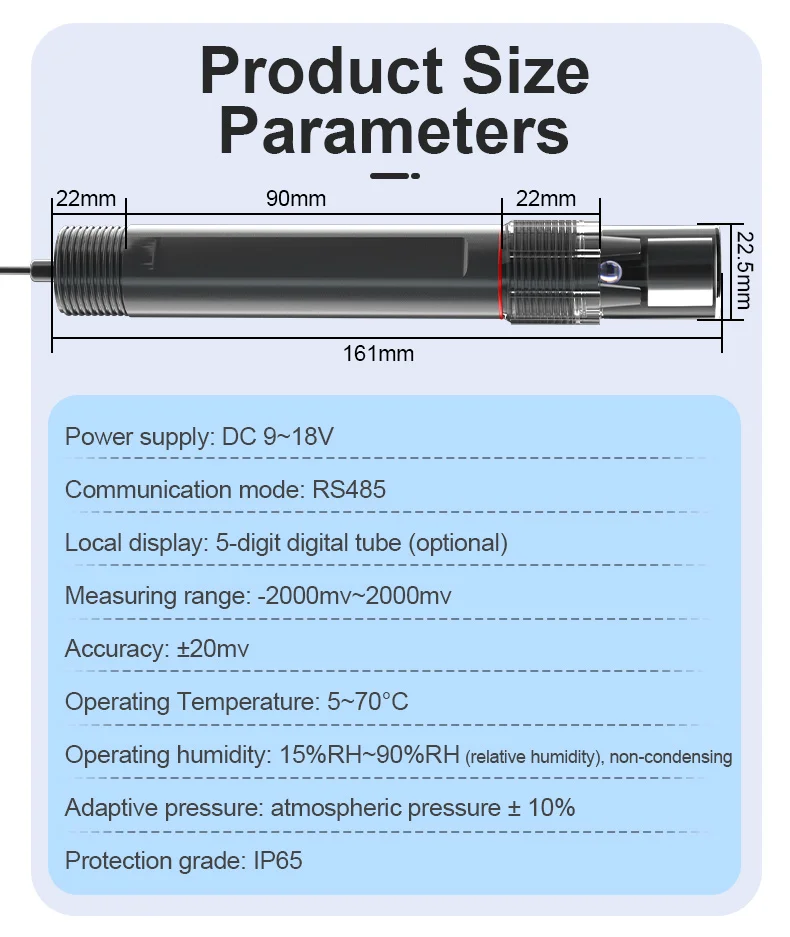

Product Paramenters
Power supply | DC 9-18V |
Communication | RS485/0-5V/0-10V/4-20mA |
Measuring range | -2000mv~2000mv |
Accuracy | ±20mv |
Operating Temperature | 5~70°C |

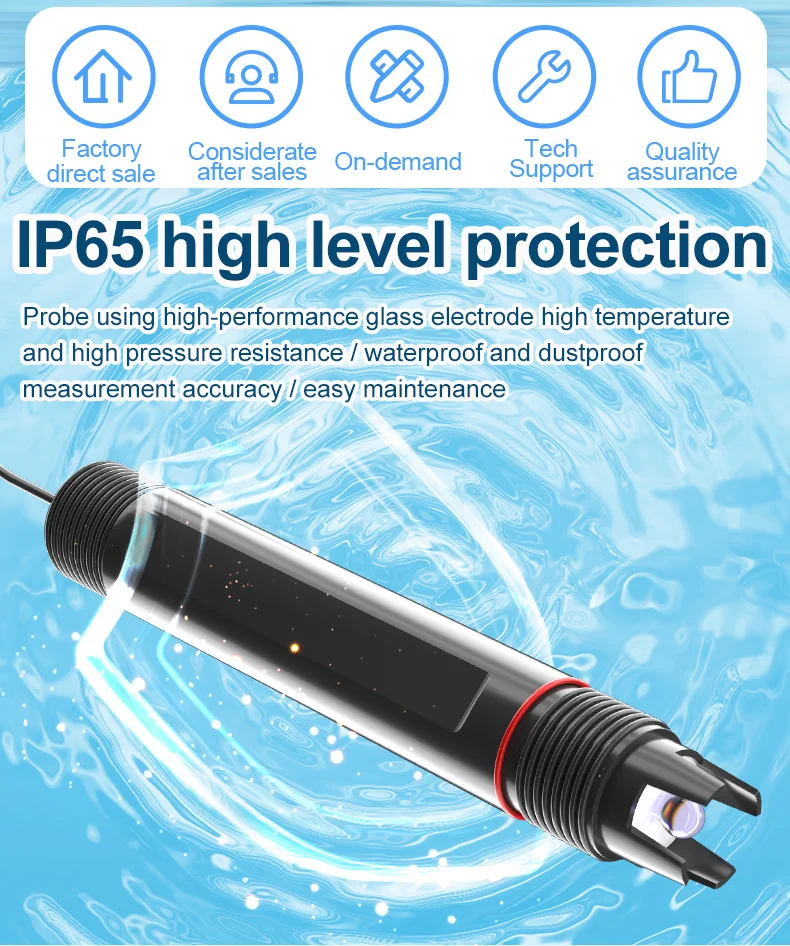

Protection grade | lP65 |
Operating humidity | 15%RH~90%RH (relative humidity), non-condensing |
Adapt to pressure | atmospheric pressure ± 10% |
Details Images
The water quality PH sensor measures the potential difference between the electrodes during the ion exchange process to detect the PH value of the measured liquid.
Features:
1. easy to use without electrolyte supplement
2. gel electrolyte salt bridge can effectively prevent electrode poisoning, such as S2-, CN- ion
3. adopt anti-fouling ring-shaped PTFE liquid junction, which is not easy to block, and can be detected online for a long time

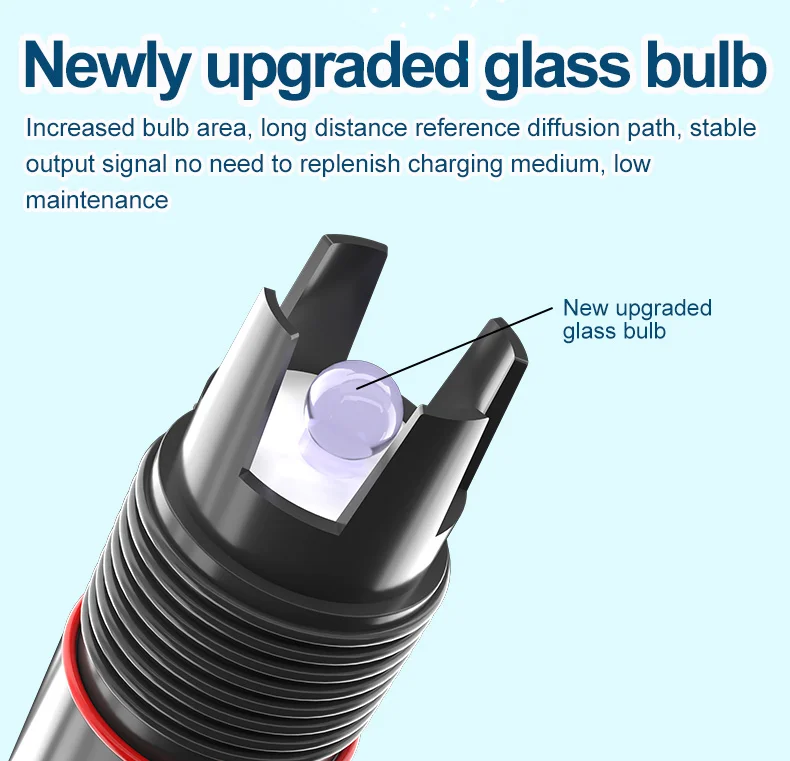

4. using different electrode sensitive membranes, the pH measurement electrode used in various conditions has low internal resistance, fast response and good stability
Features:
1. easy to use without electrolyte supplement
2. gel electrolyte salt bridge can effectively prevent electrode poisoning, such as S2-, CN- ion
3. adopt anti-fouling ring-shaped PTFE liquid junction, which is not easy to block, and can be detected online for a long time
4. using different electrode sensitive membranes, the pH measurement electrode used in various conditions has low internal resistance, fast response and good stability
