1.Feature and Description
Polarographic dissolved oxygen probe,positive electrode is silver(Ag),negative electrode is platinum(Pt) or gold(Au),between them is full of electrolyte.In air-saturated water(20.9% oxygen),the probe has output 400nA to 1000nA.The residual output is zero oxygen solution is less than 1% of the output in saturated water.

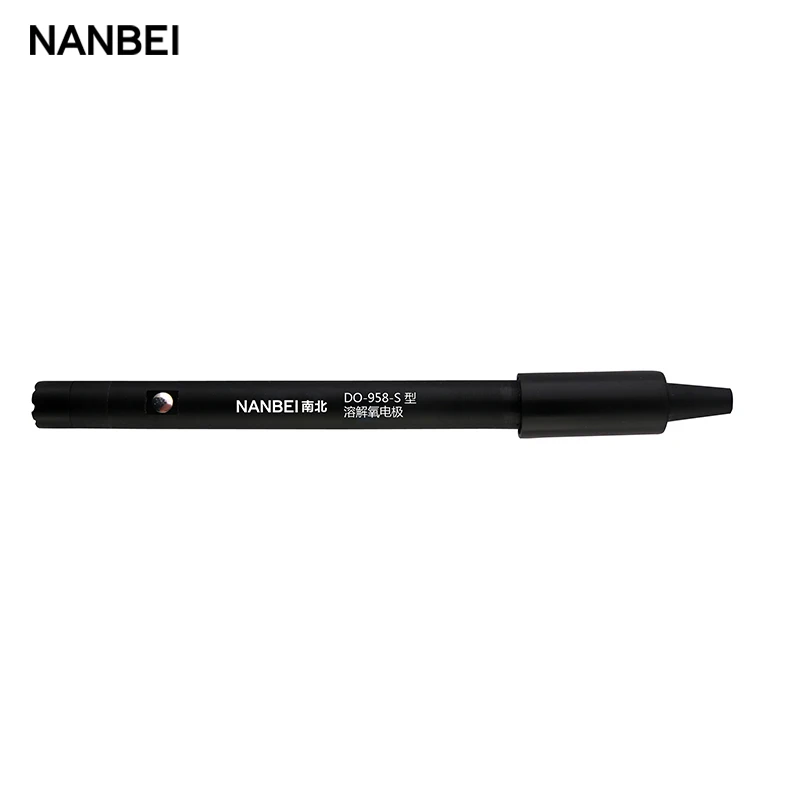

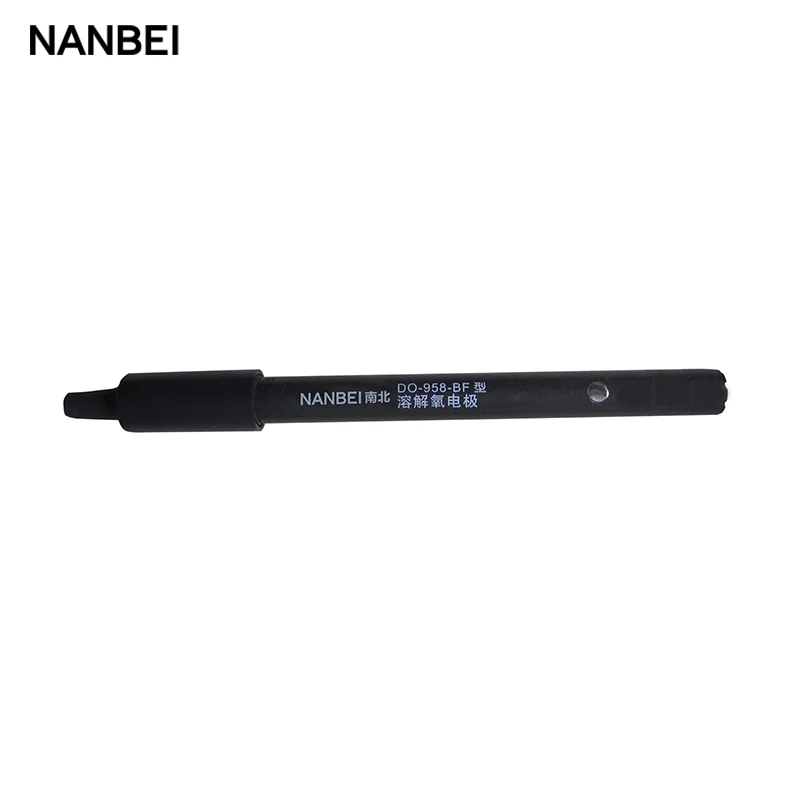

2.Picture for Our product
3.Usage and Application
Mainly used for measurement of general dissolved oxygen ,high measurement accuracy.
Water dissolved oxygen measurement of water monitoring,aquatic breading farms,environmental monitoring,drink and scientific research.
One ATC probe is fitted to customers' special requirement.
Replacing the membrane kit is quick and easy simply unscrew the old assembly,load the new one with fill solution and screw on to the probe.
The probe is supplied complete with 3 membrane kits and a 30ml bottle of filling solution.
5.Packing and Shipping
1.What type of this Dissolved oxygen sensor ?
It is Polarographic dissolved oxygen sensor,NOT optical type
2.What’s measuring range of this dissolved oxygen sensor?
The measuring range is 0-20mg/L.
3.What’s output of this dissolved oxygen sensor ?
400nA to 1000nA.
4.What connect of this dissolved oxygen sensor ?
Big 4-pin interface.
5.What’s the purpose?
Used to measure dissolved oxygen value in water,mainly used for aquatic breading.
6.I want to place the probe into water to monitoring real time value,is it OK?
No,our probe is Laboratory research purpose,can’t place into water for long time.
7.What’s your MOQ ? Is it OK buy only 1pcs for test sample at first time ?
We have 50pcs MOQ. But if you need 1pcs for test first,we can also accept,but the price will be high.
Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
