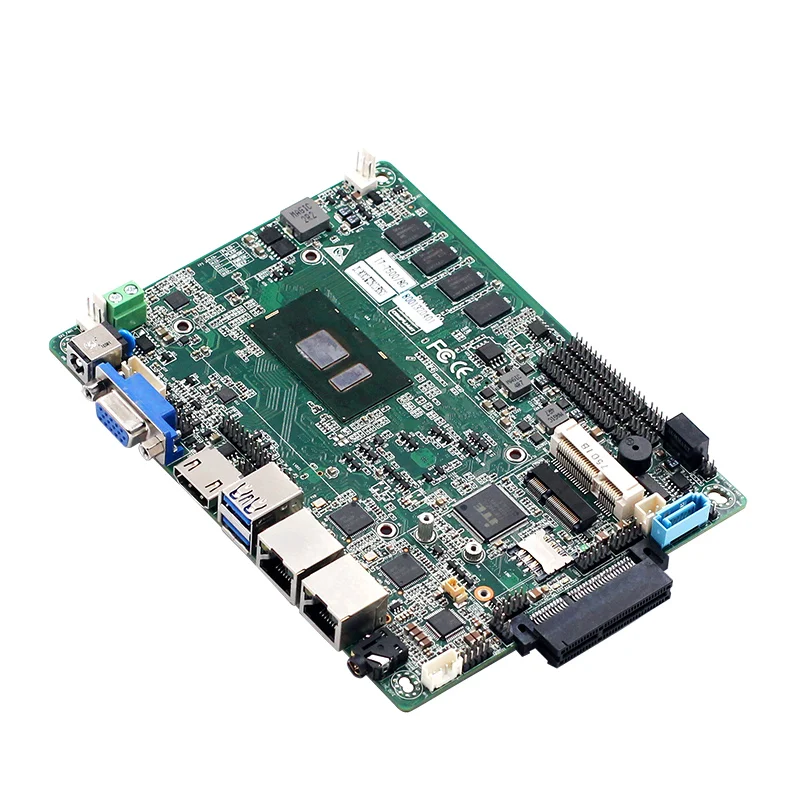

Piesia Onboard 7th gen I5 7500U board embedded linux DUAL Lan board linux Computer motherboard for industrial Automation
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1601205966461):
Product Overview
Description

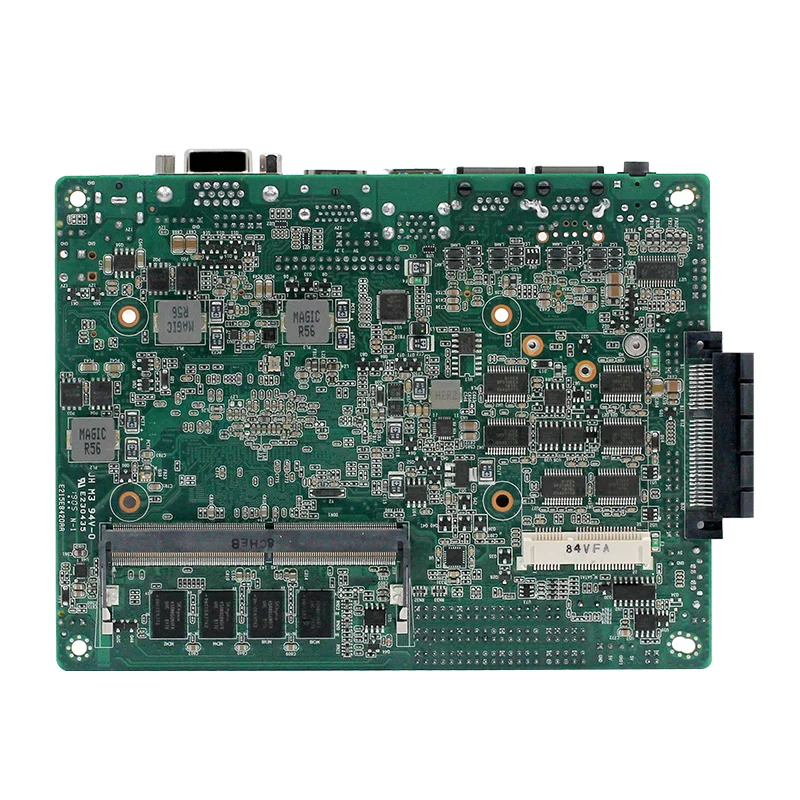

Industrial Motherboard
Products Description
Main Features:
- Integrated Intel 7th generation Skylake-U single-chipset CPU
- Integrated 2GB/4GB/8GB DDR4 memory
- supply 1*VGA,1*HDMI 1.4（support 4K Display output）
- 1*LVDS(dual channel 24 bit）and EDP1.3，4Lanes（optional）
- Onboard Dual channel amplifier,support 6W/8Ω speaker each channel
- Supported power-on rebooting function
- 1*PCIE X4
- DC 12V power supply
- 155 x 115 mm
- Integrated Intel 7th generation Skylake-U single-chipset CPU
- Integrated 2GB/4GB/8GB DDR4 memory
- supply 1*VGA,1*HDMI 1.4（support 4K Display output）
- 1*LVDS(dual channel 24 bit）and EDP1.3，4Lanes（optional）
- Onboard Dual channel amplifier,support 6W/8Ω speaker each channel
- Supported power-on rebooting function
- 1*PCIE X4
- DC 12V power supply
- 155 x 115 mm
Processor | CPU | Intel® Core™ 7th generation Kaby lake-U Soc i3/i5/i7 processor |
CPU Package | BGA | |
Chipset | Intel® Kaby lake-U SOC | |
BIOS | EFI BIOS | |
RAM | Technology framework | Dual Channel DDR4 2133Mhz； |
Capacity | Integrated 2GB/4GB/8G DDR4 | |
Socket | 1 slot can be added，maximum up to 16GB | |
Video | Graphic controller | Intel HD Graphics 520 (I3-6100U graphics card); graphics card model is related to the CPU |
Dual LVDS and EDP | Support 24 bit output, LVD maximum resolution 1920 x 1200 EDP maximum resolution 4096*2304（optional） | |
VGA | VGA maximum resolution 2048x1536 | |
HDMI | maximum resolution（HDMI1.4）4096*2304@30HZ support 4K display | |
Double display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
Three display | Support LVDS+VGA+HDMI Three-screen sync or asynchronous display | |

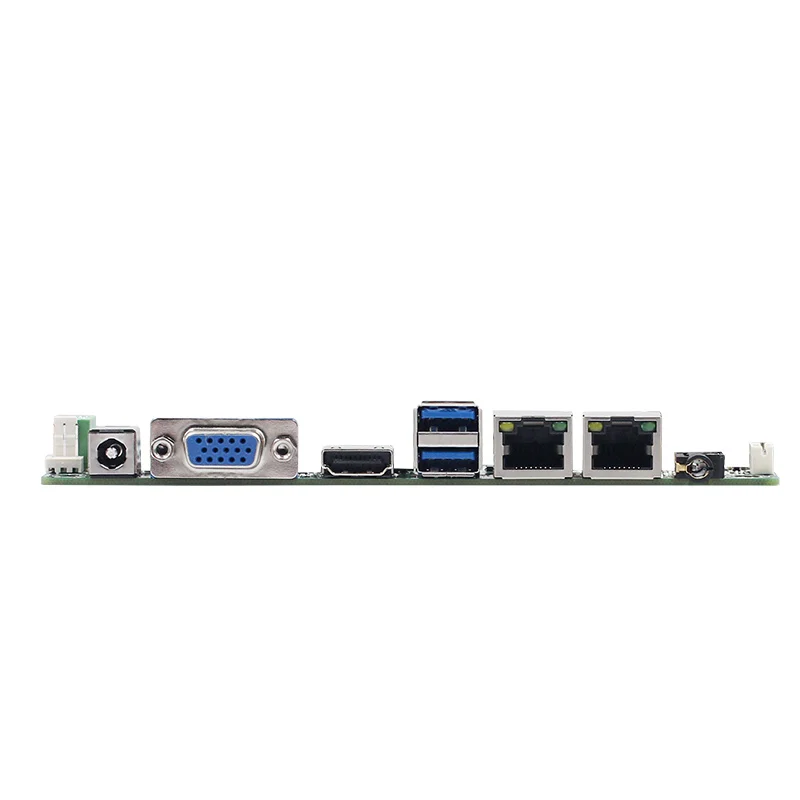

I/O panel | ports | 1*VGA, 1*HDMI, 2*LAN, 2*USB3.0, 1*MIC-OUT/LINE-OUT, 1*DC |
Network | Controller | 2* Intel I211AT（When the I/O interface is 4 USB, there is only 1 Intel I211AT NIC） |
Audio | Controller | Realtek ALC662 HD AUDIO(Left and right channel + microphone) |
Super I/O | Controller | ITE8786E |
Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
Cooler | Aluminum alloy heat sink with fan(Supports automatic and manual fan speed adjustment） | |
Input/Output Interface | USB | 2*USB3.0 compatible USB2.0 / 1.1, 6*USB2.0,Max. Current supported +5V/1.5A |
Serial ports | COM1,2,4 can be selected as RS232 or RS485 by jumper cap and BIOS. COM3 can be selected as RS232 or RS422/RS485 through jump cap and BIOS, COM5, COM6 is RS232 (COM1 RS485 with optocoupler isolation) | |
PS/2 | 1*PS/2 pin header | |
GPIO | 8-bit, provides routines, freely defined input/output, 3.3V@24mA level | |
Extended bus | Mini-PCle | 1*miniPCIE socket ,supported PCIE and USB device |
NGFF | 1*NGFF （KEY E） | |
Storage | SATA | 1*SATAIII interface(Maximum transmission rate to 6gb/s) |
M-SATA | 1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate to 6gb/s) | |
Power Supply | Power Type | DC 12V power supply |
Work environment | Working temperature | -20℃ ~ +60℃ |
Storage temperature | -40℃ ~ +85℃ | |
Working humidity | 0% ~ 90%(non-condensing) | |
Storage humidity | 0% ~ 90%(non-condensing) | |
System | System | Windows7 Windows10 Linux |
Measure | Size | 154.8 x 117.4 mm |
Weight | 0.5KG | |
Processor | CPU | CE, RoHS, FCC |
