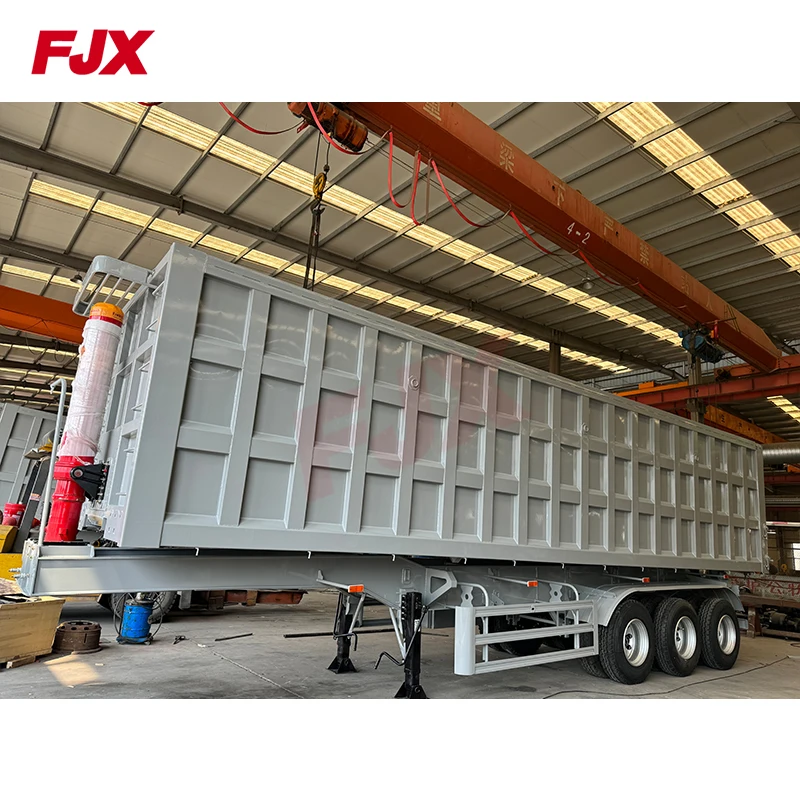

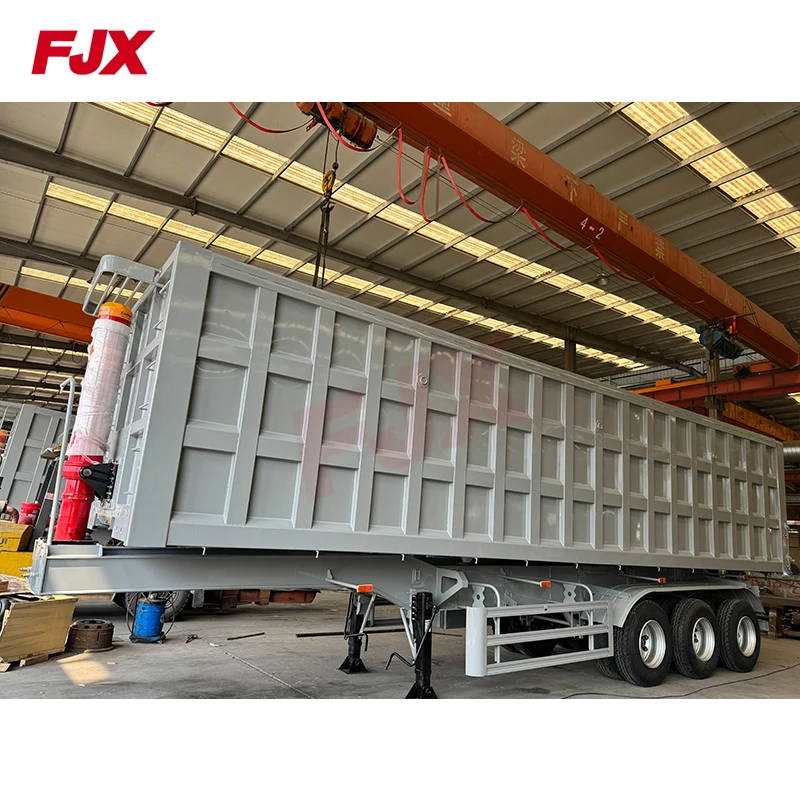

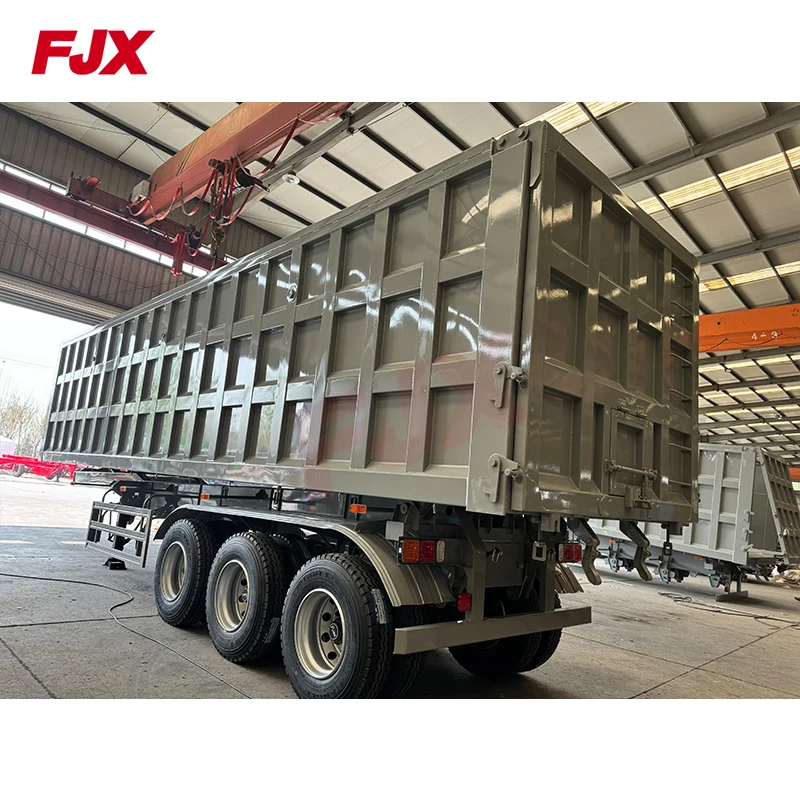

Dump truck semi trailer 40 60t dump truck semi trailer rollover customized 80 ton 3 axle coal transportation
- Category: >>>
- Supplier: Liangshan Juxin Machinery Co. Ltd.
Share on (1601206249057):
Product Overview
Description

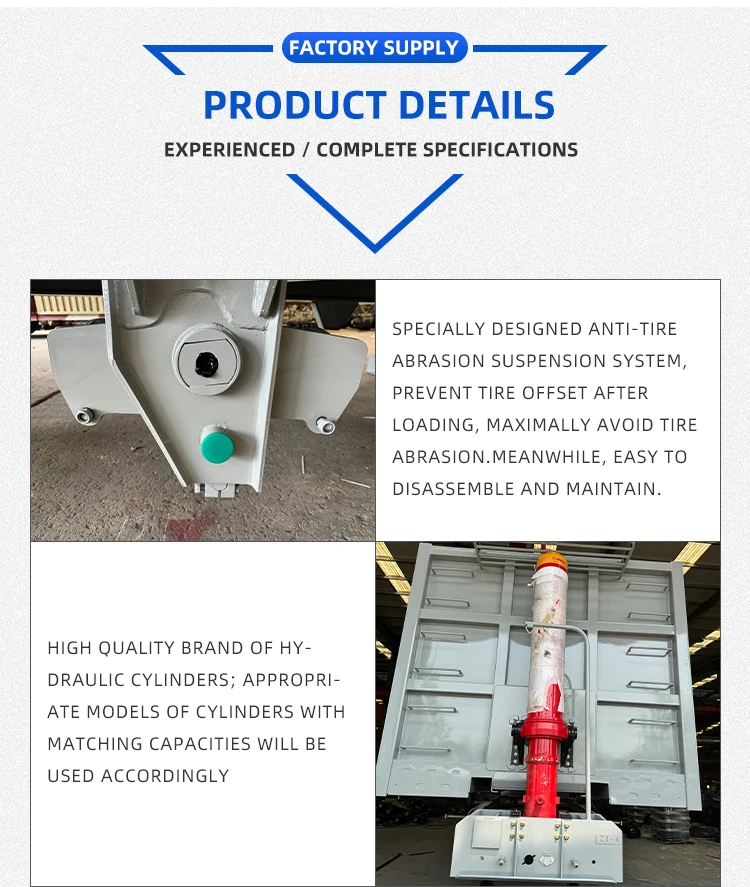

We can design and manufacture dump semi trailer according to your exact requirements, the following specifications for your reference. Dumper Trailer as known as end dump trailer, tipper trailer structure includes chassis, box, and lifting sys. Work by PTO supply oil to the cylinder, lifting box till to design angle, cargo slide out, improve unloading efficiency. Dumper Trailers often works in conjunction with excavators, loaders, belt conveyors and other construction machinery in civil engineering. widely used in sandstone plant, construction site and mine, transport sand, gravel, earthwork and mining. JUXIN dump trailers adopt high strength steel to make it durable when load the sand or small stones or rocks, and equipped with reliable hydraulic HYVA cylinder.

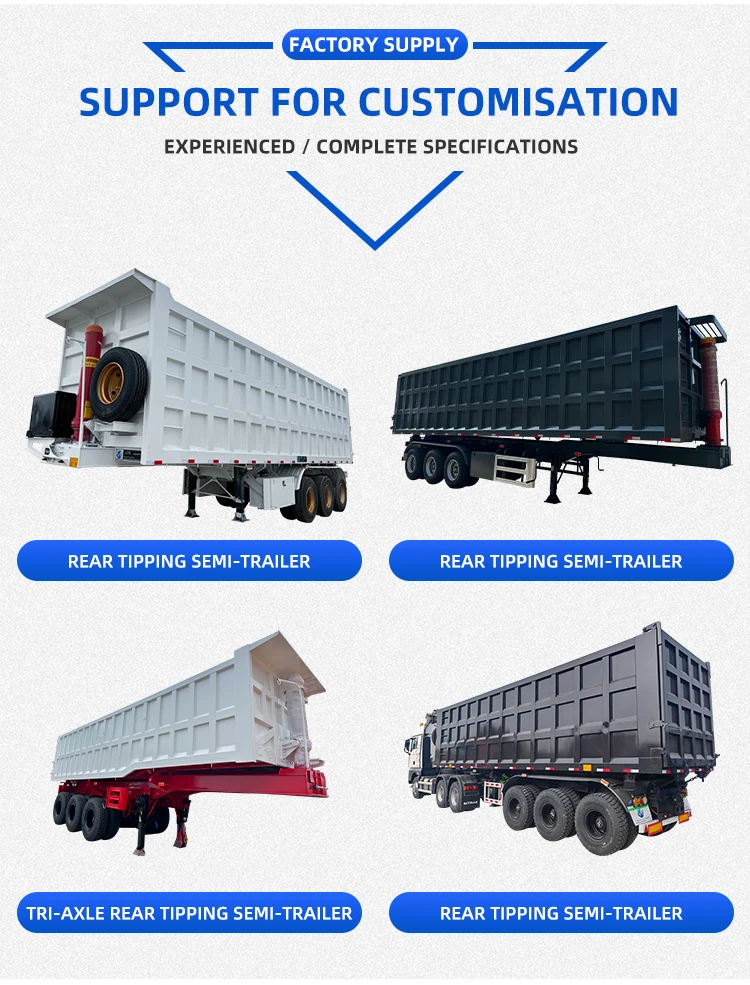

JUXIN different types of Dump Semi Trailer to meet your different needs, The loading capacity are 40t, 60t, 80t. We have 2,3,4,5,6 Axles models for you to choose from. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers. The bucket of the trailer requires a thicker steel plate, because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.
JUXIN different types of Dump Semi Trailer to meet your different needs, The loading capacity are 40t, 60t, 80t. We have 2,3,4,5,6 Axles models for you to choose from. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers. The bucket of the trailer requires a thicker steel plate, because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.
Product name | dump trailer | |||
Wheelbase | 1310 | |||
Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) | |||
Material | Steel | |||
Size | 10000x2500x3600MM | |||
Max Payload | 80Ton | |||
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable | |||
The material of Main beam | Upper plate thickness is 20mm, middle plate thickness is 20mm, down plate thickness is 12mm;Material is Q345 Carbon Steel. | |||
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks | |||
Tool box | 1 sets(waterproof type) | |||
Suspension | Mechanical Suspension Air Suspension | |||
Axle | 13/16 Ton Fuwa/BPW/CIMC | |||
Tire | 11.00r20 12r22.5 315 385 | |||

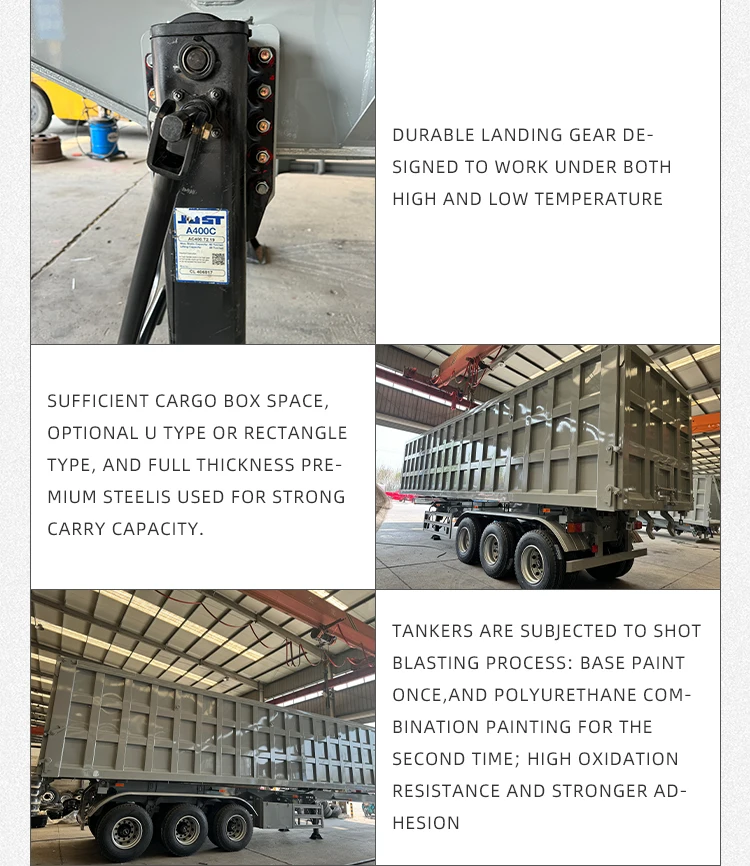

Landing Gear | Jost Dual-speed Landing Gear | |||
King pin | 2"(50mm)or3.5"(90mm) | |||
Leaf Spring | 90(W)mm*13/16 (Thickness)mm*10(Layer) | |||
Brake System | Dual Line Braking System | |||
Main Beam | Height:500mm 14/8/16mm | |||
Color | Customers Optional |
