Tenghong TH 888MAS Computer Memory Visual Locus Fully Servo Control Cementing Toe Lasting Shoe Making Machine
- Category: >>>
- Supplier: Guangdong Tenghong Machinery Technology Co. Ltd.
Share on (1601206445705):
Product Overview
Description
Products Description

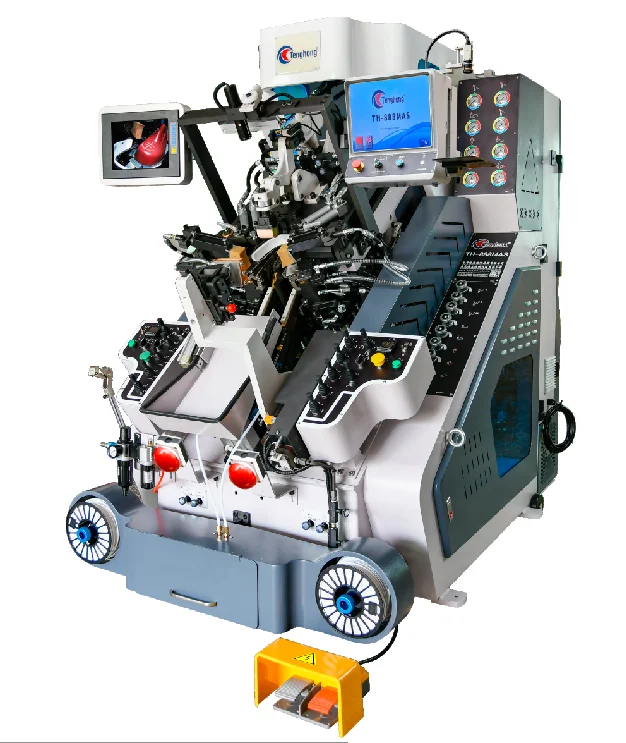

TH-888MAS Computer Memory Visual Locus Fully Servo Control Cementing Toe lasting Machine Shoe Making

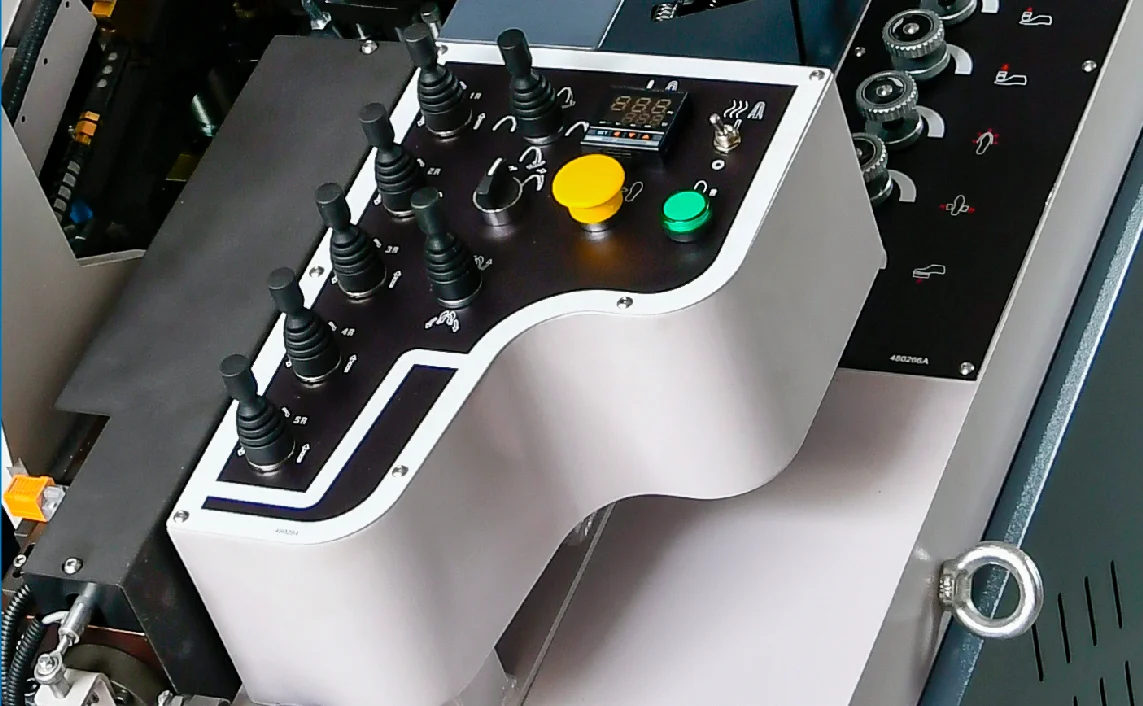

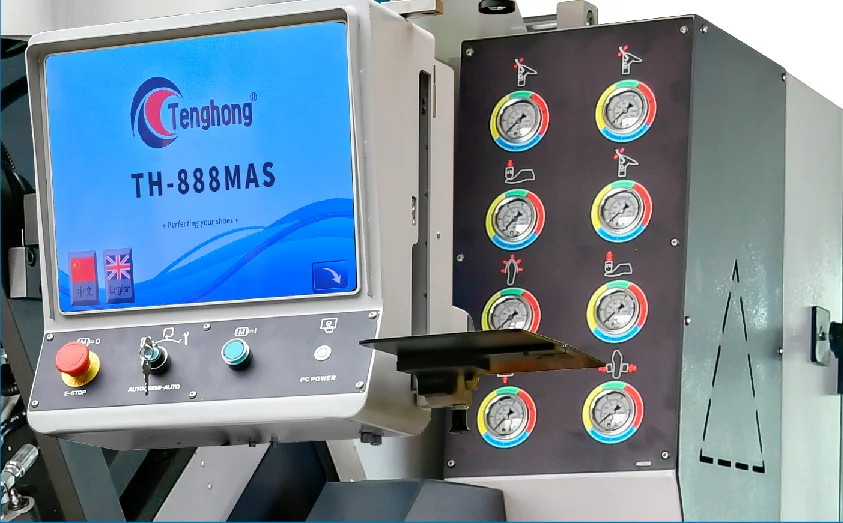

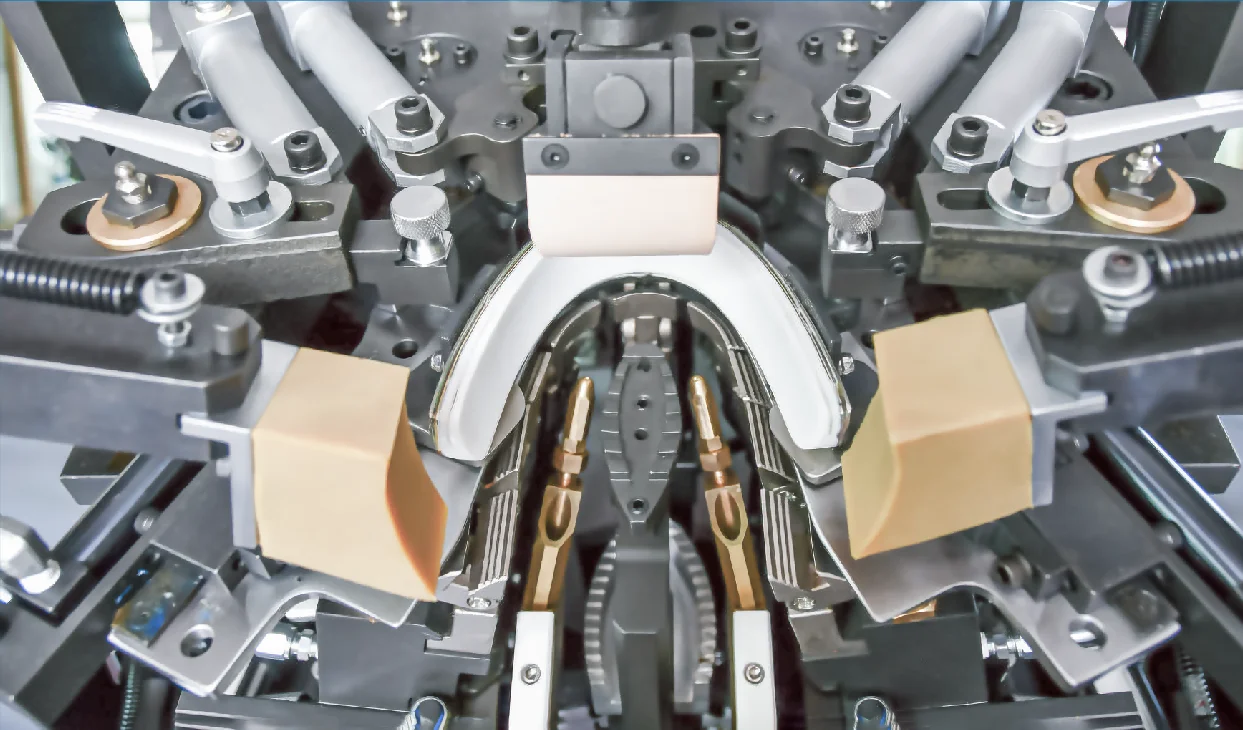

Fully hydraulic operated system. The PLC system is equipped with the touch screen to operate the machine with the graphical symbols. The setting of the parameters (time and stroke) is by numerical key in, with the protection of the key switch to avoid the reading or changing by the non-authorized. Up to 300 different shoe models are programmable and memorable. Error diagnostic readable on the monitor.9 fine adjustable and quick-exchangeable pincers. The first pincer can be adjusted with the 15 degrees swing angle left or right, it is suitable for the pincer arrangement of the special toe shape shoes. The automatic turning inward of the fifth pincers , increase the lasting perfection of inner part. Each pincer can be setting with automatic pulling or manual operated, preventing the upper made of different materials is only pulled on one side. After the upper clamping movement of the pincers, it
is possible to operate the pincer release and clamp movement manual. The clamping pressure of the pincers can be set with the decompress function during the second time upward movement of the last support. The upward stroke of the last support can be adjusted from the knob outside the machine, and equipped with the position indicator. There are two step upward movement functions for the last support, preventing the slipped of the last when combined with the movement of the heel support. The position of the last support can be quick adjusted forward or backward up to 16mm.The toe pusher mechanism is designed with adjustable two step pressure. During the movement of the initial pressure, there are two ways (pressure controlled or position controlled) can be set
for the best operation. The forward movement of the wiper can be adjusted as no stepped variable speed controlled. The standard equipment: Auxiliary wiper mechanism, Auxiliary side pusher mechanism and Toe projector mechanism.
is possible to operate the pincer release and clamp movement manual. The clamping pressure of the pincers can be set with the decompress function during the second time upward movement of the last support. The upward stroke of the last support can be adjusted from the knob outside the machine, and equipped with the position indicator. There are two step upward movement functions for the last support, preventing the slipped of the last when combined with the movement of the heel support. The position of the last support can be quick adjusted forward or backward up to 16mm.The toe pusher mechanism is designed with adjustable two step pressure. During the movement of the initial pressure, there are two ways (pressure controlled or position controlled) can be set
for the best operation. The forward movement of the wiper can be adjusted as no stepped variable speed controlled. The standard equipment: Auxiliary wiper mechanism, Auxiliary side pusher mechanism and Toe projector mechanism.
Specification
item | TH-888MAS |
Condition | New |
Applicable Industries | lasting machine |
After Warranty Service | Video technical support, Online support, Spare parts |
Local Service Location | Thailand |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1 Year |
Core Components | Motor, Heating tube, thermostat |
Place of Origin | China |
Guangdong | |
Brand Name | Tenghong |
After-sales Service Provided | Free spare parts, Field maintenance and repair service, Video technical support, Online support |
Warranty | 1 Year |
After-sales Service Provided | Online Support |
Application | shoe making Assembly Line |
Name | Shoes Production Assembly Line |
Key words | Shoes Production Assembly Line |
Voltage | 380V |
Key word | Shoemaking Manufacturing Machines |
Power | 2KW |
Keywords | Planning And Design For Shoe Factory |
