Product Overview
Description
LPG Storage Tank 60m3 100m3 High Quality Flammable Gas LPG LNG Tank
Brand New Used 60m3 LPG Storage Tank High Quality 30t LPG Gas Tank
Specification
LPG Gas Tank Type | III | |
Capacity of LPG Tank | cbm | 30 |
Orientation of LPG Tank | Horizontal Single Layer LPG TANK | |
Working Pressure | MPa | 1.63 |
Design Pressure | MPa | 1.77 |
Max.allowance working pressure | MPa | 1.82 |
Working Temperature | ℃ | -19~50 |
Design Temperature | ℃ | -20/54 |
Medium of LPG Tank | LPG (Propane) | |
Density of Medium | kg/m3 | 560 |
Main Material | Q345R | |
Filling Ratio | 0.9 | |
Setting Pressure of Safety Valve | MPa | 1.82 |
Design Life | 20 Years | |

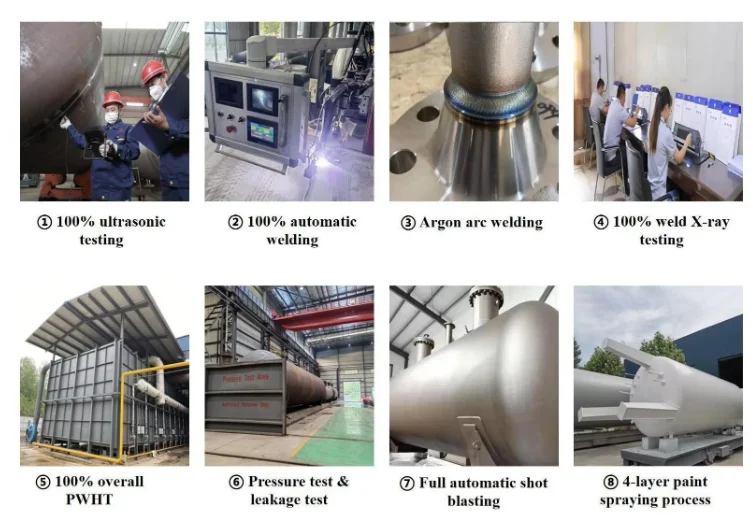

Heat Treatment | Post-weld heat treatment for LPG Tank | |
Hydrostatic test pressure | MPa | 2.28 |
Air tightness test pressure | MPa | 1.77 |
Design, Manufacturing and Inspection Standard | GB150/ASME for LPG TANK |

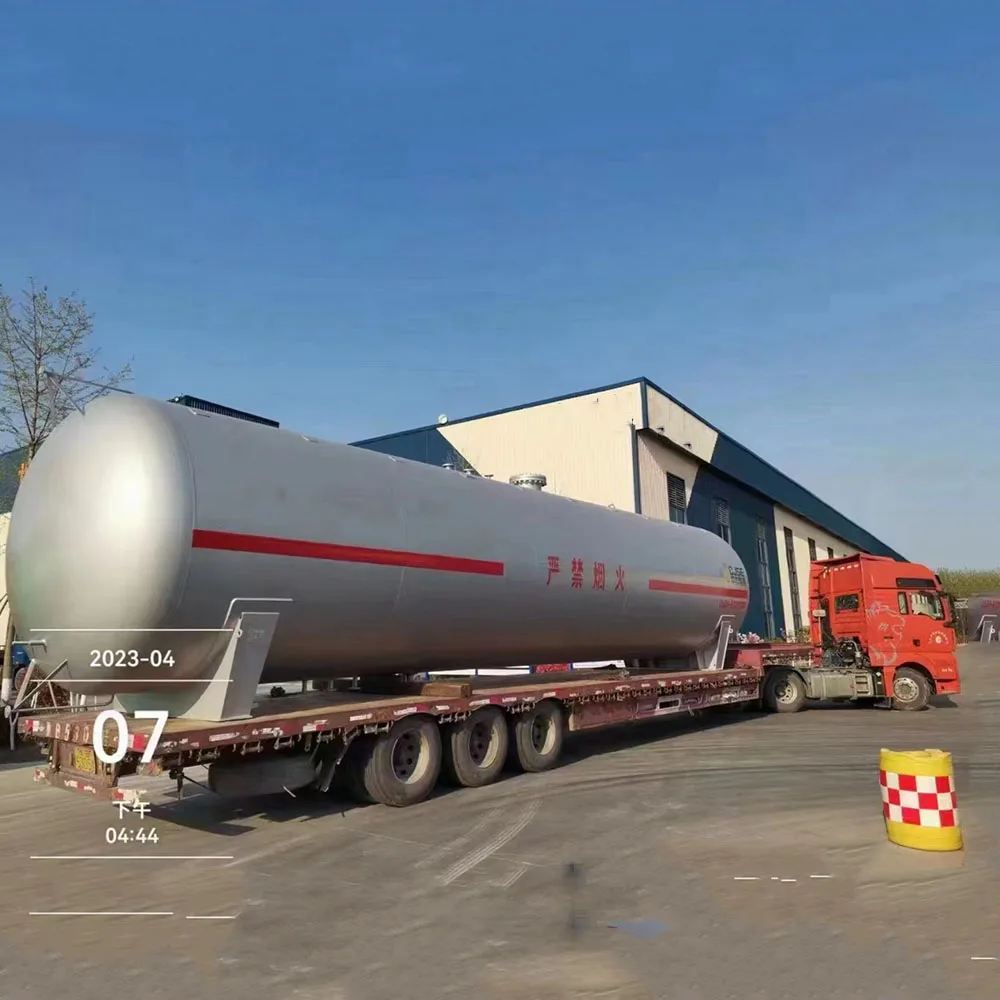

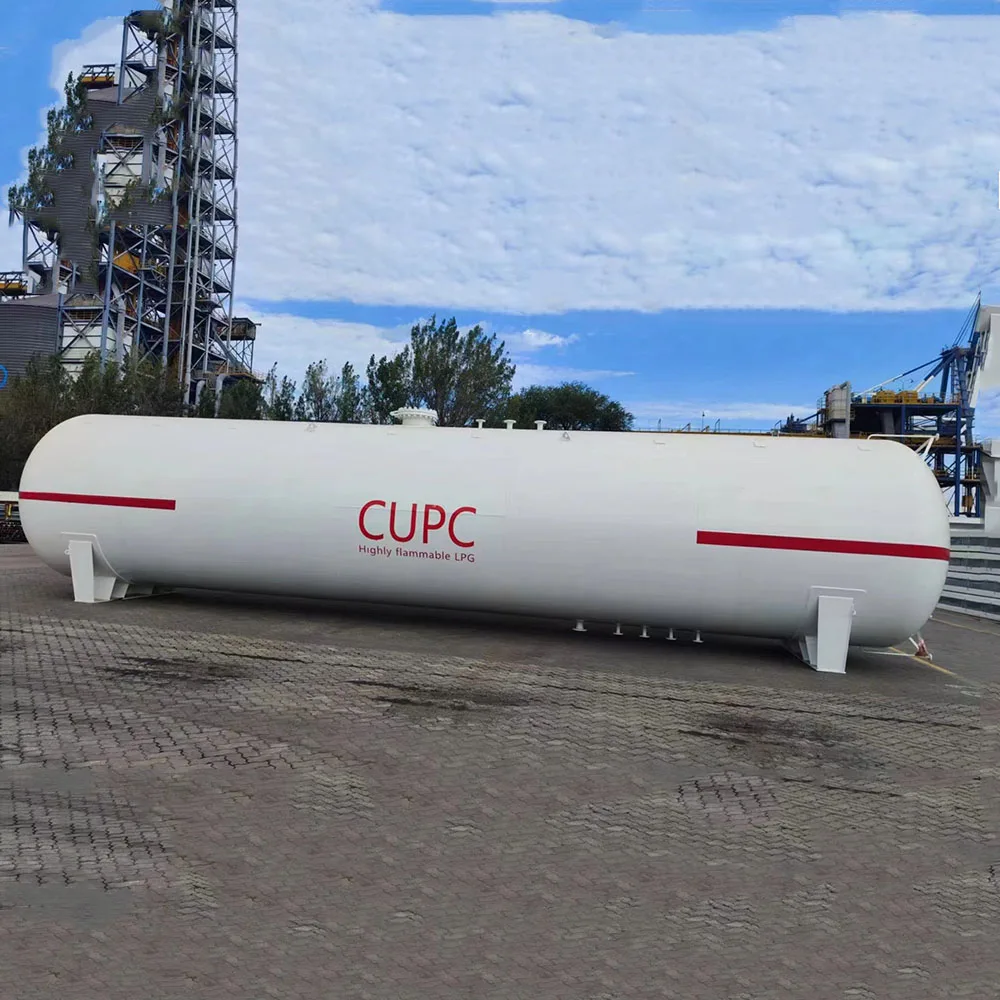

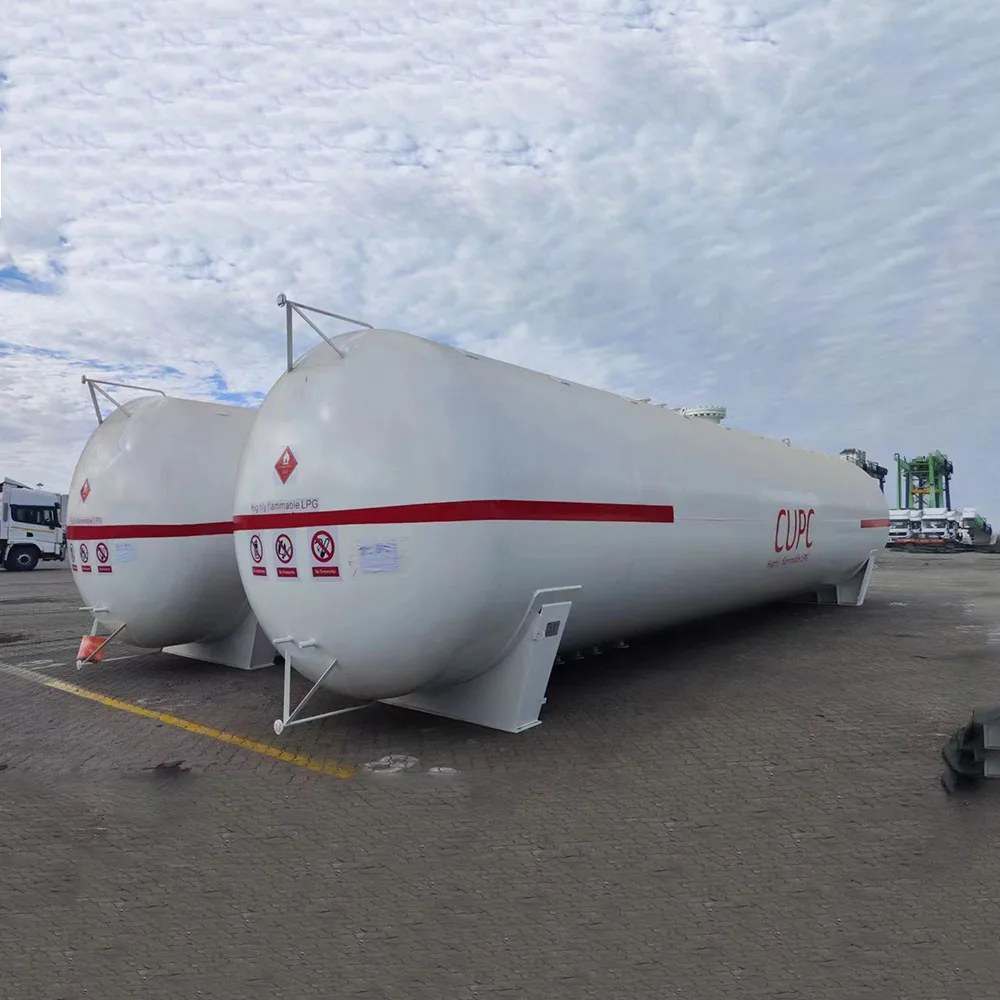

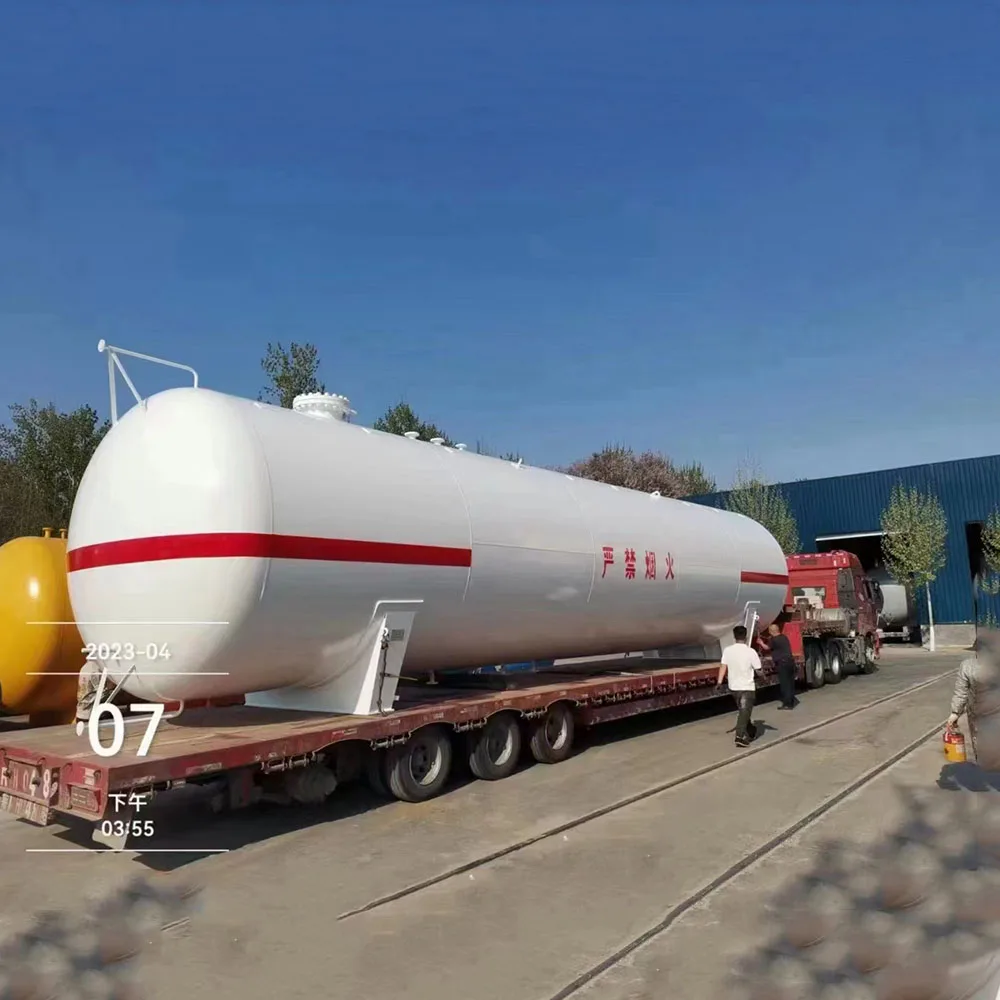

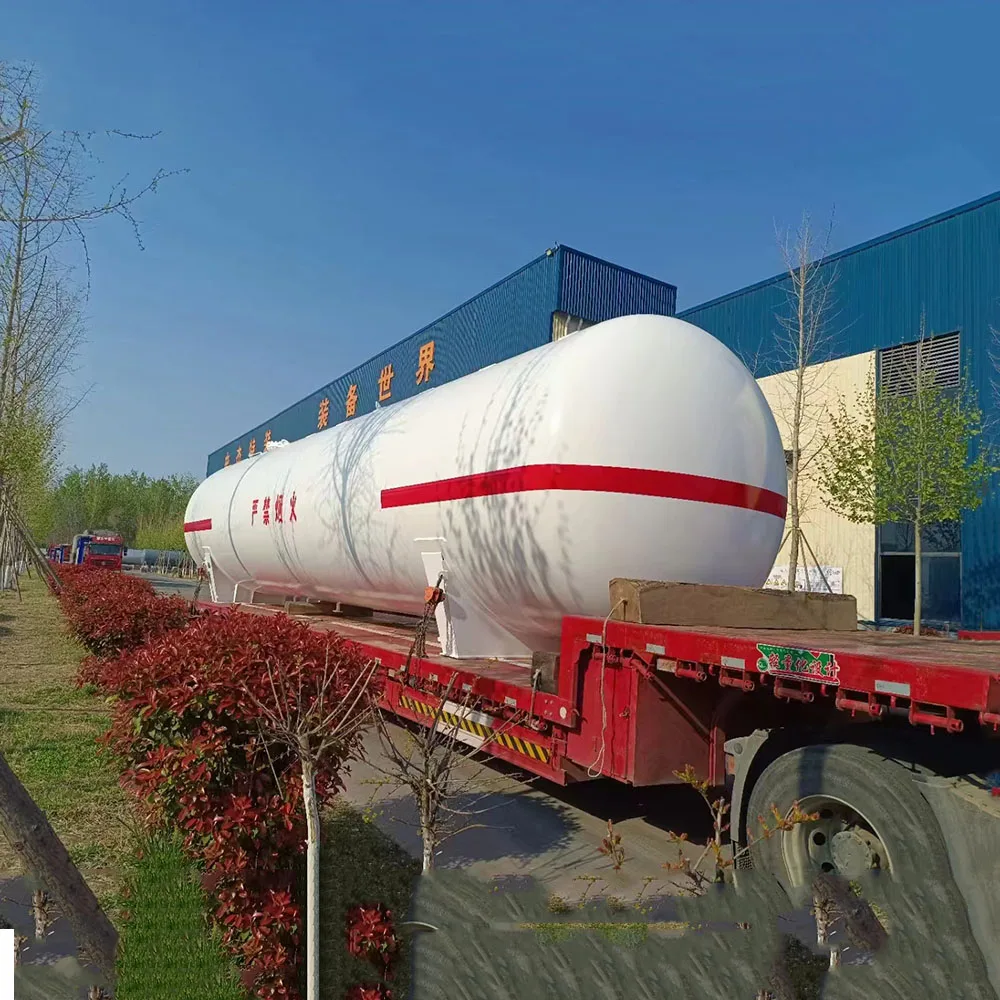

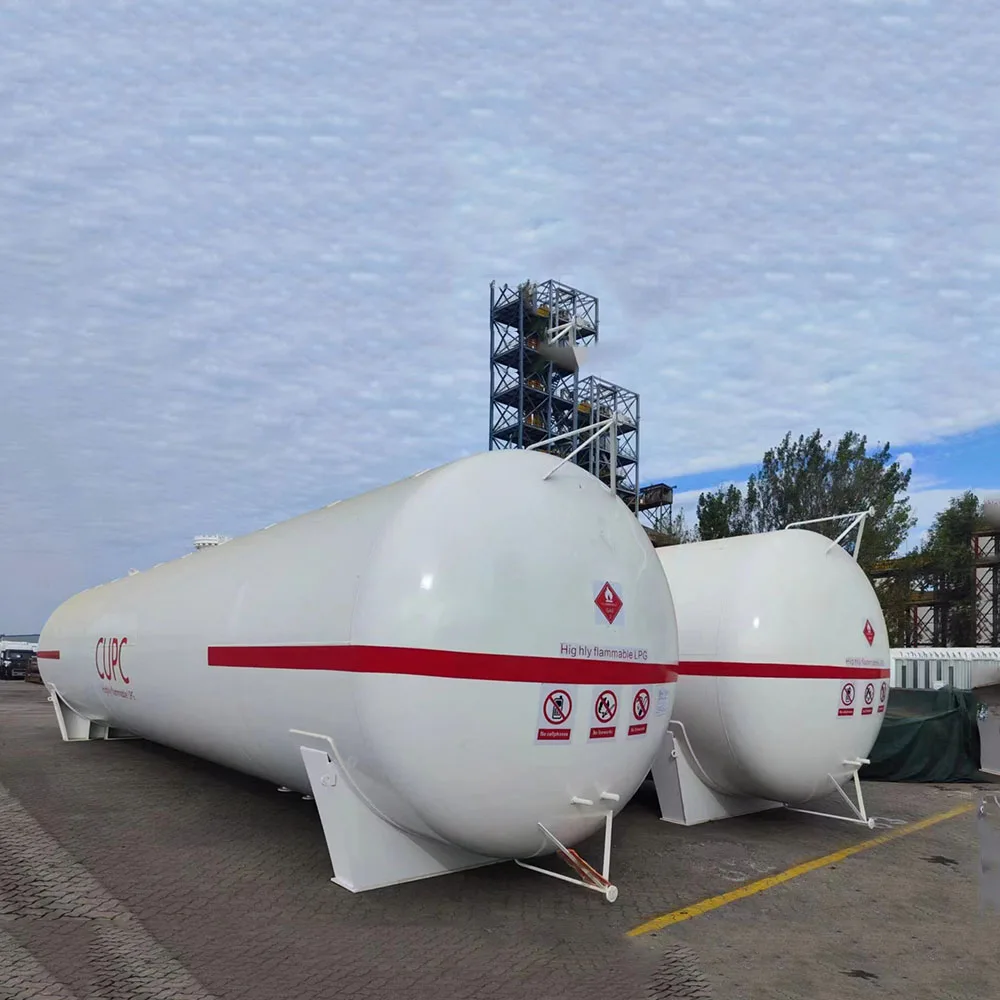

Product Details

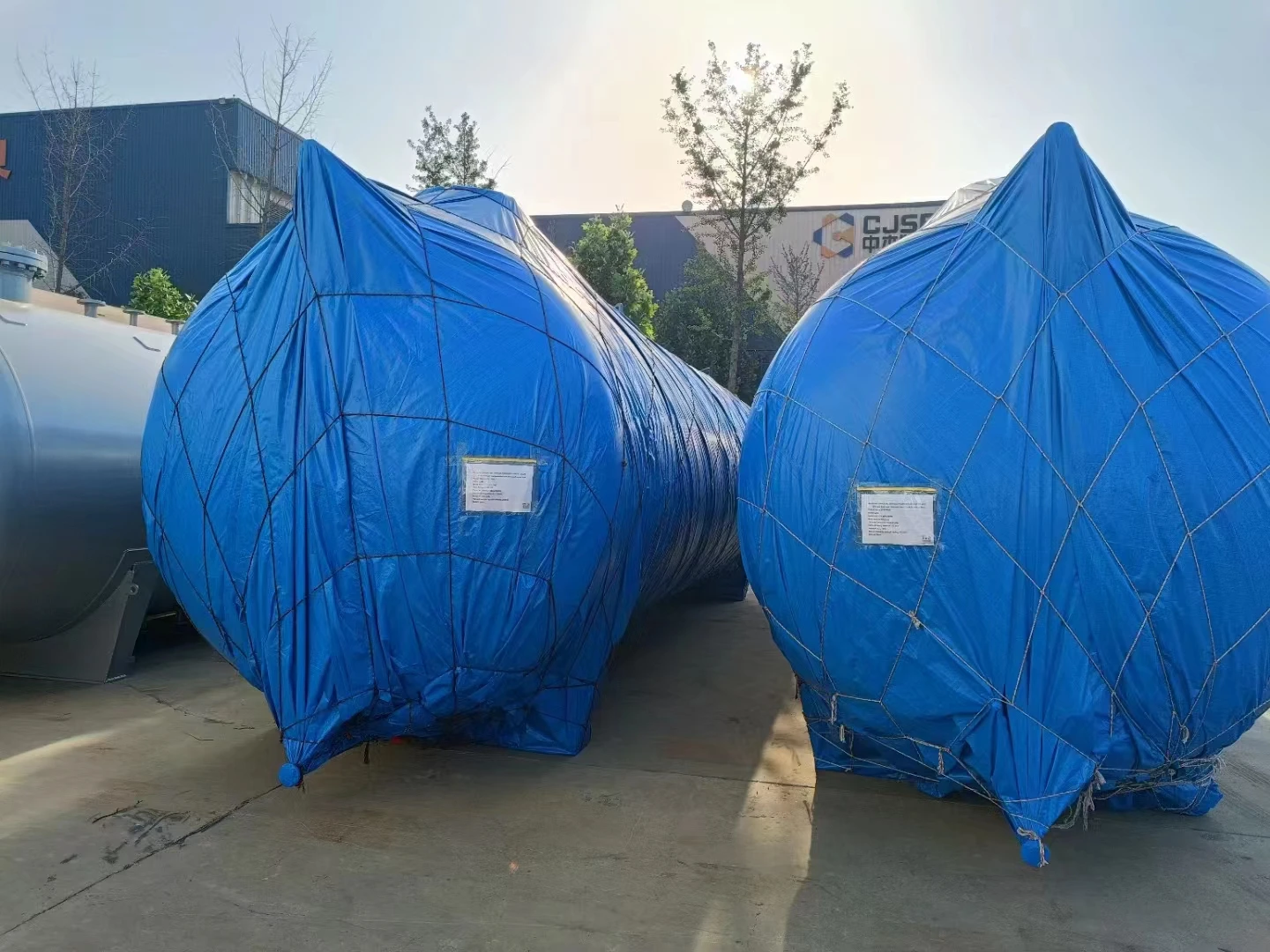

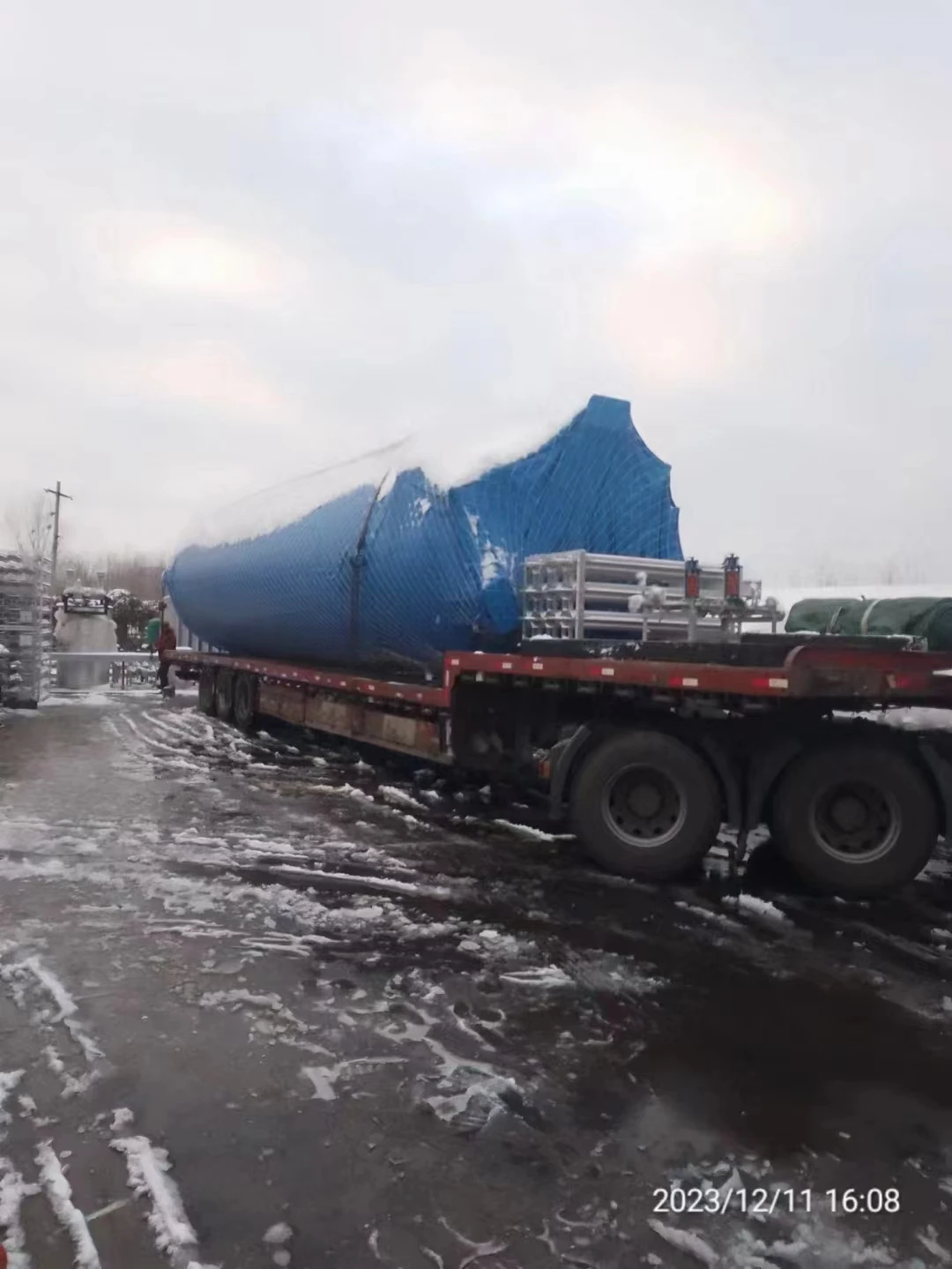

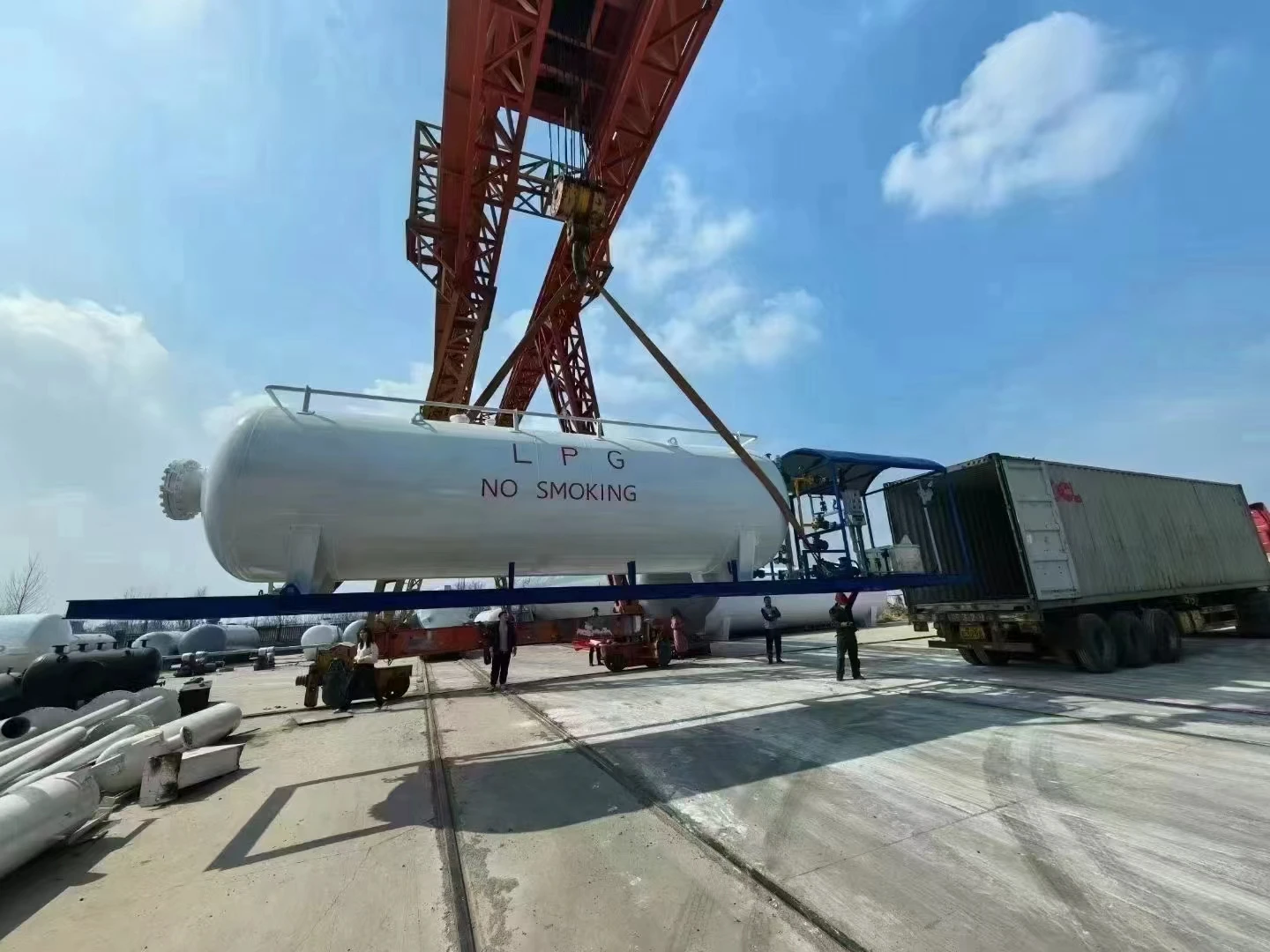

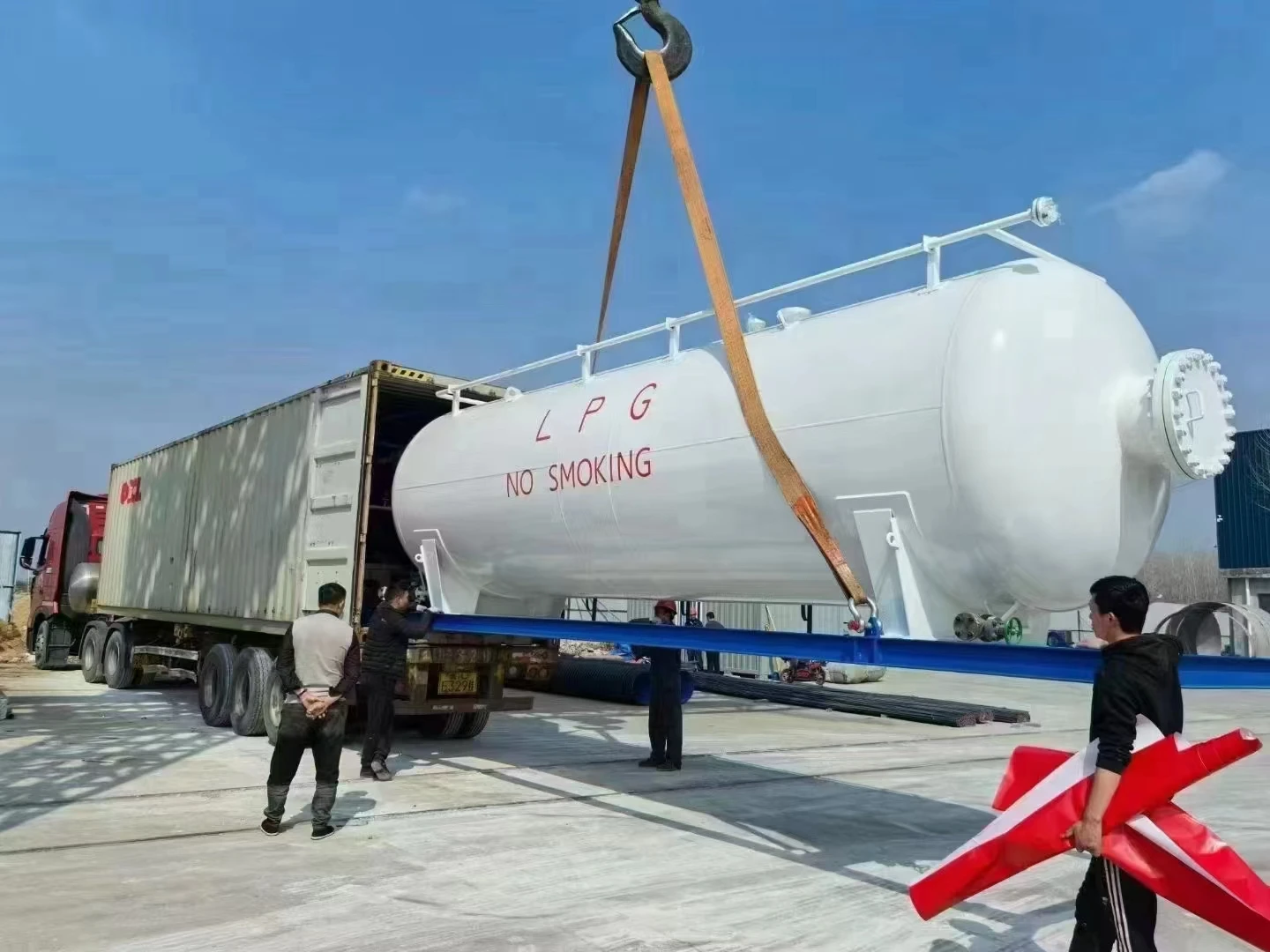

Packing & Delivery
Company Profile

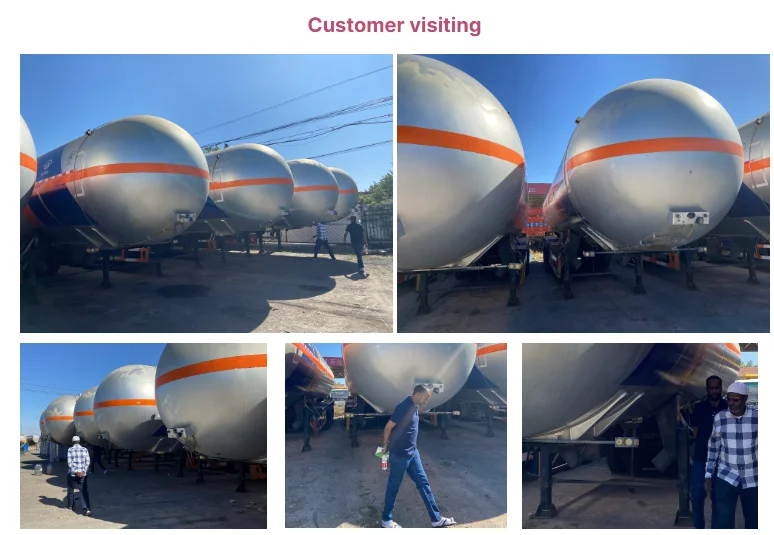

Customer visiting
