Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
Good Performance High Speed Automatic Cnc Saw Steel Bar Shearing Production Line
- Category: >>>
- Supplier: Chengdu Gute Machinery Works Co. Ltd.
Share on (1601206878040):
Product Overview
Description
Specification

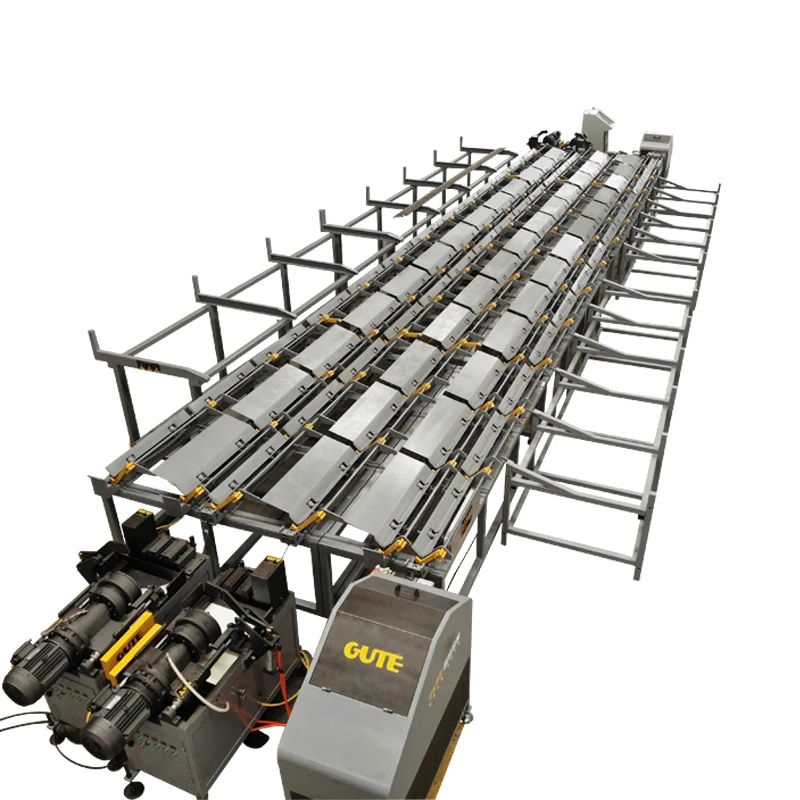

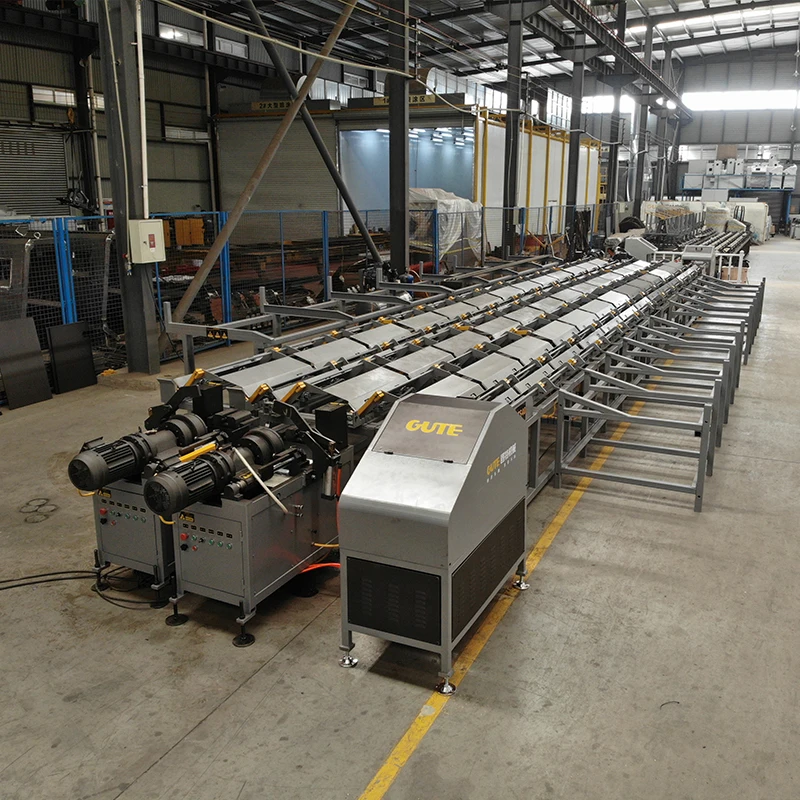

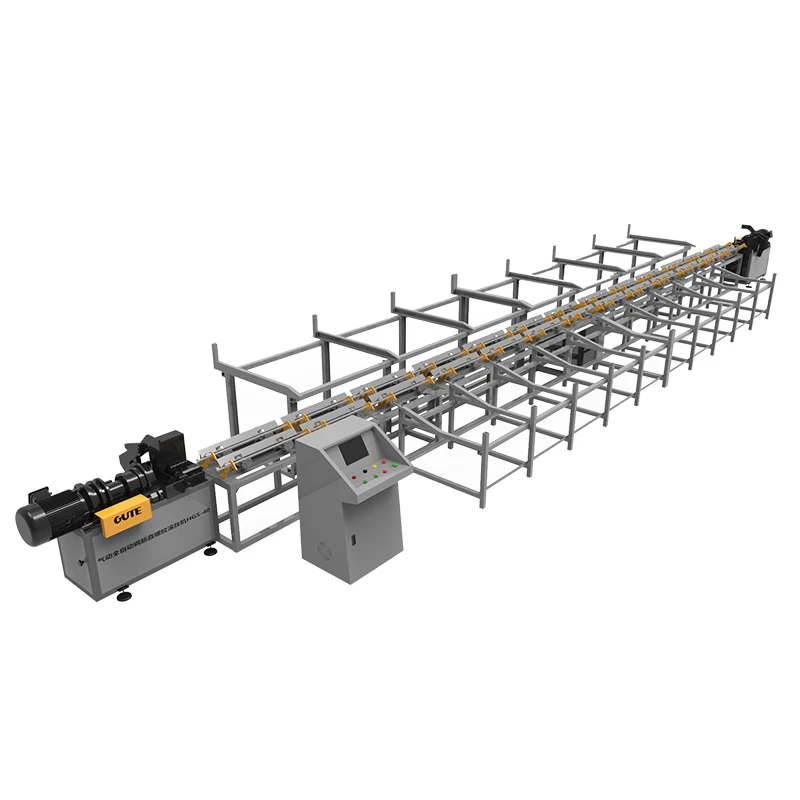

CNC STEEL BAR BAND SAW SHEAR LINE SJT50
◆ It can process 1200-1500 silk heads (about 20 tons of steel bars) per shift for 8 hours per shift. ◆ High degree of automation, multi-batch work tasks can be set, and it can be used immediately during processing, eliminating the trouble of frequently setting system parameters. ◆ The band saw has a pneumatic flushing device to improve the cycle precision of the rebar. ◆ Hydraulic control sawing feed to achieve stepless speed regulation; workpiece clamping is clamped by hydraulic double vise to make the saw blade run smoothly; band saw blade adopts rolling bearing and carbide guide to extend the service life of the saw blade. ◆ Patented transfer rack for automatic feeding. Parameters | SJT50 |
Sawing length | 1.5~12m |
Sawing diameter | 16~50mm |
Transmission speed | 0~50m/min |
Max length of raw materials | 12m |
Sawing frequency | ≤2.5 times/min |
Rated power | 56 kw |
Sawing width | 480mm |
Sawing speed | Adjustable |
Threading diameter | 16~40mm |
Thread length | 80mm |
CNC Threading Machine | 2 sets |
Sanding machine | 2 sets |
Belt size | 2100*76mm |
Upsetting machine | 2 sets |
Upsetting steel bar diameter | Ф16-32mm |
Keywords | CNC STEEL BAR BAND SAW SHEAR LINE |
Product Description

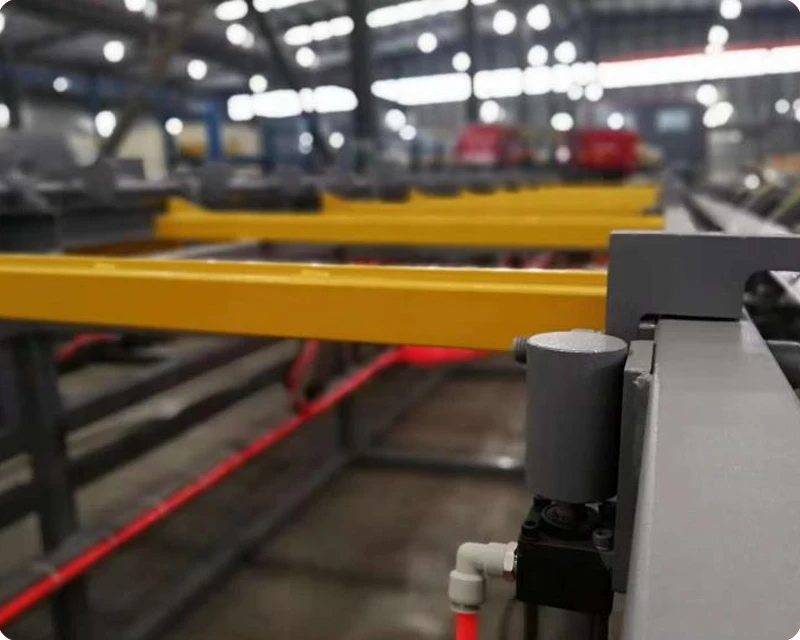

Automatic feeding device
◆The sawing machine cuts the material into the intermediate material frame, and the angle is formed by the cylinder lifting.
◆ The system automatically completes the steel bar transportation. It does not need manual judgment and manual discharging.
◆ At the same time, different blocks are arranged to adapt to different sizes of steel bars.
◆ The system automatically completes the steel bar transportation. It does not need manual judgment and manual discharging.
◆ At the same time, different blocks are arranged to adapt to different sizes of steel bars.

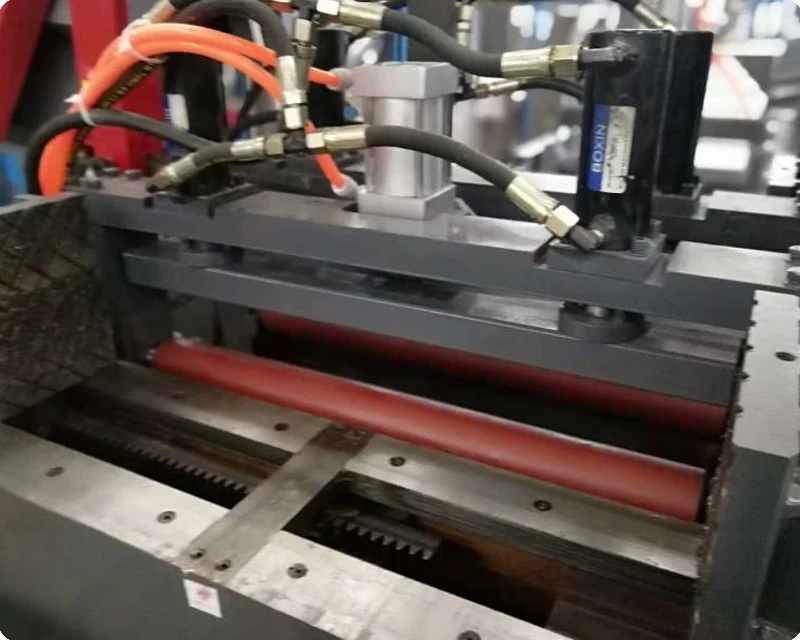

Sawing system
◆ It is equipped with hydraulic double vise clamping to make the saw blade run smoothly.
◆ The equipment has a pneumatic flushing device, which can cut the end face of the steel bar.
◆ The band saw blade adopts rolling bearing and carbide guide to prolong the service life of the saw blade
◆ hydraulically controls the sawing feed to realize stepless speed regulation
◆ The equipment has a pneumatic flushing device, which can cut the end face of the steel bar.
◆ The band saw blade adopts rolling bearing and carbide guide to prolong the service life of the saw blade
◆ hydraulically controls the sawing feed to realize stepless speed regulation

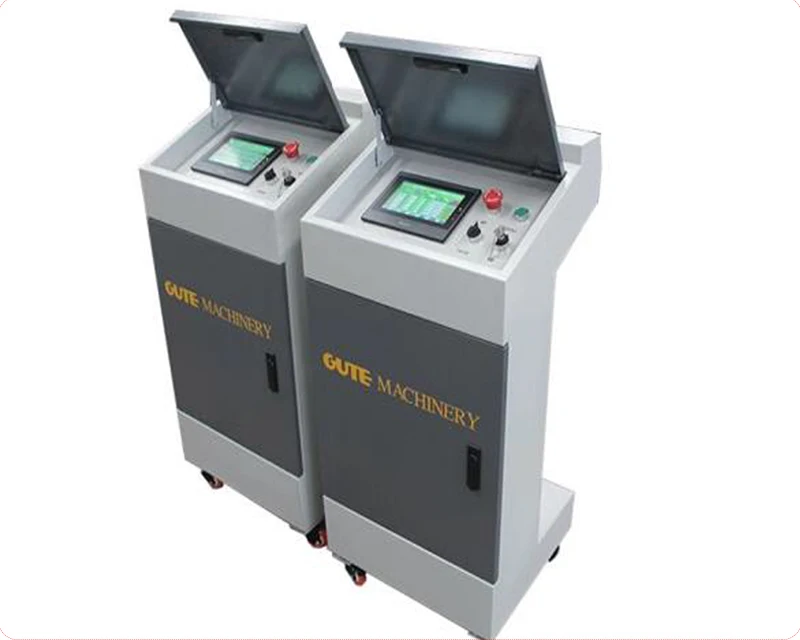

Control System
◆ The whole set of equipment adopts double operation consoles, which respectively control the sawing machine and the sleeving line and the moving casters, which is flexible and simple to operate.
◆ Operating system supports multiple languages.
◆ Operating system supports multiple languages.

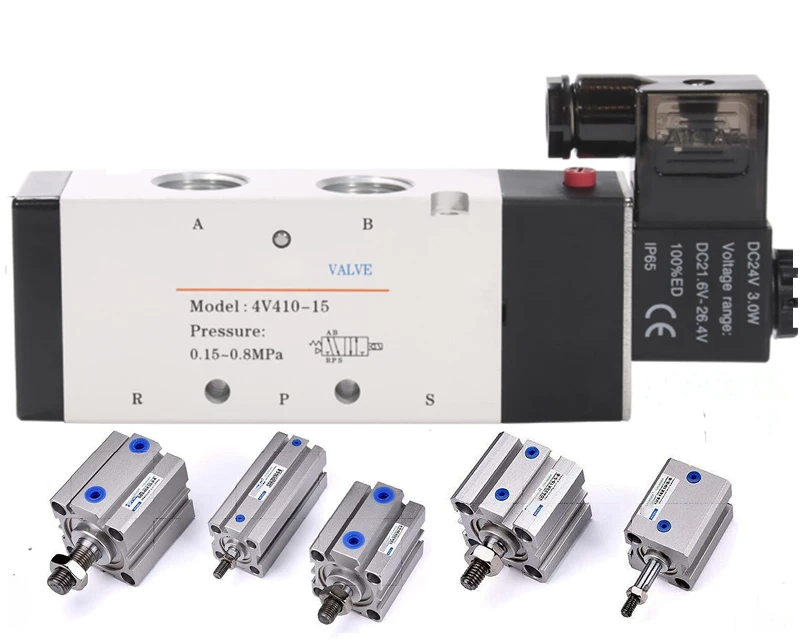

Pneumatic Element
* pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life.
* Split thickening blade design, thickness up to 40mm, easy to use for many times
Application

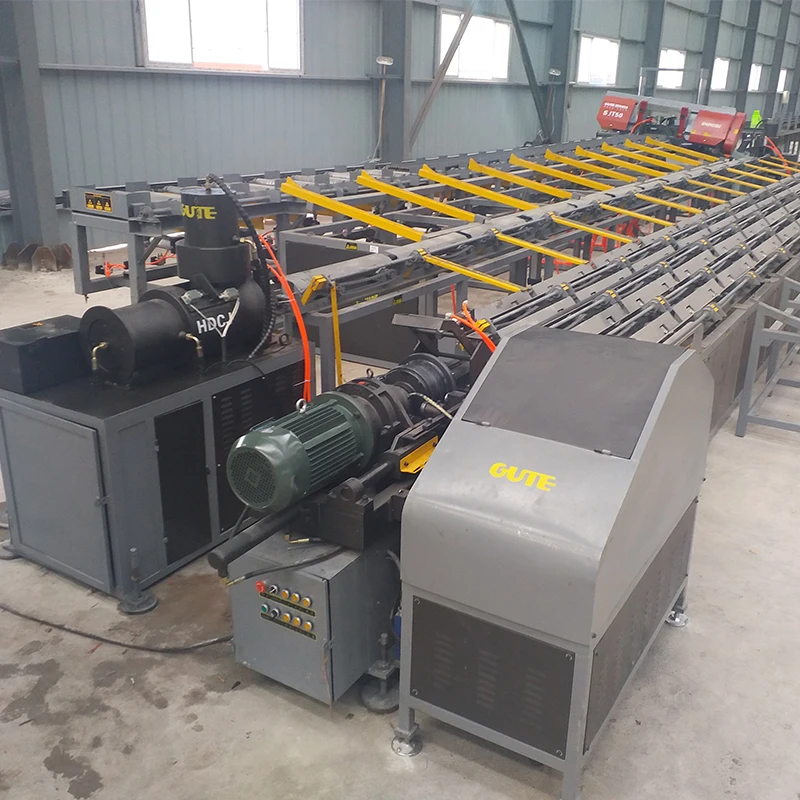

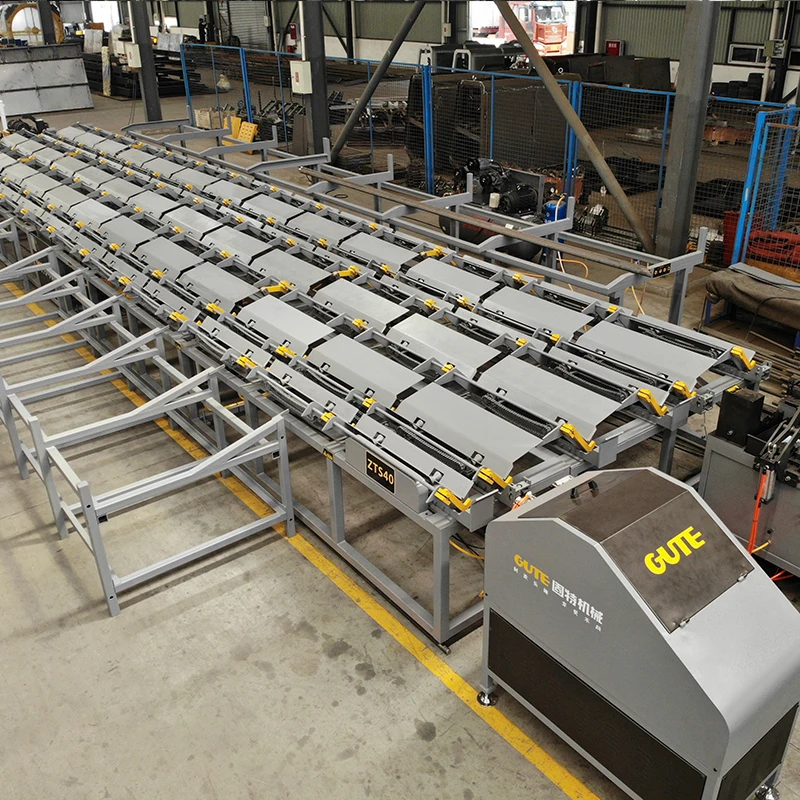

Production Line

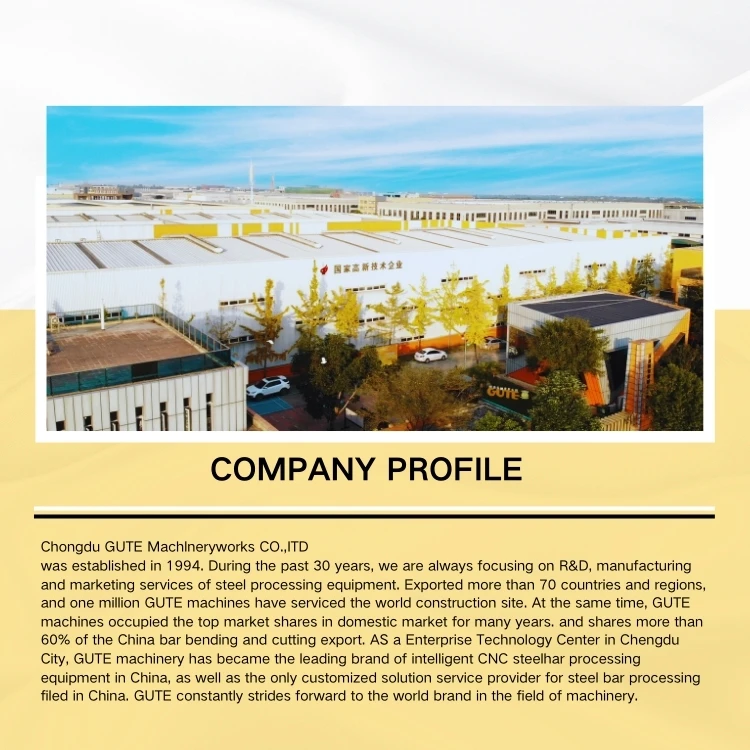

Company Profile

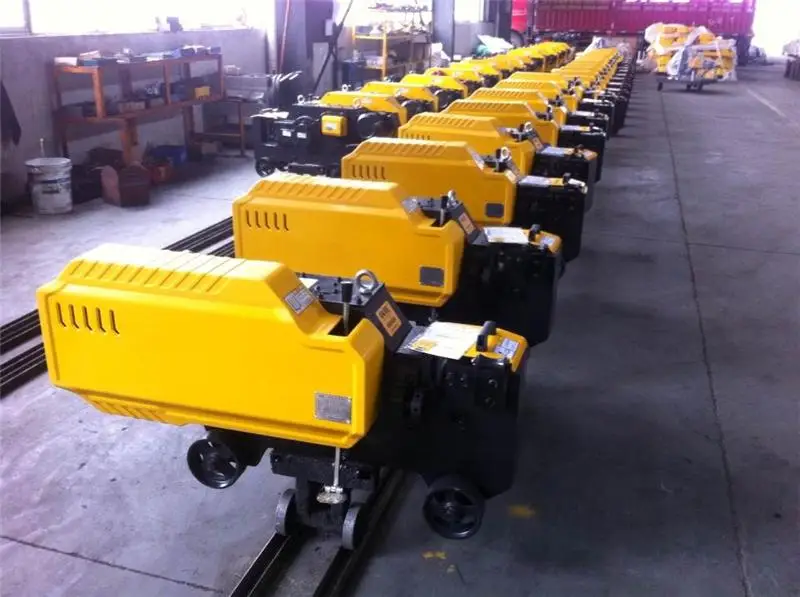

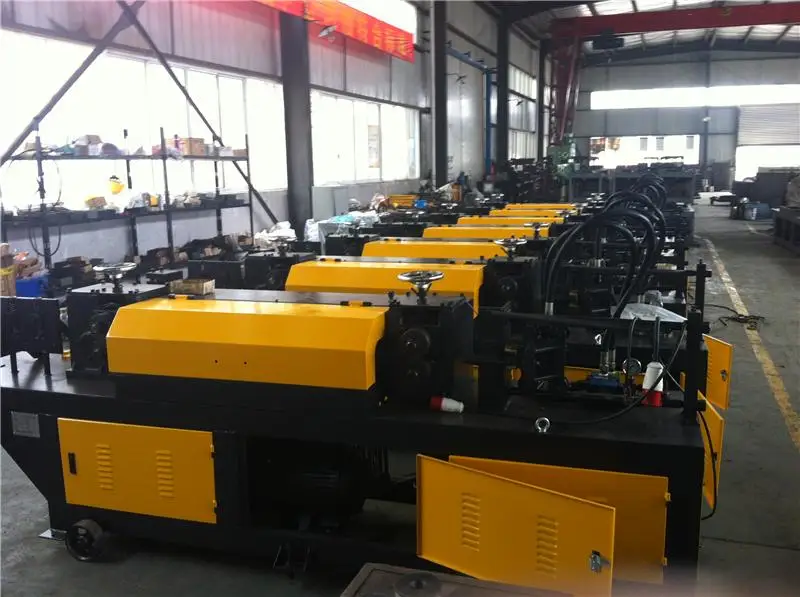

GUTE is the MANUFACTURER of construction machinery with 28 years history and more than 250 workers to produce steel bar processing machinery.
1. Now already exported more than 70 countries and 70% exporting share of steel bar bender/cutter
2. With more than 200 agents in Chinese market and 10 owened brand shops in different provinces in China.
3. We OEM for many very famous European brand for these kinds of machine.
Now, our machines already sold to Russia, Italy, Brazil, Algeria, India, Argentina, Saudi Arabia, Middle East and more than 70 countries and regions of the world.
We are reinforcement steel bar bending, shearing, welding, straightening machine provider. Expert with fast and professional customized services, in R&D and quality control of new products and special accessories for different market needs.We are having highly precise, durable semi-automatic and fully automatic steel bar machines.
2. With more than 200 agents in Chinese market and 10 owened brand shops in different provinces in China.
3. We OEM for many very famous European brand for these kinds of machine.
Now, our machines already sold to Russia, Italy, Brazil, Algeria, India, Argentina, Saudi Arabia, Middle East and more than 70 countries and regions of the world.
We are reinforcement steel bar bending, shearing, welding, straightening machine provider. Expert with fast and professional customized services, in R&D and quality control of new products and special accessories for different market needs.We are having highly precise, durable semi-automatic and fully automatic steel bar machines.
Transportation
FAQ
Q: What's the producing time and delivery time?
A: Order less than 5 pcs, we have stock, delivery to Shanghai port about 5 days. And order more than 5 pcs, about 10-15 working days.
A: Order less than 5 pcs, we have stock, delivery to Shanghai port about 5 days. And order more than 5 pcs, about 10-15 working days.
Q: What's the MOQ?
A: 5 pcs. For sample order, 1 pc is OK, there's extra port and delivery charges.
A: 5 pcs. For sample order, 1 pc is OK, there's extra port and delivery charges.
Q: What's the departure port?
A: Usually Shanghai port, Guangzhou, Qingdao, Tianjin and other Chinese port is also OK.
A: Usually Shanghai port, Guangzhou, Qingdao, Tianjin and other Chinese port is also OK.
Q: What's the packing?
A: Iron Pallet and Polly wooden cases (no fumigation needed)
A: Iron Pallet and Polly wooden cases (no fumigation needed)
Q: What's the payment term?
A: T/T, L/C, DP, West union, PayPal .
Our service
A: Your inquiry related to our products or prices will be replied in 24 hours.
B: Protection of your sales area, ideas of design and all your private information.
C: Best quality and competitive price.
A: T/T, L/C, DP, West union, PayPal .
Our service
A: Your inquiry related to our products or prices will be replied in 24 hours.
B: Protection of your sales area, ideas of design and all your private information.
C: Best quality and competitive price.
