Factory direct supply high quality water drainage system pvc double corrugated pipe production line plastic extruder machinery
- Category: >>>
- Supplier: Qingdao Fullwin Plastic Machinery Co. Ltd.
Share on (1601207258755):
Product Overview
Description
Product Description

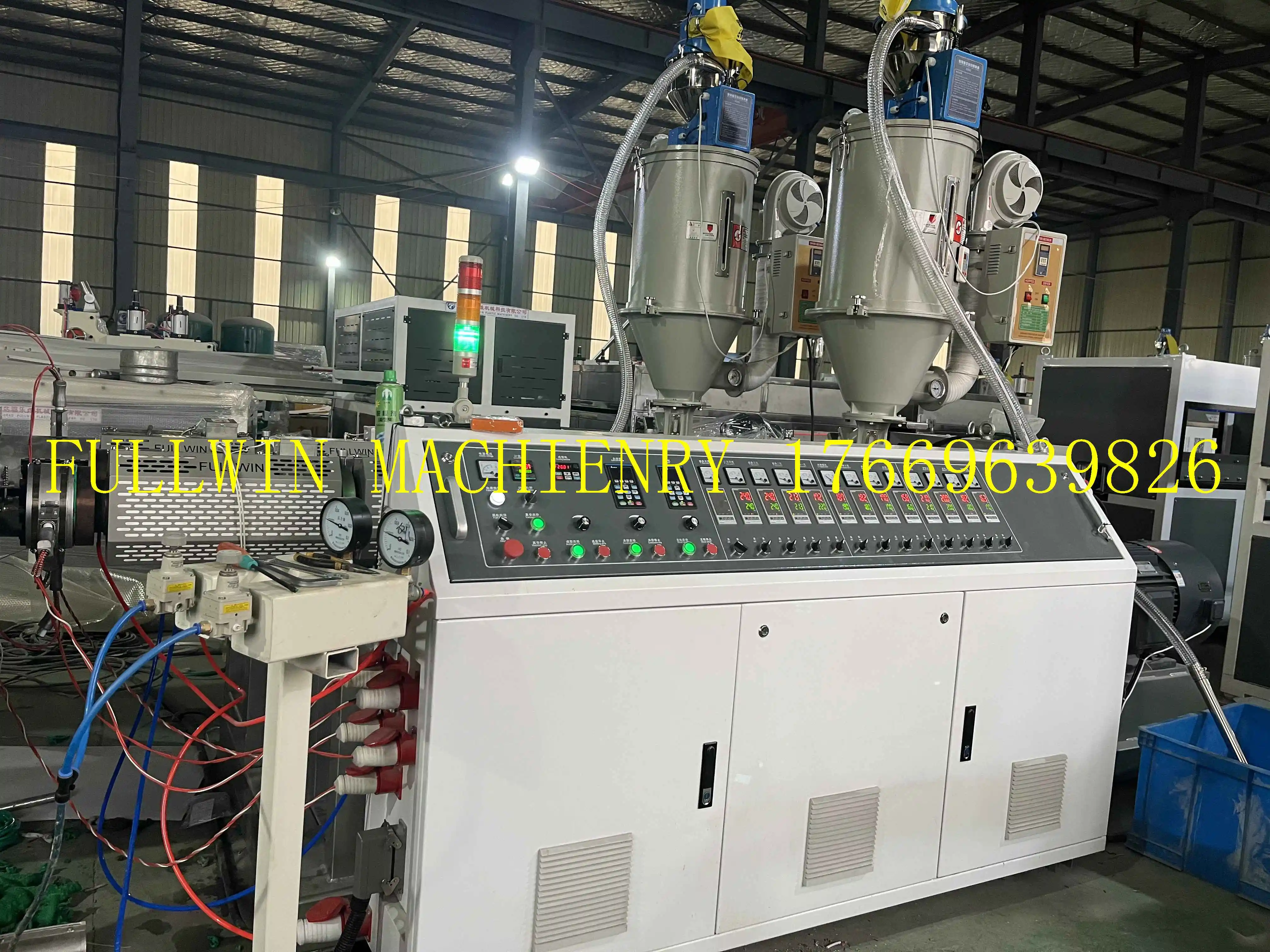

Double wall corrugated pipe making machine production line
Specification
No. | Name | Quantity |
1 | Automatic vacuum feeder and hopper dryer | 2 sets |
2 | SJ-65/30 High-efficiency Single Screw Extruder | 1 set |
3 | SJ-75/30 High-efficiency Single Screw Extruder | 1 set |
4 | Die head + Forming mould（ one size one set ） | 1 set |
5 | Corrugated pipe forming machine | 1 set |
6 | Winding machine | 1 set |

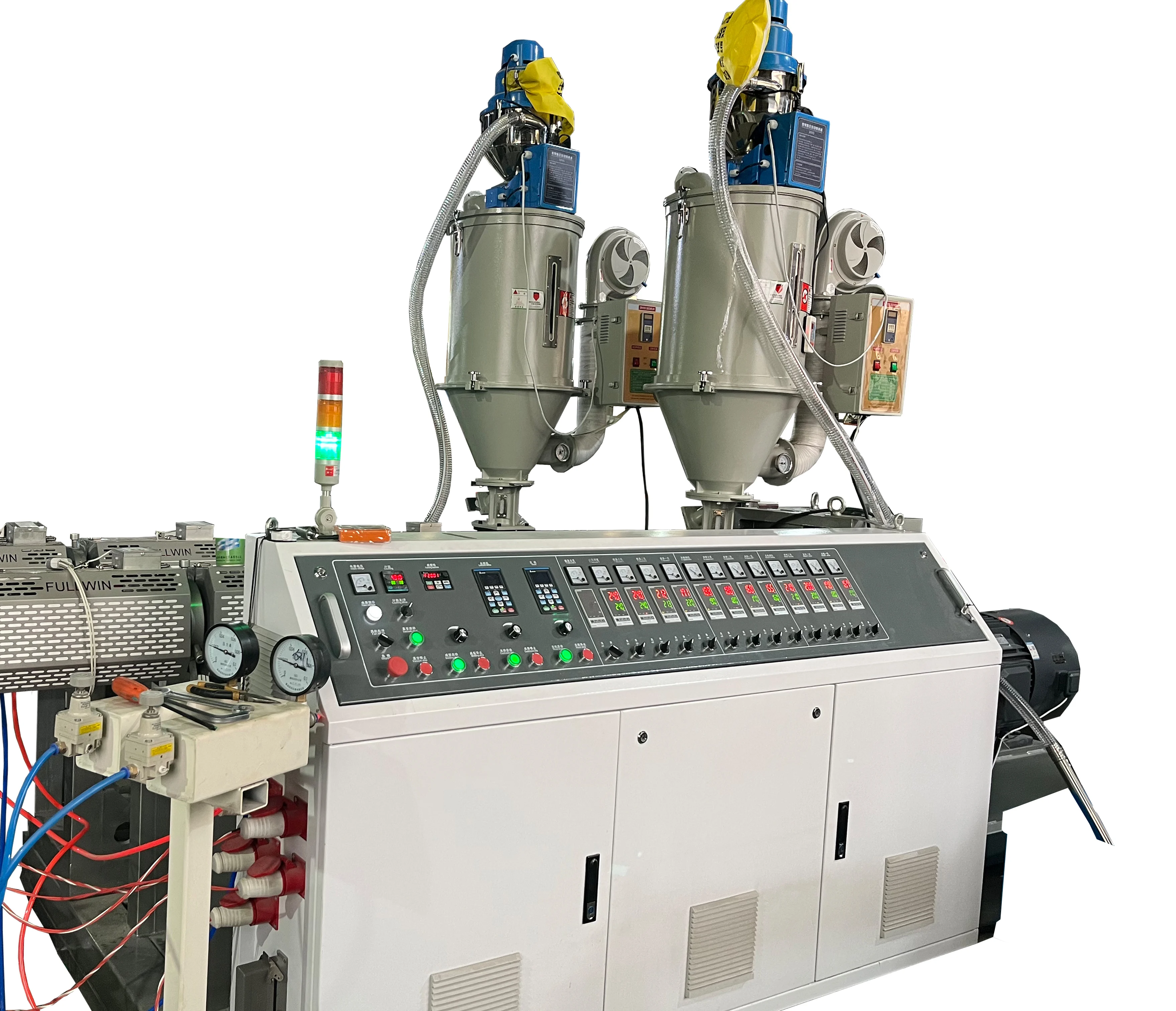

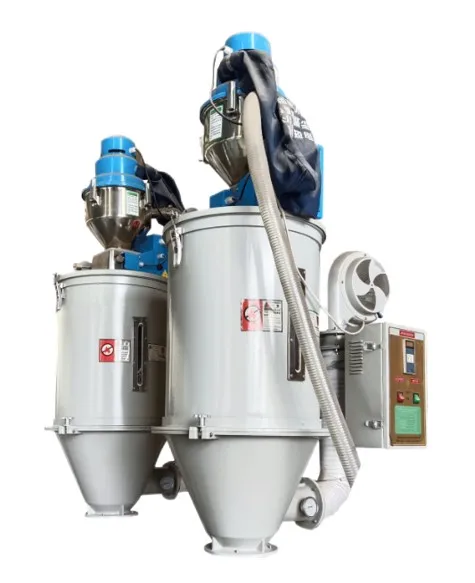

Autumatic vacuum feeder and hopperdryer:
Material:
External plastic spraying, internal parts contacting raw materials are stainless steel.
Method: Automatic vacuum suction,
Drying feed hopper: Hot air dryer
Method: Automatic vacuum suction,
Drying feed hopper: Hot air dryer
Feeding base:
Material: Q235-A Suitable for granules material (Dry raw materials are easier to plasticise.)
Material: Q235-A Suitable for granules material (Dry raw materials are easier to plasticise.)
Screw and Barrel
Screw:
L/D：30:1
Material: 38CrMoAl
Surface treatment: Nitriding,Polishing
Barrel:
Material: 38CrMoAl
Surface treatment: Nitriding,Honing
Cooling Power:4×0.18KW System:Fan
Heating method:ceramic heating collar Power:12.8KW

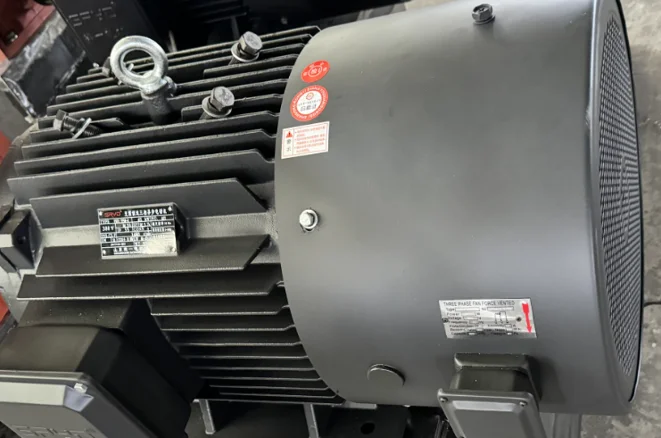

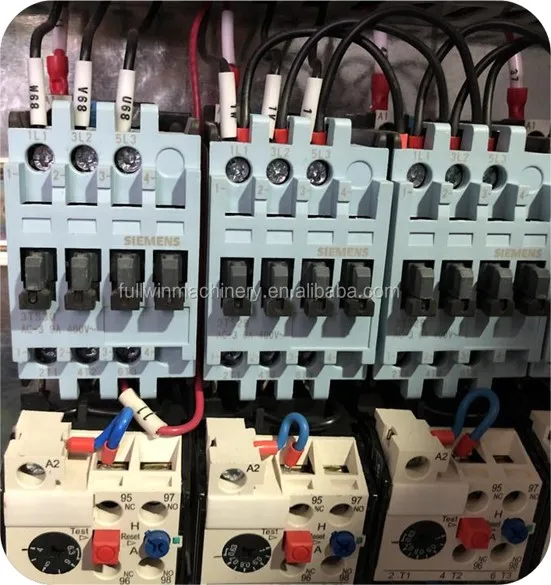

Various motor accessories

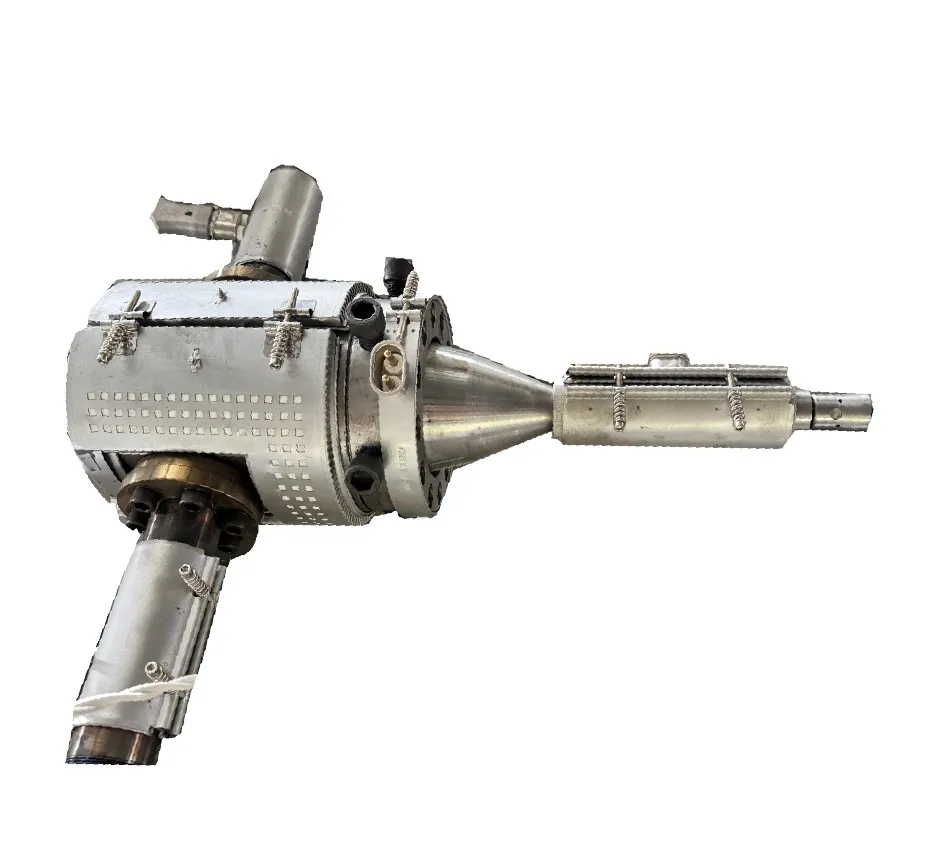

Die head & mouth mould and core bar
Fullwin has adopted brass plating treatment for incrasing the corrosion resistance ability of the critical parts of our machine.
Even in high temperature, this part can operate as usual and its color will not be changed.
New type heating ring with 20mm rock wool inside to save electric cost 30%
Fullwin has adopted oil cooling system to optimize the stability of the reducer while other suppliers still have no such design.
Die head & mouth mould and core bar
One size one set die head mouth mould and core bar. Loose he screws and then change the whole set part when change pipe size. It will help to save time .

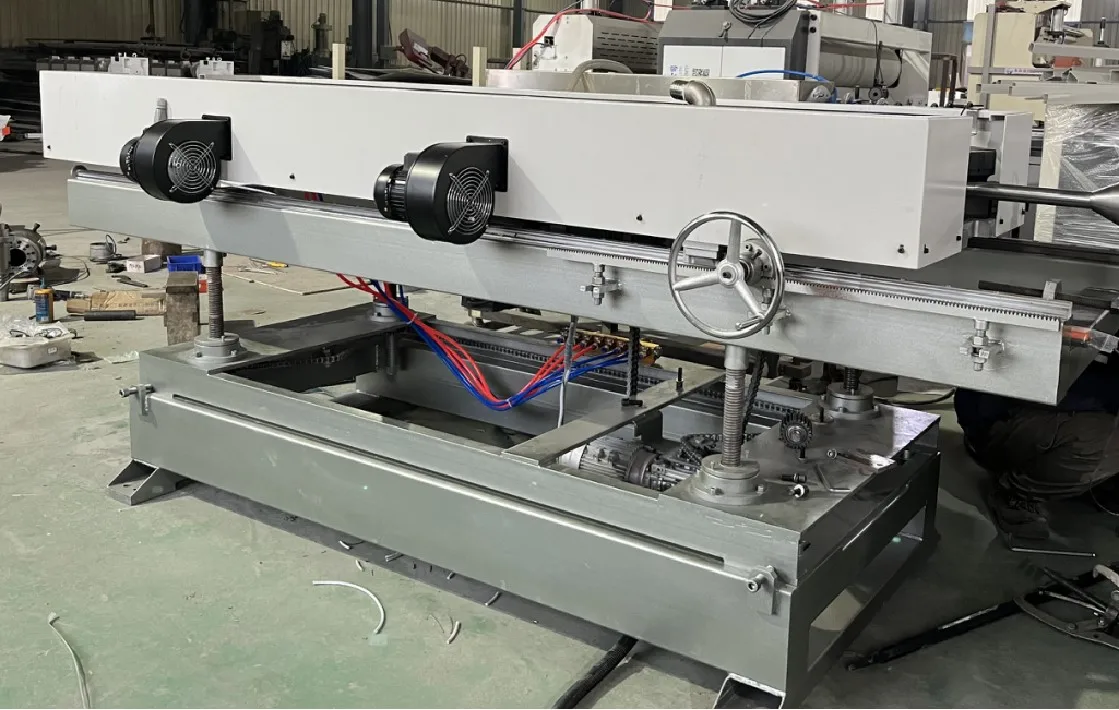

Forming machine
electrical control up and down
Manual adjust left and right
Chrome plating to prevent rust and corrosion

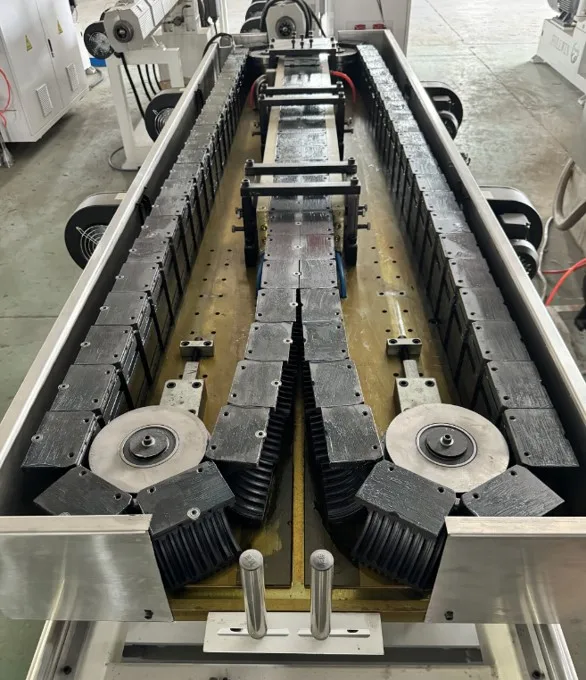

Forming platform and forming module
The whole forming platform parts of the plate that are in contact with the moulds are laser quenched to increase hardness(abrasive
resistance) and extend service life.
positioning device on the mould to help make better pipe outside
Side plated water cooling
resistance) and extend service life.
positioning device on the mould to help make better pipe outside
Side plated water cooling

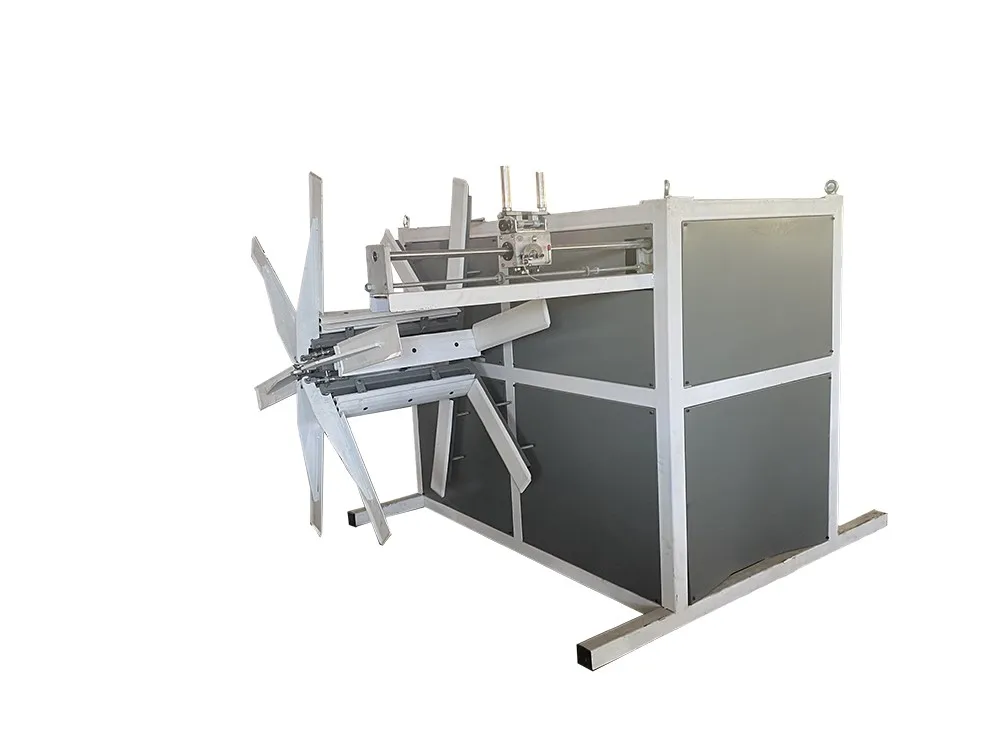

corrugated pipe machine winder
1.Driving method:Adopt 12N torque motor.
2.Moving method:Spindle speed tracking, frequency control back and forth movement.
3.Openingmethod:Pneumatic self-locking switch
4.Automatically balances:production and winding speeds

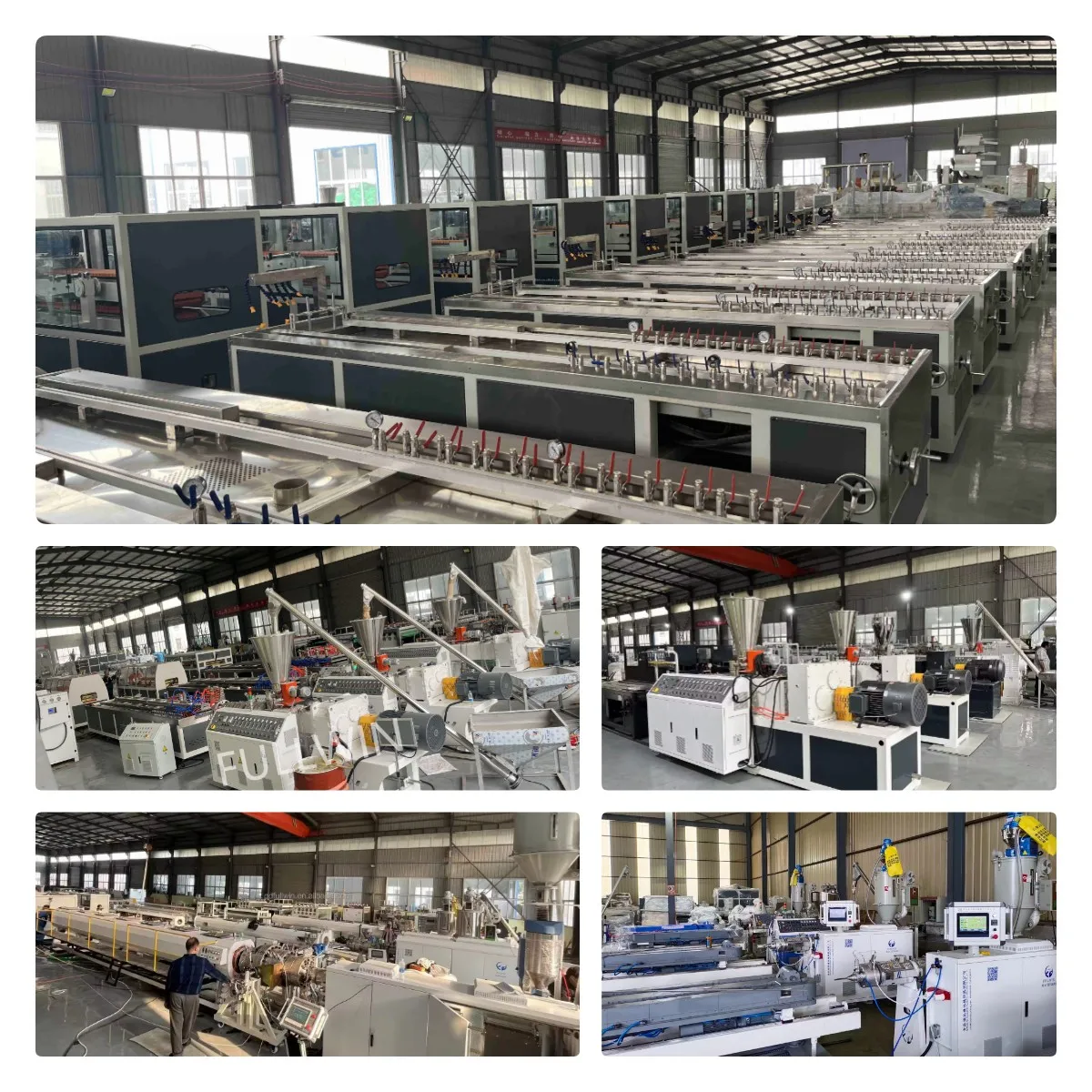

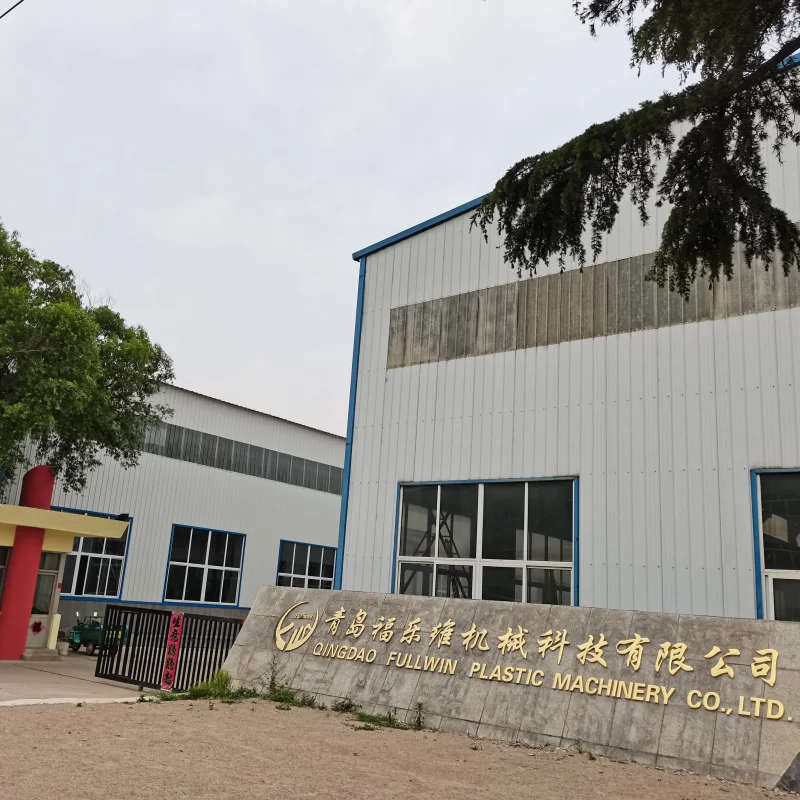

Our company
FULLWIN PLASTIC MACHINERY CO., LTD
Our factory is located in the beautiful Qingdao city, focus on plastic extrusion manufacturers. Our company has gathered first-class scientific research talents from all over the country. At present, has successfully developed a number of plastic machinery production lines and supporting equipment, including single-wall corrugated pipe production line, double-wall corrugated pipe production line, PVC, PP water supply pipe production line, profile and sheet production line, etc. Among them, the corrugated production line has obtained a number of invention patents
Our factory is located in the beautiful Qingdao city, focus on plastic extrusion manufacturers. Our company has gathered first-class scientific research talents from all over the country. At present, has successfully developed a number of plastic machinery production lines and supporting equipment, including single-wall corrugated pipe production line, double-wall corrugated pipe production line, PVC, PP water supply pipe production line, profile and sheet production line, etc. Among them, the corrugated production line has obtained a number of invention patents
Our qualification certificate
our services
Our sales data
Customer visits and exhibition photos
our products
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Single Wall Corrugated Pipe Machine,Double Wall Corrugated Pipe Machine,PVC/ PP Water Supply Pipe Machine,WPC/PVC Profile and Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine
3. why should you buy from us not from other suppliers?
Advanced production technology with design capability.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Single Wall Corrugated Pipe Machine,Double Wall Corrugated Pipe Machine,PVC/ PP Water Supply Pipe Machine,WPC/PVC Profile and Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine
3. why should you buy from us not from other suppliers?
Advanced production technology with design capability.
Reasonable price with good quality and best delivey time
Our sales team will give prompt feedback within 24 hours .
Profession after sales service system
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We Provide:
1.Design and manufacture suitable machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.(Full supervision of loading)
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers(will arrange our local engineer or overseas engineer to your factory;
(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
1.Design and manufacture suitable machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.(Full supervision of loading)
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers(will arrange our local engineer or overseas engineer to your factory;
(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
