Algae Tubular Separator Centrifuge
US $6800

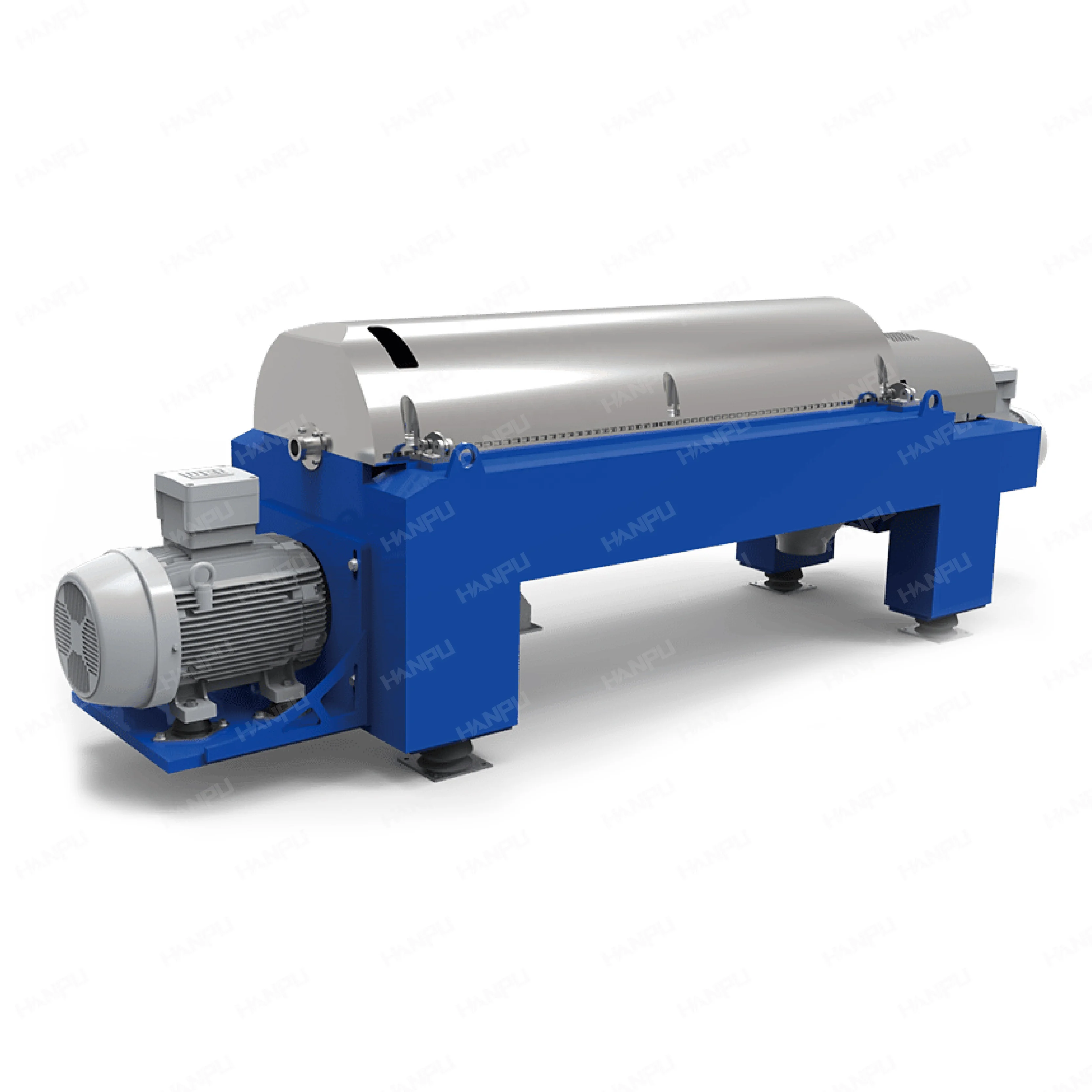

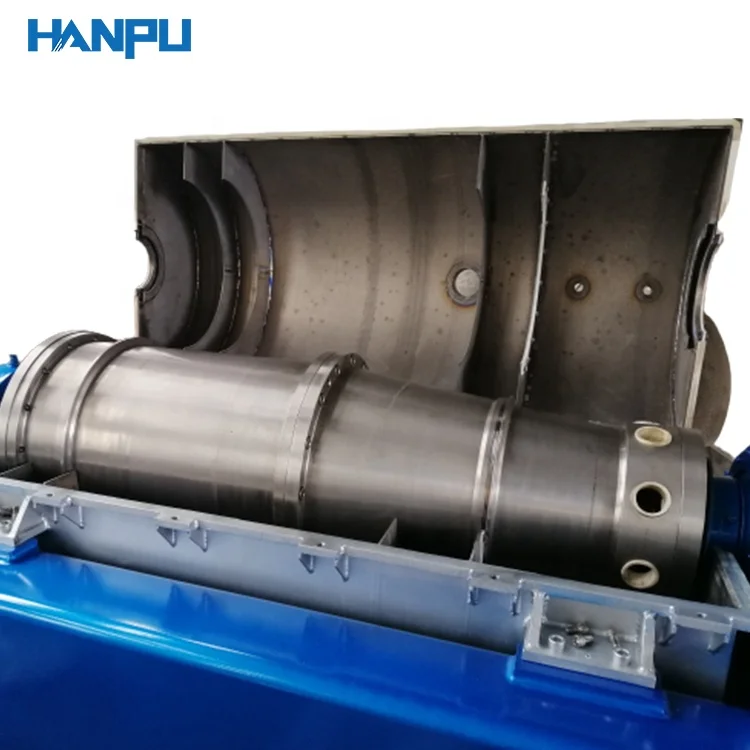

China Sale Cheap Countercurrent Clarifying Screw Separator Decanter Centrifuge Supplier For Waste Water
- Category: >>>
- Supplier: Jiangsu Hanpu Mechanical Technology Co. Ltd
Share on (1601207338593):
Product Overview
Description
Product Description

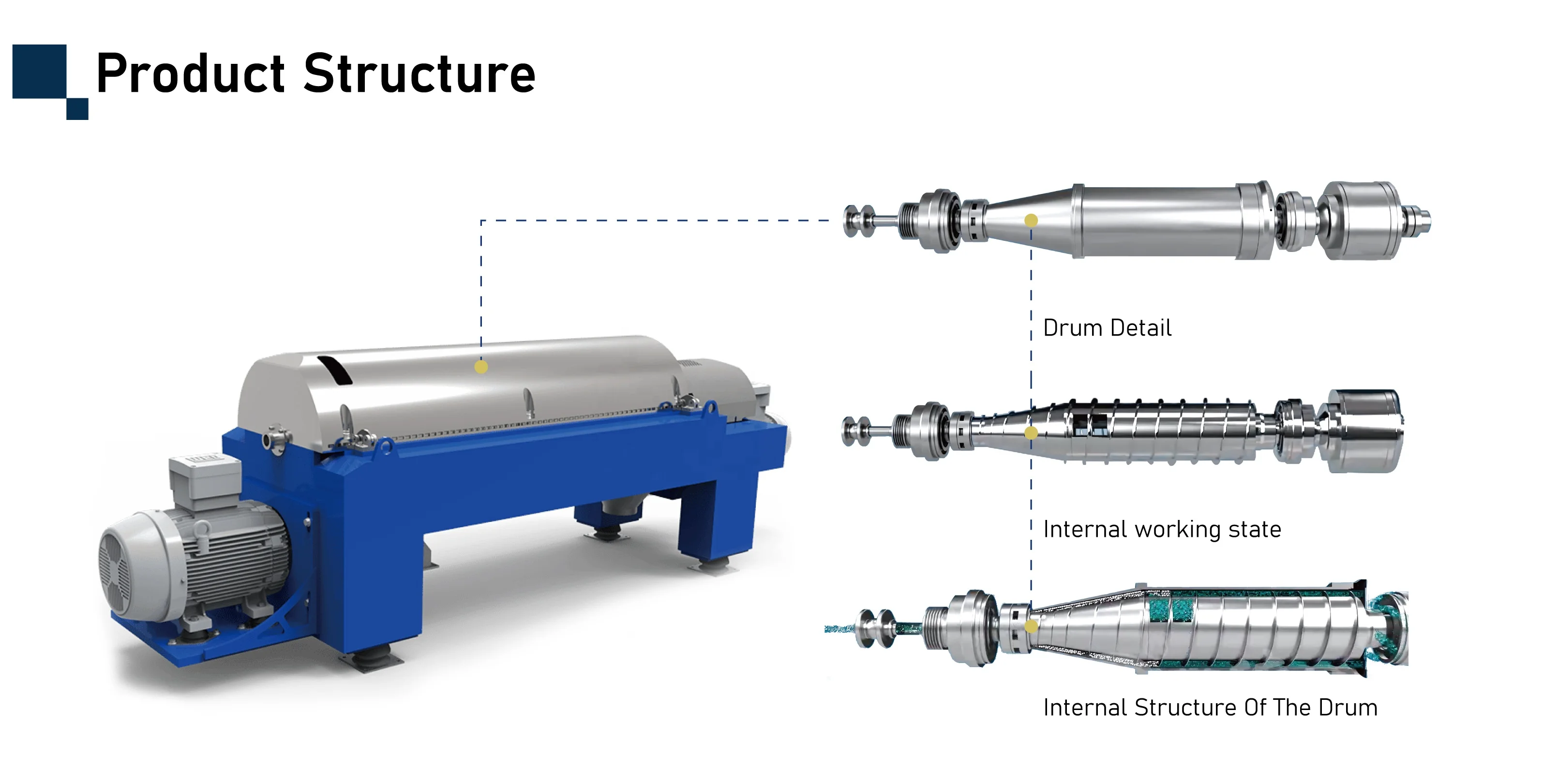

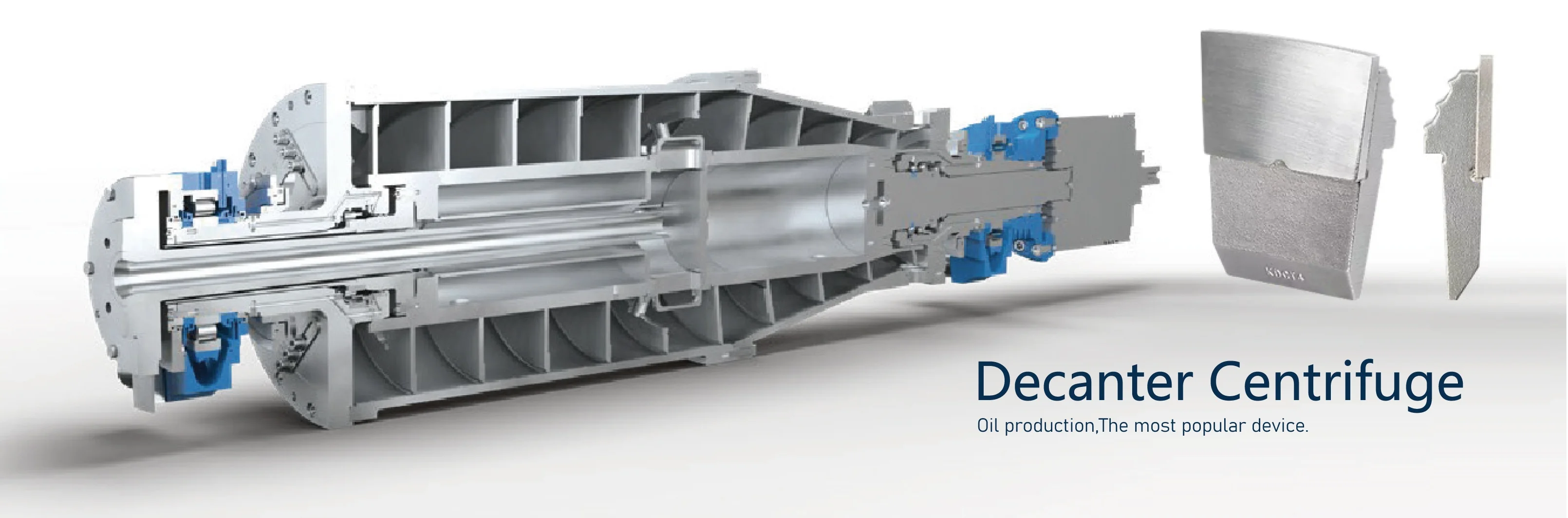

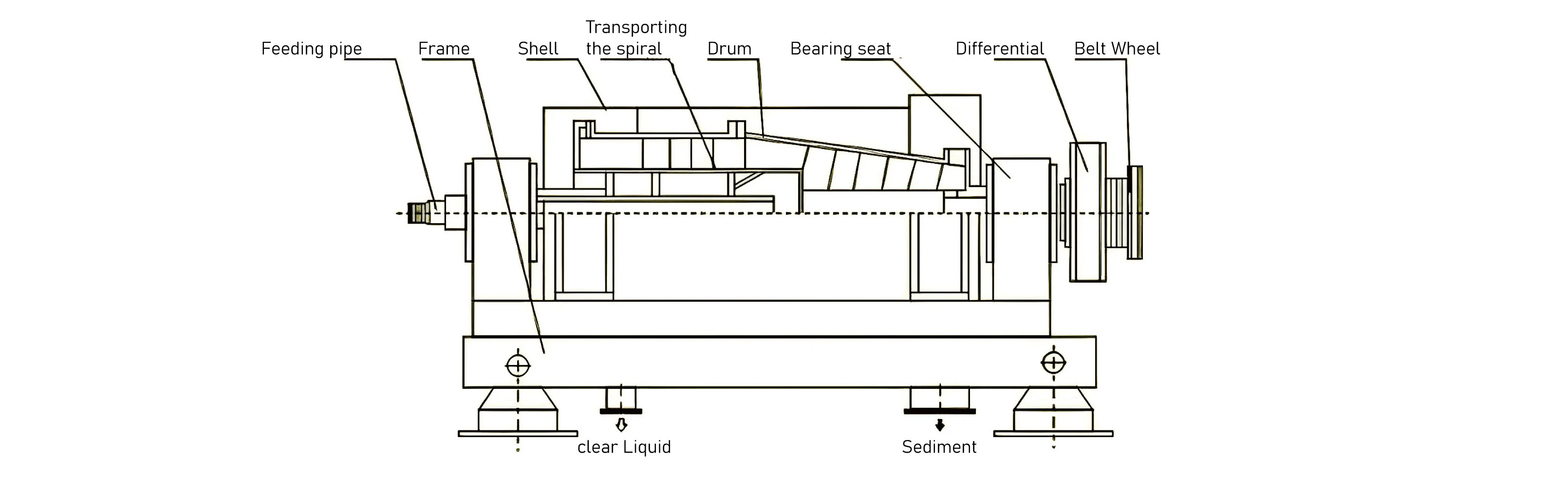

Decanter centrifuge is to use the principle of insolubility of heavy liquid, light liquid and solid phase with different density in the mixture to obtain different settling speeds under the action of centrifugal force field or gravity field, so as to achieve the separation, segregation or settling of solid particles in the liquid. Widely used in oil production and sewage treatment, it is the most popular equipment in the world.
Main motor power(kw) | Processing capability(m³/h) | |
LW-250*1000 | 11 | 0.5-3 |
LW-350*1460 | 22 | 3-12 |
LW-450*1800 | 30-45 | 6-20 |
LW-520*2130 | 45-75 | 12-30 |
LW-650*2275 | 75-110 | 25-35 |
LW-720*2665 | 110-160 | 45-100 |
LW-900*2700 | 160-220 | 50-110 |
LW-1000*2500 | 280 | 50-120 |
-Double-motor double frequency conversion drive system, to achieve differential stepless adjustment and energy feedback
-Spiral furnace blade: Surfacing hard alloy grinding
-Drum cone discharge port: replacement of wear-resistant, corrosion-resistant ceramic alloy bushings
-Electrical protection: overload, phase failure, torque protection.
-Main and auxiliary inverters use a common DC bus, the role of the auxiliary motor is to generate electricity (power saving)
-Spiral furnace blade: Surfacing hard alloy grinding
-Drum cone discharge port: replacement of wear-resistant, corrosion-resistant ceramic alloy bushings
-Electrical protection: overload, phase failure, torque protection.
-Main and auxiliary inverters use a common DC bus, the role of the auxiliary motor is to generate electricity (power saving)
The adaptability of the material is large, the solid phase particle size range can be separated (0.002-2mm), and it can be separated as usual when the solid phase particle size is uneven
Material selection
The material of the part of the centrifuge contacting the liquid can be chosen from austenitic stainless steel (321, 316...), Hastelloy, titanium alloy or other corrosion-resistant materials. 904L, C2205), Hastelloy, titanium alloy or other corrosion-resistant materials.
Special configuration
The following configurations are available according to customer requirements :
1.Frequency conversion +PLC control;
1.Frequency conversion +PLC control;
2.Vibration, main bearing temperature monitoring and protection system;
3.Feed speed control;
4.Drain breath liquid separation device;
5.Cycloidal gear, planetary gear, hydraulic differential three kinds of structure selection differential adjustment range is large, for different solid phase push torque transmission
Polyoxyethylene resin | Sulphate | Diatomite | Starch |
Soy Protein | Peanut protein | Fruit juice | Ammonium acid |
Barium carbonate | Barium sulfate | Titanium dioxide | Titanium dioxide |
Ore | China clay | Vegetable oil | Citric acid |
Waste oil purification | Washing water purification | Distiller's grains | Animal fat |
Blood meal | Power plant sludge | Printing and dyeing sludge | Paper sludge |
Car wash sludge | Sludge drilling mud | Coal flotation waste | Cryolite flotation liquid |
Weather desulfurization sludge | Power plant sludge | Activated sludge | Ammonia sludge |
Why Choose Us
Company Profile
Established in 2019,Jiangsu Hanpu Mechanical Technology Co., Ltd. is a subsidiary of Jiangsu Saideli Machinery Group.It is a professional enterprise engaged in the evaporating crystallization, drying, filtrating, and heat transferring, with the research and development and manufacturing of technical equipment.Located in Junmin Road, Huangqiao Industrial Park, Taixing City, Jiangsu Province,the group has four major production bases, covering an area of 532800 square meters. Currently,there are 1580 employees.And we have fixed assets of 2 billion yuan and annual sales of 2.8 billion yuan.
The main products of the group include MVR evaporators, multi effect evaporators, centrifuges, reaction kettles,
crystallizers,heat exchangers, PILLOW PLATES, Roots compressors, with various supporting fluid equipment.The enterprise has got ISO9001/2015system certification, CE certification, ISO14001:2004 environmental management system certification, possesses A1，A2 pressure vessel manufacturing qualifications, A2 pressure vessel design qualifications, and owns over 100 invention patents and utility model patent technologies.
The company's product quality, advanced technology, and comprehensive after-sales service have been widely recognized around the world, with a high market share. Various series of centrifuges account for 60% of Chinese market and are exported to more than 60 countries and regions, including Germany, the United Kingdom, Italy, Denmark, Switzerland, the United States, Canada, Australia,Mexico, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Romania, India, Indonesia, Vietnam, Thailand, South Africa, Egypt,Cameroon, etc.
With the goal of "innovating products through technology, pursuing excellence in quality, serving customers with integrity and perfection", the company manufactures high-tech, highly automated, safe, and energy-saving equipment to become the best manufacturer of evaporation and fluid equipment in China.
The main products of the group include MVR evaporators, multi effect evaporators, centrifuges, reaction kettles,
crystallizers,heat exchangers, PILLOW PLATES, Roots compressors, with various supporting fluid equipment.The enterprise has got ISO9001/2015system certification, CE certification, ISO14001:2004 environmental management system certification, possesses A1，A2 pressure vessel manufacturing qualifications, A2 pressure vessel design qualifications, and owns over 100 invention patents and utility model patent technologies.
The company's product quality, advanced technology, and comprehensive after-sales service have been widely recognized around the world, with a high market share. Various series of centrifuges account for 60% of Chinese market and are exported to more than 60 countries and regions, including Germany, the United Kingdom, Italy, Denmark, Switzerland, the United States, Canada, Australia,Mexico, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Romania, India, Indonesia, Vietnam, Thailand, South Africa, Egypt,Cameroon, etc.
With the goal of "innovating products through technology, pursuing excellence in quality, serving customers with integrity and perfection", the company manufactures high-tech, highly automated, safe, and energy-saving equipment to become the best manufacturer of evaporation and fluid equipment in China.
Over the years with stron shrengh,good reputalion, srict quality management and high-.quality service system,has become a leading domestic famous brand and won the unanimous recogntion of the majorty of users.The products are exported to the United states, Germany,Spain, Brazil,Argentina, Russia,Indonesia, Vietnam, Thailand,Malaysia, Australia,lsrael Turkey and other pars othe word,and has estabished a wide customer network in China.
Packing & Delivery
Fuel Oil Clarifying Separator+ film + export standard wooden case
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to North America(30.00%),South America(20.00%),Western Europe(10.00%),Africa(10.00%),Northern Europe(7.00%),Oceania(5.00%),Eastern Europe(5.00%),Mid East(5.00%),South Asia(3.00%),Southeast Asia(3.00%),Southern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dimple Plate, Reactor, Centrifuge
4. why should you buy from us not from other suppliers?
The company has a national functional office and facilities as a scientific research bureau. The research center now has 5 doctor tutors, 8 professional engineers, 11 senior engineers, 42 engineers and 68 assistant engineers making it a leading specialized
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Spanish
We are based in Jiangsu, China, start from 2019,sell to North America(30.00%),South America(20.00%),Western Europe(10.00%),Africa(10.00%),Northern Europe(7.00%),Oceania(5.00%),Eastern Europe(5.00%),Mid East(5.00%),South Asia(3.00%),Southeast Asia(3.00%),Southern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Dimple Plate, Reactor, Centrifuge
4. why should you buy from us not from other suppliers?
The company has a national functional office and facilities as a scientific research bureau. The research center now has 5 doctor tutors, 8 professional engineers, 11 senior engineers, 42 engineers and 68 assistant engineers making it a leading specialized
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Spanish
