Product Overview

Description



Light Weight Scissor Lift Table Scissor Work Platform Aerial Scissor Lift Platform


Product Description

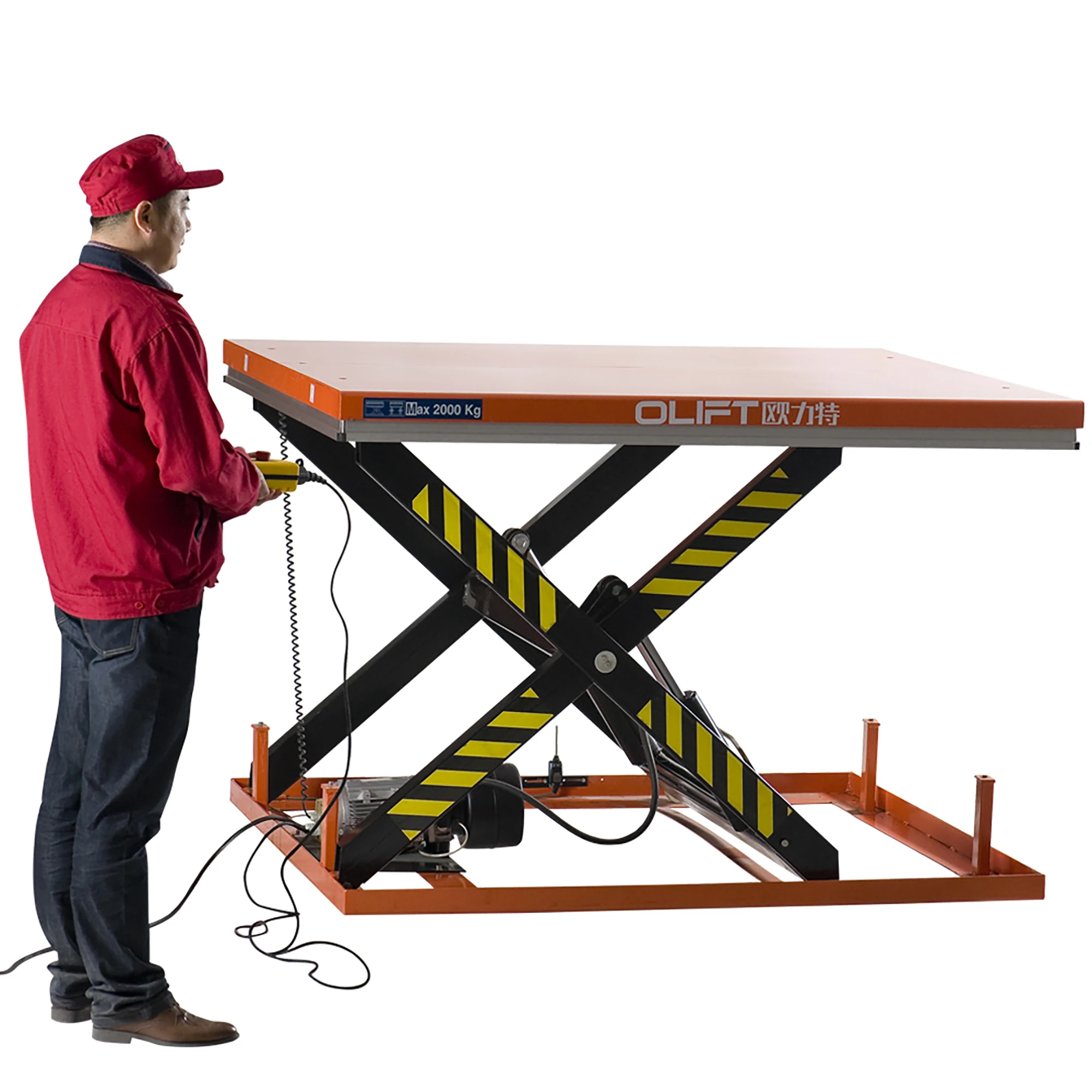

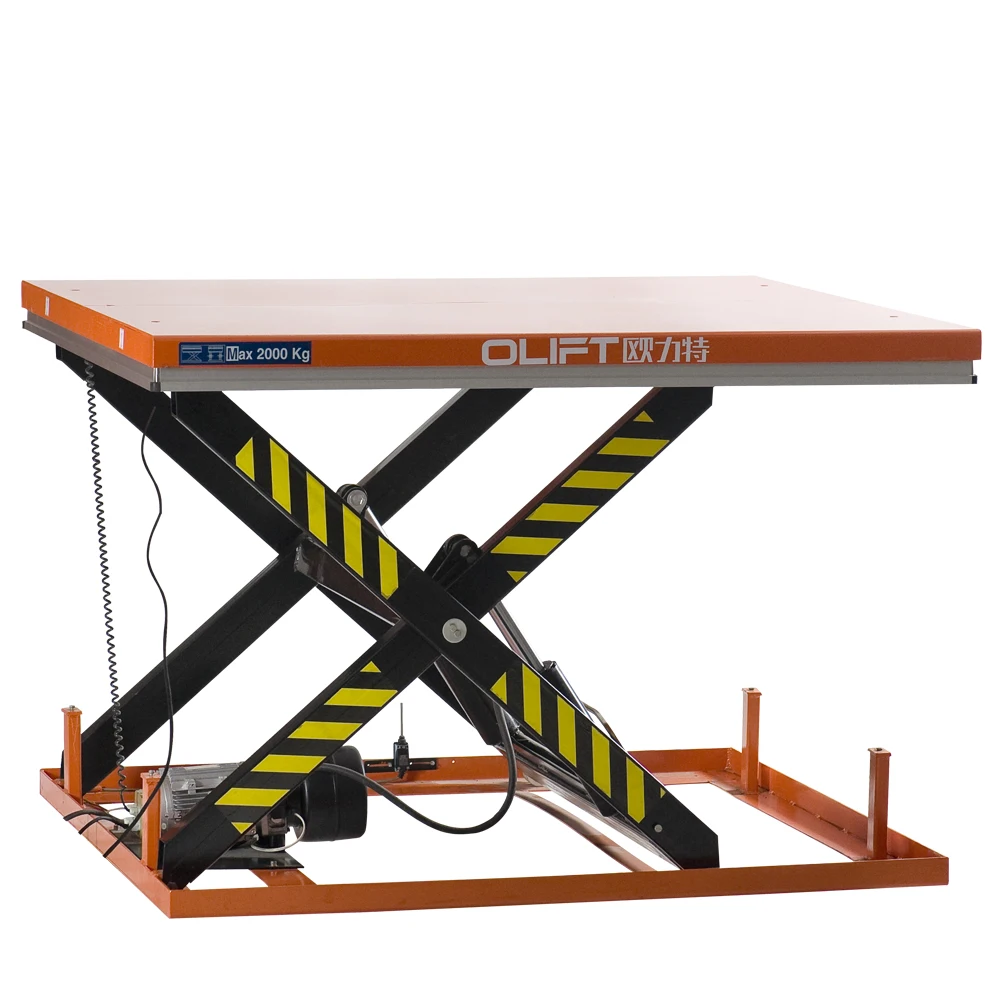

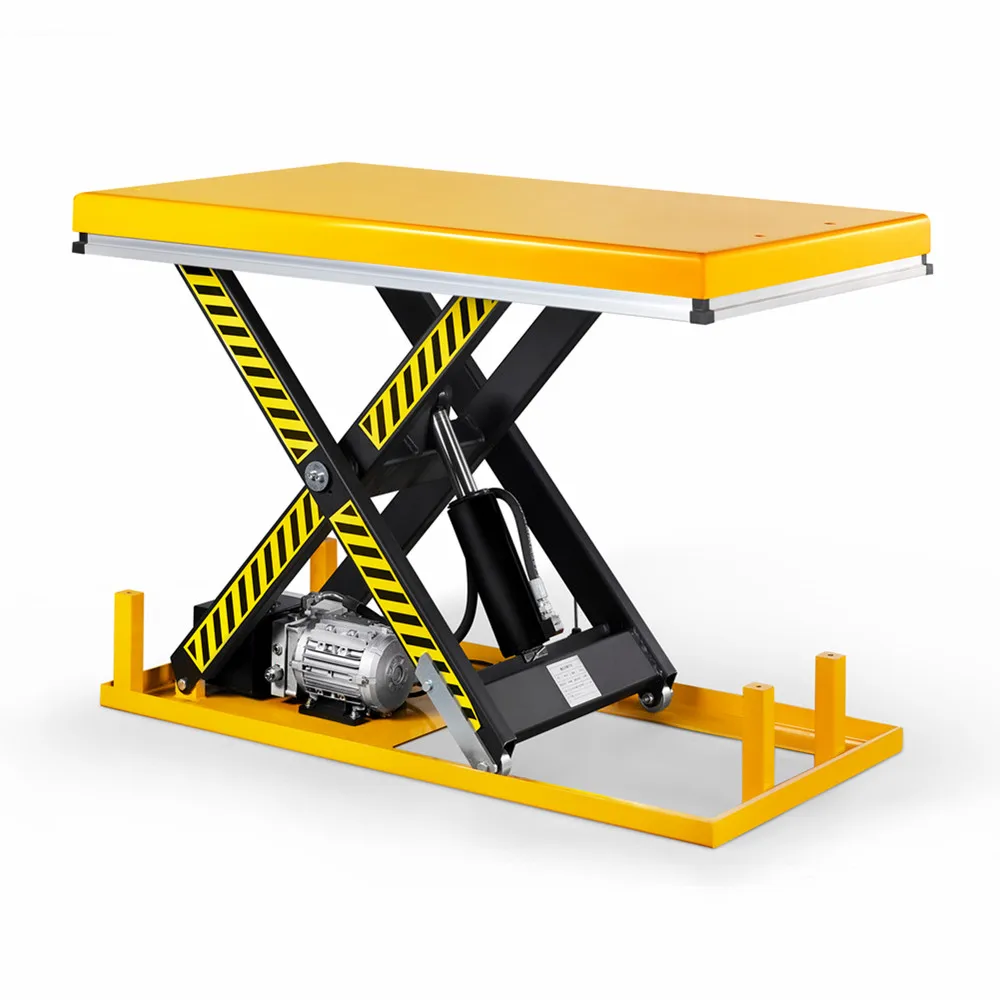

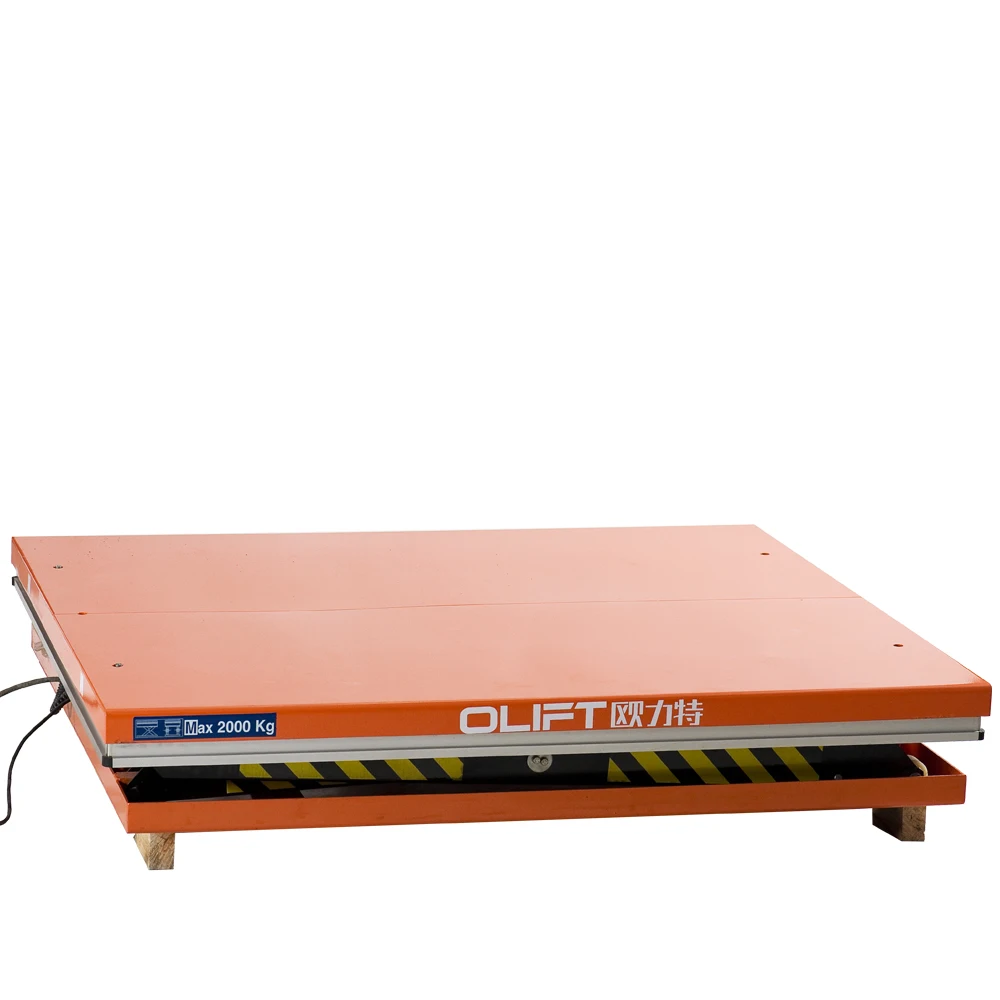

Introduction of Stationary scissor lift platform:
The stationary scissor lift platform is a special hydraulic lifter used for transporting goods between the storeys. The products are mainly used for transporting goods up and down in various working floors; car lifts in high-level garages and underground garage floors. The product hydraulic system is equipped with anti-fall and overload safety protection devices, and operation buttons can be set on each floor and lifting table to achieve multi-point control. The product has a solid structure, large carrying capacity, stable lifting, simple and convenient installation and maintenance. It's an ideal cargo transportation equipment for economic and practical low-floor replacement elevators.


Configuration and performance:
1.Heavy duty design for the scissor lift table.
2.UM series lift tables meet EN norm and ANSI/ASME safety standards.
3.These modles can be used in above-floor or in-floor pit applications.

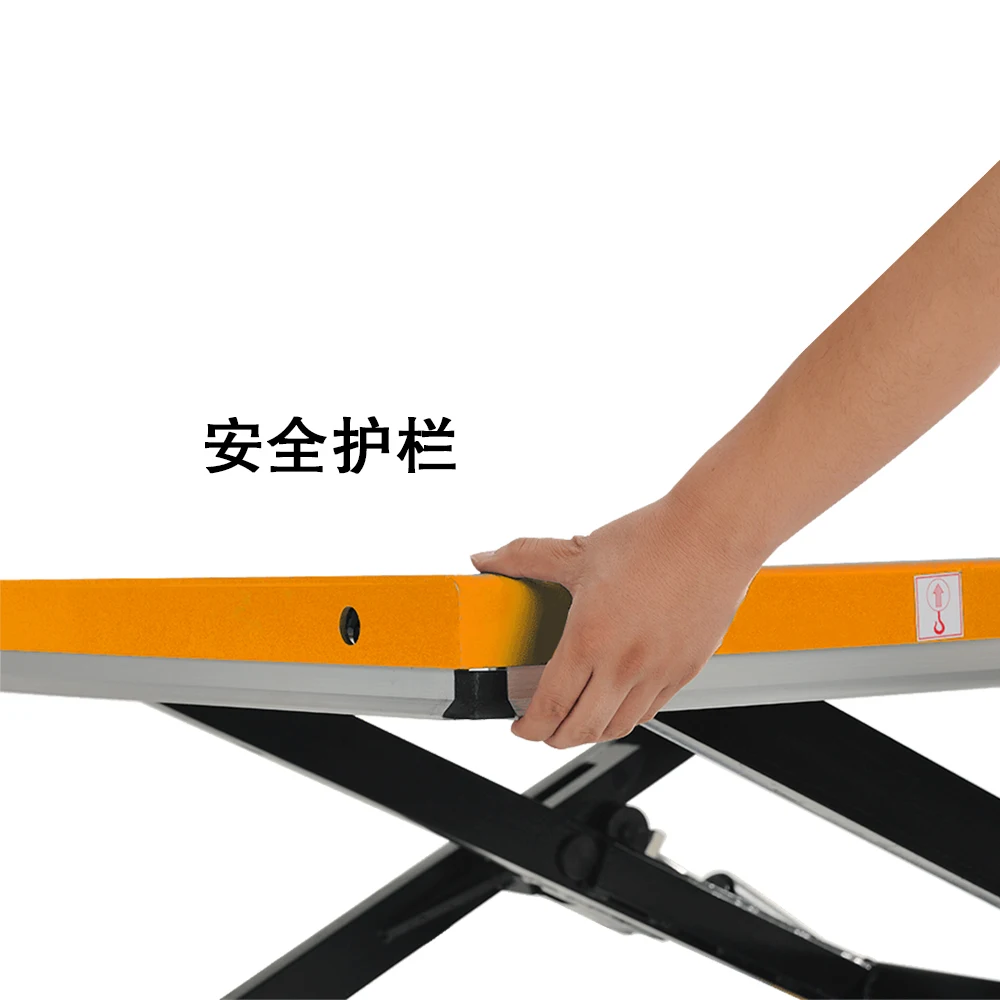

4.Upper platform lifted with aluminum safeth bar preventing descent on contact with obstructions.
5.Safety clearance between scissors to prevent trapping during operation.
6.Adjustable trap prevention safety trip bars on all four sides of the platform.
7.The lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance.


Single scissor stationary scissor lift platform specifications chart:


Model

UM1001
UM1002
UM2001
UM2002
UM4001
UM4002
Load capacity
kg
1000
1000
2000
2000
4000
4000
Max. Platform height
mm
990
990
1000
1000
1050
1050
Min. Platform height
mm
205
205
230
230
240
240
Lifting height
mm
785
785
770
770
810
810
Platform size(L*W)
mm
1300*820
1600*1000
1300*850
1600*1000
1700*1200
2000*1200
Base size(L*W)
mm
1240*630
1240*630
1220*785
1220*785
1600*900
1600*900
Lifting time
s
20
20
20
25
40
40
Voltage/frequency
V/Hz
380/50
380/50
380/50
380/50
380/50
380/50
Motor power
Kw
AC1.1
AC1.1
AC1.5
AC1.5
AC2.2
AC2.2
Net weight
kg
160
186
235
268
375
405


Multi scissors stationary scissor lift platform specifications chart:


Model

A601
A602
A603
A604
A605
Platform capacity
kg
1000
2000
4000
1000
2000
Min.platform height
mm
305
360
400
470
560
Max.platform height
mm
1780
1780
2050
3000
3000
Platform size
mm
820x1300
820x1300
1700x1200
1700x1000
1700x1000
Base size
mm
640x1240
785x1220
1600x900
1600x1000
1600x1010
Lifting Time
s
35~45
35~45
55~65
35~45
50~60
Power Pack
V
AC 380
AC 380
AC 380
AC 380
AC 380
Motor power
Kw
2.2
2.2
2.2
2.2
2.2
Total weight
kg
210
295
520
450
750


Model

A606
A607
A608
Platform capacity
kg
400
800
1600
Min.platform height
mm
600
706
800
Max.platform height
mm
4140
4210
4250
Platform size
mm
1700x1000
1700x1000
1700x1200
Base size
mm
1600x1000
1600x1000
1610x1140
Lifting Time
s
30~40
70~80
50~65
Power Pack
V
AC 380
AC 380
AC 380
Motor power
Kw
2.2
2.2
2.2
Total weight
kg
800
858
1045


Details Images




Related Products




Packing&Shipping


Packaging Detail:
The stationary scissor lift platform will be packed by Flexible Package.
Delivery Date:
Within 15-20 days for stationary scissor lift platform after receive advance payment.

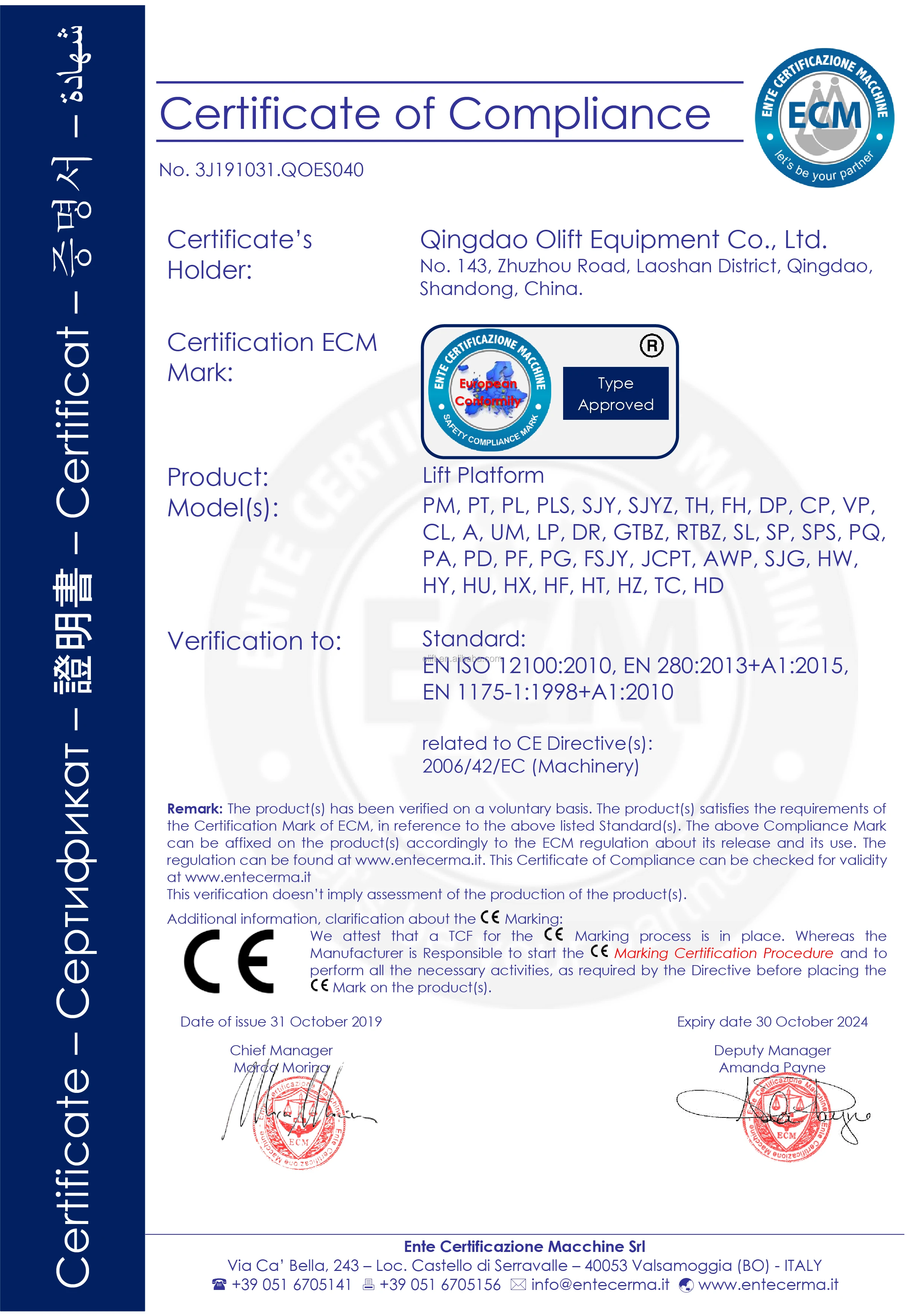

Certifications




Company Introduction


Qingdao Olift Equipment Co.,Ltd. provides wide selection of products such as forklift truck, pallet truck and electric stacker, semi-electric stacker, scissor lifts, moving tool, car mover, platform lifting, wheelchair lift platform and more. We have professional team members to design your hand pallet truck products and control the quality.




Exhibition


Choose Olift, Trust Olift.
Qingdao Olift Equipment Co., Ltd are exporting our Material Handling Products to Asia, America, Europe, Oceania and other areas for more than 16 Years. Our Products include Forklift Truck, Stacker, Pallet Truck, Scissor Lift Platform, Order Picker, Car Mover, Vacuum Lifter, Hand Trolley, etc.


After Sales Service




Qingdao Olift Equipment Co., Ltd. is professional Material Handling Expert.
1. After-sales service provided: Engineer available to service machinery overseas.
2. We offer technical supporting for the stationary scissor lift platform all year round.
3. Choose OLIFT is to choose higher work efficiency, better quality and service.
4. If you want to get more details, please visit our website: www.olift.com for more details of the trucks.
5. The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment.
6. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.






Qingdao Olift Equipment Co., Ltd.

Address: No. 143, Zhuzhou Road, Laoshan District, Qingdao, Shandong, China 266100
Tel : +86-532-88990008
Sales Manager.: Jenny Jiang
Mobile/WhatsApp/Wechat:+86 18354255925
Website: www.olift.com


FAQ
No matter if you operate in a vehicle production plant or at a reseller, moving vehicles has never been safer and more effective than with a stationary scissor lift platform.
With the stationary scissor lift platform you only need one person to drive.
One operator is all that is needed, eliminating strenuous work and possible physical injury. And since time is money, you are actually saving both due to the efficiency of a stationary scissor lift platform and its power, as the workforce can be utilized in a more cost-effective way.

Rely on Olift stationary scissor lift platform as your one-man-operator solution to:
1. Obtain an improved working environment with less injuries and an emission free workshop or showroom.
2. Be more cost effective with time as well as space.
3. Make sure you put safety first, as a stationary scissor lift platform minimize hazards of operator accidents.
