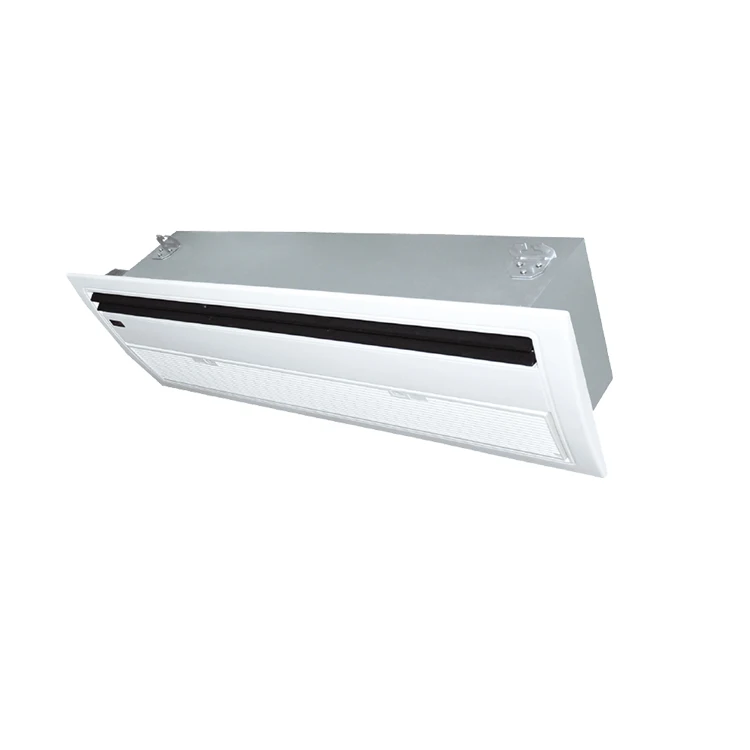

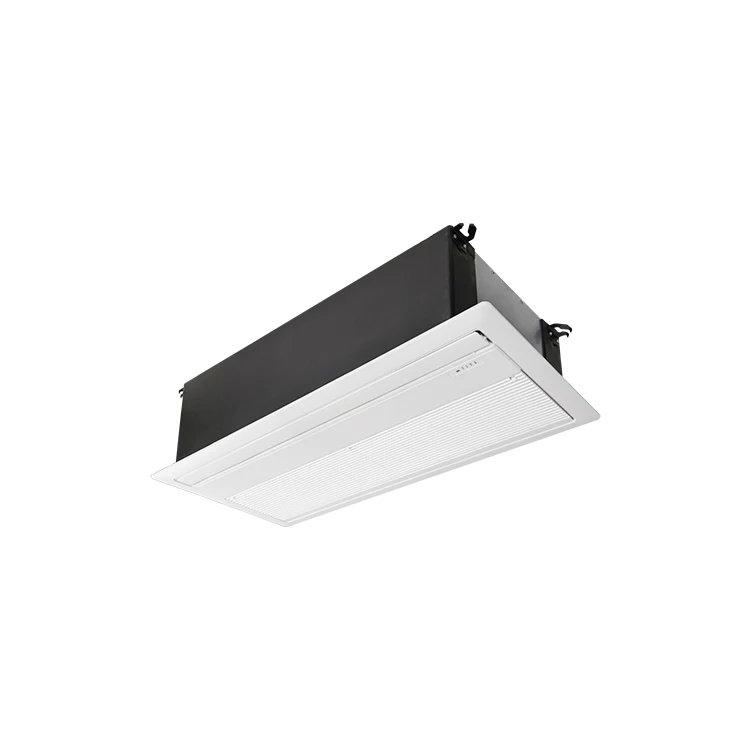

  • 50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System

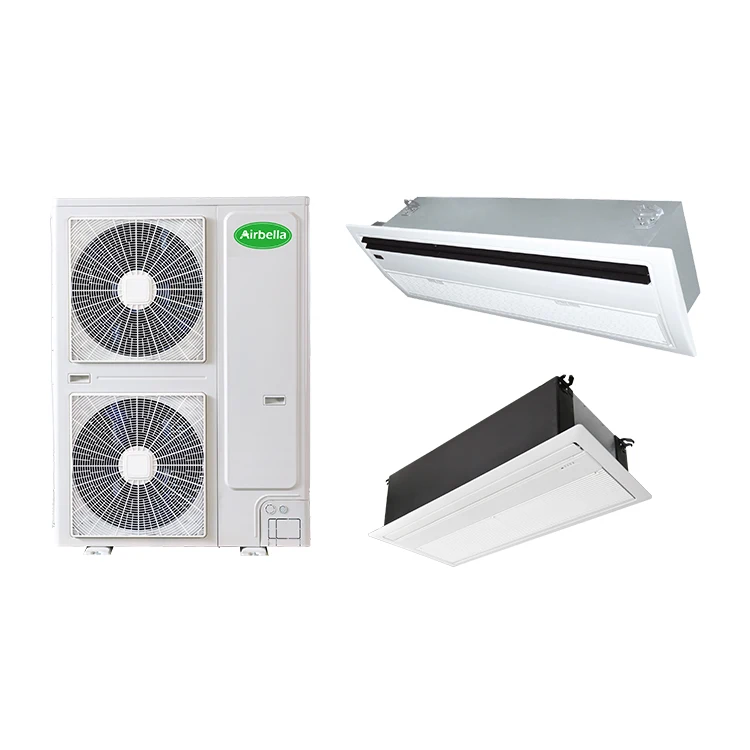

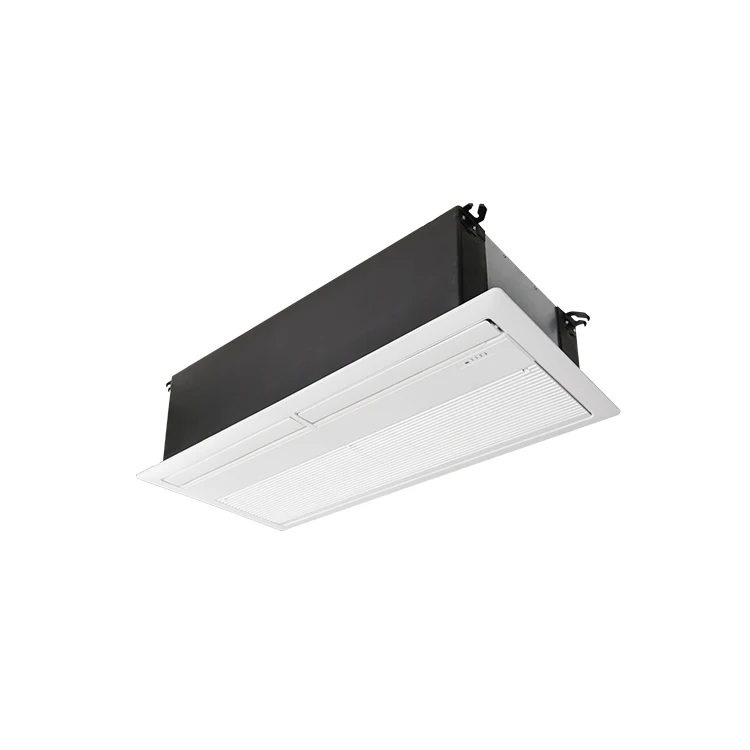

50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System
50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System
50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System
50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System
50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System
50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System
50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System

50HZ R410a AC 2.2KW Ceiling Split Mounted Multi Zone VRV VRF Inverter AC Unit Central Airconditioner System

Share on (1601207492829):


Price:$410.00 - $500.00

Quantity:


Product Overview

Description





Model
AMVC1-V22HA1X-G
AMVC1-V28HA1X-G
AMVC1-V36HA1X-G
Power supply
220-240V/1N/50Hz
220-240V/1N/50Hz
220-240V/1N/50Hz
Capacity
Cooling
kW
2.2
2.8
3.6
Heating
kW
2.5
3.2
4
Power input
kW
0.04
0.04
0.04
Fan motor
Model
YSK-10-4A
YSK-10-4A
YSK-10-4A
Type
AC
AC
AC
Brand
Chigo
Chigo
Chigo
Capacitor
μF
1.6
1.6
1.6
Speed
r/min
730
730
730
Indoor coil
Number of rows
3
3
3
Fin type
Hydrophilic Aluminum
Hydrophilic Aluminum
Hydrophilic Aluminum
Tube diameter and type
mm
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Air flow
m3/h
520
520
520
Sound pressure level
dB(A)
32～36
32～36
32～36
Body
Dimension (W×H×D)
mm
994×250×532
994×250×532
994×250×532
Packing (W×H×D)
mm
1160×275×655
1160×275×655
1160×275×655
Net/Gross weight
kg
24/30
24/30
24/30
Panel
Dimension (W×H×D)
mm
1070×50×520
1070×50×520
1070×50×520
Packing (W×H×D)
mm
1090×65×540
1090×65×540
1090×65×540
Net/Gross weight
kg
3.6/5
3.6/5
3.6/5
Refrigerant type
R410A
R410A
R410A
Throttle type
Electrical expansion valve
Electrical expansion valve
Electrical expansion valve
Design pressure
MPa
4.5
4.5
4.5

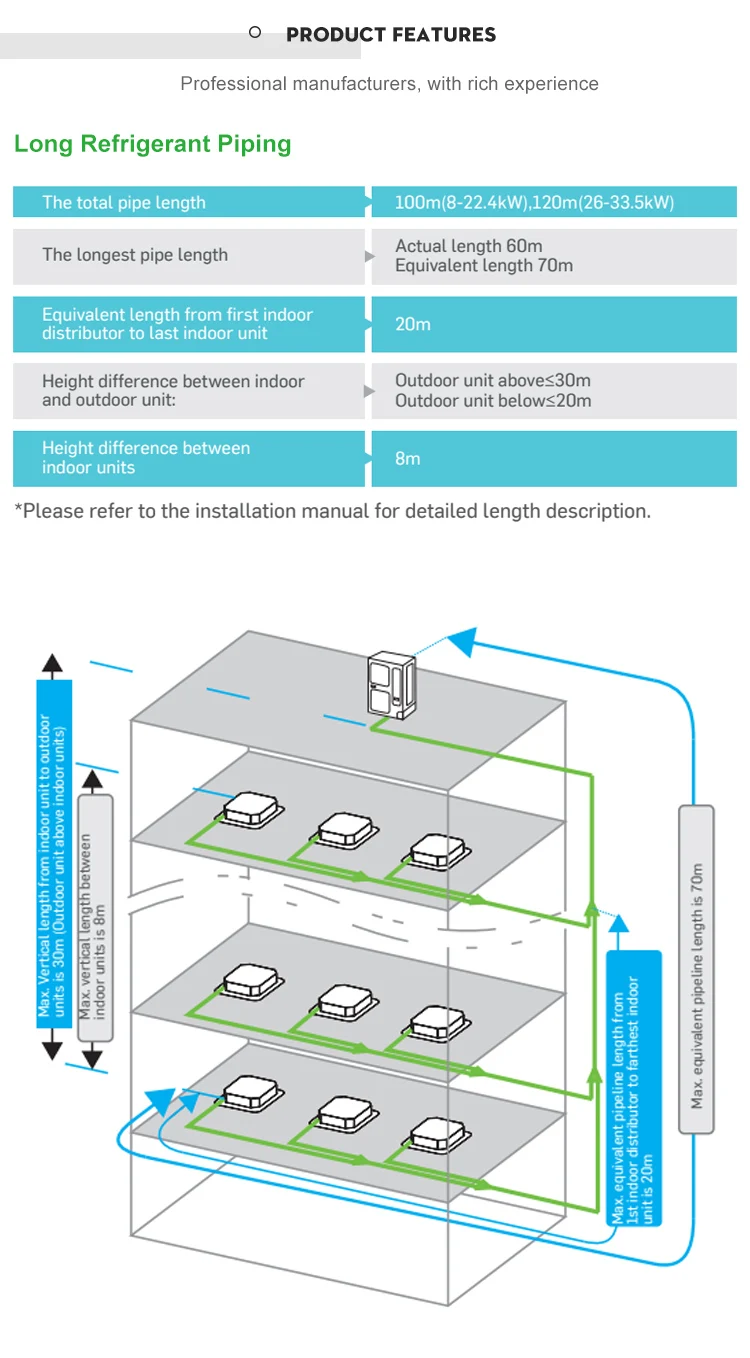

Liquid pipe / Gas pipe
mm
Ø6.35/ Ø9.53
Ø6.35/ Ø9.53
Ø6.35/ Ø9.53
Connecting wire
Power wire
mm2
2.5*2+2.5(L≤20m)
2.5*2+2.5(L≤20m)
2.5*2+2.5(L≤20m)
4*2+2.5(20
4*2+2.5(20
4*2+2.5(20
Signal wire
mm2
0.75
0.75
0.75
Drainage water pipe (Outer diameter)
mm
Ø25
Ø25
Ø25
Controller
Standard
Remote controller
Remote controller
Remote controller
Optional
Wired controller
Wired controller
Wired controller
Operation temp
˚C
16~32
16~32
16~32


















Airbella is a professional and reliable air conditioner supplier in Guangdong China. Founded in 2012 in Hongkong, Airbella had actually served for off-line customers for over12years. Our business has covered North and Latin America, Asia pacific, Africa and Europe. Currently, we have more than 100 OEM customers, and just started to run our own brand Airbella since 2024.Our team is made up of different departments such as sales, R&D and after service, quality control and production.
