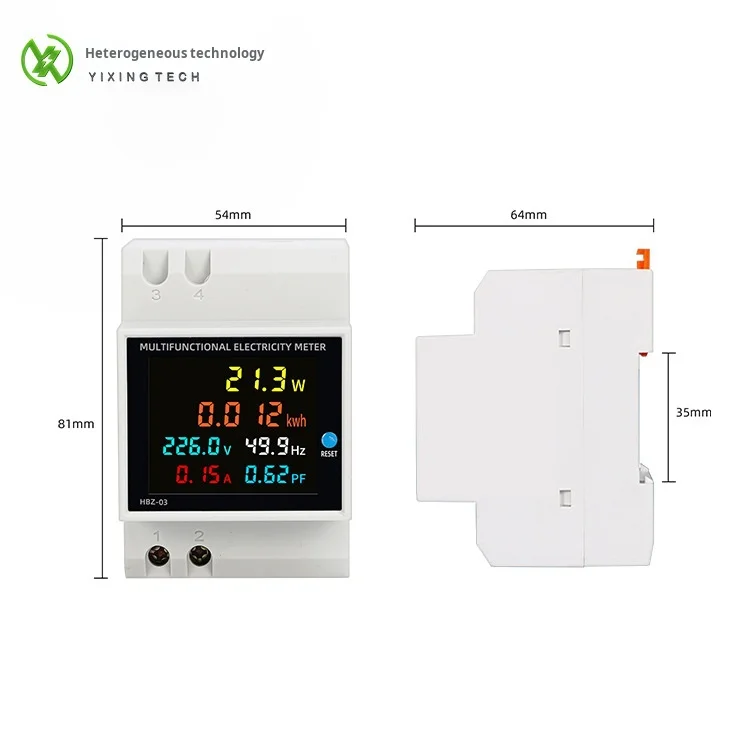

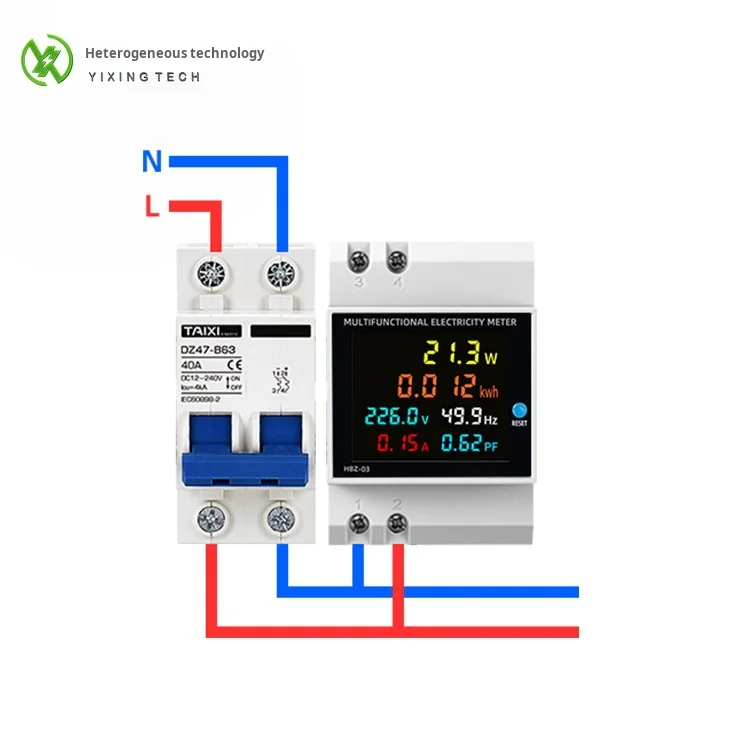

6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP
- Category: >>>
- Supplier: Zhejiang Pinyu Electric Technology Co. Ltd.
Share on (1601207651257):
Product Overview
Description
Parameters
Features: 100% Brand new and high quality!
D52-2066
Good stability, standard size, high precision, easy to install

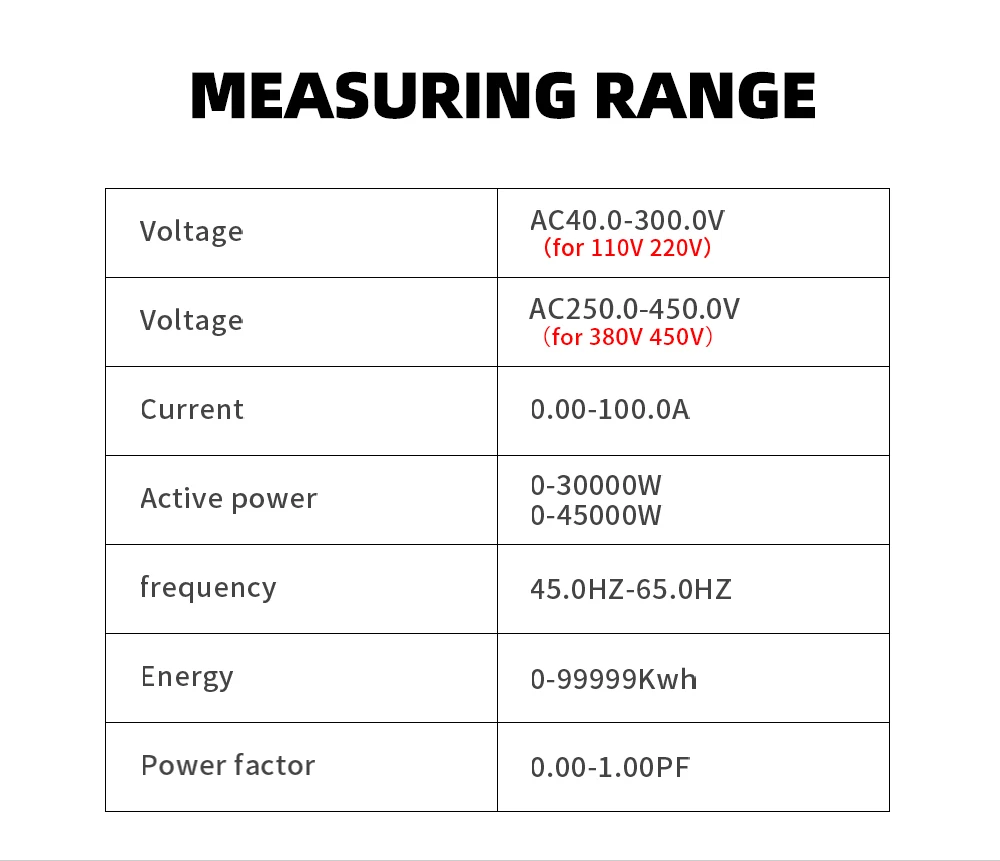

Specifications:
| Measurement accuracy | 1%±2 words |
| AC voltage | AC 40.0-300.0V or AC 250.0-450.0V (You should select one type of the meter in your order) The measuring range 40-300V without limitation, and it can be used in grid power, photovoltaic and inverter current 250-450V only can use for 380V |
| AC Current | AC 0-100.0A, the current resolution is 0.01A . |
| Frequence | 45.0Hz – 65.0Hz |
| Power Factor | 0.00-1.00PF |
| Electric Power | 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W |
| Electric Energy | 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh |
| Measurement speed | about 2 times per second |
Product display
