Peacefair PZEM 004 TTL порт вольтметр светодиодный интеллектуальный счетчик электроэнергии цифровая панель счетчик домашняя система мониторинга энергии
- Category: Voltage Meters >>>
- Supplier: Ningbo Peacefair Electronic Technology Co. Ltd.
Share on (60712472291):
Product Overview
Description
Product Description

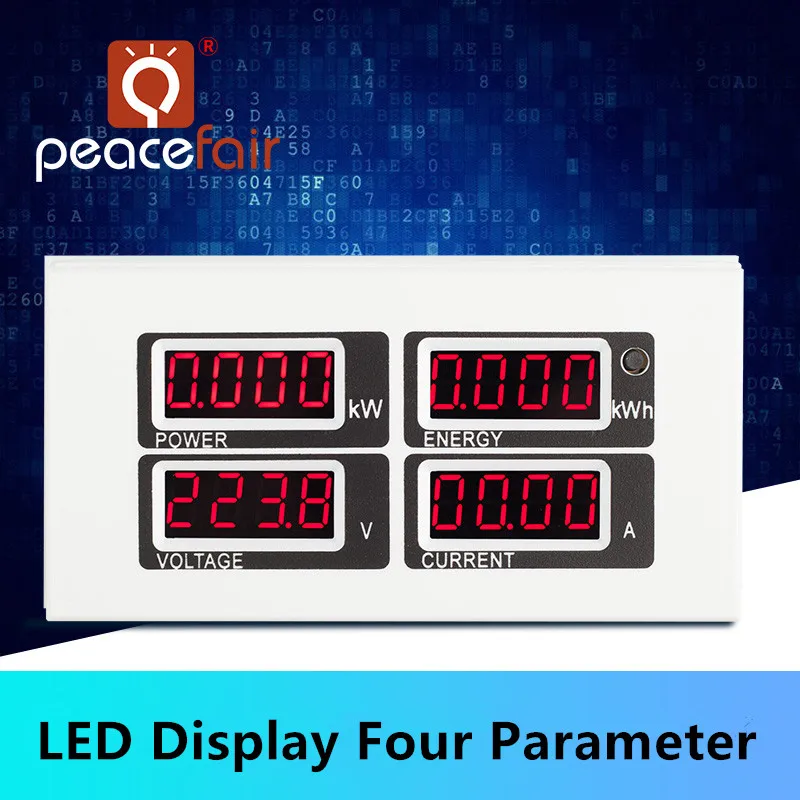

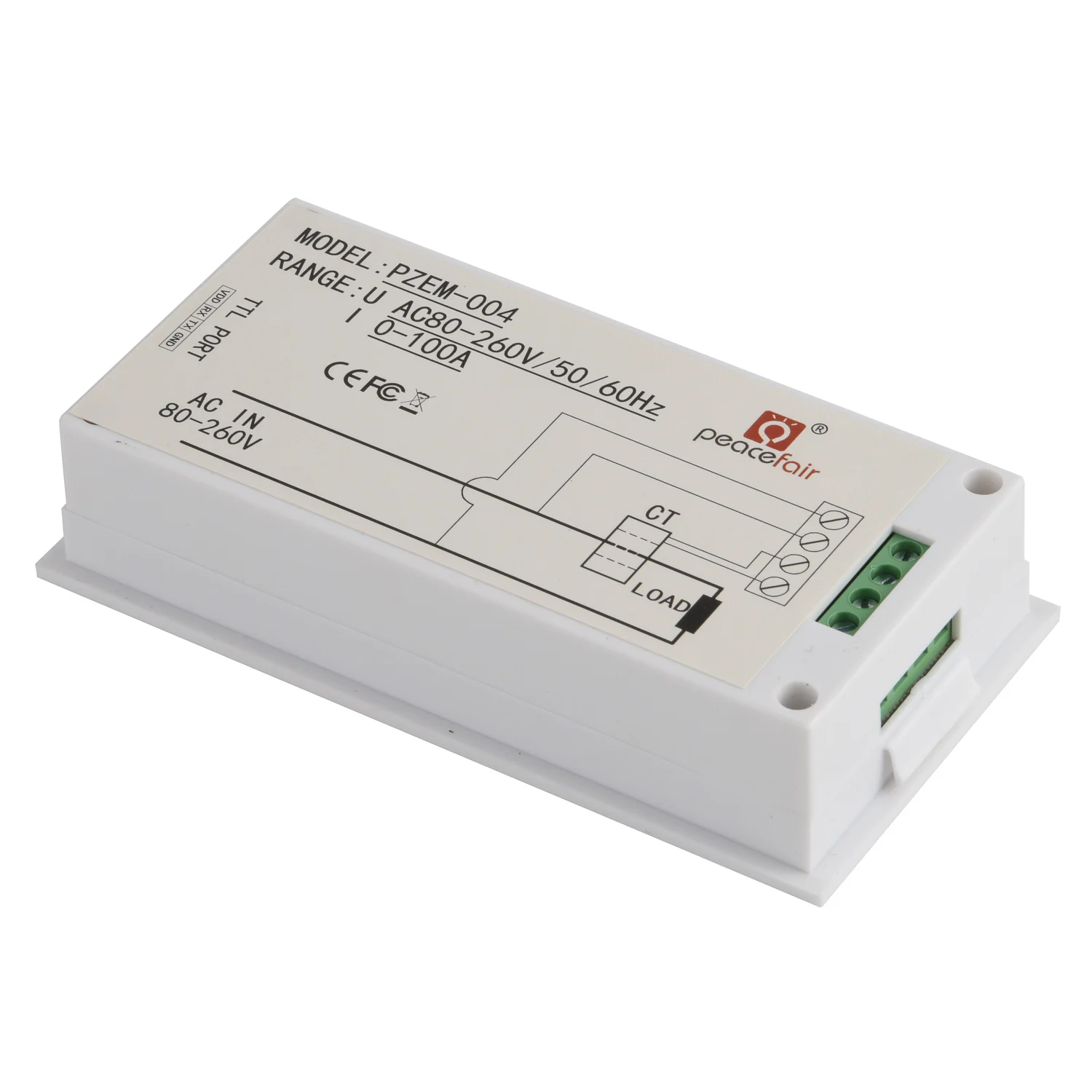

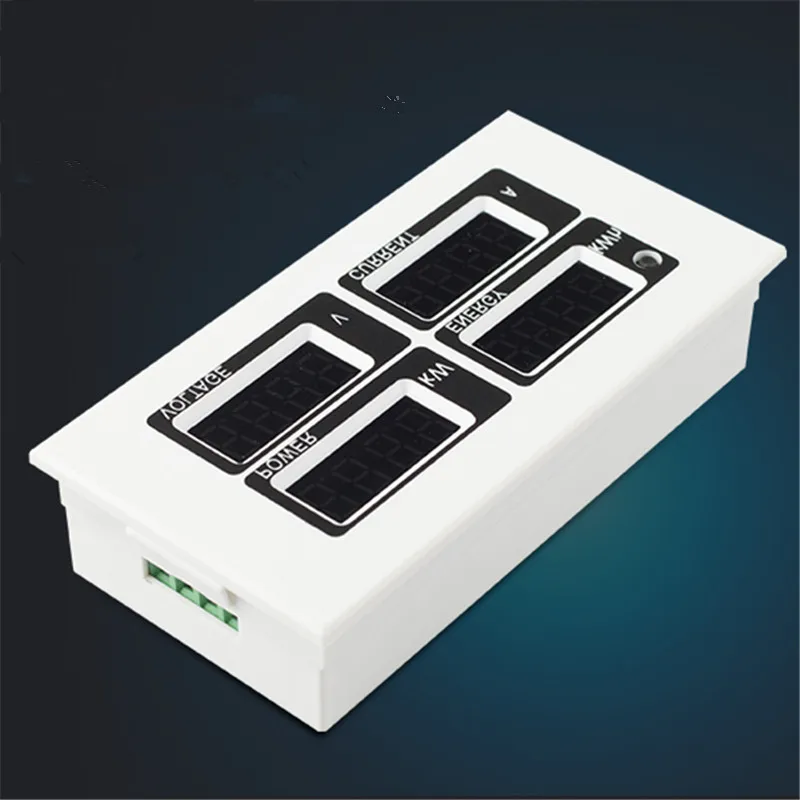

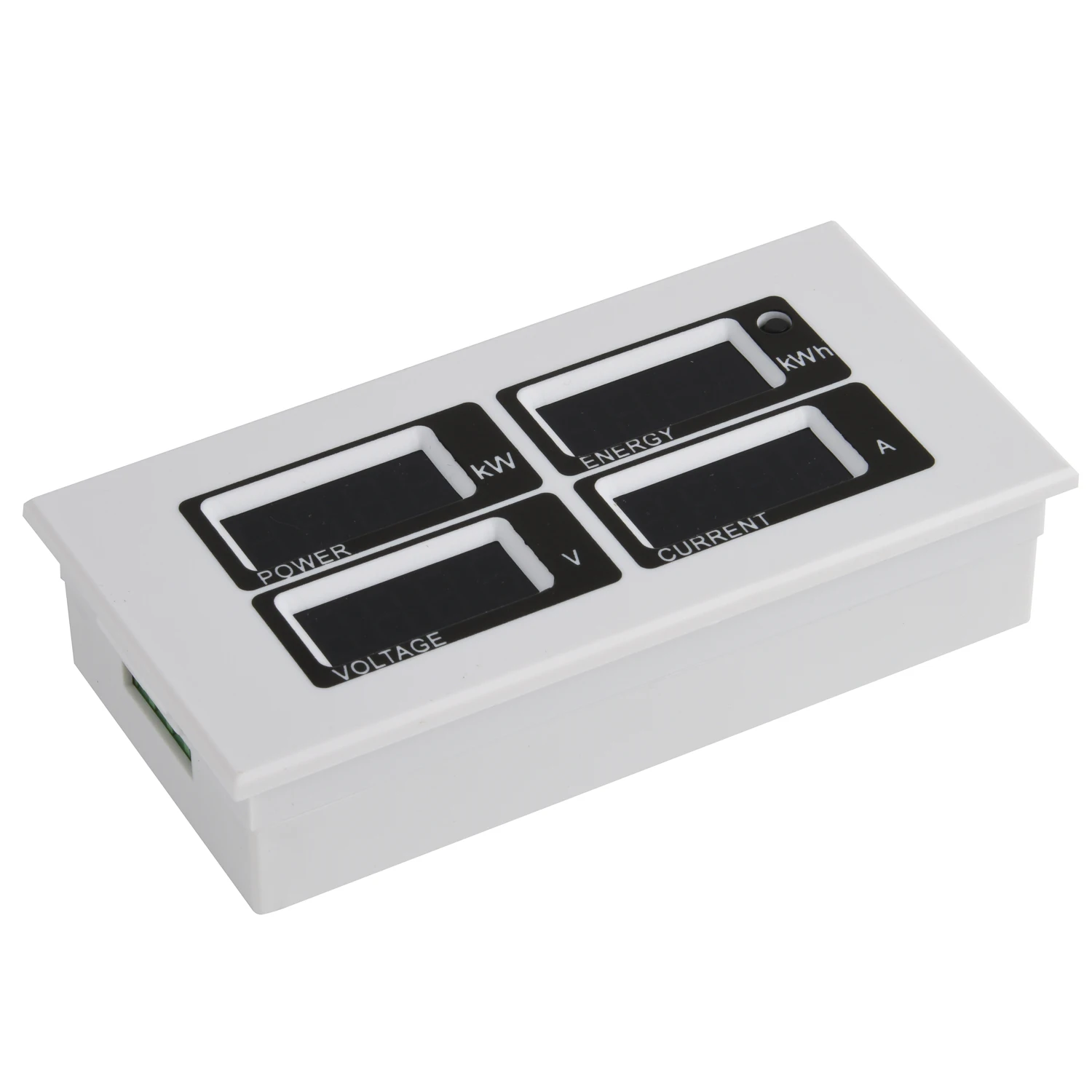

Peacefair PZEM-004 TTL Port Voltmeter LED Smart Meter Electricity Digital Panel Meter
Product Type | PZEM-004 |
Current Range | 0-100A |
Voltage Range | AC 80-260V |
1. Measure voltage, current, active power, energy 2. Overload alarm 3. Set power alarm threshold 4. Reset energy 5. Store data when power off 6. Bright red LED display 7. TTL serial interface, can communicate with a variety of terminal through the pin board, read and set the parameters). |
The Key
There is a key on the panel, it can be used to reset energy.
The method of reset energy: Long press the key for 5 seconds until the digital on energy display window flicker, then release the key. Short press the key again, then the energy data is cleared and quit the flickering state, now the reset operation is completed; if long press for 5 seconds again until no longer flicker, it means exit the reset state.

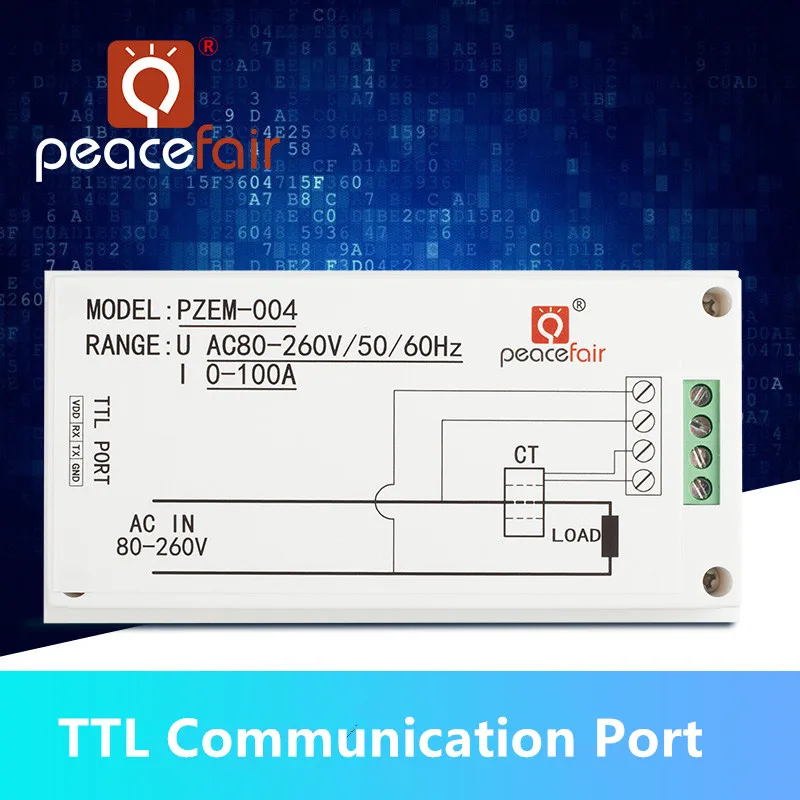

Serial communication

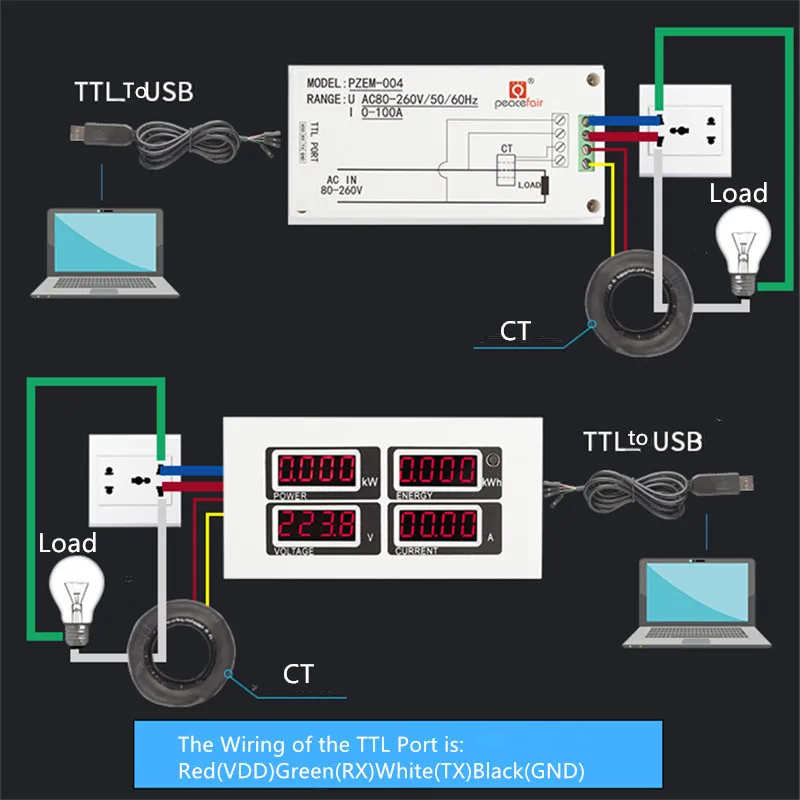

This module is equipped with TTL serial data communication interface, you can read and set the relevant parameters via the serial port; but if you want to communicate with a device which has USB or RS232 (such as computer), you need to be equipped with different TTL pin board (USB communication needs to be equipped with TTL to USB pin board; RS232 communication needs to be equipped with TTL to RS232 pin board)
The method of reset energy: Long press the key for 5 seconds until the digital on energy display window flicker, then release the key. Short press the key again, then the energy data is cleared and quit the flickering state, now the reset operation is completed; if long press for 5 seconds again until no longer flicker, it means exit the reset state.
Serial communication
This module is equipped with TTL serial data communication interface, you can read and set the relevant parameters via the serial port; but if you want to communicate with a device which has USB or RS232 (such as computer), you need to be equipped with different TTL pin board (USB communication needs to be equipped with TTL to USB pin board; RS232 communication needs to be equipped with TTL to RS232 pin board)

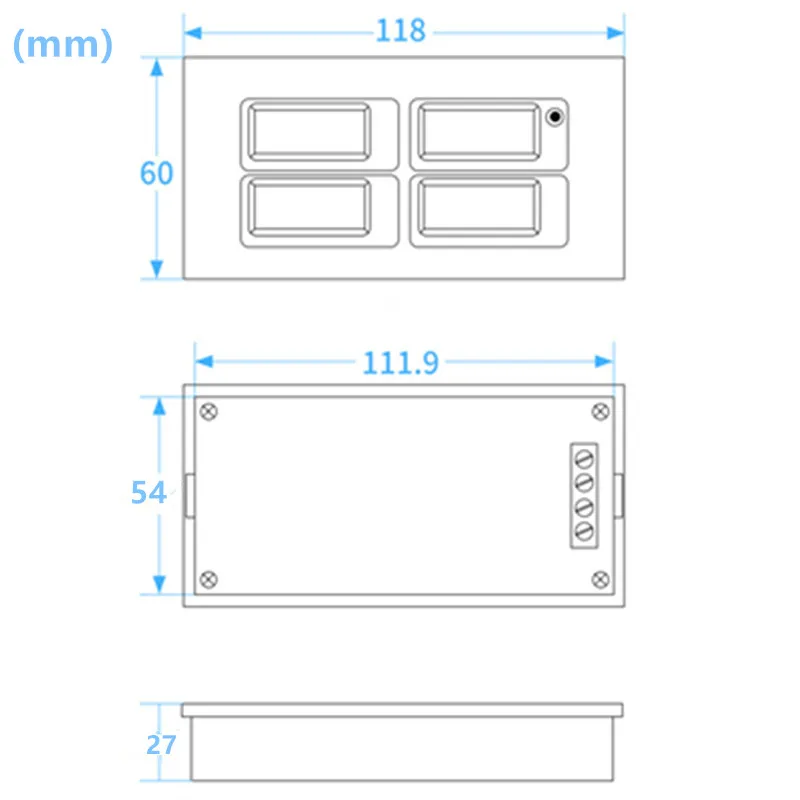

Size Information
Related Products
Company Introduction
Ningbo Peacefair Electronic Technology Co., Ltd. is founded in 2 0 1 4. The area of the factory is 1800square meters, has two assembly line. We are a professional manufacturer engaged in the research, development, production, sale and service of AC and DC Electric digital power meter, Voltage meter and Energy meter. Our products have the patent and C E, F C C certificates.
