Factory direct Sales steel slag cleaning PC1200 Robot Remote Demolition Robot with 75Kw Electric Motor 10m working radius
- Category: >>>
- Supplier: China Construction Machinery Co. Ltd.
Share on (1601207860633):
Product Overview
Description
Product Description
Specification

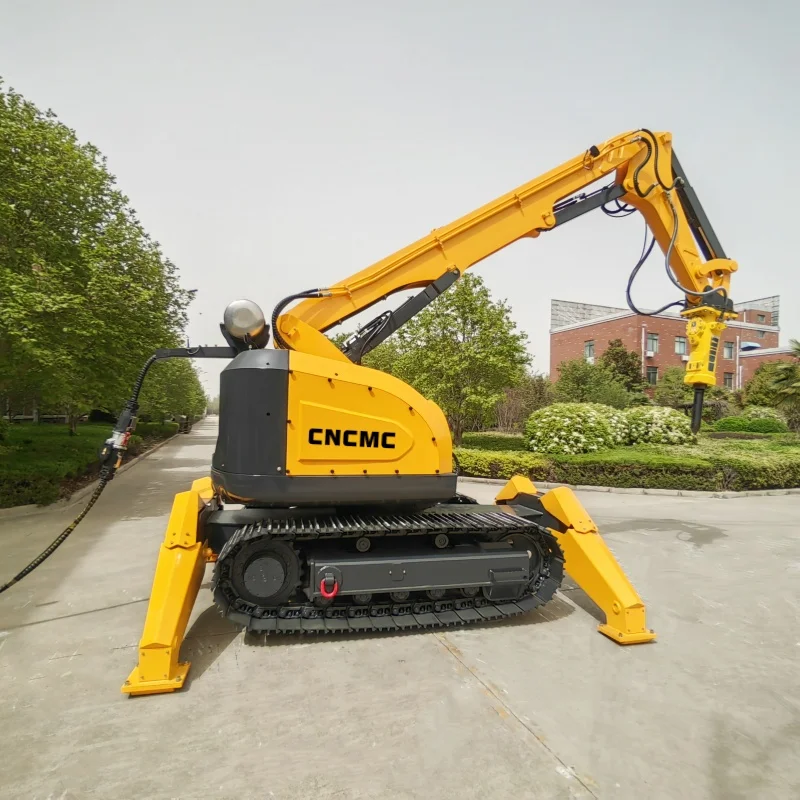

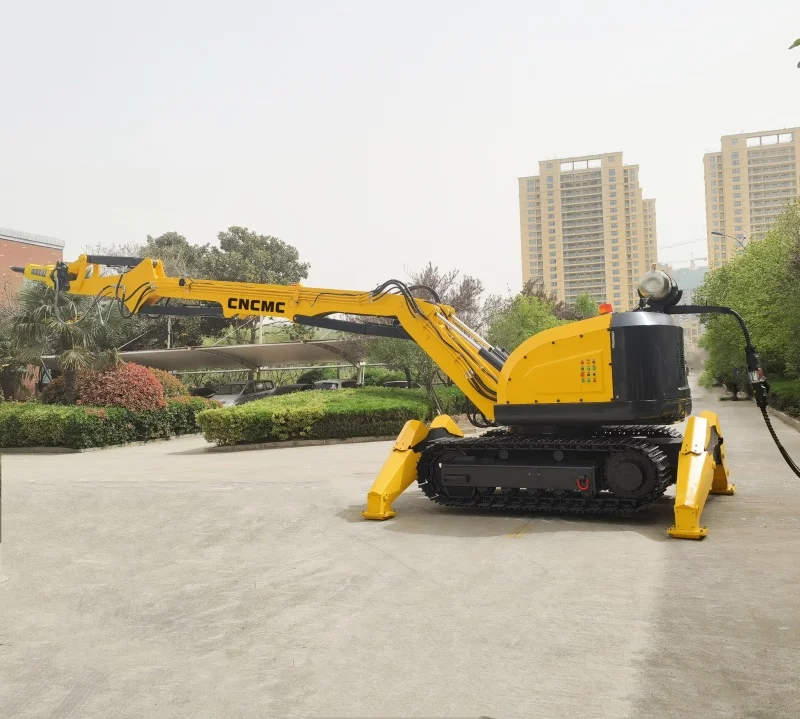

PC1200 Demolition Robot
Warranty 12months or 2000 working hours，depending on which comes first.
Basic Parameter：
Hammer : 100mm chisel
Working radius：10.0m
Power: 75Kw
Weight: 15300kg
Dimension: 5800x2130x3080 mm
Basic Parameter：
Hammer : 100mm chisel
Working radius：10.0m
Power: 75Kw
Weight: 15300kg
Dimension: 5800x2130x3080 mm
Demolition Robot PC1200 | ||
Hammer | 100mm | |
Work Radius | 10.0m | |
Grade ability | 30° | |
Rotary speed/range | 6.8rpm/360° | |
Max walking speed | 3.0km/h | |
Track | Steel type | |
Outrigger | 4, frog type | |
Noise level | 120dB(A) | |
Weight | 15300kg | |

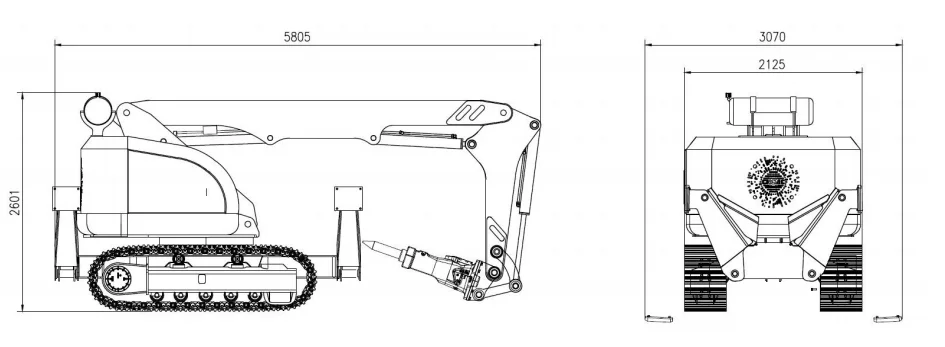

Dimension(LxWxH) | 5800x2130x3080 mm | |
Hydraulic system | ||
Drive mode | Electron-hydraulic proportional | |
Hydraulic pump type | Load sensitive variable axial piston pump | |
Hydraulic valve type | Electron-hydraulic proportional valve | |
Hydraulic system capacity | 220L | |
Max flow rate of hydraulic pump | 135L/min | |
System pressure | 20Mpa | |
Power system | ||
Power option | Electric motor 75Kw(380V/50Hz) | |
Start mode | Soft start | |
Control system | ||
Operation | Portable remote controller | |
Signal mode | Digital | |
Control mode | Wired/wireless | |
Remote control distance | 300m | |
Working range | ||
Max vertical working height | 10800mm | |
Max working distance | 9080mm | |
Max working depth | 4500mm | |
Color | Painting as required | |
Product Features：
1. Remote Control Demolition Robot is designed to remove large concrete structures in a very secure way, it can largely reduce the risks of falling rubble and debris, it is robust and powerful, and the machine is capable to break, crunch, clear, drill and scrabble any concrete structure.
2. The operator will have a comprehensive view of the work being undertaking as the machine is radio controlled thus providing a unique perspective. The operator is free to select the best location from which to supervise and progress the works at a safe distance.
3. Robotic demolition brings incredible benefits: allowing access to areas not possible with traditional methods, such as cross a single doorway, staircases, carried by elevator, safety for HAVS, high altitude demolition, cleaning of cement plant kiln, cleaning of steel smelting furnace, cleaning of radioactive cement for nuclear power plant, etc.
Recommend Products

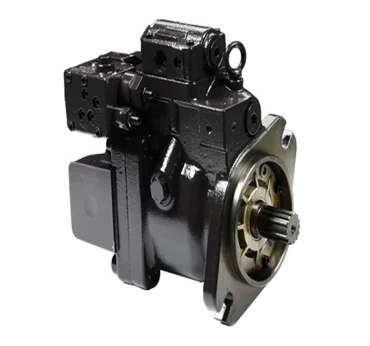

1.Axial piston pump
The swash plate axial piston pump relies on the reciprocating motion of the plunger in the plunger cavity to change the internal volume of the plunger cavity to achieve oil absorption and oil discharge. It can meet the needs of high pressure and high speed, with compact structure and good craftsmanship. Low cost, small size, light weight, easy to realize stepless variable, convenient maintenance, so the swash plate axial piston pump has a great advantage in technical and economic indicators.

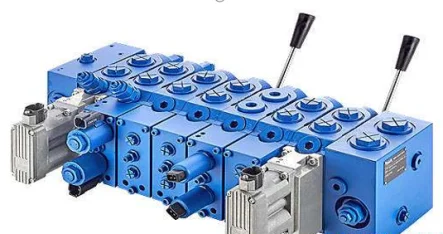

2.Electrically controlled proportional valve
The electromagnetic reversing valve is used, and the valve core is pushed by the suction force of the electromagnet to change the working position of the valve. It can be controlled by signals from button switches, travel switches, limit switches, pressure relays, etc., so it is easy to operate and easy to automate.

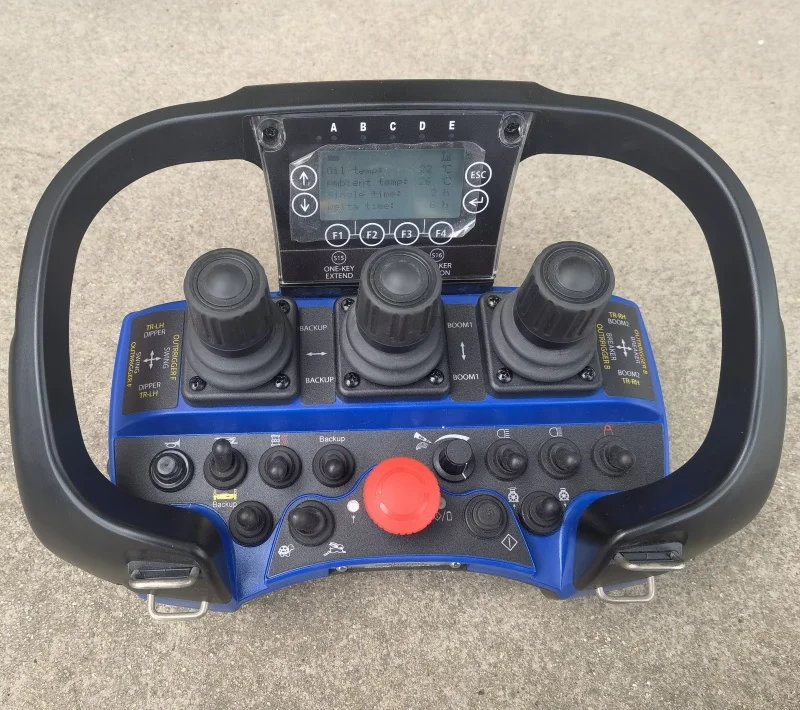

3.Scanreco remote controller
Scanreco is a remote control specially used for construction machinery to prevent electromagnetic interference, and the conservative communication distance is 500 meters. The receiver has a plastic housing and is equipped with a port for connection to a portable transmitter (for wired operation), with a CAN line connection. The receiver can be used in extremely harsh environments, and the plastic housing is moisture-proof, heat-proof, dust-proof, shock-proof and corrosion-proof. Receiver input and output with short-circuit protection, anti-electrode reverse protection, over-voltage protection, instantaneous high-voltage input protection.
