Africa Widely Used Elevated High Strength Steel Structure Mould Pressing Sectional Square Galvanized Steel Water Storage Tank
- Category: >>>
- Supplier: Hebei Lanyu Rubber & Plastic Products Co. Ltd.
Share on (1601208087331):
Product Overview
Description

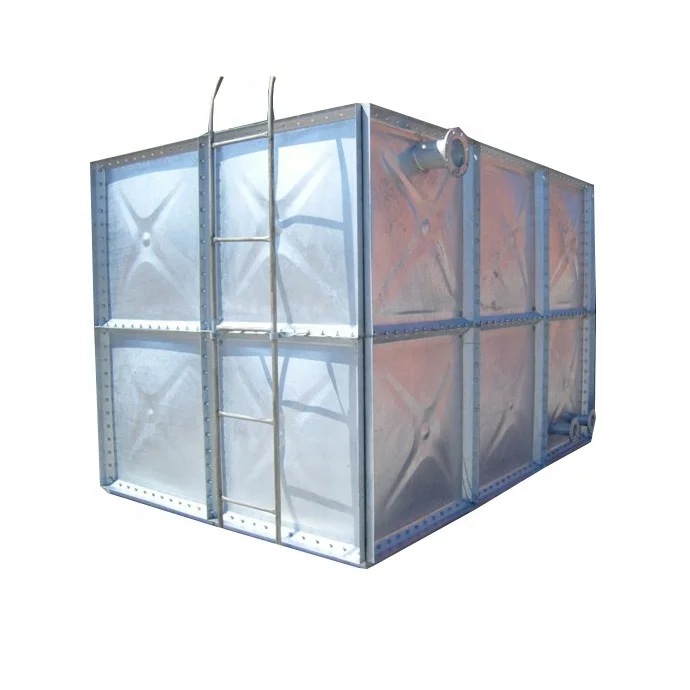

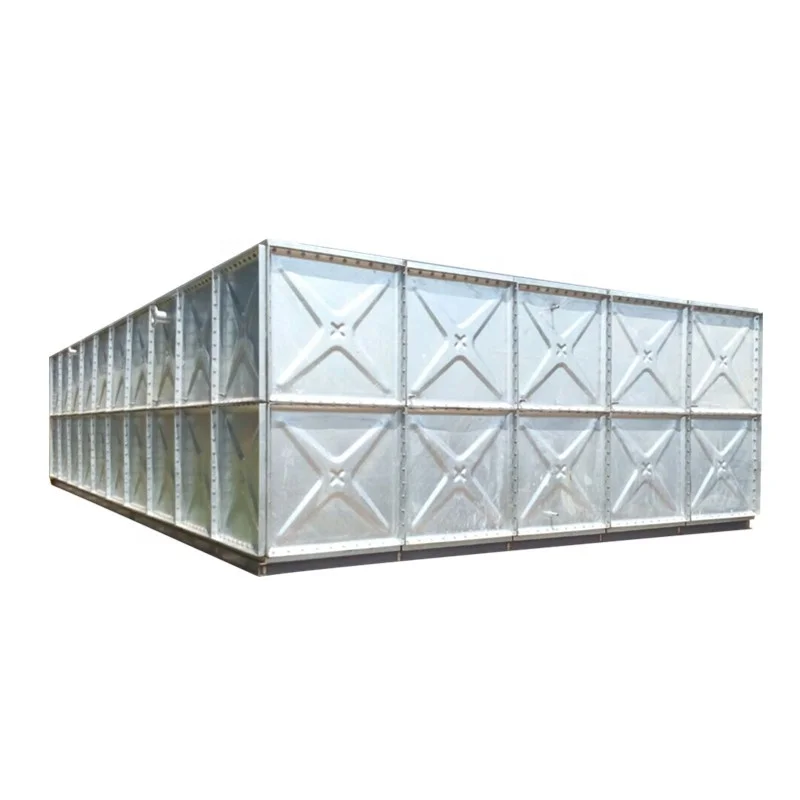

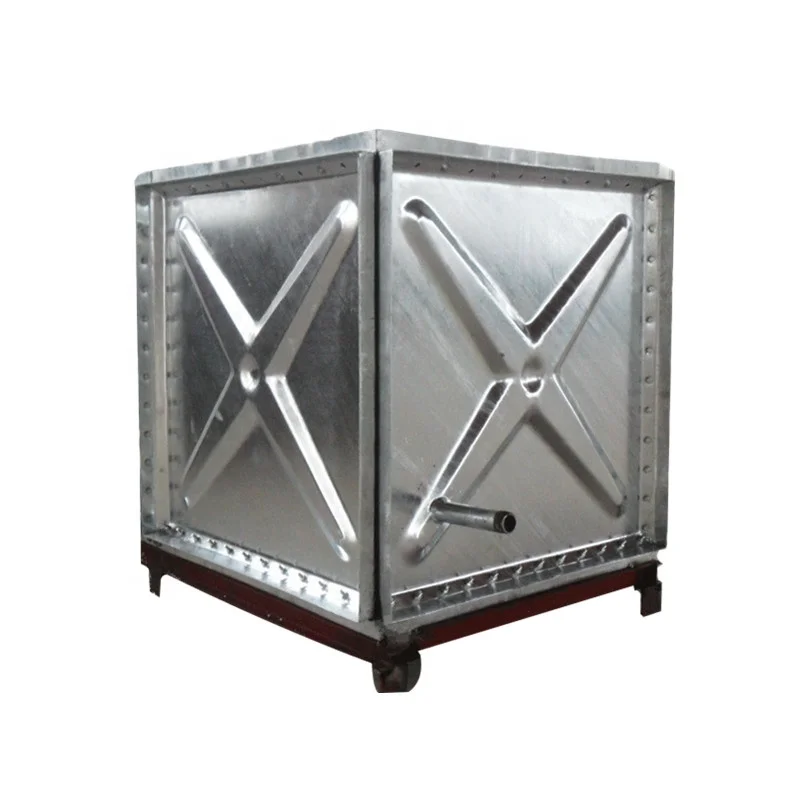

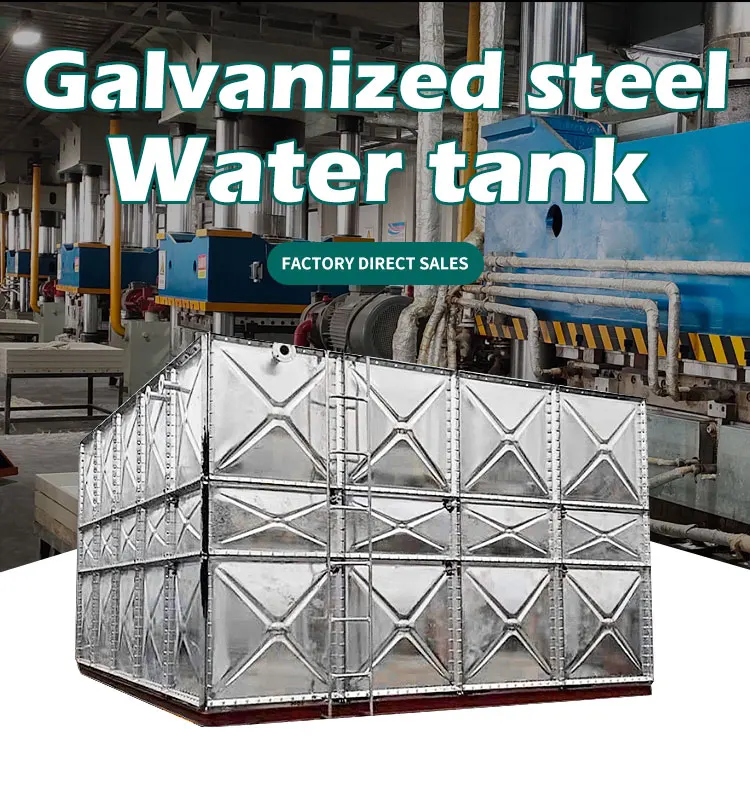

Africa Widely Used Elevated High Strength Steel Structure Mould Pressing Sectional Square Galvanized Steel Water Storage Tank

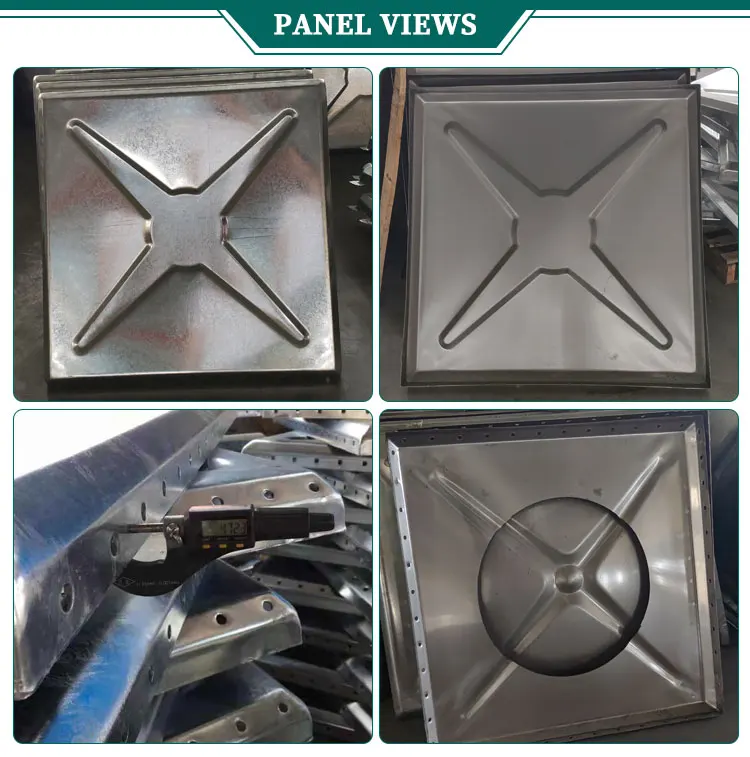

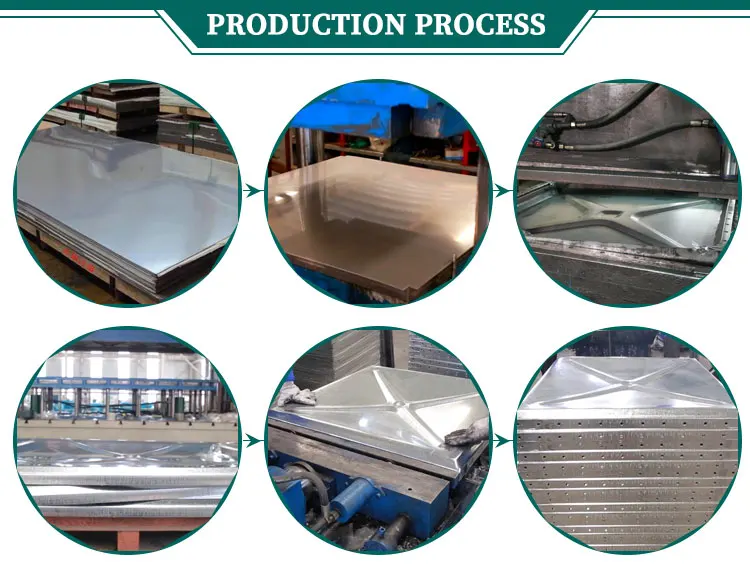

Galvanized steel water tank is punched from carbon steel 235 A class into standard plated sized 0.5m*0.5m, 0.5m*1m, 1m*1m and 1.22m*1.22m, and assembled into a container by bolting or melding. The tank capacity can be customized according to customer's specific requirement. Generally, the height should not be higher than 5 meters, and the length and width is not limitted.

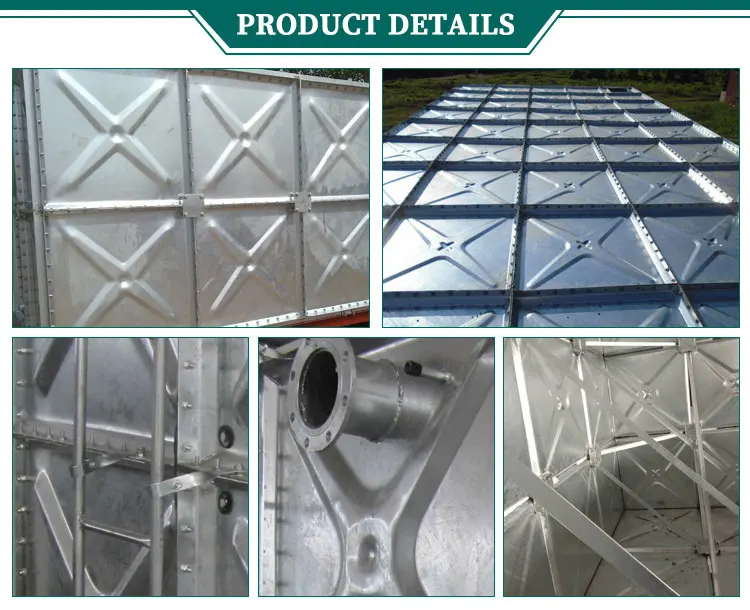

The assebling method can be by bolting or melding. The accessories including sealing tapes, drawing bars, brace support, bolts and nuts, flanges, air vent, manhole, ladder and C-channels as steel base.
Hot-dipped galvanized steel water tank is featured with light weight, anti-leakage, anti-corrosion, and anti-aging.
Hot-dipped galvanized steel water tank is featured with light weight, anti-leakage, anti-corrosion, and anti-aging.
Name | Hot-dipped galvanized steel water tank |
Material | 1. Q235B raw material, complying to GB/T 700-2006 standard. 2. Surface zinc layer 70μm thickness, complying to GB/T19001-2008 standard. 3. Surface treatment optional: Enamel coating. |
Panel size | 0.5m*0.5m, 0.5m*1m, 1m*1m, 1.22m*1.22m |
Panel thickness | 2mm ~ 5mm, depending on the water tank height |
Capacity | Customized |
Accessory | Bolts and nuts, sealing tape, drawing bars, brace support, manhole, ladder, plange, C channel as steel base, floating ball, liquid counter |
Assemble way | Bolting |
Working time | More than 20 years |

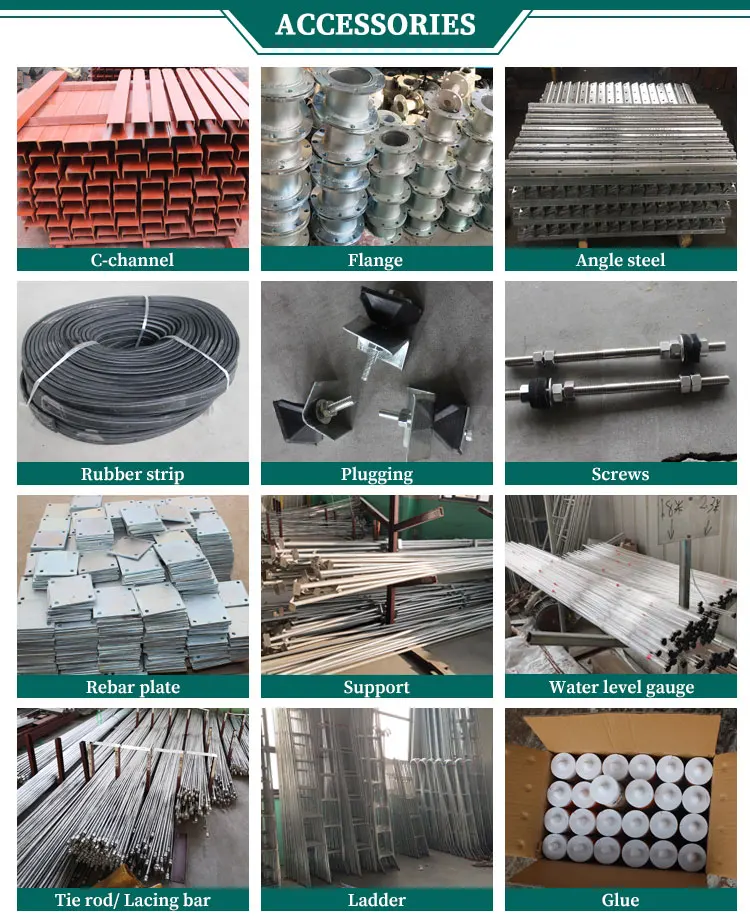

Product Accessories

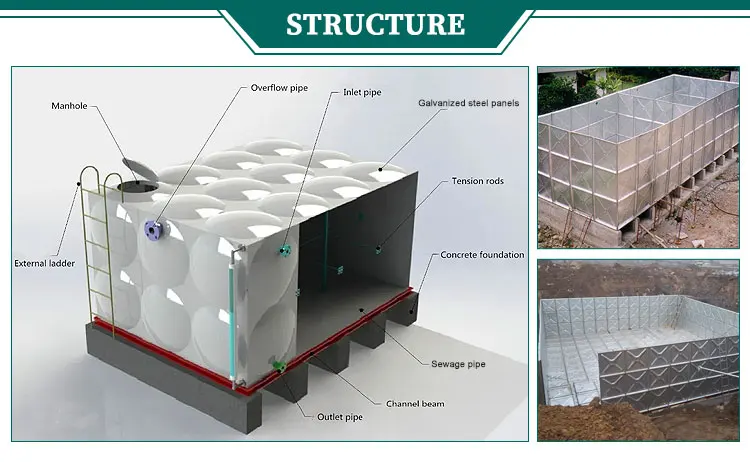

1. Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel; Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod.
2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures.4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304.
3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 304.
5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports.The external ladders shall be galvanized mild steel or equivalent.
6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank.
7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter.9. ABS roof vent with PE insect screen.
8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of 600 x 600mm. The opening can be designs of bolt, seal-tight locking arrangement.10. Float level indicator, optional SS304 for internal and external support structure are available on request.
Product Feature
(2) Reasonable structure design
(3) All welded on-site combination. High strength, good sealing, prevent secondary pollution of water quality
(4) Light weight, that is one half of ordinary steel plate water tank
(5) Easy to install
(6) Clean, bright, beautiful appearance.

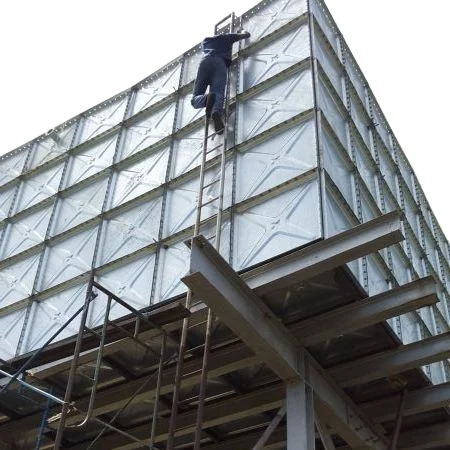

Steel Structure Tower Description:
Steel Column: Q345B, HW175X175, HW200X200, hot dipped galvanized 600g/m2
Steel Main Beam: Q345B, HN350X175, hot dipped galvanized 600g/m2
Steel Secondary Beam: Q345B, HN250X125, I10, hot dipped galvanized 600g/m2
Brace: Q235B, L100*100*8, hot dipped galvanized 600g/m2
Ladder: Q235, hot dipped galvanized
Handrail: Q235, hot dipped galvanized
Steel Grating: Q235, hot dipped galvanized
Anchor Bolts: M24 Nuts, washers and templates for Anchor Bolts.
Steel Structure Tower Characteristics:
1. Strong: we can design the tower according to the weight and load of tank, wind load and seismic.
2. Fast construction and easy installation.
3. Long using life: Up to 50 years.
4. Others: Environmentally friendly, stable structure, earthquake proofing, water proofing, and energy conserving.
Steel Column: Q345B, HW175X175, HW200X200, hot dipped galvanized 600g/m2
Steel Main Beam: Q345B, HN350X175, hot dipped galvanized 600g/m2
Steel Secondary Beam: Q345B, HN250X125, I10, hot dipped galvanized 600g/m2
Brace: Q235B, L100*100*8, hot dipped galvanized 600g/m2
Ladder: Q235, hot dipped galvanized
Handrail: Q235, hot dipped galvanized
Steel Grating: Q235, hot dipped galvanized
Anchor Bolts: M24 Nuts, washers and templates for Anchor Bolts.
Steel Structure Tower Characteristics:
1. Strong: we can design the tower according to the weight and load of tank, wind load and seismic.
2. Fast construction and easy installation.
3. Long using life: Up to 50 years.
4. Others: Environmentally friendly, stable structure, earthquake proofing, water proofing, and energy conserving.
Installation Guide
With the right equipment and personnels, you can assemble the tank quickly. For a successful tank installation, you need at least five workers, one of whom should be qualified.
Here is a brief installation guide:
* After getting a permit to install on a particular site, ensure you have all the required equipment.
* They should be free of damage to prevent a substandard finish.
* Check that the area of installation is level.
* Assemble the beams horizontally on the foundation or steel tower to form the skid base.
* Install the bottom panel carefully on the skid base.
* Install the side panels. Once the side panels are in place, you can put up the panel partitions.
* The panels should be joined using bolts and nuts, as per the manufacturer's recommendations.
* Install the tie rods and stainless steel partitions to support the roof.
* Assemble the top cover/roof.
* Install internal and external stainless steel ladders.
* Tie all stainless steel nuts and bolts with a washer.
After completing the installation and getting approval from a consultant, carry out a water leakage test. Connect a temporary water supply pipe and let the water stay in for at least 24 hours. Make sure you have enough air vents. If there are any leakages after the test period, rectify and seek approval.
For installation, we could provide installation guide: installation video or installation assistance on site by our engineers.If parts are damaged within the quality insurance period because of quality fault, we would change the damaged parts free of charge.
Here is a brief installation guide:
* After getting a permit to install on a particular site, ensure you have all the required equipment.
* They should be free of damage to prevent a substandard finish.
* Check that the area of installation is level.
* Assemble the beams horizontally on the foundation or steel tower to form the skid base.
* Install the bottom panel carefully on the skid base.
* Install the side panels. Once the side panels are in place, you can put up the panel partitions.
* The panels should be joined using bolts and nuts, as per the manufacturer's recommendations.
* Install the tie rods and stainless steel partitions to support the roof.
* Assemble the top cover/roof.
* Install internal and external stainless steel ladders.
* Tie all stainless steel nuts and bolts with a washer.
After completing the installation and getting approval from a consultant, carry out a water leakage test. Connect a temporary water supply pipe and let the water stay in for at least 24 hours. Make sure you have enough air vents. If there are any leakages after the test period, rectify and seek approval.
For installation, we could provide installation guide: installation video or installation assistance on site by our engineers.If parts are damaged within the quality insurance period because of quality fault, we would change the damaged parts free of charge.

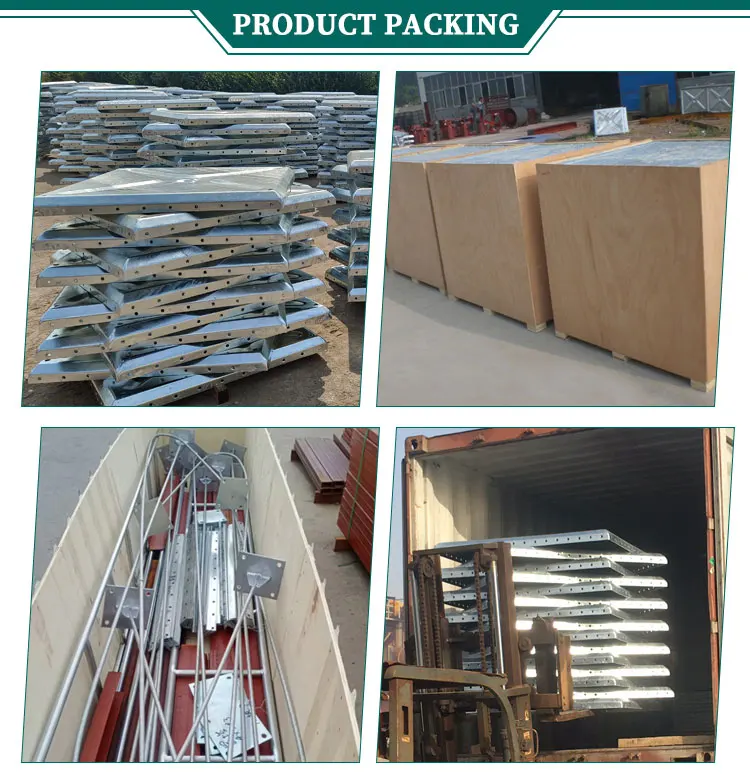

Package and Transportation
To better ensure the safety of the galvanized steel water tank, professional, environmentally friendly, convenient and efficient packaging services will be provided. Usually the package is by pallet or wooden boxes, and customer assemble it in their local.
Or if customer requests, we can help assemble it before delivery, but that would occupy more space in the container and increases the freight cost.
If you are interested in our products, welcome to contact us freely, we will try our best to help.
