M32 48 Mechanical Seal for Water Pump High Quality Shaft Seal in the Mechanical Category
- Category: >>>
- Supplier: Shaanxi Beyond Electric Co. Ltd.
Share on (1601208258792):
Product Overview
Description
Product Description
Specification
Structure: Single-End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Wear
Standard: DIN24960, ISO3069, GB6556
Model NO.: M32
Balance: Unbalanced
Specification: Inner Diameter: 8 mm to 100 mm
Product Detailed Description

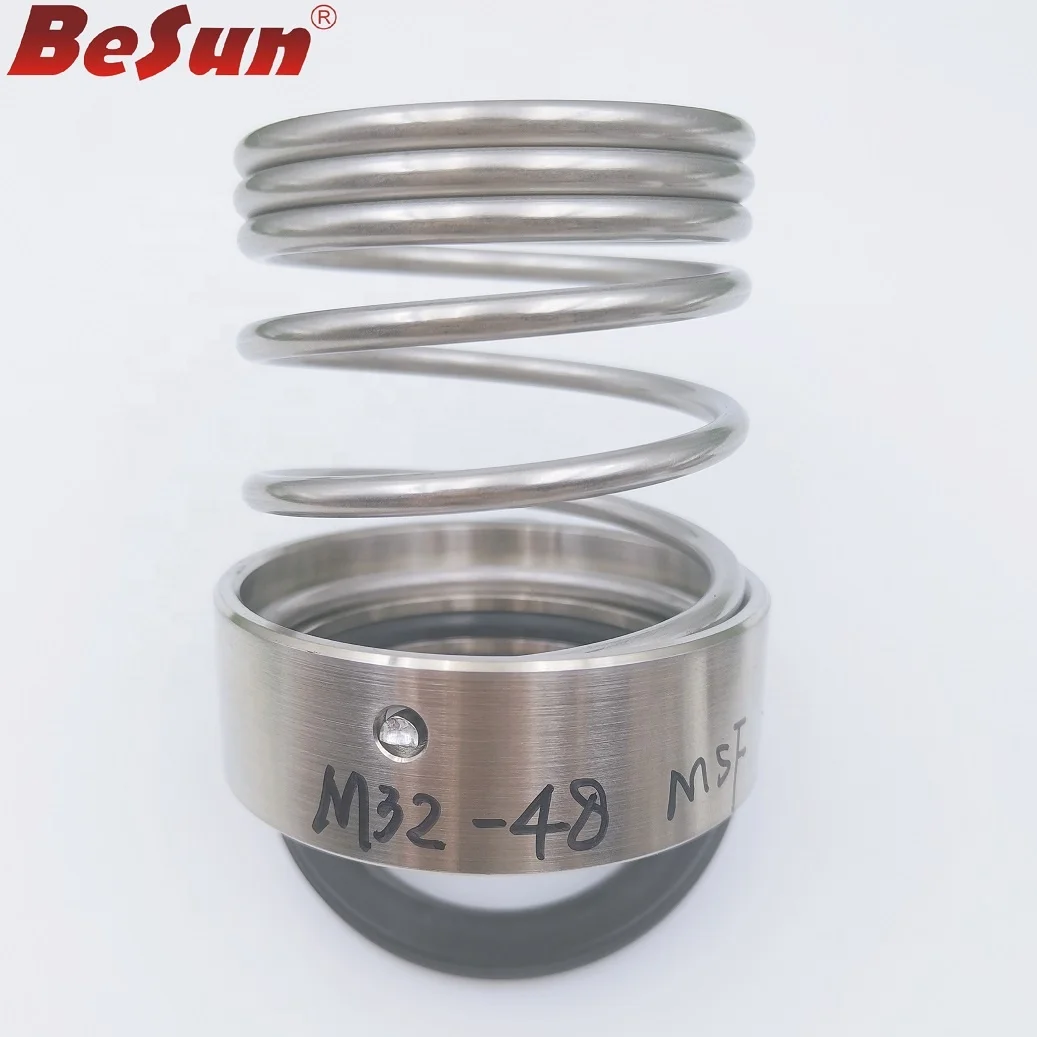

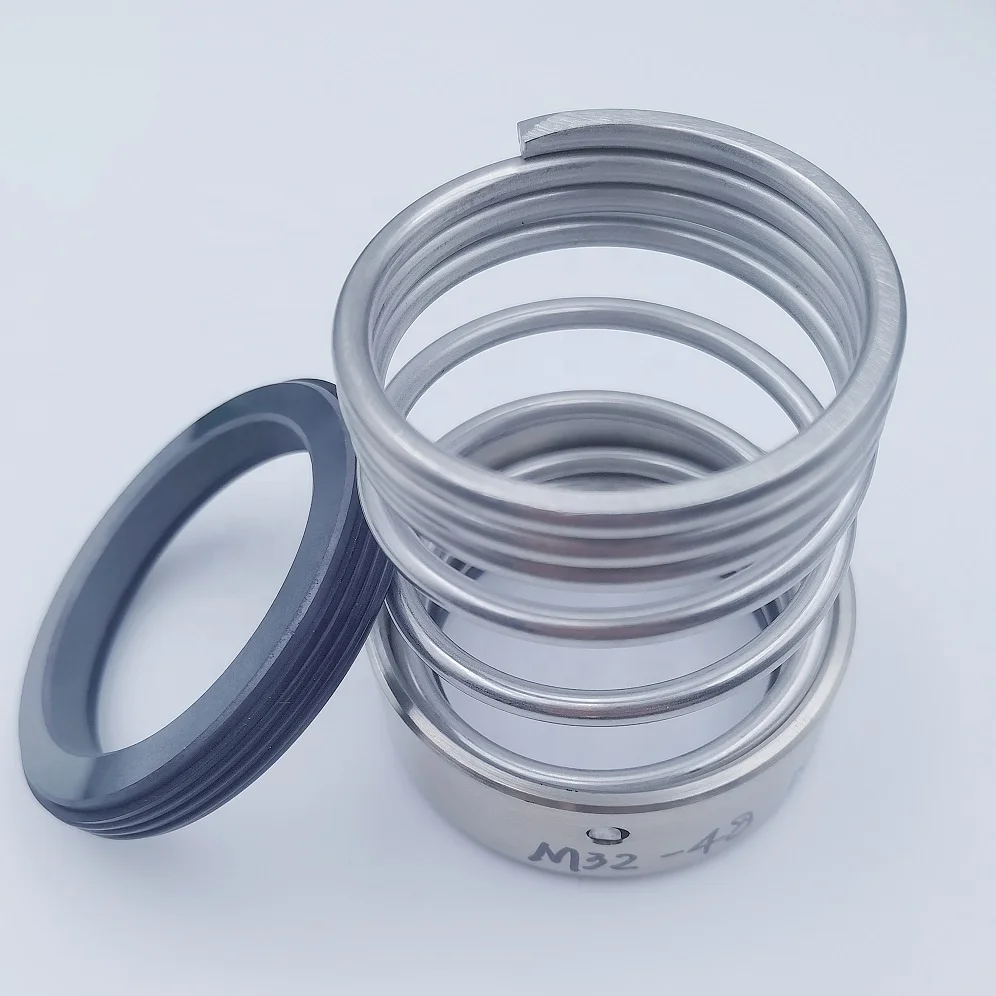

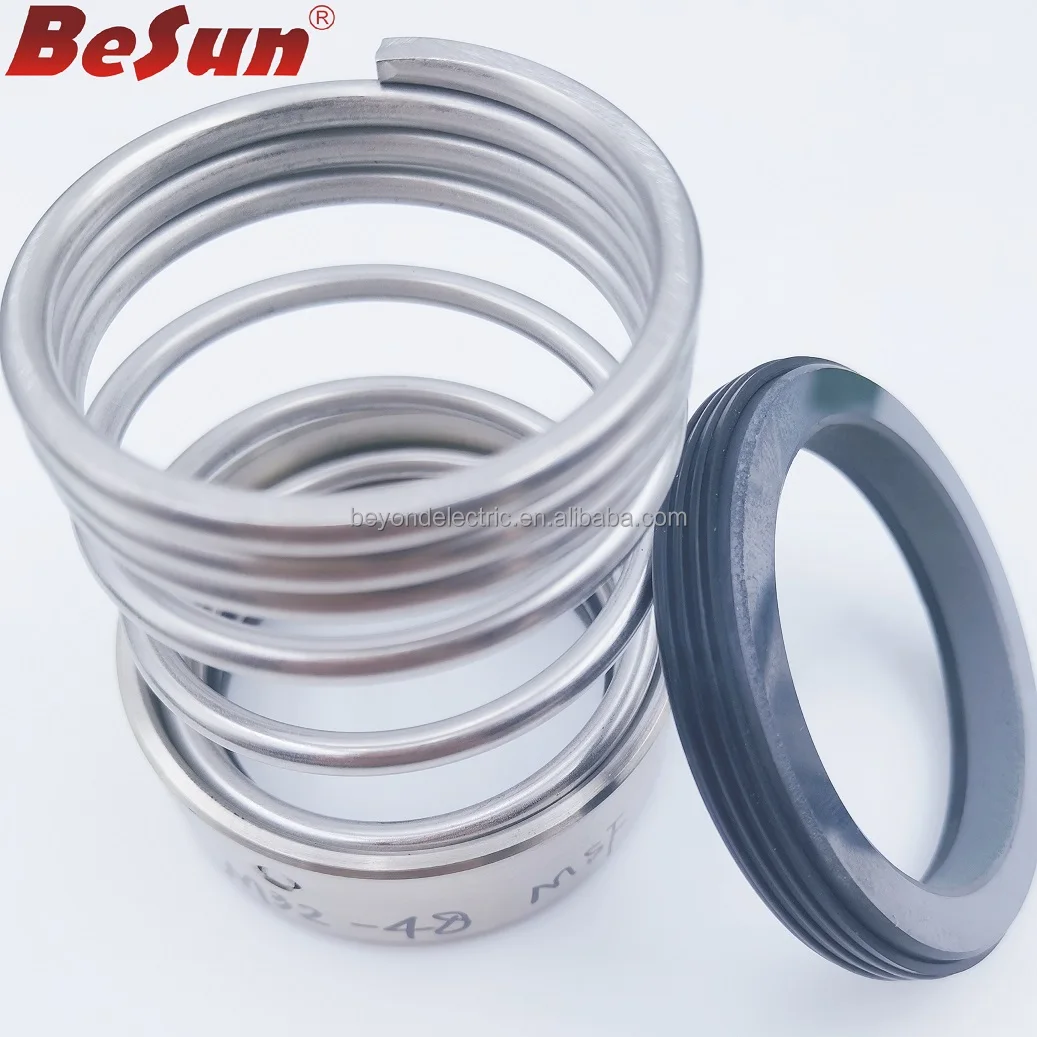

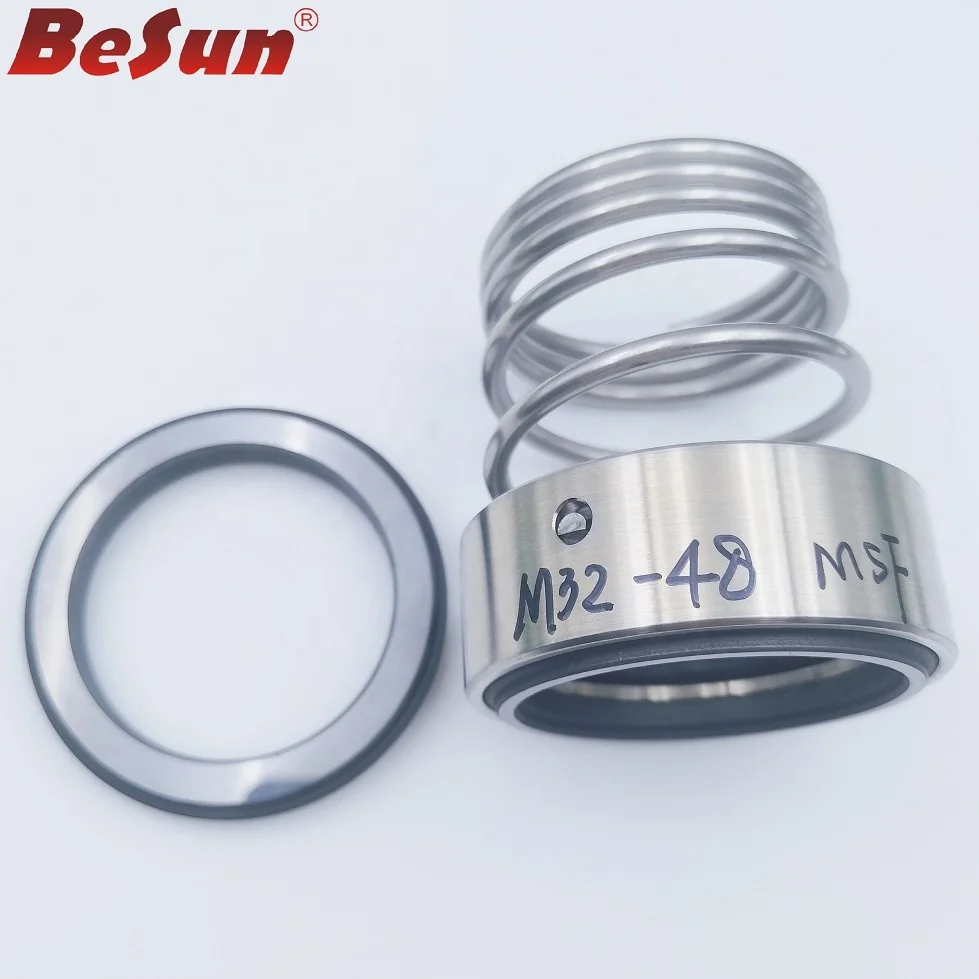

M32 Conical Spring Mechanical Seals for Clean Water Pumps, Circulating Pumps and Vacuum Pumps
Structural Features: single end, unbalanced, conical spring, dependent direction of rotation, spring transmission (conical spring drove by both side hook). This seal component has a simple structure, high compatibility and stable performance with great spring compensation. The stationary ring of this seal is standard G60 or G4.
Industrial Standards: DIN24960, ISO3069, GB6556
Scopes of Application: widely used in water pumps, sewage pumps, oil circulating pumps, chemical industrial pumps. Mainly used in oil refining, chemical engineering, chemical product transportation, water treatment and chemical fiber industry. This product can be an alternative to similar products from EG&G SEAL OL, Flexible and Roten.
Operation Parameters:
Pressure: 1.0 MPa or less
Temperature: - 30 ~ 180 ºC
Linear Speed: 15 m/s or less
Materials:
Rotary Ring Face: Carbon/SiC/TC
Stationary Ring Face: Carbon/SiC/TC
Elastomers: NBR/V/EPDM/PTFE/FFKM
Springs: SS304/SS316
Metal Parts: 410S/SS304/SS316/SS316L
Mediums: oil, water, amorphism acid, alkali, salt, and organic solvents.
Outstanding Sealing Performance: This mechanical seal is manufactured using high-quality materials, providing exceptional sealing performance to effectively prevent liquid or gas leakage. Its reliability makes it an ideal choice for various industrial applications and equipment, ensuring the stability and safety of system operations.
Wear and Corrosion Resistance: Designed for prolonged use, the mechanical seal exhibits excellent wear and corrosion resistance. Whether in harsh chemical environments or highly abrasive mechanical systems, it maintains stable performance, extending the lifespan of equipment.
Versatile Application: Suitable for a variety of industries, including chemical, petroleum, pharmaceuticals, and food processing. The design of this mechanical seal allows it to meet the requirements of various equipment and applications, providing a reliable sealing solution.
Easy Installation and Maintenance: Designed for simplicity, it is easy to install and maintain, reducing downtime and maintenance costs. Users can easily complete the installation of the seal and perform routine, straightforward maintenance, ensuring the long-term stability of the system.
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Wear
Standard: DIN24960, ISO3069, GB6556
Model NO.: M32
Balance: Unbalanced
Specification: Inner Diameter: 8 mm to 100 mm
Product Detailed Description
M32 Conical Spring Mechanical Seals for Clean Water Pumps, Circulating Pumps and Vacuum Pumps
Structural Features: single end, unbalanced, conical spring, dependent direction of rotation, spring transmission (conical spring drove by both side hook). This seal component has a simple structure, high compatibility and stable performance with great spring compensation. The stationary ring of this seal is standard G60 or G4.
Industrial Standards: DIN24960, ISO3069, GB6556
Scopes of Application: widely used in water pumps, sewage pumps, oil circulating pumps, chemical industrial pumps. Mainly used in oil refining, chemical engineering, chemical product transportation, water treatment and chemical fiber industry. This product can be an alternative to similar products from EG&G SEAL OL, Flexible and Roten.
Operation Parameters:
Pressure: 1.0 MPa or less
Temperature: - 30 ~ 180 ºC
Linear Speed: 15 m/s or less
Materials:
Rotary Ring Face: Carbon/SiC/TC
Stationary Ring Face: Carbon/SiC/TC
Elastomers: NBR/V/EPDM/PTFE/FFKM
Springs: SS304/SS316
Metal Parts: 410S/SS304/SS316/SS316L
Mediums: oil, water, amorphism acid, alkali, salt, and organic solvents.
Outstanding Sealing Performance: This mechanical seal is manufactured using high-quality materials, providing exceptional sealing performance to effectively prevent liquid or gas leakage. Its reliability makes it an ideal choice for various industrial applications and equipment, ensuring the stability and safety of system operations.
Wear and Corrosion Resistance: Designed for prolonged use, the mechanical seal exhibits excellent wear and corrosion resistance. Whether in harsh chemical environments or highly abrasive mechanical systems, it maintains stable performance, extending the lifespan of equipment.
Versatile Application: Suitable for a variety of industries, including chemical, petroleum, pharmaceuticals, and food processing. The design of this mechanical seal allows it to meet the requirements of various equipment and applications, providing a reliable sealing solution.
Easy Installation and Maintenance: Designed for simplicity, it is easy to install and maintain, reducing downtime and maintenance costs. Users can easily complete the installation of the seal and perform routine, straightforward maintenance, ensuring the long-term stability of the system.
Product name: | Mechanical seal |
Material: | CA/SIC/V/SS304 |
Model: | M32-48 |
Size: | 48 MM |
Temperature: | -30 °C ..+180 °C |
Pressure: | ≤1Mpa |
Speeds: | ≤15m/sec |
Application: | Used in Sewage pumps, chemical pumps, screw pumps, process pumps |
