Algae Tubular Separator Centrifuge
US $6800

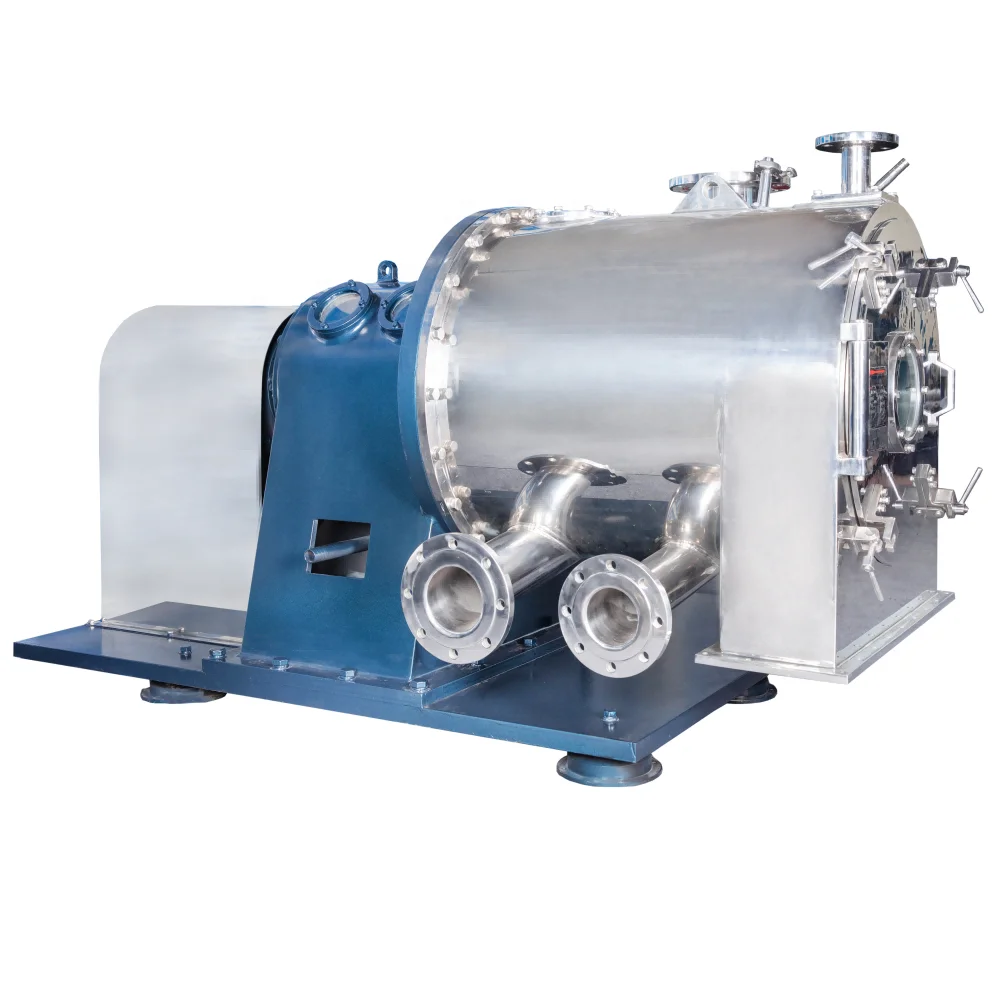

Saideli LWD combined decanter and screen bowl centrifuge for Pilipinas
- Category: >>>
- Supplier: Jiangsu Saideli Pharmaceutical Machinery Co. Ltd.
Share on (1601208488655):
Product Overview
Description
Details Images
Products Description
LWD series decanter and screen-bowl centrifuge
The LWD series centrifuge is a combined centrifuge for concentration and filtration, combining the working principles and characteristics of decanter centrifuges and worm screen centrifuges in two different separation stages to achieve the best effect
of separation.
of separation.
Product Parameters
Item/Model | LWD-350 | LWD-450 | LWD-530 | LWD-630 | LWD-750 | LWD-900 |
Drum diameter (mm) | 350 | 500 | 550 | 630 | 750 | 900 |
Drum length (mm) | 415 | 525 | 600 | 677 | 850 | 1020 |
Max. Speed (r/min) | 3000 | 2500 | 2000 | 1800 | 1800 | 1200 |
Max. separation factor (G) | 1965 | 1746 | 1232 | 1140 | 1358 | 725 |
Differential speed ratio | 57 | 42 | 57 | 73.4 | 48 | 38 |
Differential speed between drum and pusher (r/min) | 52 | 59 | 35 | 25 | 38 | 31 |
Motor power (KW) | 22 | 30 | 45 | 55 | 75 | 90 |
Size(L*W*H)(mm) | 1834*1445*1040 | 2104*1480*1271 | 2104*1730*1271 | 2320*2222*1639 | 2969*2135*1778 | 3210*2200*1910 |
Weight (Kg) | 1700 | 2750 | 4000 | 5400 | 6500 | 8000 |
Capacity（t/h） | 3~5 | 3~8 | 4~10 | 5~15 | 8~25 | 15~35 |

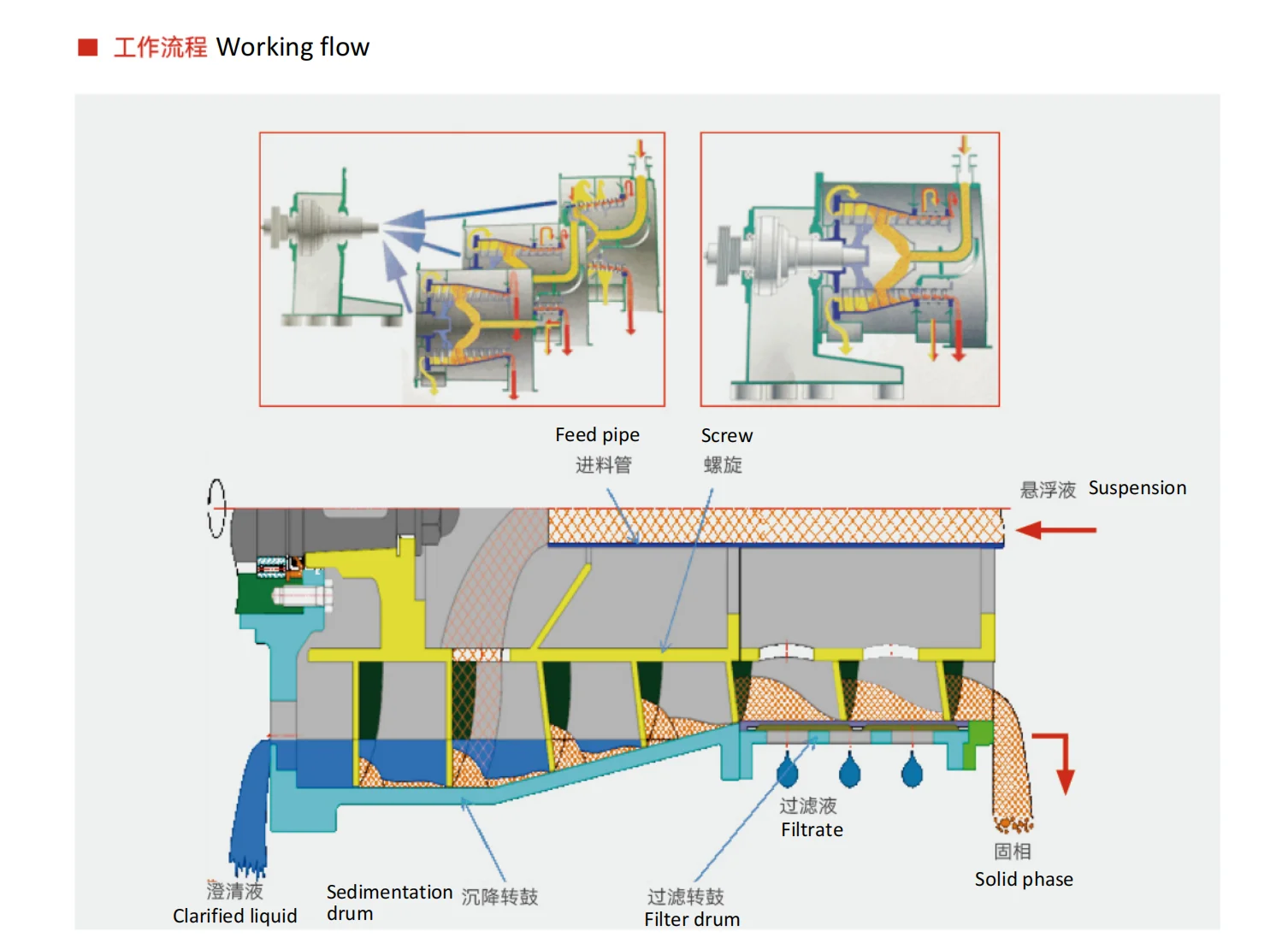

Working principle
When the LWD series centrifuge is running, the power is first switched on, and the main machine starts and speeds up automatically. When it reaches the predetermined value, the feed valve opens, and the material enters into the settling section of the centrifuge through the feed pipe and the distributing cone located in the middle of the screw body to carry out the
pre-dewatering of the slurry with low solids content to achieve the effect of thickening and to effectively ensure the clarification of the settling section. The majority of the liquid is discharged by means of an adjustable overflow device on the back side of the centrifuge, separating the clarified liquid. The solids are pre-thickened and conveyed to the centrifuge screen for further dewatering, and flushing can be arranged if necessary. Depending on the production requirements, the two streams can be discharged separately or combined into one stream and discharged through a single or double cyclone.
pre-dewatering of the slurry with low solids content to achieve the effect of thickening and to effectively ensure the clarification of the settling section. The majority of the liquid is discharged by means of an adjustable overflow device on the back side of the centrifuge, separating the clarified liquid. The solids are pre-thickened and conveyed to the centrifuge screen for further dewatering, and flushing can be arranged if necessary. Depending on the production requirements, the two streams can be discharged separately or combined into one stream and discharged through a single or double cyclone.

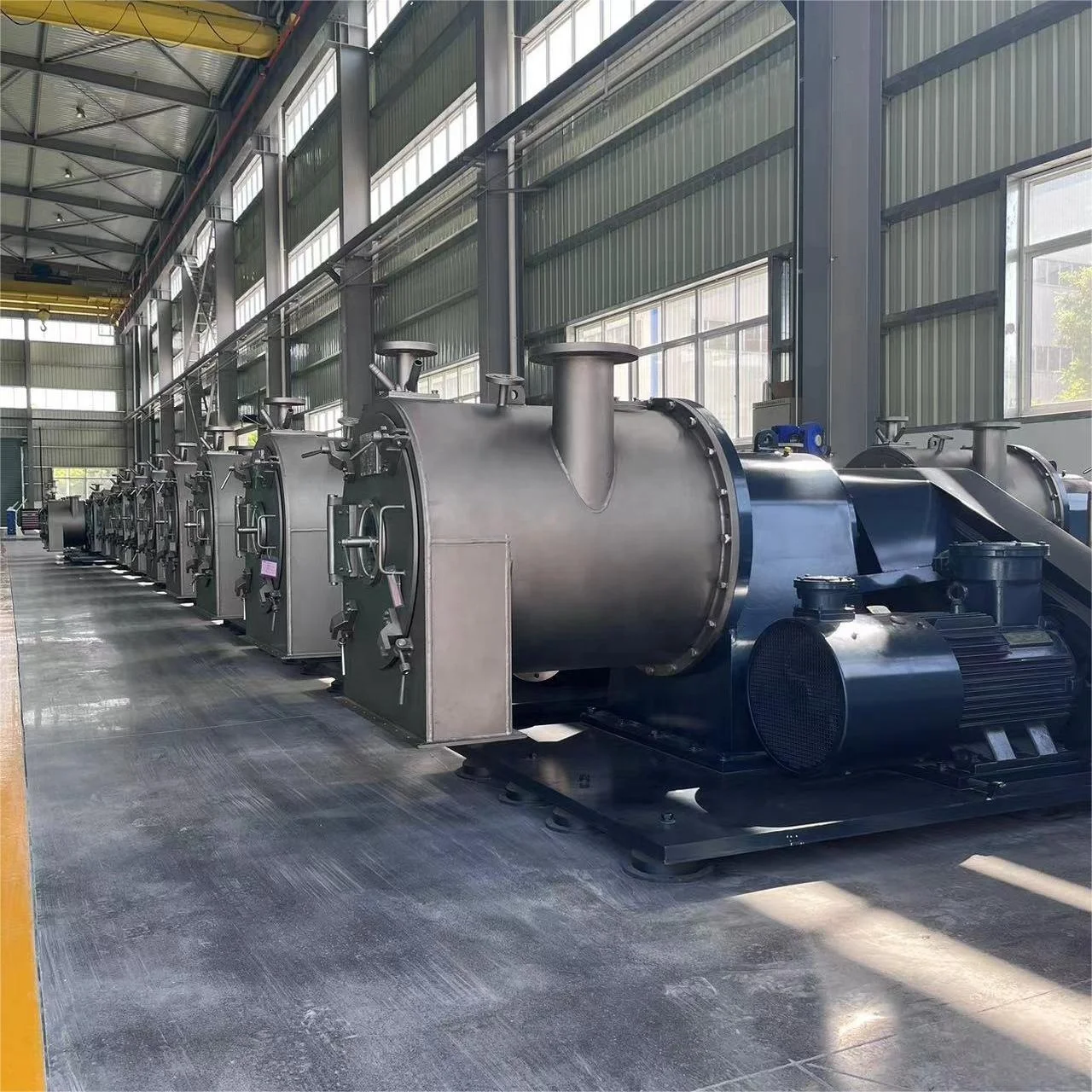

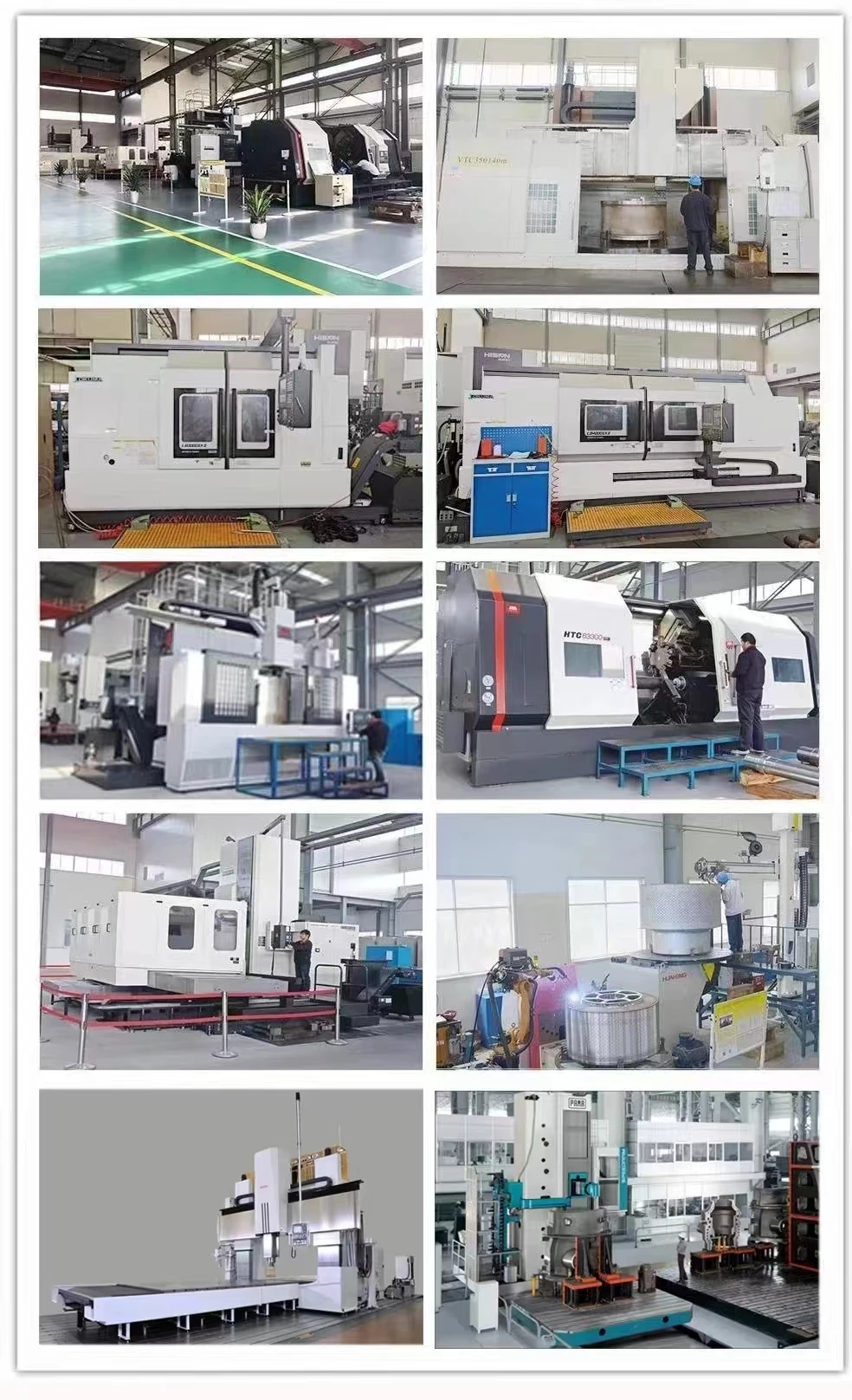

Workshop

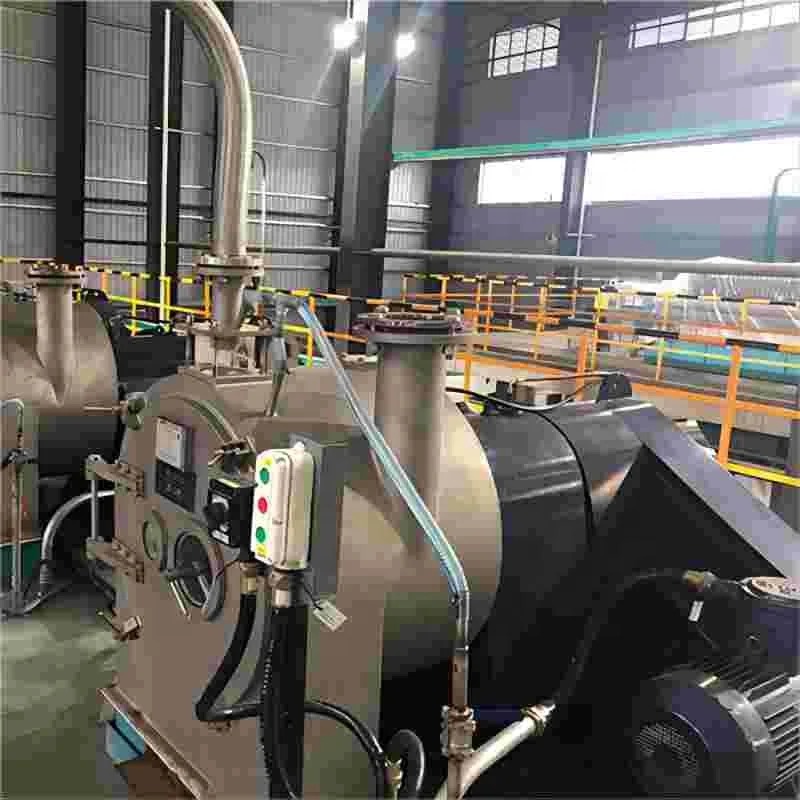

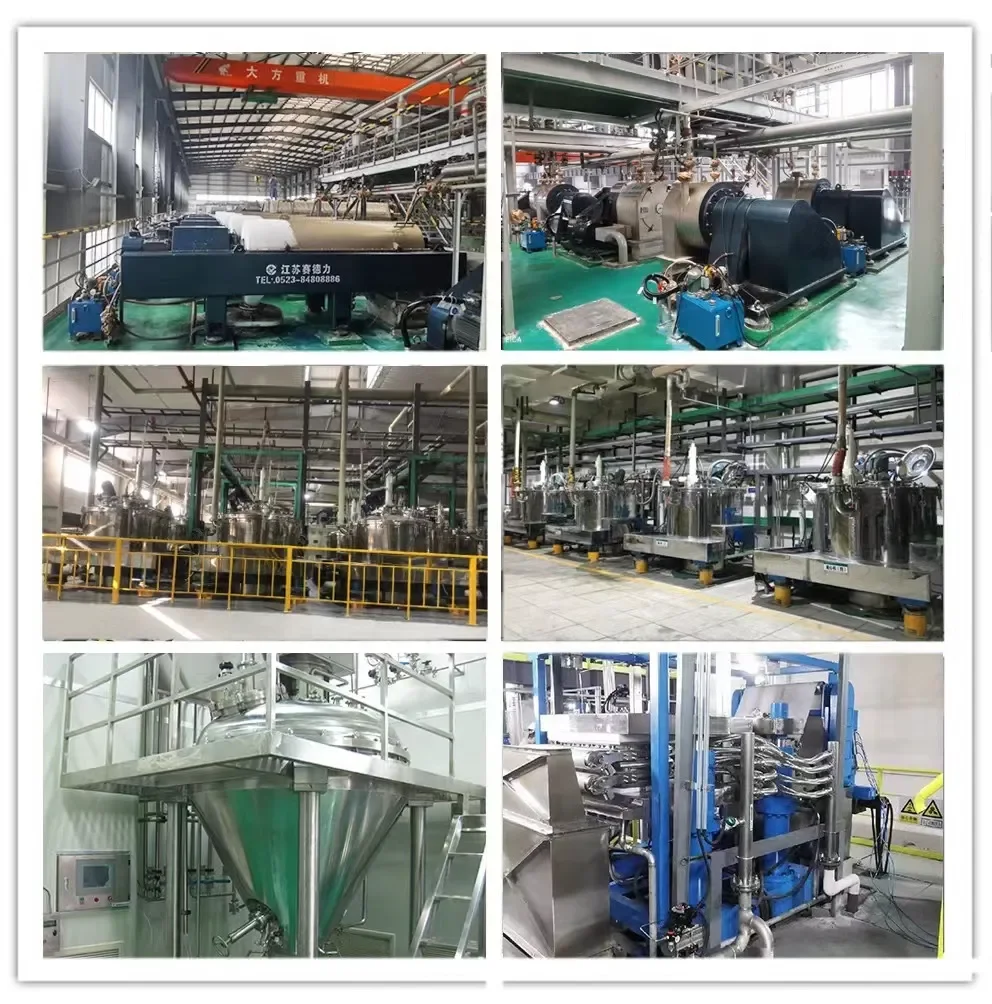

Customer Photos
FAQ
Q1: Do you have OEM service? Do you supply the parts?
A: Yes, we do, as long as you provide us your drawing and detailed requirements.
Q2: How can we easily find out the most fit centrifuges?
Q2: How can we easily find out the most fit centrifuges?
A: We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
Q3. Will you provide installation services?
Q3. Will you provide installation services?
A: If you need, we can arrange professional technicians and engineers to install and debug on site.
Q4. What is your advantage compared with your competitors?
Q4. What is your advantage compared with your competitors?
A: Quality and experience. We are the largest centrifuge supplier in the world, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
Q5. Where is your factory located?
Q5. Where is your factory located?
A:Our factory is located in Jingjiang, which nears Shanghai port and Ningbo Port about 2 hours.
