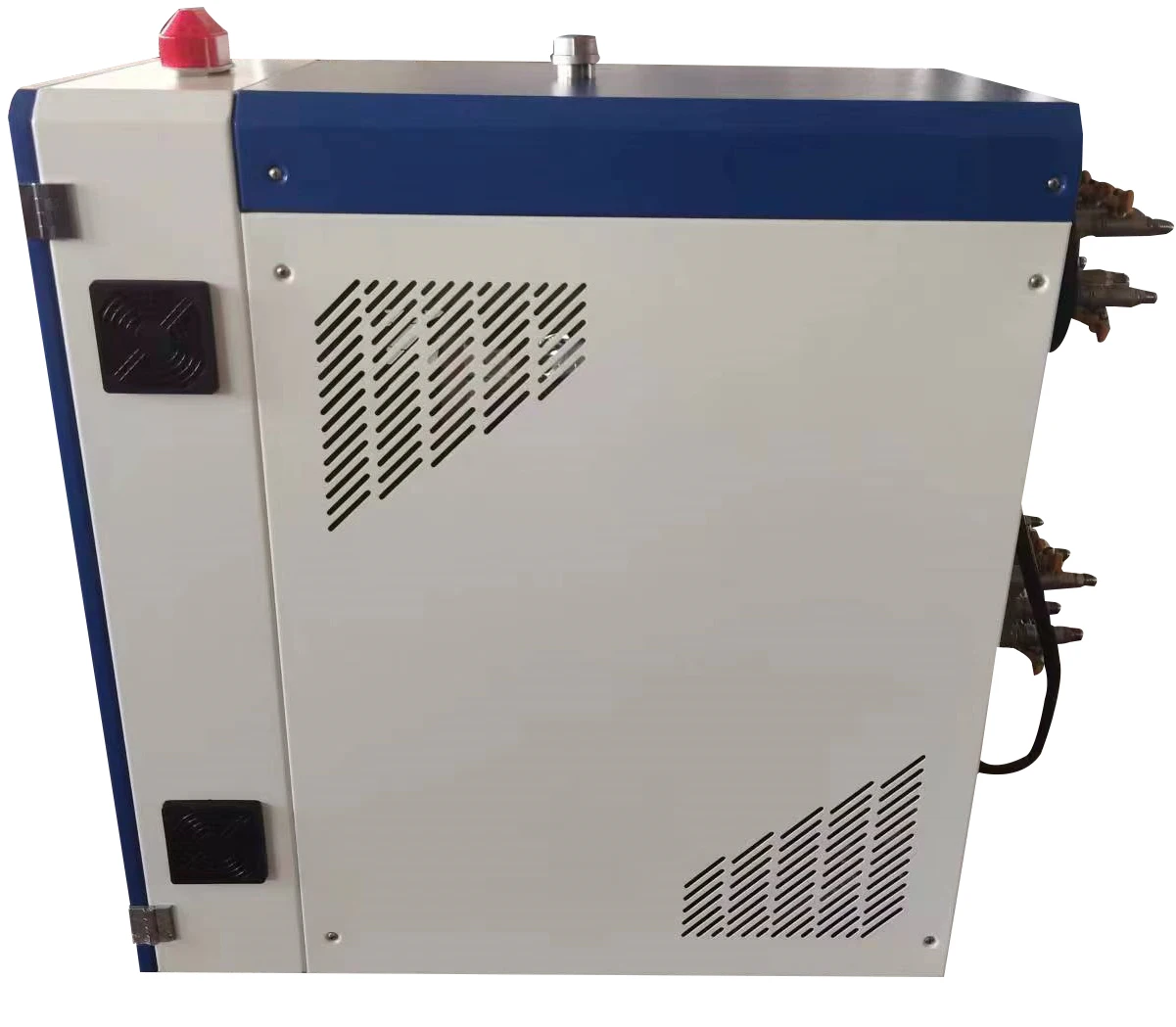

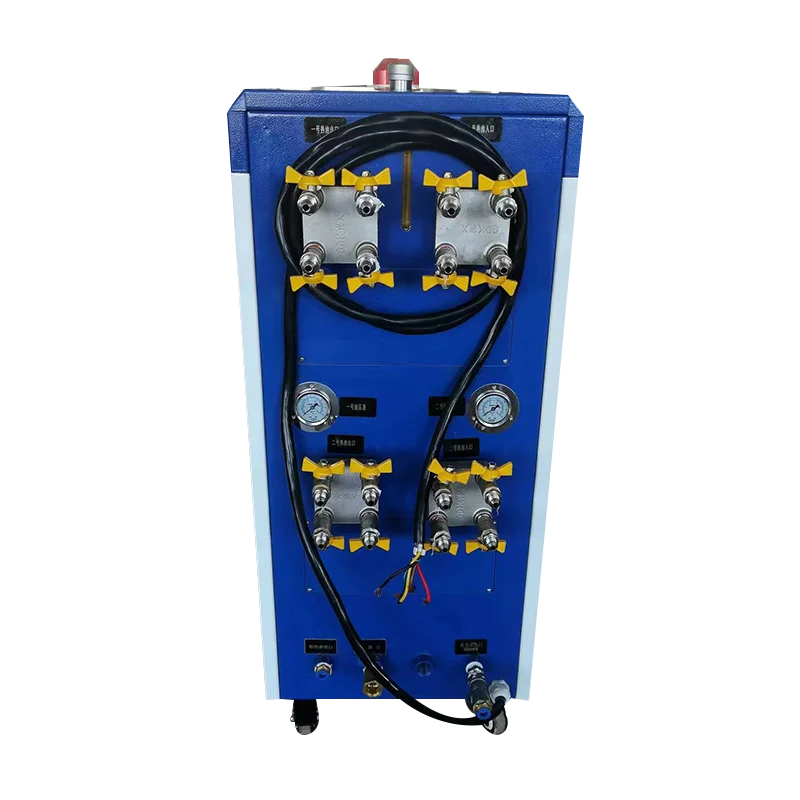

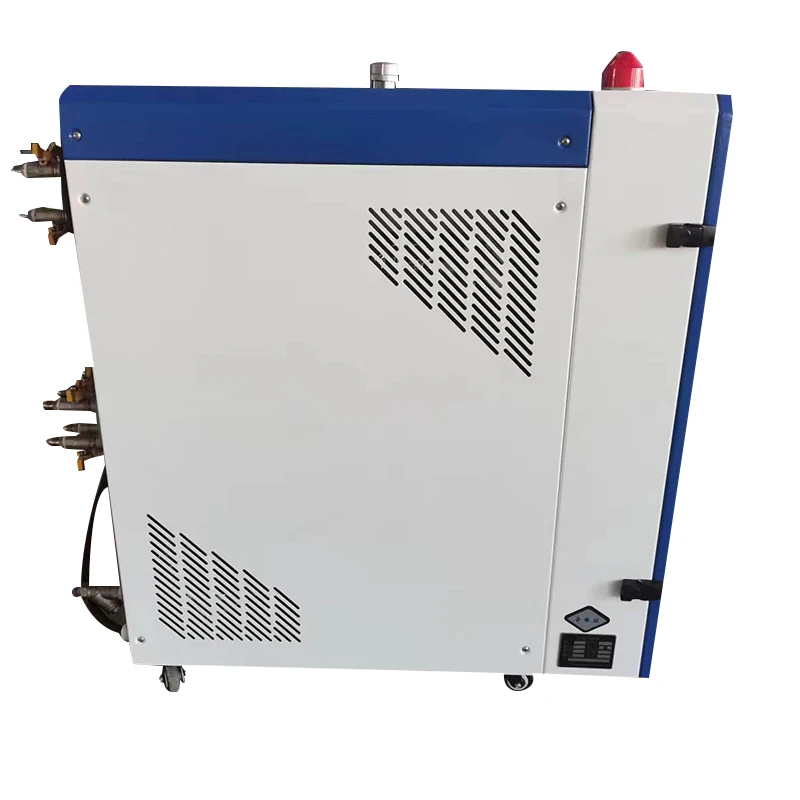

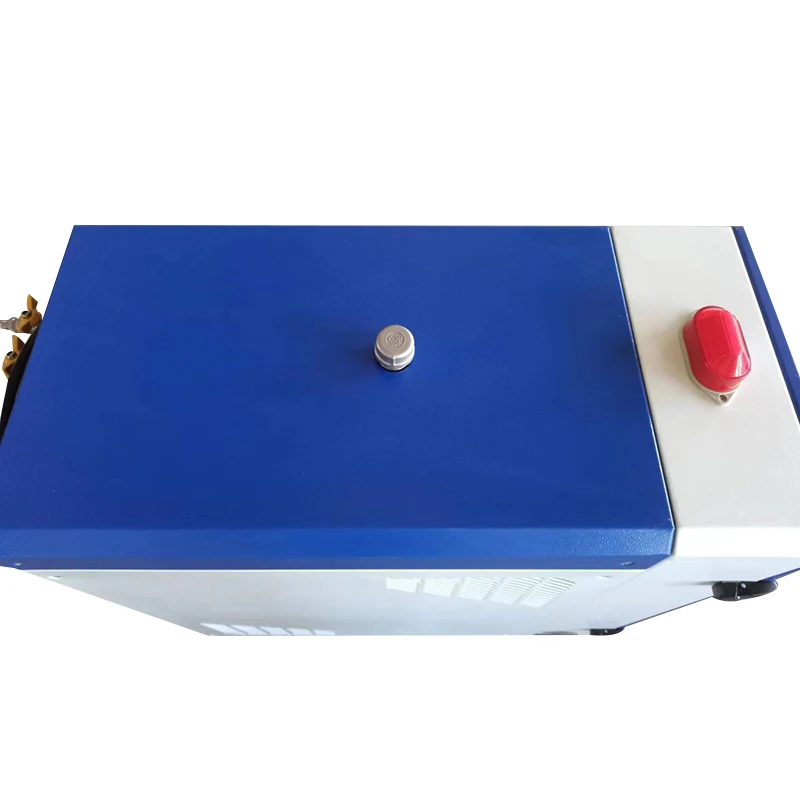

Intelligent Double Oil (9 9) KW Mold Temperature Control Machine Industrial Heating Equipment With Injection Molding Machine
- Category: >>>
- Supplier: Ningbo Zhengeili Intelligent Technology Co. Ltd.
Share on (1601208733403):
Product Overview
Description
Product Overview
Double section (9+9) KW oil mold temperature machine
The double (9+9) KW oil mold temperature machine is a high performance mold temperature control equipment, especially suitable for industrial areas requiring high precision temperature control. The equipment through the microcomputer control system, to achieve accurate temperature regulation and stable control, for the production of plastic products and other industrial processes to provide reliable temperature protection.
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Type | GLO-(9+9)KW | ||
2 | Power source | Three-phase 380V 50HZ | ||
3 | Hot medium | Oil | ||
4 | Control mode | Touch screen +PLC control system | ||
5 | Temperature control accuracy | ±1℃ | ||
6 | Maximum service temperature | 160℃ | ||
7 | Heating power | 9KW*2 | ||
8 | Power(KW) | 0.75KW*2 | ||
Maximum discharge(L/min) | 60 | |||
Maximum lift(m) | 40 | |||
Regulating action | Touch screen | |||
Tempilometer | Type K thermocouple | |||
Display condition | The set value and the actual value are displayed separately | |||
10 | Media traffic monitoring | Display condition | Actual value display | |
11 | Media pressure monitoring | Display condition | Actual value display | |
Three-phase power supply phase loss/reverse phase protection | Three phase power supply is out of phase, reverse phase warning | |||
Pump overload protection | Abnormal water pump alarm | |||
System water shortage protection | Automatic water shortage alarm | |||
System overtemperature protection | When the system overtemperature, alarm prompt | |||
System ultra-high temperature protection | At ultra-high temperature, the power switch automatically blurts out | |||
13 | Out dimension | L* W* H (mm) | 758*342*820 | |
PRODUCT CONFIGURATION
Intelligent control system
Aote 0.75KW Oil pump
GeiLi Mold temperature machine
Product packaging
Our products are first packaged in protective wrap film and bubble film, and then bound in composite board to reduce damage during transportation.
