2022 wood processor firewood processor
US $9000-$10000

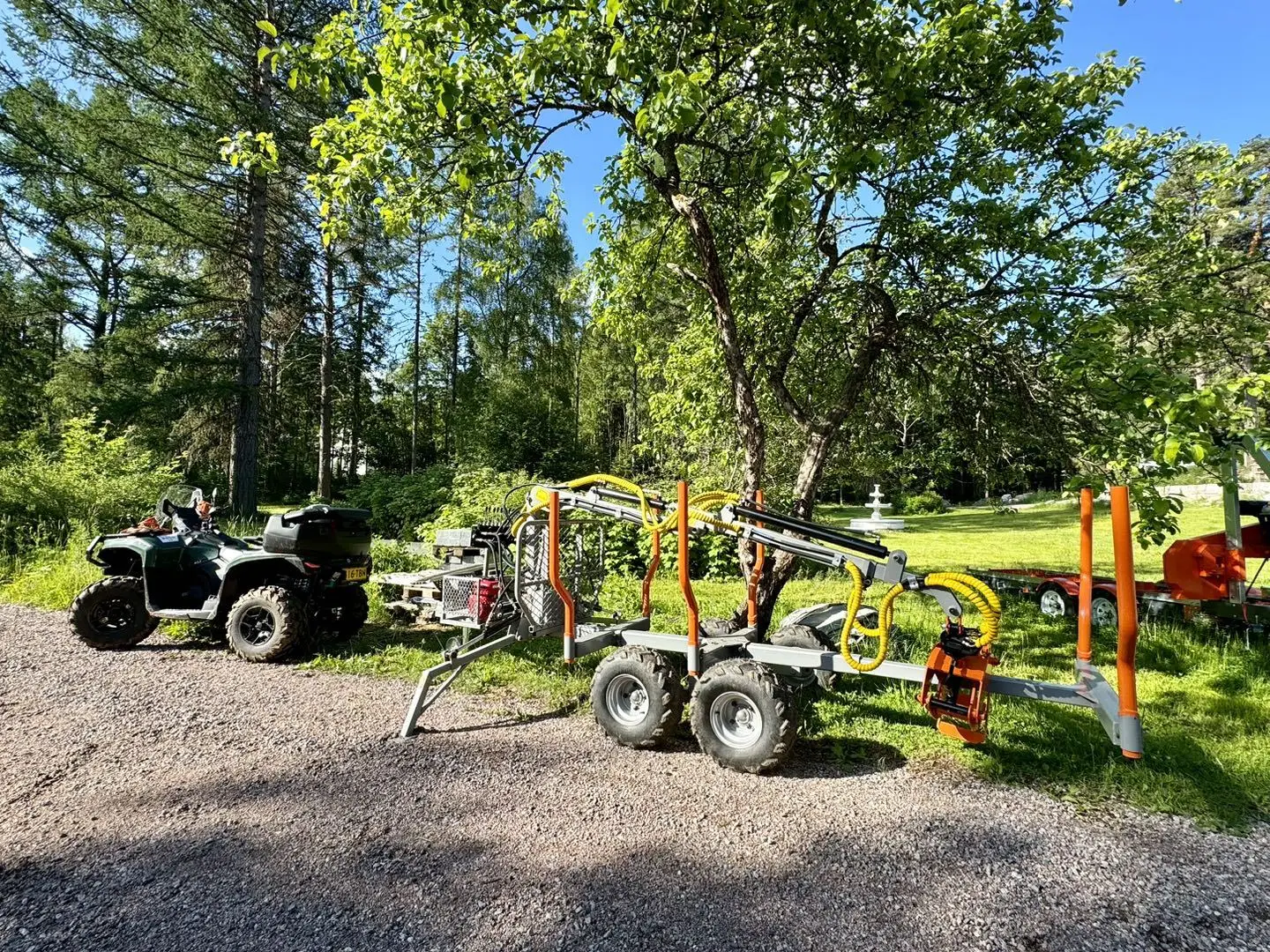

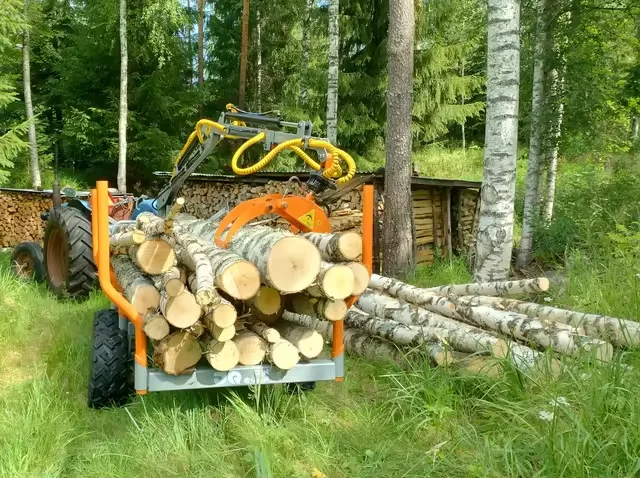

Top Quality forestry AVT log trailer Timber trailer forestry machinery
- Category: >>>
- Supplier: Shandong Laizhou Jinquan Rocker Arm Co. Ltd
Share on (1601208902303):
Product Overview
Description
Model: | JQT1500 | JQT3000 | JQT6000 | JQT6000L | JQT8000 |
Max. Reach (mm): | 3200 | 3876 | 3876 | 5300 | 5300 |
Lifting capacity kgs (1.5m): | 300 | 300 | 500 | 500 | 600 |
Max. opening Grapple (mm): | 700 | 700 | 800 | 800 | 1000 |
Working pressure (Mpa): | 20 | 20 | 20 | 20 | 20 |
Pump Capacity: | 5.8L/min | 5.8L/min | 5.8L/min | 5.8L/min | |
Max. load (kgs): | 1500 | 3000 | 6000 | 6000 | 8000 |
Hydraulic oil tank: | 12L | 12L | 18L | 18L | |
Motor: | 6.5 hp | 6.5 hp | 6.5 hp | 15 hp | |
Wheels: | 22X11-10 | 22X11-10 | 11.5/80-15.3 | 11.5/80-15.3 | 400/60-15.5-14PR |
Length (mm): | 3940 | 4600 | 4600 | 5700 | 5360 |
Width (mm): | 1374 | 1550 | 1550 | 1760 | 2010 |
Measurement (mm): | 2200x930x780 (LxWxH) | 2200x930x1100 (LxWxH) | 2200x1350x1100 (LxWxH) | 2200x1350x1090 (LxWxH) | 3200*1360*1100mm(LxWxH) 5700*130*130mm (LxWxH) |
N.W.: | 740kgs | 850kgs | 1280kgs | 1380kgs | Approx.1920kgs |
Units/20’: | 18 PCS | 12PCS | 8PCS | 8PCS |
