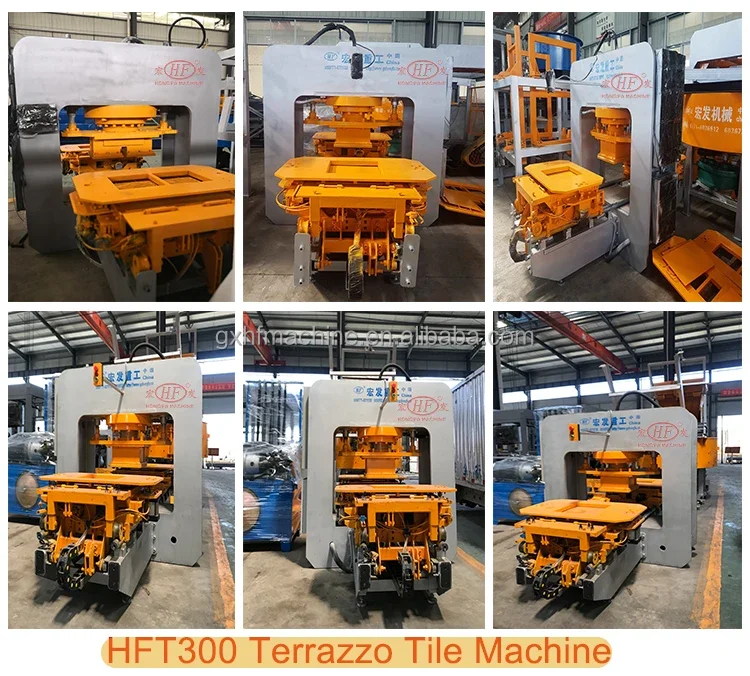

HONGFA HFT300 Terrazzo Machine Features:
- Special designed for manual operation,low investment, high efficiency

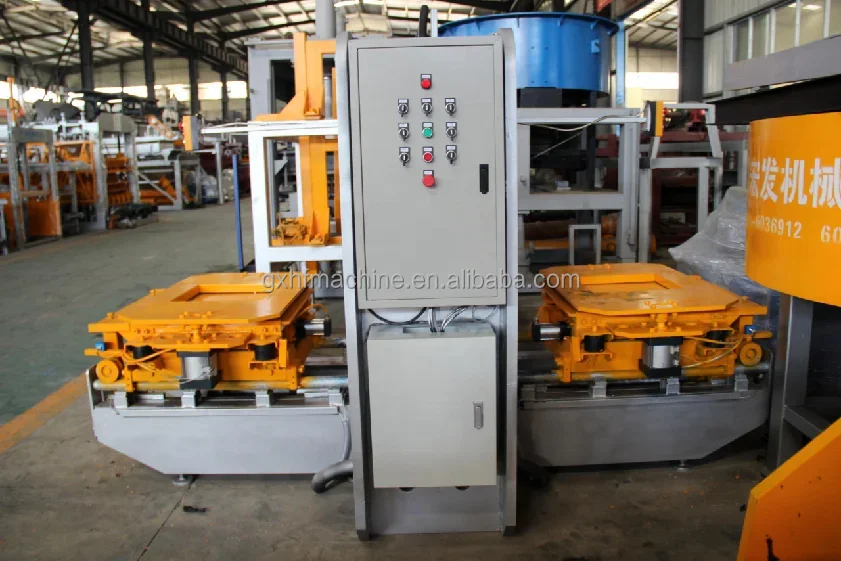

- Two molds at both sides, can produce terrazzo tiles at the same time
- Hydraulic pressure guarantees the high density of the terrazzo tile
- The tile machine easy operation,low maintenance rate

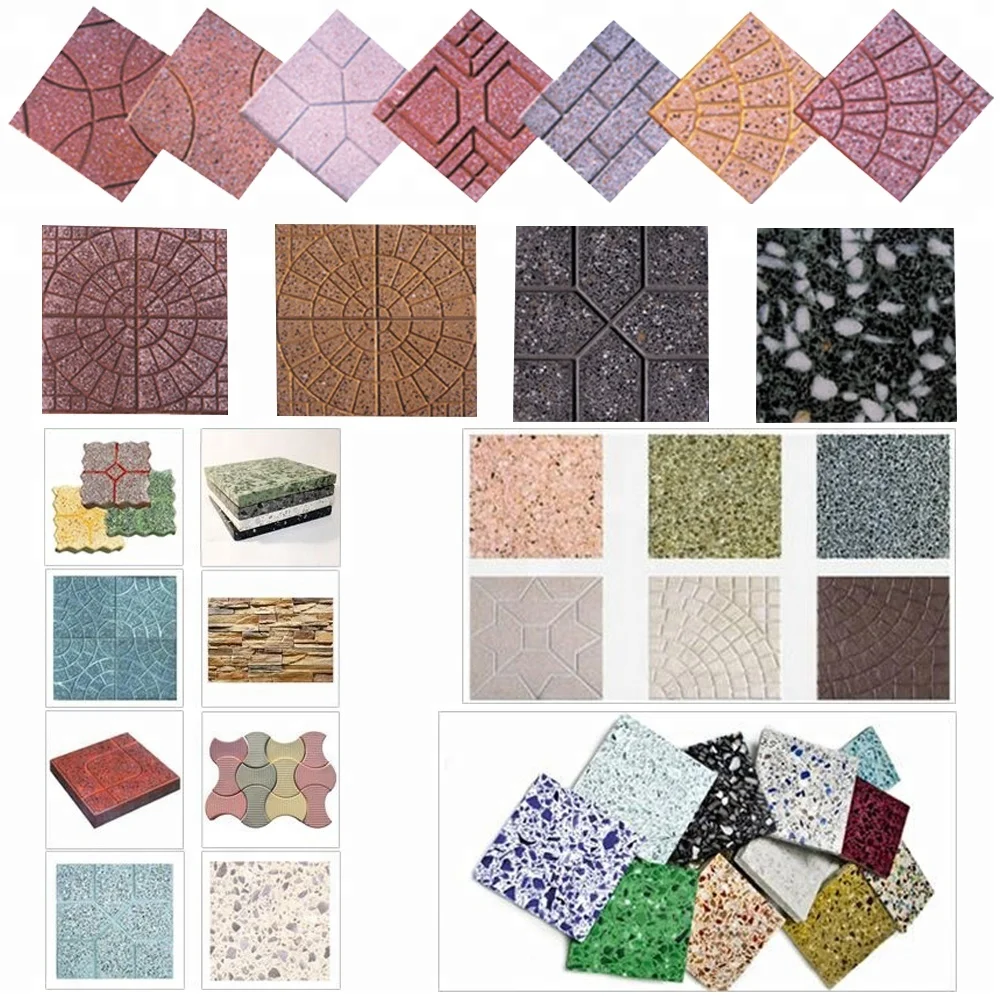

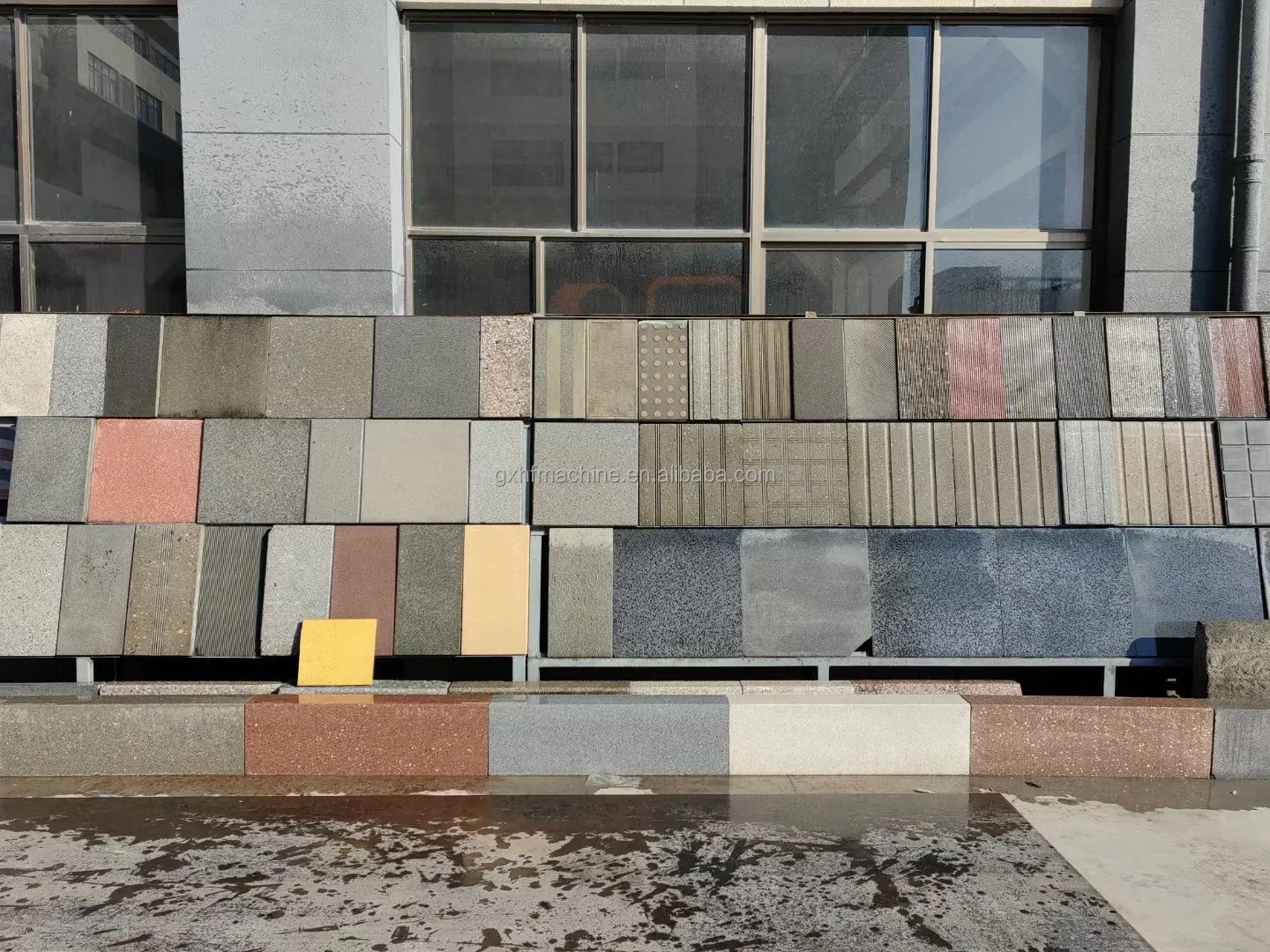

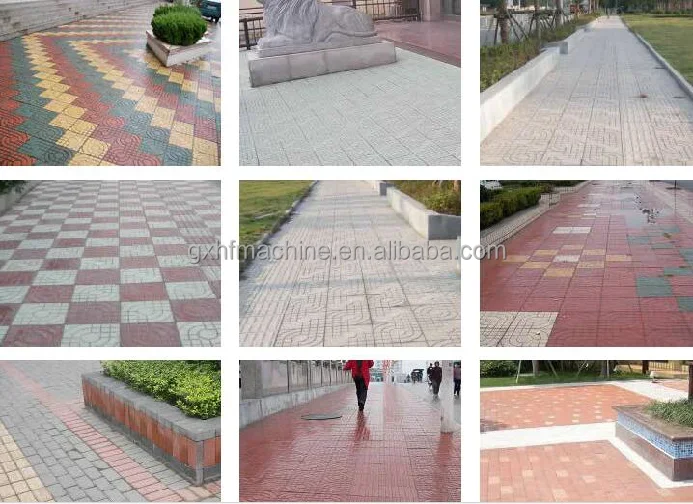

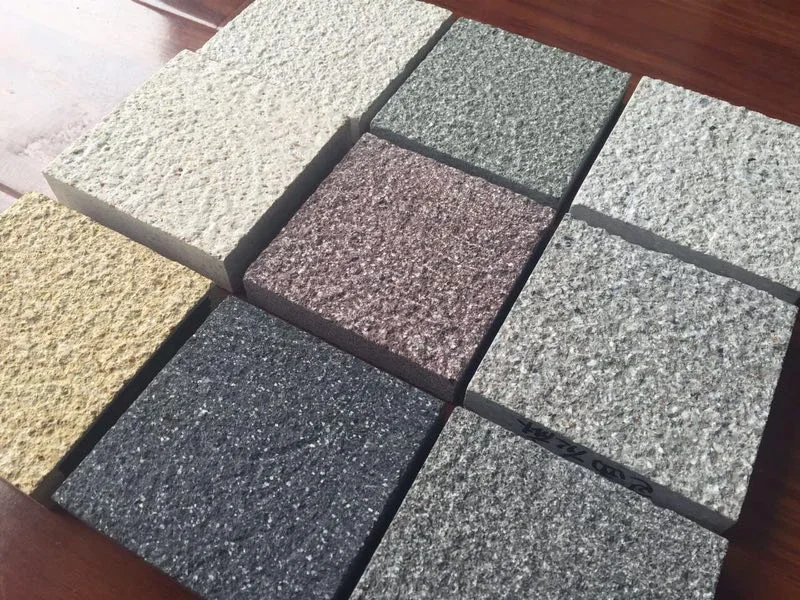

- HFT300 terrazzo tile machine can produce floor tile,pave brick,paving tile,garden tile, with customized pattern.
- The machine can install with Pan mixers
- Only three or four workers can run the terrazzo tile molding machine

1. Surfaced layer material mixer: Mix aggregates together (include stone powder, cement, sand, pigment, marble) with water evenly to have a semi-liquid mixture.

2. Under layer material mixer: Mix aggregates together (include cement, sand) with water evenly to have a under layer mixture.

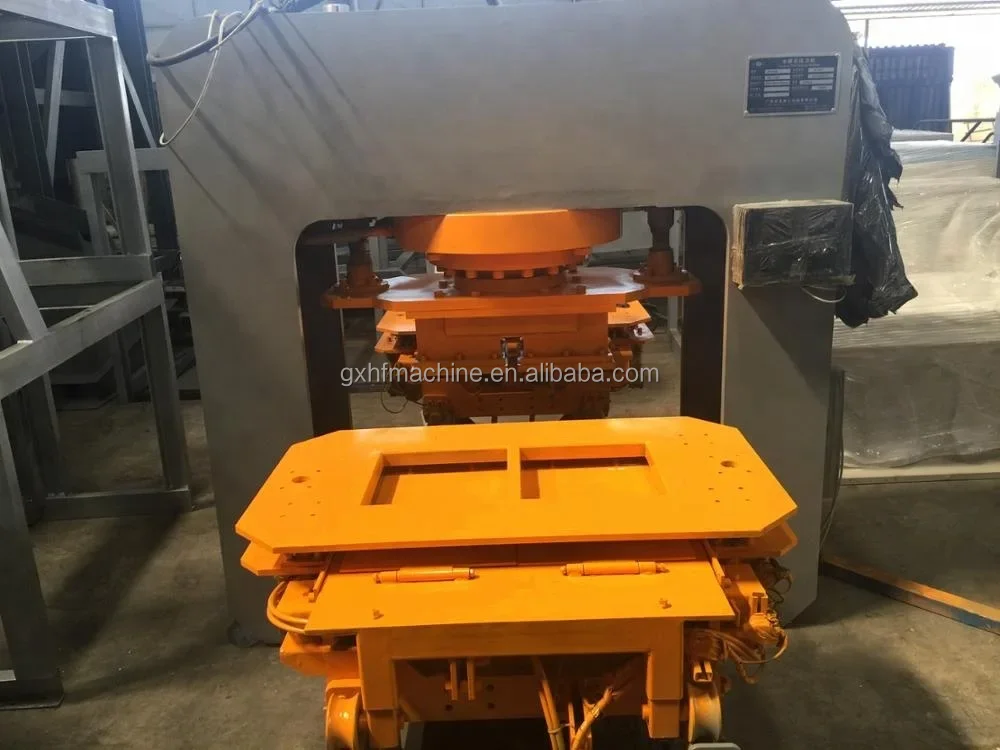

3. Forming machine: Form some types of terrazzo tile with shape and size as the mold

4. Tile grinding machine: include the functions as pre-grinding, regrinding and polishing to the surface of tile

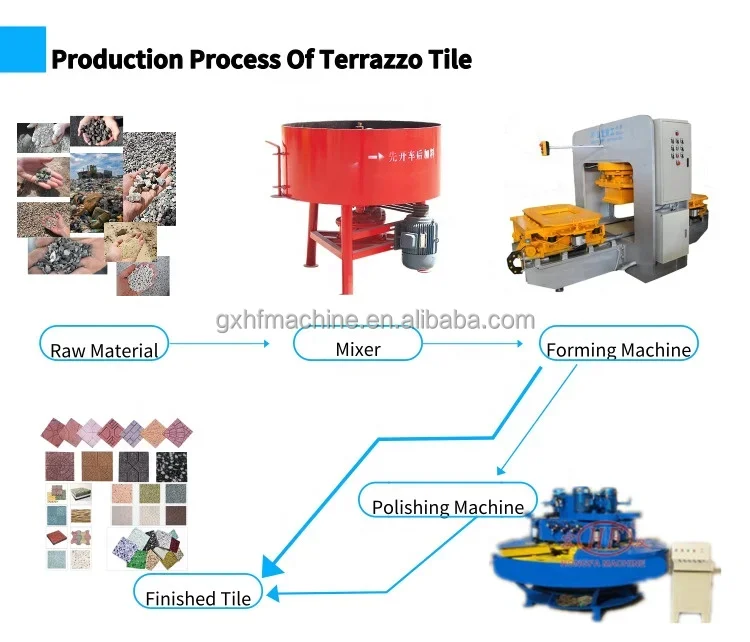

Production process for producing terrazzo tile HFT300

Step 1: Mix materials

• Surface layer materials (include marble, cement, stone powder, pigment, water, etc.) are fed to the surfaced layer material mixer. After mixing evenly, the mixture is charged into mortar lorry and transferred to the forming machine


• Under layer materials (include dust stone, cement and water) are scaled in skip hoist and transferred to mixer. After mixing evenly, the mixture charge into mortar lorry and transferred to the forming machine.

Step 2: Form the shape of terrazzo tile

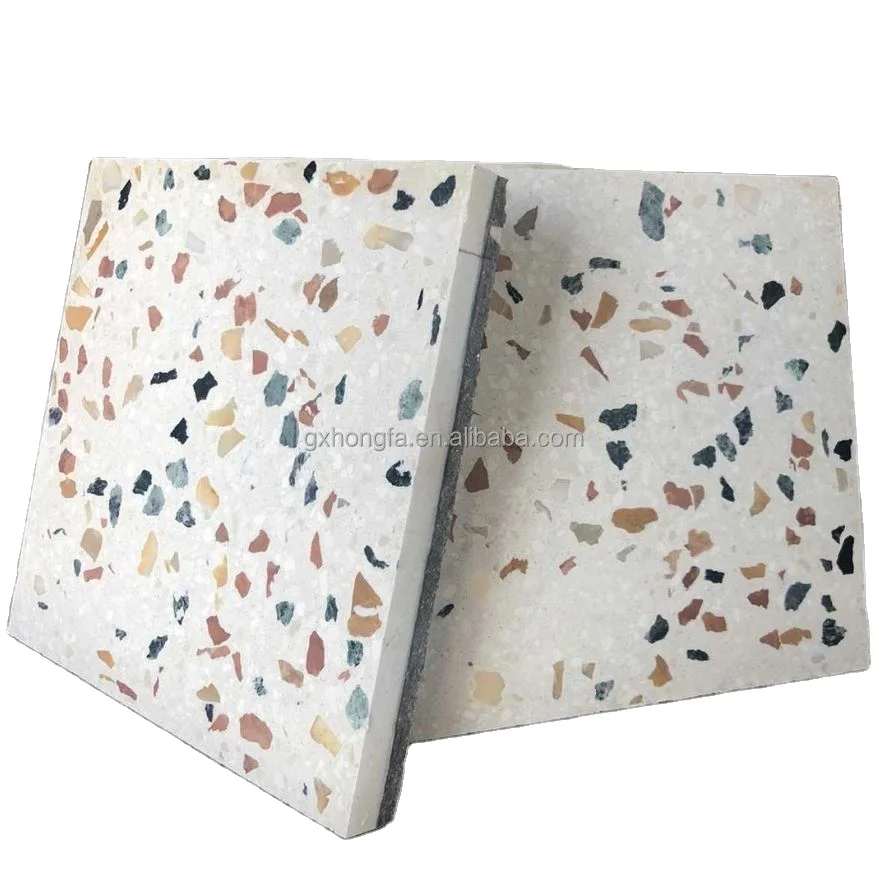

• The mixture of surface layer and under layer is fed into the mold according to the order of the surface layer and the under layer to form two separate layers.


• The forming machine uses a large hydraulic press force to form the shape of tiles in the mold and solidify them.

Step 3: Separate and stack terrazzo tile on the rack

• After forming, terrazzo tiles are separated from the mold automatically by the machine, and then workers stack on the rack. After that, the forklift transfers to the curing position

Step 4: Curing terrazzo tile

• Based on the atmosphere and features of product, terrazzo tiles are cured naturally in 72 hours or cured in steam room in 24 hours before grinding and polishing.

Step 5: Grinding and polishing

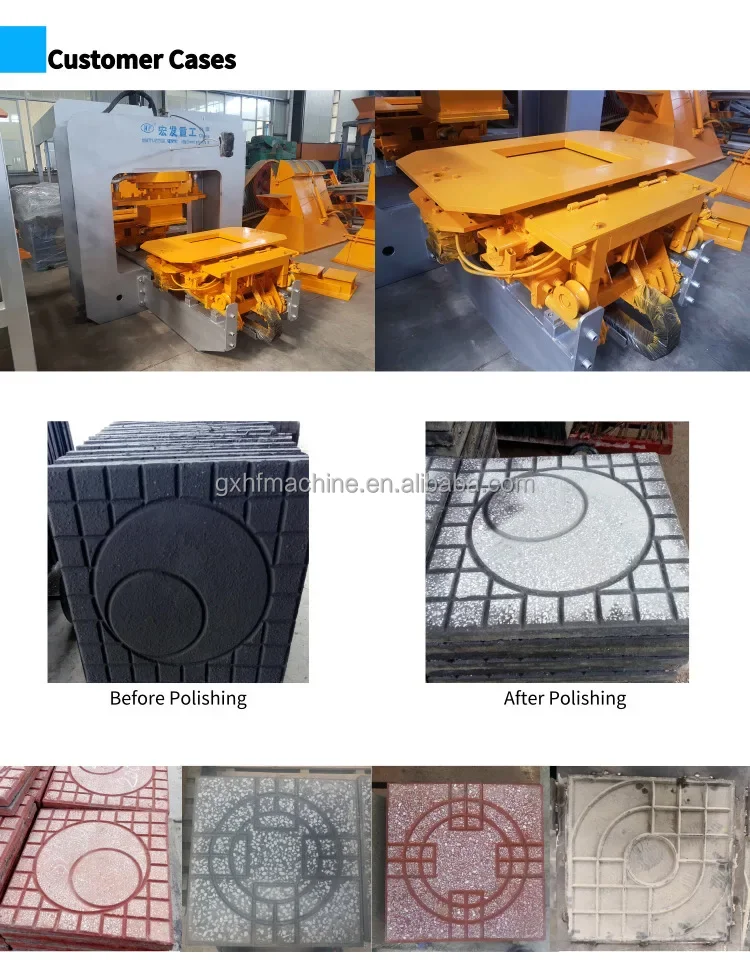

• After curing, terrazzo tiles are transferred to the grinding machine to grind and polish the surface layer to have a high aesthetics

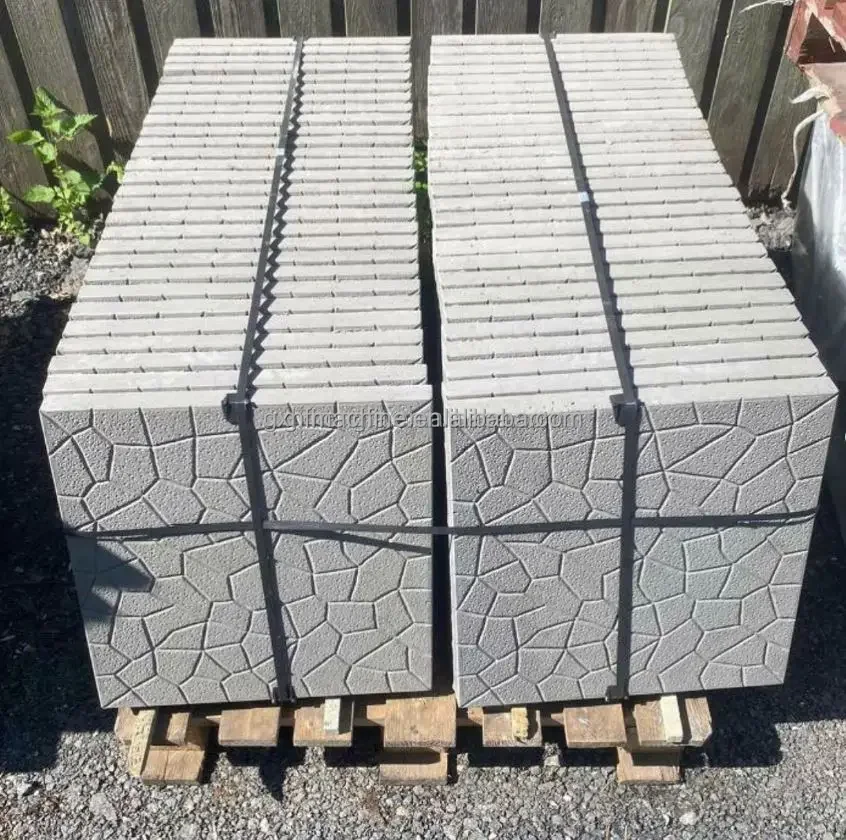

• After grinding and polishing, the workers stack into the bales, packaging and transferred to curing yard. After 15 days, it can be sold.

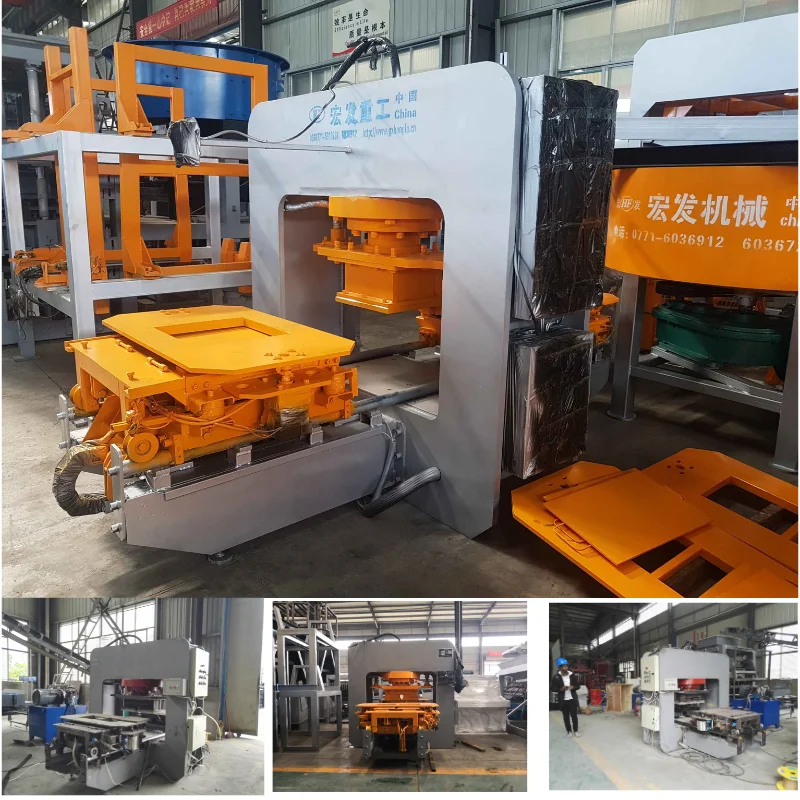

HFT300 hydraulic press Terrazzo Tile Making Machine Features

Combining with German High-tech and Hongfa Technology, this advanced terrazzo tile making machine concrete making machine is superior in these aspects:

Passing the strict quality inspection
- CE/SGS/ISO9001:2000
With the best configuration
-   Imported Control Panel
With great performances
- With vibration case in the bottom, so can produce more densitive terrazzo tile stone
- Extremely proving the stability

- Upper mould moving and raw materials released handle by control box

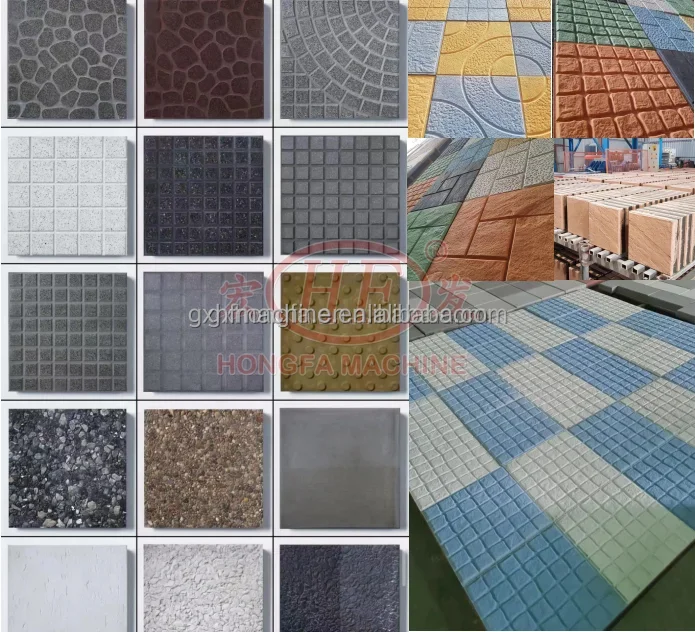

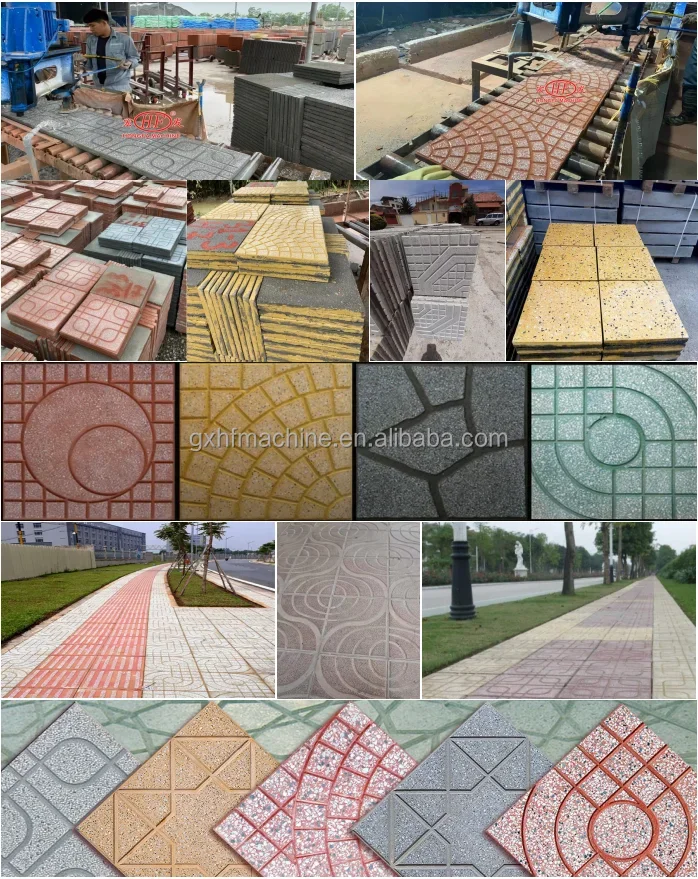

Various pattern of paver with different color can be made in this machine, it is the first-selected machine for concrete color tiles.

Raw Material:   - Cement / White cement   - Sand   - Stone Powder   - Stone grains   - Pigment

Similar Products

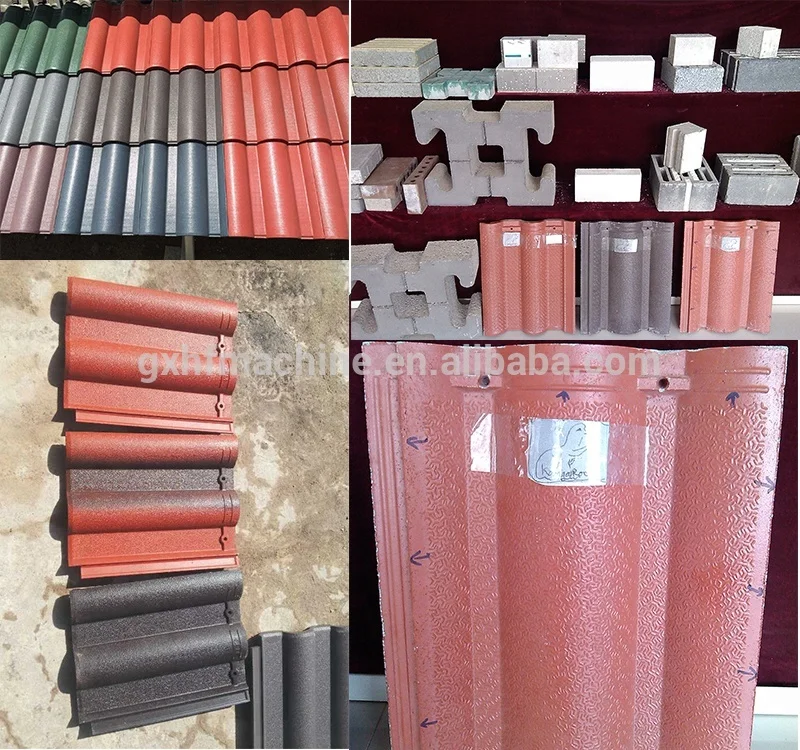

Full-automatic cement color roof tile making machine 1. Quick molding speed, high output, reliable performance. Adopting PLC automatic control. man-machine interface makes performance more reliable and more convenient. The molding speed can reach 8 pcs/min, with full hydraulic and pneumatic production. 2. Slurry concrete is pressed by pressure filtration type mould. Final product is perfect in structure and various in designs, big in density, and high in strength, precise in size, which can meet any building need. 3. Multi-usage. It can make kinds of color tiles, such as roof tiles, ridge tiles, edge tiles, drainage tile and gutter tiles and so on.

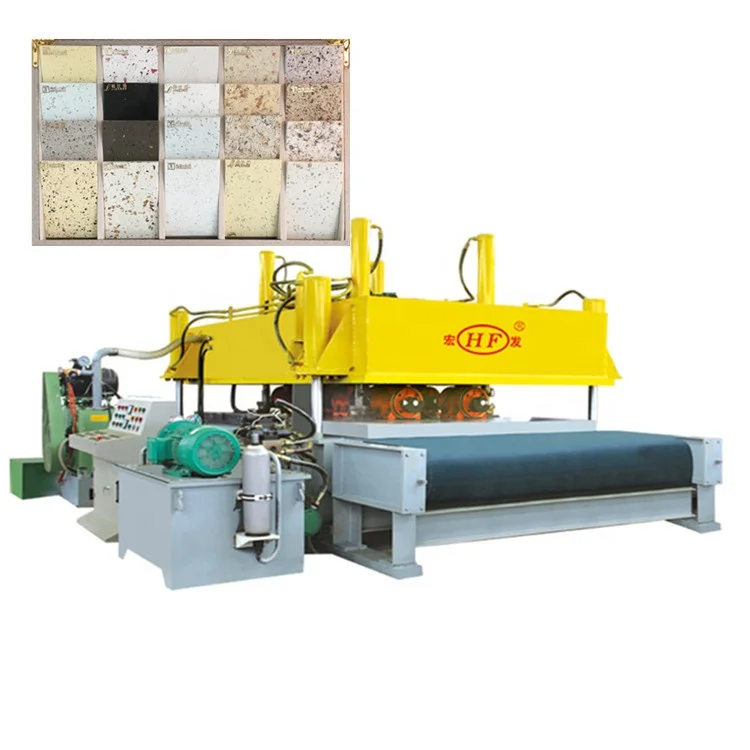

Artificial quartz stone slab making machine Engineered quartz (not to be confused with Quartzite, another appealing natural stoneused as counters) is a manmade product created mostly from natural materials. It's made of 90 to 94 percent ground quartz and 6 to 10 percent resins and pigments that are combined into durable and nonporous slabs. Application of artificial quartz stone and engineered quartz plate    [1]For engineered marbles the most common application is indoor flooring and walls, while the quartz based product is used primarily for kitchen countertops [2] As an alternative to laminate or granite. [3] Related materials include geopolymers and cast stone. Unlike terrazzo, the material is factory made in either blocks or slabs, cut and polished by fabricators, and assembled at the worksite.
