Product Overview
Description

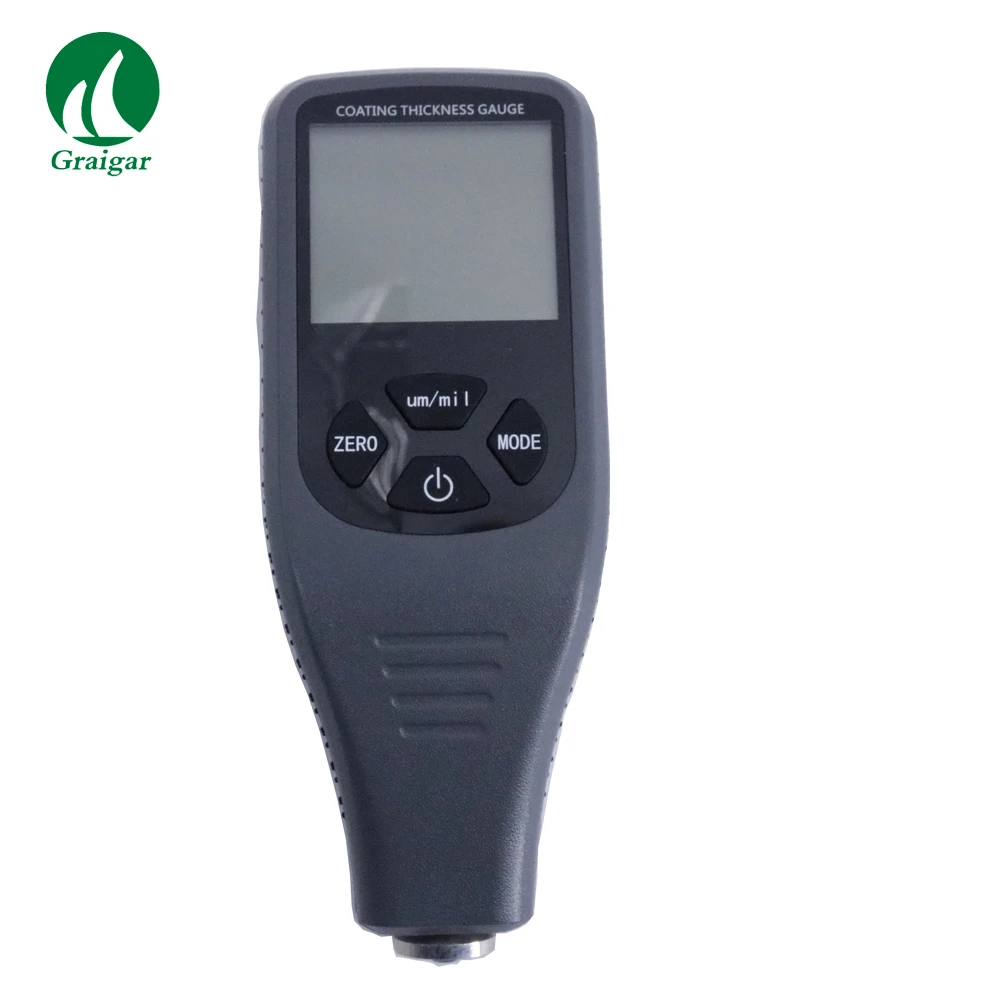

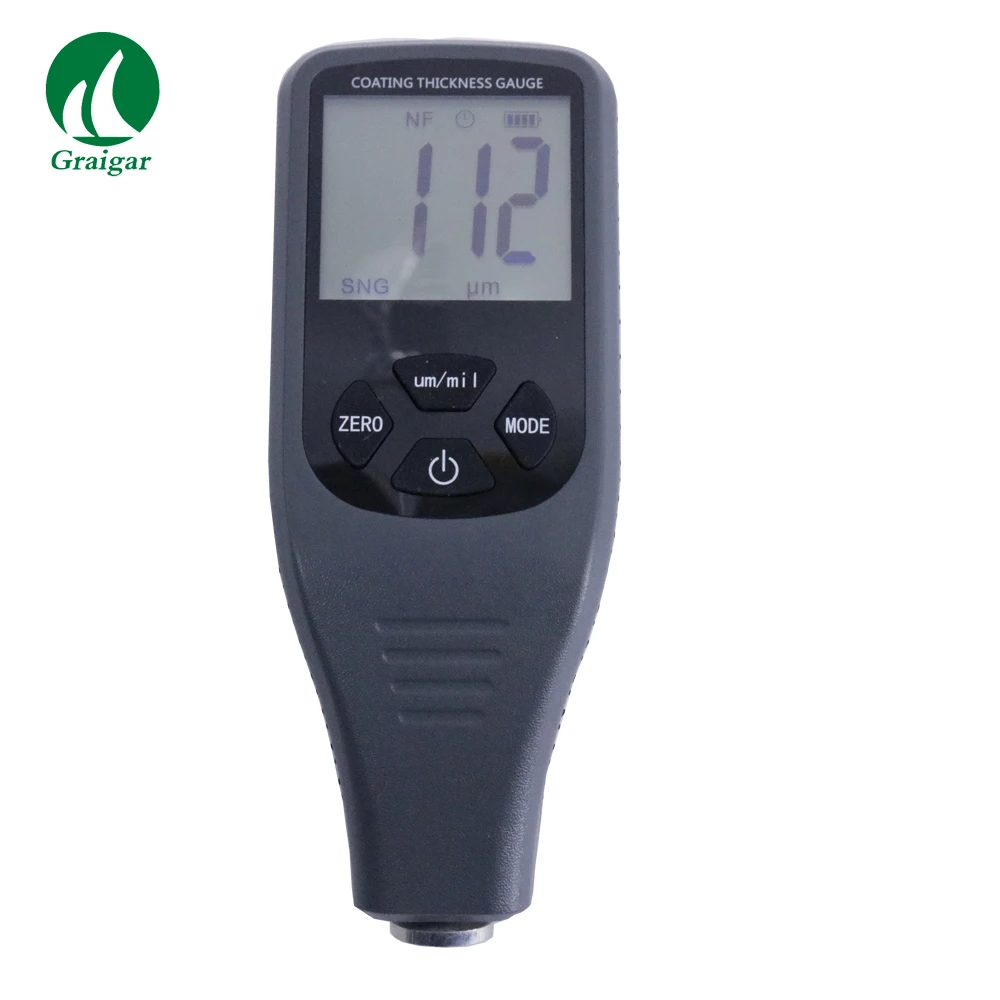

TC-200 Built-in Black Light Paint coating Digital Car Paint Thickness Meter Black/White
The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Features:

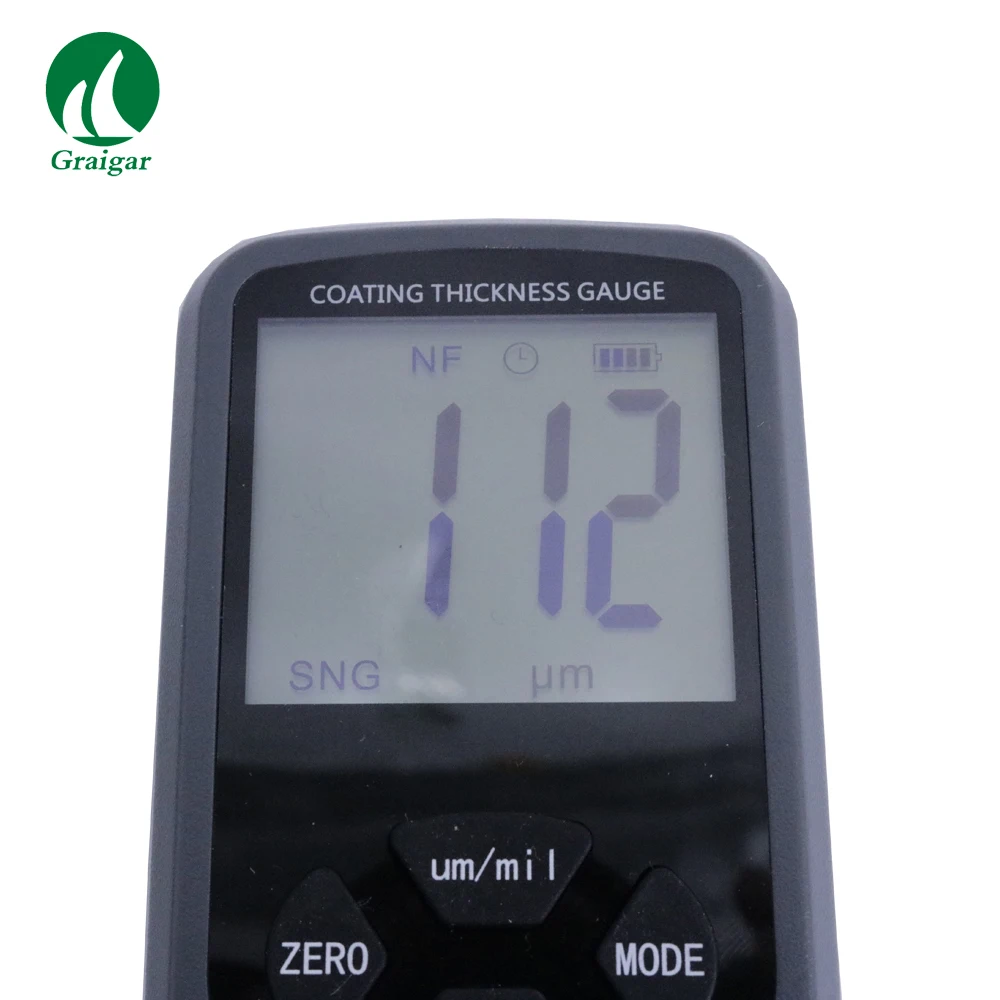

FSTN LCD Display
Built-in Black Light
Integral Probe F&NF, Auto detecting attribute of substrates

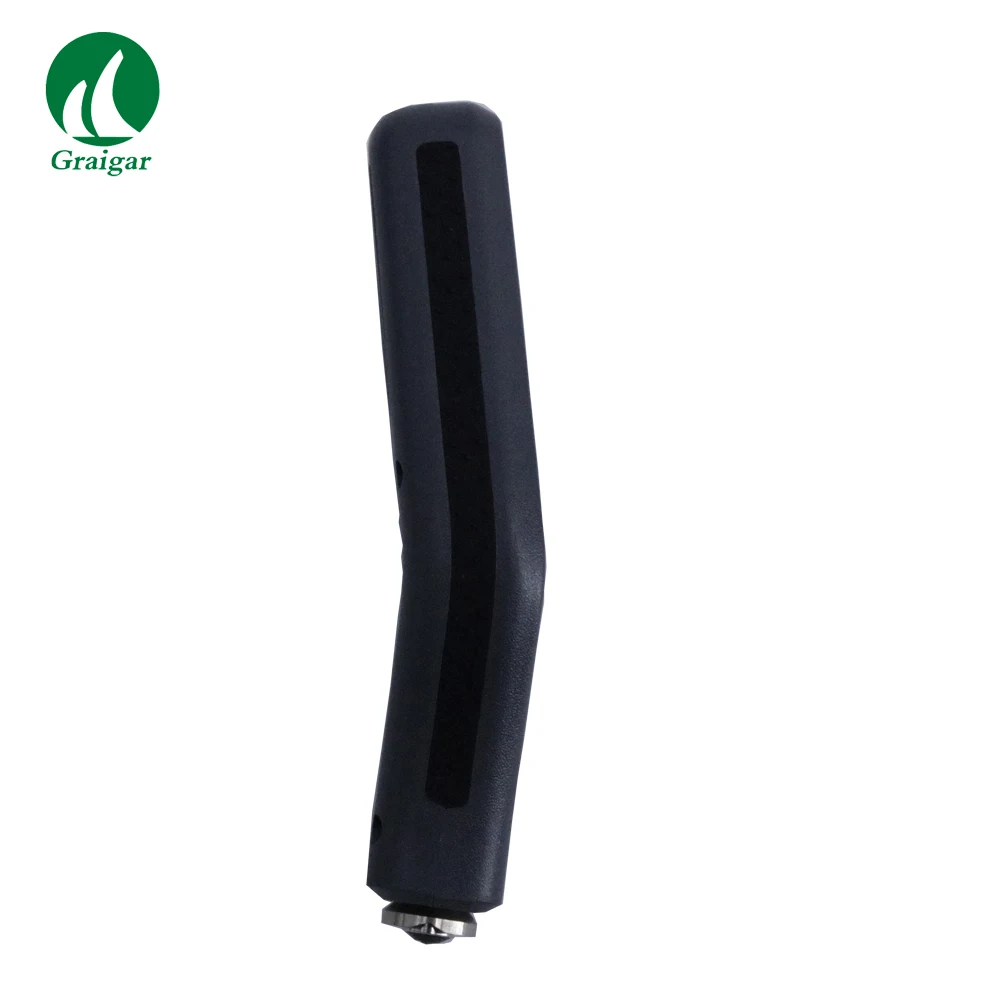

Nice shell design for easy reading
Built-in Silicone Slip Strip
Measurement Range: 0~1300um
Accuracy: ±(2.5%+1um)
Resolution: 0.1um
Zero Calibration and 50/100/250/500/1000um Calibration Points
5 minutes auto power off to saving power

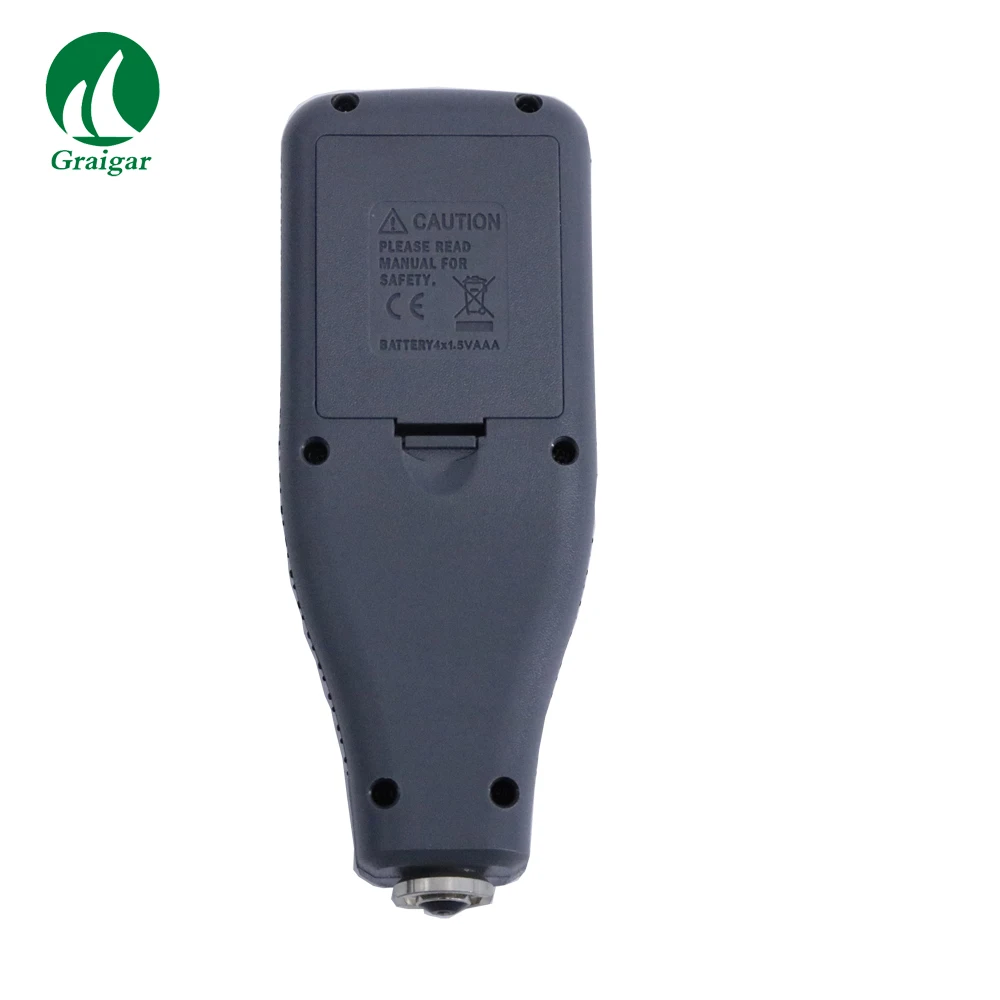

Power Supply: 4 x AAA batteries
Operating Temperature: 0 to 40℃ (32 to 104℉)
Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)
Weight: 125g (4.41 oz)
Technical specifications
| Probe F | Probe N |
Principle | Magnetic Induction | Eddy Current |
Range | 0~1300um 0~51.2mil | 0~1300um 0~51.2mil |
Accuracy | ±(2.5%+1um) ±(2.5%+0.04mil) | ±(2.5%+1um) ±(2.5%+0.04mil) |
Resolution | 0.1um/0.01mil | 0.1um/0.01mil |
Calibration | Points: ZERO/50/100/250/500/1000um | |
Units | um, mil | |
minimum curvature radius convex: 1.5mm | ||
minimum curvature radius concave: 25mm | ||
minimum measuring area: Diameter 6mm | ||
minimum thickness of substrate | 0.5mm(0.02”) | 0.3mm(0.012”) |
Power | 4 x AAA batteries(Not included) | |
Operation Environment | Temperature:0~40℃(32~104℉) Humidity:20%~90%RH | |
Size | 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”) | |
Weight | 125g(4.41oz)Our services | |
