Conductivity Probe and Water Conductivity Sensor and Conductivity Sensor
- Category: >>>
- Supplier: Nengshi Analytical Sensor Co. Ltd.
Share on (1601209623932):
Product Overview
Description
Nengshi online industrial Conductivity sensor can be used continuously in different applications and with all kinds of Conductivity meters. We use advanced technologies to manufacture Conductivity sensors. The quality of our sensors are excellent. The electrodes can be used in laboratory and different industry applications.
Nengshi Online Industrial Conductivity sensor
•Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
•Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
•Measurement range:0~200ms/cm, temperature range:0~130℃
• Pressure range:1.0MP
•Conductivity Constant 0.01, 0.1, 1, 10, 25 optional
•Stable performance, long life
•Easy to dismantle and clean
•Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.
•The material: stainless steel, Titanium steel, Hastelloy, PPS plastic etc.
•The thermistor Pt100, Pt1000，2.252K，10K，22K etc. optional

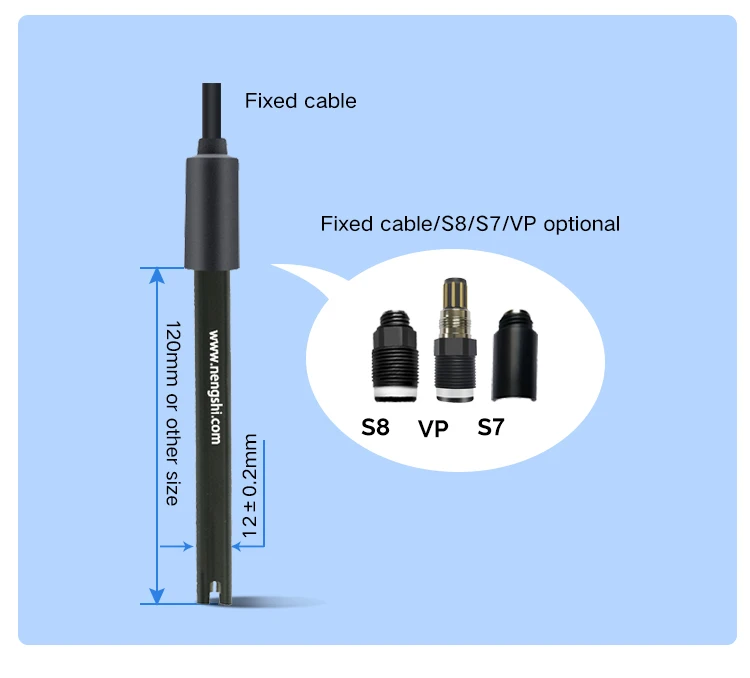

Plug-in connection | VP or fixed cable |
Thread | PG13.5 or 3/4NPT, 1NPT, 1/2NPT |
Constant | K=0.01/ 0.1/ 1/ 10 |
Measuring Range | 0-200000μs/Cm |
Temperature range | 0~130ºC |
Pressure resistance | Up to1.0MPa |
Outer tube material | 316L Stainless steel/PPS Plastic |
Protection | IP68 |
External dimension | φ13× 70mm or customized size |
Thermistor | PT100/ PT1000/ 3K/ 2.252K/ 10K/ 22K etc. |
Cable length | According to customer's requirement |
Warranty | 1 year |
Customizeed support | OEM, ODM, OBM |
Related Products

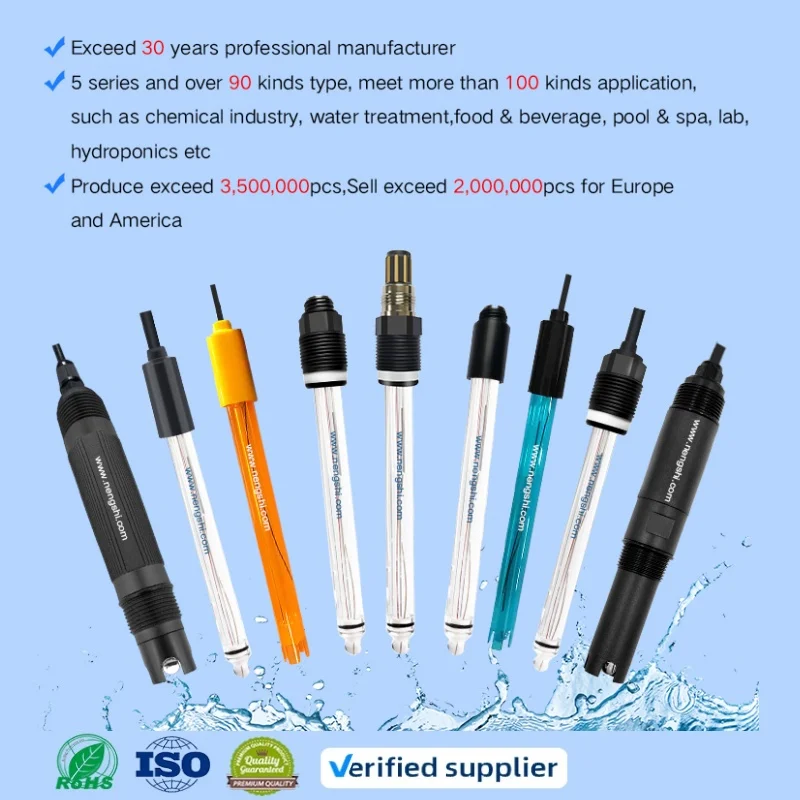

• Excced 30 Years professional manufacturer
• 5 series and over 90 kinds type can meet more than 100 kinds applications such as chemical industry, water treatment,
food&beverage, swimming pool&spa, hydroponics etc
• Produce exceed 3,500,000pcs, sell exceed 2,000,000pcs for Europe and North America
food&beverage, swimming pool&spa, hydroponics etc
• Produce exceed 3,500,000pcs, sell exceed 2,000,000pcs for Europe and North America

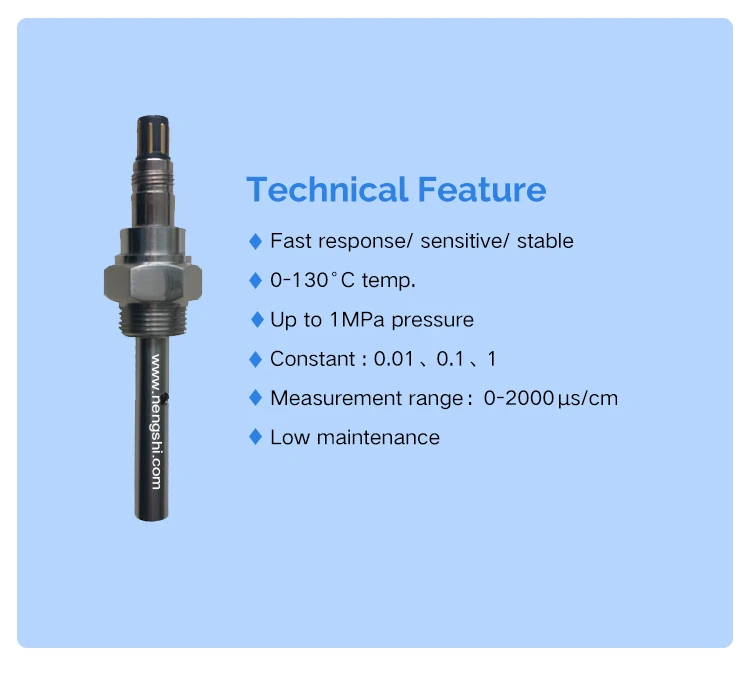

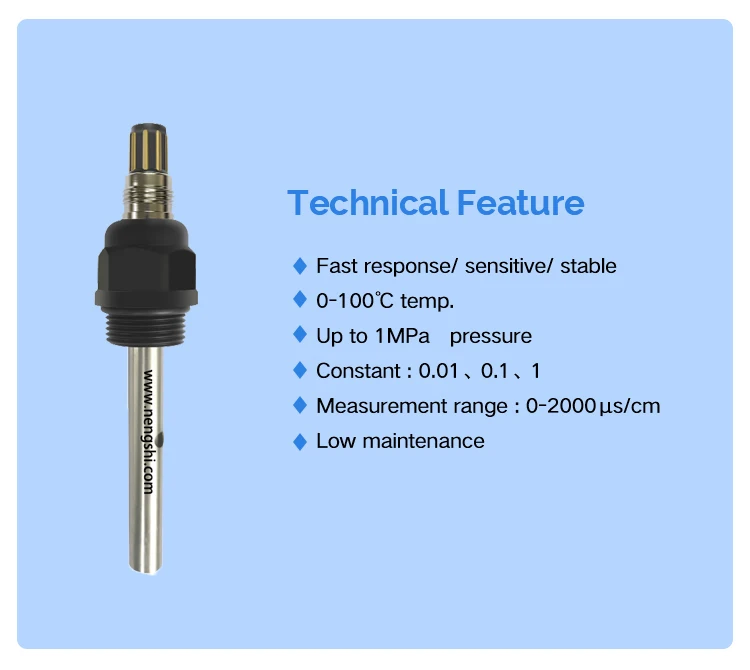

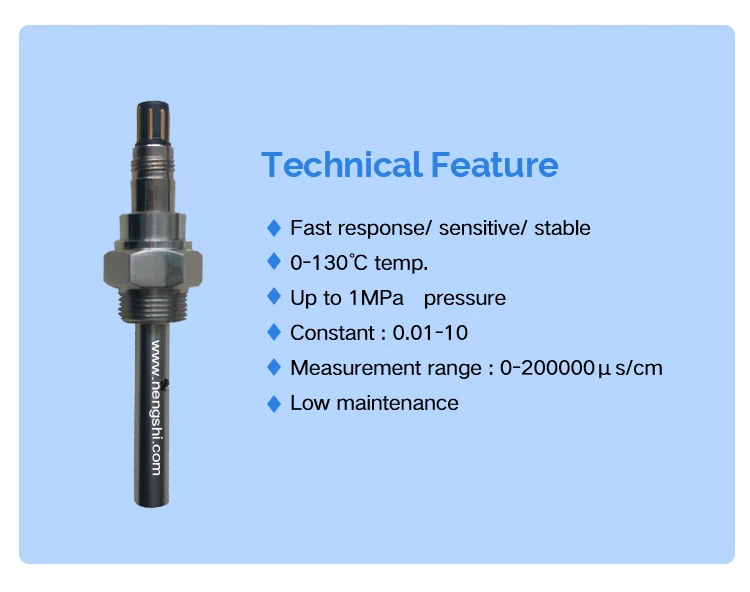

Online industrial 316L stainless steel ec sensor
• Constantly water monitoring usage
• Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
• Stainless steel, titanium steel, Hastelloy and graphite conductivity sensor
•VP connection thread optional

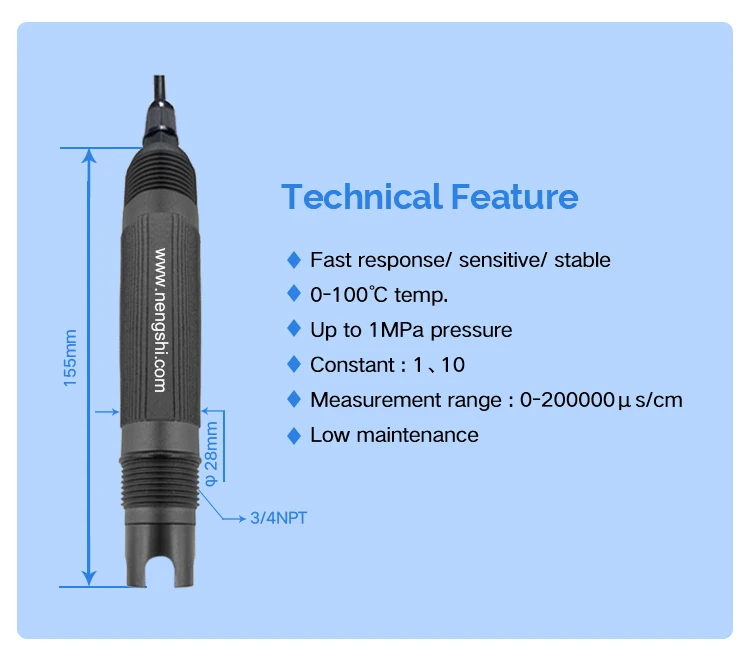

Plastic conductivity sensor
• Cost efficient conductivity sensor
• Different color/connection threads avaliable
• Our sensor can be used continuously in different kinds of online industrial applications
• 5 series and over 90 kinds of types can meet more than 100 scenarios
• Can be used with all kinds of conductivity meters
• Can be used with all kinds of conductivity meters
