FS AL 20 FS A L20 Qseals QFPT23 AES T05GT Mechanical Seal For Flygt Pump 2024/2066/2075/2101 TC/TC/VIT
- Category: >>>
- Supplier: Anhui Hengda Mechanical Seal Manufacturing Co. Ltd.
Share on (1601209697748):
Product Overview
Description
Products Description

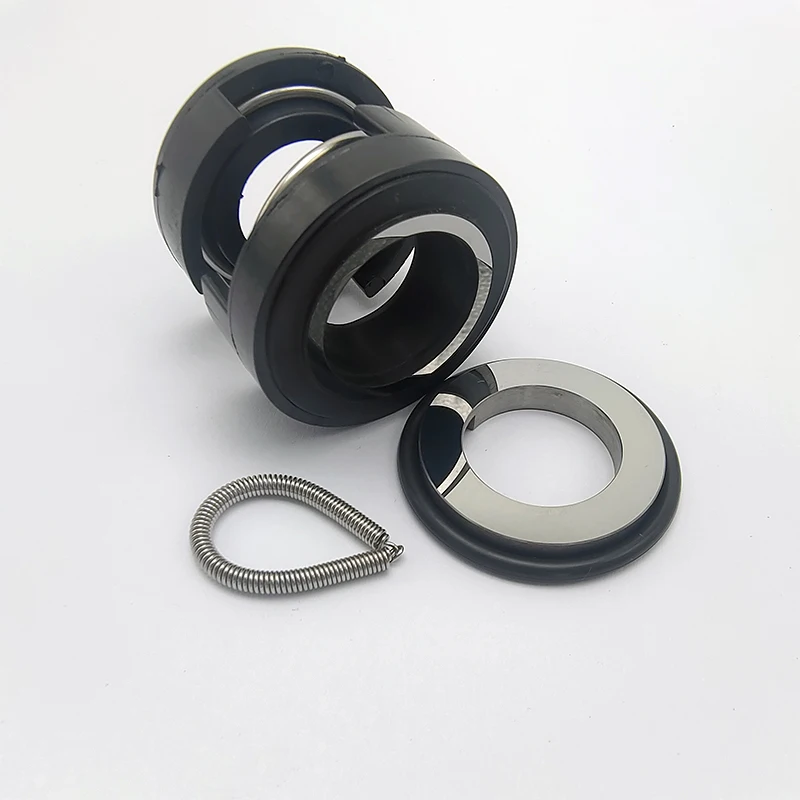

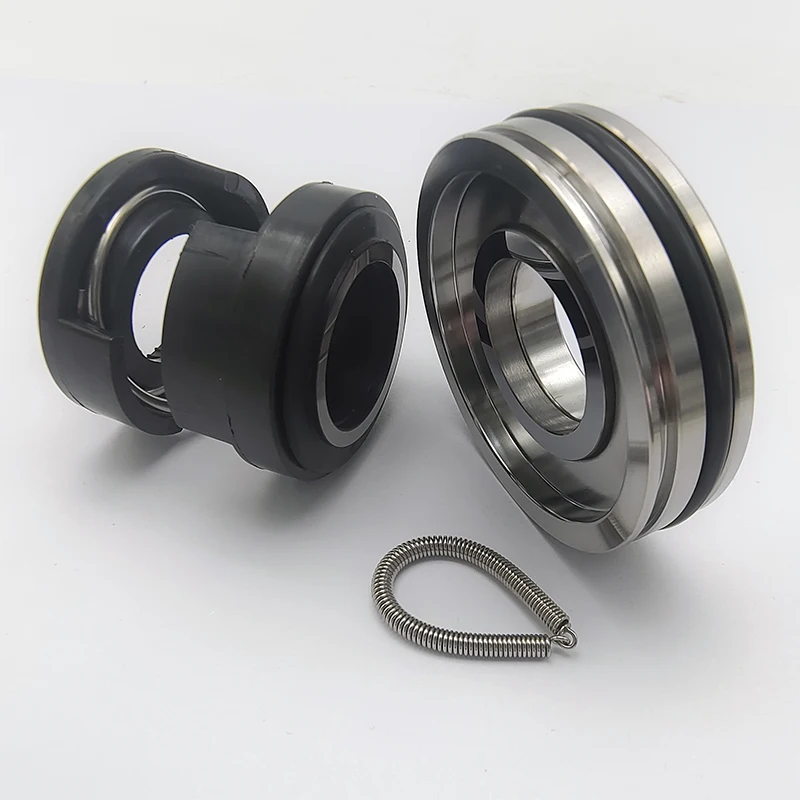

Mechanical Seal For Flygt Pump Ready 24 2024 2066 2075 2101 3065 3080 Model: FS-A-L20/FS-A-U20 Material: TC/TC/VIT Shaft size: 20mm | ||||||
Note: price $0.25-$0.27 is just for G60-12, for complete mechanical seal price, contact us to get it | ||||||
Flygt Pump Model | Shaft Size | Upper Seal | Lower Seal |
3085-091,3085-120.3085-170,3085-171,3085- | 20mm | FS-G-U20 | FS-G-L20 or FS-H-L20 |
3101 | 28mm | FS-B-U28 | FS-B-L28 |
3102 | 25mm | FS-J-U25 | FS-J-L25 |
3126-90,3126-180 | 35mm | FS-K-U35 | FS-K-L35 |
3126-91,3126-280,3126-290 | 35mm | FS-K-U35 | FS-M-L35 |
3126-181,3127 | 35mm | FS-M-U35 | FS-M-L35 |
3140, 3152 | 45mm | FS-O-U45 | FS-O-L45 |
3170,3201 | 60mm | FS-Q-U60 | FS-Q-L60 |
3200 | 60mm | FS-P-U60 | FS-P-L60 |
3230,3300-91.3300-181,3300-280, | 90mm | FS-S-U90 | FS-S-L90 |
3300-980,3305 | |||
3310.3311,3312,3350,3351 | 90mm-120mm | FS-S-U90 | FS-T-L120 |
3355, 3356,3357 | 90mm | FS-S-U90 | FS-S-L90 |
3500, 3501,3530,3531,3600,3601, 3602 | 90mm-120mm | FS-S-U90 | FS-T-L120 |
4351.4352,4400 | 20mm | FS-G-U20 | FS-H-L20 |
4410, 4430 | 60mm | FS-Q-L60 | |
4440, 5530 | 35mm | FS-M-U35 | FS-M-L35 |
4650, 4660 | 45mm | FS-O-U45 | FS-O-L45 |
4670, 4680, 7045 | 60mm | FS-Q-U60 | FS-Q-L60 |
7050, 7051, 7055, 7060, 7061, 7076, 7556 | 90mm | FS-S-U90 | FS-S-L90 |
7080, 7115 | 80mm-90mm/90mm~120mm | FS-S-U90 | FS-S-L80/FS-T-L120 |
7570, 7585 | S0mm-120mm | FS-S-U90 | FS-T-L120 |
Grindex Maior,MaSter,Matador,Midi,Minette,Salvador | 25mm~24mm | FS-Z-U25 | FS-Z-L24 |
Grindex Maxi | 45mm | FS-O-U45 | FS-N-L45 |
Ready modelS 4 8 12&16 | 15mm | FS-D-U15 | |
Ready 24 | 20mm | FS-A-U20 | FS-A-L20 |
Ready 90 | 28mm | FS-I-U28 | FS-I-L28 |
Steaty 7 | 20mm | FS-G-U20 | FS-G-L20 |
600 | 60mm | FS-Q-U60 | FS-O-L60 |
605, 615, 665, 670, 680 | 90-80mm | FS-S-U00 | FS-S-L80 |
705.715.720.721,735,745,760,765.770.775 | 80mm~90mm/90mm~120mm | FS-S-U90 | FS-S-L80/FS-T-L120 |
820,840,841.860,880,881,900 | 80mm-90mm/90mm~120mm | FS-S-U90 | FS-S-L80/FS-T-L120 |
2004, 2008, 2012, 2016 | 15mm | FS-D-U15 | |
2024 | 20mm | FS-A-U20 | FS-A-L20 |
2050, 2052 | 15mm | FS-D-U15 | |
2060 | 20mm | FS-G-U20 | FS-G-L20 |
2066 | 20mm | FS-A-U20 | FS-A-L20 |
2070 | 22mm | FS-E-U22 | FS-E-L22 |
2071 | 22mm | FS-E-U22 | FS-E-L22 |
2075 | 20mm | FS-A-U20 | FS-A-L20 |
2082, 2090, 2125, 2140 | 28mm | FS-1-U28 | FS-1-L28 |
2084, 2135 | 35mm | FS-K-U35 | FS-K-L35 |
2101 | 20mm | FS-A-U20 | FS-A-L20 |
2102-40 | 22mm | FS-E-U22 | FS-E-L22 |
2151-10 | 35mm | FS-K-U35 | FS-K-L35 |
2151-11,2151-50 | 35mm | FS-K-U35 | FS-L-L35 |
2201-10,2201-320,2201-430,2201-480 | 45mm-35mm | FS-O-U45 | FS-K-L35 |
2201-590.2201-690 | 45mm | FS-O-U45 | FS-O-L45 |
2201-11HT or MT | 45mm | FS-N-U45 | FS-N-L45 |
2201-11LT | 45mm | FS-O-U45 | FS-N-L45 |
2250, 2290 | 60mm | FS-P-U60 | FS-P-L60 |
2400 | 60mm | FS-R-U60 | FS-R-L60 |
3041-281 | 20mm | FS-G-U20 | FS-G-L20 |
3057 | 20mm | FS-G-U20 | FS-H-L20 |
3057-180,3060 | 20mm | FS-G-U20 | FS-G-L20 |
3065 | 20mm | FS-A-U20 | FS-A-L20 |
3067-170,3067-250,3068 | 20mm | FS-G-U20 | FS-G-L20 |
3080 | 20mm | FS-A-U20 | FS-A-L20 |
3082 | 22mm | FS-E-U22 | FS-E-L22 |
3231 | 90-75mm | FS-S-U90 | FS-U-L75 |
Mechanical Seal for bellow pump is available in our factory, contact us please | ||||
Edur CBL50-250/237 Goulds IC 100-65-160 Goulds IC 100-65-200 Goulds IC 100-65-250 Goulds IC 100-65-315 Goulds IC 125-100-200 Goulds IC 125-100-250 Goulds IC 125-100-315 Goulds IC 125-100-400 Goulds IC 125-80-160 Goulds IC 125-80-200 Goulds IC 125-80-250 Goulds IC 125-80-315 Goulds IC 125-80-400 Goulds IC 150-125-250 Goulds IC 150-125-315 Goulds IC 150-125-400 Allweiler SNS 120 ER Apex TD 65-125 Ebara EVM3012F 22kw Lowara HTF4 40-200-187 Lowara SHS4 65-250-40 Lowara CNE4 80-200-30 Lowara SHF 25-160-15/A Lowara CEK 210-2 Lowara GSV46 Lowara HTF 50-200-220 Lowara HTF4 80-200-220 Lowara 4HM5/A Lowara COM 350-07 | Qseals QRB02 AES B012 AES B092U Anga A4 EN 12756 Burgmann MG1S6/22-G3 Eriks BBA Flowserve 192 Flowserve M411LZ243 Flowserve M411LZ244 Flowserve M411LZ246 Flowserve M411LZ247 Flowserve M411LZ249 Flowserve M411LZ250 Flowserve M411LZ255 Flowserve M411LZ256 CNM-D150-400 GW20 \\ Allweiler SLS 660 ER46 Allweiler SLS 940 ER 46 Lowara SHF 65-160-75 Lowara CM 70-33 Lowara SVH4 Lowara HTF4 25-250-235 Lowara HTS 40-250-110 Lowara C 120-33 Lowara FHS 50-250 Lowara SHF4 80-160-15 Lowara DLV4 80-63 Lowara HTS4 32-250-11 | Flowserve M411LZ258 Flowserve M411LZ259 Flowserve M411LZ262 Flowserve M412LZ309 Flowserve M412LZ360 Flowserve M412LZ467 Flowserve M412LZ747 Flowserve M412LZ796 Flowserve M412LZ797 Flowserve M412LZ798 Flowserve M412LZ799 Allweiler ANBP 12.2 Lowara 0022 312 11 Lowara 0022 333 45 Lowara 0022 282 67 + 0022 288 67 Lowara 0022 328 73 Lowara 0022 312 55 Lowara 0022 322 04 Lowara 0022 253 09 Lowara 0022 284 40 + 0022 290 40 Lowara 0022 314 50 | ||
