Hualong Machinery More Profit New Trend ultra Thin Diamond Saw Marble Block Cutter Multi Wire Stone Cutting Machine with Water
- Category: >>>
- Supplier: Fujian Province Hualong Machinery Co. Ltd.Fujian Ltd.
Share on (1601210699110):
Product Overview
Description

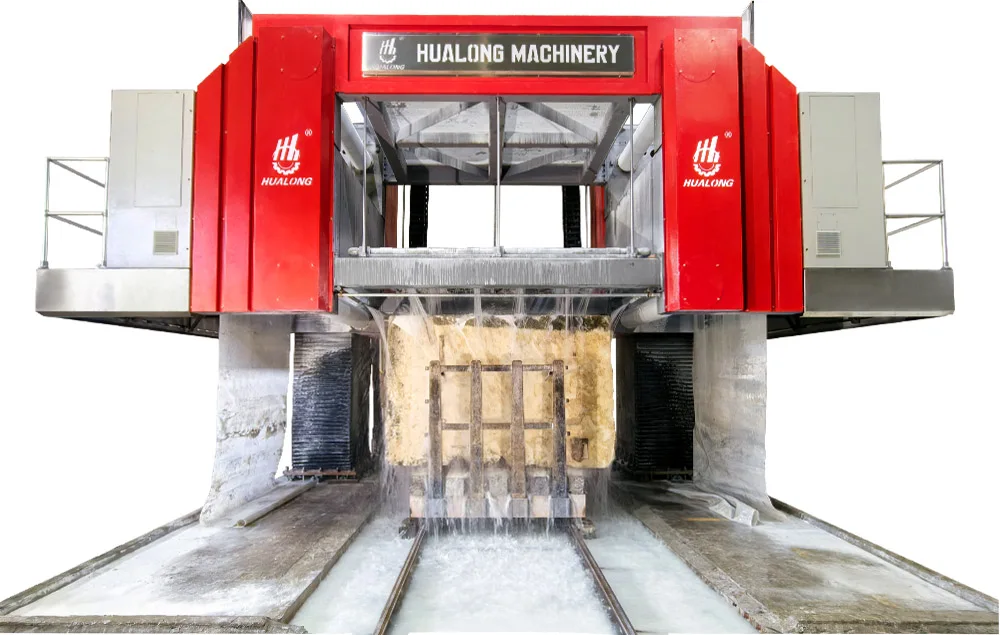

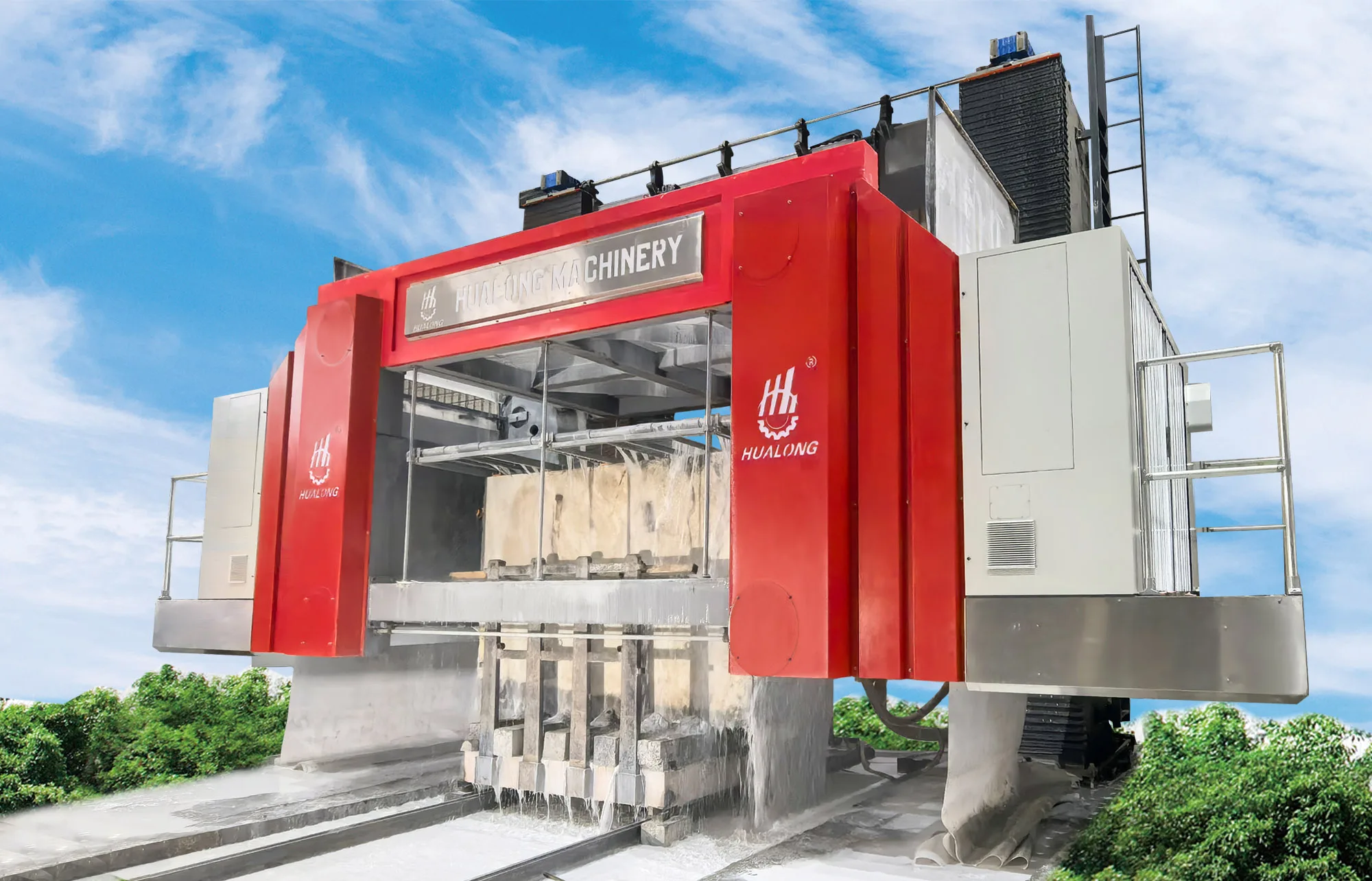

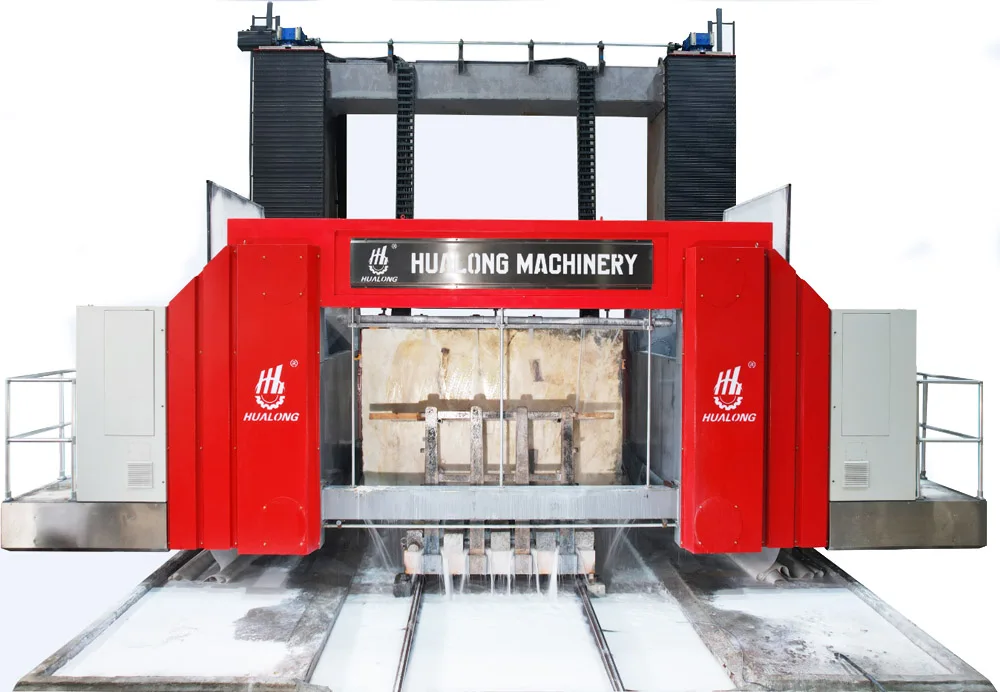

Ultra Thin Multi Wire Saw Machine
HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows:
Advantage
1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones.
2) Emission Reduction of Stone Powder: over 90%
3) Noise reduction - No vibration, reduce noise over 40 dB.
4) Ultra thin slabs below 10mm can be produced
5) High precision prevent wire marks and improves the slab flatness by 50%.
6) Power saving - reduce 50% electric power consumption because of much less cutting friction.
7) Space saving - reduce equipment footprint by more than 30%.
3) Noise reduction - No vibration, reduce noise over 40 dB.
4) Ultra thin slabs below 10mm can be produced
5) High precision prevent wire marks and improves the slab flatness by 50%.
6) Power saving - reduce 50% electric power consumption because of much less cutting friction.
7) Space saving - reduce equipment footprint by more than 30%.
Trends of Tomorrow, Your Next
for block cutting, much more profit.
Get an extra profit of USD260000, one free HLMW-100/150 machine, within 6 months. Just let HLMW-100/150 create for you !
It is never too late to upgrade equipment for more value and less consumption.

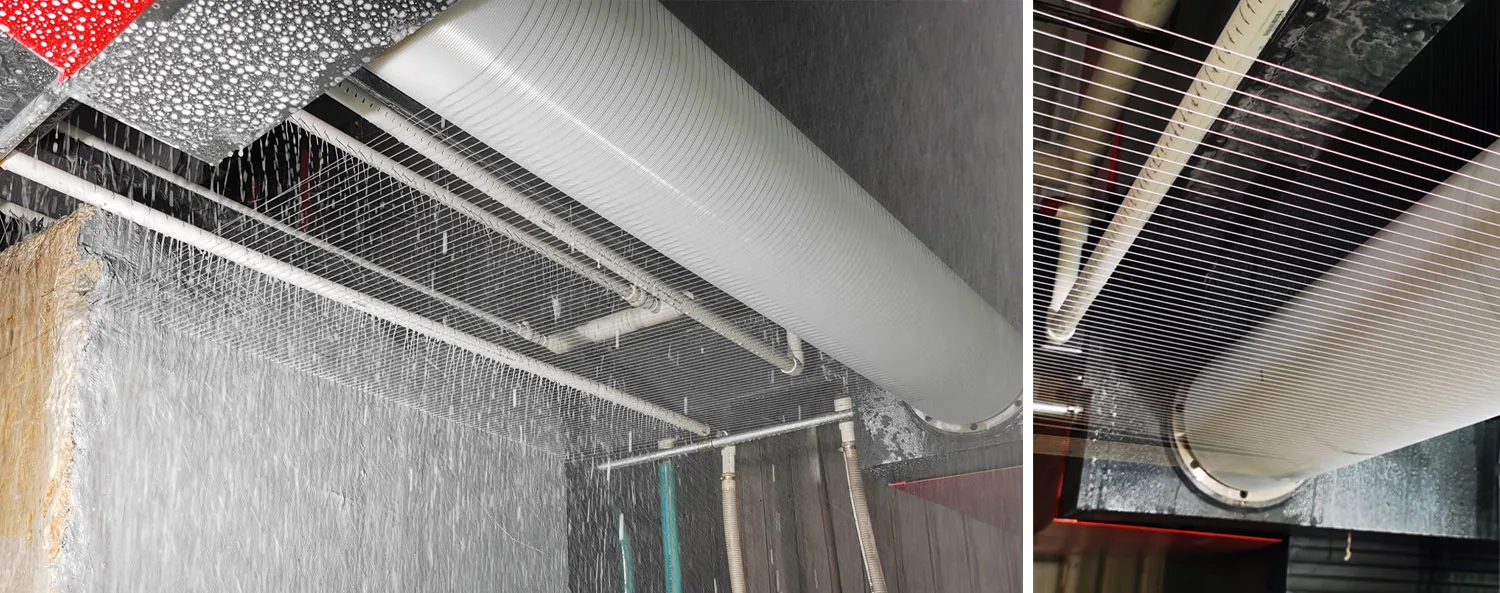

Wire roller
30 km or 50km super thin diamond wire can be stored per roller. Each 800m to 1000m wire is released for cutting and cutting...passivated, and then another length of 800m to 1000m new wire is released for cutting...
Console
Visual human-computer interactive operating system, clear at a glance, easy to use
Electric Control Cabinet
INOVANCE advanced multi-machine drive inverters and servo system complete solution are adopted to secure smooth and reliable performance
Technichal Data for HLMW-100/150 | ||||
Diameter of diamond wire | mm | 0.3 - 0.8 | ||
Max. volume of wire stored | km | 30 / 50 | ||
Operating line speed | m/s | 25 - 40 | ||
Thickness of slabs cutted | mm | 5 - 30 | ||
Max. number of cutting pieces | piece | 100 / 150 | ||
Max. processable size of block | mm | 3500x2100x2000 | ||
Max. spindle speed | rpm/min | 3000 | ||
Main motor power | kw | 60 | ||
Gross power | kw | 453 | ||
Dimensions (LxWxH) | mm | 10000x4500x7000 | ||

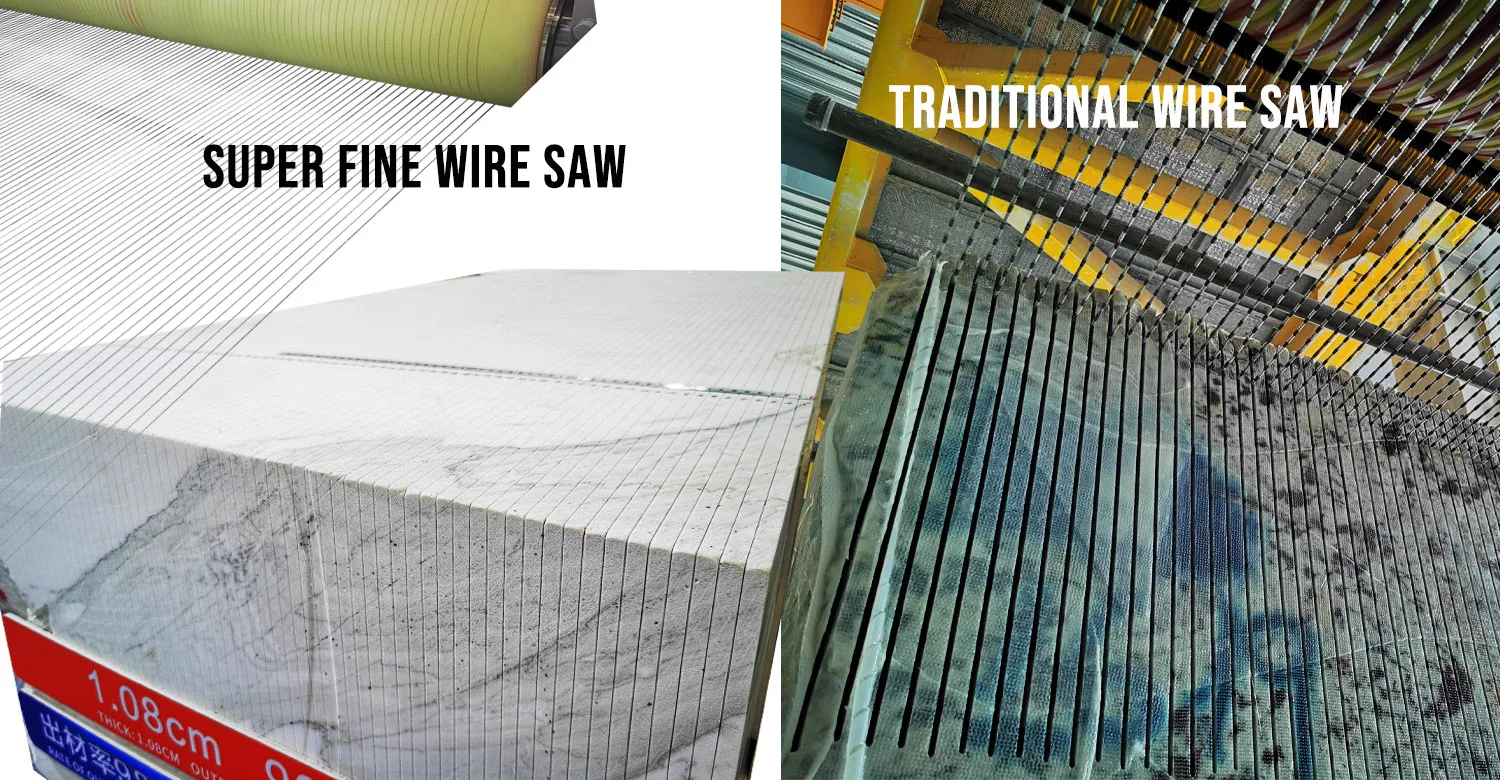

Super Fine Multi Wire Saw Machine

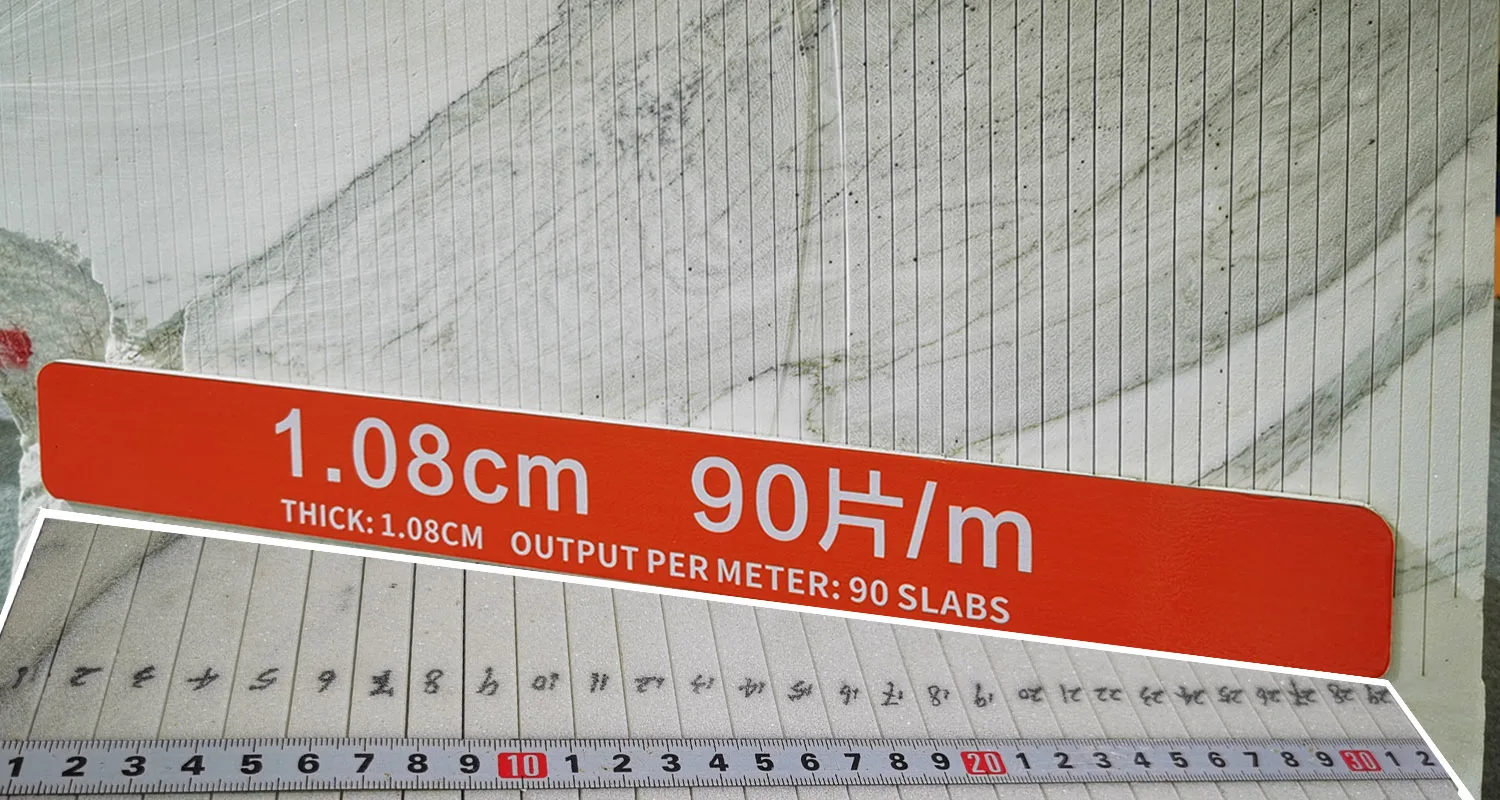

* Output: 90 pcs/m for 1.08cm thick slabs
* Rate of Output: 98.2%
* Emission Reduction of Stone Powder: 90%
* More smooth surface cutted
The output is 15% more than gang saw and 20% more than traditional wire/rope saw.
Because diameter difference means yield difference.

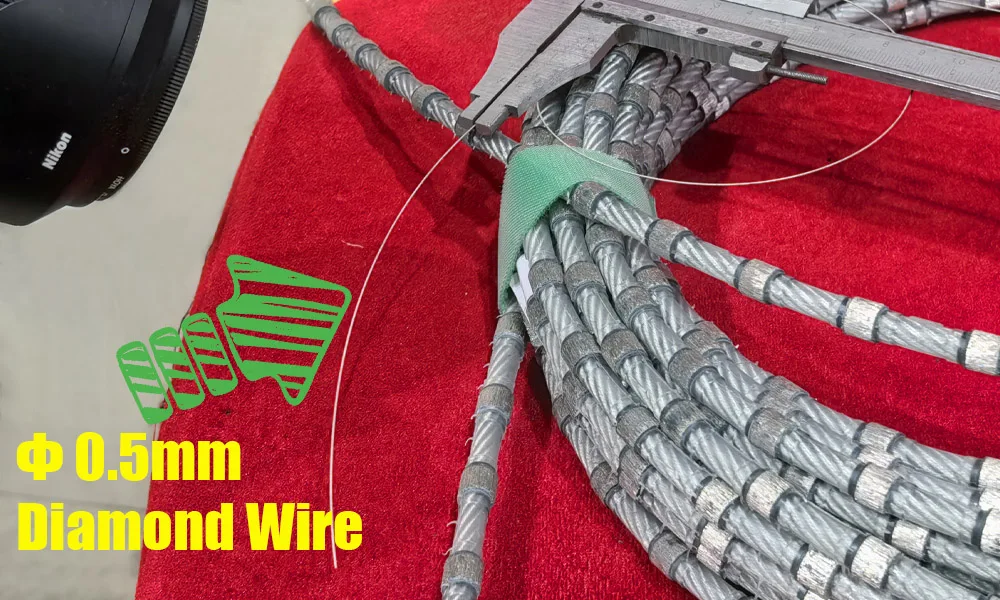

HLMW-100/150 -- Diameter of diamond wire saw | 0.55mm |

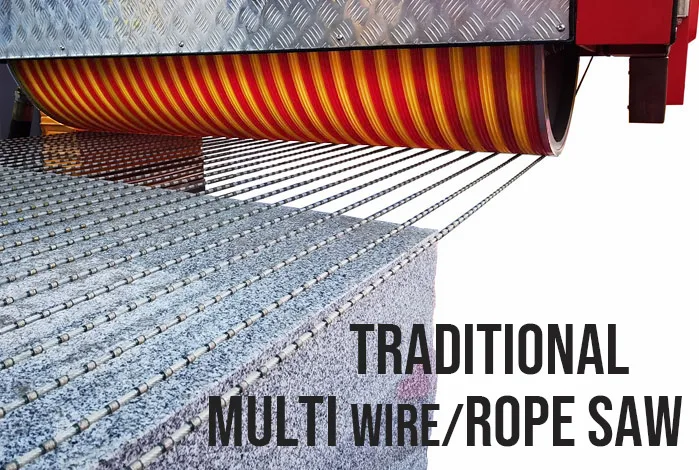

Traditional -- Diameter of diamond wire/rope saw | 5.3 - 7.3mm |

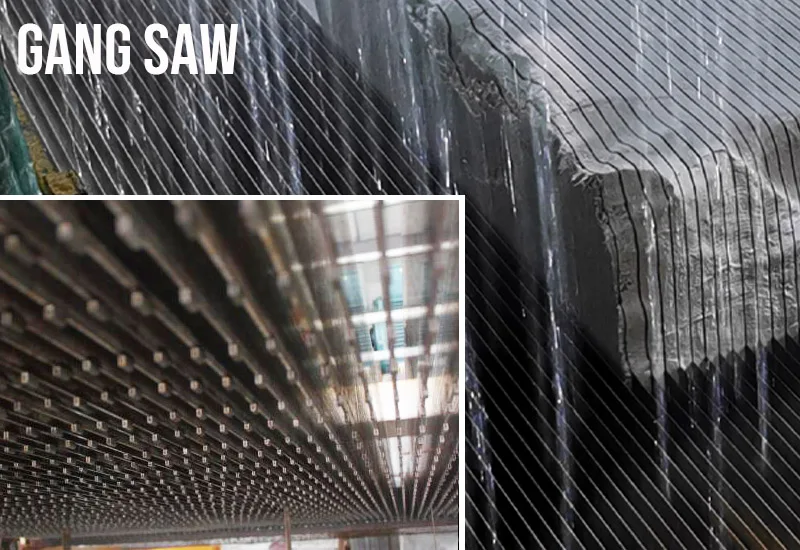

Gang saw -- Thickness of belt saw with segments | 2.2 - 3.5mm |

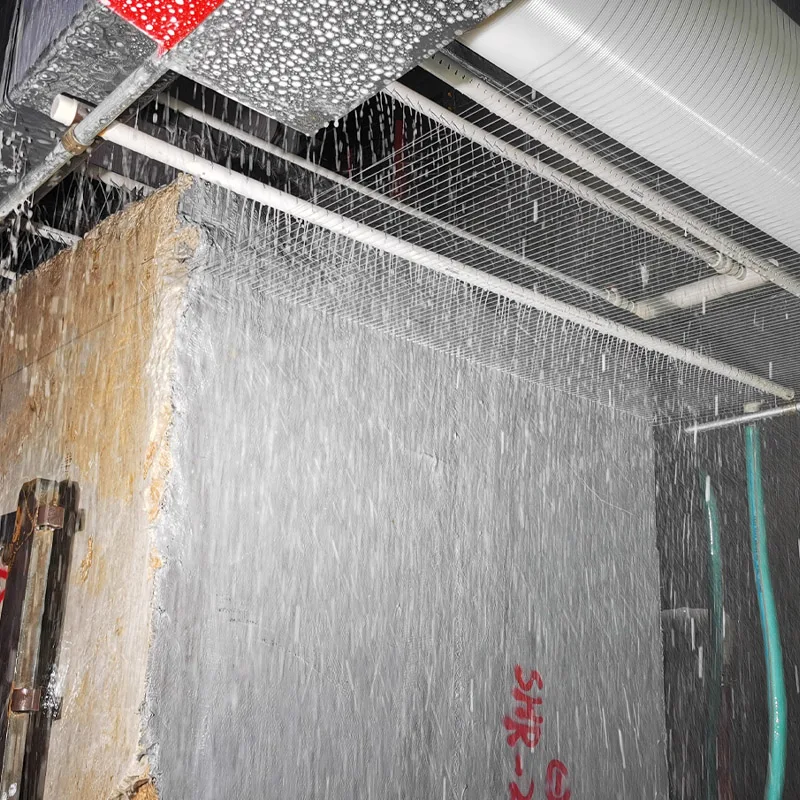

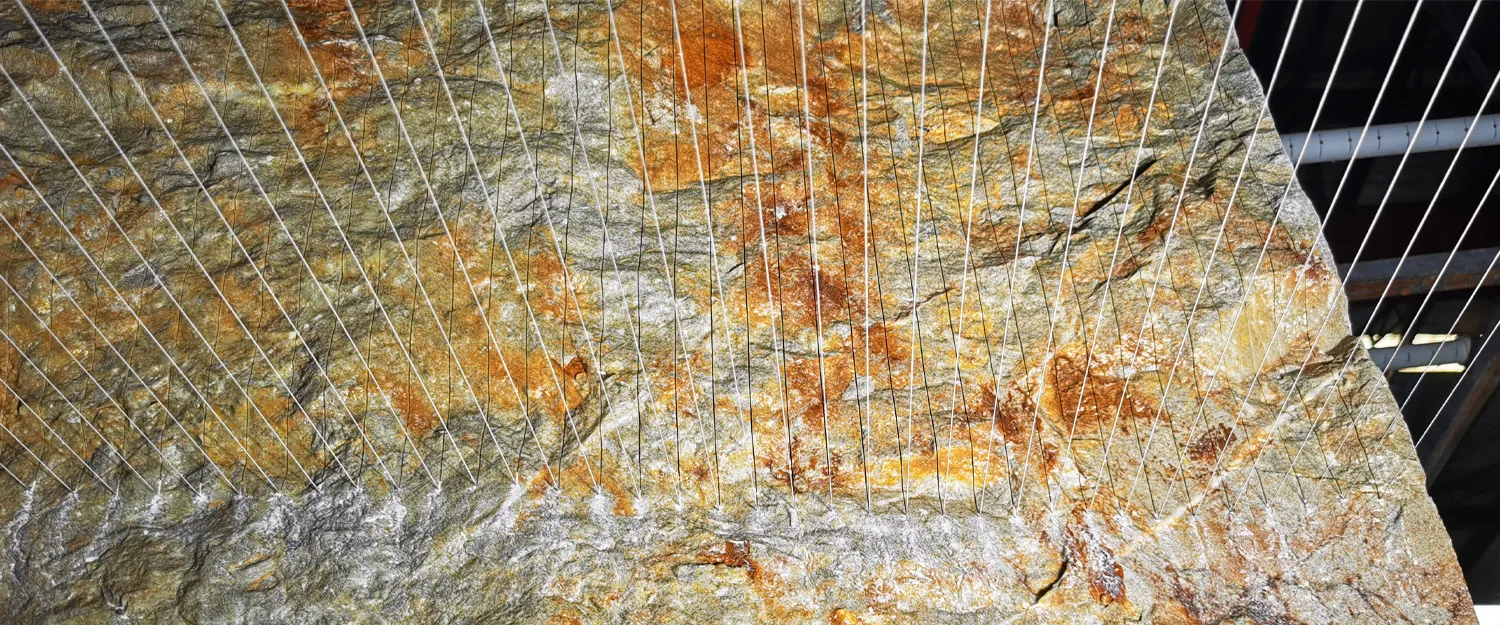

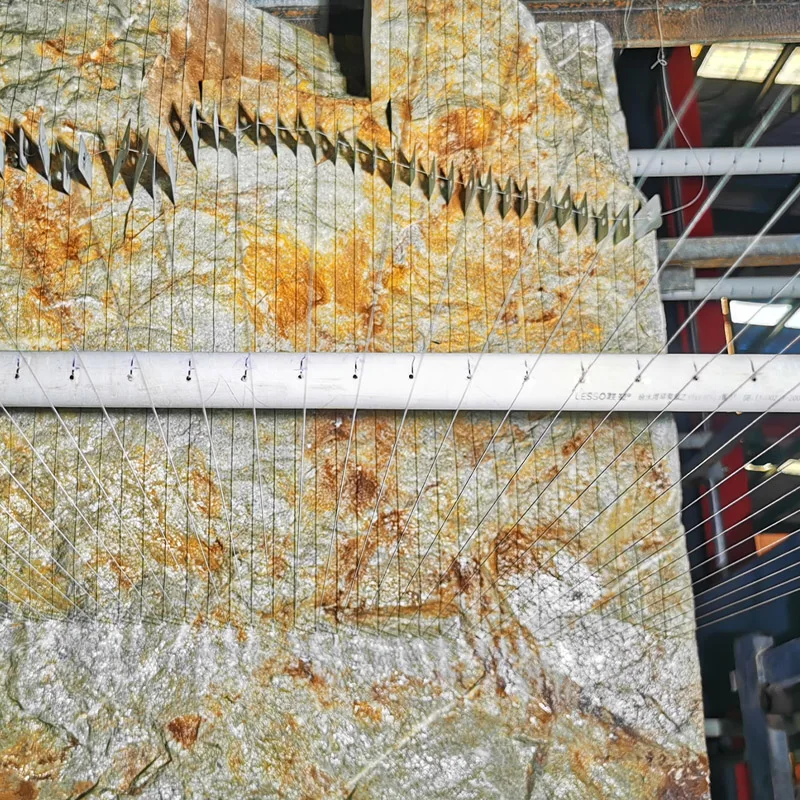

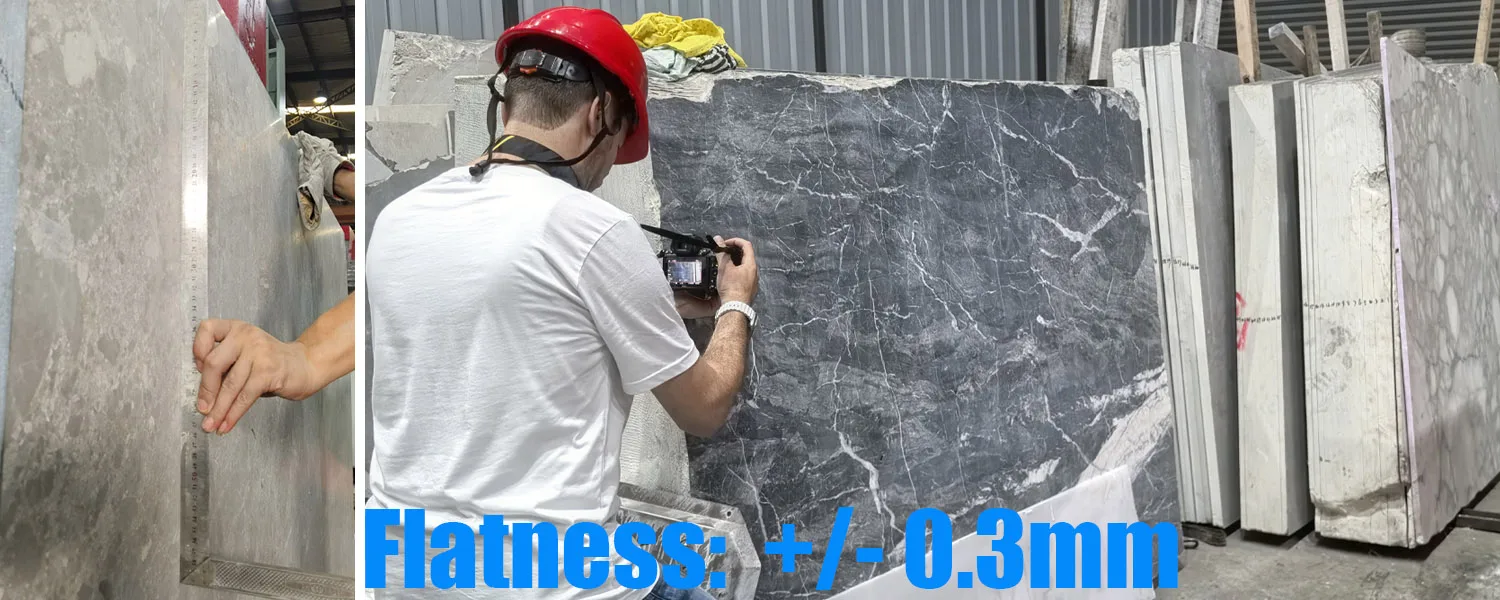

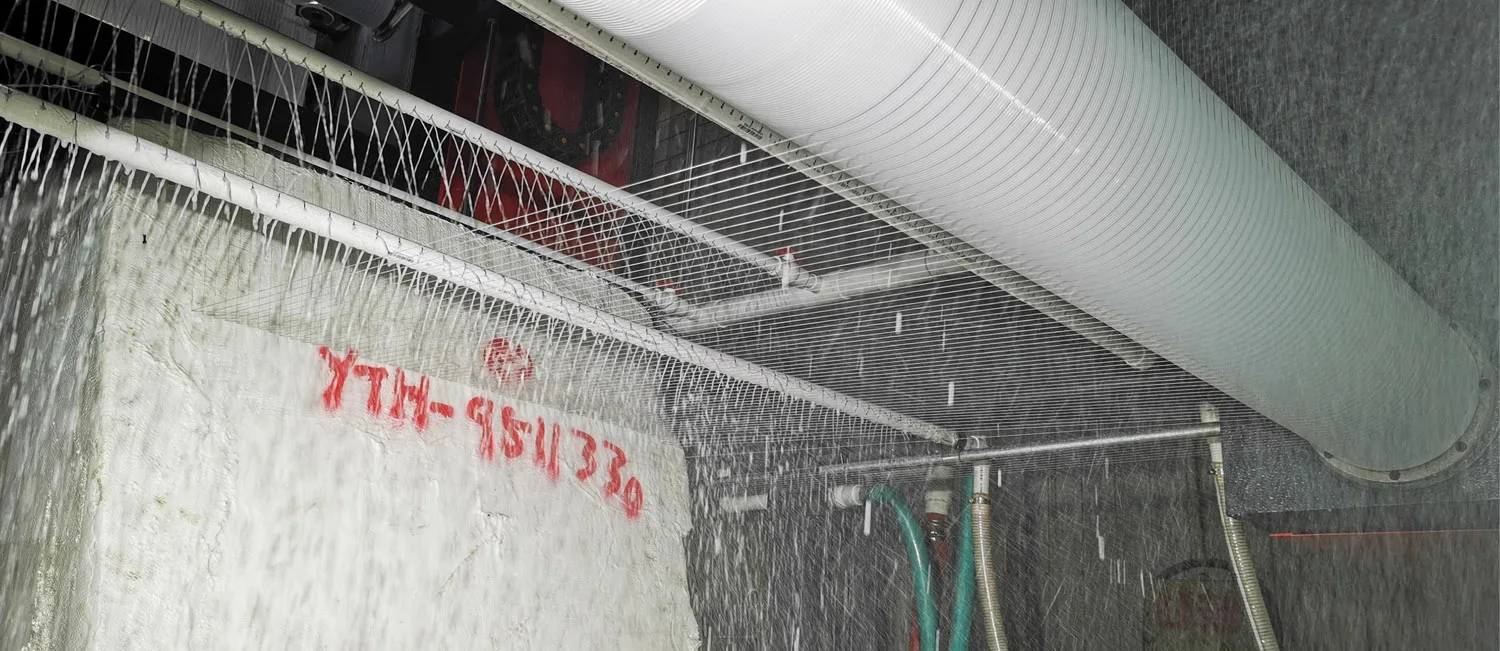

Tense and steady thin wire cutting make surface flatness within +/- 0.3mm
Is the diamond wire of your machine easy to break?
No, not at all. It's the trouble of old generation machines.
Because of our upgraded patented machnical structure and unique winding technology, the diamond wire will never break caused by stone.

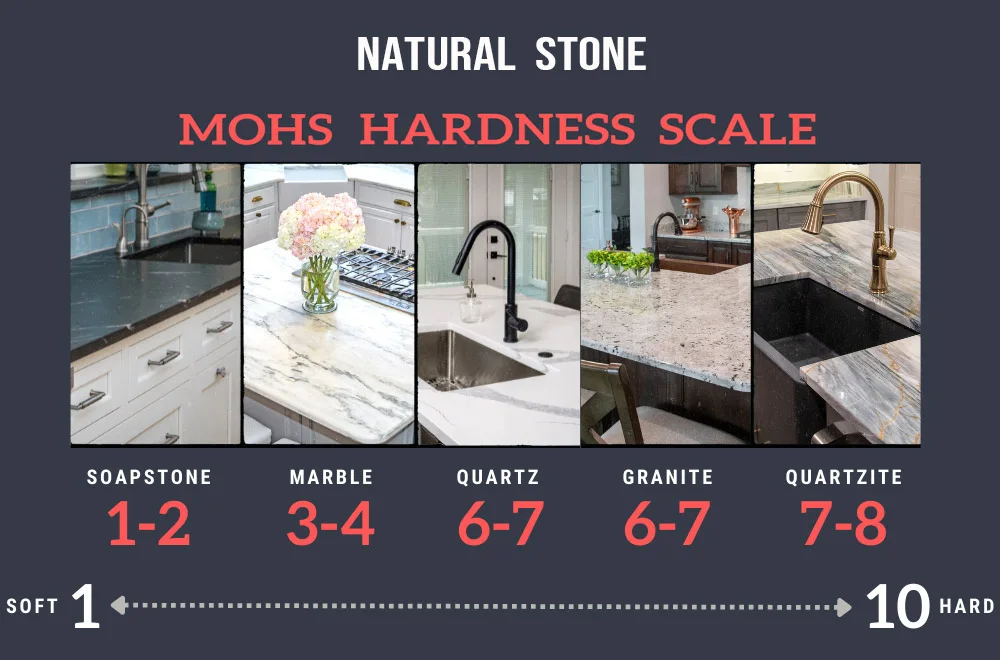

For the stone with Moh's hardness not more than 7, the diamond wire can cut the stone smoothly, running stablely and not break.
For the stone with Moh's hardness more than 7, it's too hard for the diamond wire to bite for the time being. The diamond abrasive on the wire will be weared quickly, but the wire will still not be broken.
If the diamond wire was broken by other external force accidental, depand on the breakpoint location, it can be solved and have the cutting going on in 0.5-5 hours.

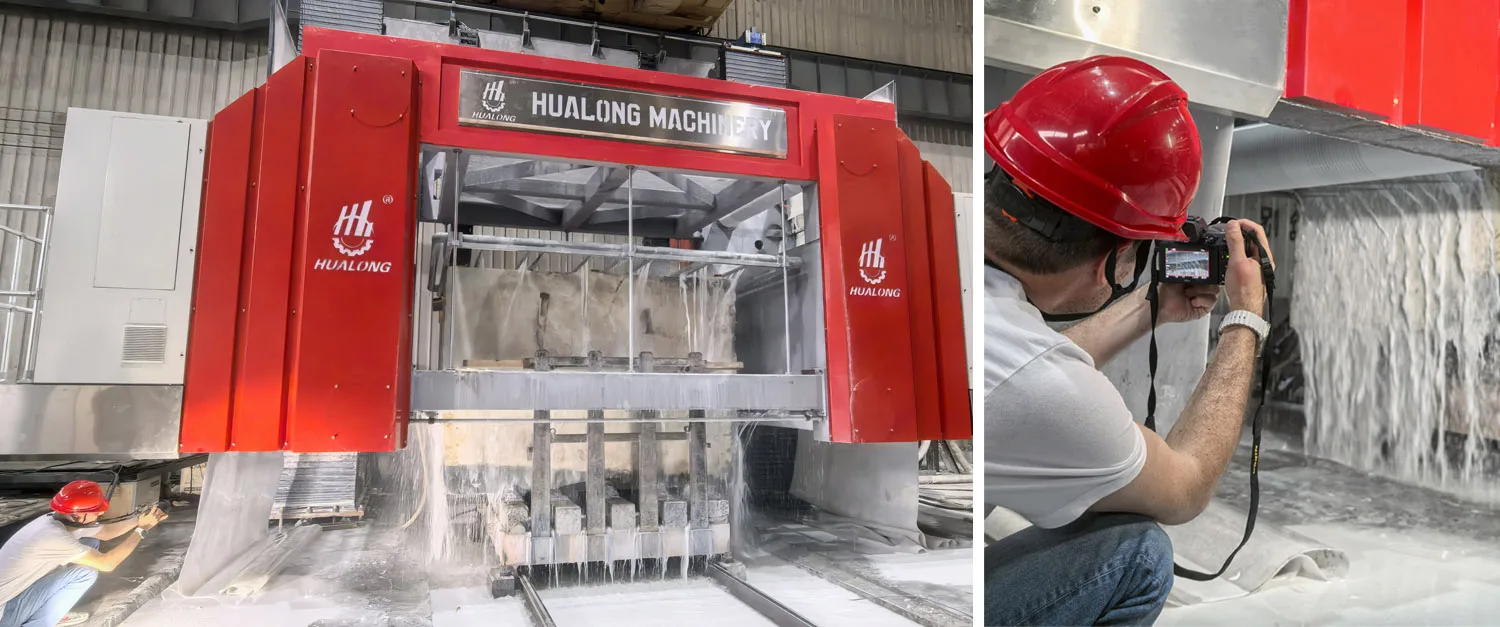

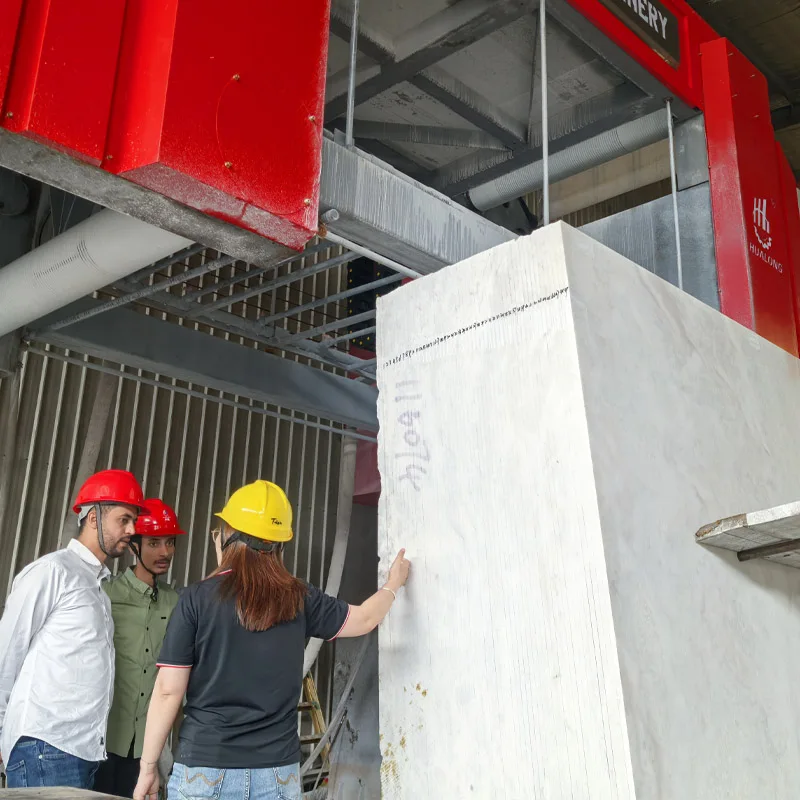

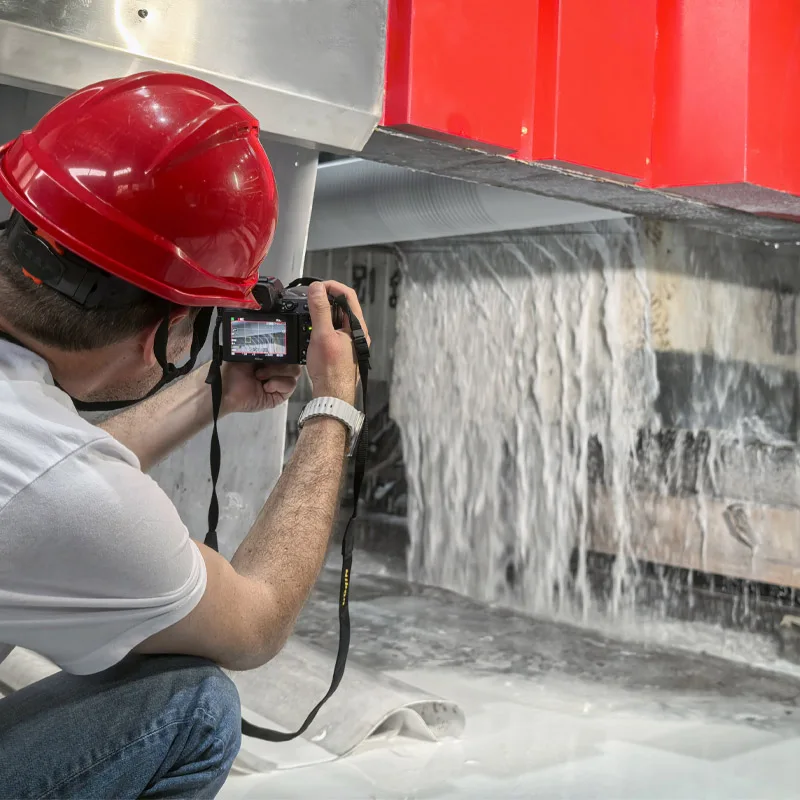

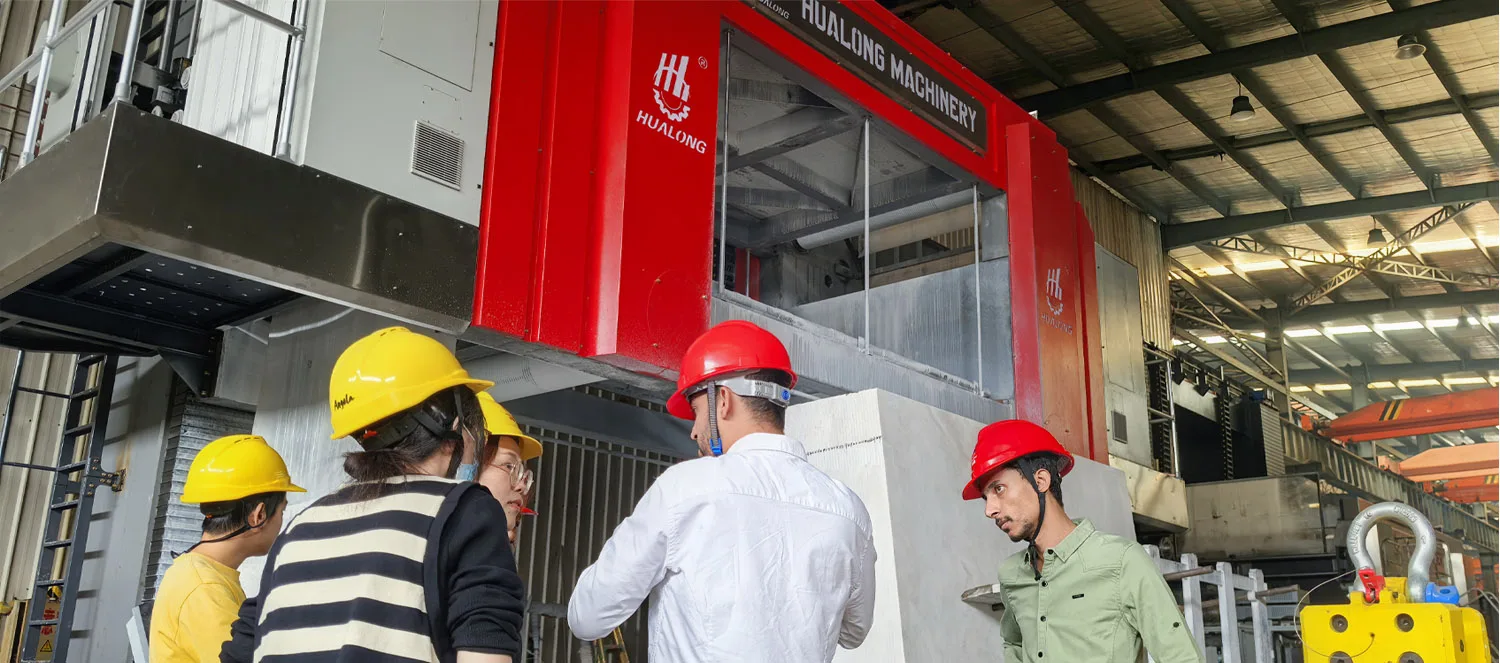

Seeing is believing. We welcome you to visit us & see the real machine working.
If need, we can also provide workers to undertake the block cutting works for you.

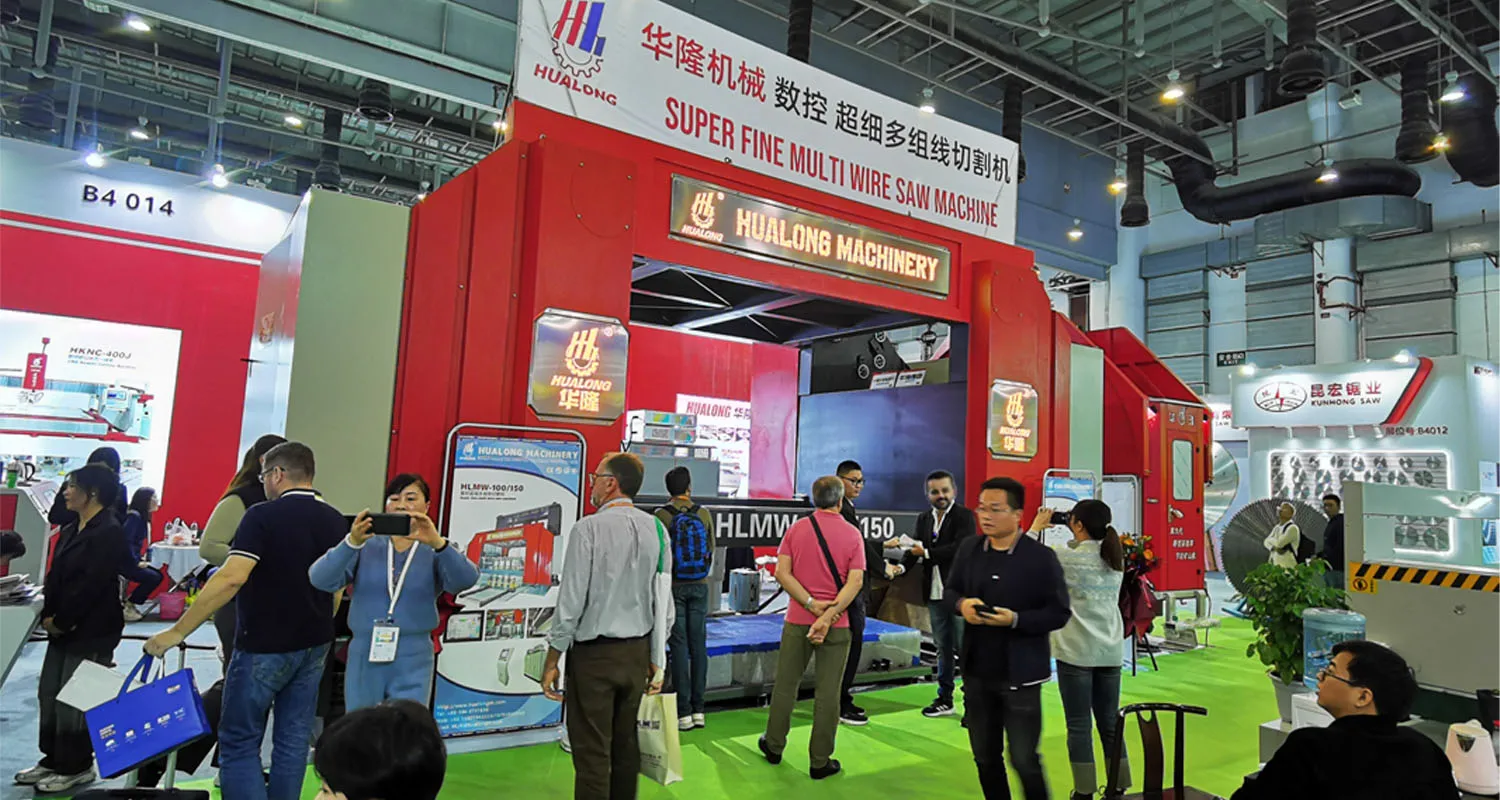

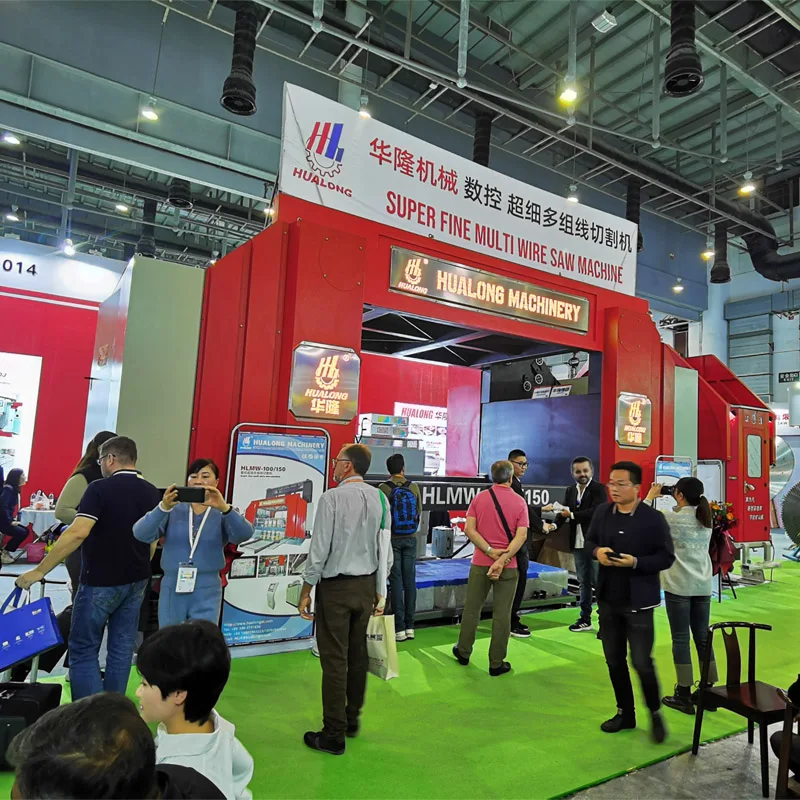

HLMW-100/150 Super Thin Multi Wire Saw Debut @ 2024 Xiamen International Stone Fair
VR
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
