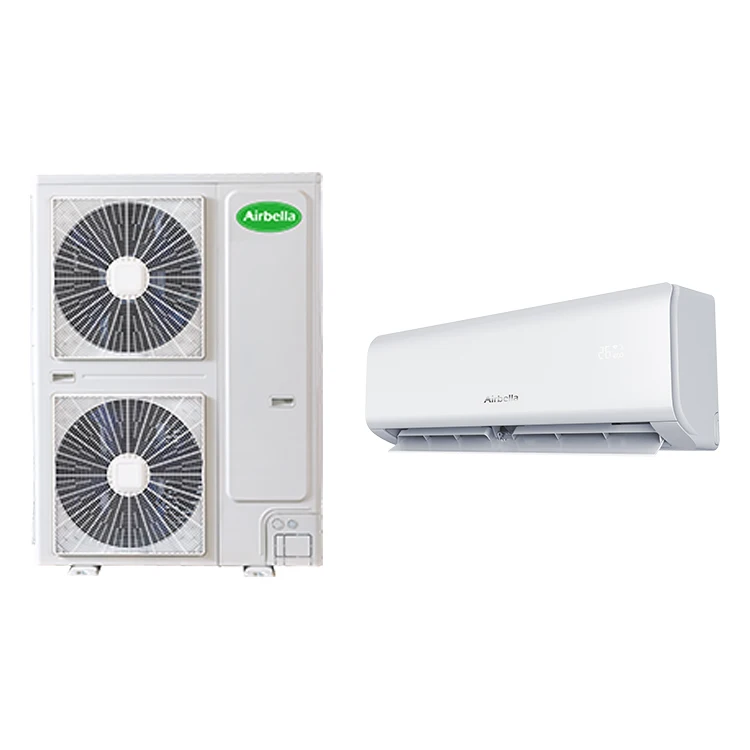

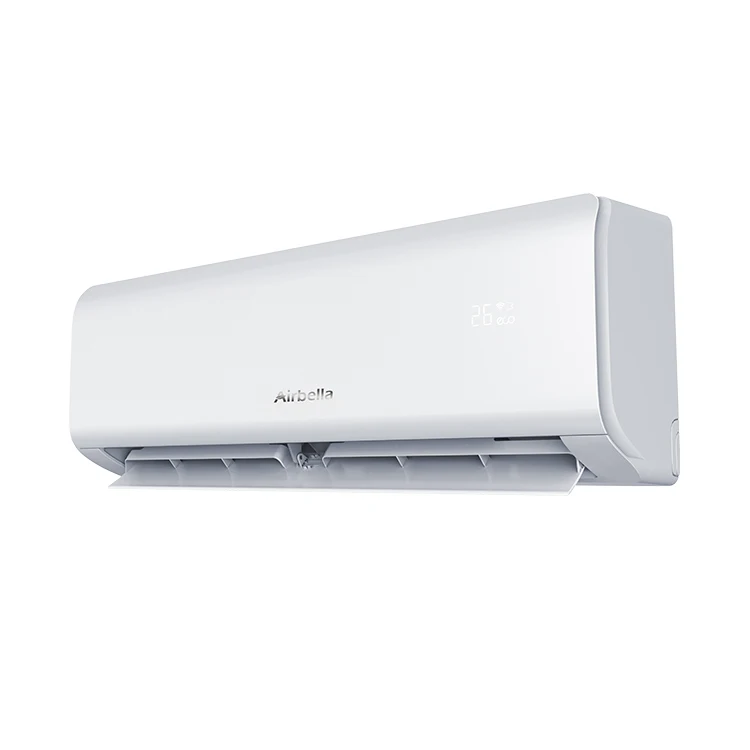

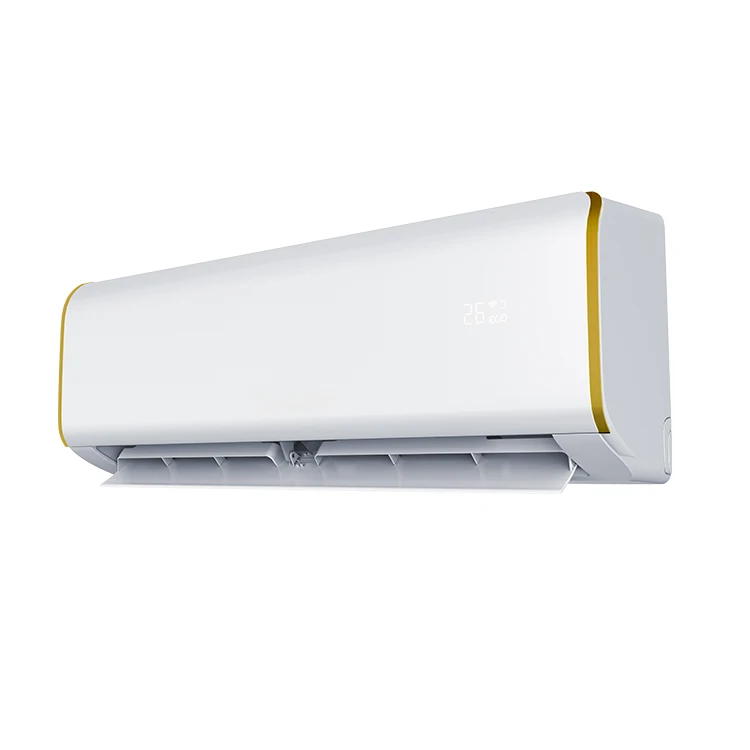

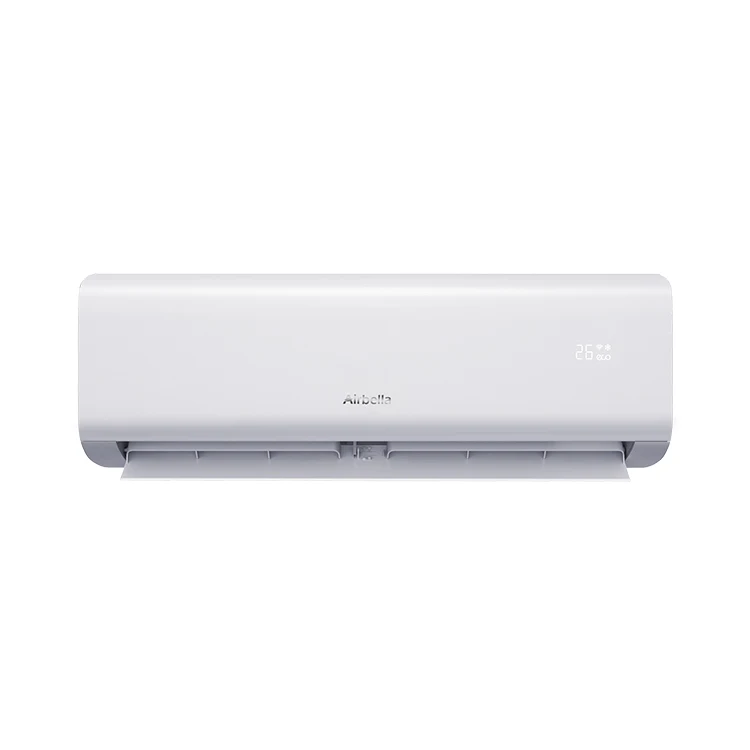

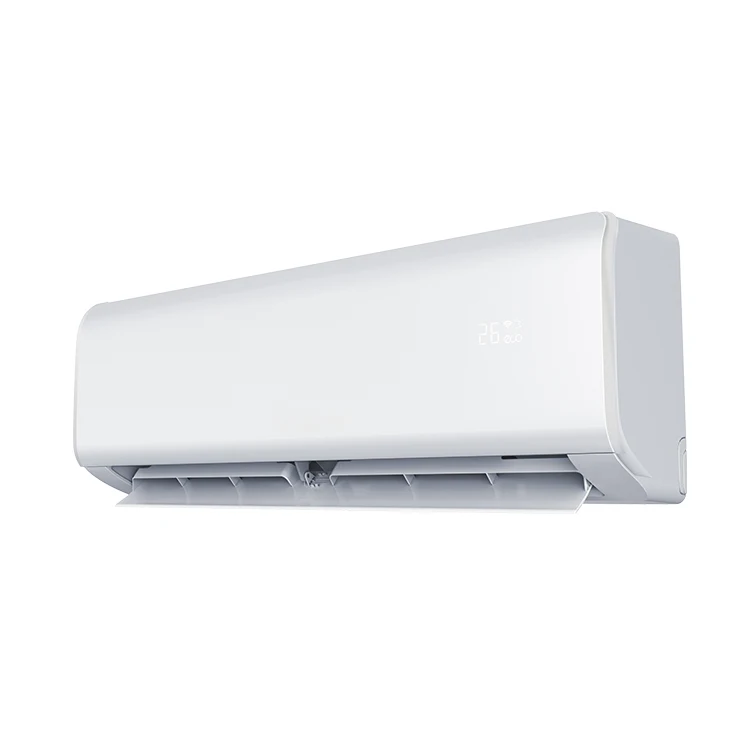

60HZ R410a DC 70Kw VRF System Cooling/Heating Wall Mounted Multi Split Air Conditioners
- Category: >>>
- Supplier: Foshan Peile Engineering Technology Co. Ltd
Share on (1601211589879):
Product Overview
Description
Model | AMVWM-D45HA1X-Z | AMVWM-D56HA1X-Z | AMVWM-D71HA1X-Z | ||||
Code | 821044100023 | 821044100024 | 821044100025 | ||||
Power supply | 220-240V/1N/60Hz | 220-240V/1N/60Hz | 220-240V/1N/60Hz | ||||
Capacity | Cooling | kW | 4.5 | 5.6 | 7.1 | ||
Heating | kW | 5.0 | 6.3 | 8.0 | |||
Power Input | W | 20 | 23 | 35 | |||
Fan motor | Model | DR-310-30G-8 | DR-310-30G-8 | DR-310-30G-8 | |||
Type | DC | DC | DC | ||||
Brand | Weiling | Weiling | Weiling | ||||
Speed (Tur/Hi/Med/Low) | r/min | 1050/950/900/850 | 1100/1000/950/900 | 1300/1200/1100/1000 | |||
Indoor coil | Number of rows | 2 | 2 | 2 | |||
Fin type | Hydrophilic Aluminum | Hydrophilic Aluminum | Hydrophilic Aluminum | ||||
Tube diameter and type | mm | Ø7,Innergroove tube | Ø7,Innergroove tube | Ø7,Innergroove tube | |||
Air flow | m3/h | 655/610/565/525 | 720/645/580/560 | 890/805/720/645 | |||
Sound pressure level | dB(A) | 29~38 | 32~42 | 35~43 | |||
Body | Dimension (W×H×D) | mm | 972x320x215 | 972x320x215 | 972x320x215 | ||
Packing (W×H×D) | mm | 1060x400x310 | 1060x400x310 | 1060x400x310 | |||
Net/Gross weight | kg | 11.5/14 | 11.5/14 | 11.5/14 | |||
Refrigerant type | R410A | R410A | R410A | ||||
Throttle type | EXV | EXV | EXV | ||||

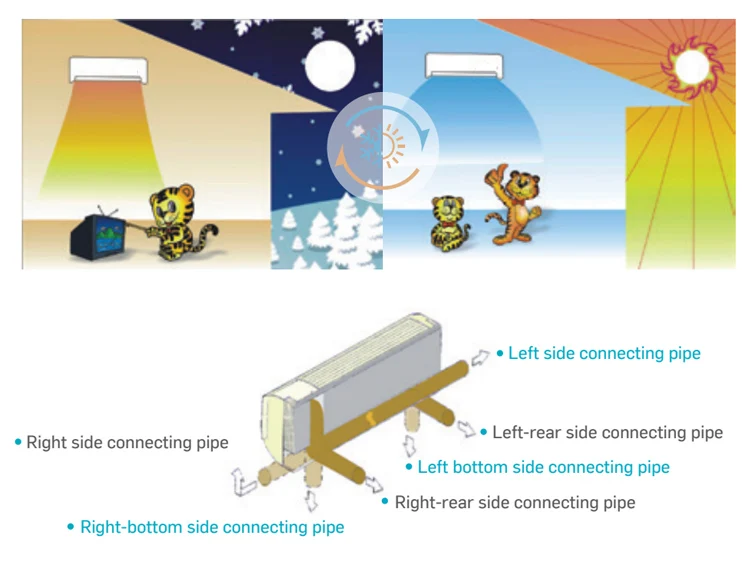

Liquid pipe / Gas pipe | mm | Ø6.35/ Ø12.7 | Ø6.35/ Ø12.7 | Ø9.52/ Ø15.88 | |||
Connecting wire | Power wire | mm2 | 1.5*2+2.5(L≤20m) | 1.5*2+2.5(L≤20m) | 1.5*2+2.5(L≤20m) | ||
2.5*2+2.5(20m＜L≤50m) | 2.5*2+2.5(20m＜L≤50m) | 2.5*2+2.5(20m＜L≤50m) | |||||
Signal wire | mm2 | 0.75*2 shield | 0.75*2 shield | 0.75*2 shield | |||
Drainage water pipe (Outer diameter) | mm | Ø20 | Ø20 | Ø20 | |||
Controller | Standard | Remote controller | Remote controller | Remote controller | |||
Optional | 3-core wired controller | 3-core wired controller | 3-core wired controller | ||||
Operation temperature | ˚C | 16~32 | 16~32 | 16~32 | |||
Airbella is a professional and reliable air conditioner supplier in Guangdong China. Founded in 2012 in Hongkong, Airbella had actually served for off-line customers for over12years. Our business has covered North and Latin America, Asia pacific, Africa and Europe. Currently, we have more than 100 OEM customers, and just started to run our own brand Airbella since 2024.Our team is made up of different departments such as sales, R&D and after service, quality control and production.
