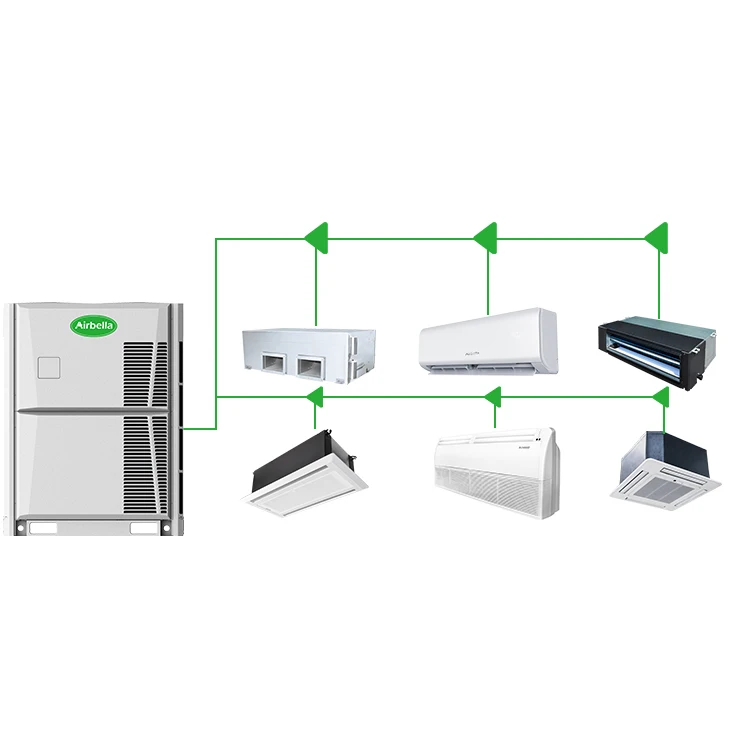

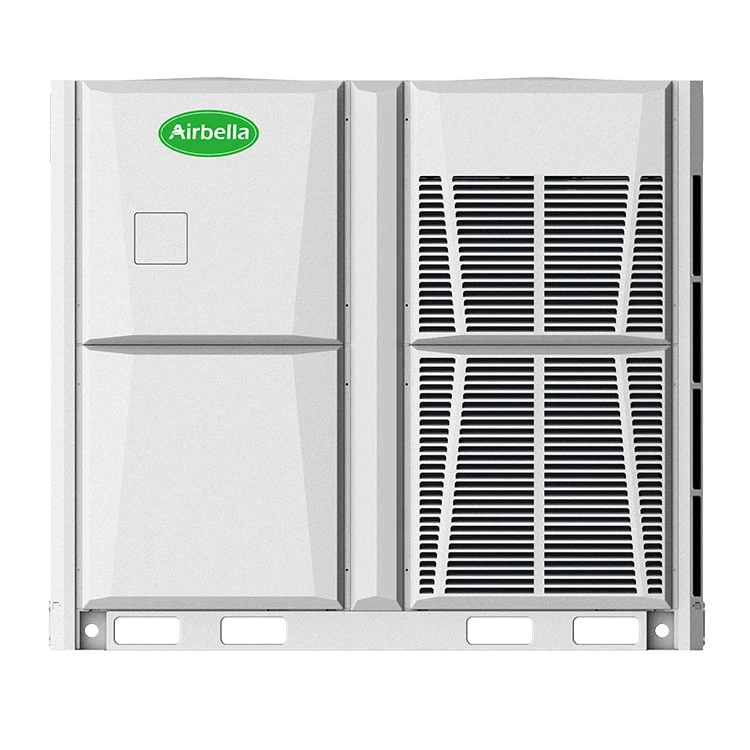

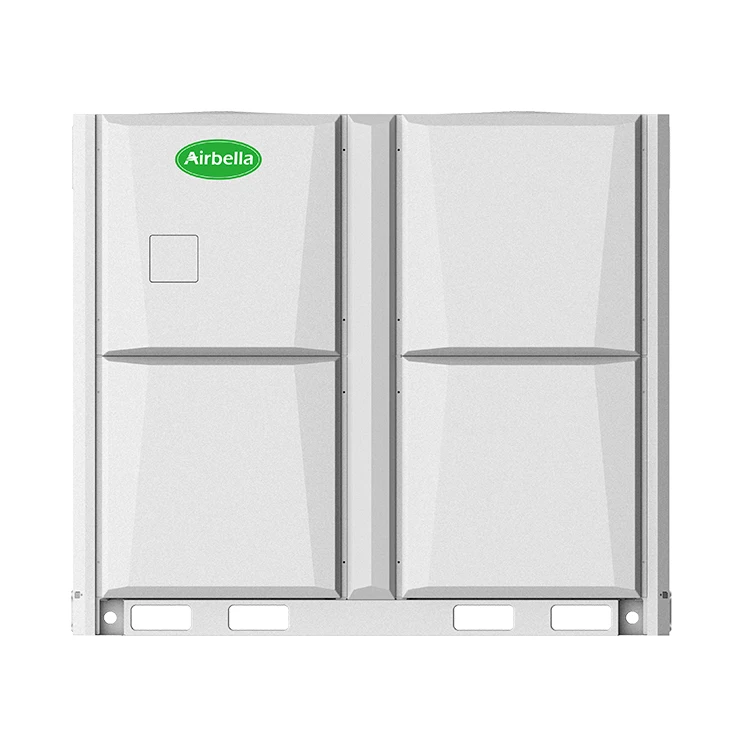

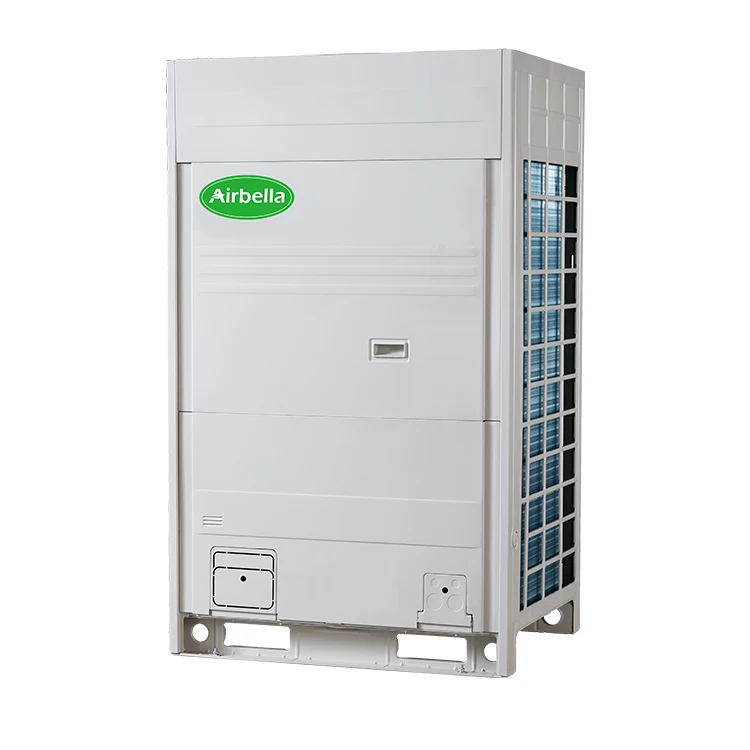

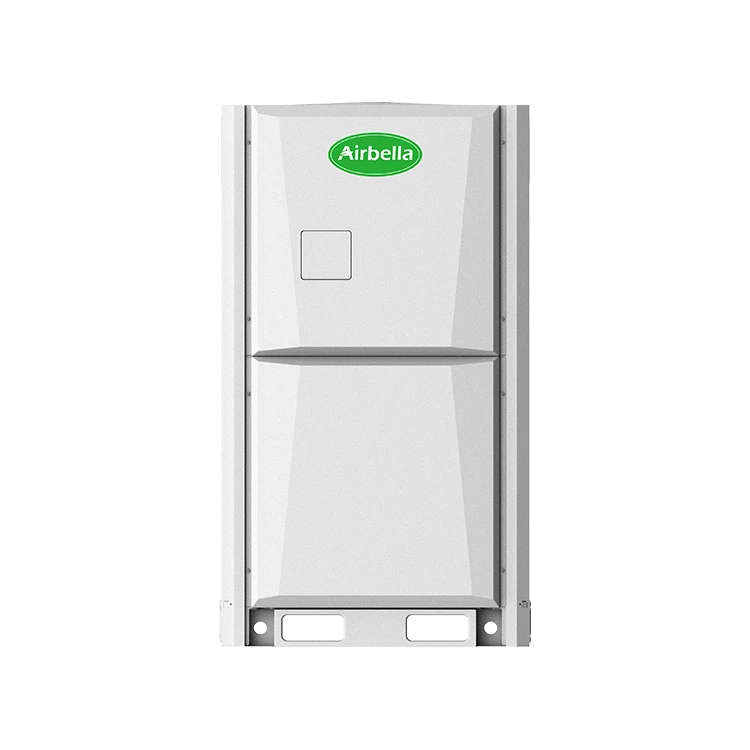

60HZ R410a DC 33.5KW Only Cooling System VRF VRV Central Air Conditioning
- Category: >>>
- Supplier: Foshan Peile Engineering Technology Co. LtdFoshan Ltd
Share on (1601211616966):
Product Overview
Description
Model | AMVT-D252CA3Y-G | AMVT-D280CA3Y-G | AMVT-D335CA3Y-G | |||
821042300021 | 821042300022 | 821042300023 | ||||
Cooling | Capacity | HP | 8HP | 10HP | 12HP | |
kW | 25.2 | 28 | 33.5 | |||
Btu/h | 86000 | 95500 | 114000 | |||
RT | 7.2 | 8 | 9.5 | |||
Power input | kW | 5.82 | 6.81 | 9.05 | ||
EER | W/W | 4.33 | 4.11 | 3.7 | ||
Max. input consumption | kW | 13.50 | 14.10 | 14.20 | ||
Rated / Max. current | A | 40.0 | 42.0 | 45.0 | ||
Capacity adjustment range | 50%~130% | 50%~130% | 50%~130% | |||
DC Inverter compressor | Quantity | 1 | 1 | 1 | ||
Type | DC /Twin-rotary | DC /Twin-rotary | DC /Twin-rotary | |||
Brand | Mitsubishi | Mitsubishi | Mitsubishi | |||
frequency range | rps | 10~120 | 10~120 | 10~120 | ||
Compressor oil | Model | FV50S | FV50S | FV50S | ||
Original oil volume | ml | 2300 | 2300 | 2300 | ||
Additional oil volume | ml | 2500 | 2500 | 2500 | ||
Fan motor | Type | DC | DC | DC | ||
Model | DR-310-750-8-1（ZDK750-8ZHm） | DR-310-750-8-1（ZDK750-8ZHm） | DR-310-750-8-1（ZDK750-8ZHm） | |||
Quantity | 1 | 1 | 1 | |||
Insulation class | B | B | B | |||
Protection class | IP44 | IP44 | IP44 | |||
Power output | W | 750 | 750 | 750 | ||
Fan blade | Material | ASG20 | ASG20 | ASG20 | ||
Type | axial-flow | axial-flow | axial-flow | |||
Drive | Direct-driven | Direct-driven | Direct-driven | |||
Fan Quantity | 1 | 1 | 1 | |||
Air flow | m3/h | 10500 | 10500 | 11000 | ||
Outdoor coil | Fin type | hydrophilic | hydrophilic | hydrophilic | ||
Tube outside diameter | mm | 7.94 | 7.94 | 7.94 | ||
Tube type | Inner-grooved | Inner-grooved | Inner-grooved | |||
Refrigerant | Type | R410a | R410a | R410a | ||
Volume | kg | 8 | 8 | 8 | ||
Dimension (D*H*W) | Net | mm | 840*1740*990 | 840*1740*990 | 840*1740*990 | |
Packing | mm | 910*1900*1060 | 910*1900*1060 | 910*1900*1060 | ||
Weight | Net | kg | 208 | 208 | 208 | |
Gross | kg | 218 | 218 | 218 | ||
Outdoor sound level | dB(A) | 58 | 58 | 60 | ||
Maximum operating pressure | MPa | 4.5 | 4.5 | 4.5 | ||
Pipe size | Liquid pipe | mm | Ø12.7 | Ø12.7 | Ø12.7 | |
Gas pipe | mm | Ø25.4 | Ø25.4 | Ø25.4 | ||
Max. pipe length | Total pipe length | m | 1000 | 1000 | 1000 | |
From OU to farthest IU(Actual length) | m | 190 | 190 | 190 | ||
From OU to farthest IU(Equivalent length) | m | 220 | 220 | 220 | ||
From 1st indoor distributor to farthest IU | m | 90（40） | 90（40） | 40 | ||
Max. vertical length | Between OU & IU(OU above IU) | m | 90 | 90 | 90 | |
Between OU & IU(OU below IU) | m | 110 | 110 | 110 | ||
Between IUs | m | 30 | 30 | 30 | ||
Between OUs | m | 0 | 0 | 0 | ||
Connection wire | Power wire size | mm2 | 6*4+6(L≤20m) | 6*4+6(L≤20m) | 6*4+10(L≤20m) | |
10*4+6(20m | 10*4+6(20m | 10*4+10(20m | ||||
10.0✖3 | 10.0✖3 | 10.0✖3 | ||||
Signal wire type | 2-core shielded cable | 2-core shielded cable | 2-core shielded cable | |||
Signal wire size | mm2 | 0.75 | 0.75 | 0.75 | ||
Cooling | Outdoor side | °C | -5~55 | -5~55 | -5~55 | |
Indoor side | °C | 16~32 | 16~32 | 16~32 | ||
Airbella is a professional and reliable air conditioner supplier in Guangdong China. Founded in 2012 in Hongkong, Airbella had actually served for off-line customers for over12years. Our business has covered North and Latin America, Asia pacific, Africa and Europe. Currently, we have more than 100 OEM customers, and just started to run our own brand Airbella since 2024.Our team is made up of different departments such as sales, R&D and after service, quality control and production.
