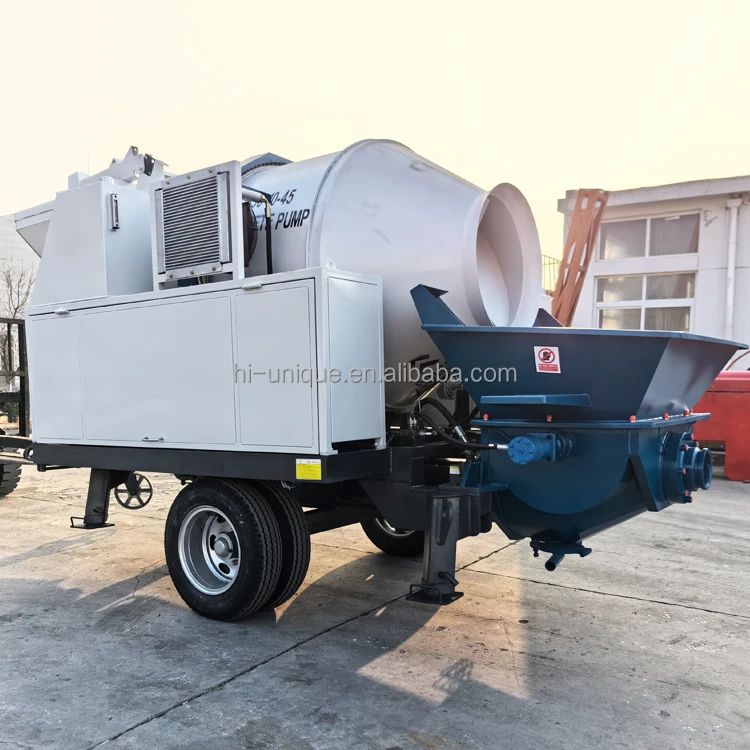

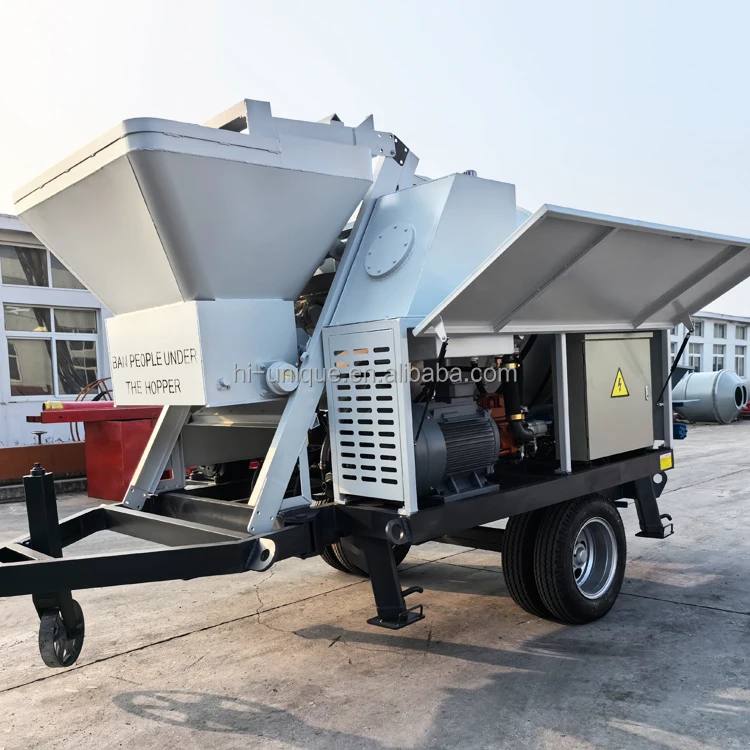

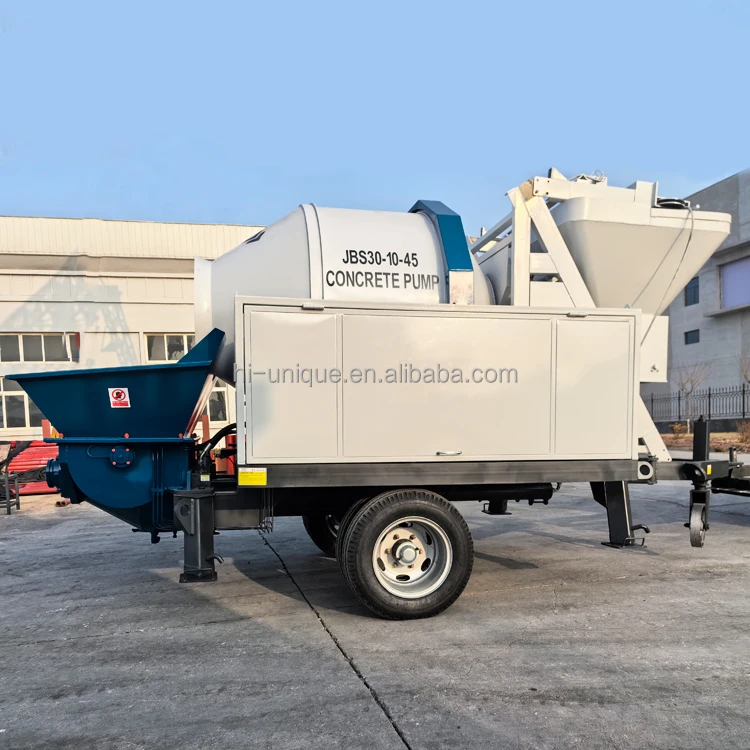

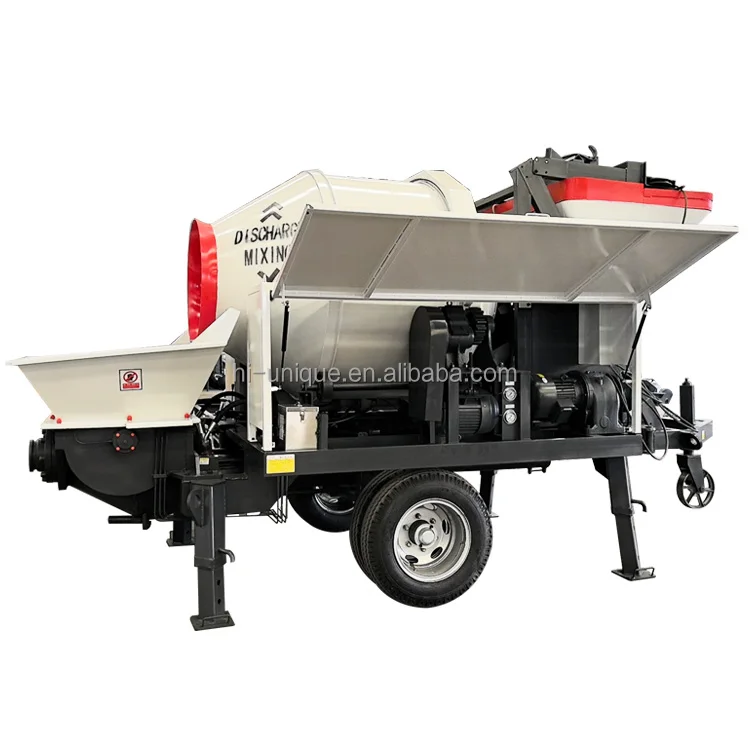

Parameters of JBT30 Concrete Mixer Pump:
Max theoretical concrete conveying capacity | 30m3/h |
Distribution valve model | S tube valves |
Hopper capacity * filling height | 500L* 1200mm |
Pump motor power | 30kw |
Winding motor power | 4kw |
Hydraulic circuit form | Open circuit |
Rated speed | 1480Rmp |
Oil tank volume | 170L |
Weight | 3500kg |
Concrete pumping pressure | 9Mpa |
Concrete cylinder size * length | 180mm*800mm |
Discharge mouth diameter | 180mm |
Mixing motor power | 3*2kw |
Water pump motor power | 550w |
Max aggregate diameter | Pebble: 40mm |
Gravel: 30mm | |
Voltage | 380v |
Dimension(L*W*H) | 4300*2060*3680(mm) |
Product Feature:
1. Mixing and pumping of the perfect combination, to save weight and transportation space frame.
2. high work efficiency.
3. Save labor costs, reduce labor intensity.
4. Smaller power, consider the carrying capacity of rural power grid.
5. Simple operation, easy to use.
6. Double cylinder hydraulic pumping system, capable of delivering crushed stone concrete, stable performance, safe and reliable.
7. Long distance delivery.

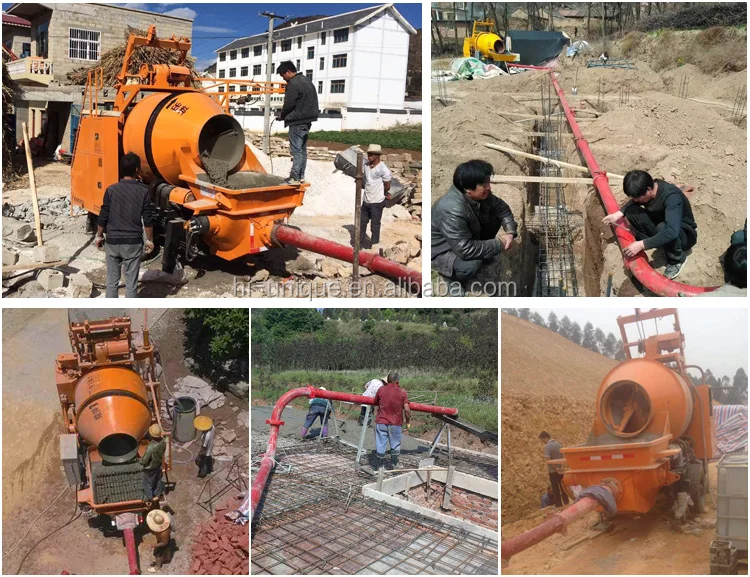

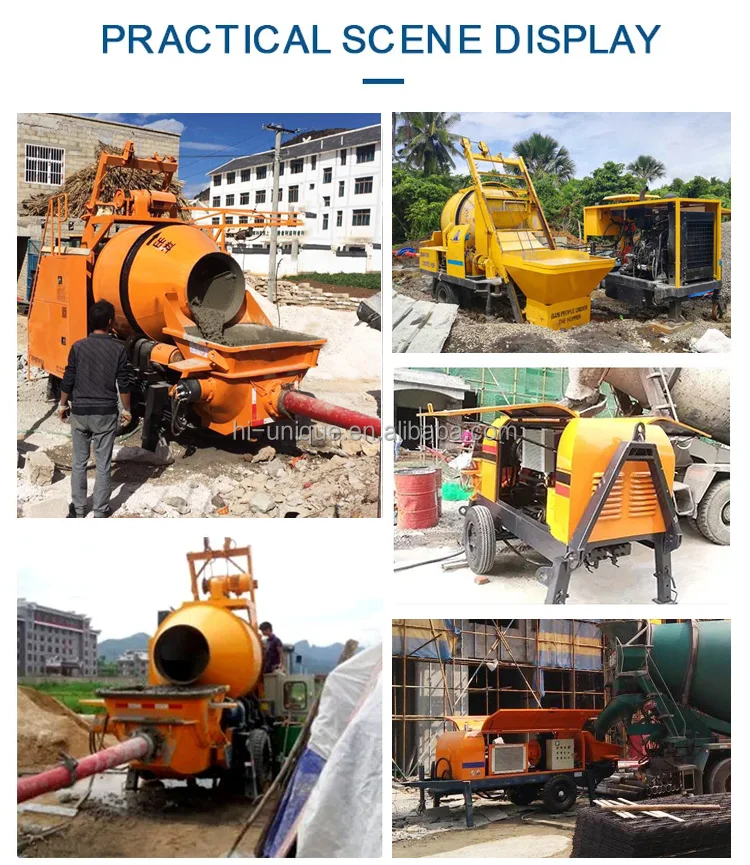

Application:

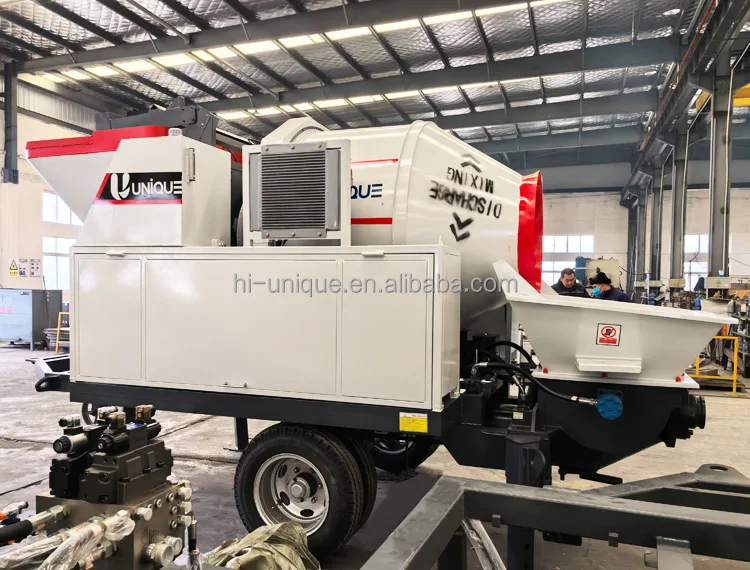

UNIQUE has the 12 workshops to produce every part of concrete mixing plants and we can produce spare parts to delivery thern to you within 2 days.
UNIQUE was founded in 1973, more than 40 years dedicated to building construction enterprises make the most suitable products and services
After -sale service
Lifetime technique support and Engineer serve overseas aviable
Track the use situation of the equipment regularly.
Sufficient spear parts in stock provide for equipment whole life.
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Mixer Truck, Concrete Pumps and Block Making Machines and etc…
UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
Q1.: Are you trading Company or Factory?
A: We are factory. We have been engaged in the production of concrete mixer with pump for more than 30 years.
Q2: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h.
Q3: How long and high you want to pump?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q4: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.
Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
